ZP-C Series Vacuum Suction Cups & Buckle Rings
$2.00 USD
$0.90 USD
55% OFF
ZP-C Series Vacuum Suction Cups & Buckle Rings
Quantity

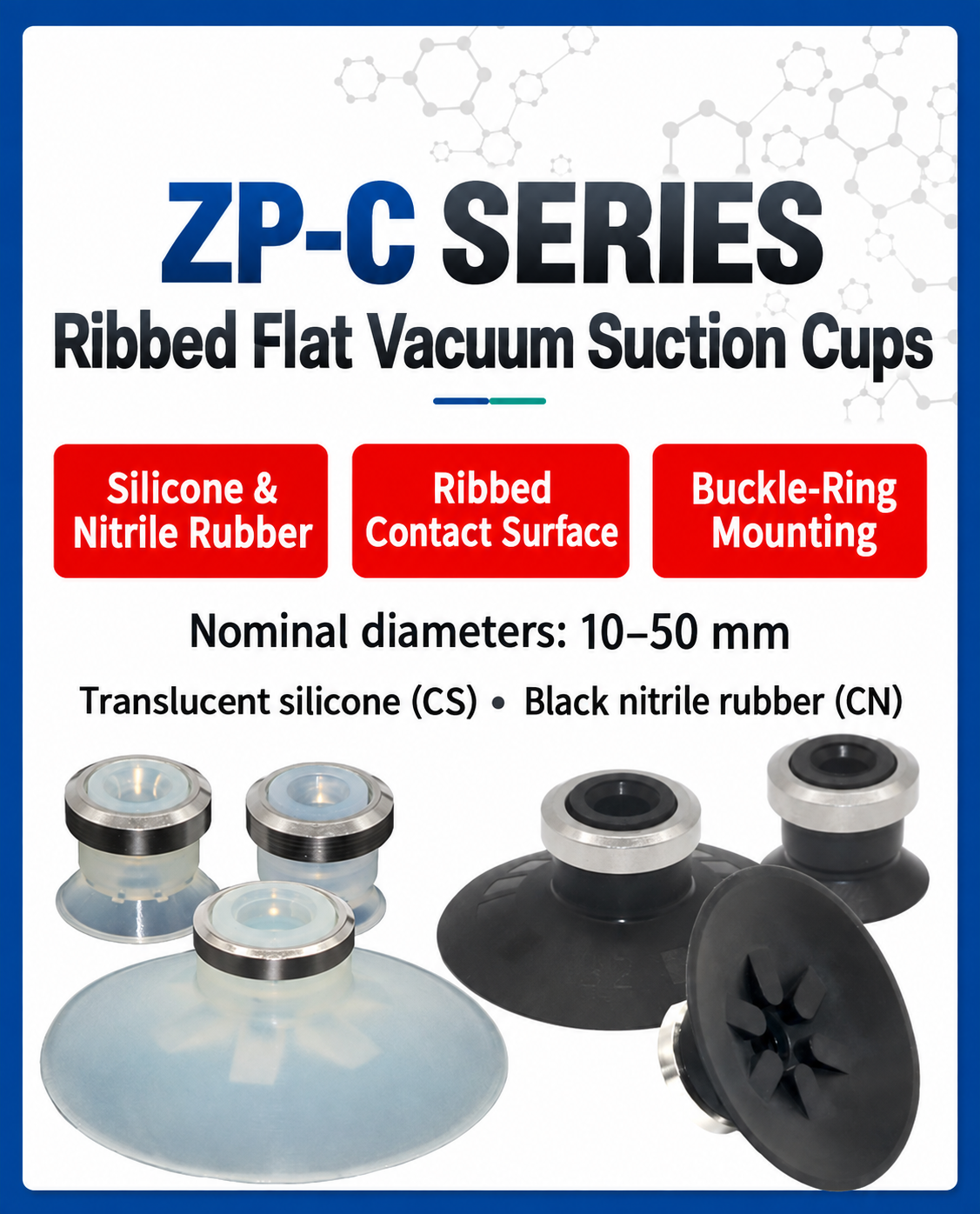

ZP-C Series Vacuum Suction Cups & Buckle Rings
Ribbed flat vacuum suction cups for reliable gripping in automated handling and packaging equipment.
- Choose a model to view its matching product image.

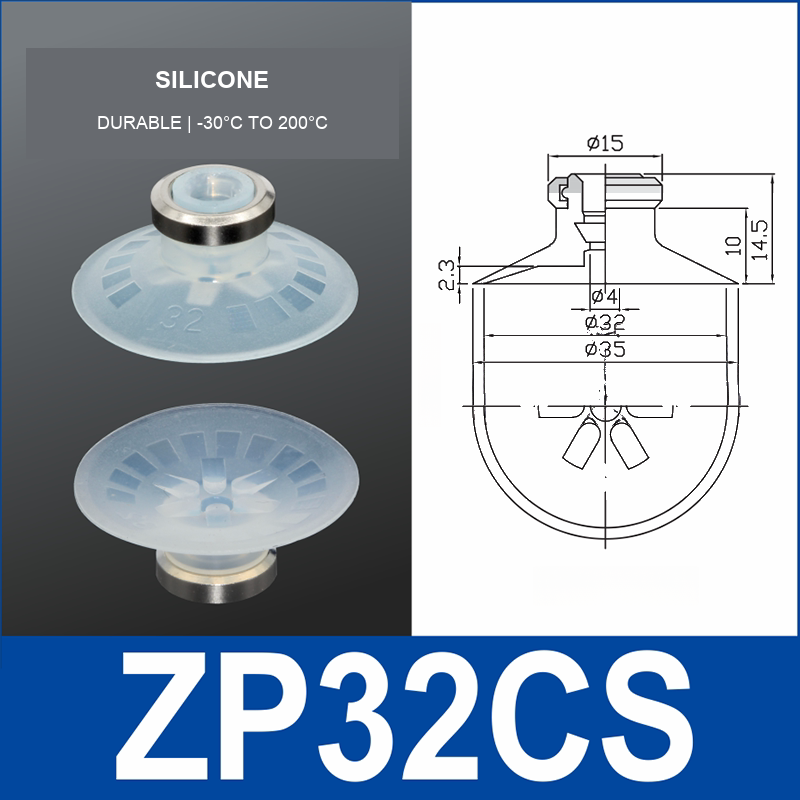

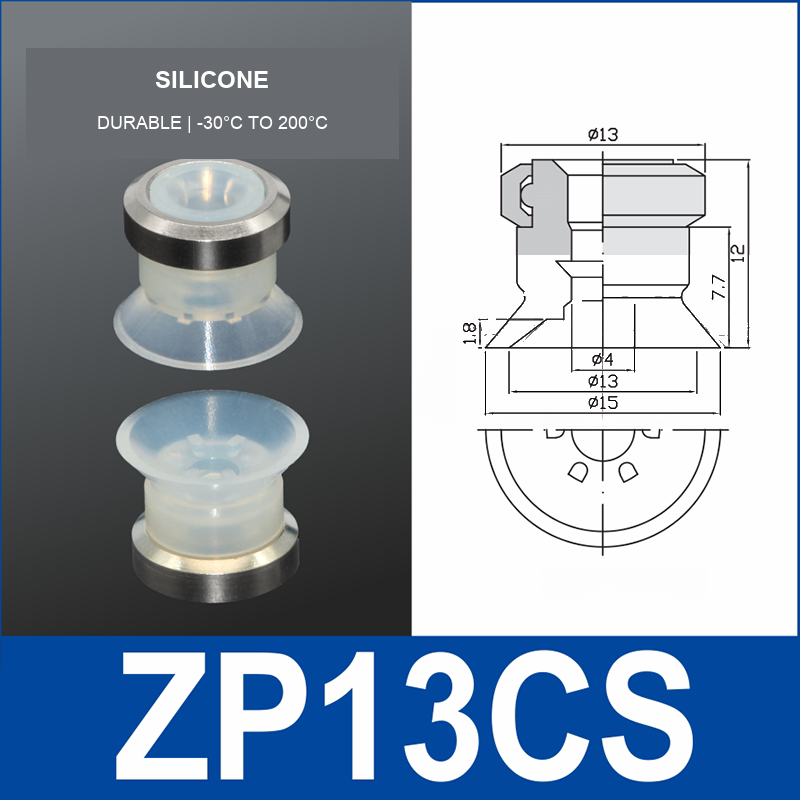

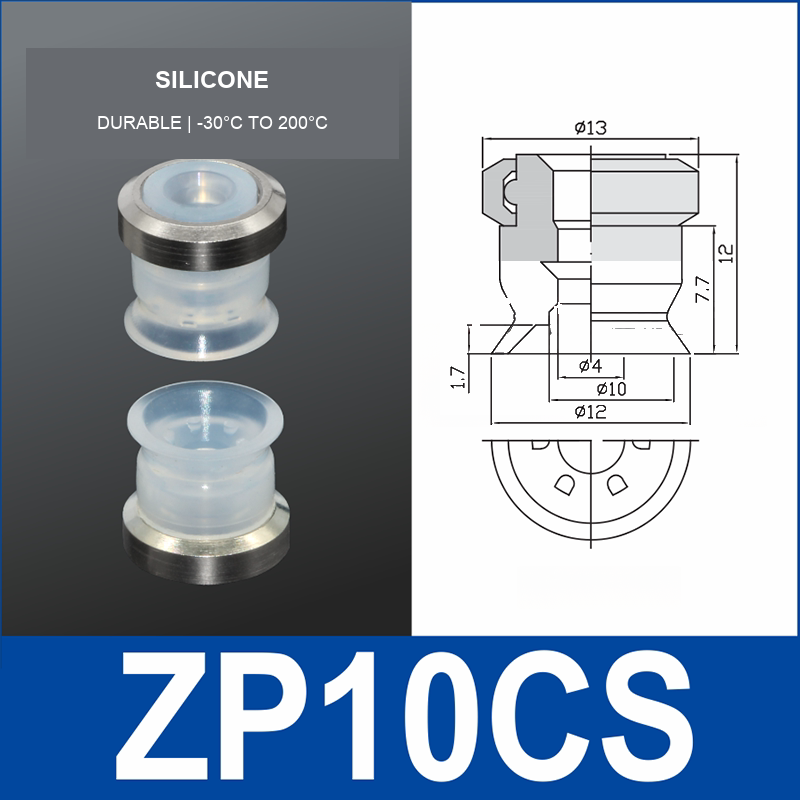

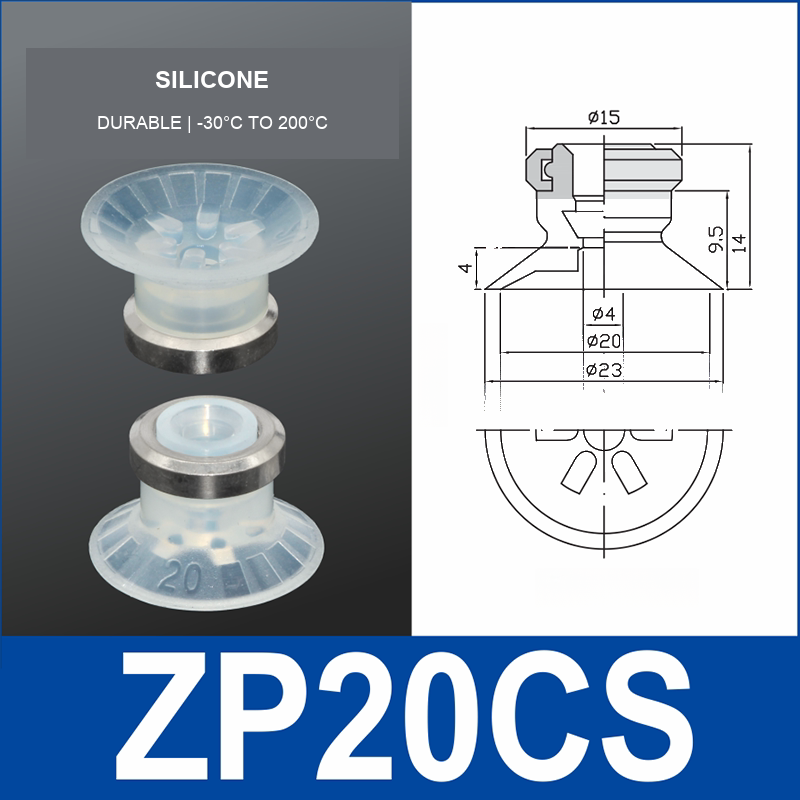

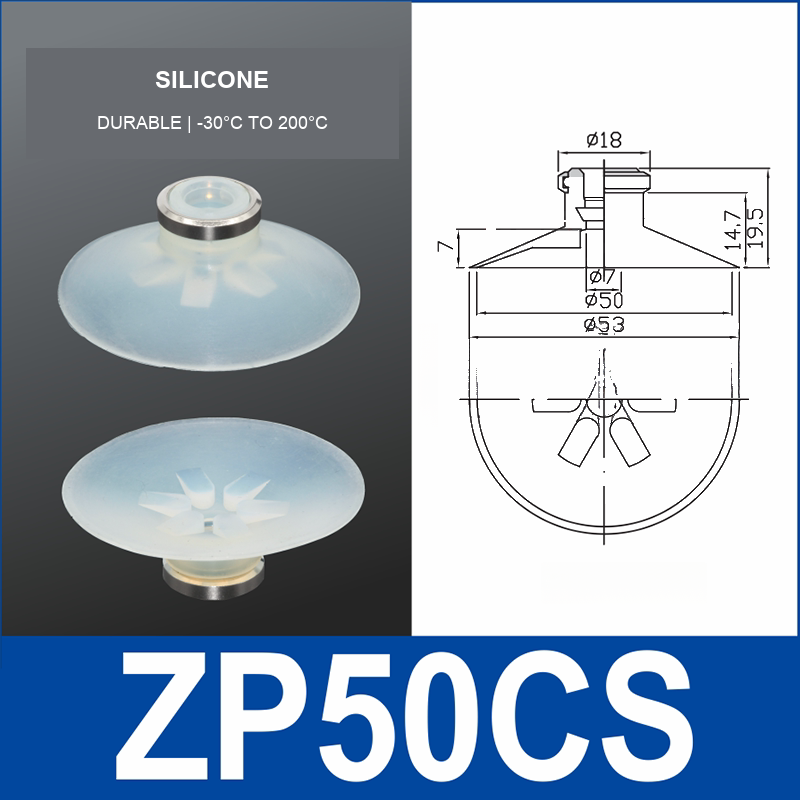

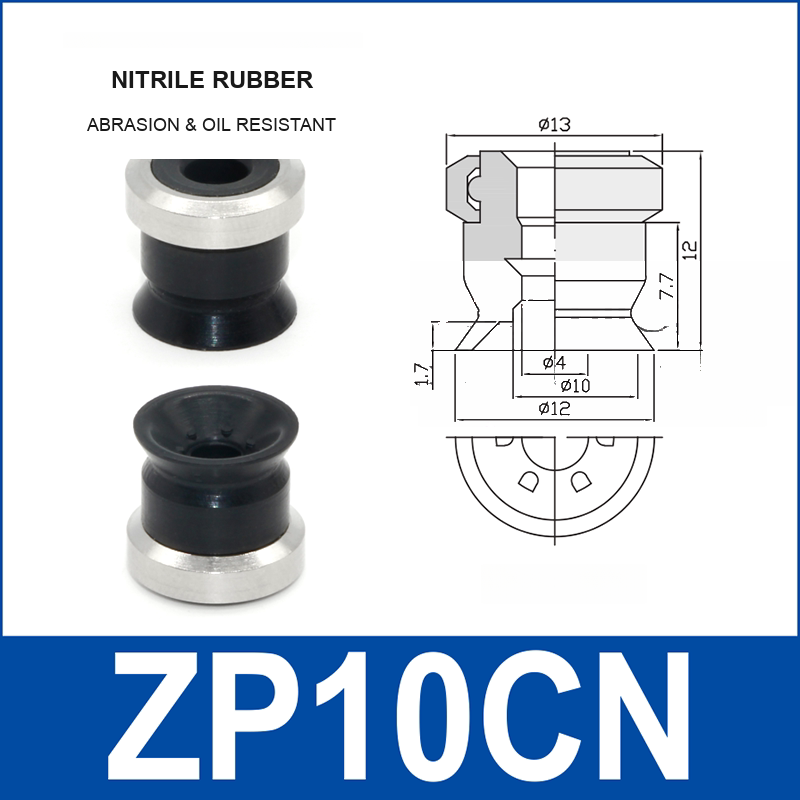

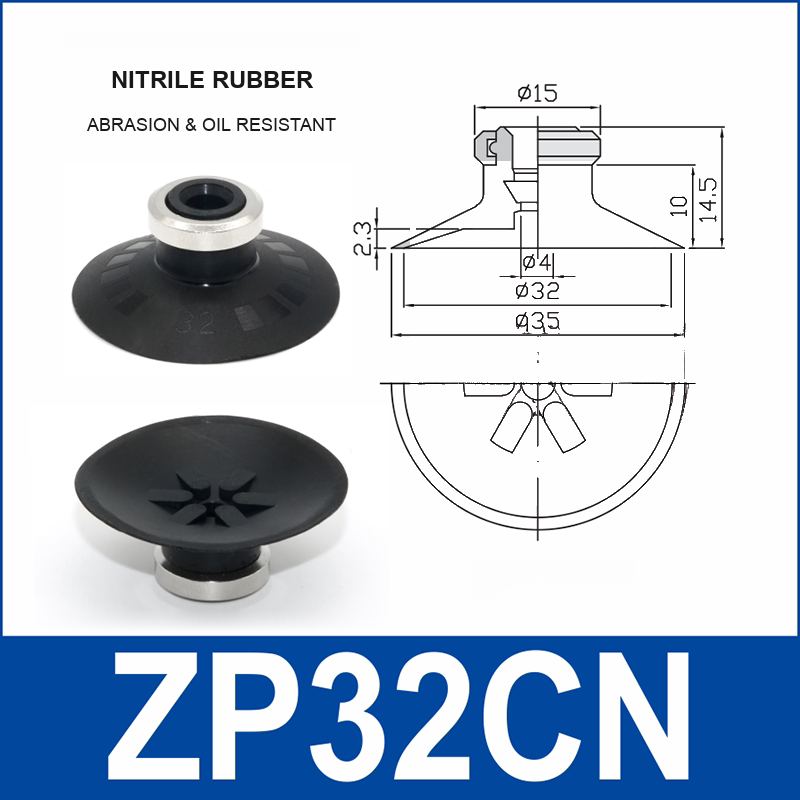

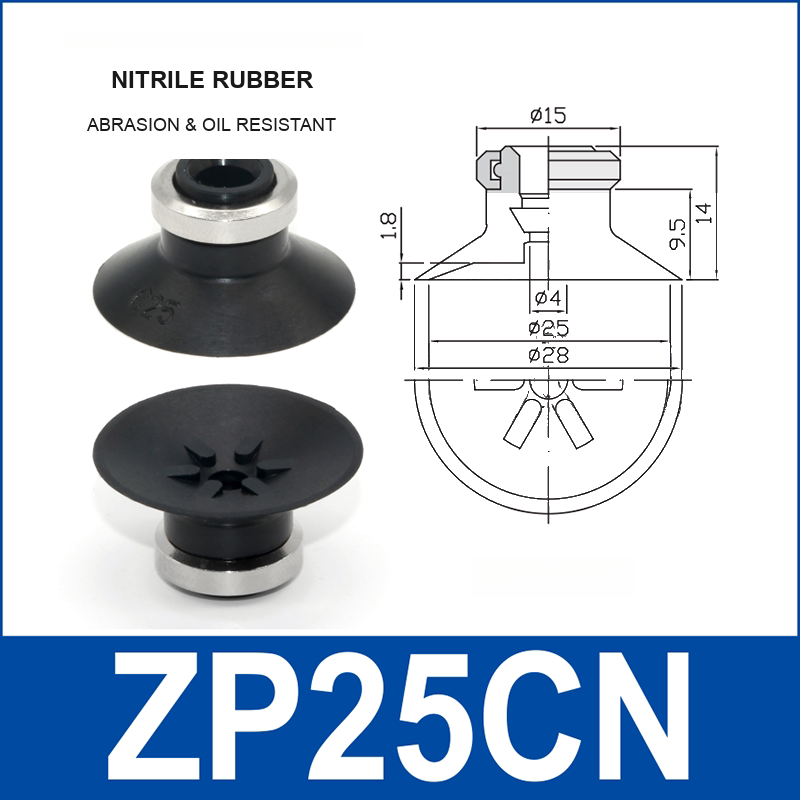

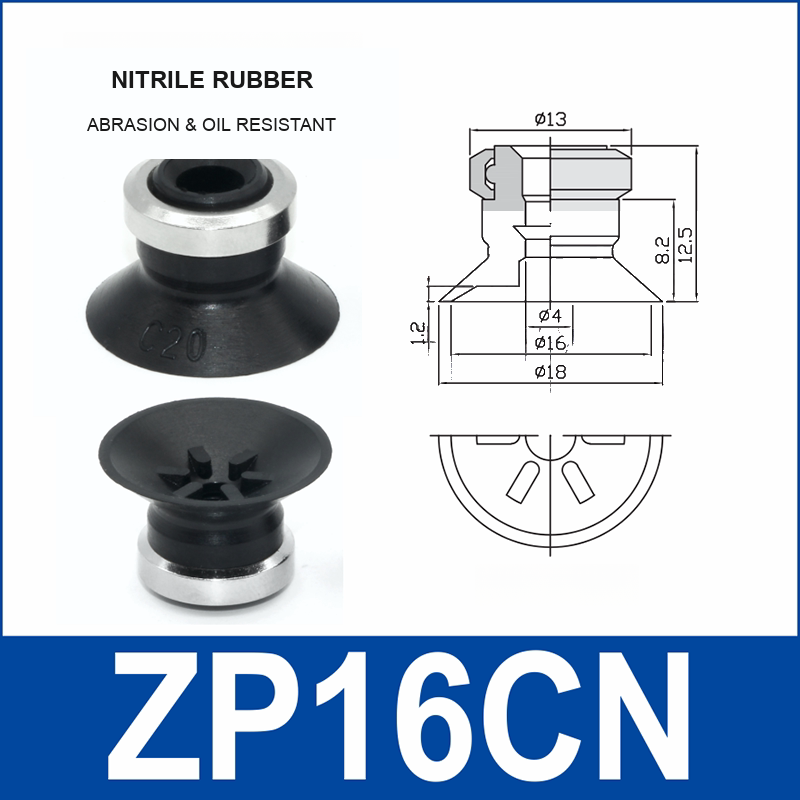

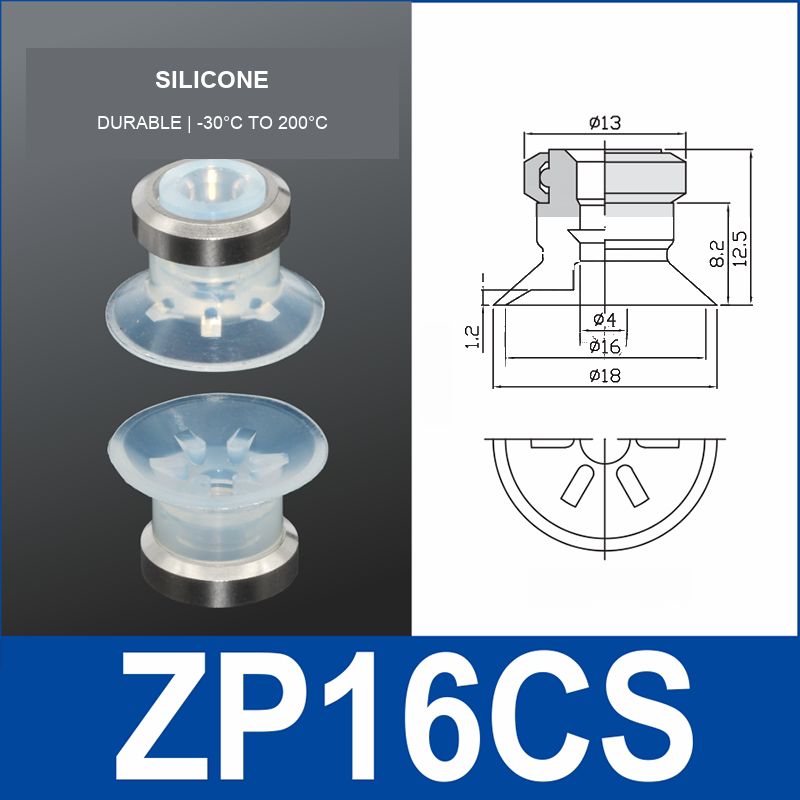

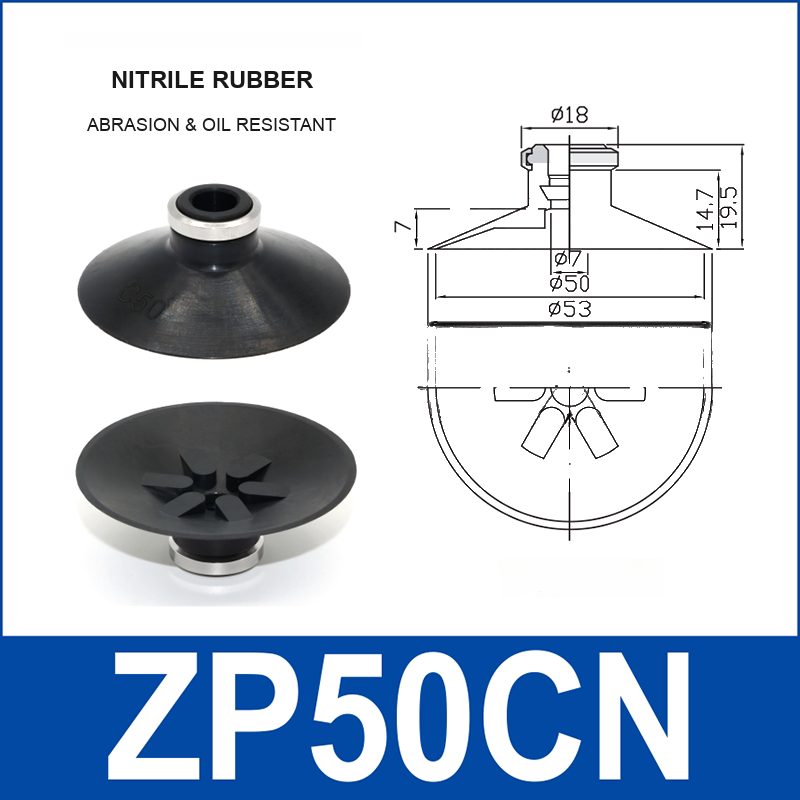

- Product images show technical dimensions for model selection.
Applications and Suitable Workpieces
ZP-C Series Vacuum Suction Cups & Buckle Rings: Flat suction cups provide stable positioning on smooth, flat or only slightly curved non-porous workpieces.
Recommended applications
- Sheet metal, glass, smooth plastic parts, coated panels, electronics panels and other flat industrial components.
- Machine loading and unloading, sorting, assembly, transfer and general automated pick-and-place.
- Thin sheets where a low internal volume and controlled vacuum can help reduce movement during pickup.
Model and selection notes

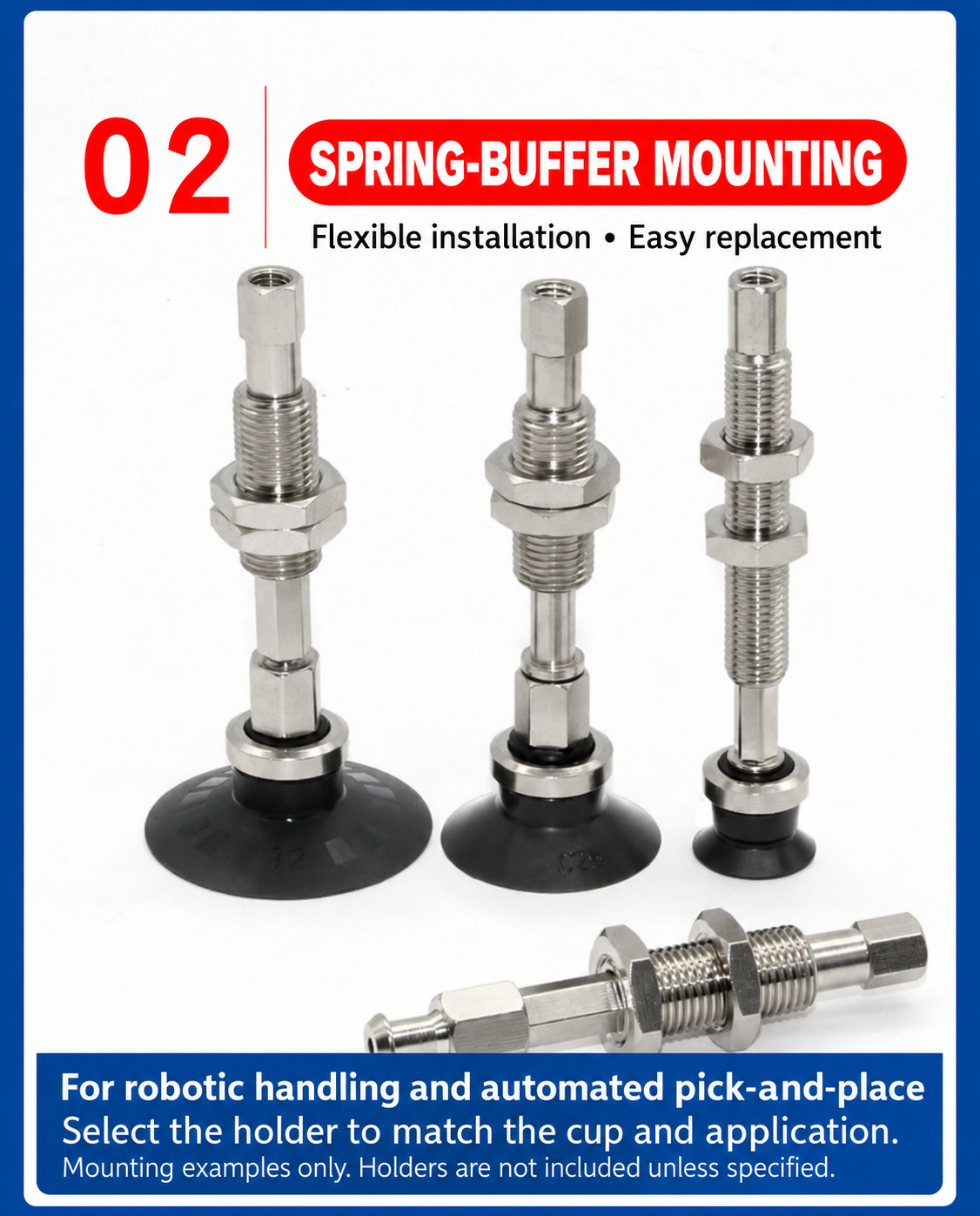

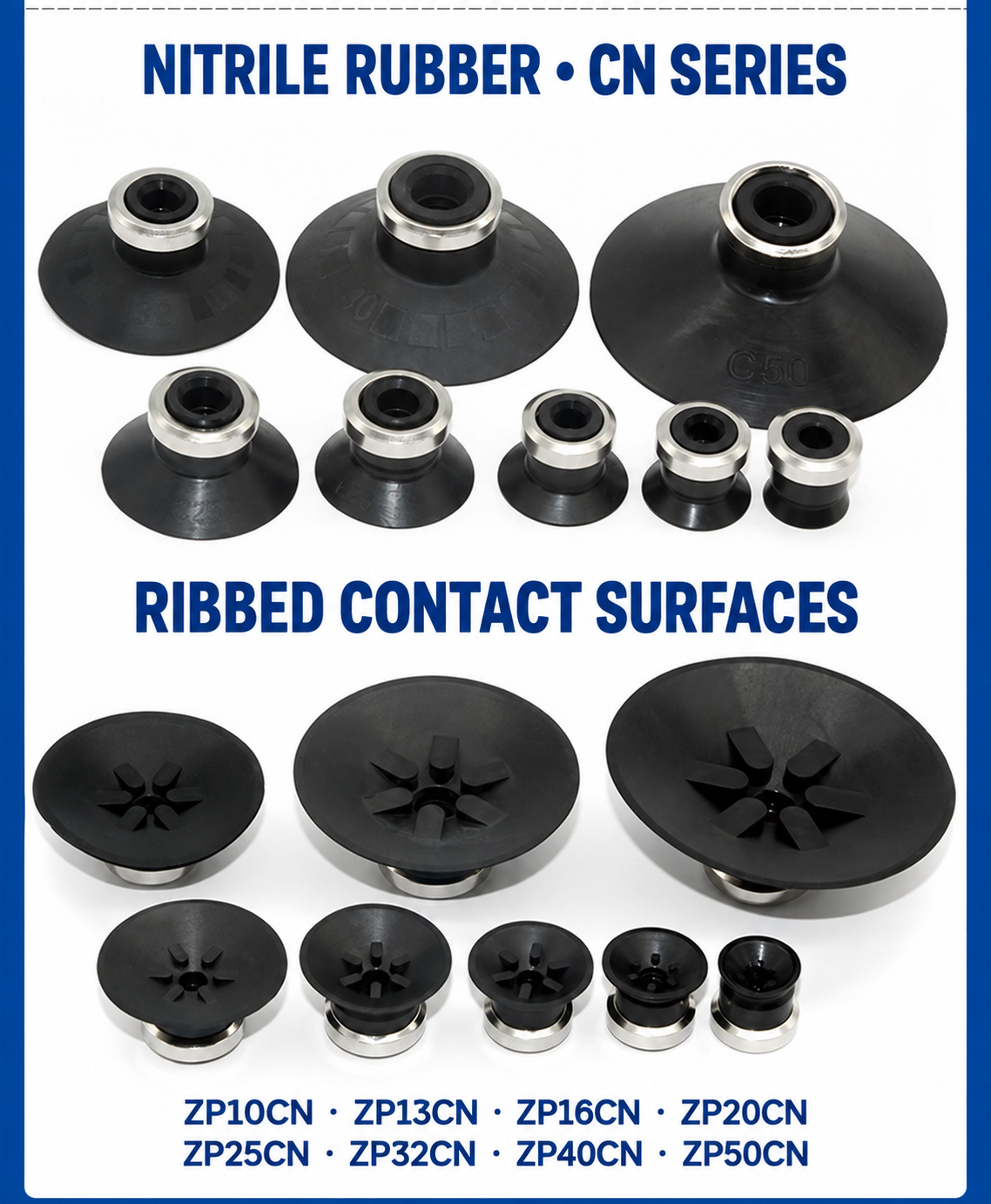

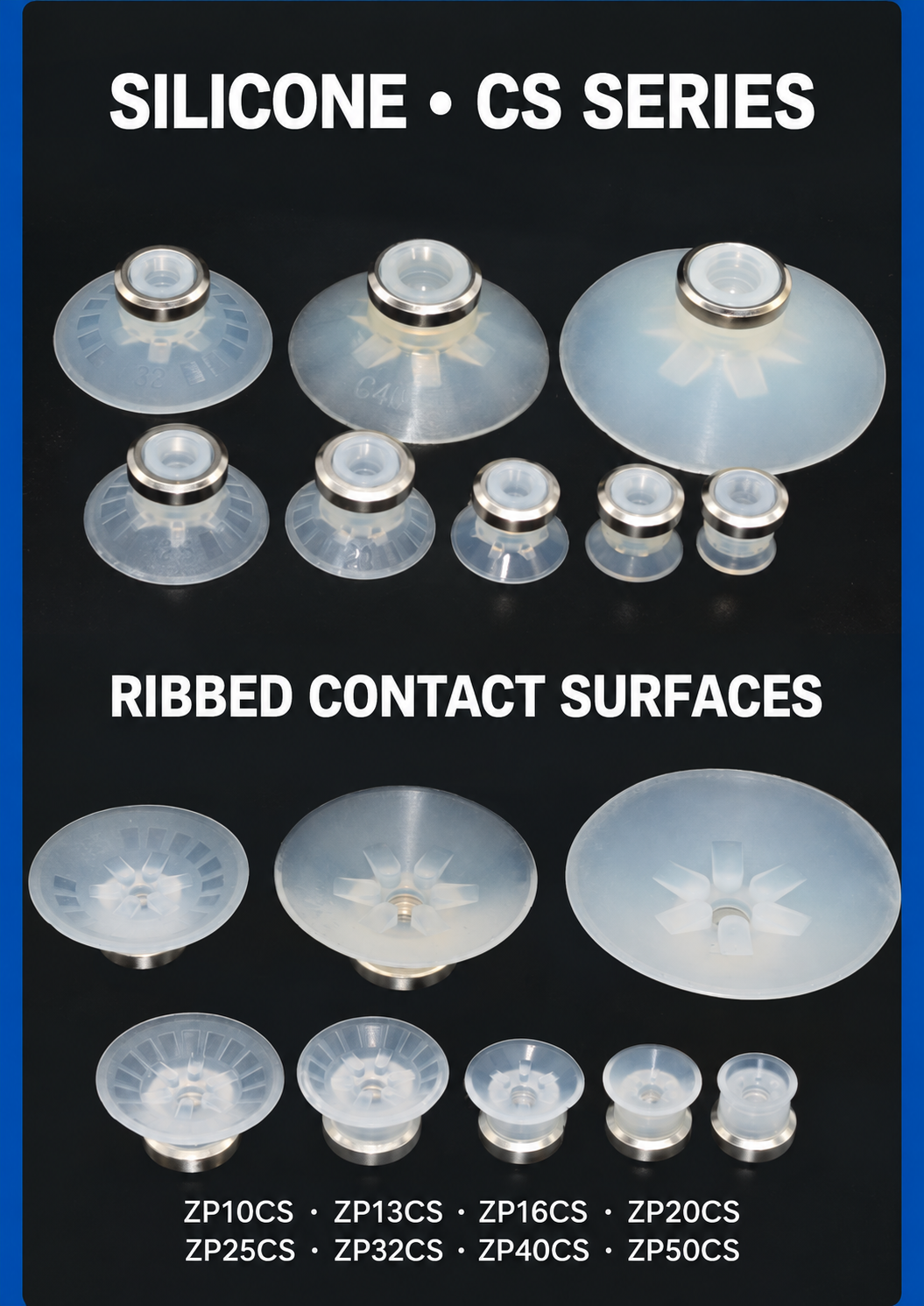

- ZP-C ribbed cup diameter and S/N suffix define size and material. Foam and buckle-ring options change the contact or mounting arrangement.
- Select diameter according to the available sealing area, workpiece mass, acceleration and mounting direction.

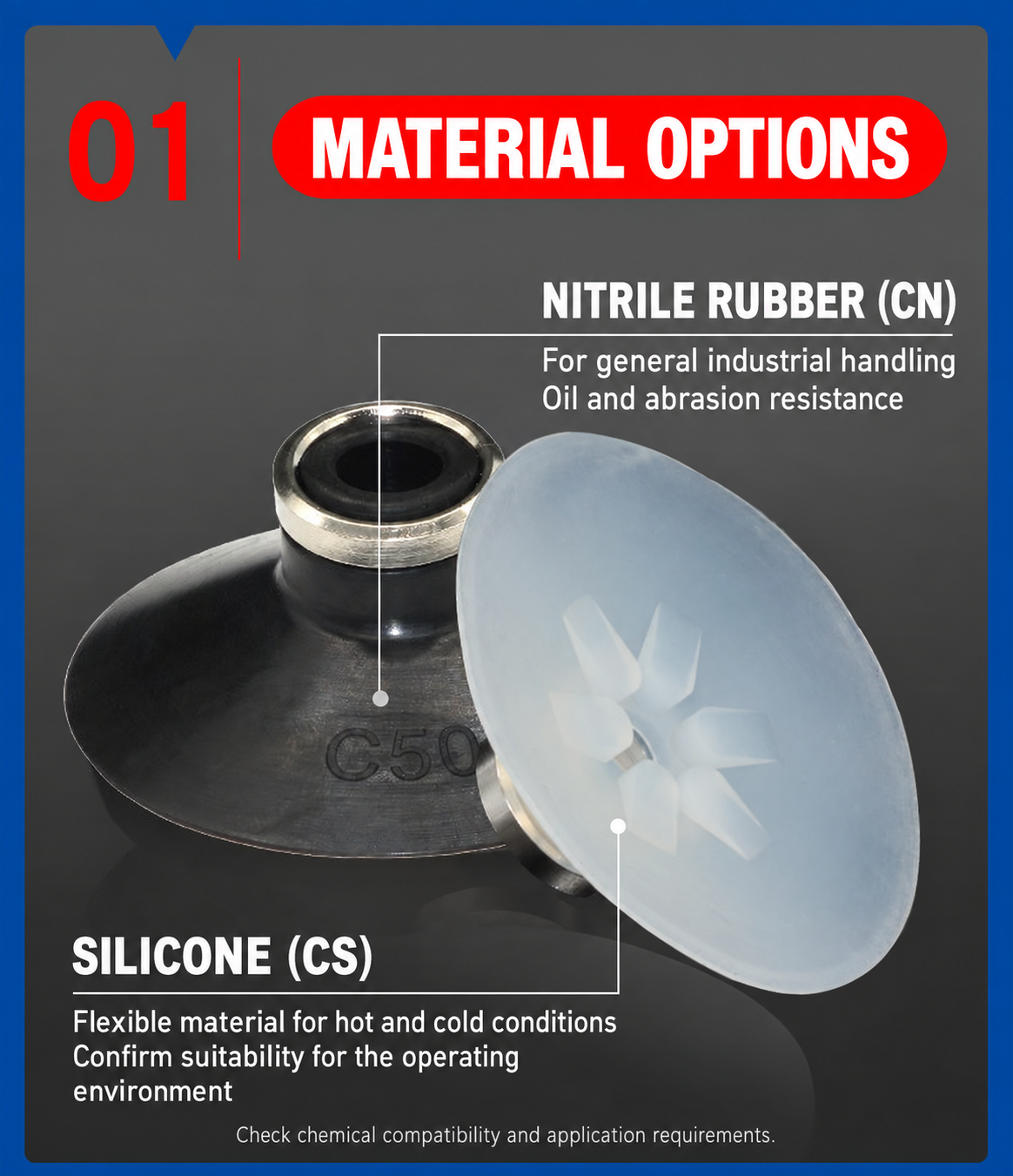

- Silicone suits clean parts and wider temperature conditions; NBR suits general industrial use, abrasion and lightly oily surfaces; conductive grades are only for static-sensitive handling where identified.
- Rough, porous, deeply curved or perforated surfaces may not seal. Confirm holding force on the actual part with an appropriate safety factor.
