ZP-U Series Flat Vacuum Suction Cups & Buckle Rings
Quantity
ZP-U Series Flat Vacuum Suction Cups & Buckle Rings
Flat vacuum suction cups in silicone and nitrile rubber for industrial handling of smooth or curved surfaces.
- Choose a model to view its matching product image.

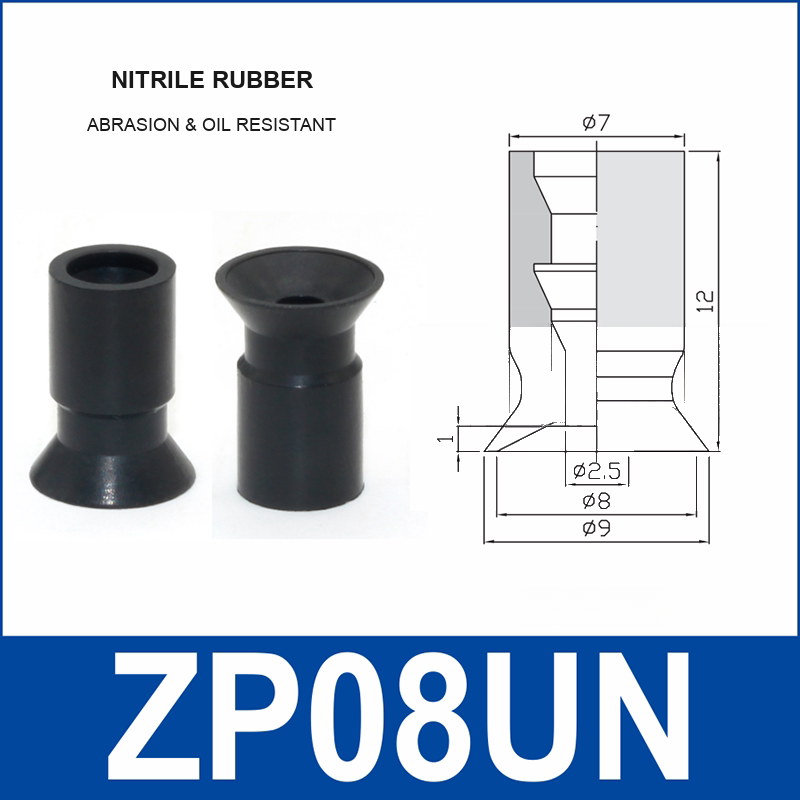

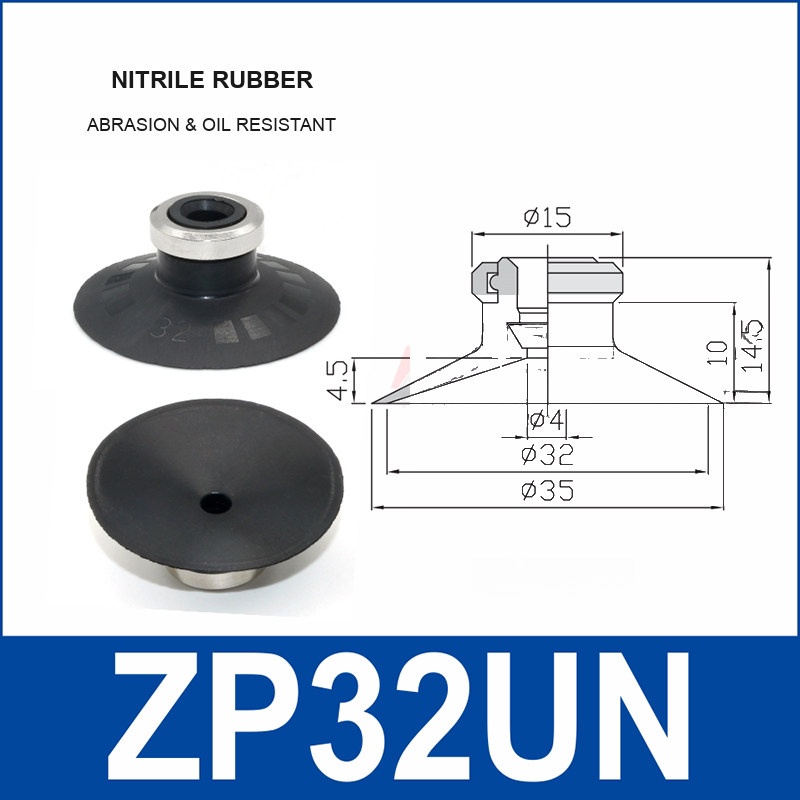

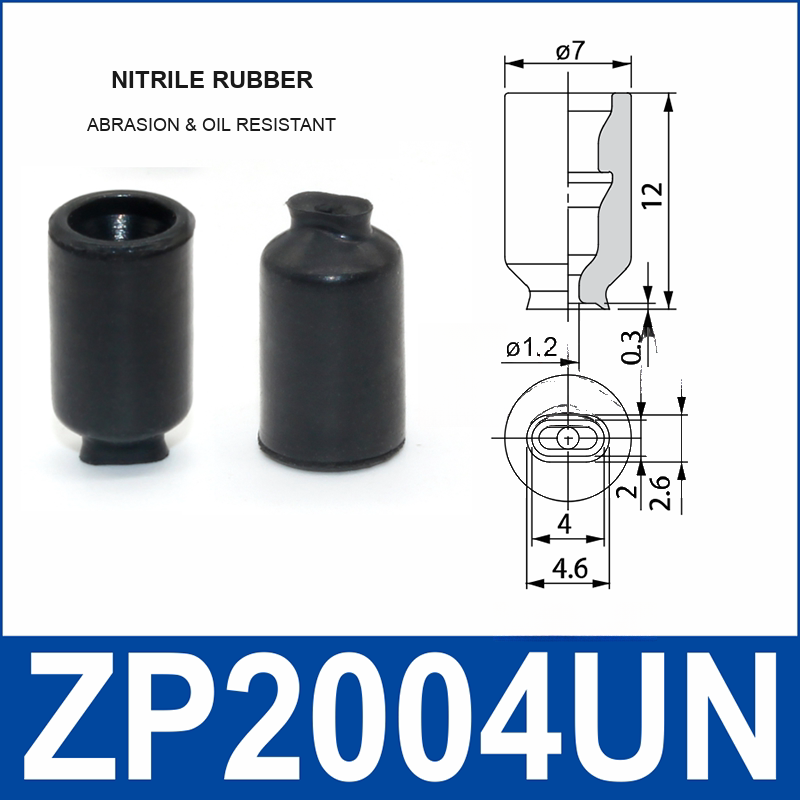

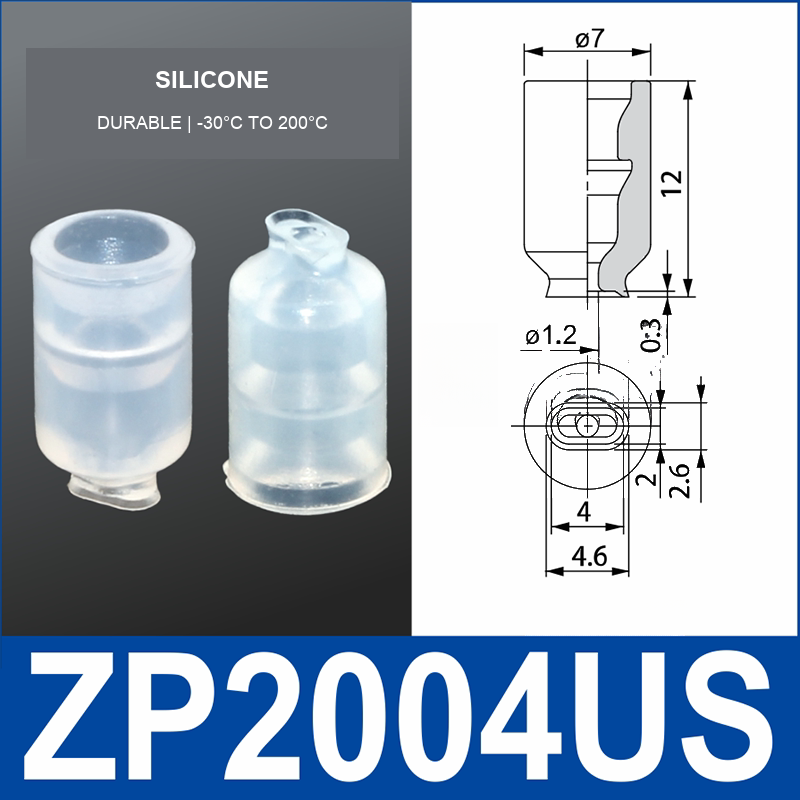

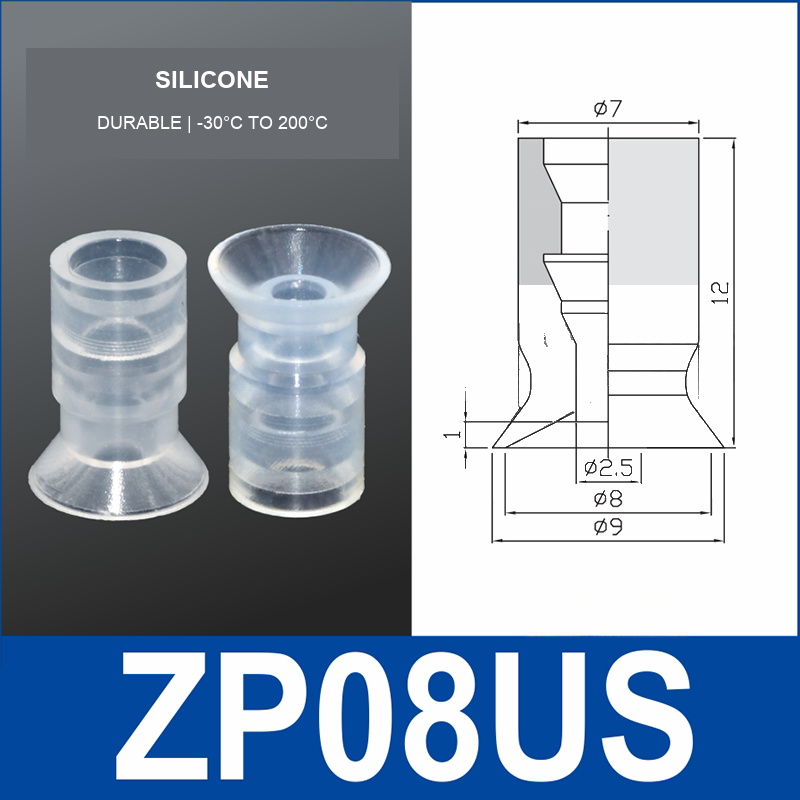

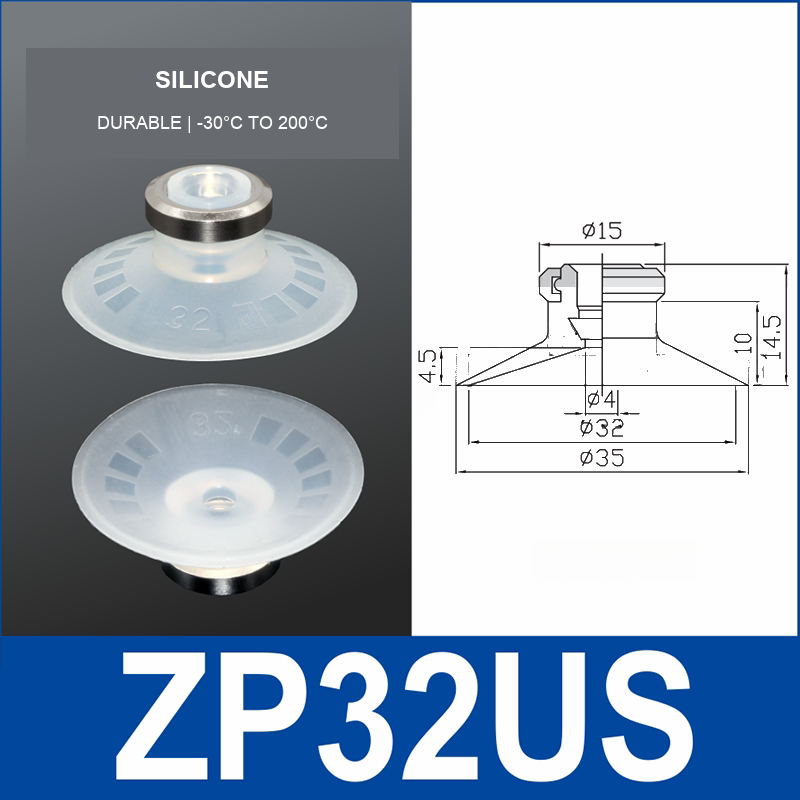

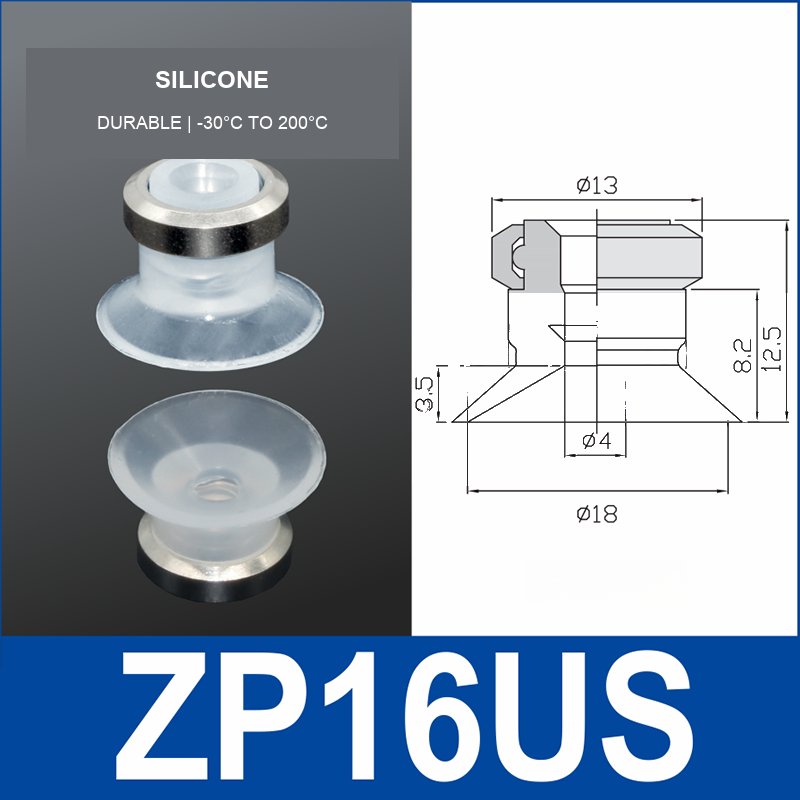

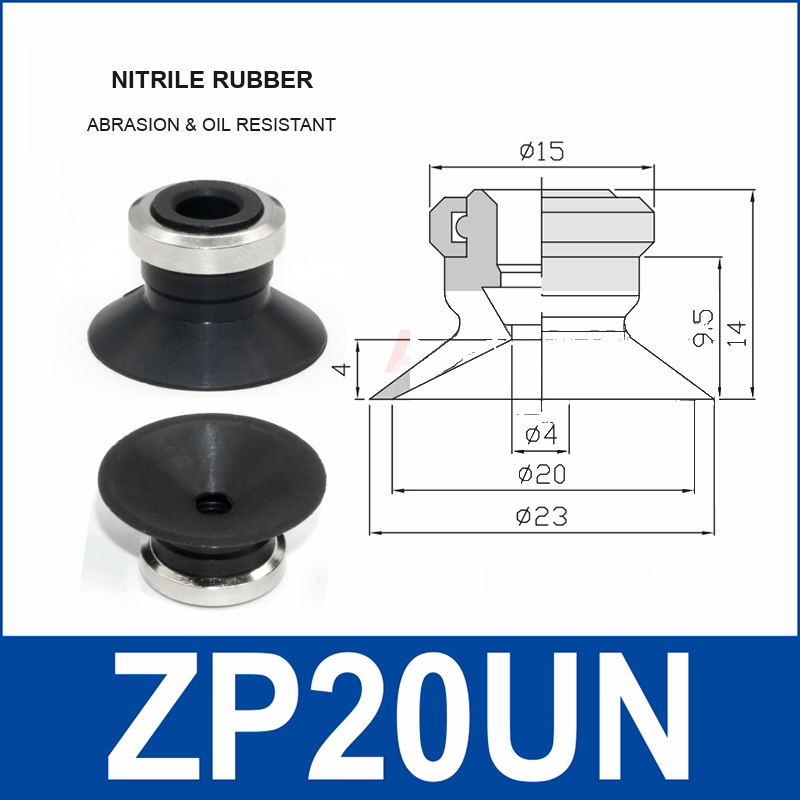

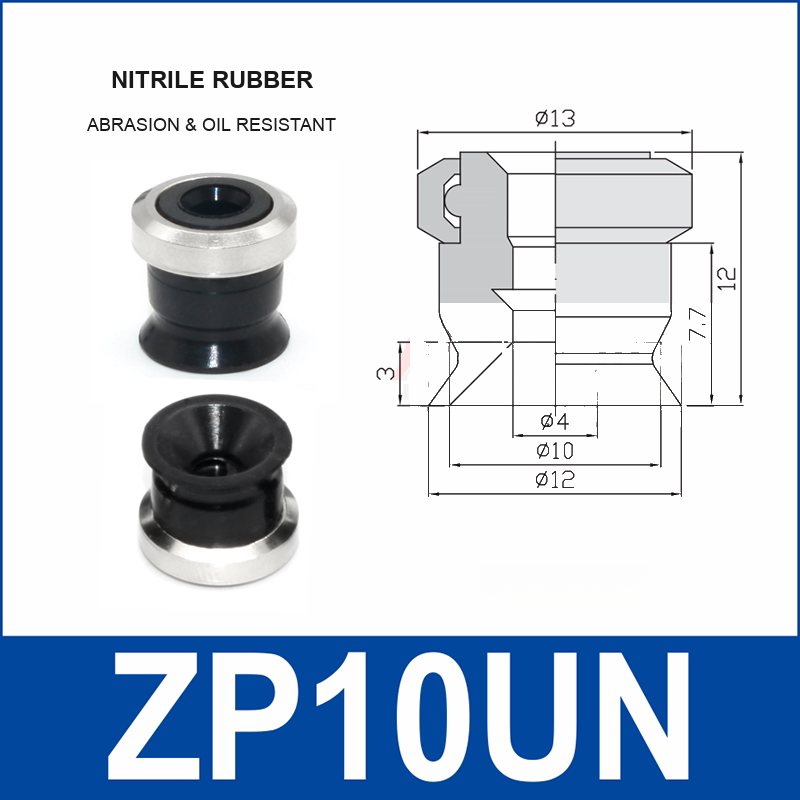

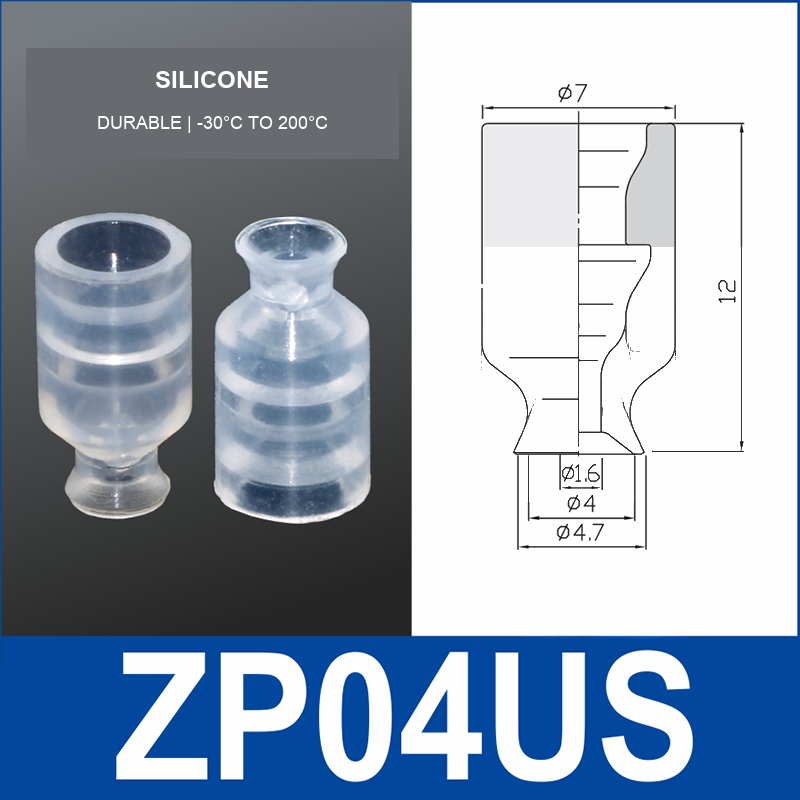

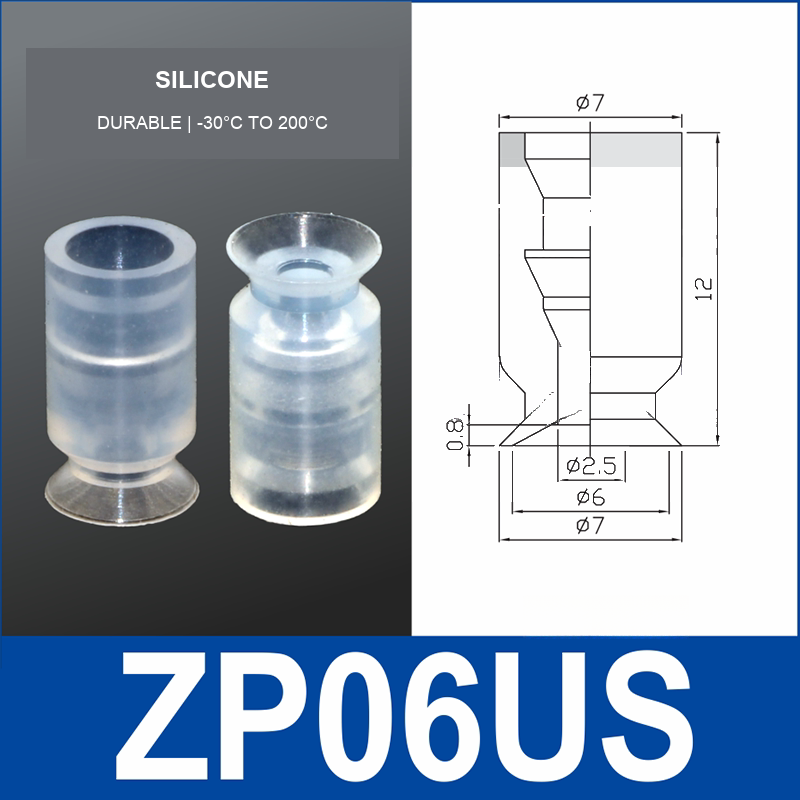

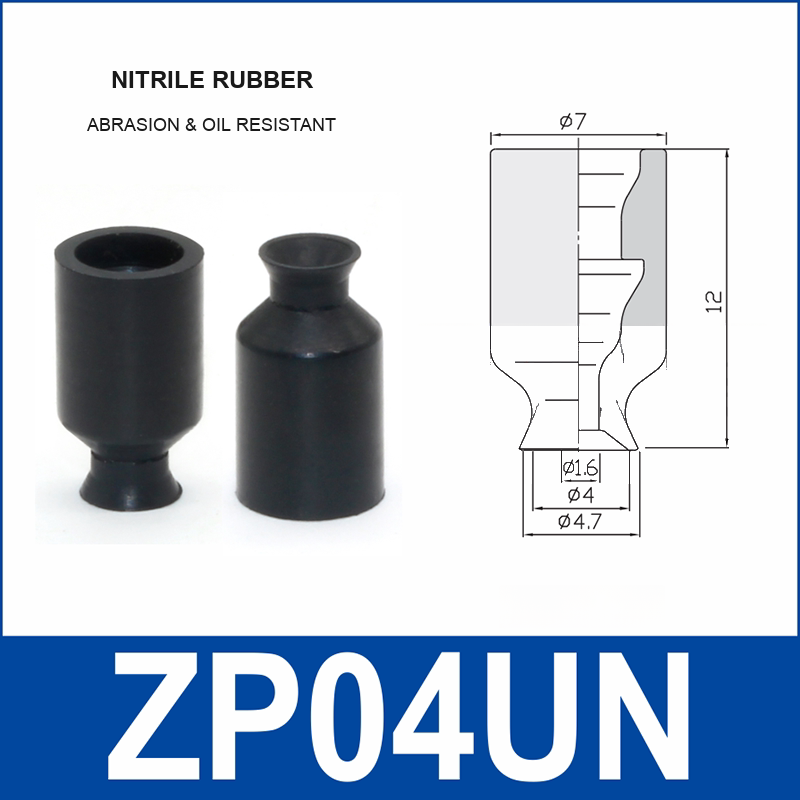

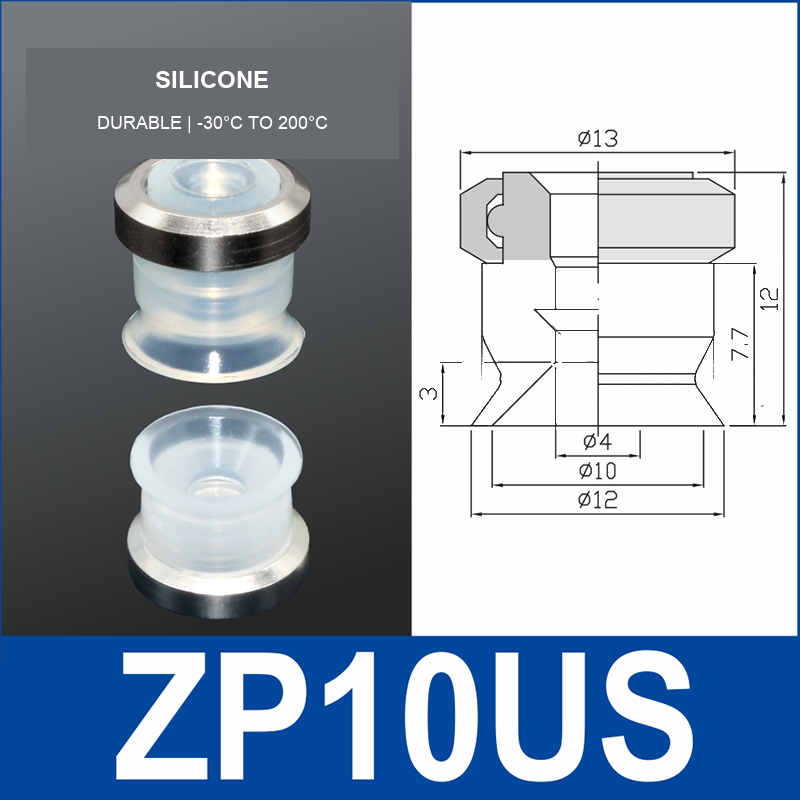

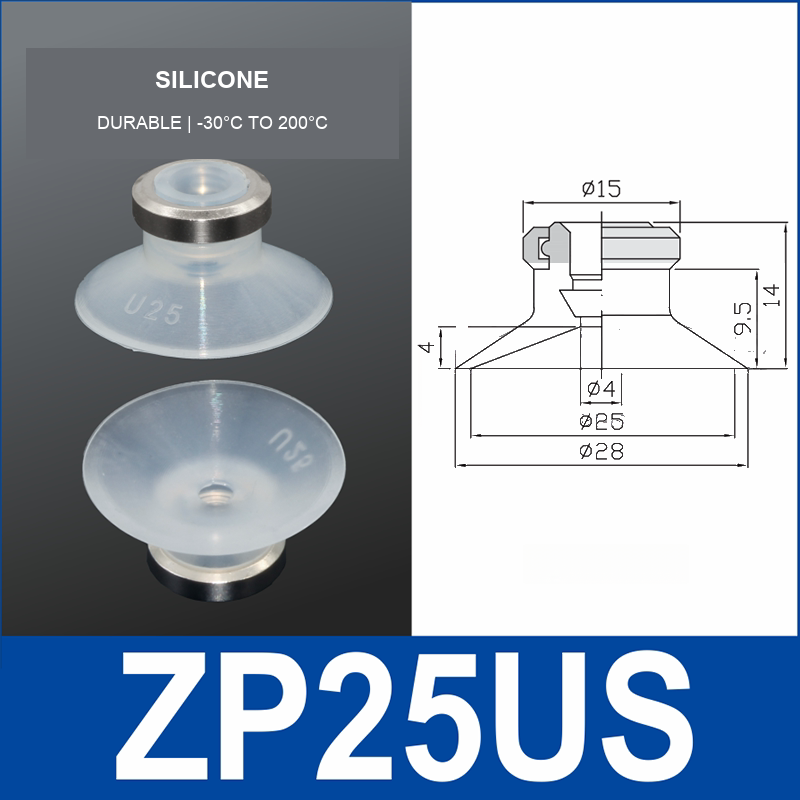

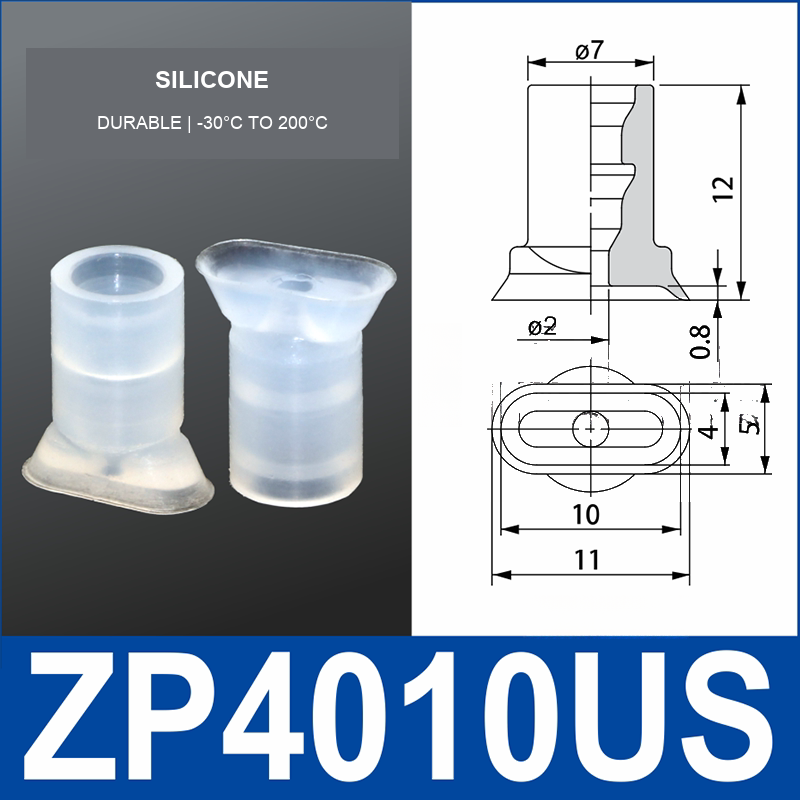

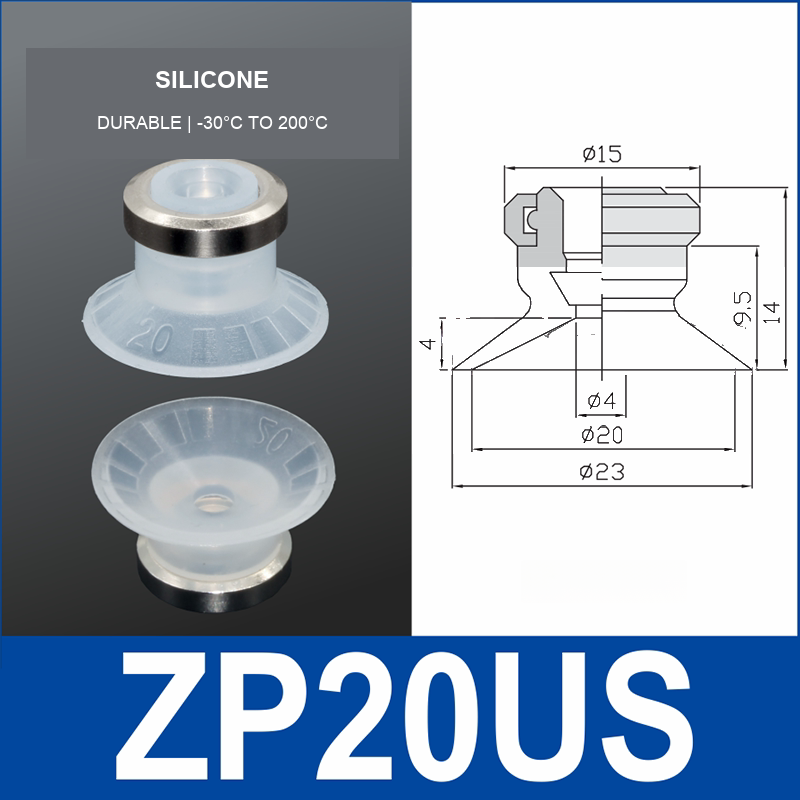

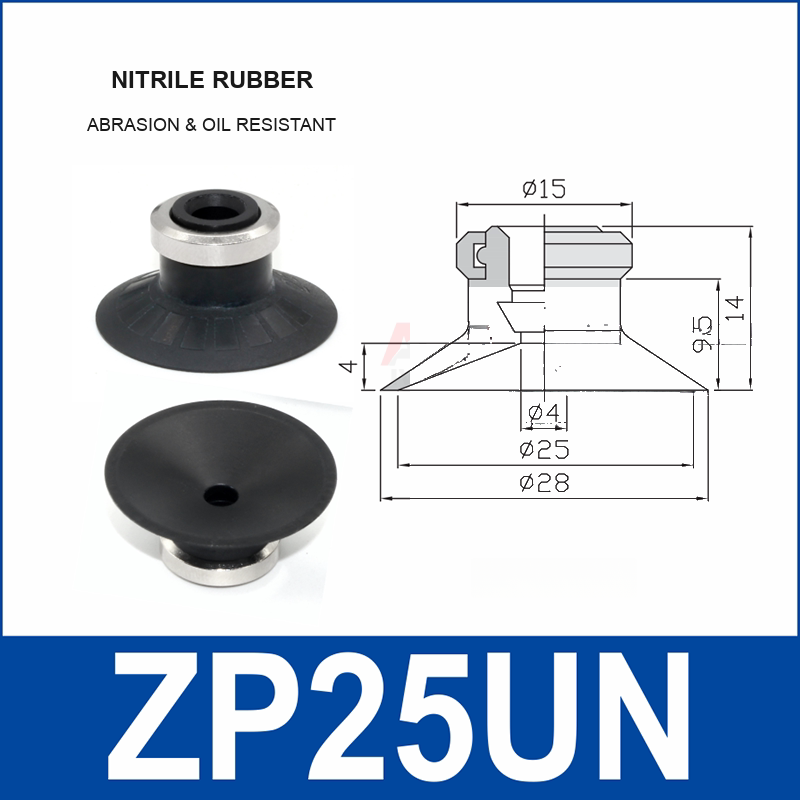

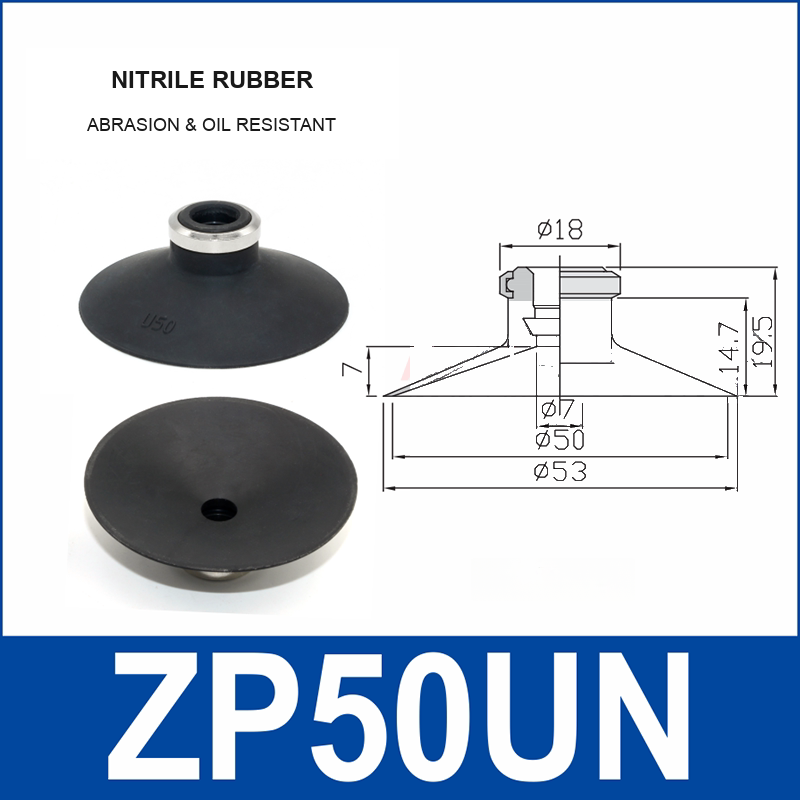

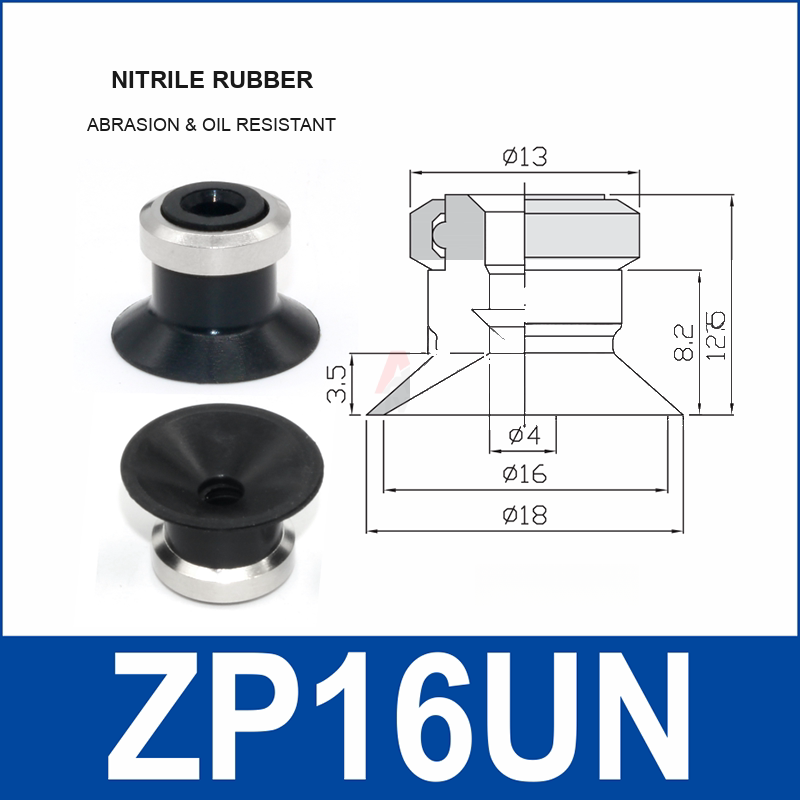

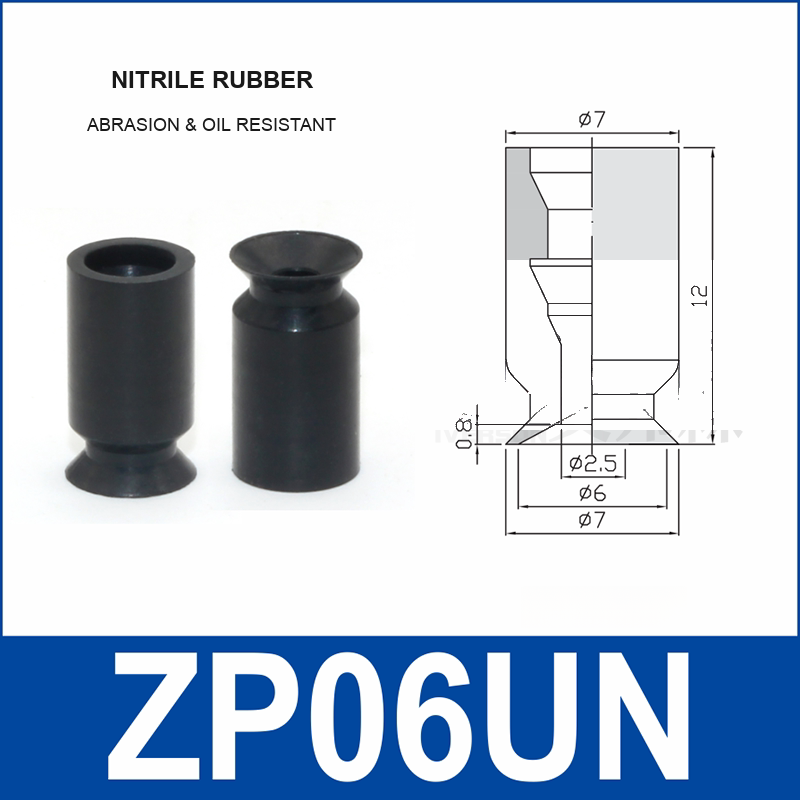

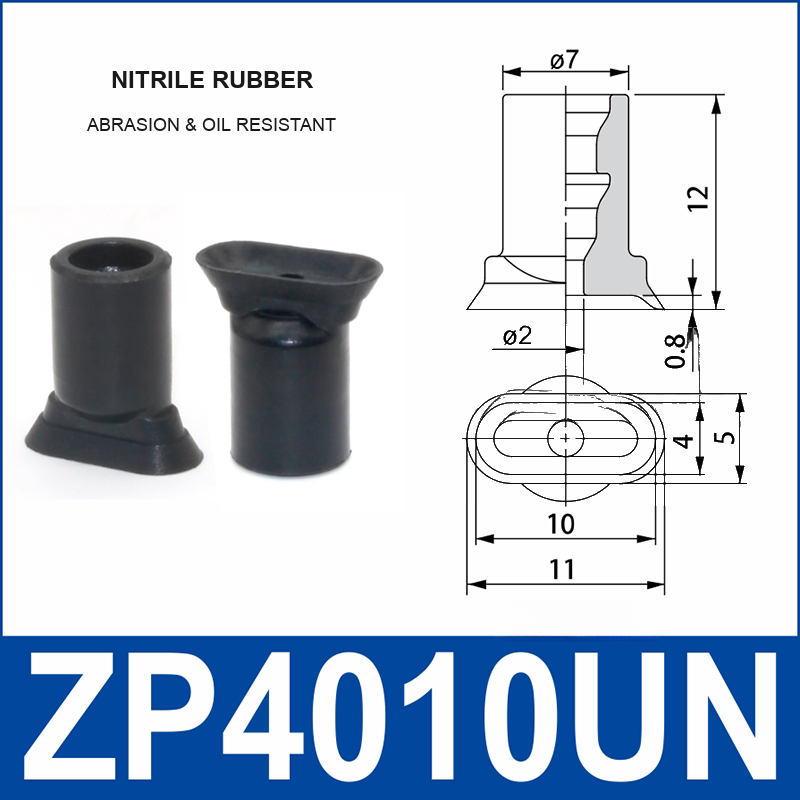

- Product images show technical dimensions for model selection.
Applications and Suitable Workpieces
ZP-U Series Flat Vacuum Suction Cups & Buckle Rings: Flat suction cups provide stable positioning on smooth, flat or only slightly curved non-porous workpieces.
Recommended applications
- Sheet metal, glass, smooth plastic parts, coated panels, electronics panels and other flat industrial components.
- Machine loading and unloading, sorting, assembly, transfer and general automated pick-and-place.
- Thin sheets where a low internal volume and controlled vacuum can help reduce movement during pickup.
Model and selection notes

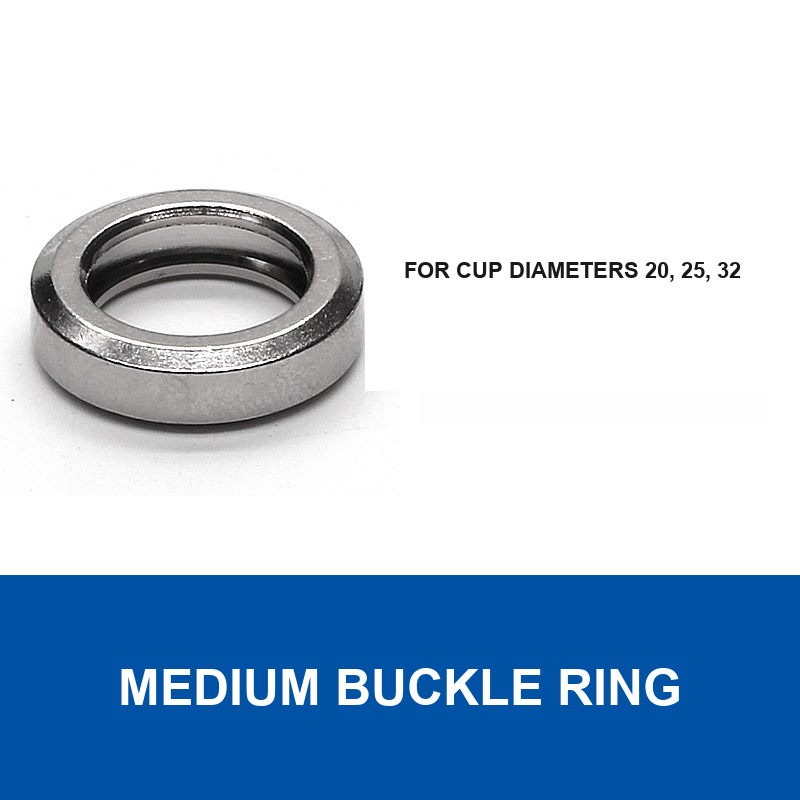

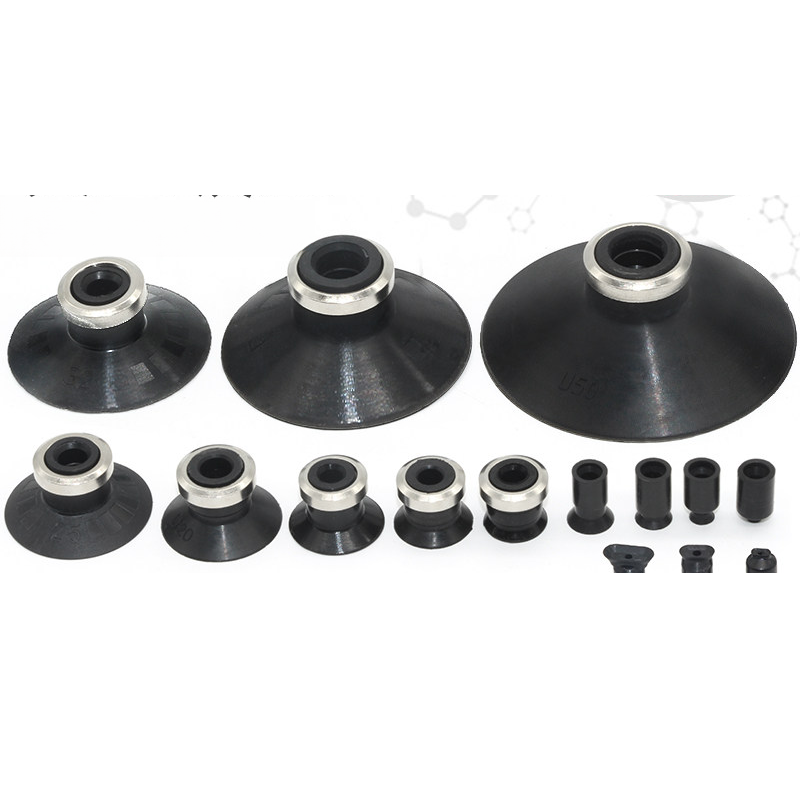

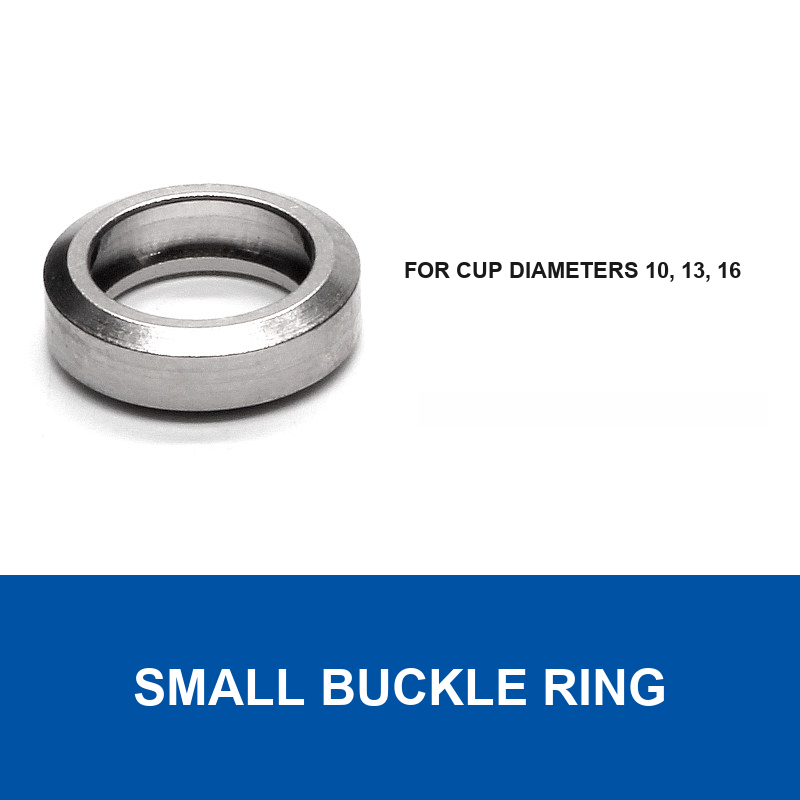

- ZP-U diameter and S/N material suffix define cup size and material. Buckle rings and special mini/high-quality variants are selected separately.
- Select diameter according to the available sealing area, workpiece mass, acceleration and mounting direction.
- Silicone suits clean parts and wider temperature conditions; NBR suits general industrial use, abrasion and lightly oily surfaces; conductive grades are only for static-sensitive handling where identified.
- Rough, porous, deeply curved or perforated surfaces may not seal. Confirm holding force on the actual part with an appropriate safety factor.
