PJYS Spring-Loaded Side-Port Vacuum Cup Assemblies – Silicone/NBR, 60–80 mm, 10/30 mm Stroke

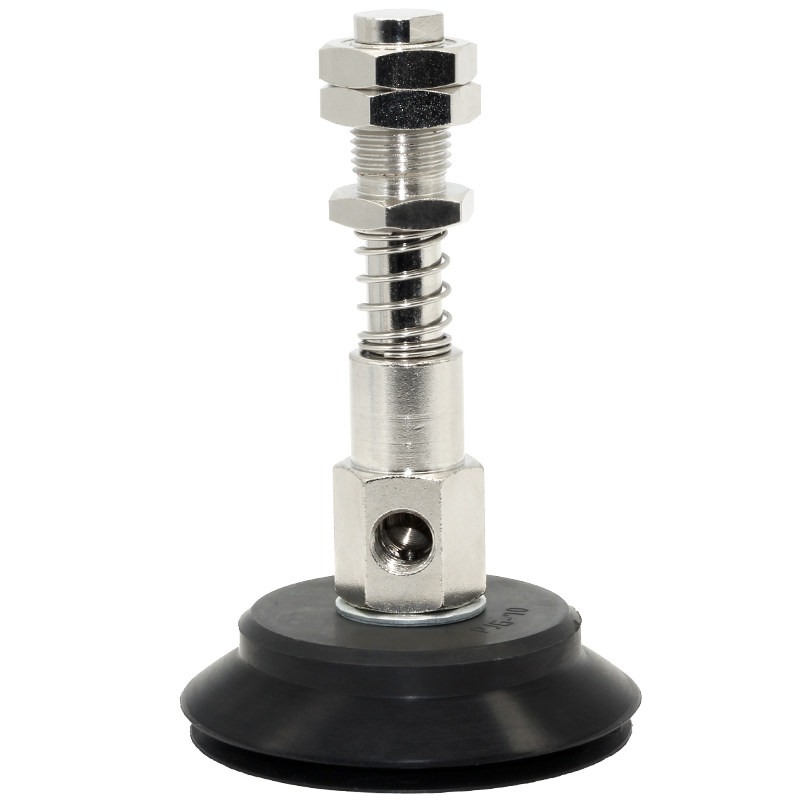

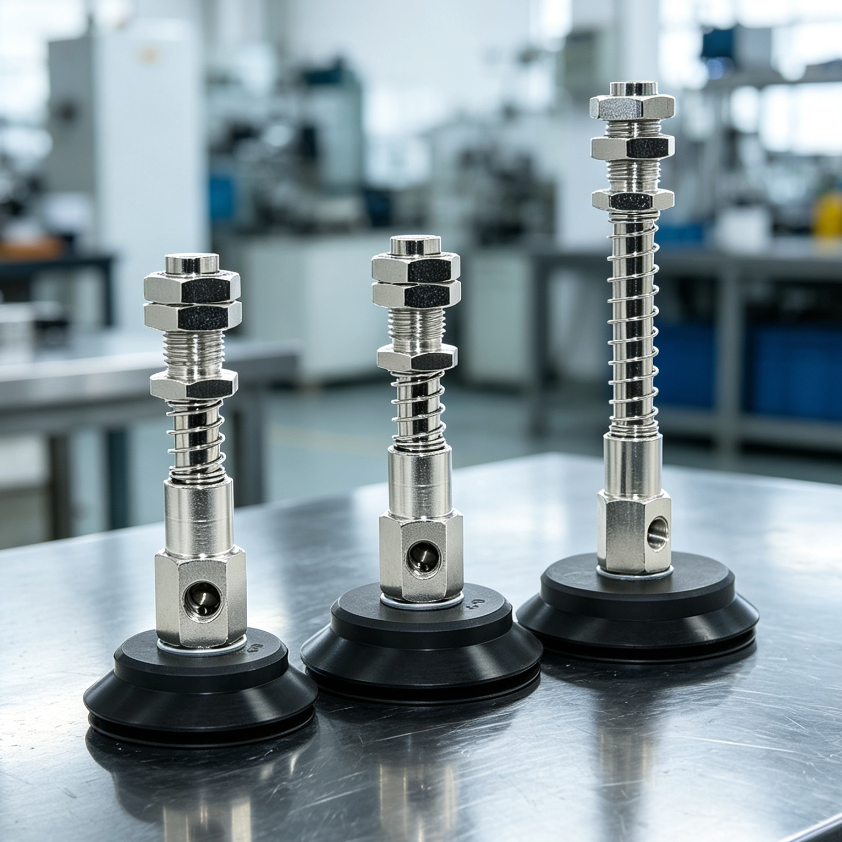

PJYS Spring-Loaded Side-Port Vacuum Cup Assemblies

Spring-loaded vacuum cup assemblies for industrial pick-and-place, robotic end-of-arm tooling and handling systems. The compliant mount helps absorb approach variation, while the side vacuum port supports compact hose routing.

• Twelve selectable configurations covering 60, 70 and 80 mm cup diameters
• 10 mm or 30 mm spring travel
• Translucent-white silicone or black nitrile-rubber cup options
• M16 x 1.5 mounting thread and 22 mm wrench flats
• PT1/8 side vacuum port
• 6 mm guide-rod diameter

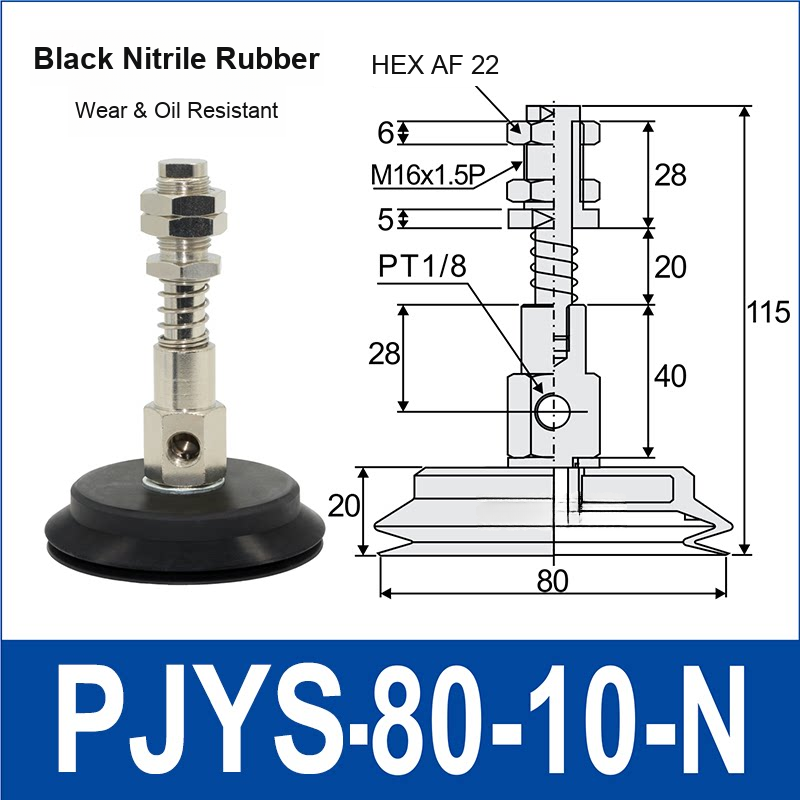

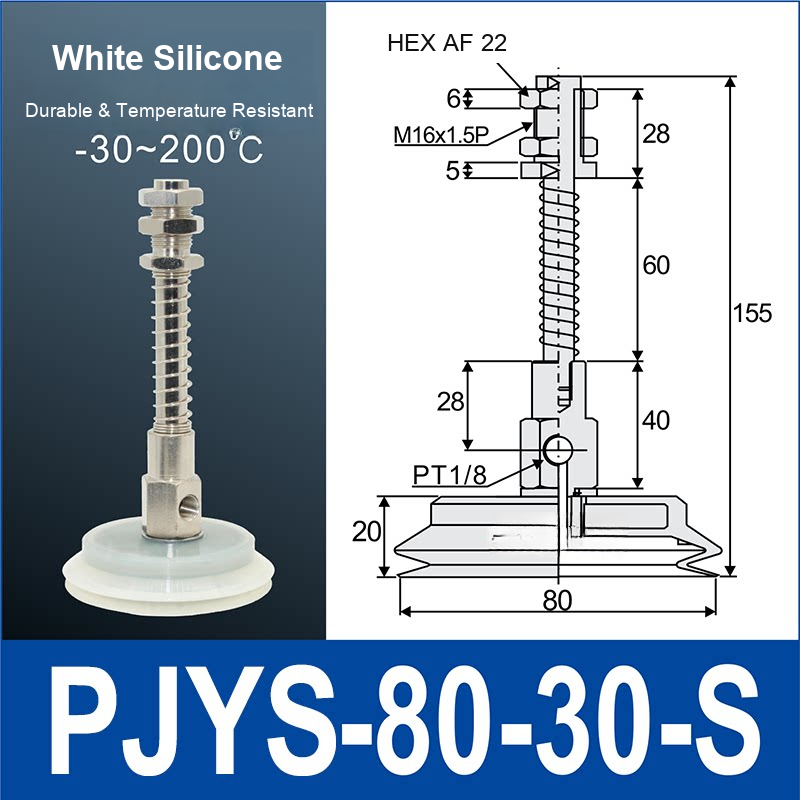

• Dimensional drawings support model and installation-space selection

Applications / Suitable For

• Robotic pick-and-place, transfer and sorting equipment
• Packaging, sheet handling and general industrial automation
• End-of-arm tooling that benefits from vertical compliance and side hose routing

Confirm cup diameter, material, spring travel, mounting thread, port, workpiece surface, vacuum level, load, acceleration and operating environment before use. Silicone and nitrile rubber differ in wear, oil and temperature behaviour. No food-contact, medical, lifting-safety or regulatory certification is claimed.
