ZPT HB Heavy-Duty Vacuum Suction Cups with A14 A16 Fittings

ZPT HB Heavy-Duty Vacuum Suction Cups

Heavy-duty vacuum suction cups supplied as model-specific assemblies with A14 or A16 fittings. Select from white silicone HBS and black nitrile-rubber HBN variants in nominal sizes from 32 to 125.

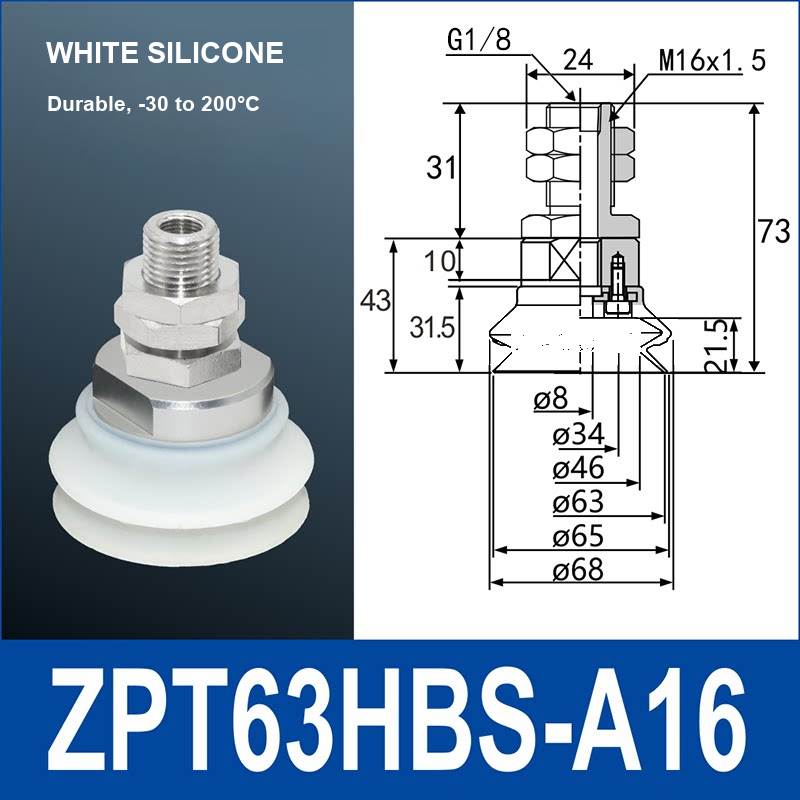

• White silicone HBS variants for applications requiring a wider working-temperature range

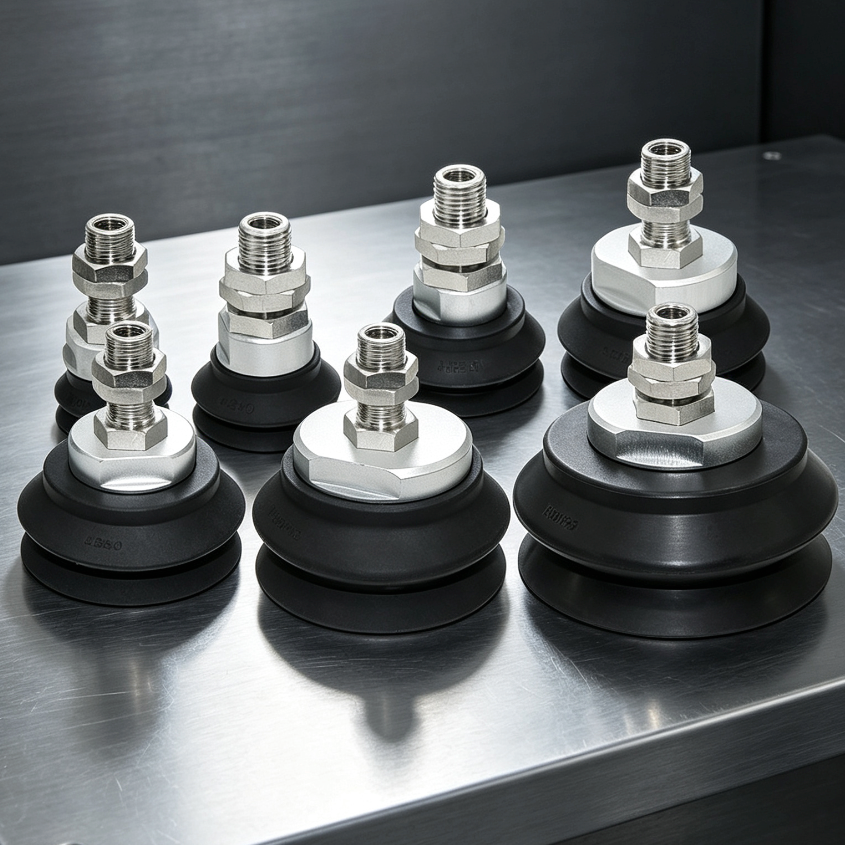

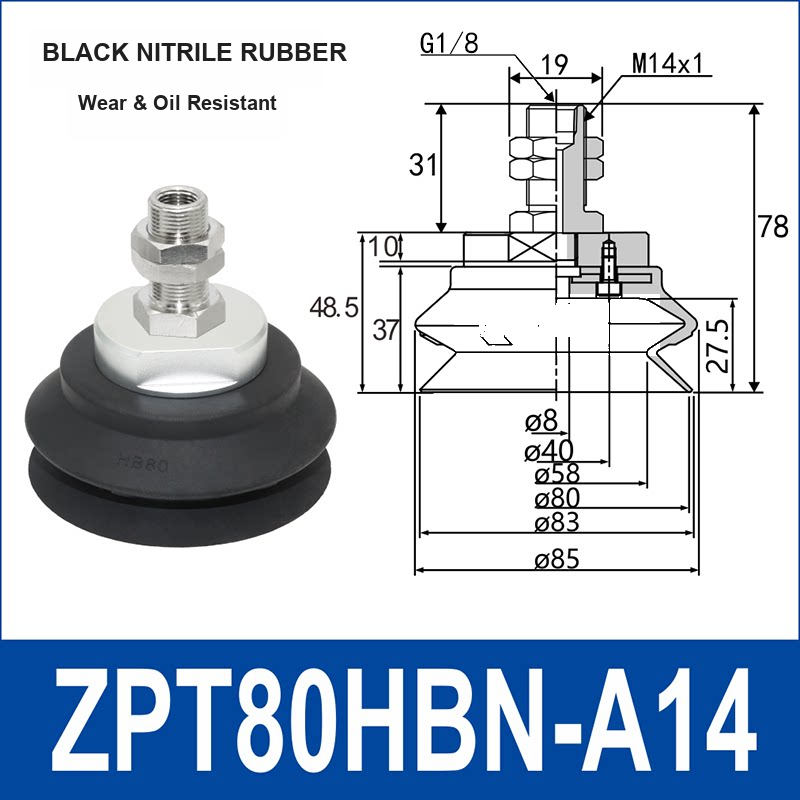

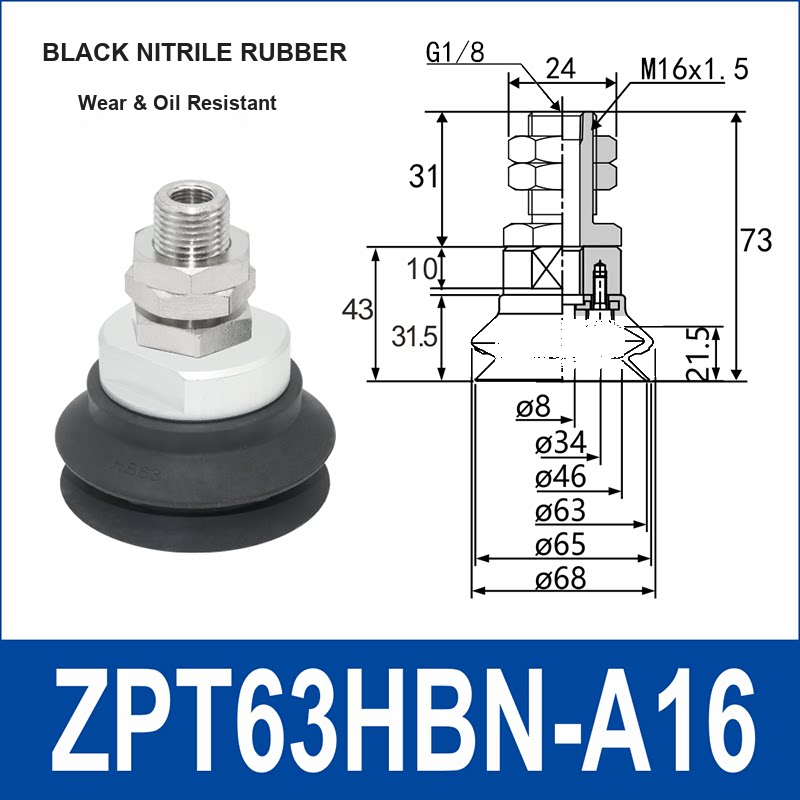

• Black nitrile-rubber HBN variants for industrial wear and oil resistance
• A14 and A16 fitting configurations are listed as separate selectable models

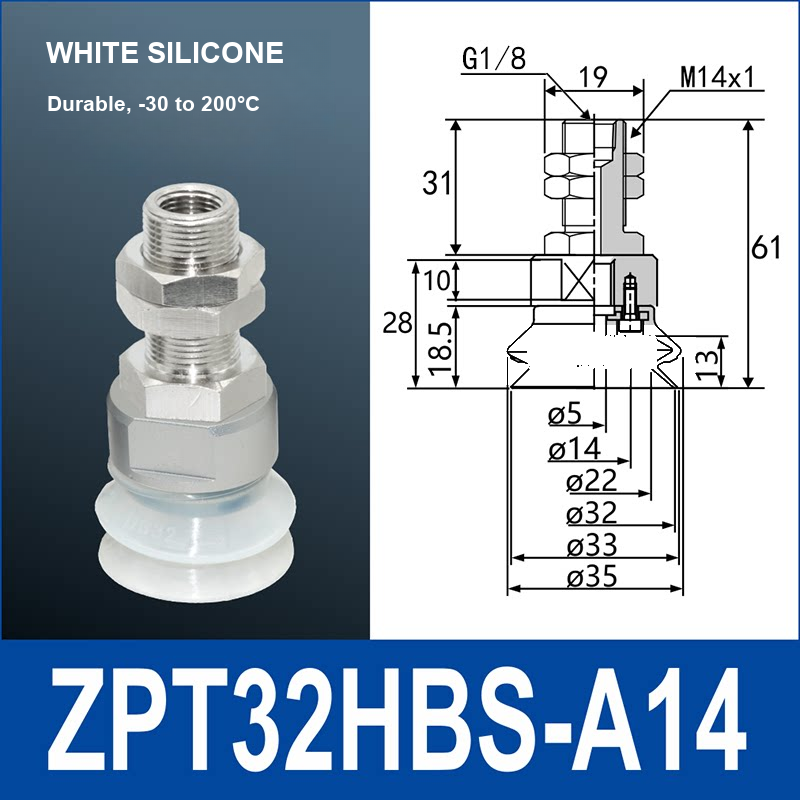

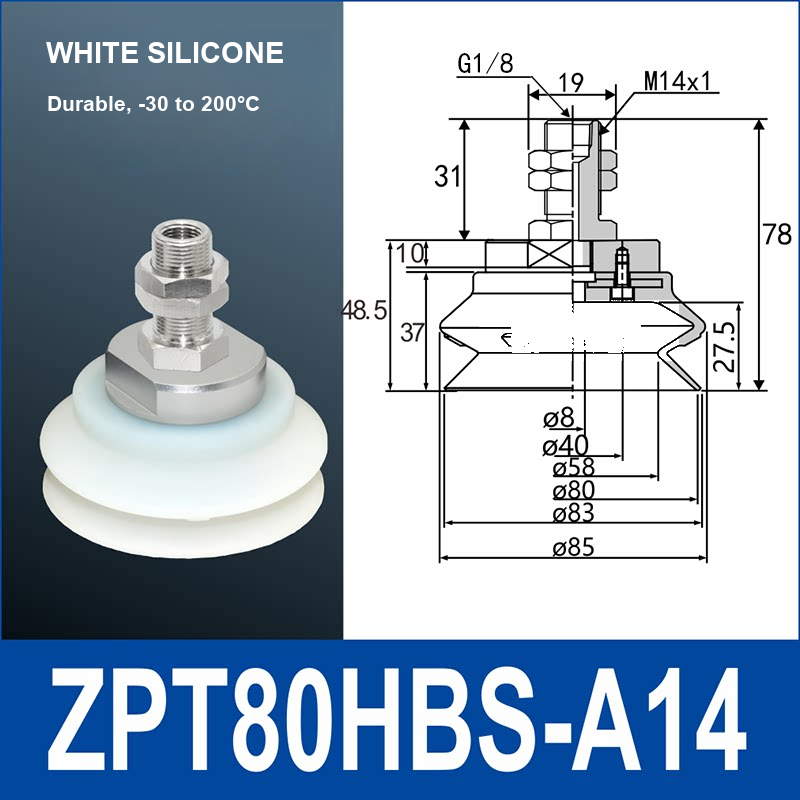

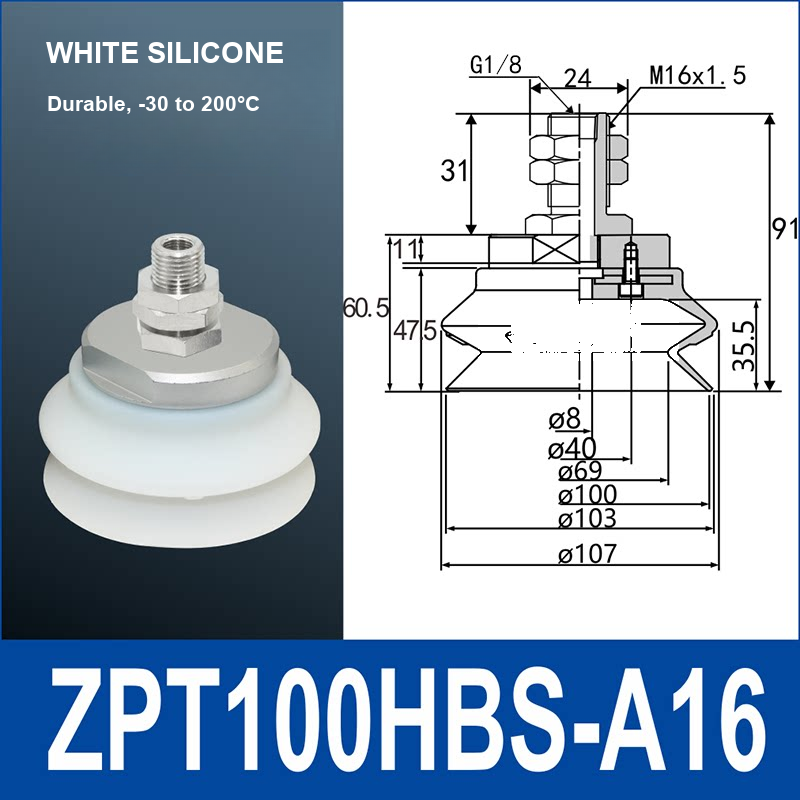

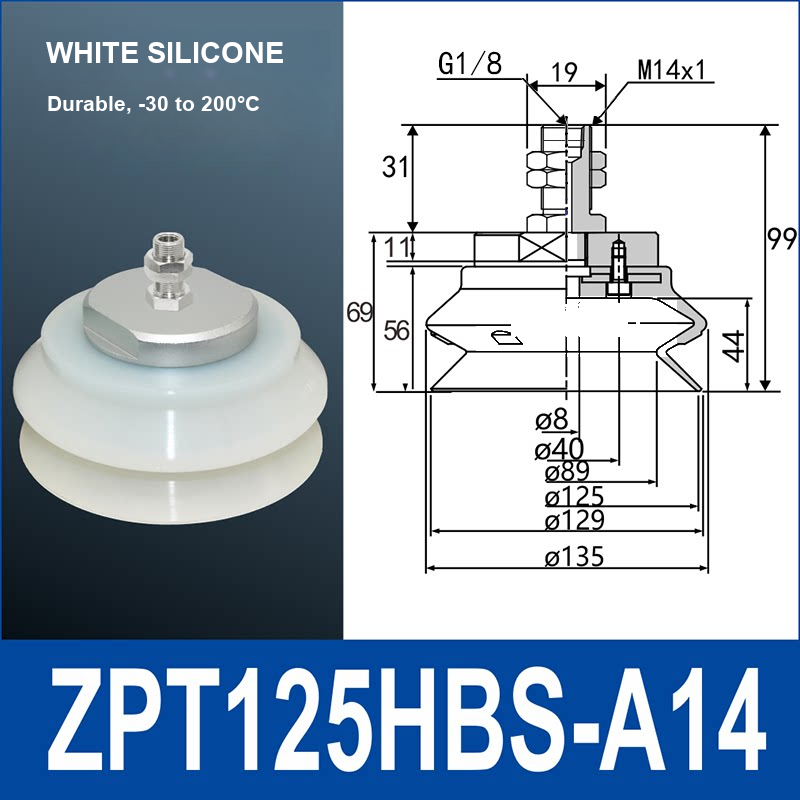

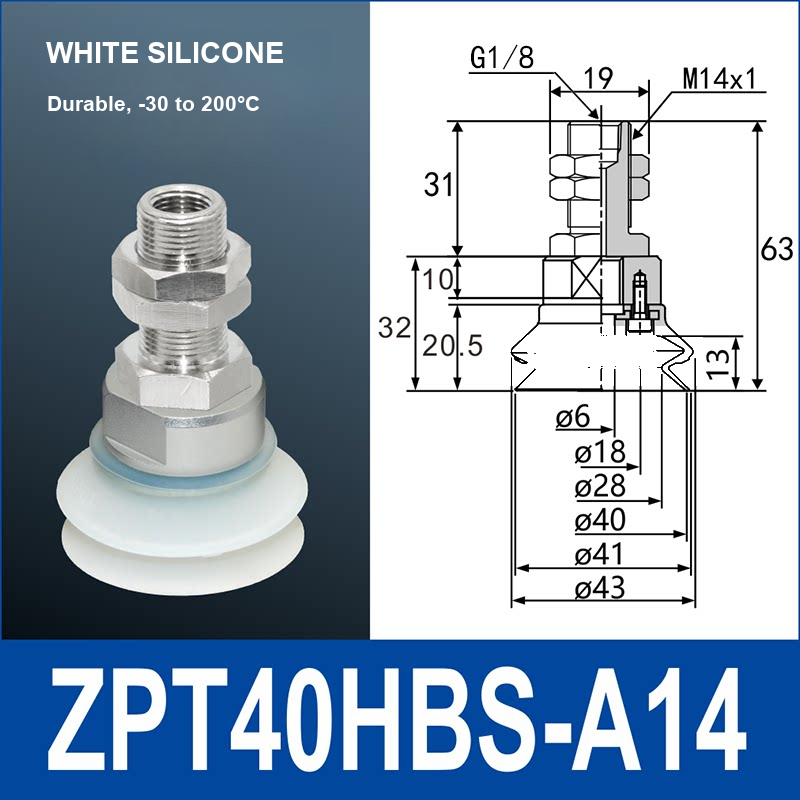

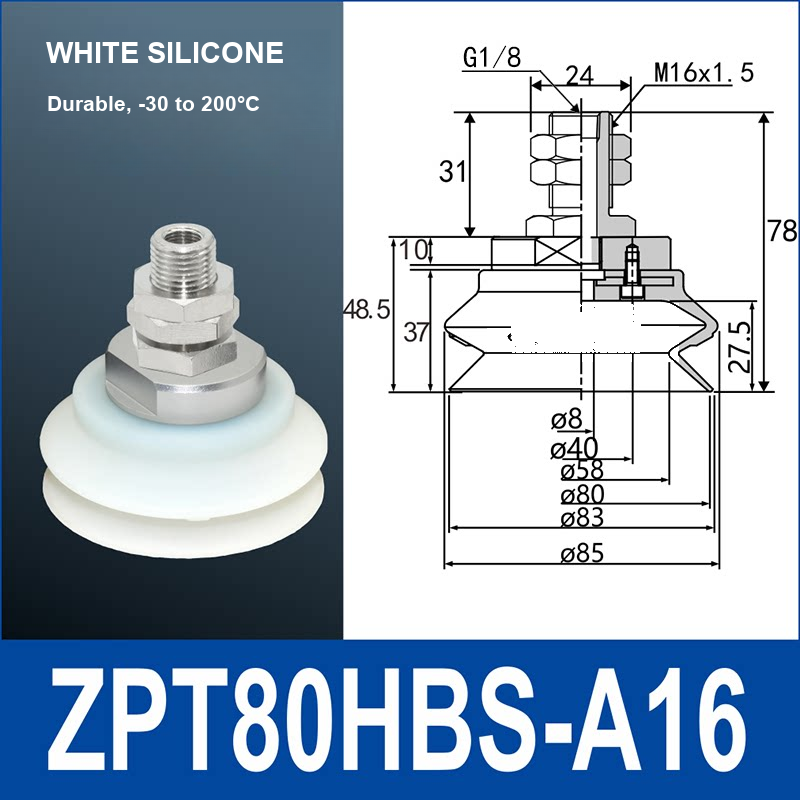

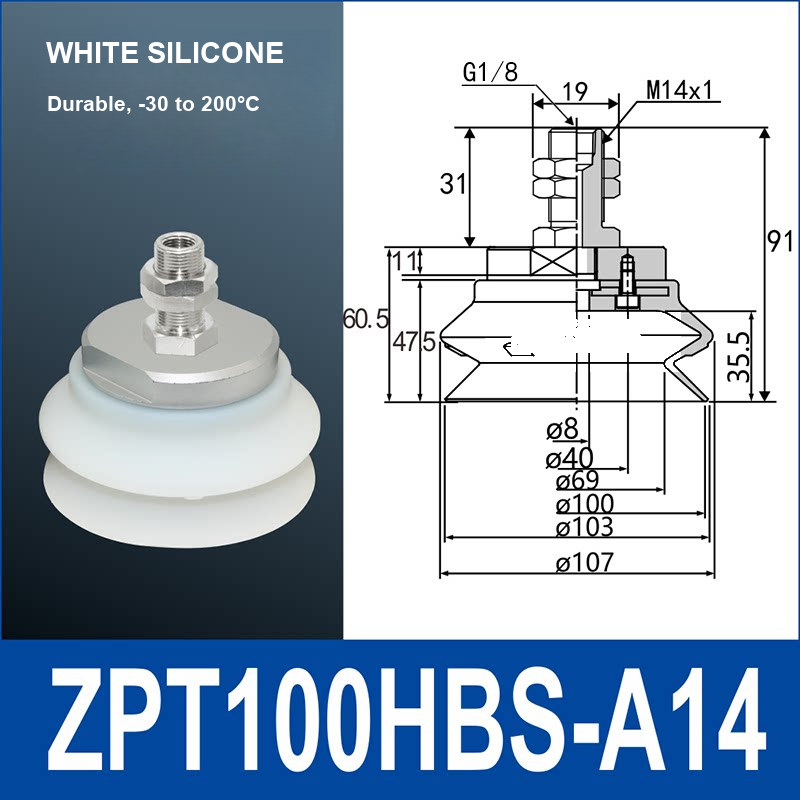

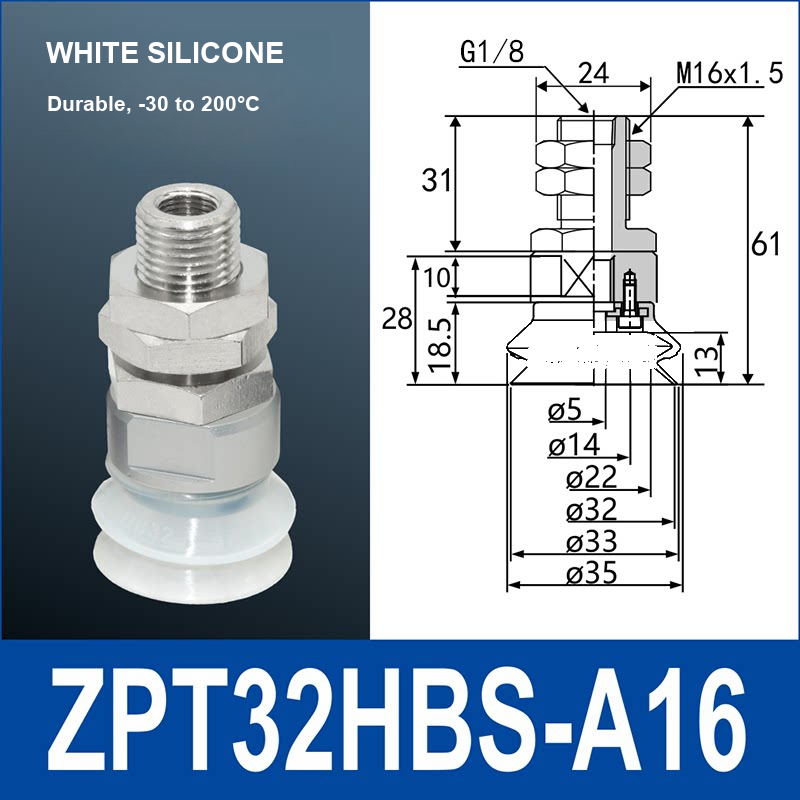

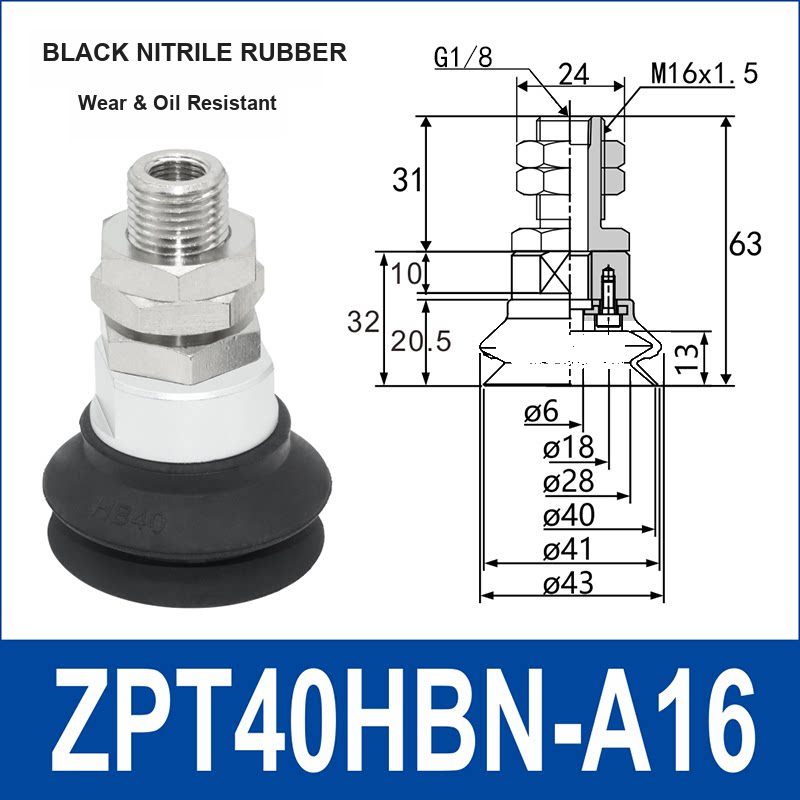

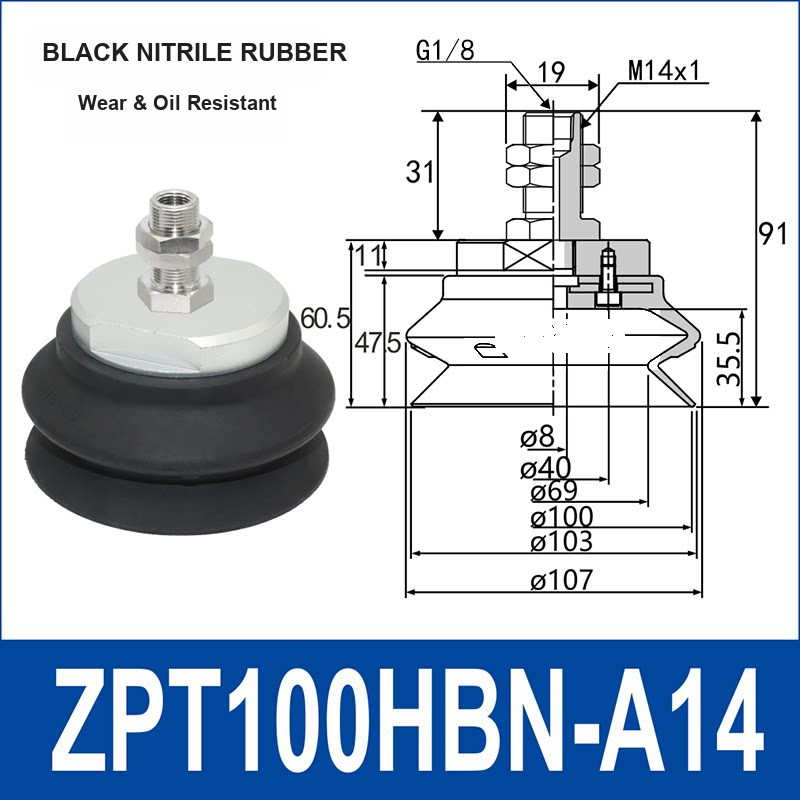

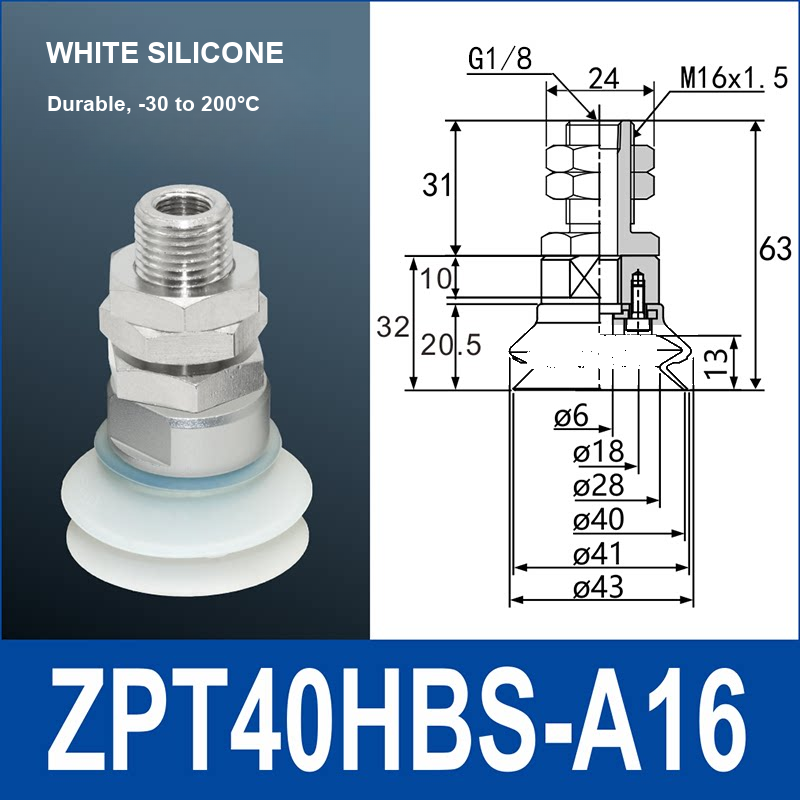

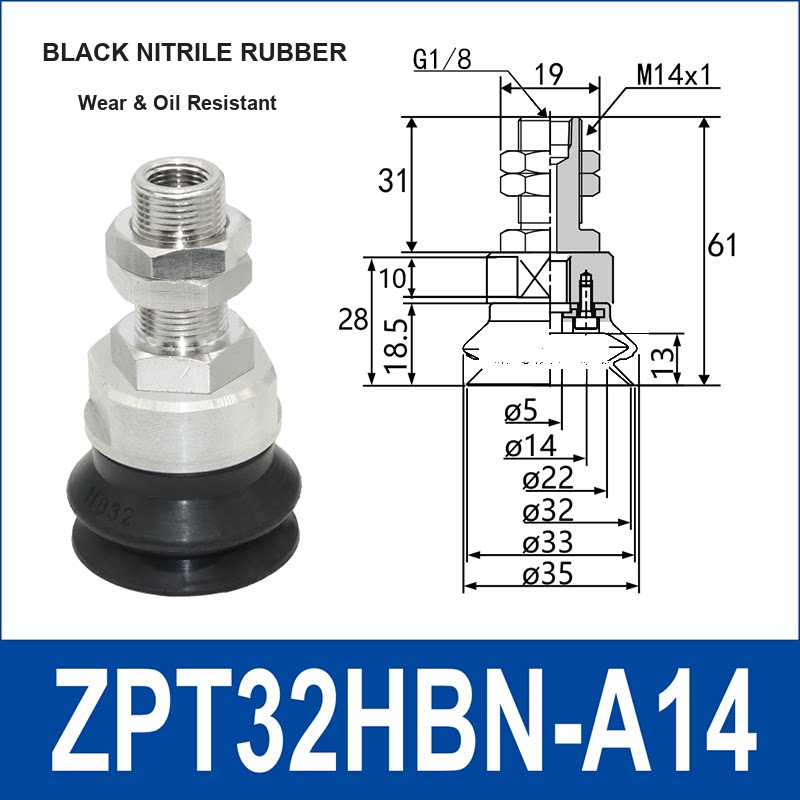

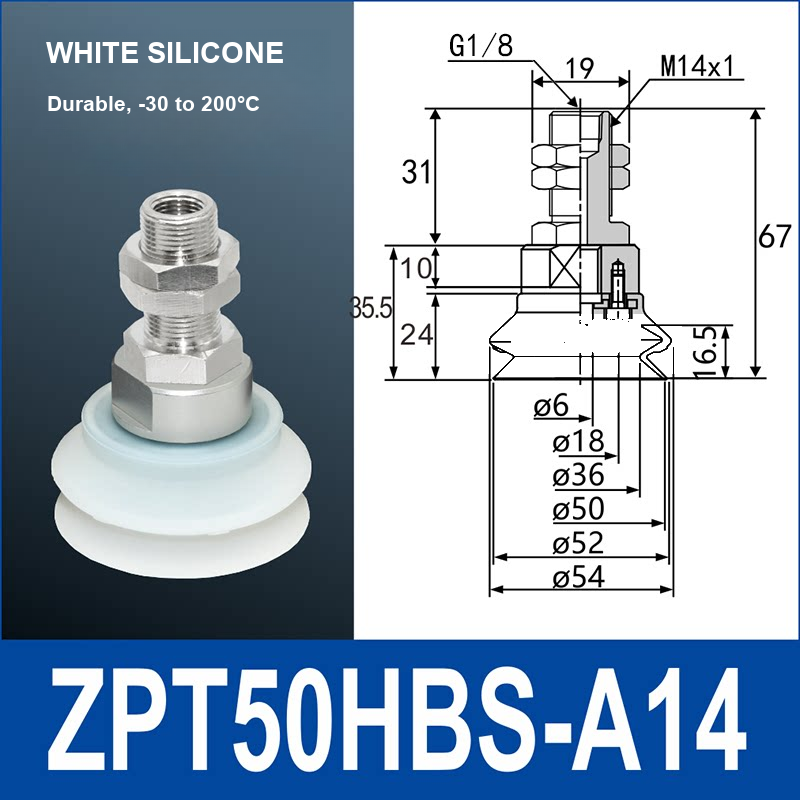

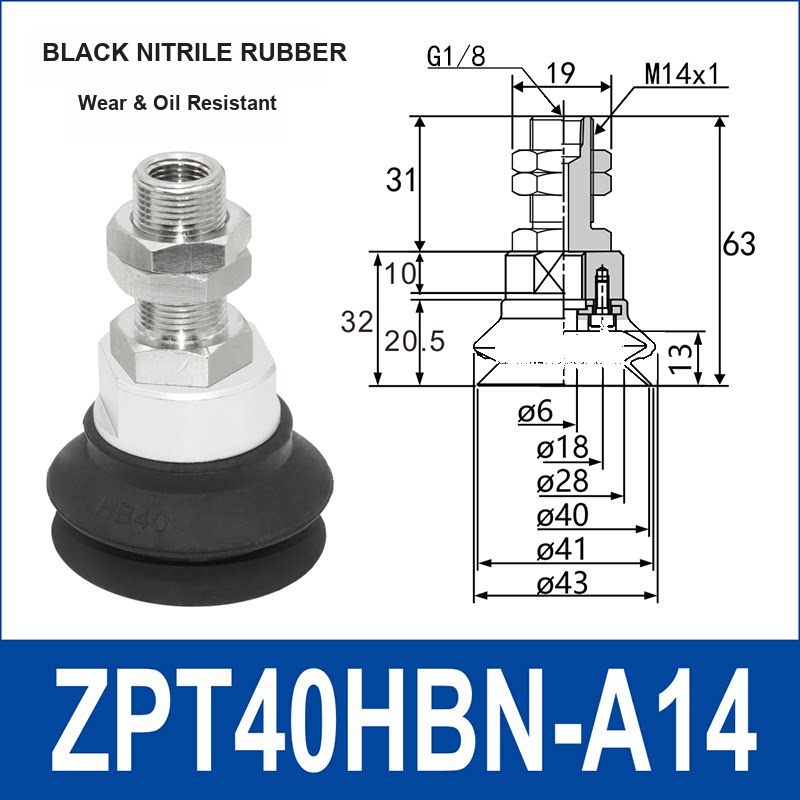

• Every variant image preserves the exact product, fitting, model and technical dimensions

Applications / Suitable For

• Robotic pick-and-place, automated loading and unloading, lifting, transfer and positioning
• Industrial handling of panels, sheet metal, rigid components and other compatible workpieces
• Vacuum systems where cup diameter, material, fitting configuration and available vacuum have been checked

Confirm the exact drawing dimensions, workpiece surface, load, acceleration, vacuum level, material compatibility and connection size before selection. No regulatory or food-contact certification is claimed.
