ZPX-HB Heavy-Duty Vacuum Cup Assemblies – Silicone/NBR, J25/J50/J75

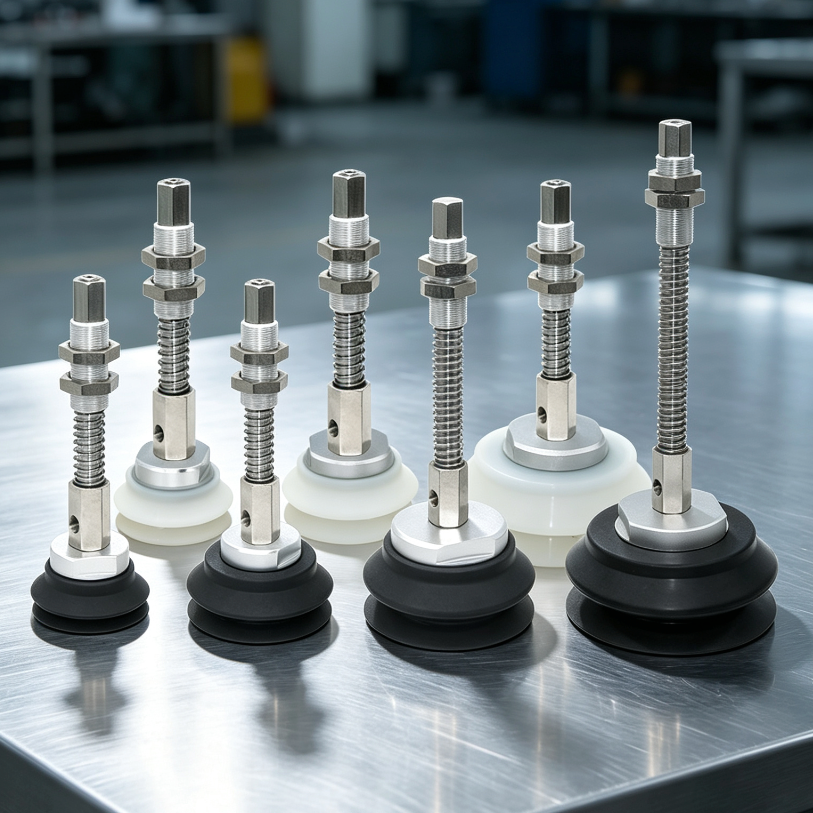

ZPX-HB Heavy-Duty Spring-Loaded Vacuum Cup Assemblies

Spring-loaded vacuum cup assemblies for industrial material-handling and robotic end-of-arm tooling. Select the exact model code, cup diameter, material and J-length configuration shown in the model-specific image.

• 24 exact configurations: 12 white silicone (HBS) and 12 black NBR (HBN)
• Cup diameters: 63 mm, 80 mm, 100 mm and 125 mm
• J25, J50 and J75 spring-length configurations

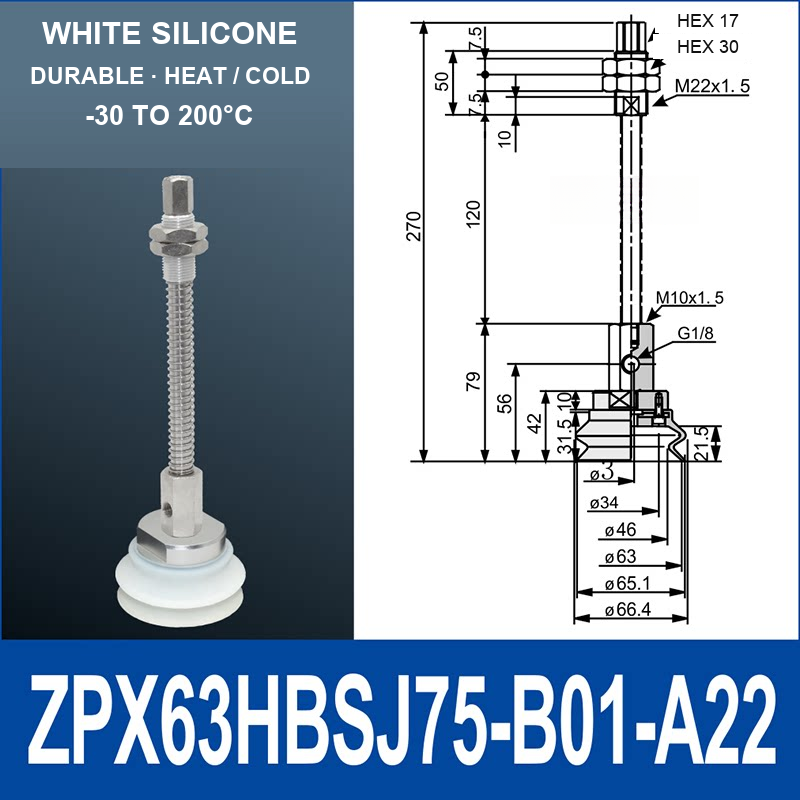

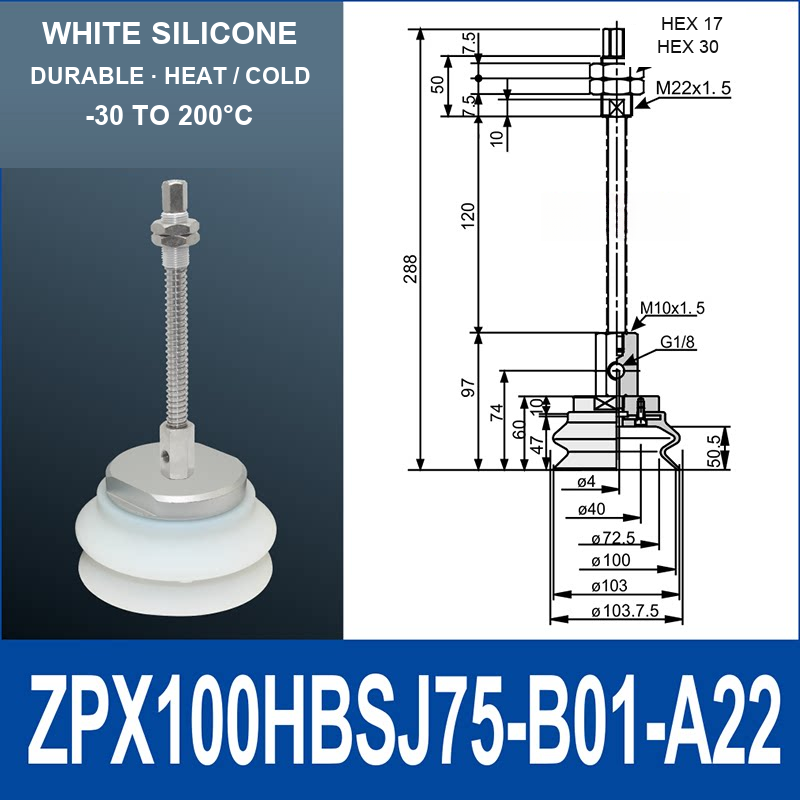

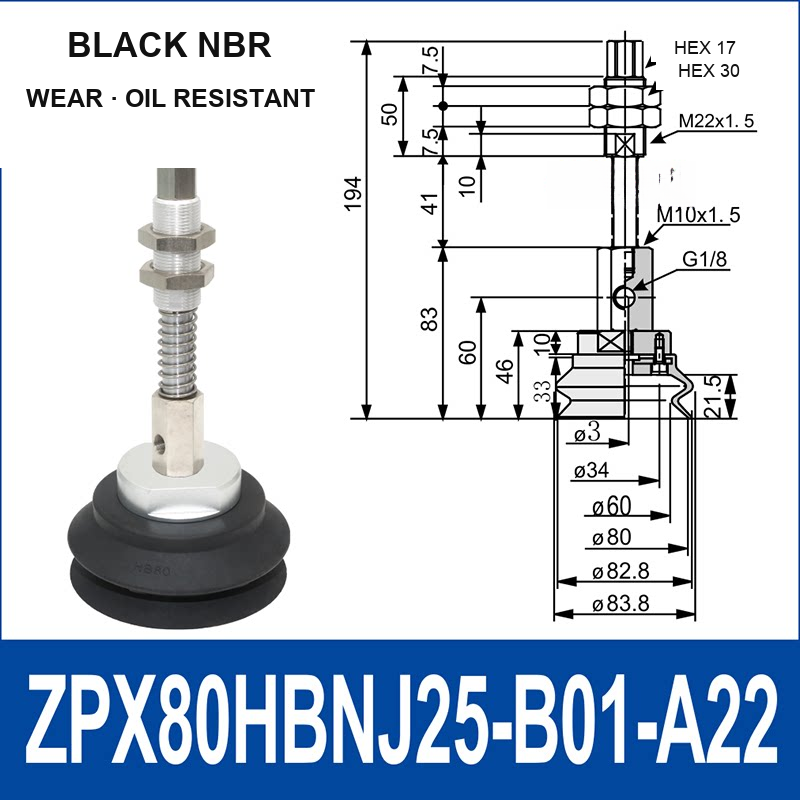

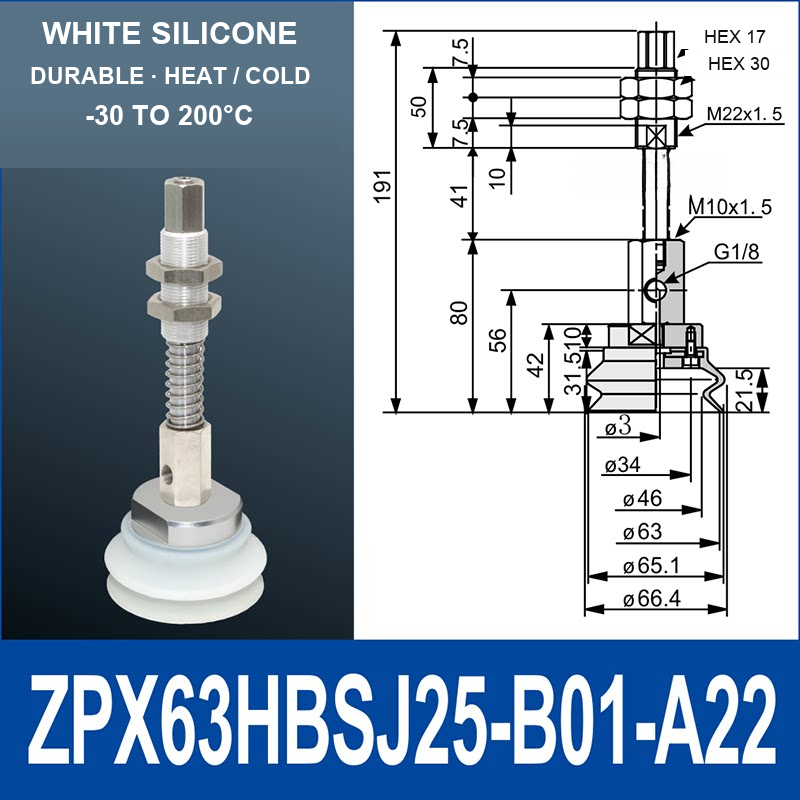

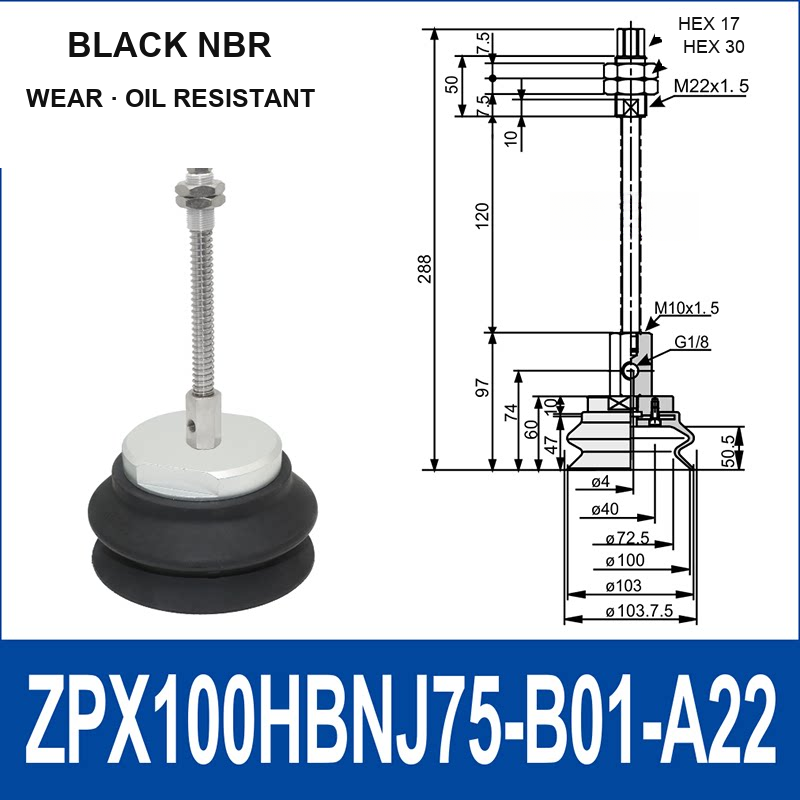

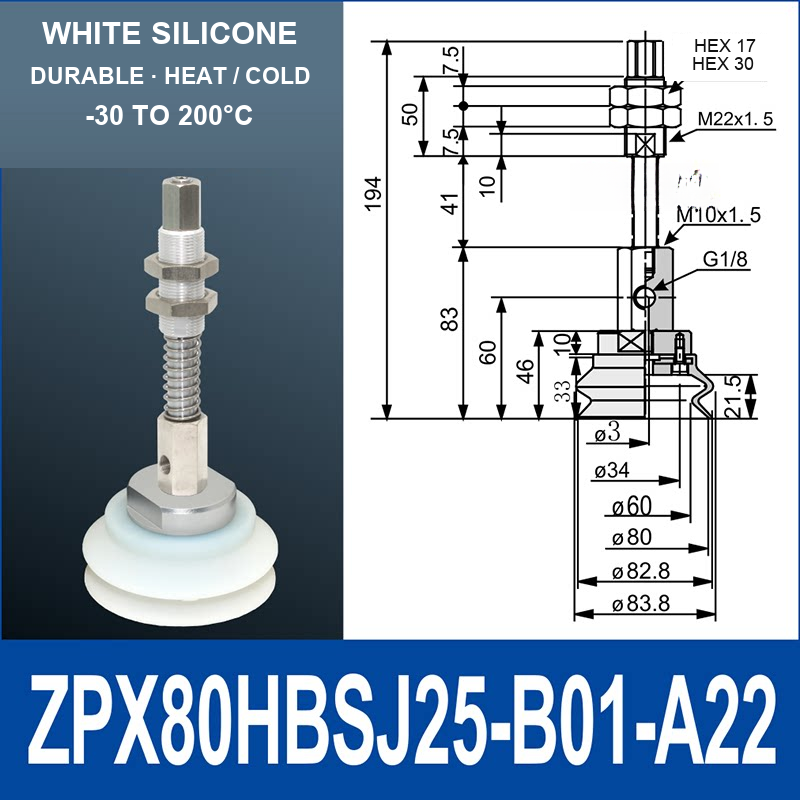

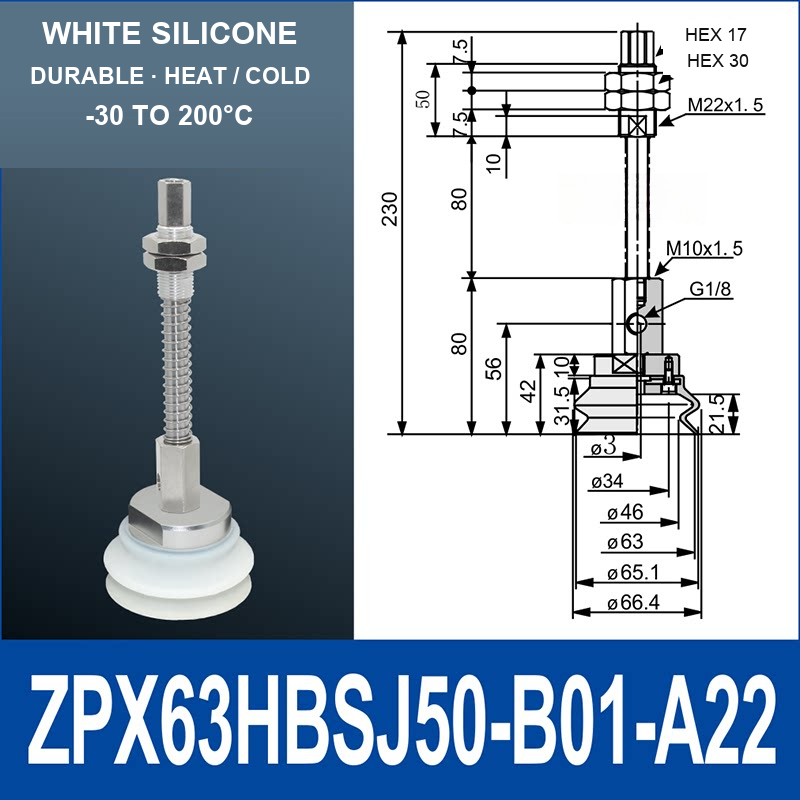

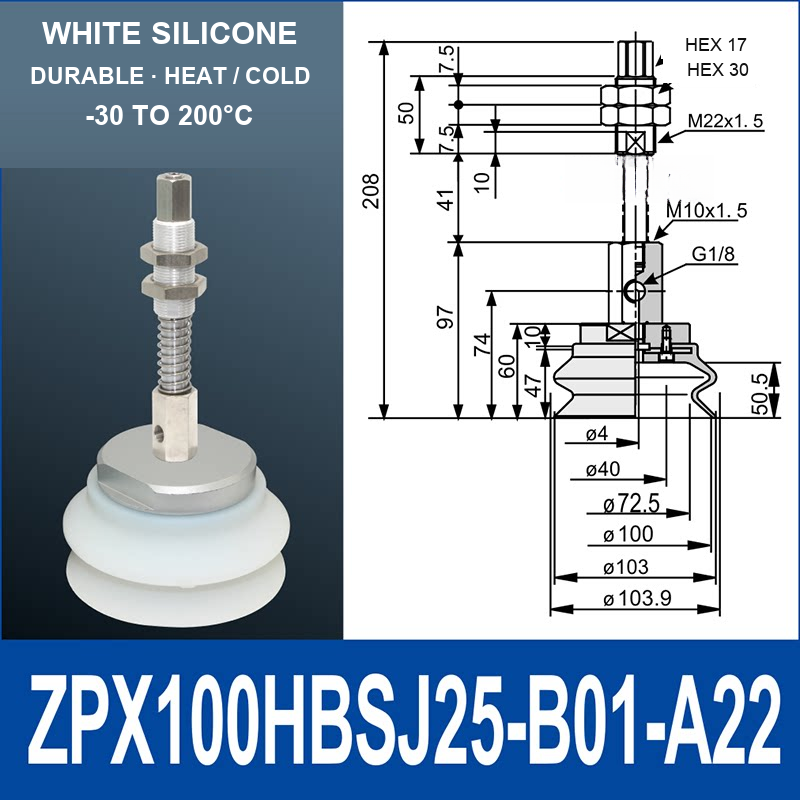

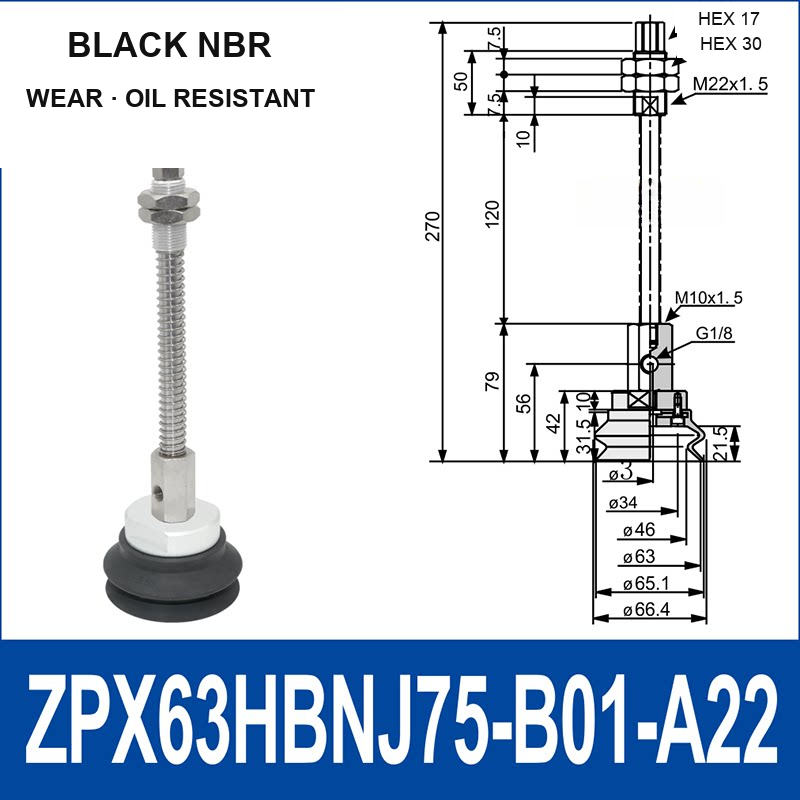

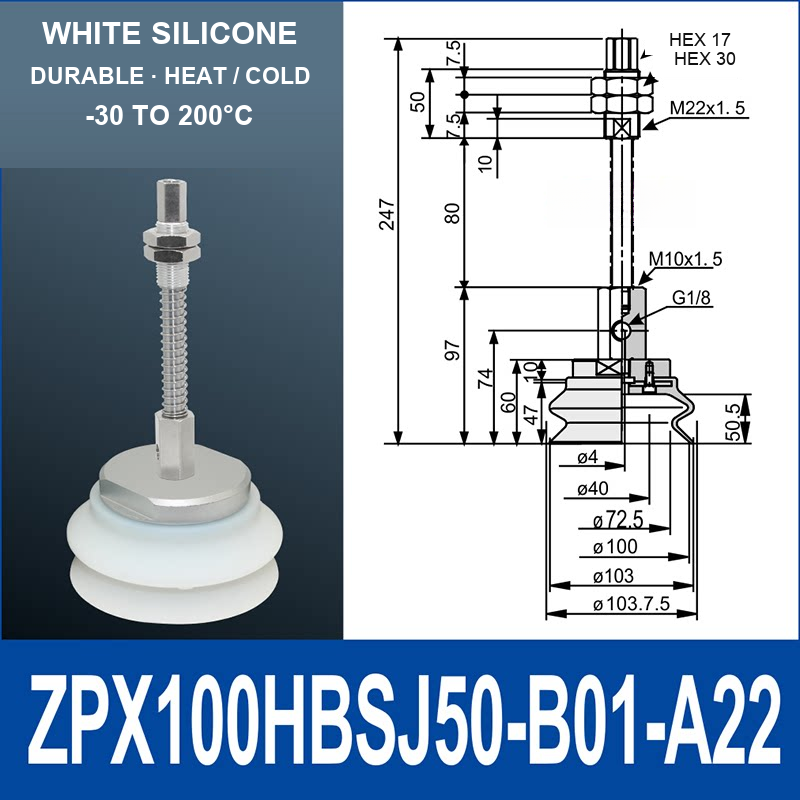

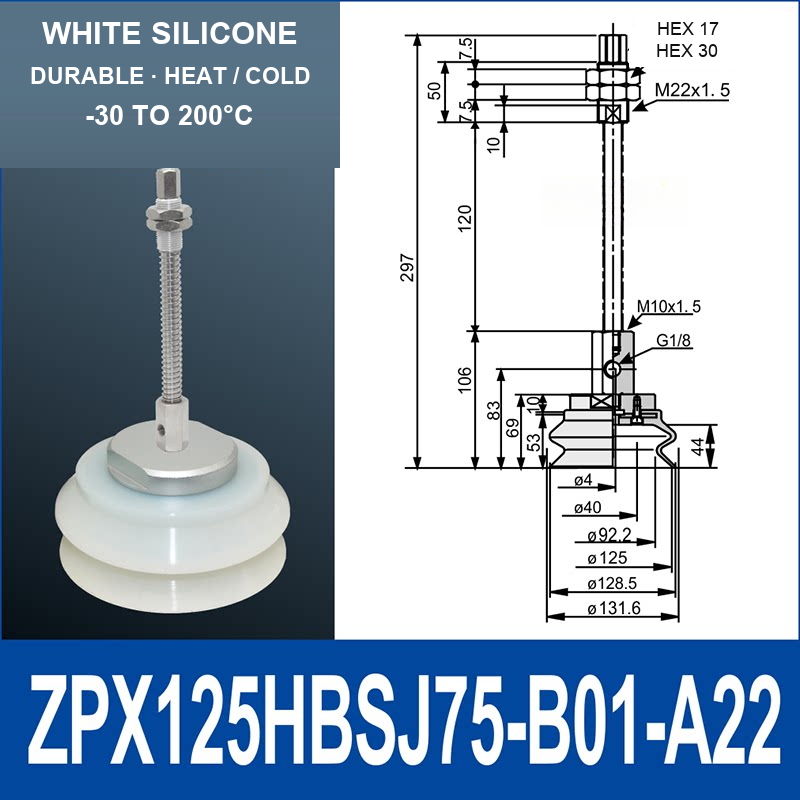

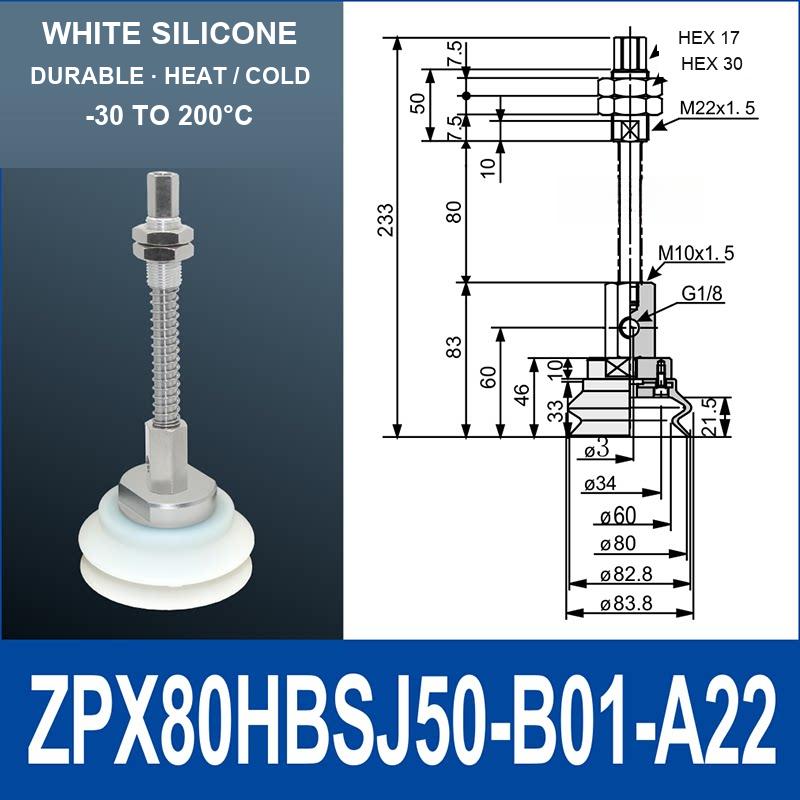

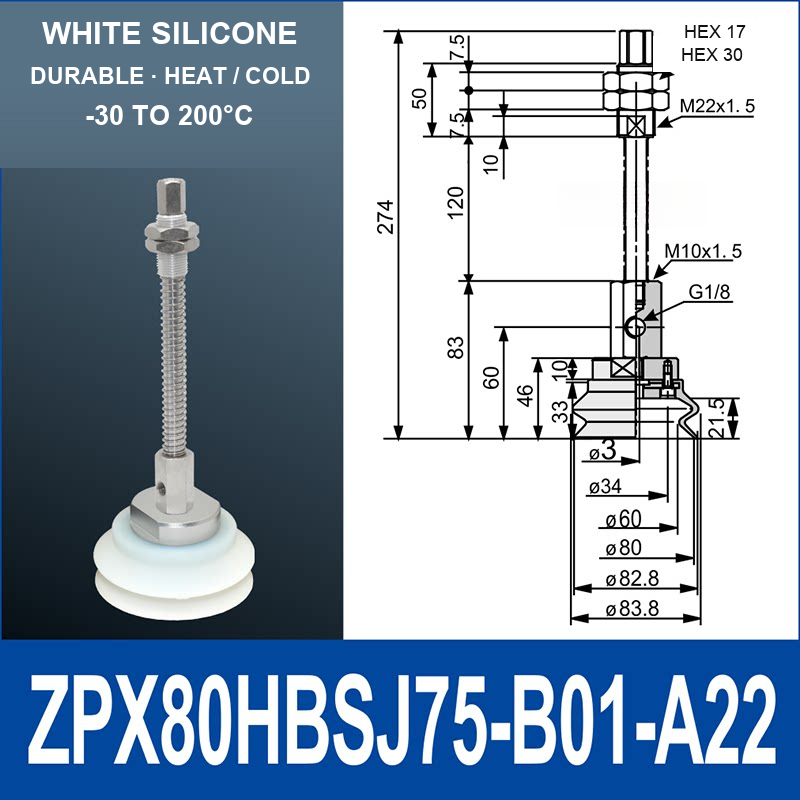

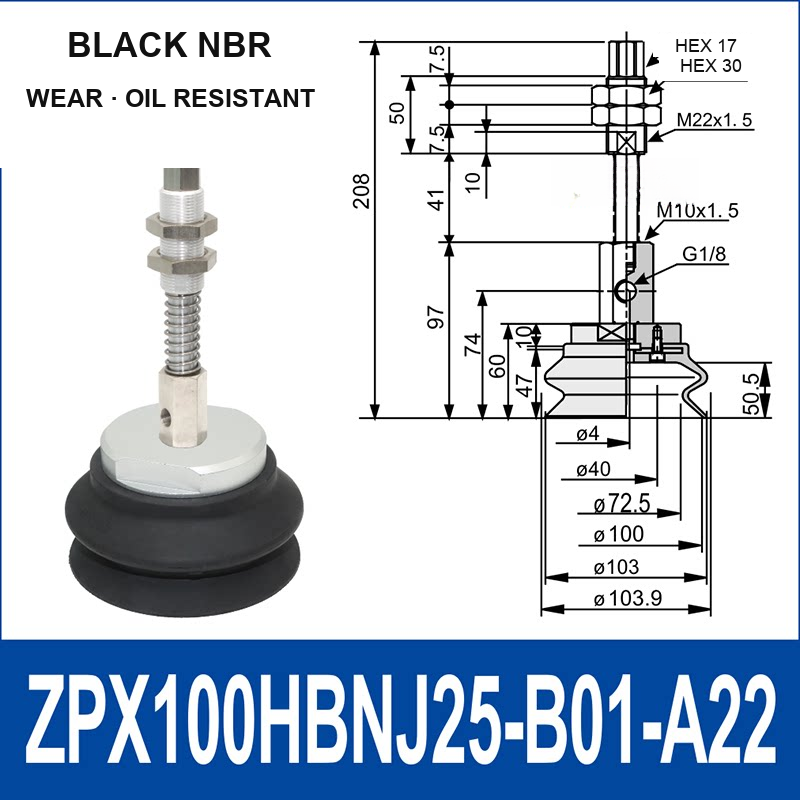

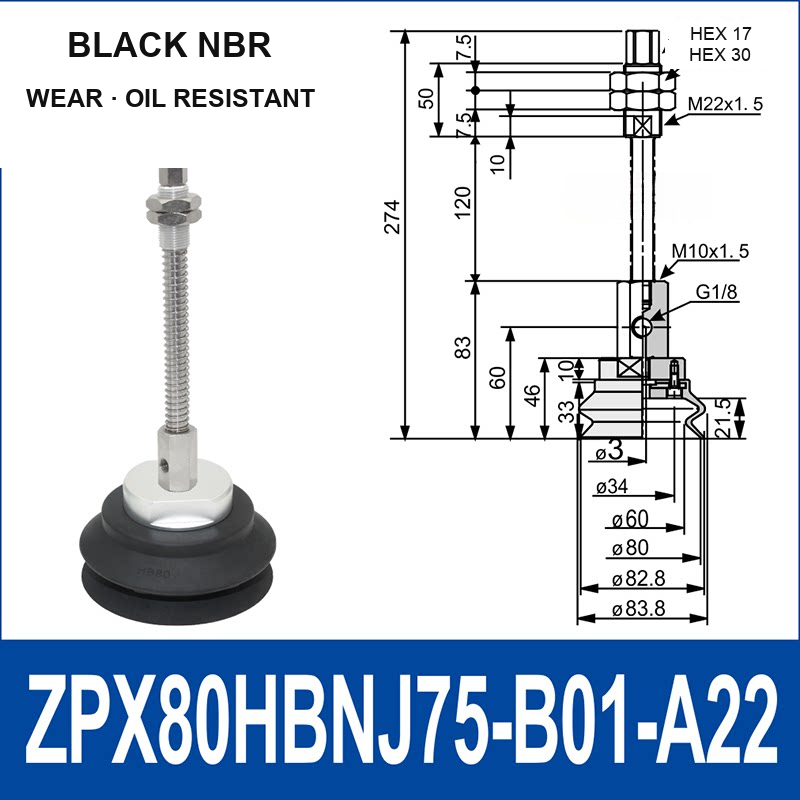

• Technical drawings show M22 x 1.5 top thread, M10 x 1.5 lower thread and G1/8 vacuum port
• Across-flat dimensions: HEX 17 and HEX 30
• White silicone specified temperature range: -30 to 200 degrees C
• Black NBR is specified for wear and oil resistance
• Model-specific product and dimensional images are provided

Applications / Suitable For

• Automated handling of dimensionally compatible smooth sheet and panel workpieces
• Robotic end-of-arm tooling requiring spring compliance and larger vacuum cups
• Loading, unloading, transfer and positioning equipment

Confirm the selected model drawing, cup material, workpiece surface, vacuum level, payload, acceleration, mounting geometry and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
