ZP3E UM and BM Heavy-Duty Vacuum Suction Cups
Heavy-duty industrial vacuum suction cups in UM single-layer and BM double-layer configurations, with white silicone and black nitrile-rubber material options across 32 mm to 125 mm nominal sizes.
- UM and BM configurations for different compliance and handling requirements
- White silicone and black nitrile-rubber options

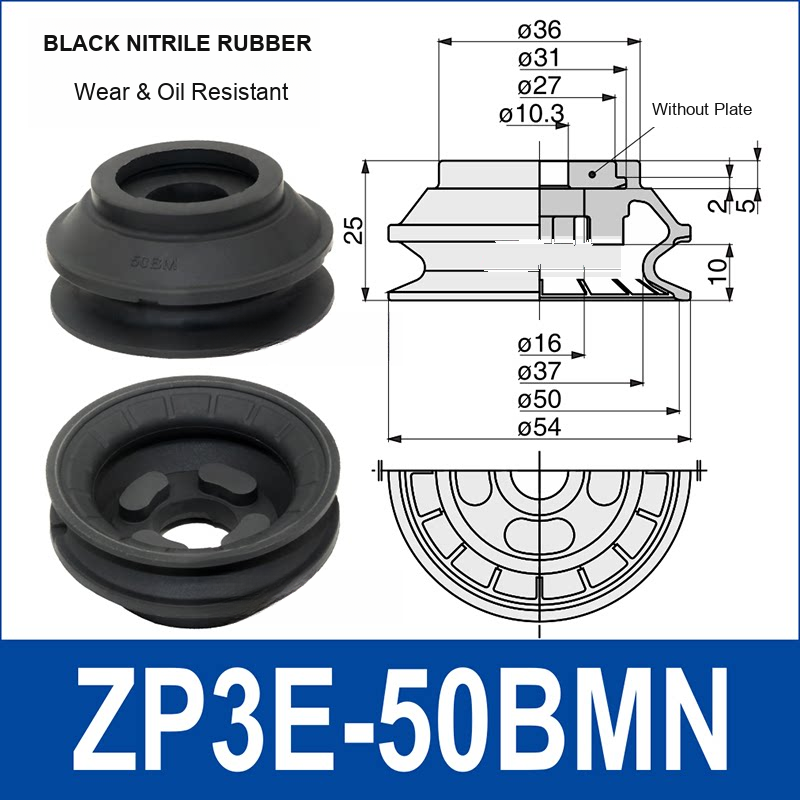

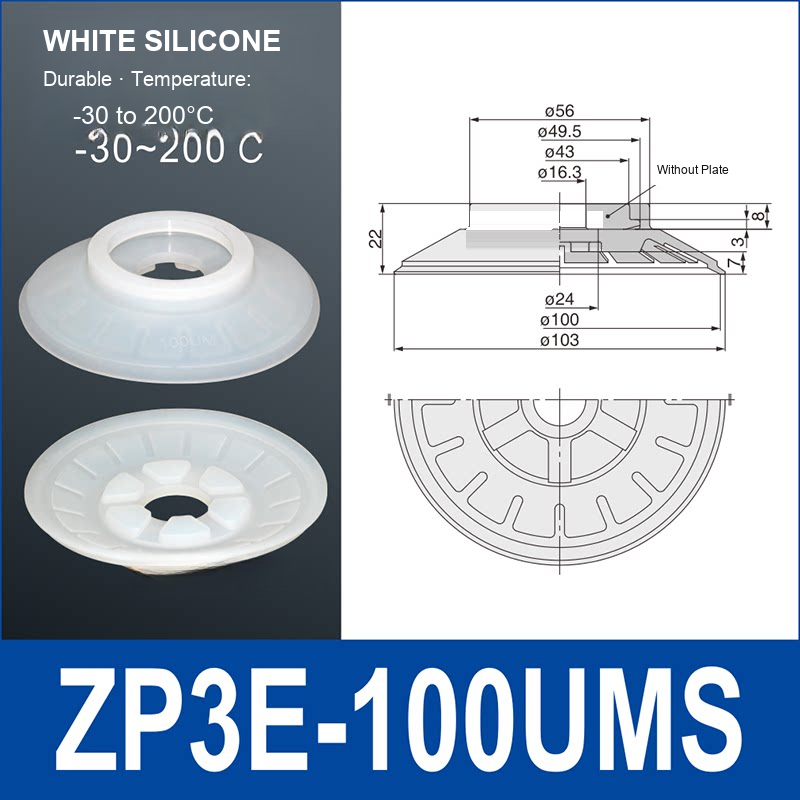

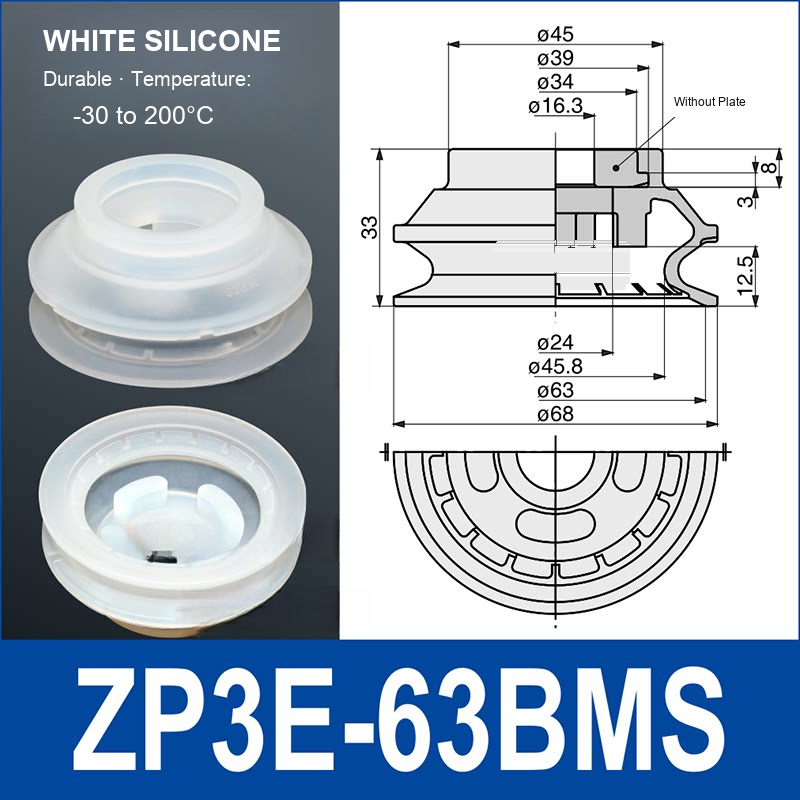

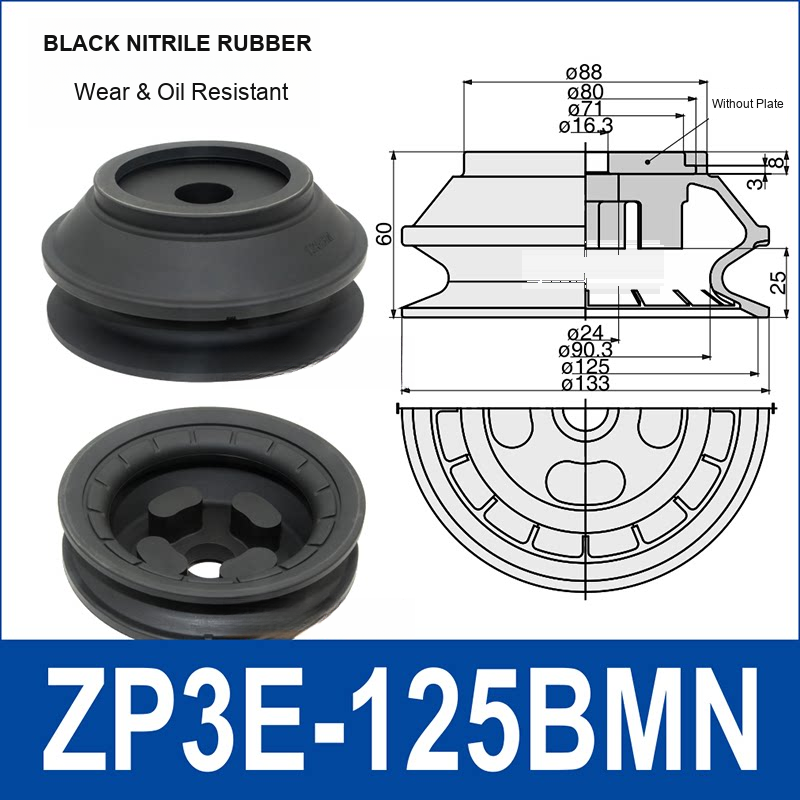

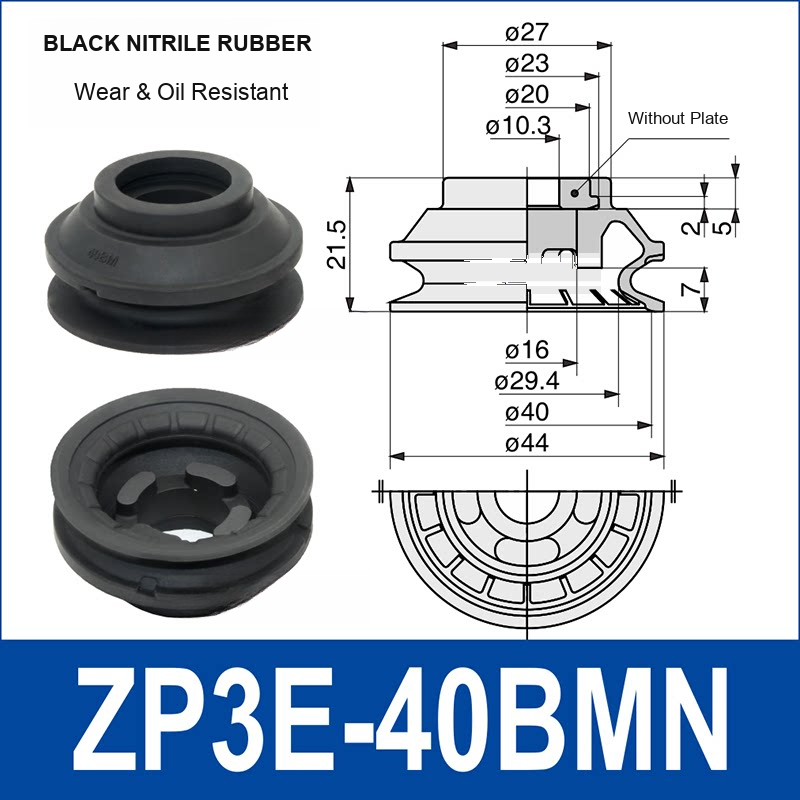

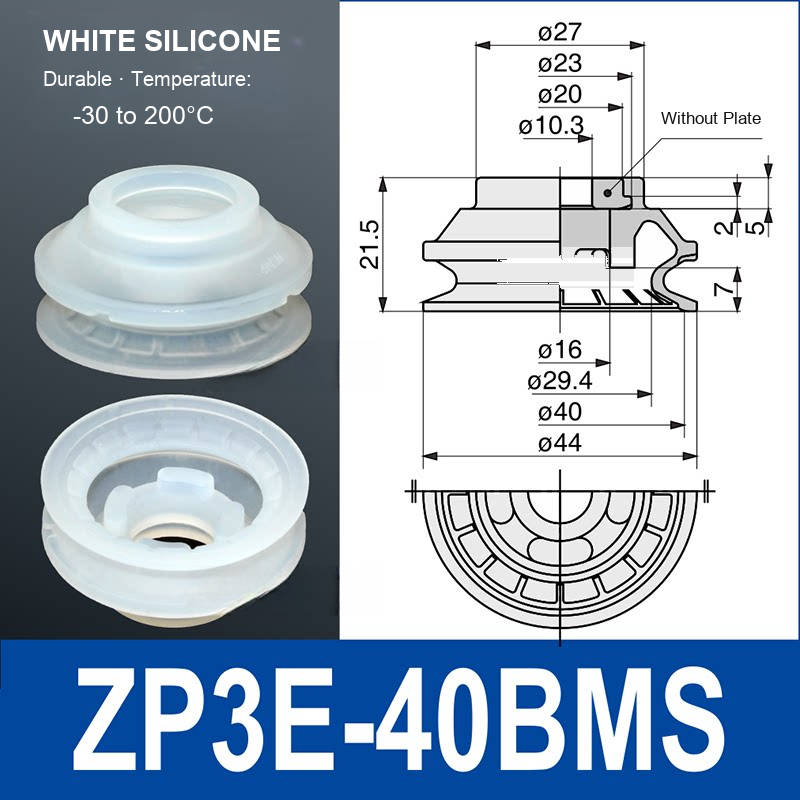

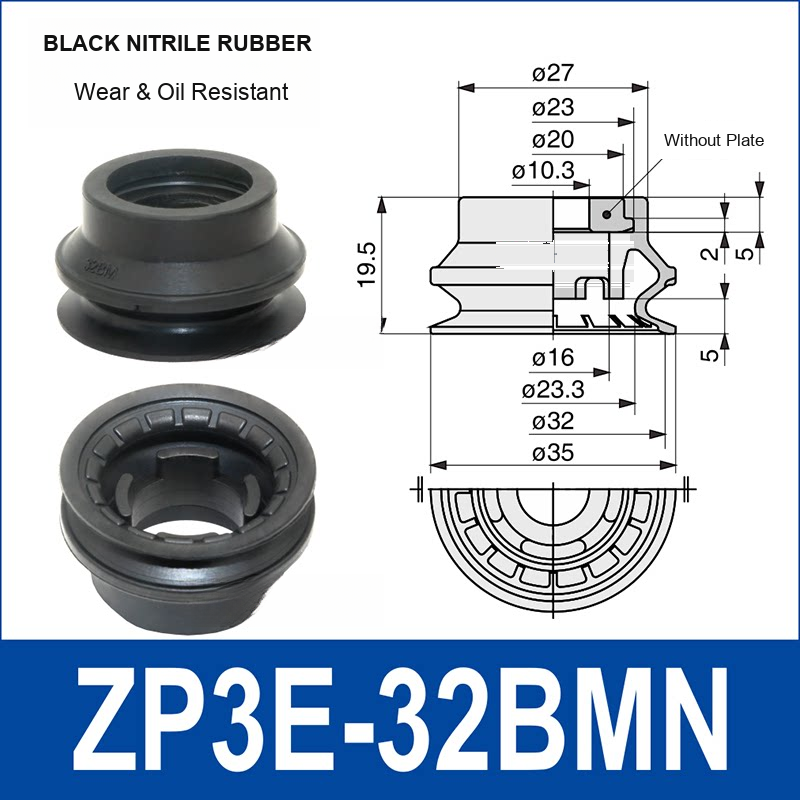

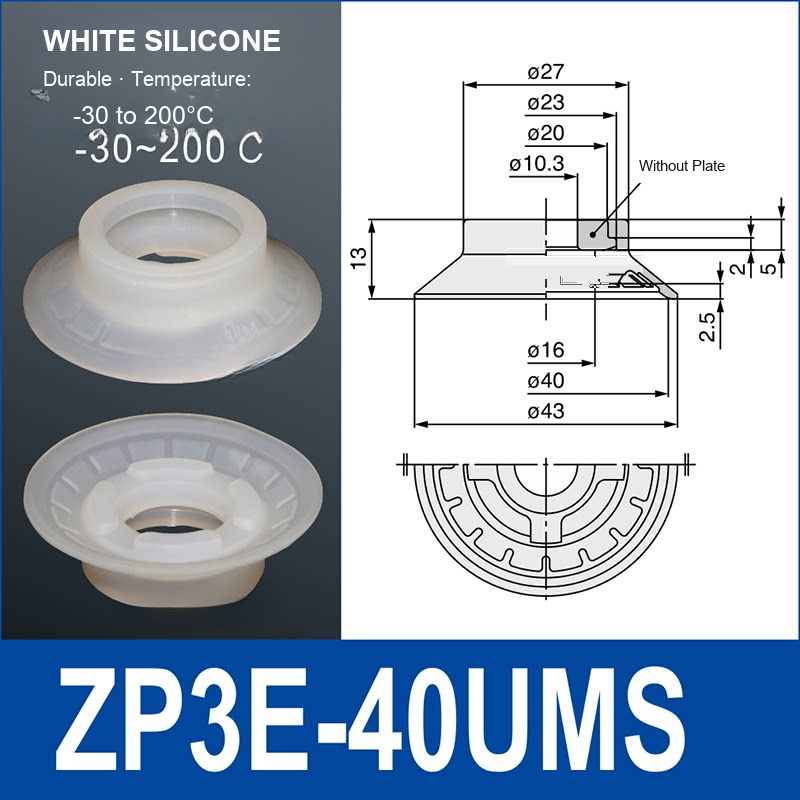

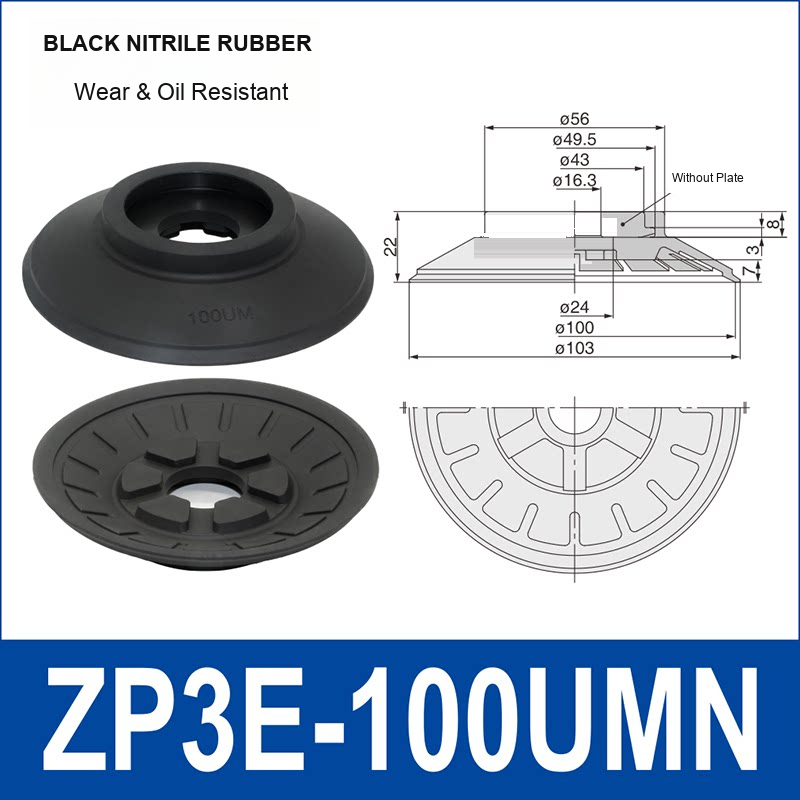

- Model-specific technical drawings, dimensions and material identification
ZP3E UM or BM: compare layer and material codes
The ZP3E range separates UM single-layer and BM double-layer configurations. Keep that distinction when comparing silicone and nitrile-rubber options of the same nominal size.
| Selection detail | What to check |
|---|---|

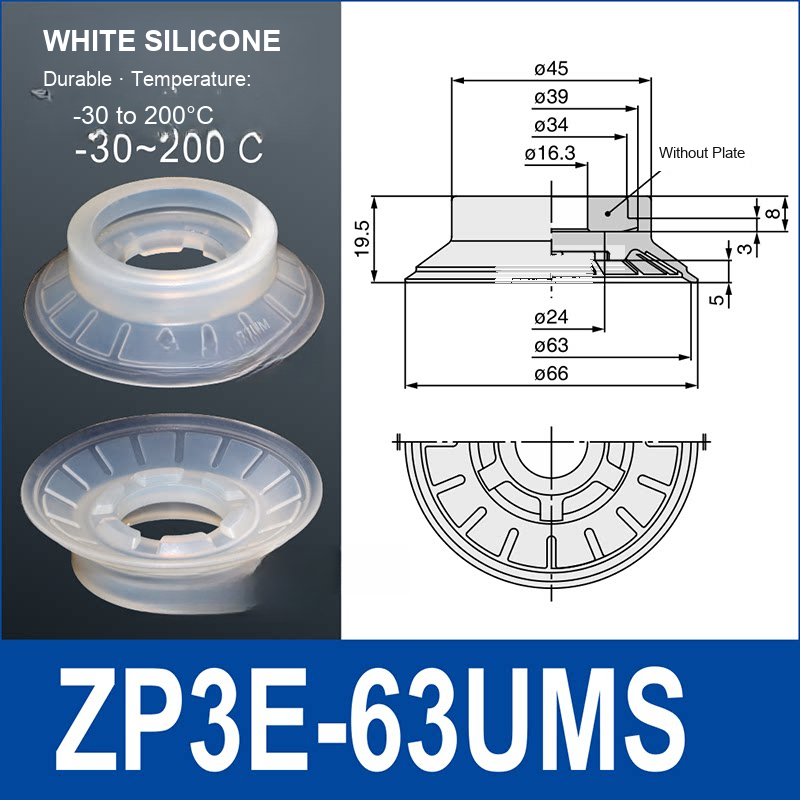

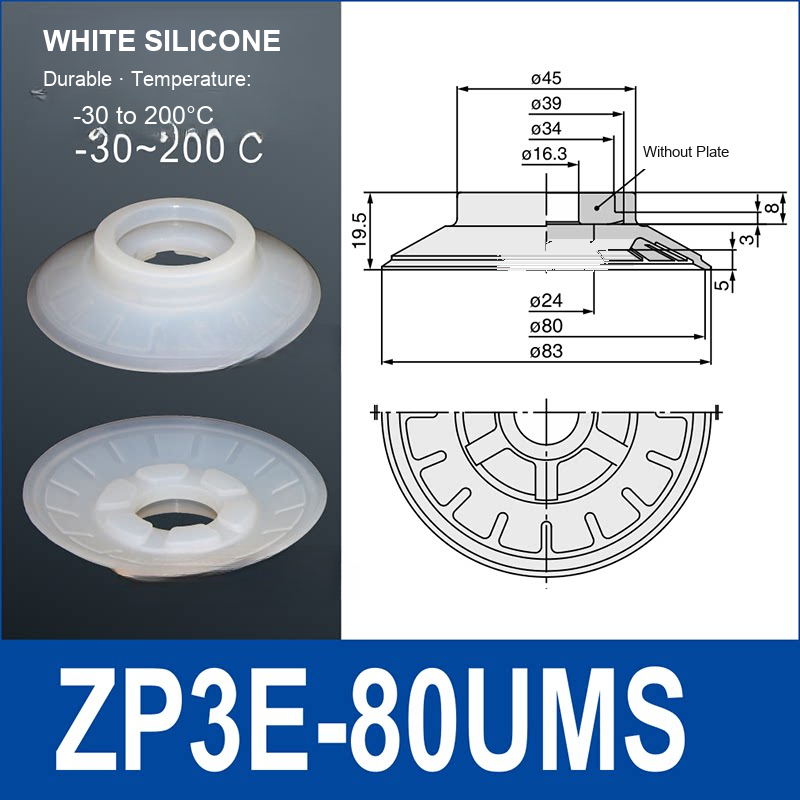

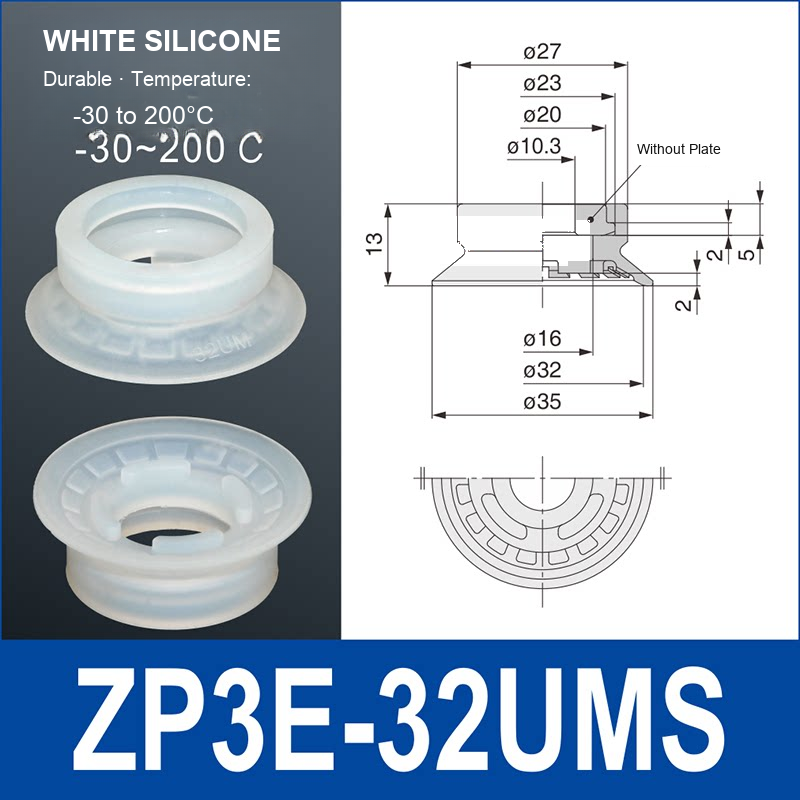

| ZP3E-32UMS | A white-silicone UM option in the selector. |

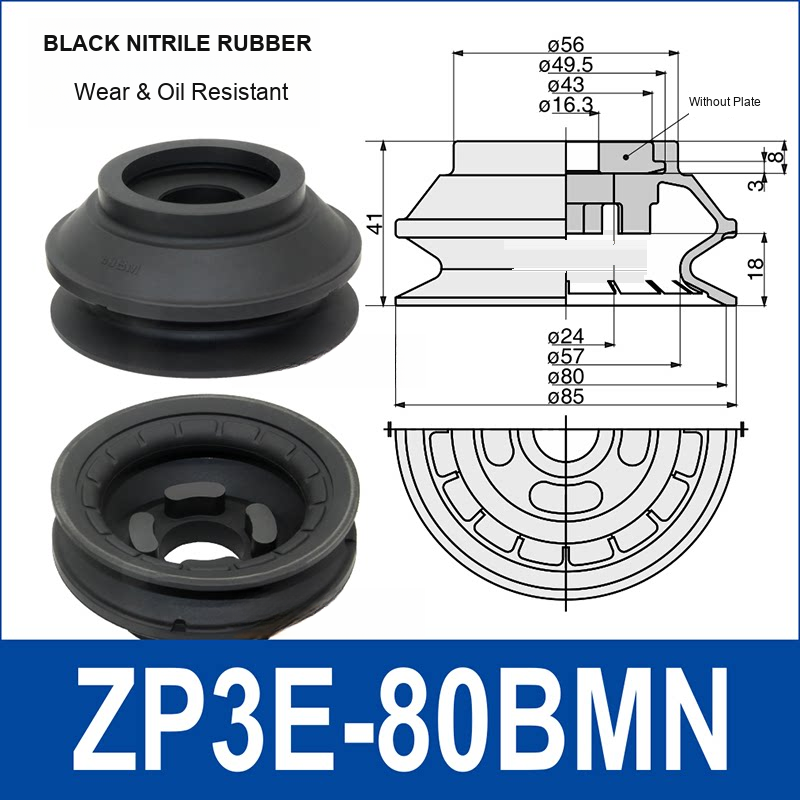

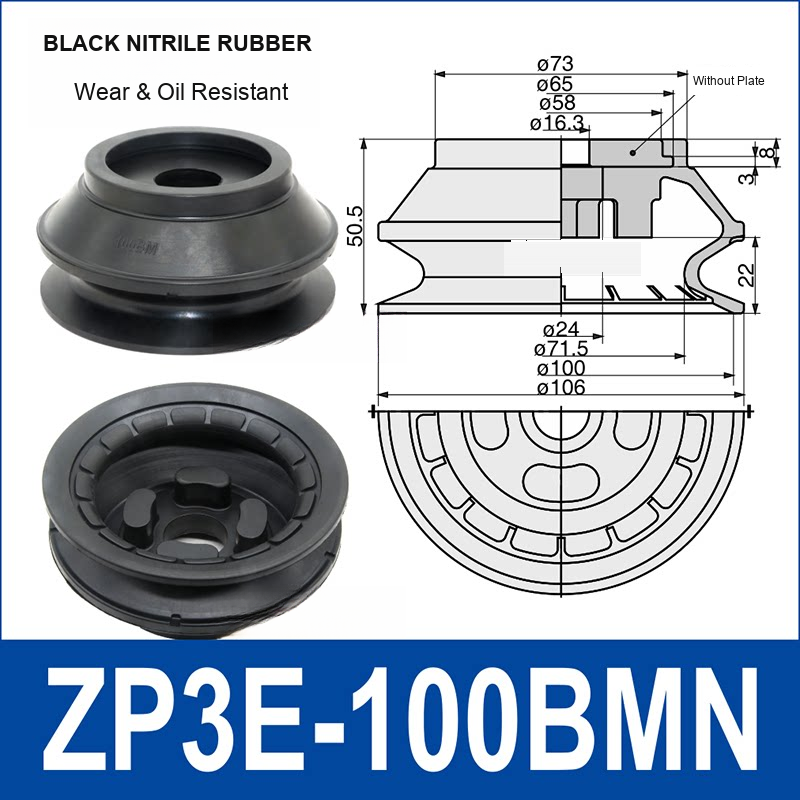

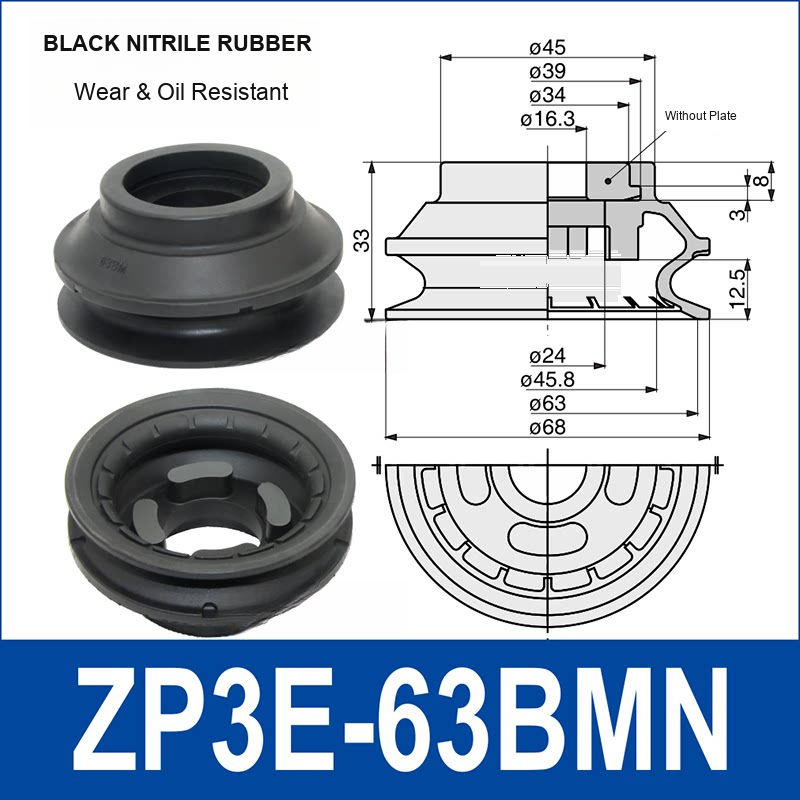

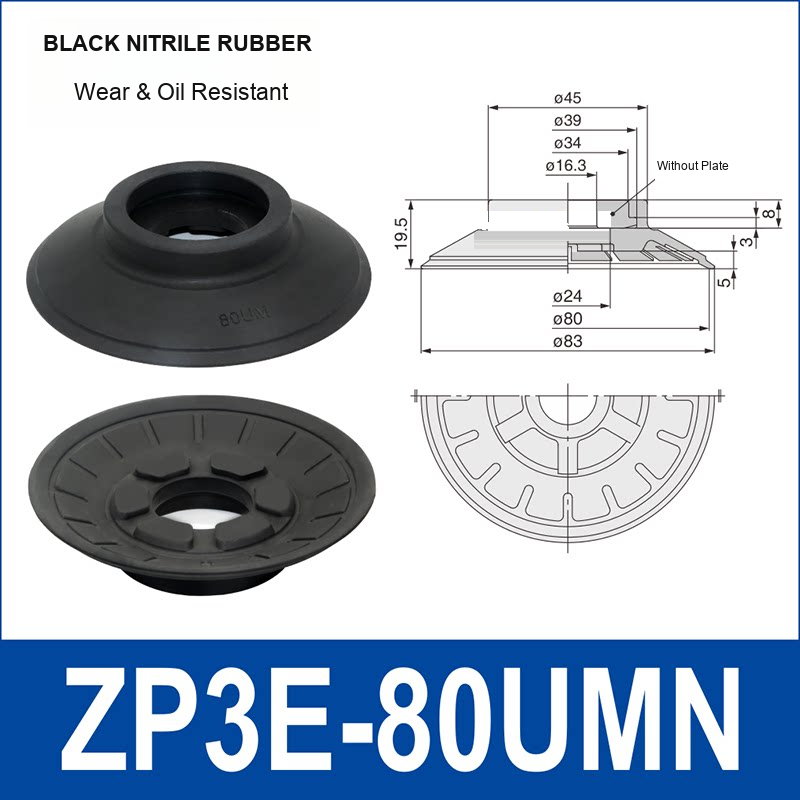

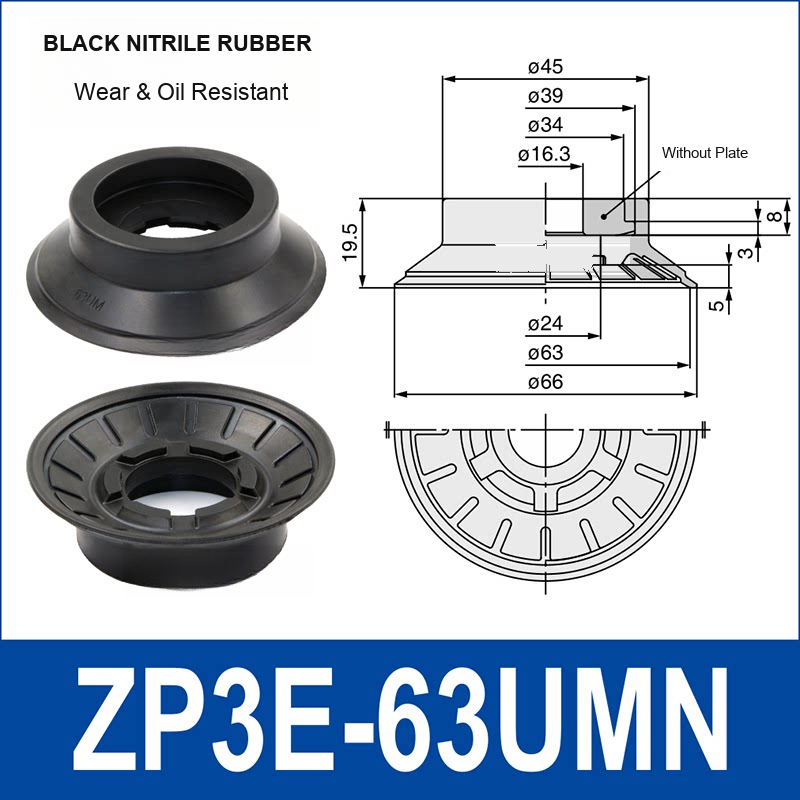

| ZP3E-32UMN | A black nitrile-rubber UM option; material behaviour must be checked separately. |

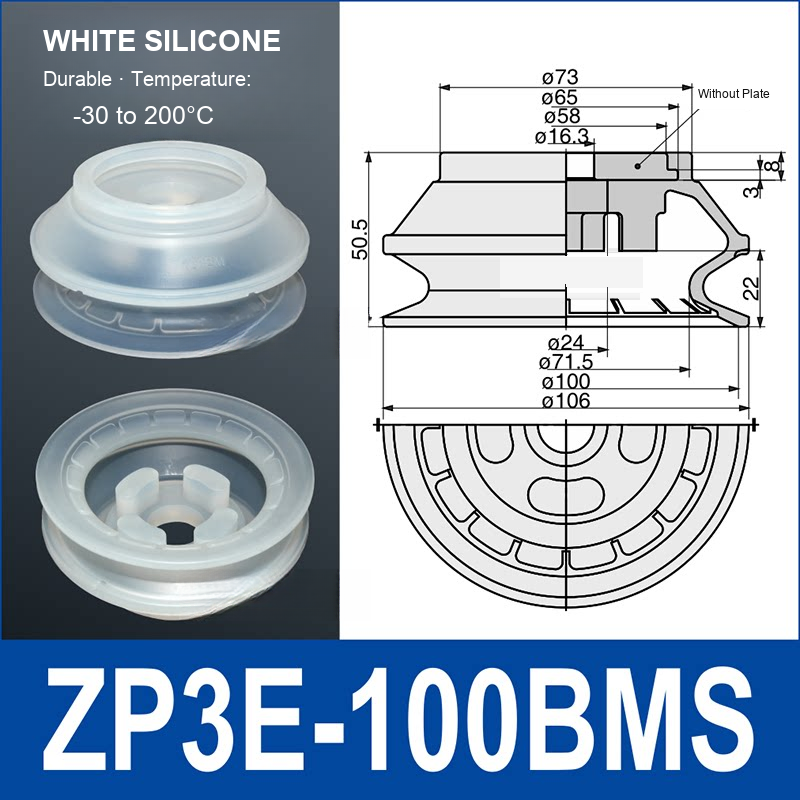

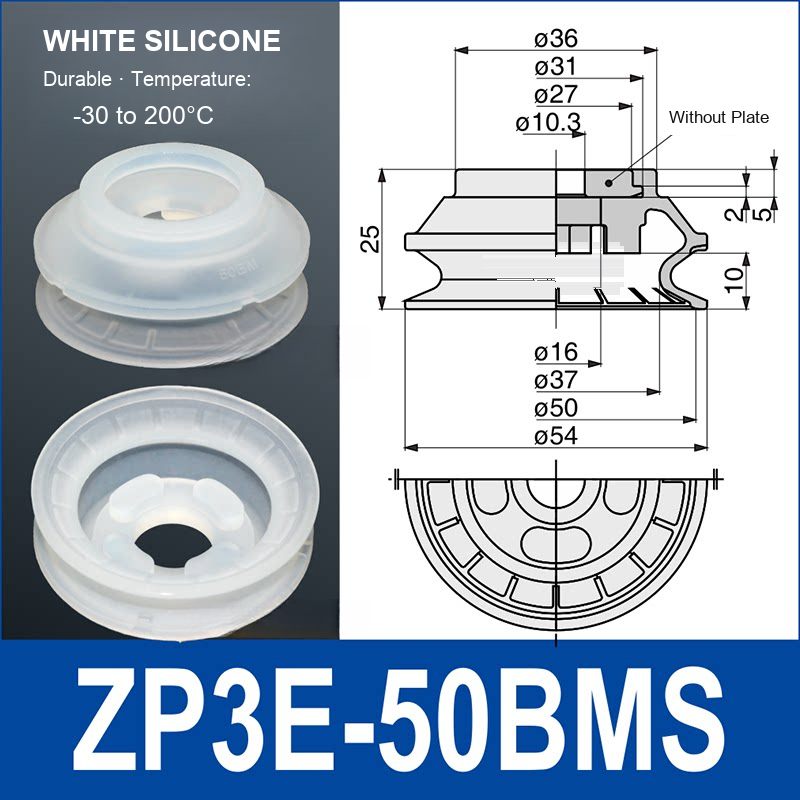

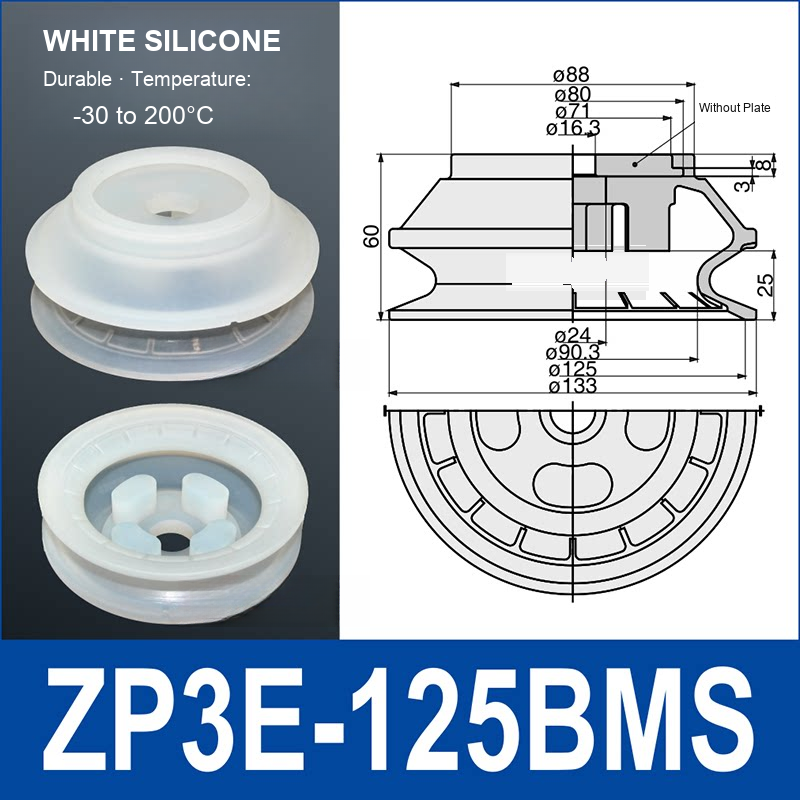

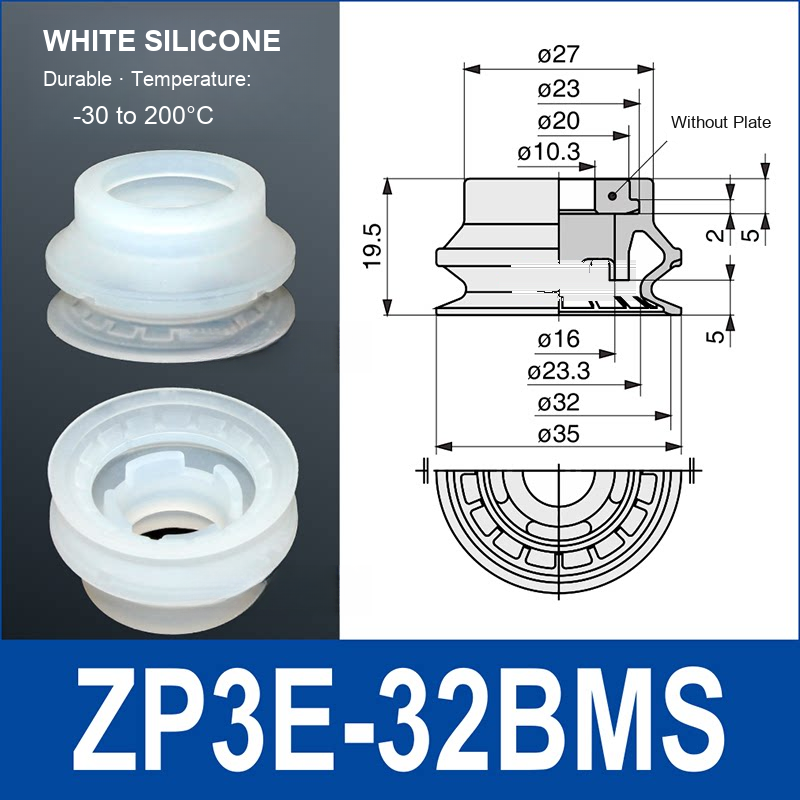

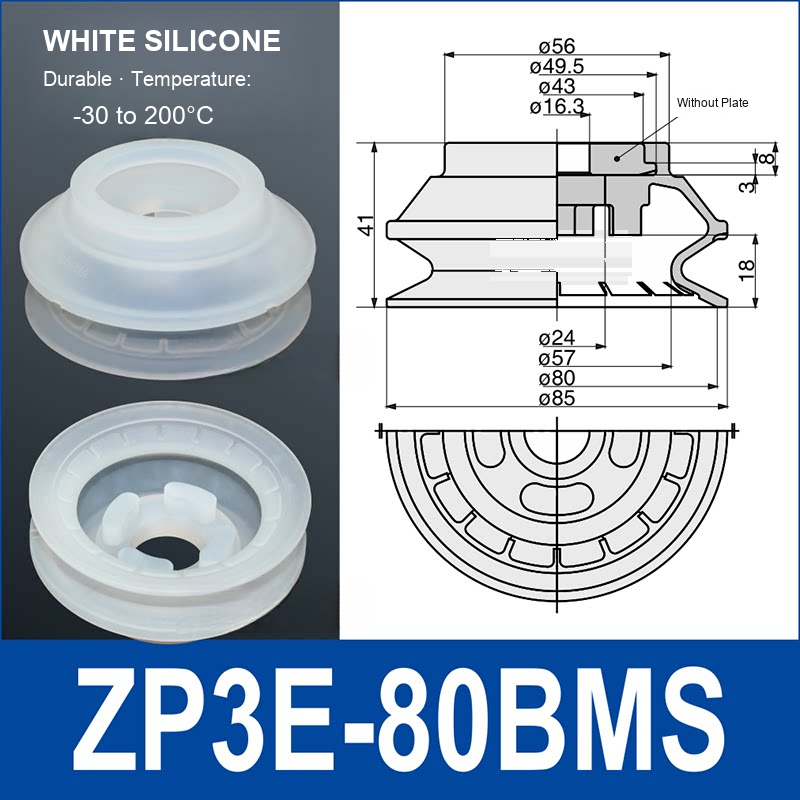

| BM configurations | Compare the double-layer profile, height and mount with the intended workpiece and tooling. |
Can nominal diameter alone confirm a replacement?
No. Verify the sealing profile, installed height, mounting interface and material. Recheck the actual vacuum and handling cycle after changing the cup configuration.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Automated handling of compatible sheet metal, glass, coated panels and wood-based boards
- Robotic palletizing, CNC machine loading and industrial pick-and-place systems
- Vacuum lifting of compatible large, smooth or moderately contoured workpieces
- End-of-arm tooling in fabrication, glazing, woodworking and general manufacturing
Confirm the selected model drawing, diameter, material, mounting arrangement, workpiece surface, vacuum level, load, acceleration and operating temperature before use. No food-contact, medical, cleanroom or regulatory certification is claimed.
