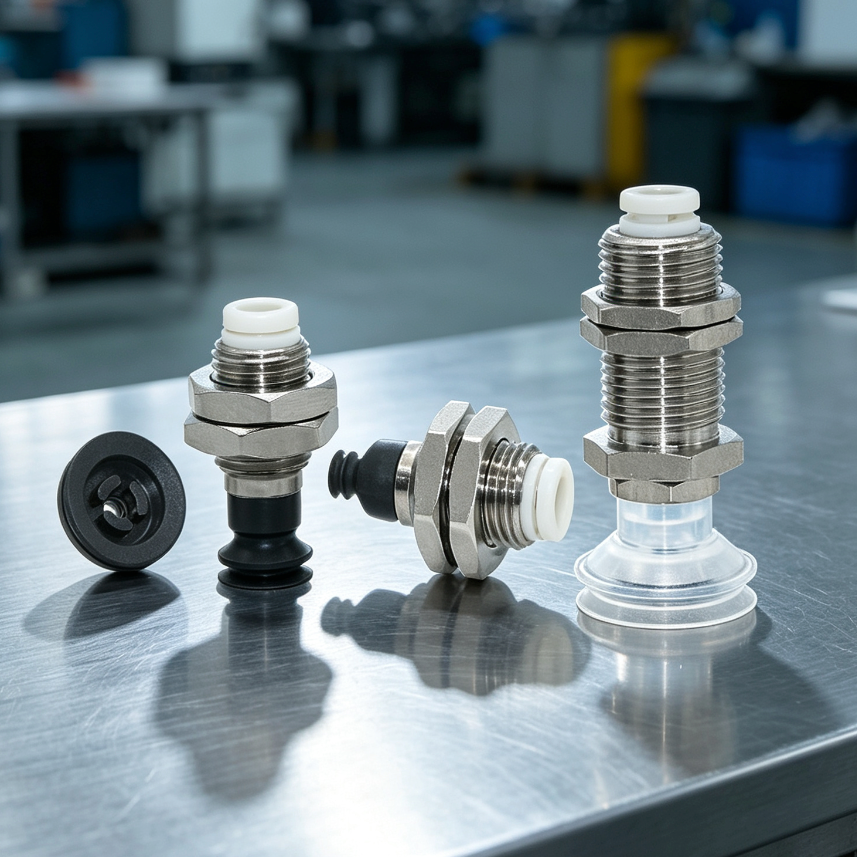

ZP3-T Compact Vacuum Cup Mounts – Silicone/NBR, M10/M12

ZP3-T Compact Vacuum Cup Mounts – Silicone & NBR

Compact threaded vacuum cup mounts for industrial pick-and-place and robotic end-of-arm tooling. Select the exact model code, cup material, mounting thread and tube port shown in the model-specific image.

• 18 exact model configurations: 9 white silicone (BS) and 9 black NBR (BN)
• Cup codes T04, T06, T08, T10, T13 and T16
• M10 x 1 mounting thread on T04/T06/T08 models; M12 x 1 on T10/T13/T16 models
• 4 mm tube port on 12 models and 6 mm tube port on 6 models
• White silicone specified temperature range: -30 to 200 degrees C
• Black NBR is specified for wear and oil resistance

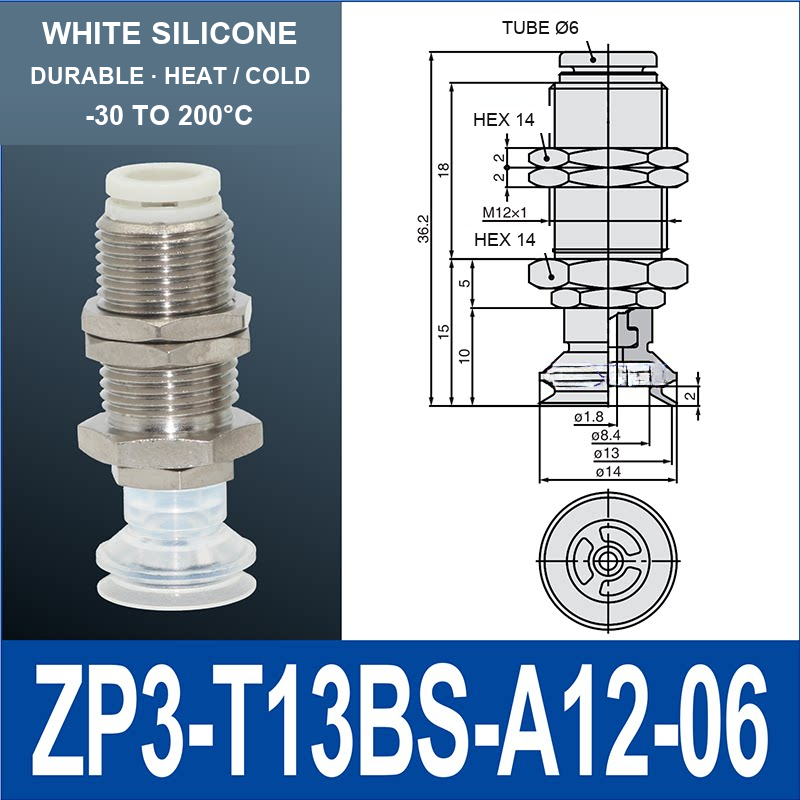

• Model-specific product and dimensional images are provided

Applications / Suitable For

• Small-part pick-and-place, sorting and transfer equipment
• Robotic end-of-arm tooling with compact threaded cup mounts
• Packaging, electronics and light industrial handling assemblies

Confirm the selected model drawing, material, mounting thread, tube port, dimensions, vacuum level, load, acceleration and operating environment before use. No food-contact, medical or regulatory certification is claimed.
