PBFS Spring-Loaded Vacuum Cup Mounts – Silicone & NBR
Compact straight-through spring-loaded vacuum cup mounts for industrial pick-and-place and robotic end-of-arm tooling. Select the exact model code and cup material shown in the model-specific image.
- 40 model-specific configurations: 20 white silicone (S) and 20 black NBR (N)
- PU tube specification: 6 mm outer diameter x 4 mm inner diameter
- M9 x 1, M11 x 1 and M14 x 1.5 mounting threads are shown where applicable
- White silicone specified temperature range: -30 to 200 degrees C
- Black NBR is specified for wear and oil resistance

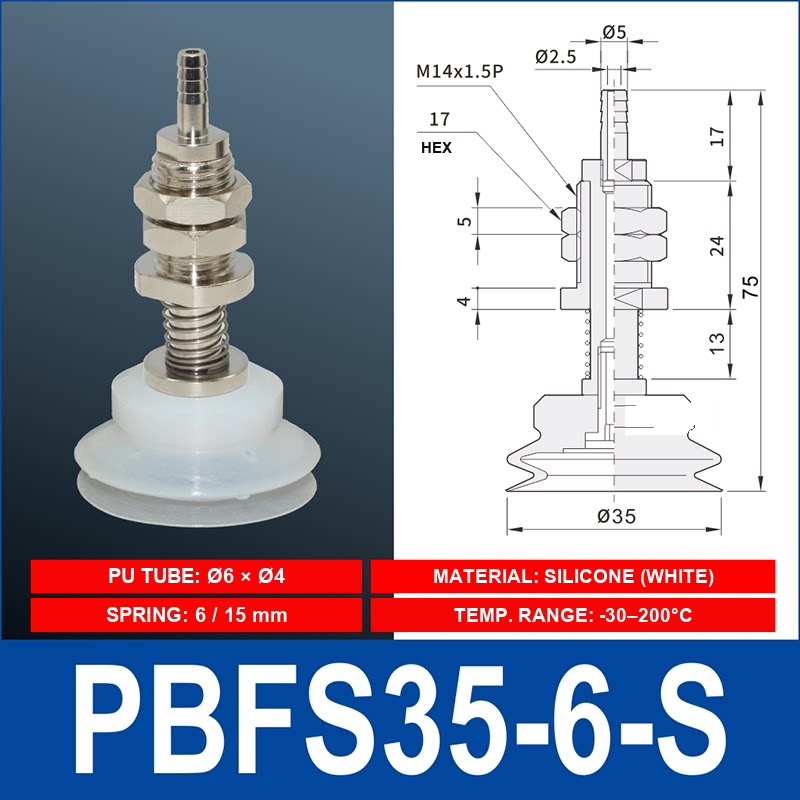

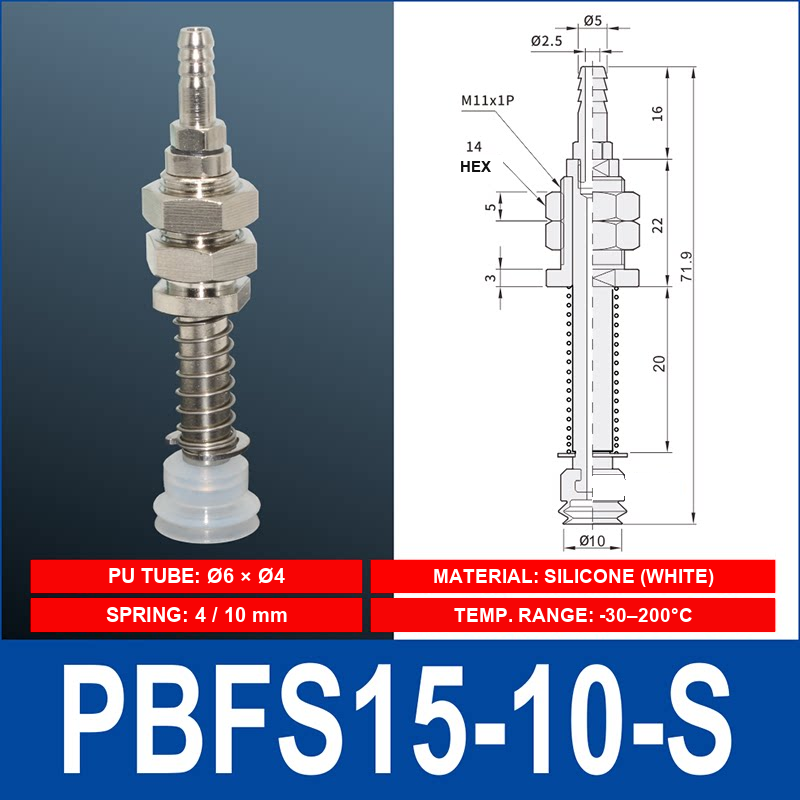

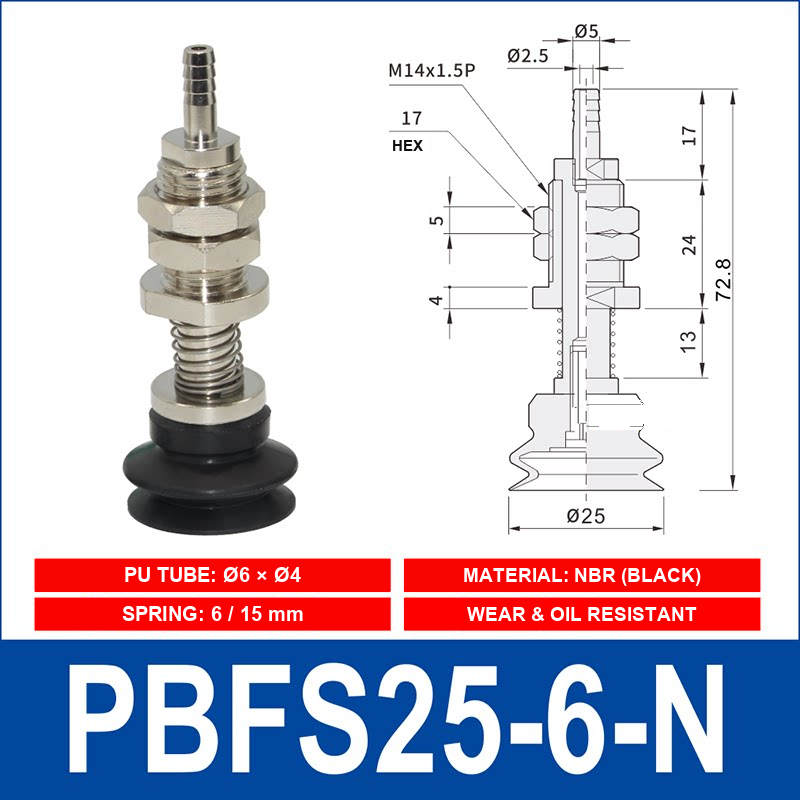

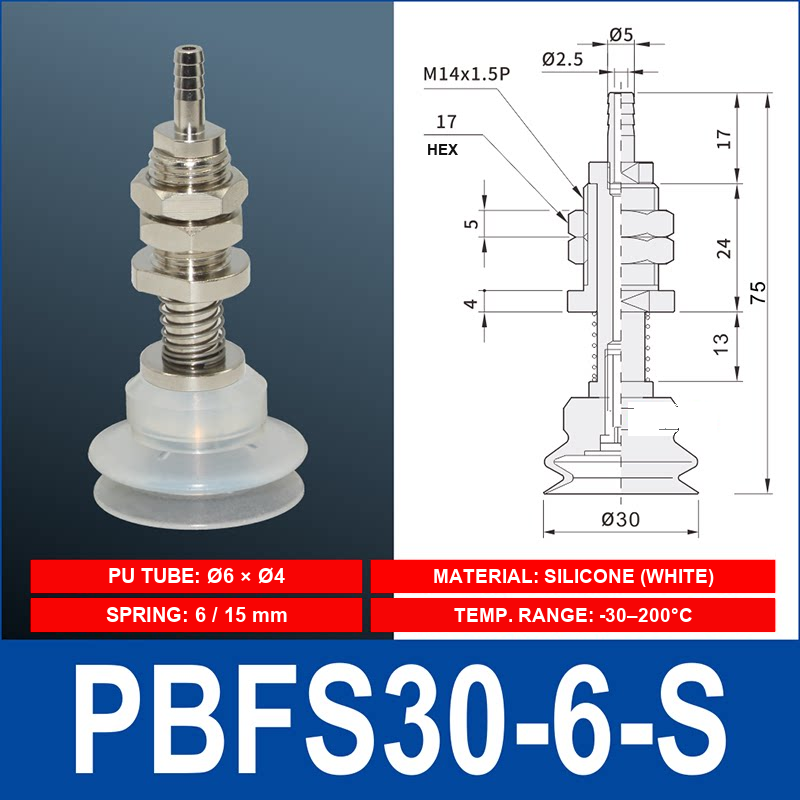

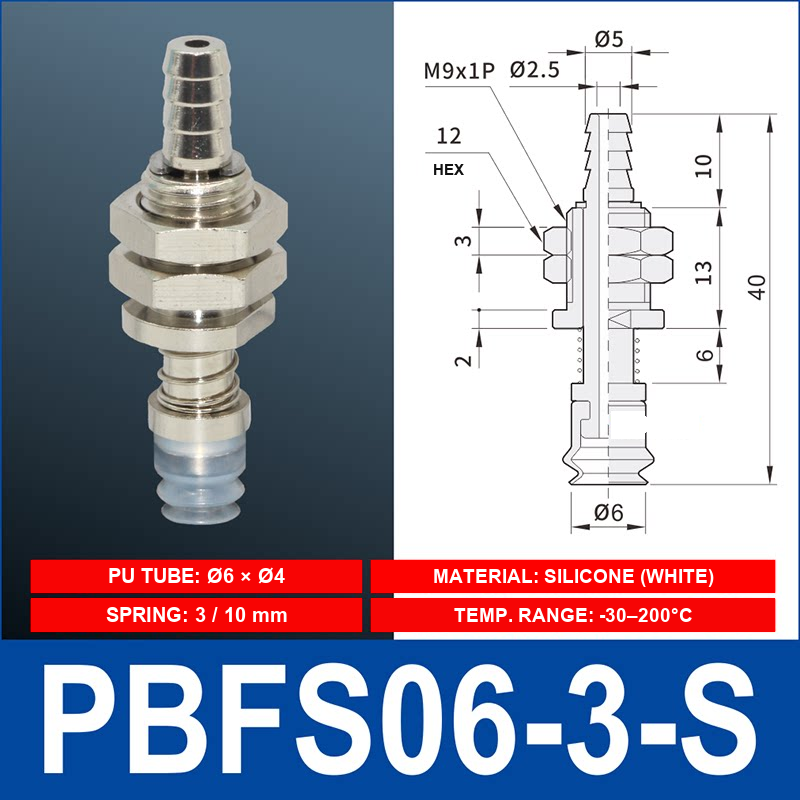

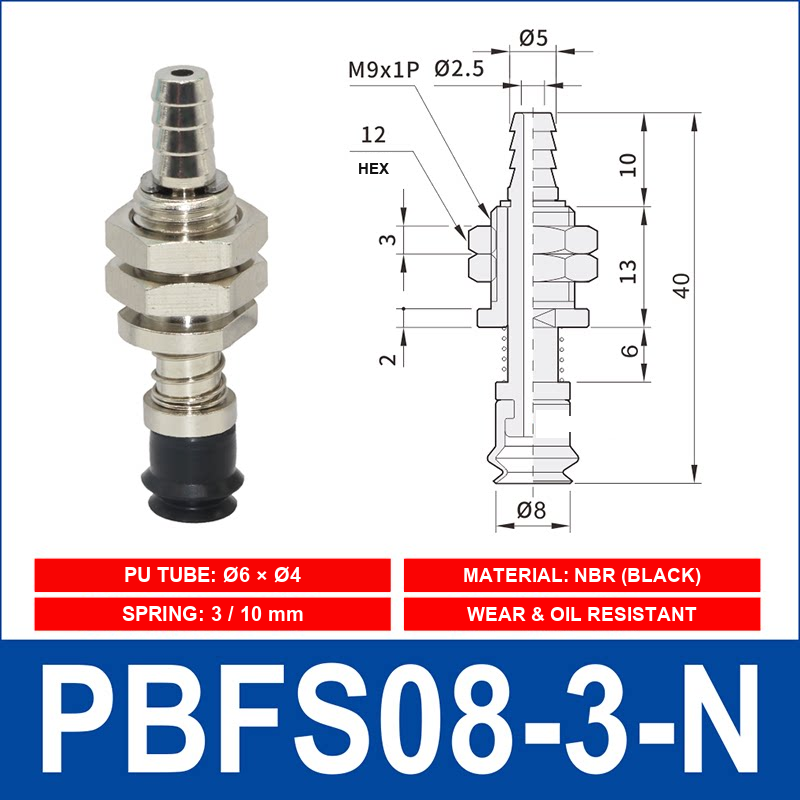

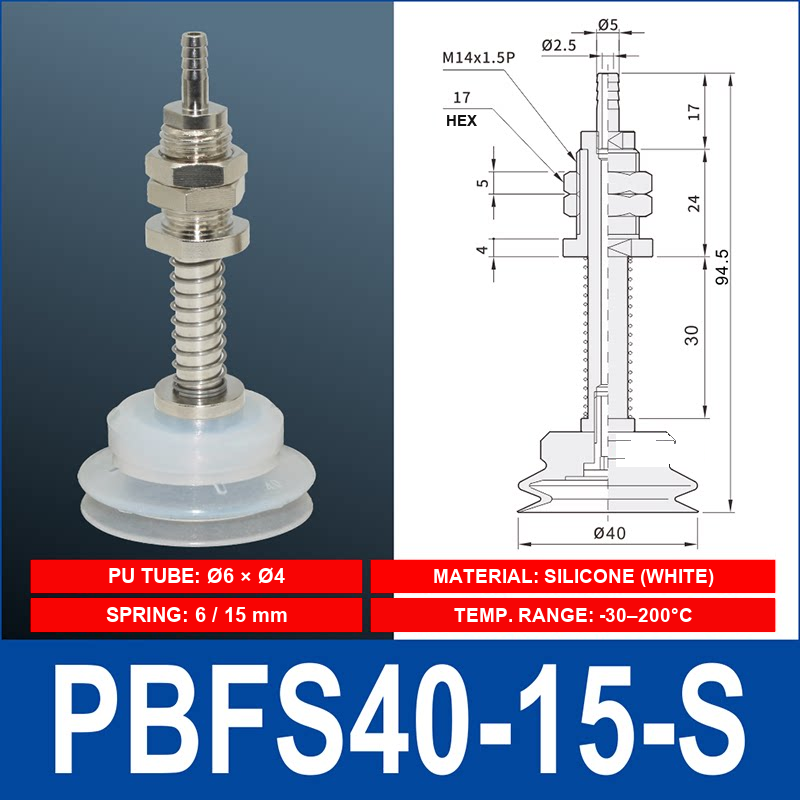

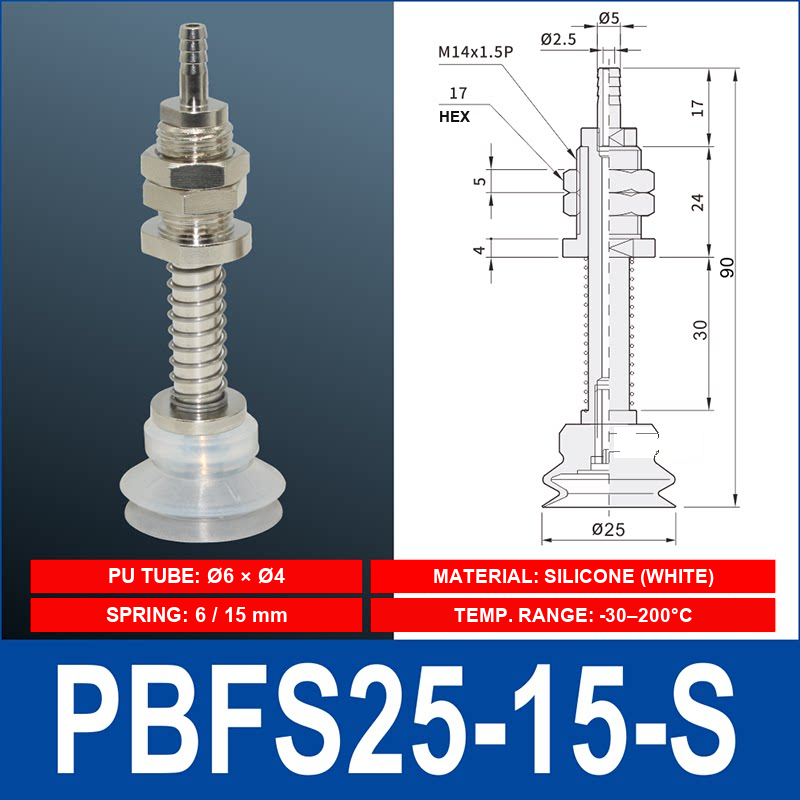

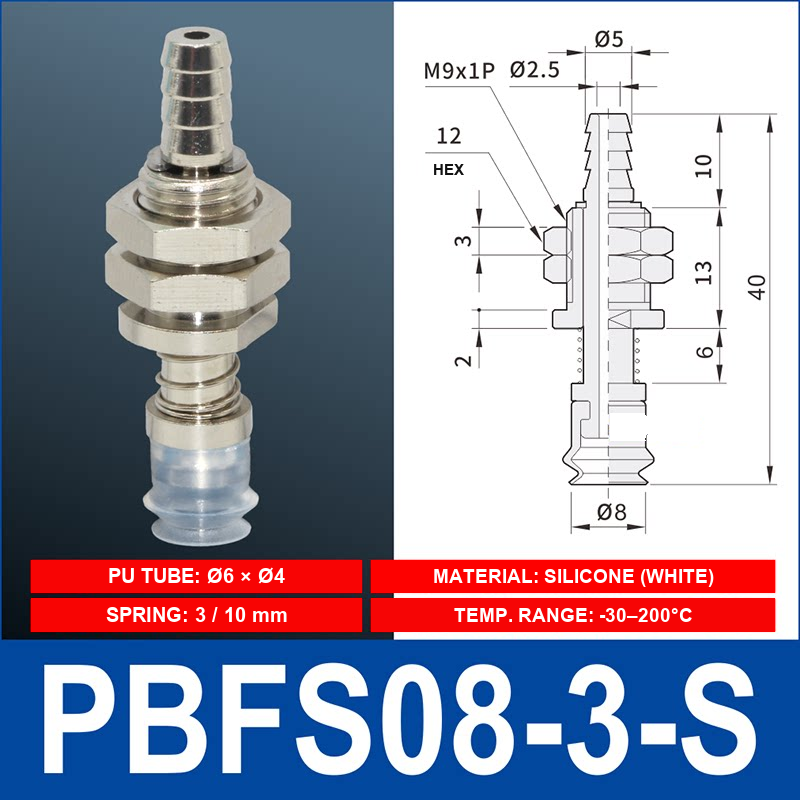

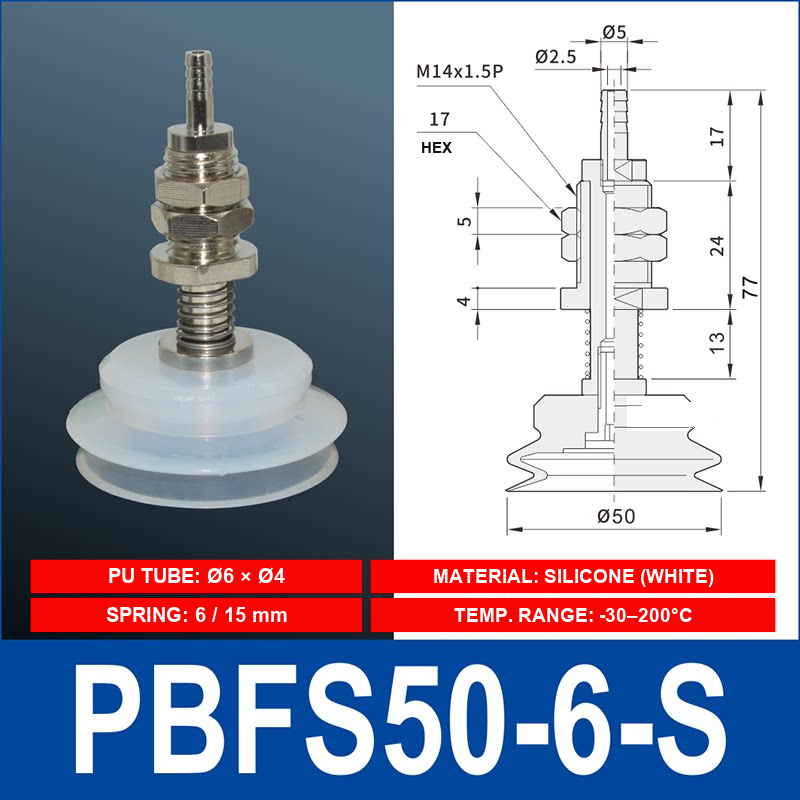

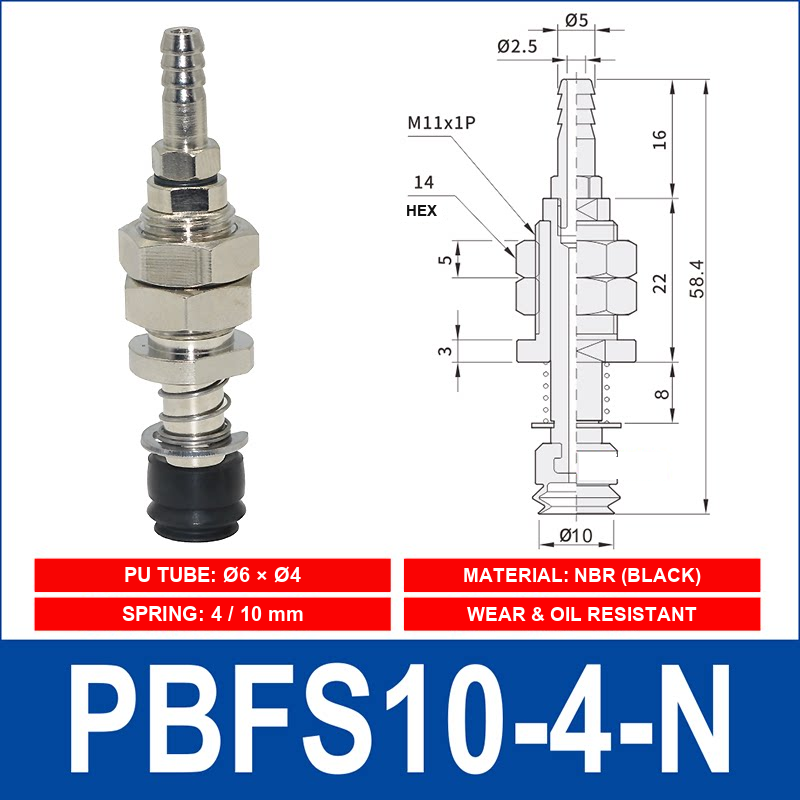

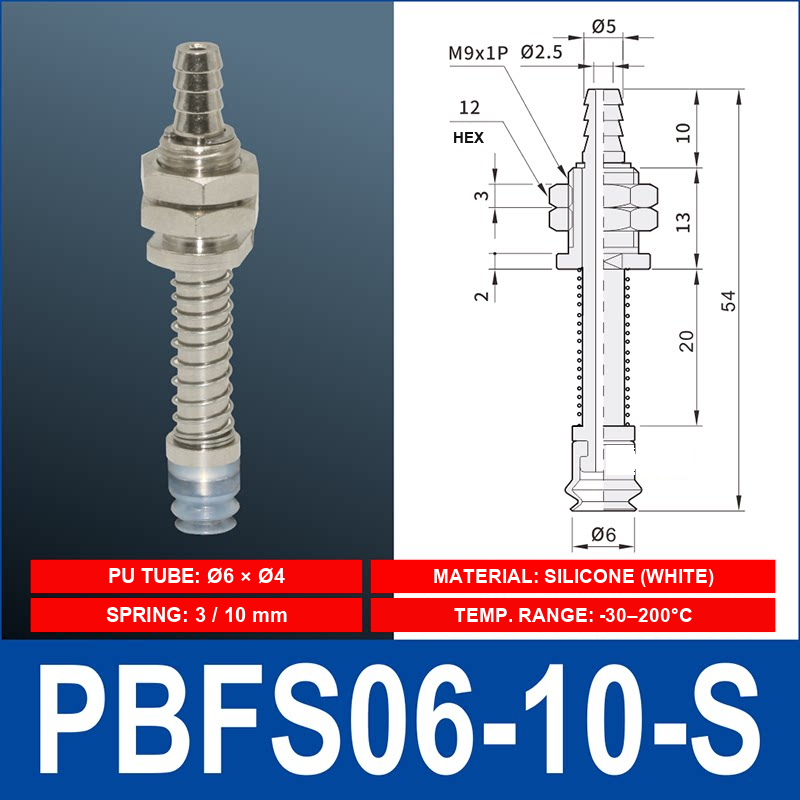

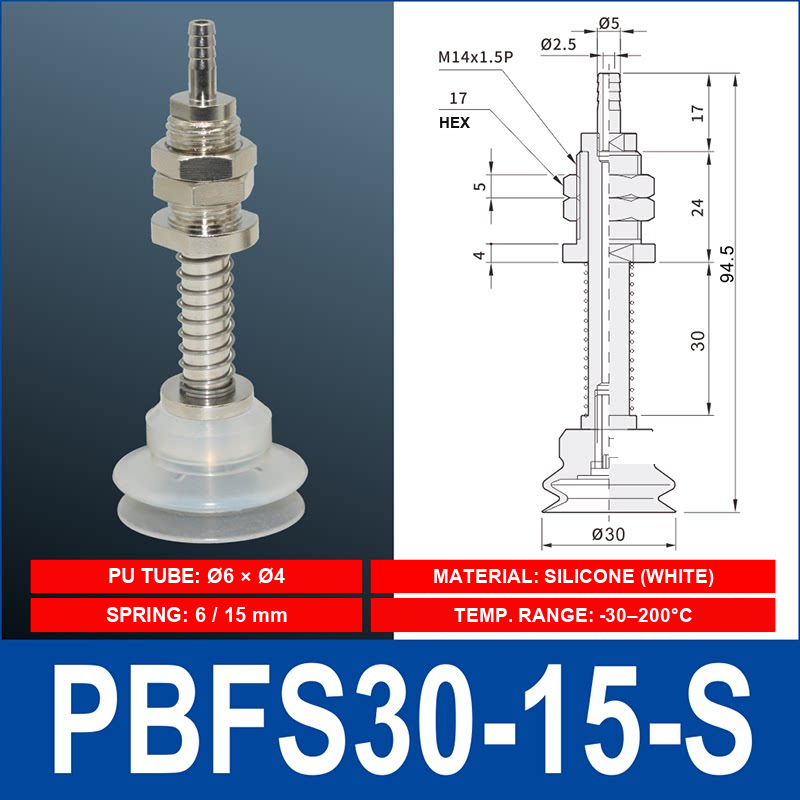

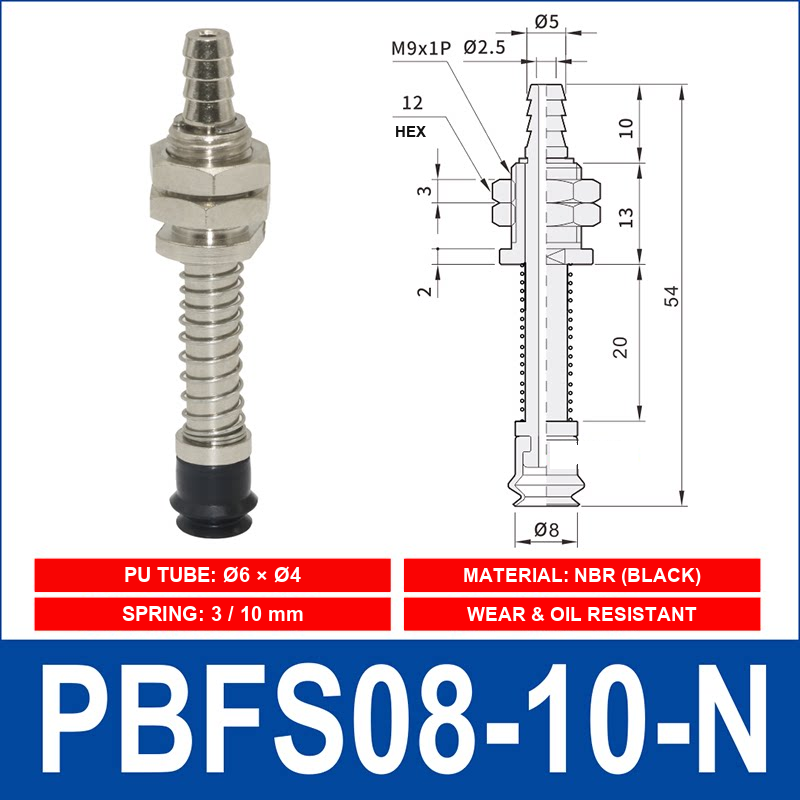

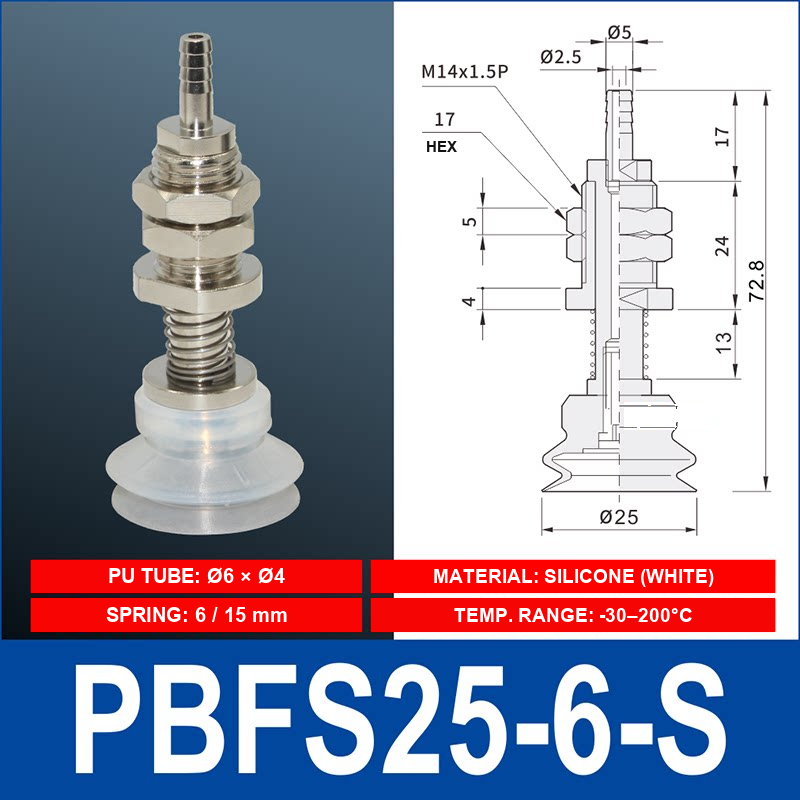

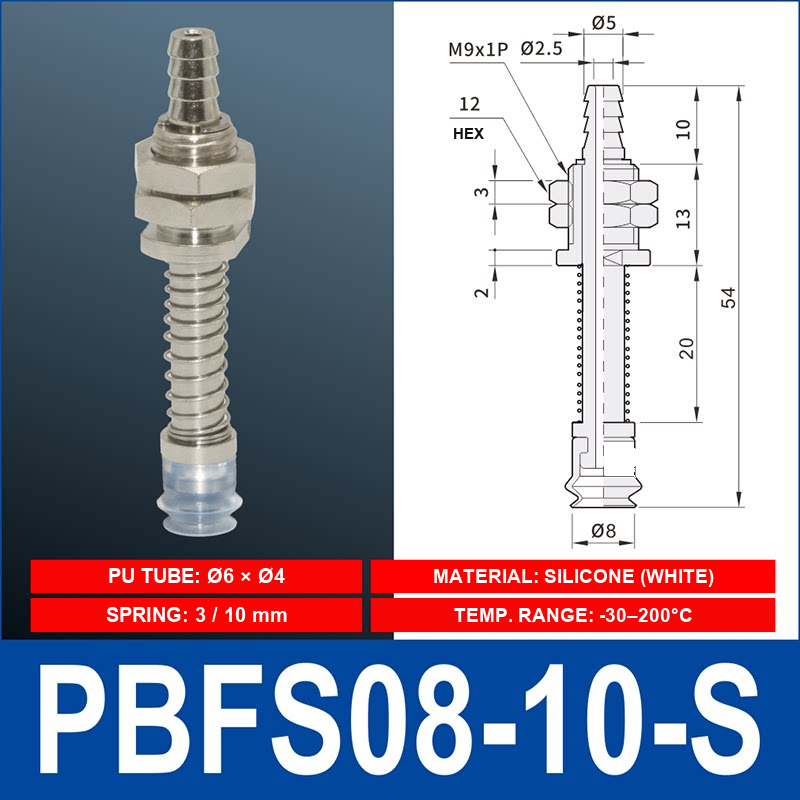

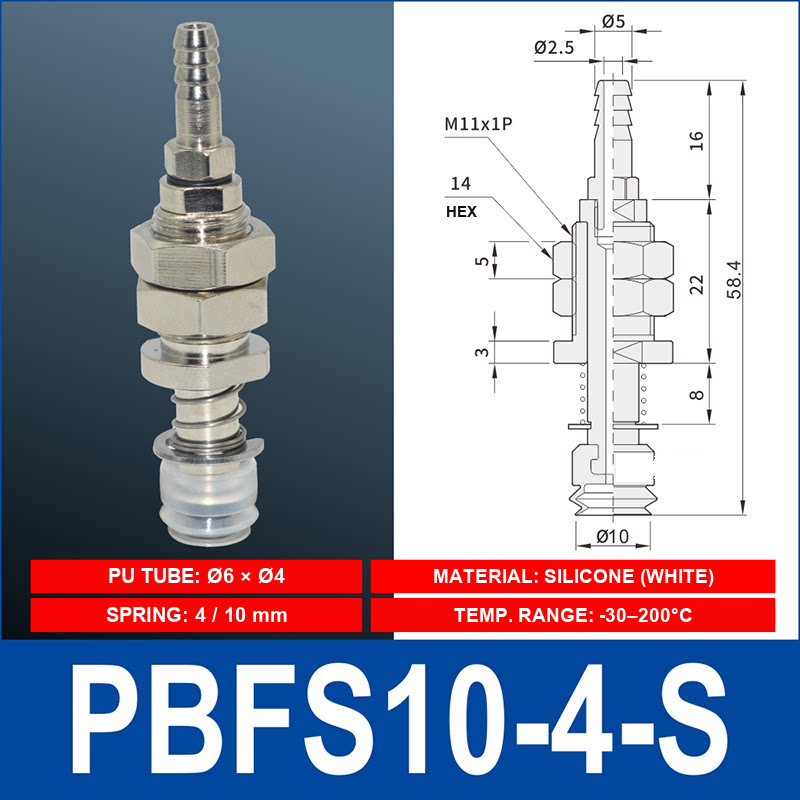

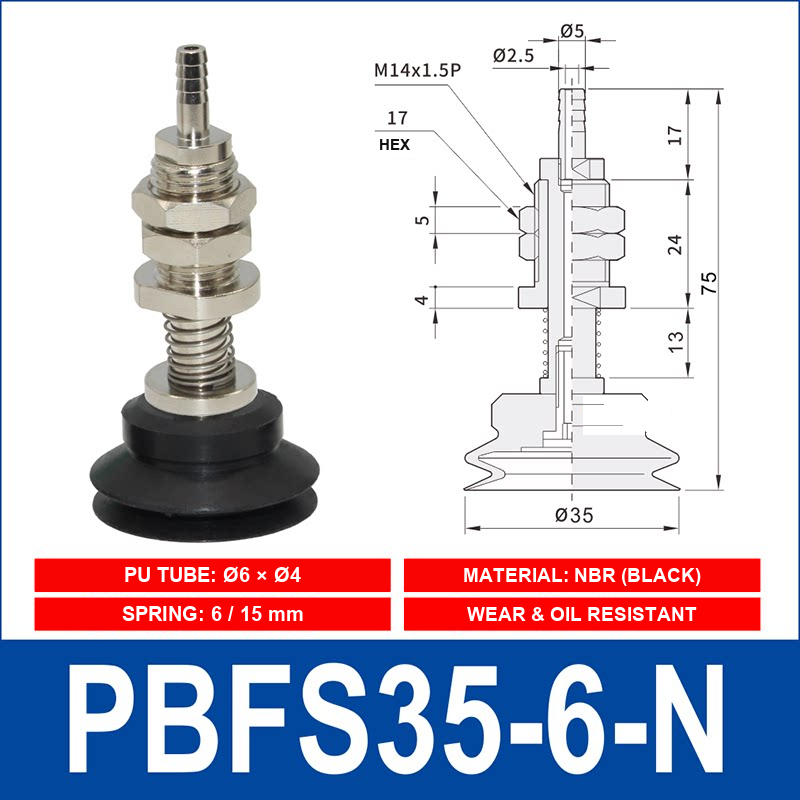

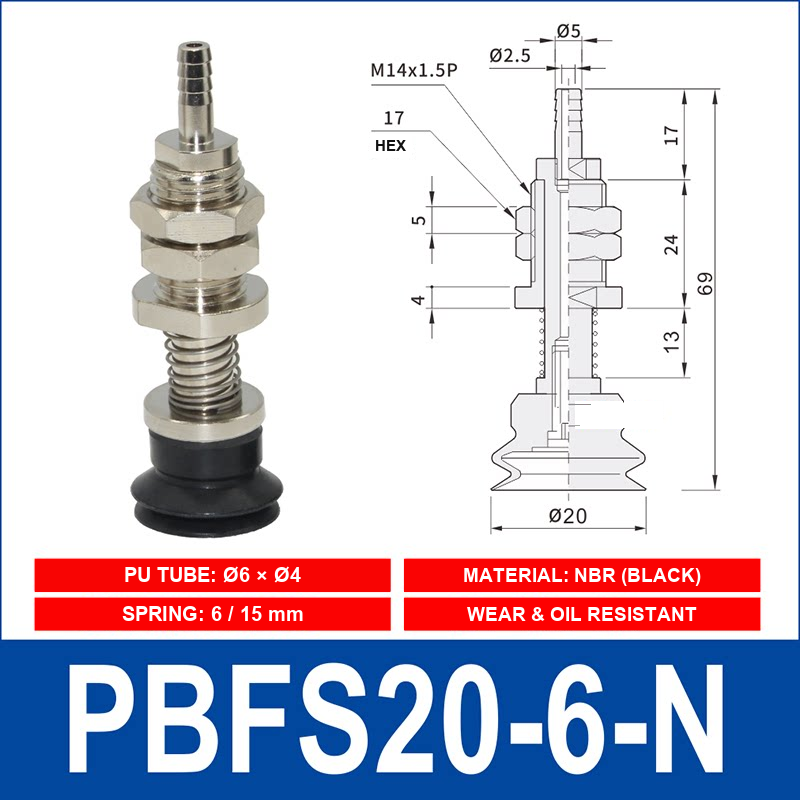

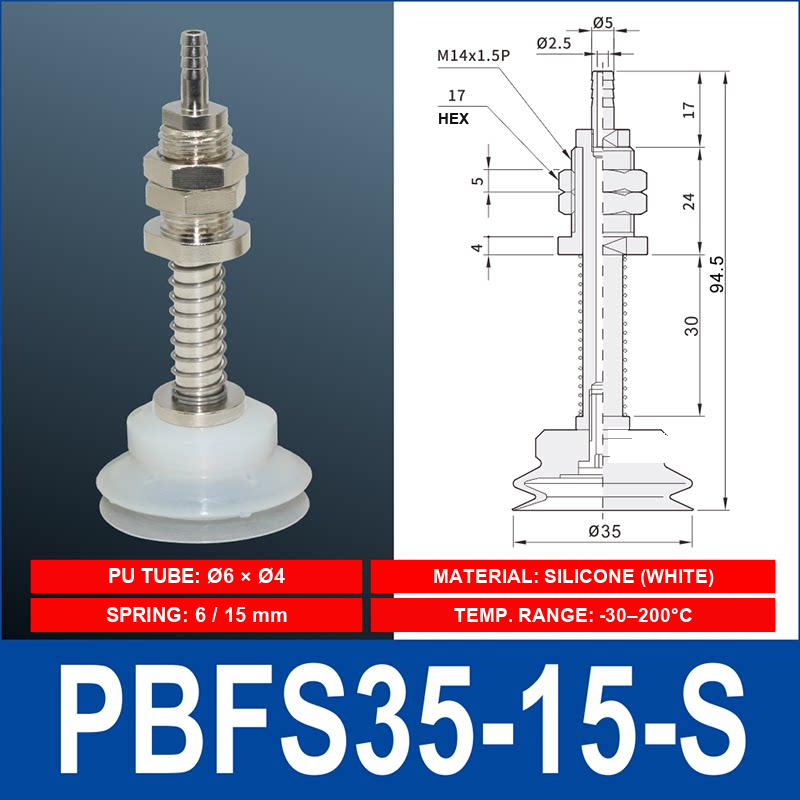

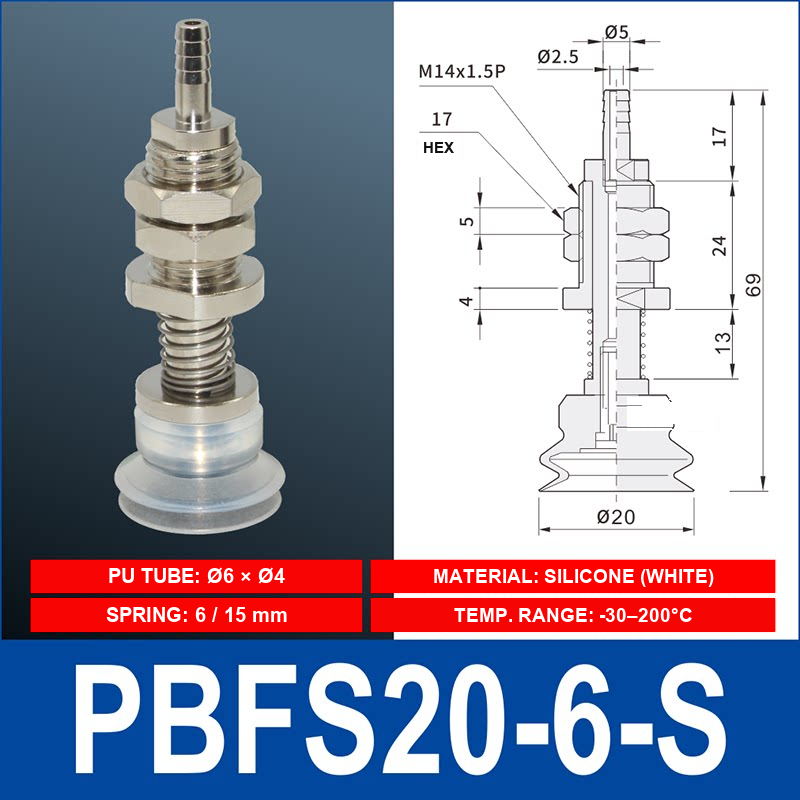

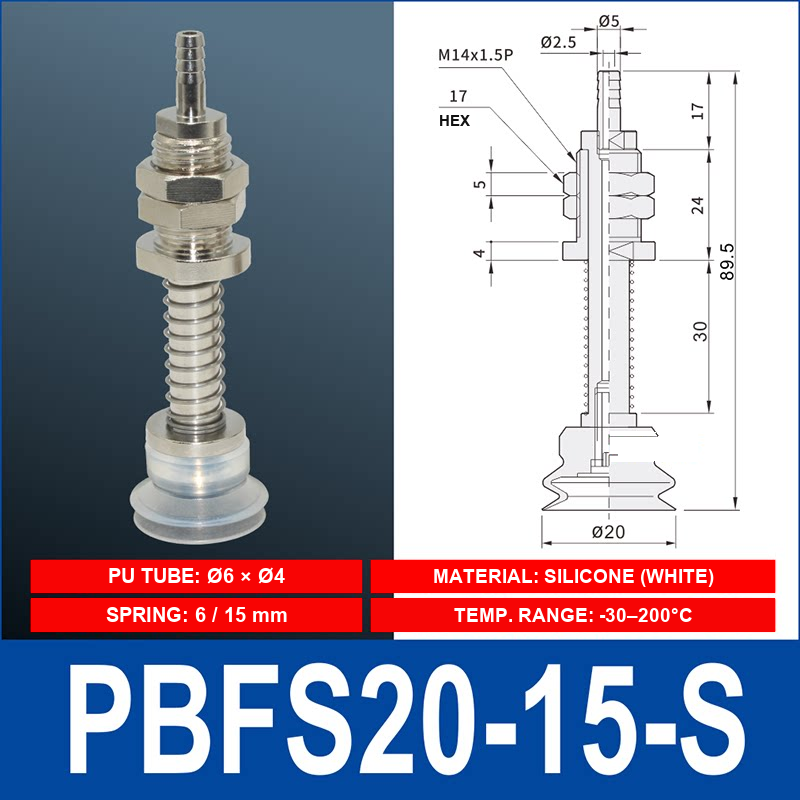

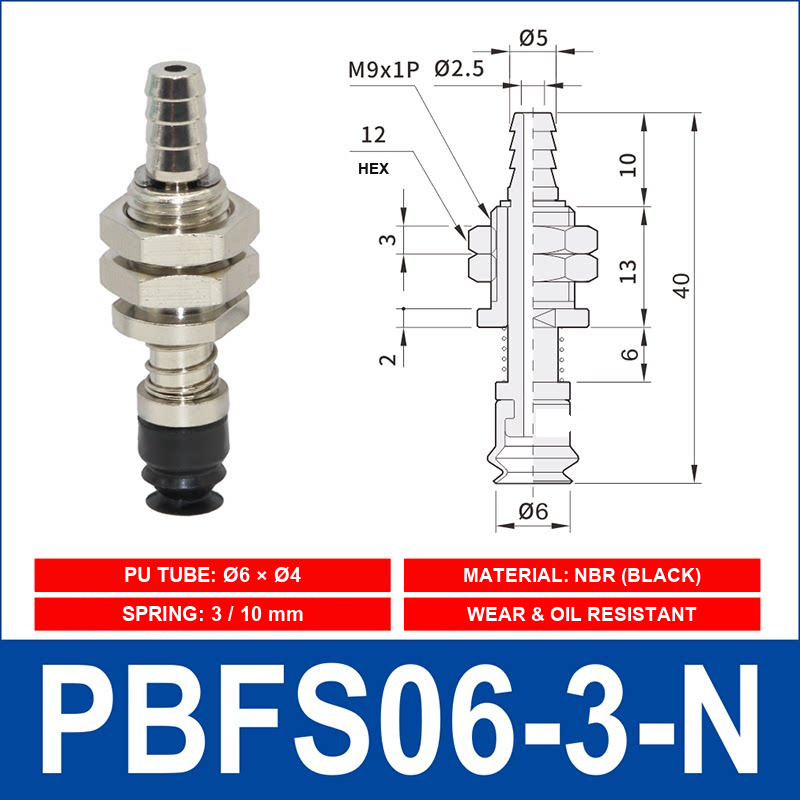

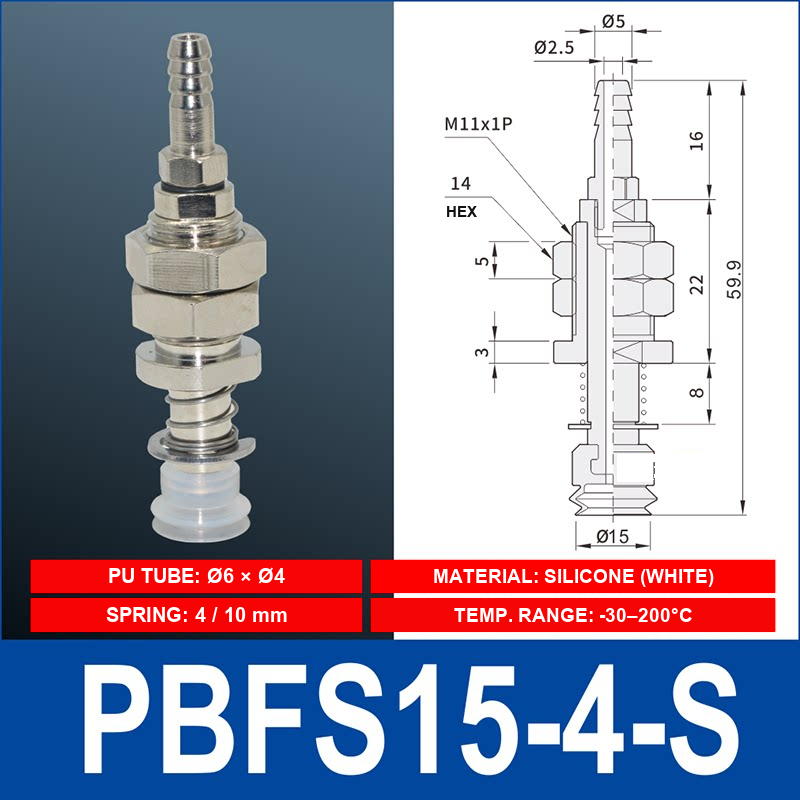

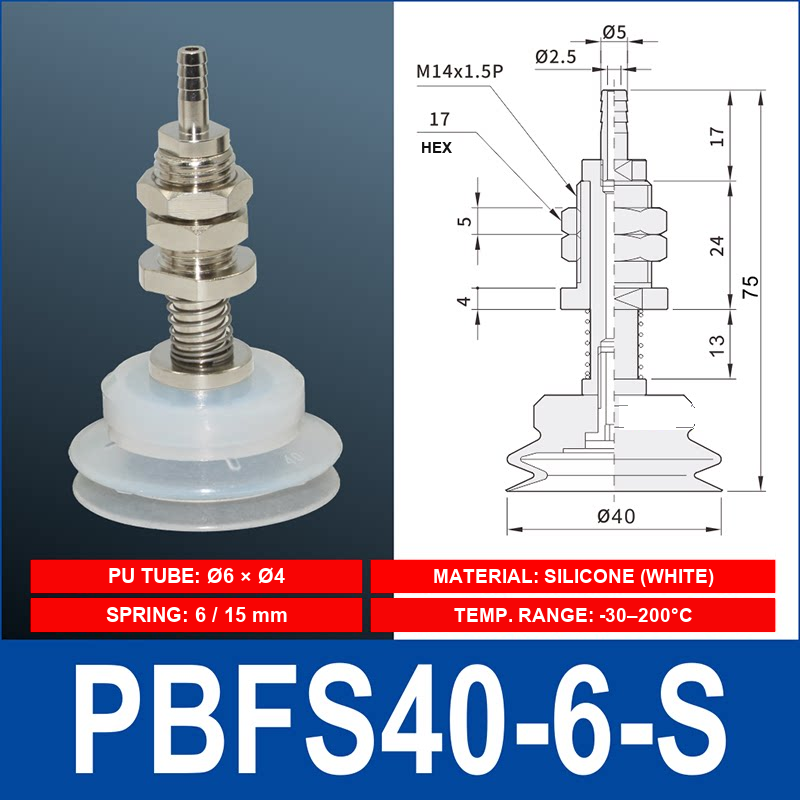

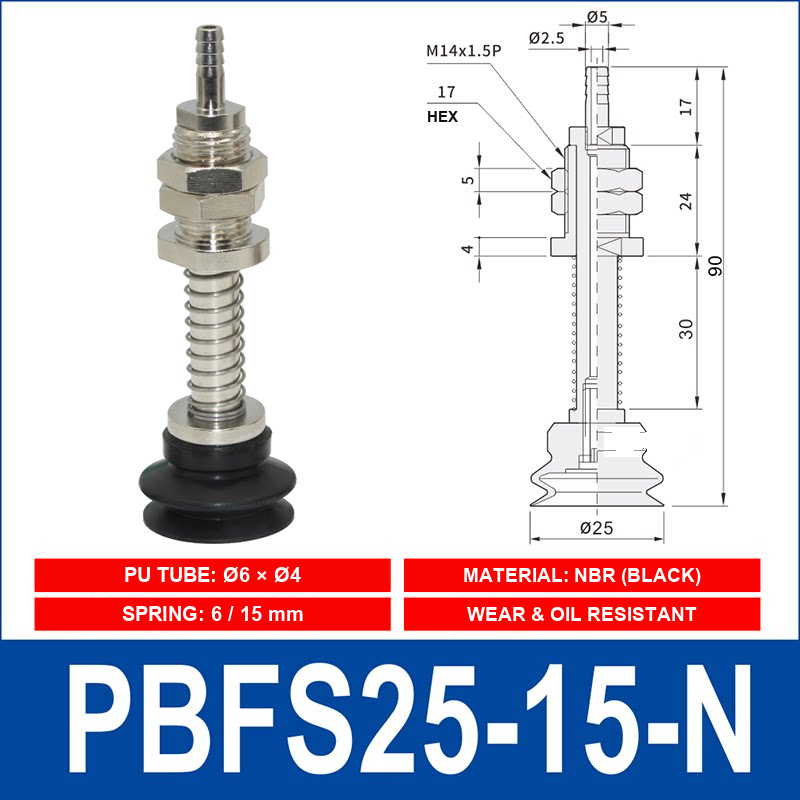

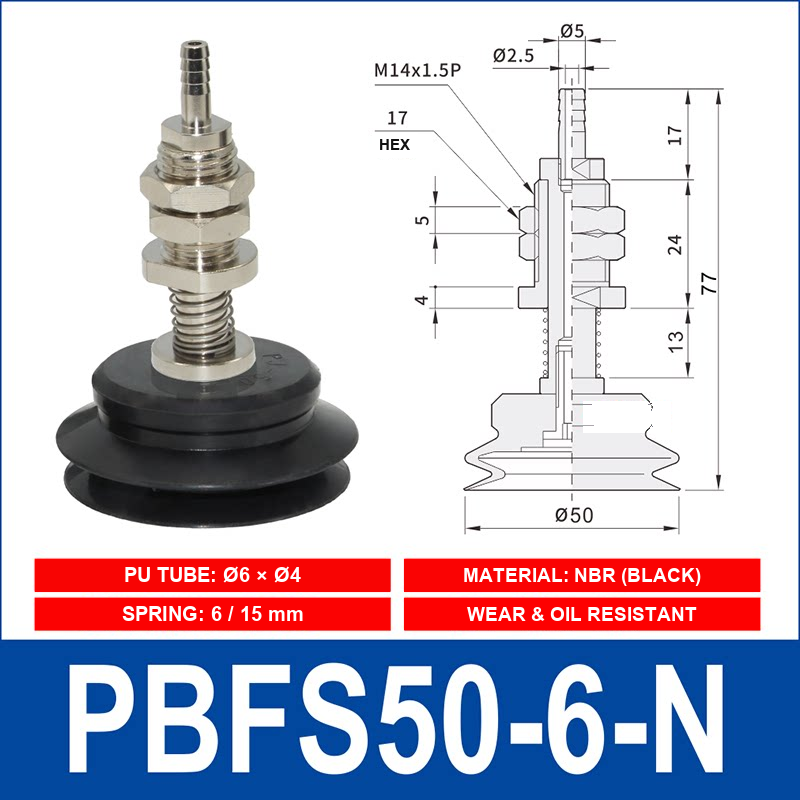

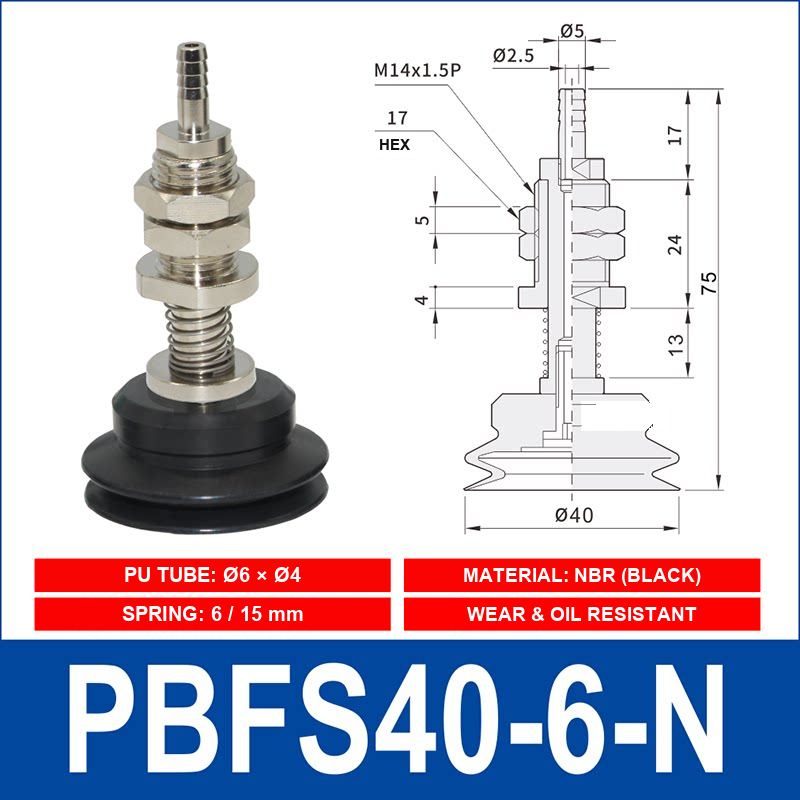

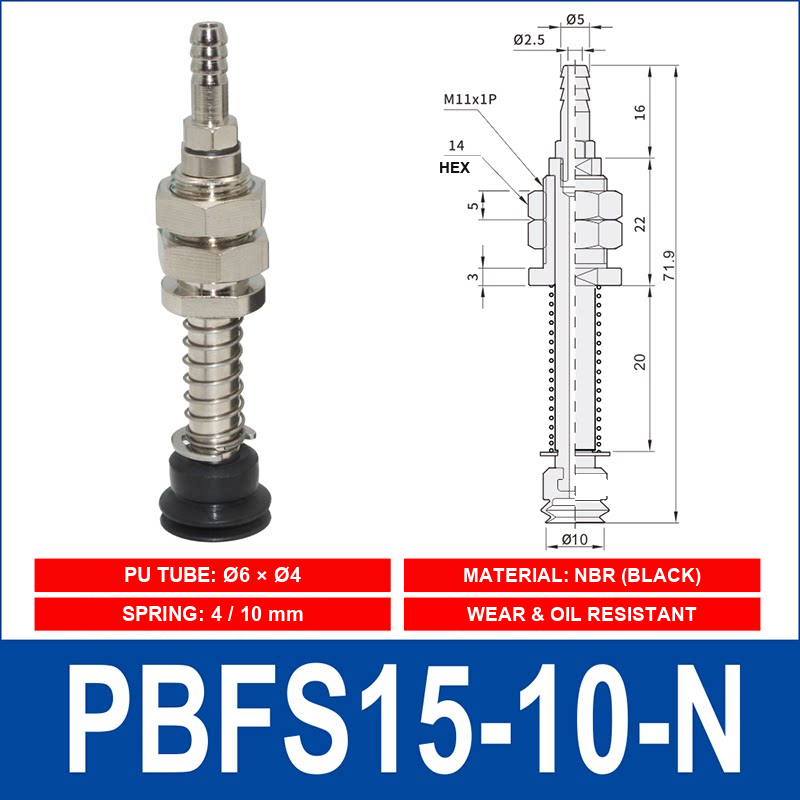

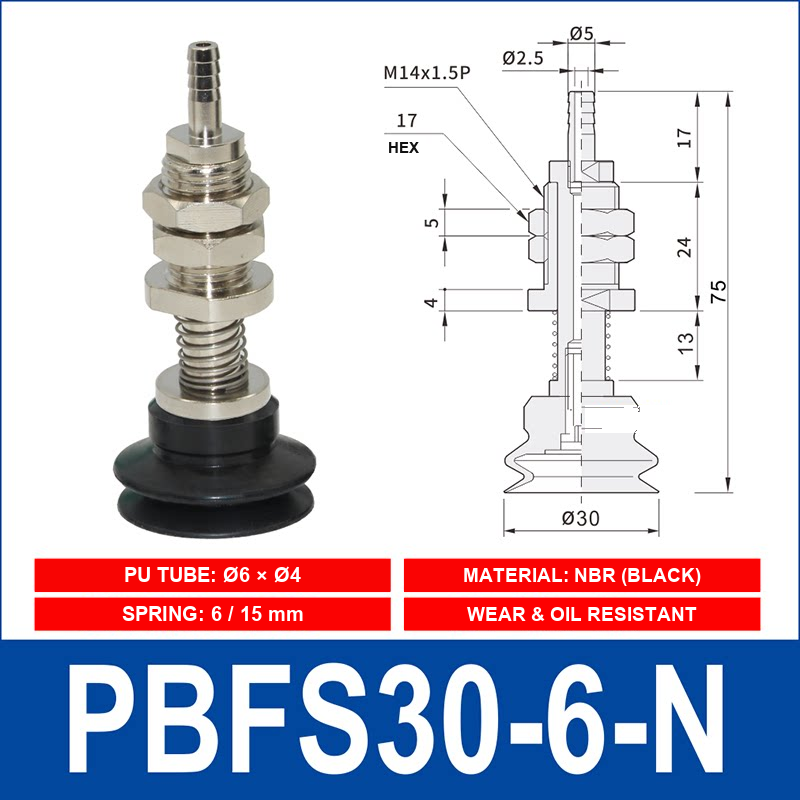

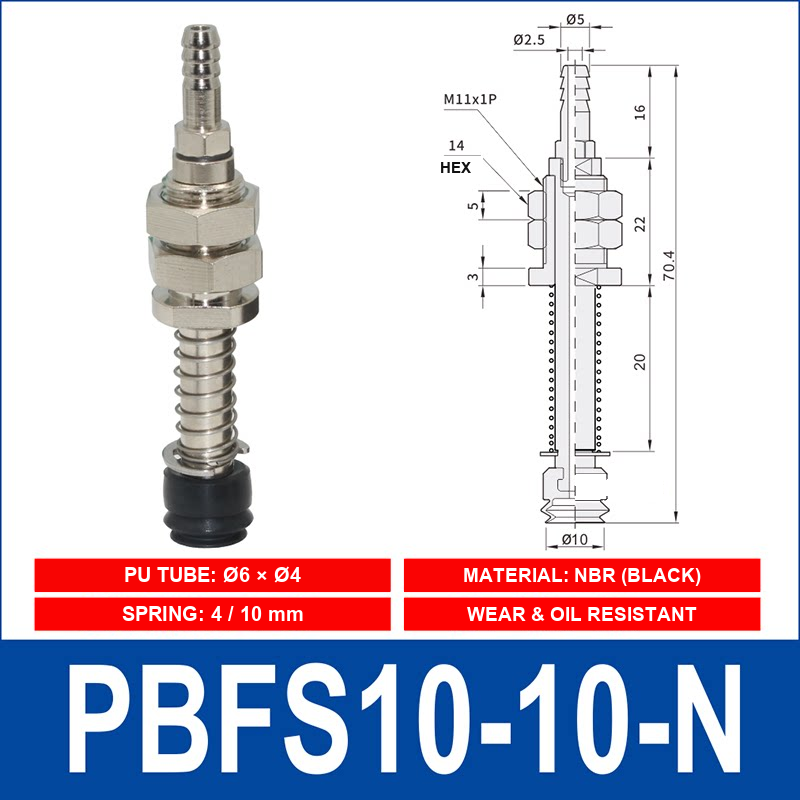

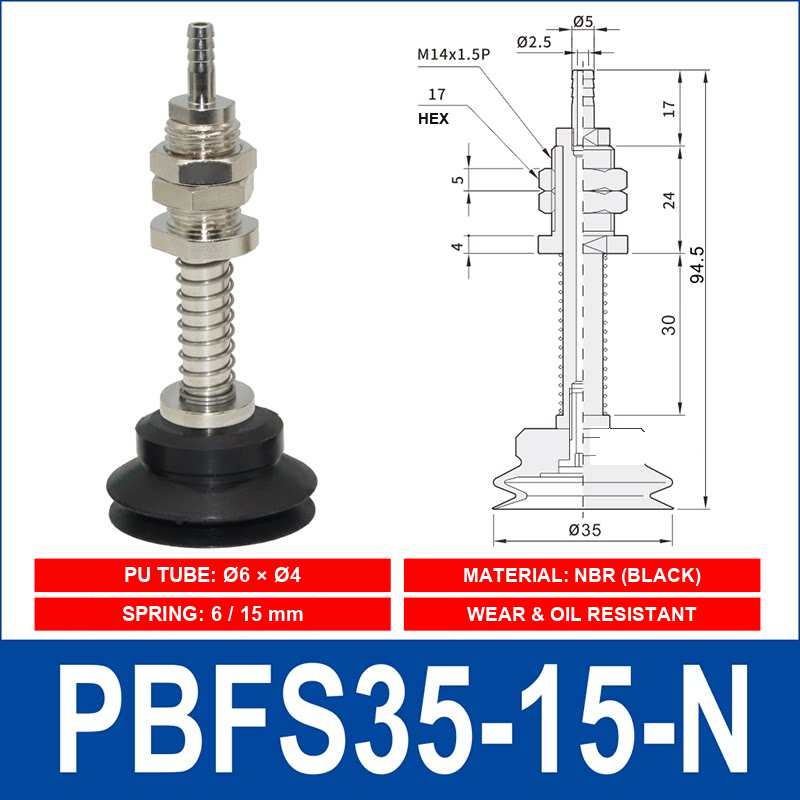

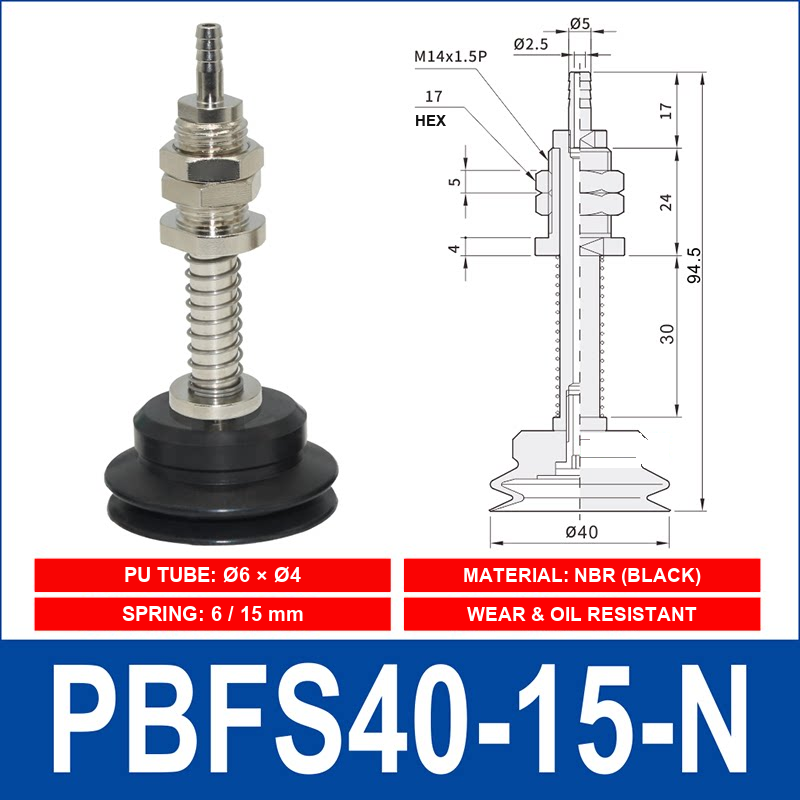

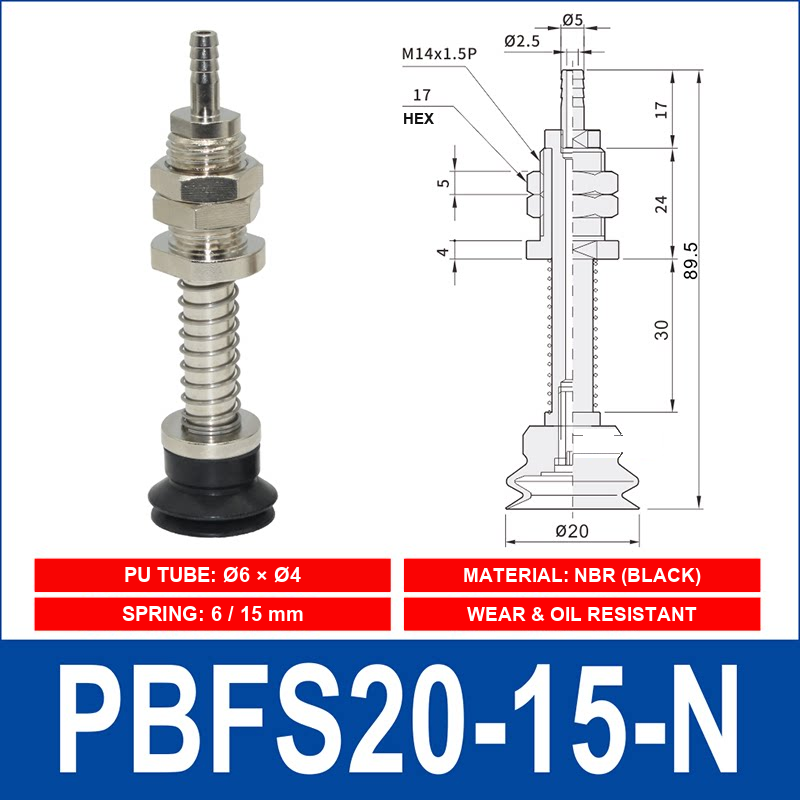

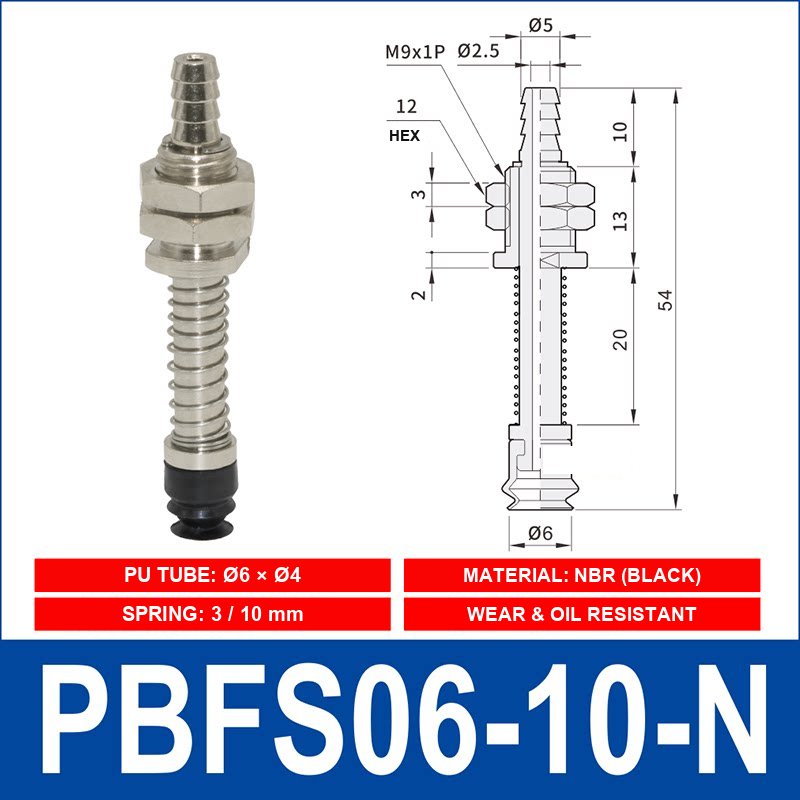

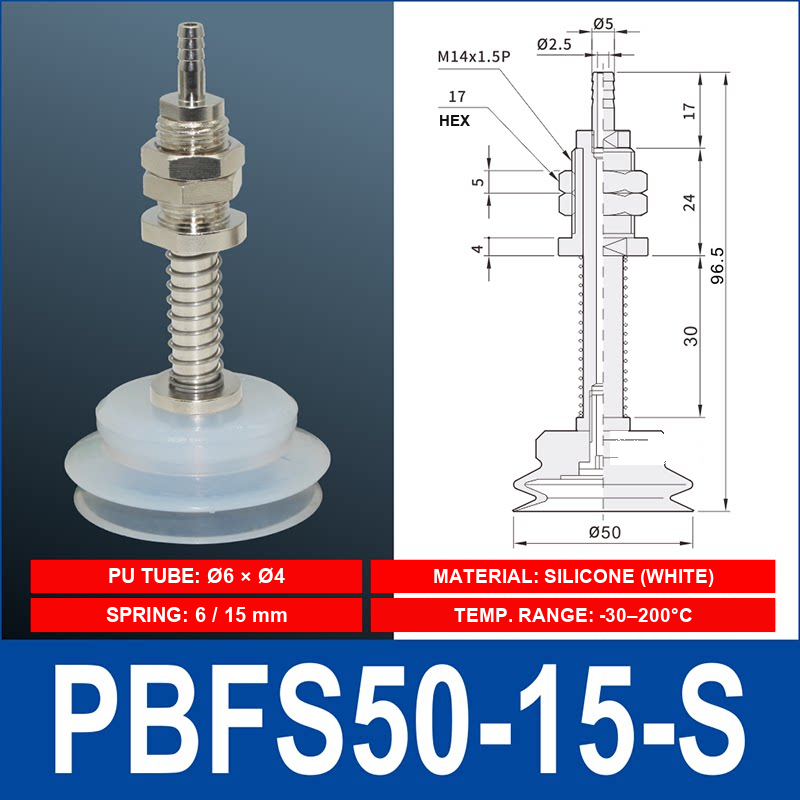

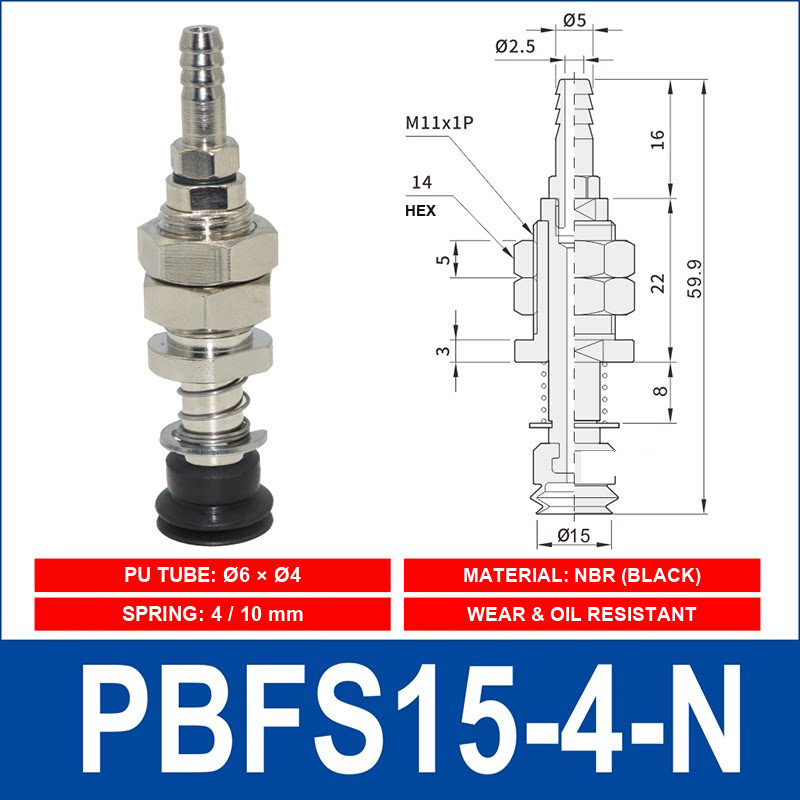

- Model-specific product and dimensional images are provided
Applications / Suitable For
- Vacuum cup mounting in pick-and-place and packaging equipment
- Robotic end-of-arm tooling requiring controlled spring travel
- Industrial handling assemblies using compact straight-through vacuum connections
Confirm the selected model drawing, thread, tube size, cup material, dimensions, spring travel, load, acceleration and operating environment before use. No food-contact, medical or regulatory certification is claimed.
