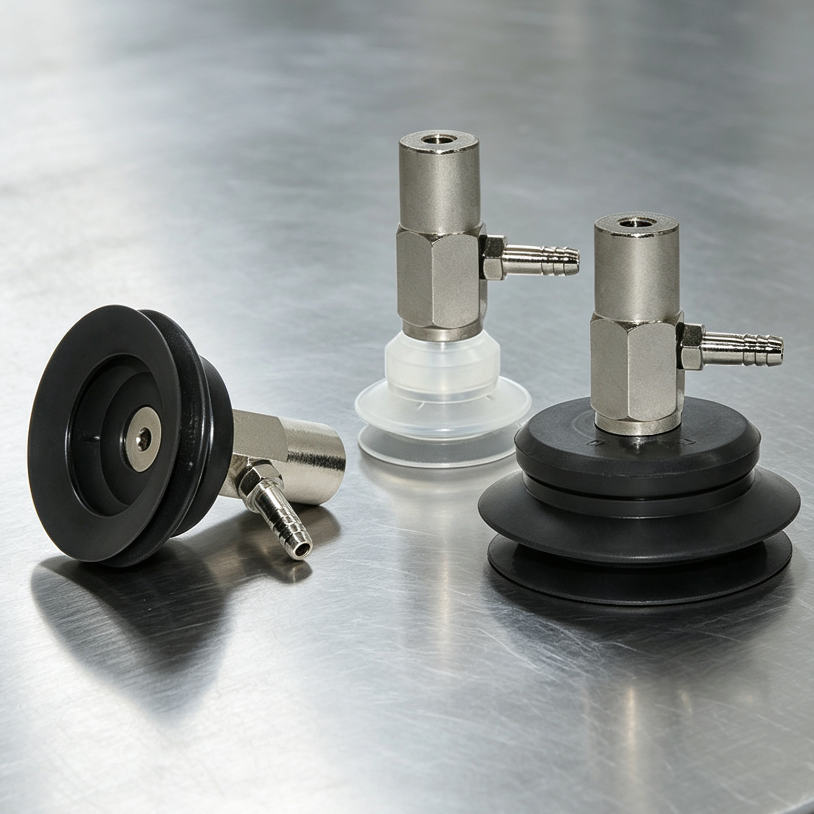

PJYK Side-Port Vacuum Cups with Nickel-Plated Brass Fittings, 6–50 mm

PJYK Side-Port Vacuum Cups with Nickel-Plated Brass Fittings

Compact vacuum cups with an integrated right-angle side hose barb for industrial pick-and-place systems and robotic end-of-arm tooling. Choose the cup diameter and material that match the workpiece and operating environment.

• Twenty selectable combinations covering 6, 8, 10, 15, 20, 25, 30, 35, 40 and 50 mm cup diameters
• Silicone cups in translucent white and nitrile-rubber cups in black
• Nickel-plated brass fitting body with a right-angle side vacuum connection
• Hose barb for PU tube with 6 mm outer diameter and 4 mm inner diameter
• M4 x 0.7 mounting thread on 6–15 mm models; M6 x 1.0 on 20–50 mm models
• Across-flat size: 10 mm on 6–15 mm models; 14 mm on 20–50 mm models
• Product images show the fitting structure and dimensional callouts for selection

Applications / Suitable For

• Small-part pick-and-place, sorting and transfer equipment
• Packaging, assembly and light industrial automation
• Compact end-of-arm tooling where side hose routing reduces vertical clearance

Confirm the selected cup diameter, material, mounting thread, tube fit, workpiece surface, vacuum level, load, acceleration and operating environment before use. Silicone and nitrile rubber differ in wear, oil and temperature behaviour. No food-contact, medical, lifting-safety or regulatory certification is claimed.
