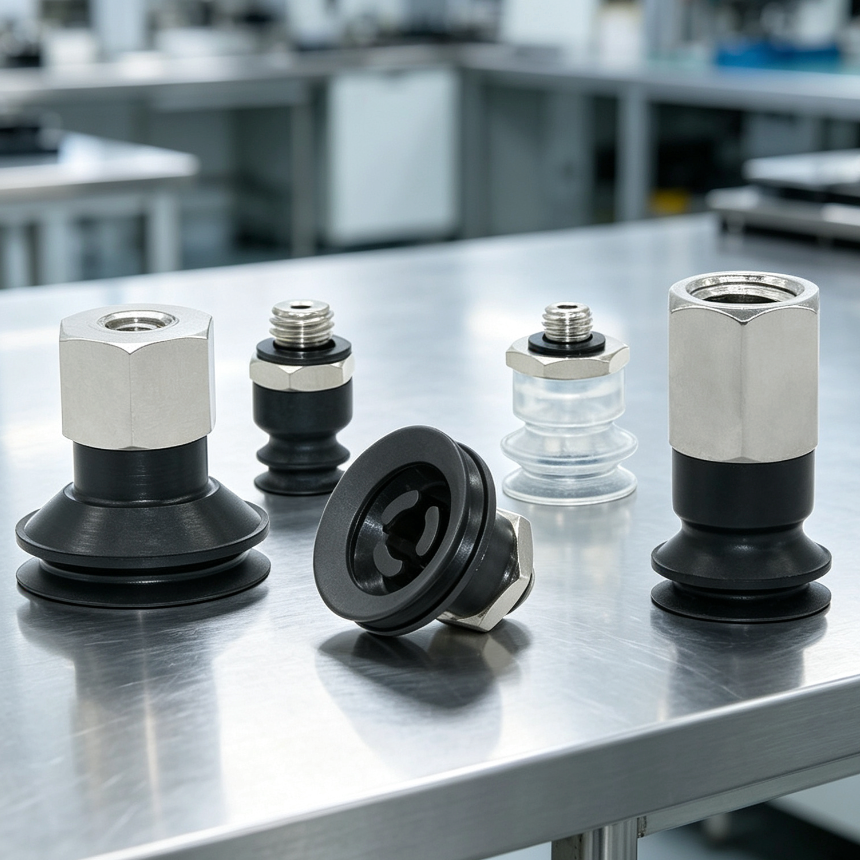

ZP3 Mini Vacuum Cups with A5/B5 M5 Mounts
Compact bellows-style vacuum cups for compatible industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies. Choose the model by pad diameter, cup material and A5 male or B5 female M5 x 0.8 mounting style.
ZP3 A5 or B5: Compare the Complete Assembly
This range lists bellows-style cups in 4, 6, 8, 10, 13 and 16 mm sizes. Select the pad diameter, material and M5 mounting style together rather than ordering by the ZP3 family name alone.
| Listed option | Selection check |
|---|---|
| A5 models | Male M5 x 0.8 mounting. Check the complete size/material label and installed dimensions. |
| B5 models | Female M5 x 0.8 mounting. These are distinct configurations from the A5 assemblies. |
| BS / BN / BGS / BGN | Listed as white silicone, black NBR, conductive silicone and conductive NBR. Verify the selected material requirements. |
| High-Grade BGS-A5 labels | Separate selectable grade labels. No verified resistance range or performance advantage is supplied here. |
A conductive material name does not certify the complete gripper. For precision handling, review both the dimensional drawing and the application's electrical, release and contact requirements.
Compare Related Product Families
These links are for comparison, not a confirmed interchangeability or fit list. Verify the complete model and drawing.
- Pad diameters: 4, 6, 8, 10, 13 and 16 mm
- A5 male M5 x 0.8 and B5 female M5 x 0.8 mounting options
- Across-flat sizes: 7 mm for 4-8 mm pads and 10 mm for 10-16 mm pads
- White silicone variants with a specified -30 to 200 degrees C range

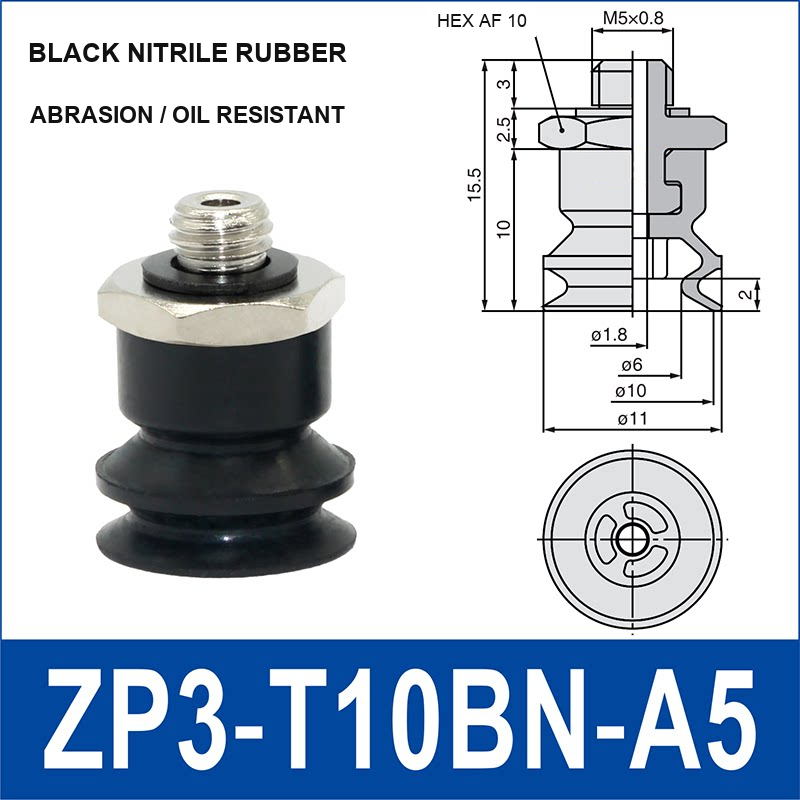

- Black nitrile rubber variants specified for abrasion and oil resistance
- Conductive silicone rubber and conductive nitrile rubber options
- High-grade conductive silicone configurations are available for A5 models
- Product images show model codes, mounting geometry and key dimensions
Applications / Suitable For
- Small-part pick-and-place, sorting and transfer equipment
- Compact robotic end-of-arm tooling and pneumatic handling systems
- Packaging, electronics assembly and light industrial automation
- Workpieces suited to small bellows cups after application testing
Confirm the model drawing, pad diameter, material, thread, mating hardware, workpiece surface, vacuum level, load, acceleration and operating environment before use. Conductive material names do not state a resistance range or provide ESD certification. No food-contact, medical, lifting-safety or regulatory certification is claimed.
