ZP2-TB MB Mini Bellows Vacuum Suction Cups with A3 H5 B5 Fittings
Quantity

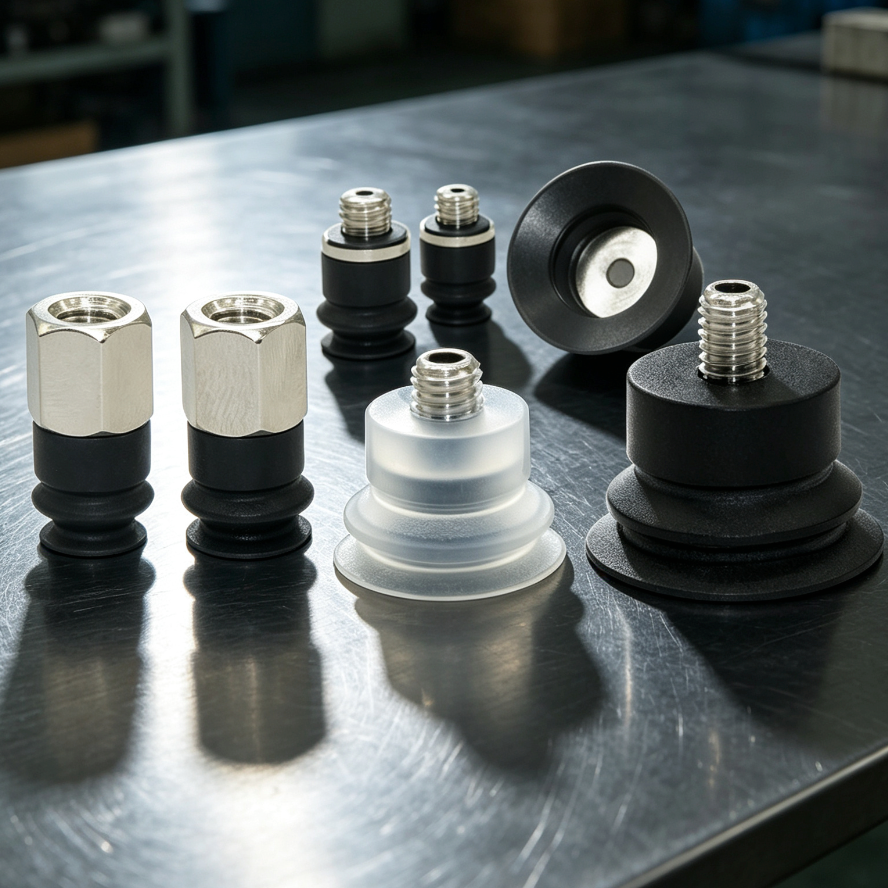

ZP2-TB MB Mini Bellows Vacuum Suction Cups
Compact bellows vacuum cups with integrated A3, H5 and B5 mounting configurations for automated handling and precision pick-and-place applications.
- White silicone, black nitrile rubber, anti-static silicone and anti-static rubber options
- A3, H5 and B5 female-thread mounting configurations

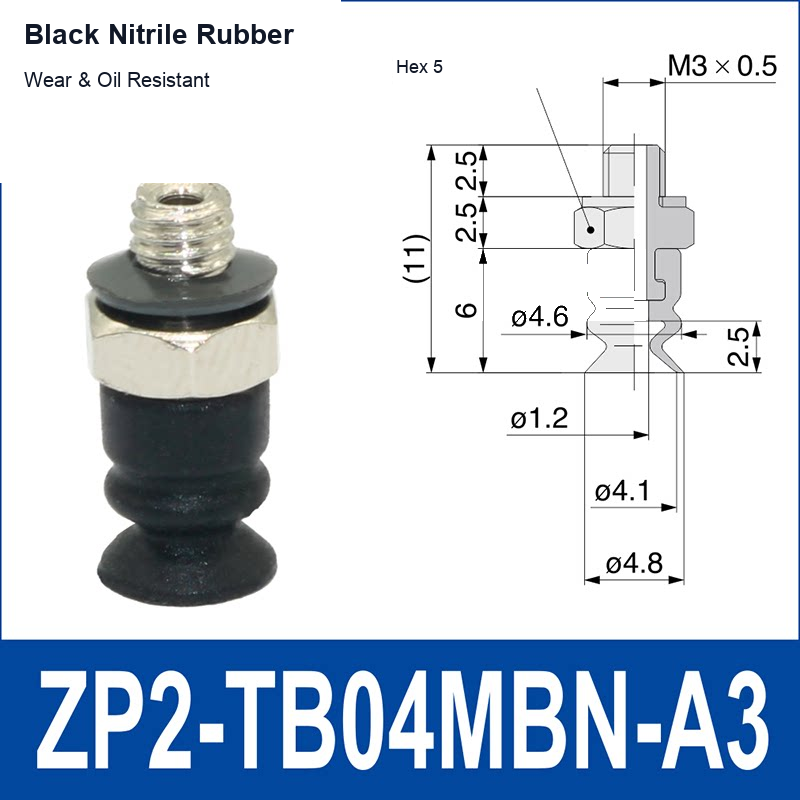

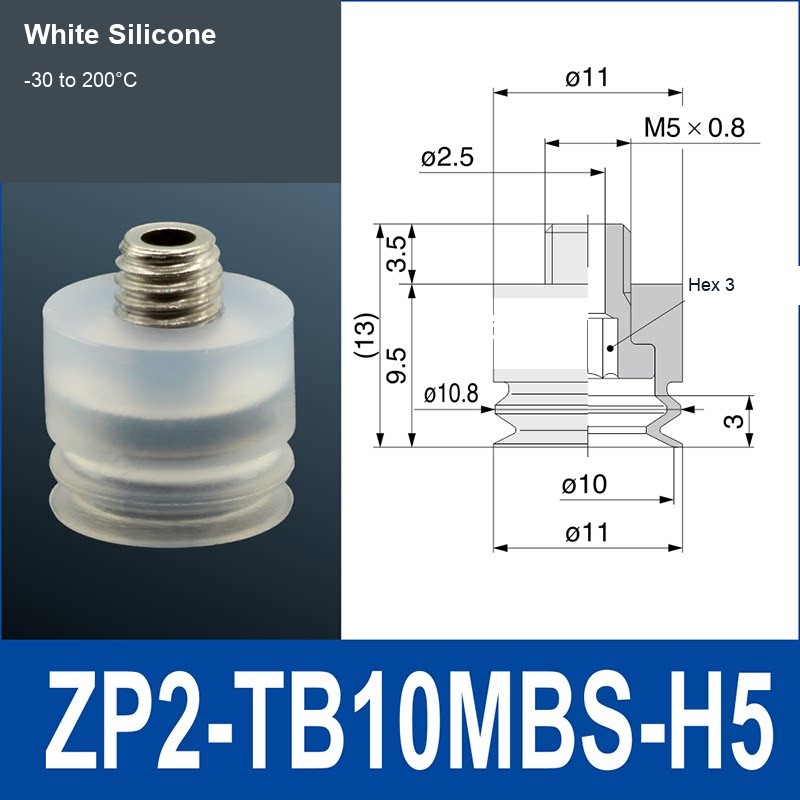

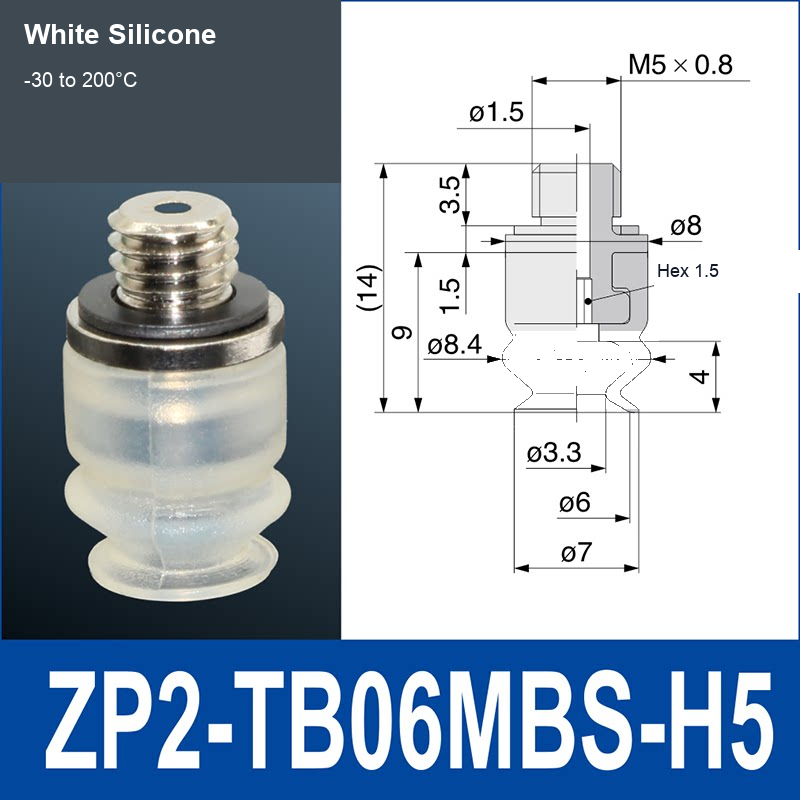

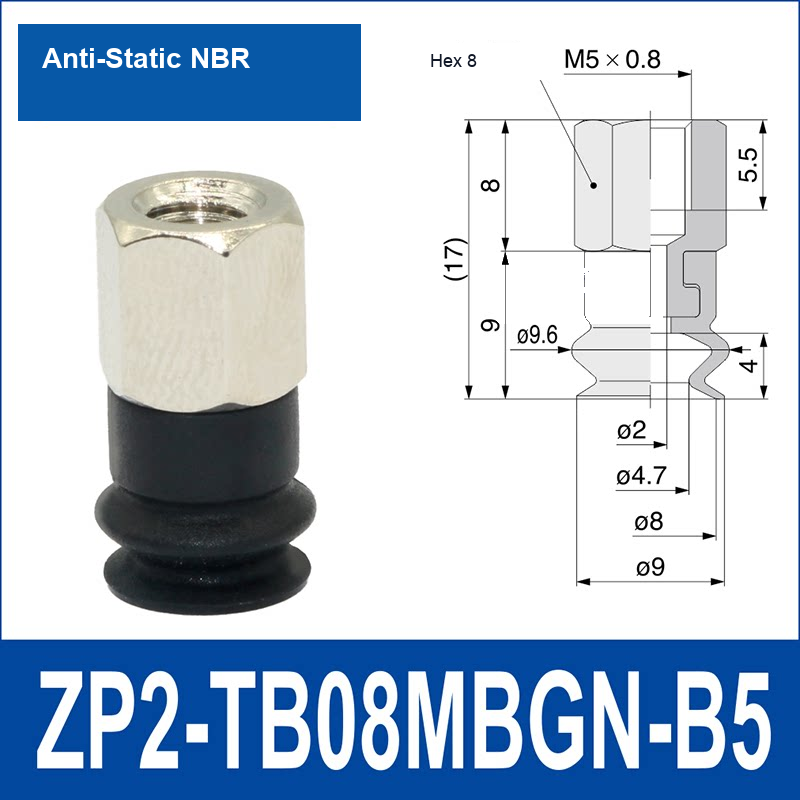

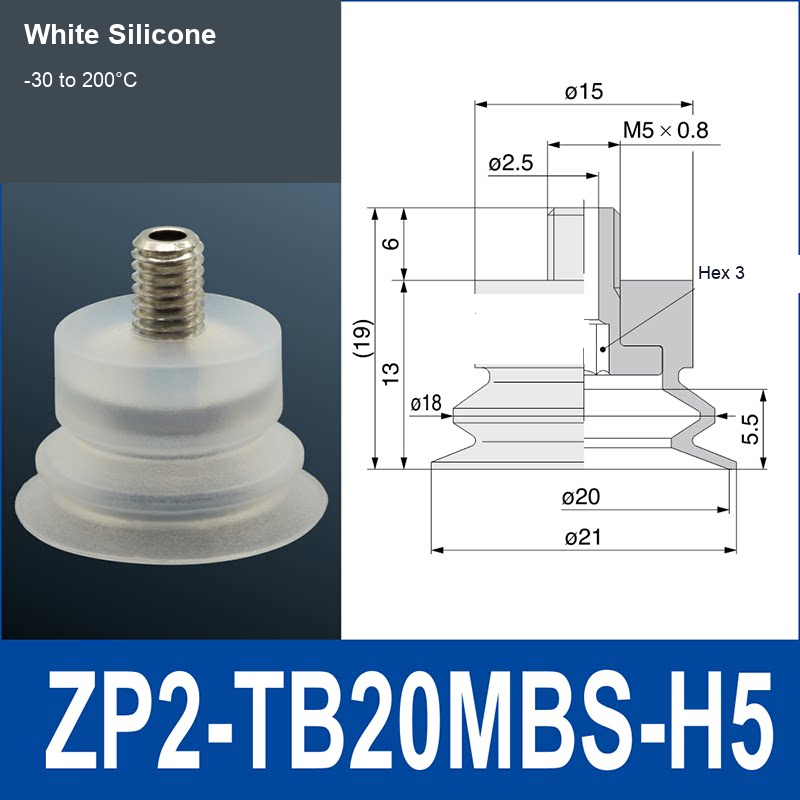

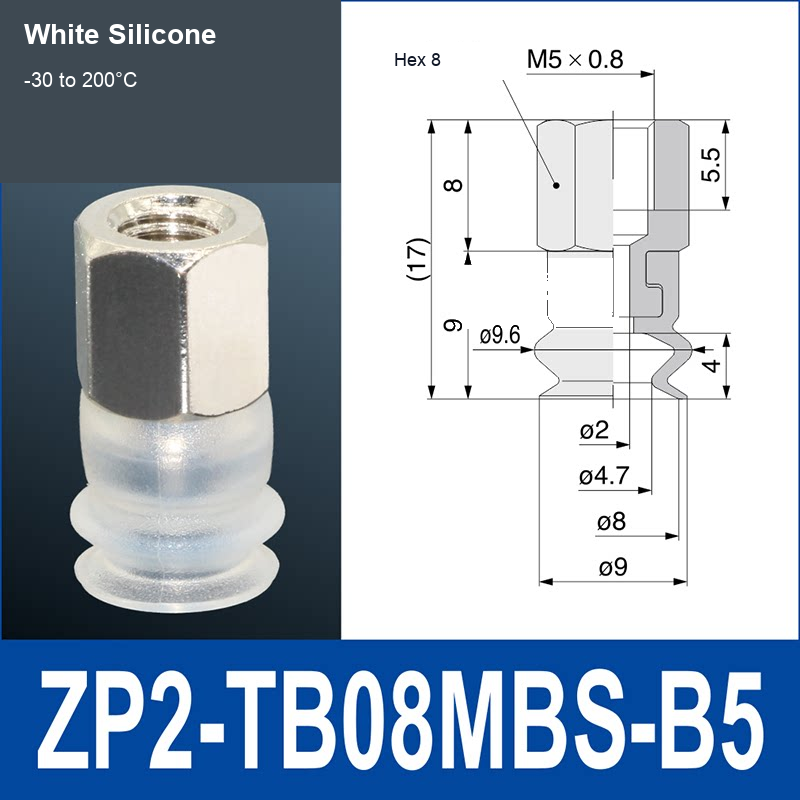

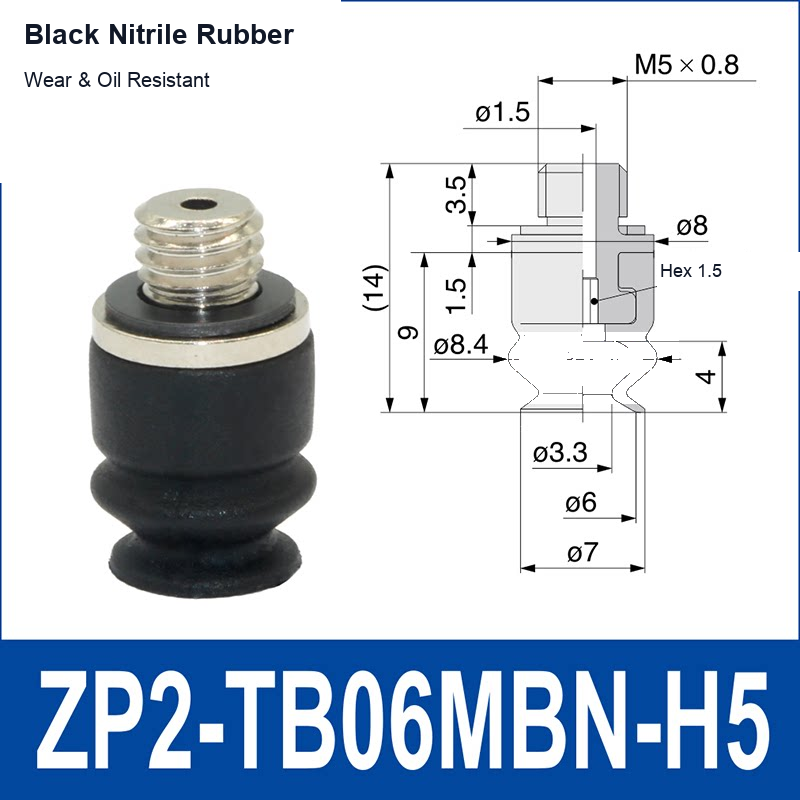

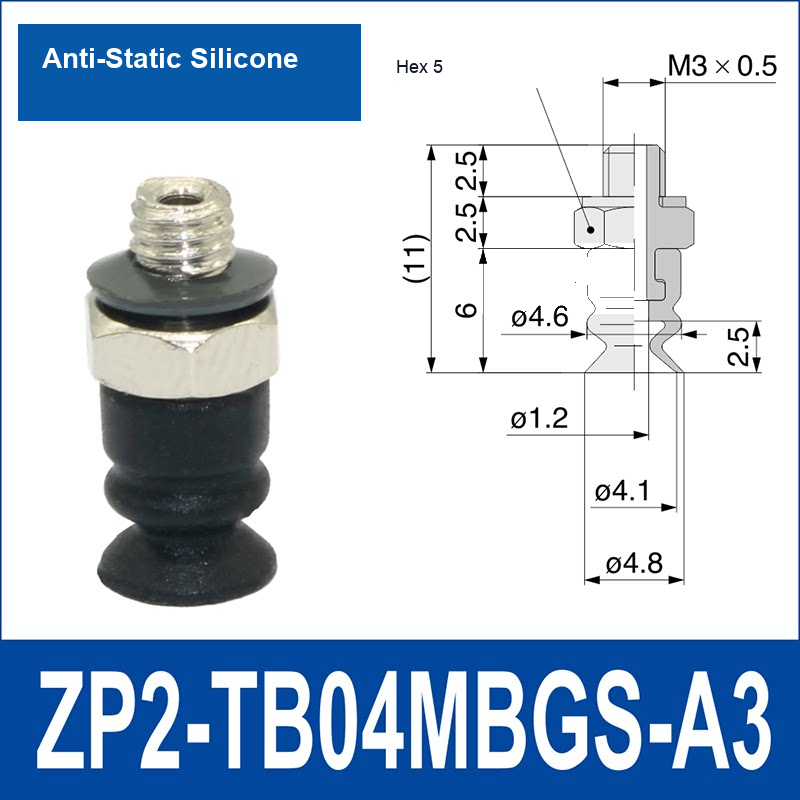

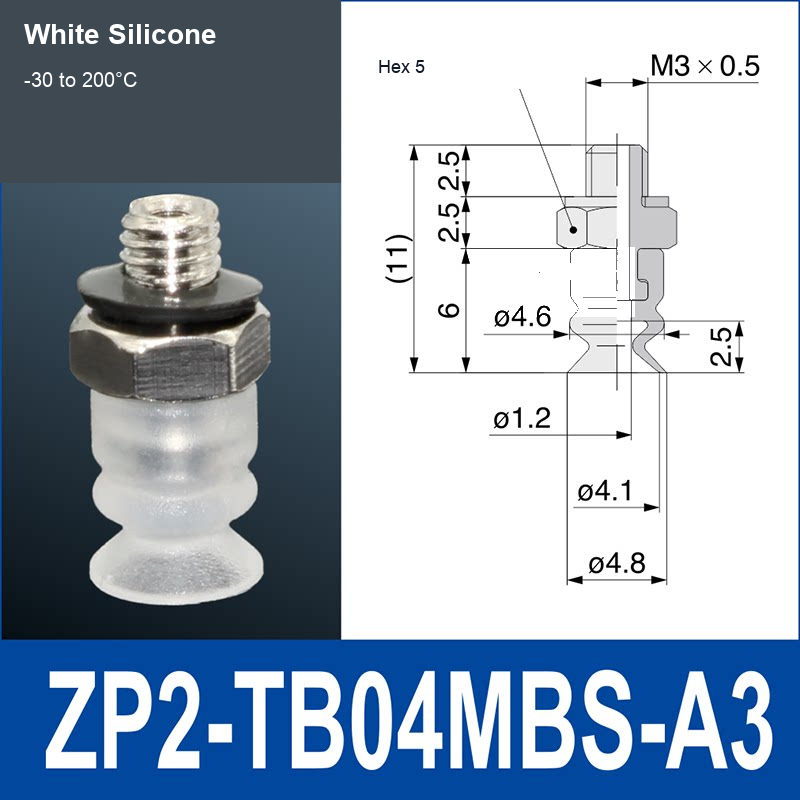

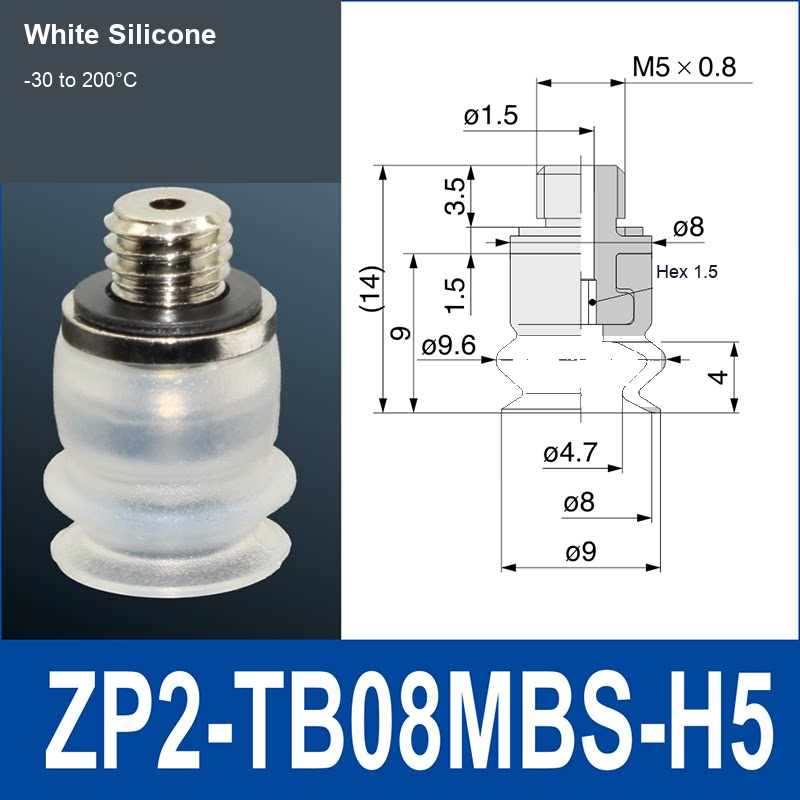

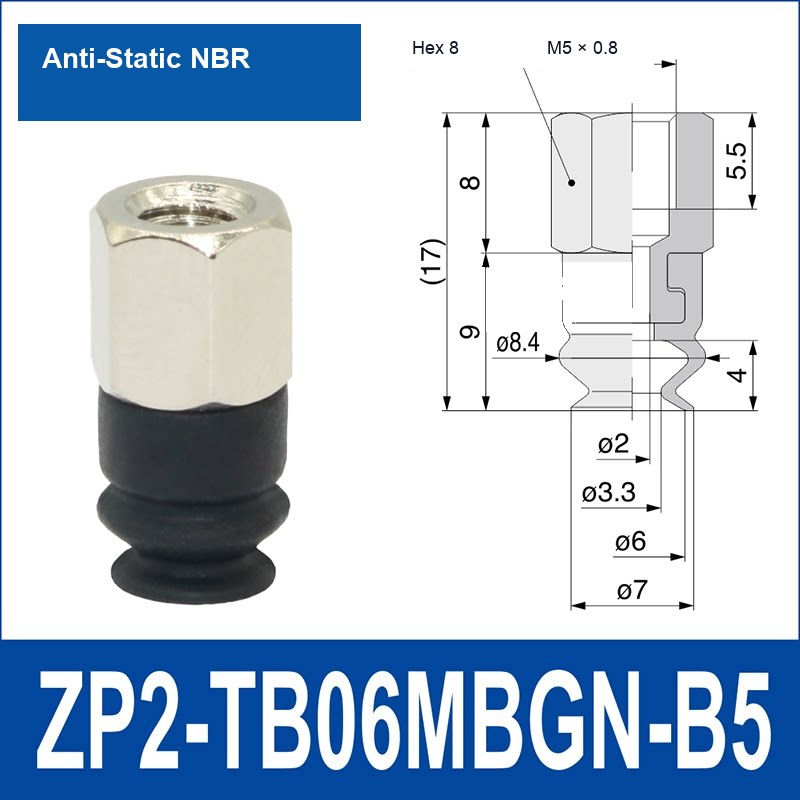

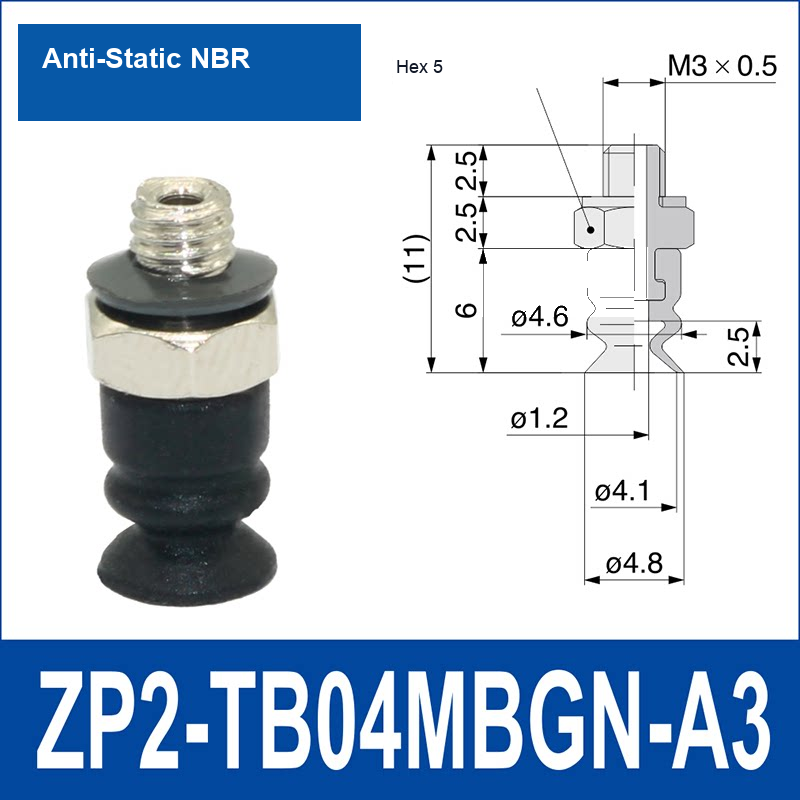

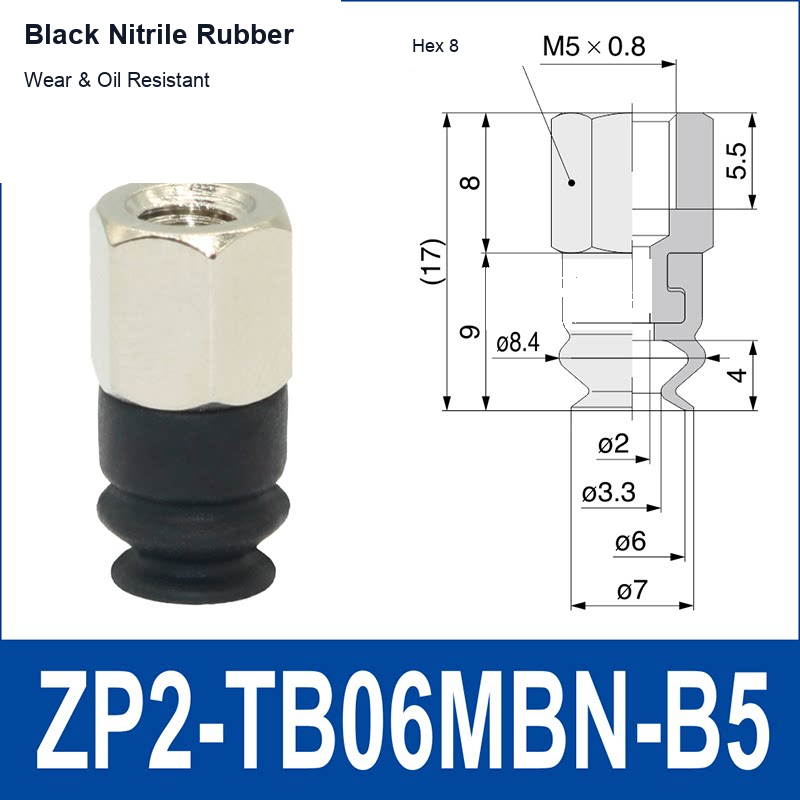

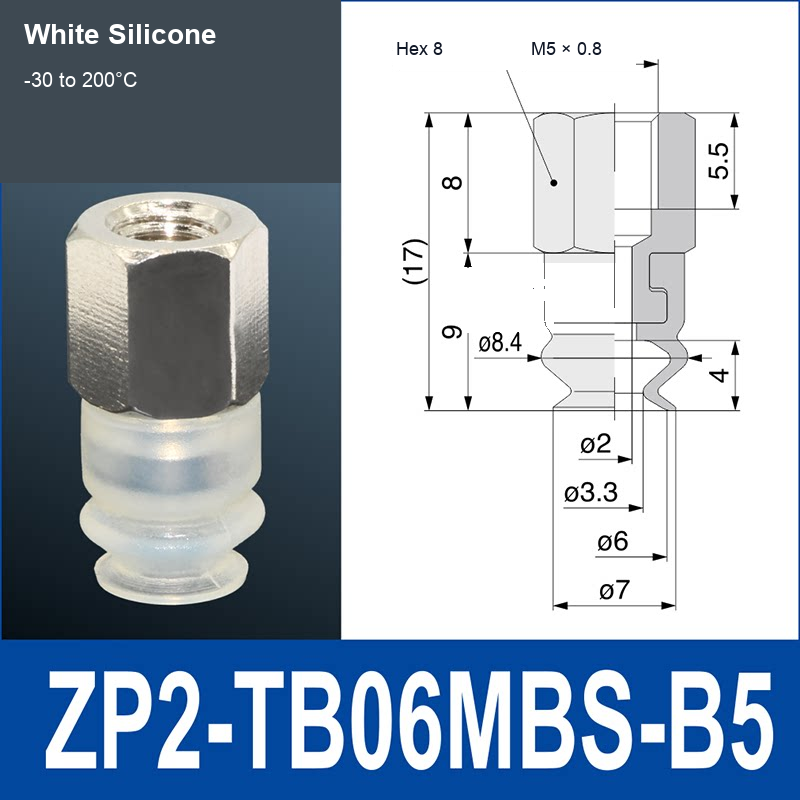

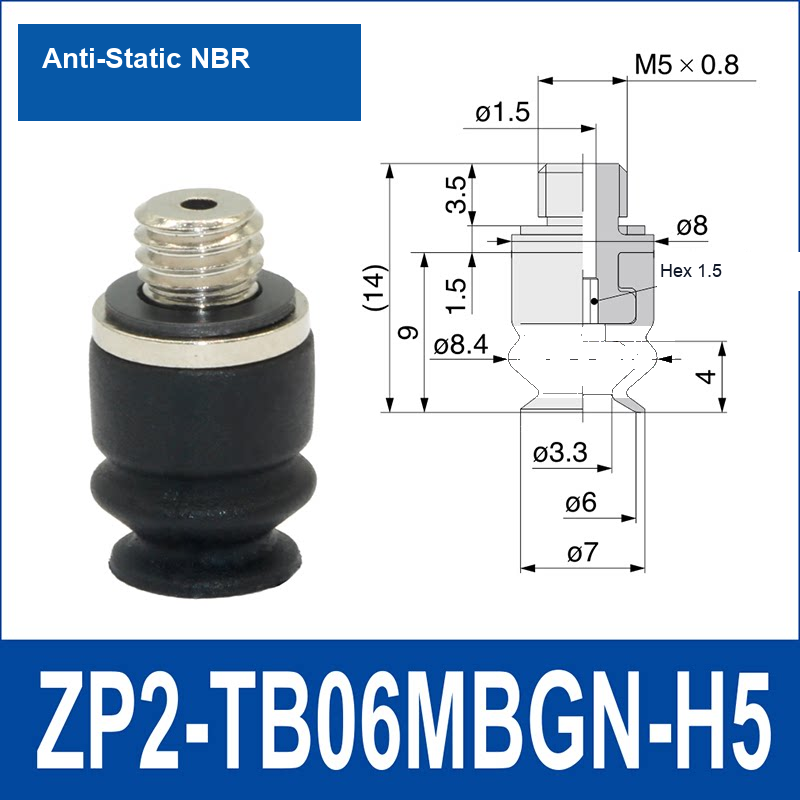

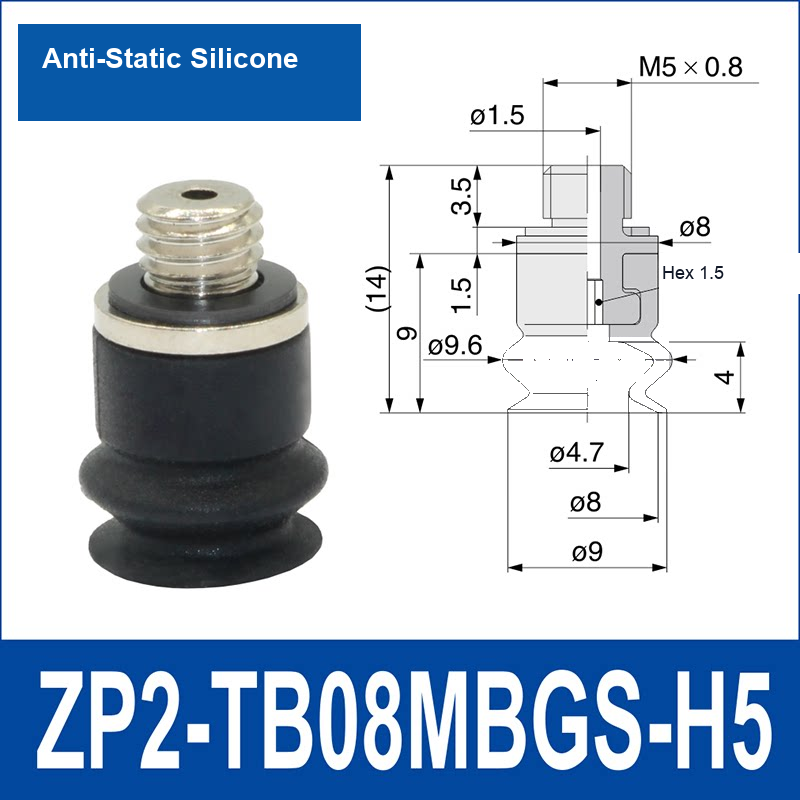

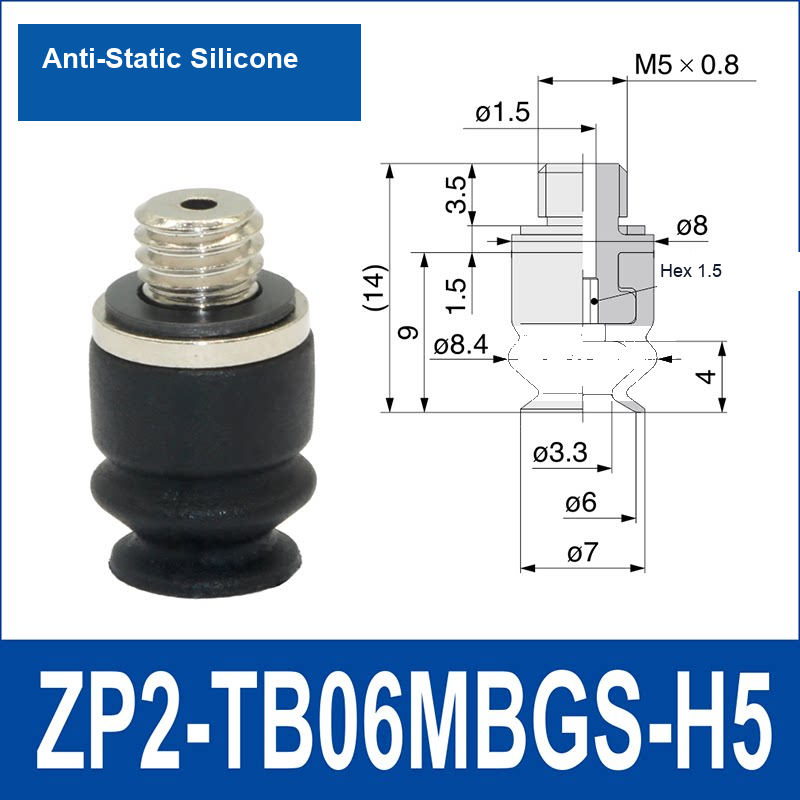

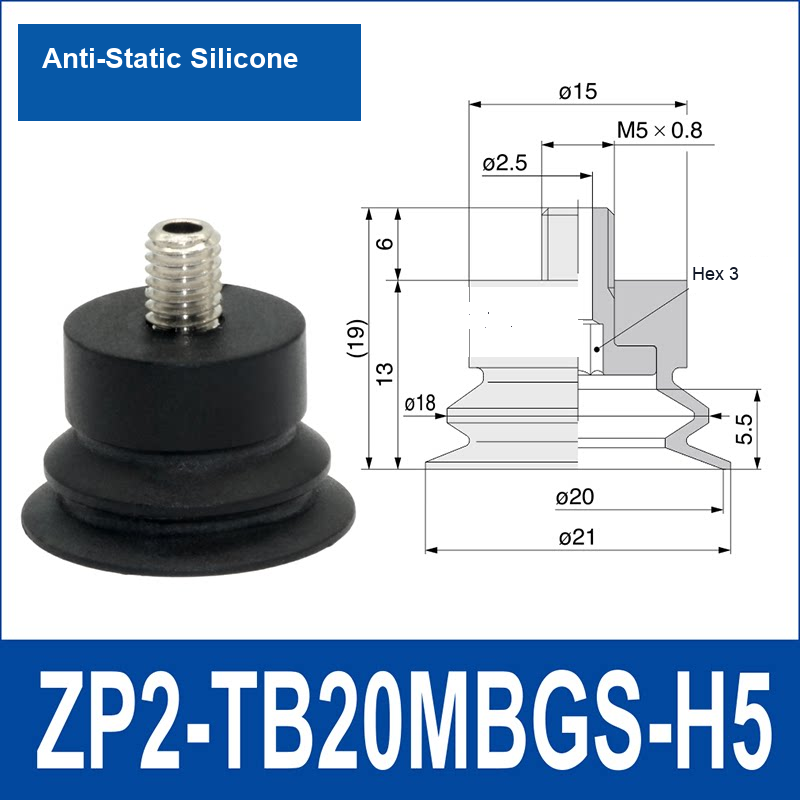

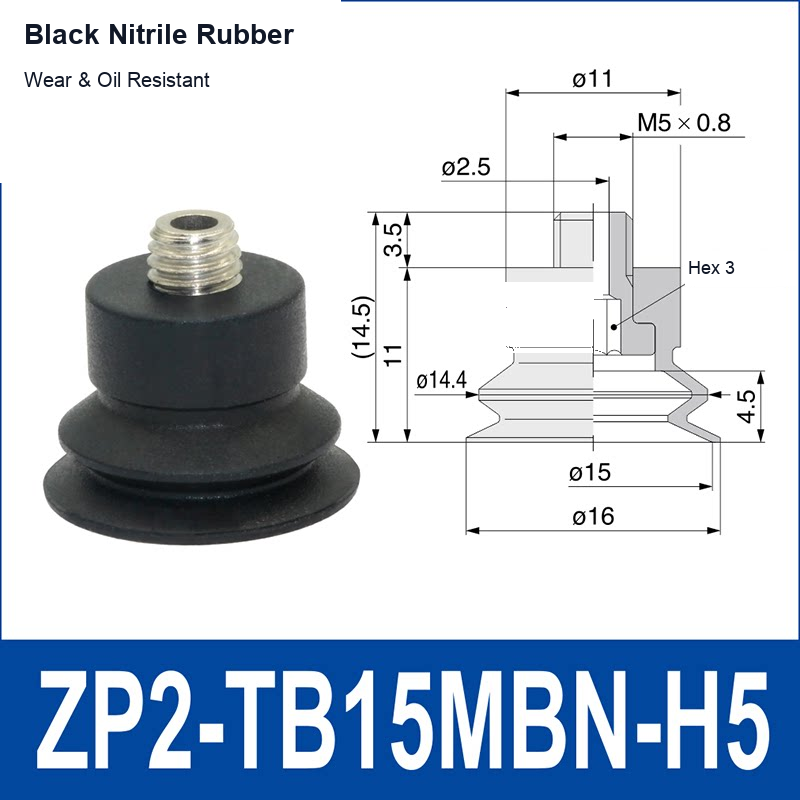

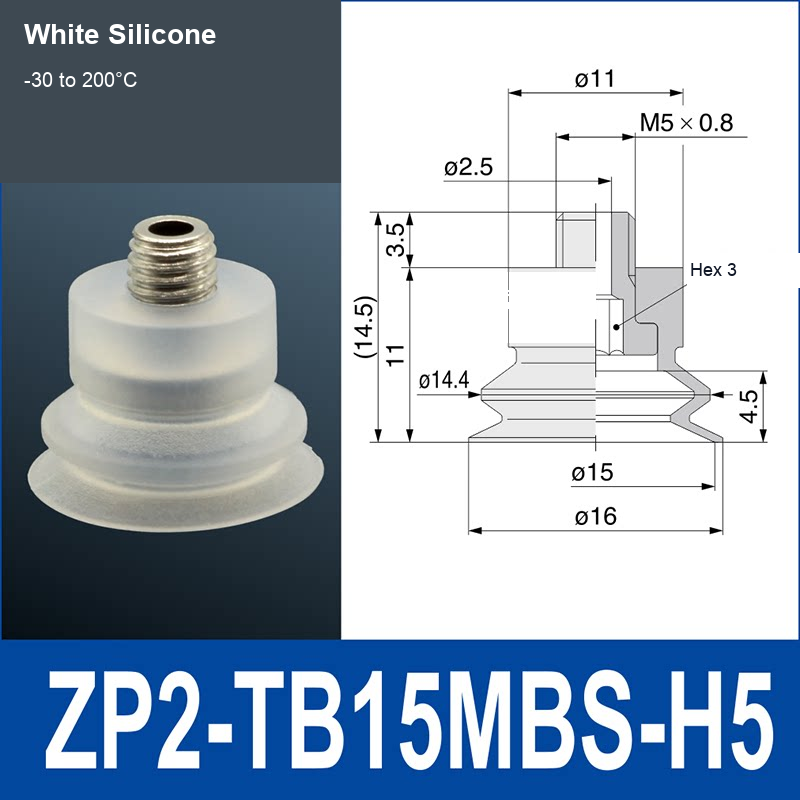

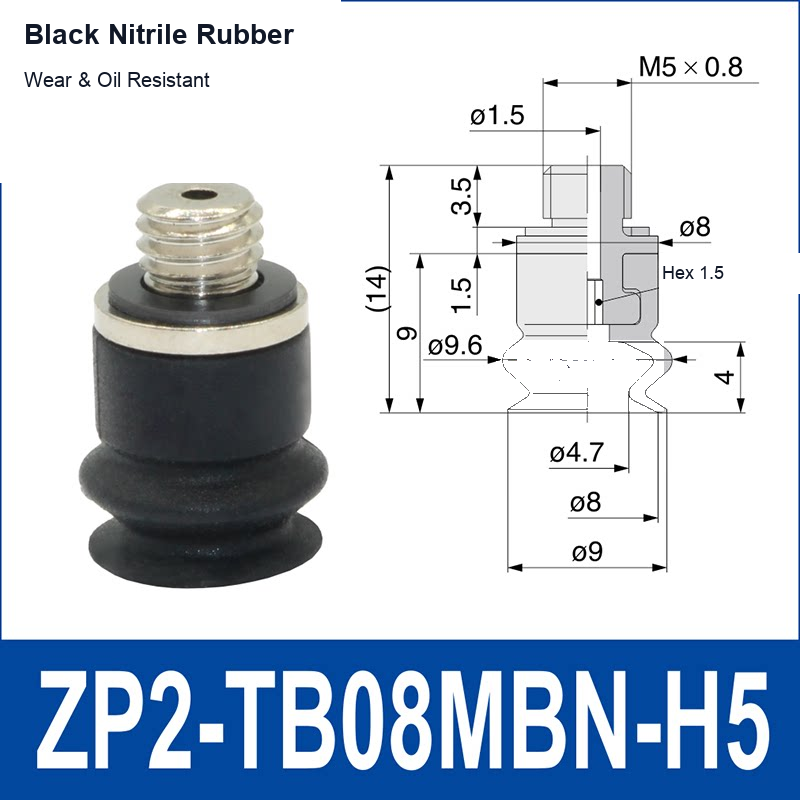

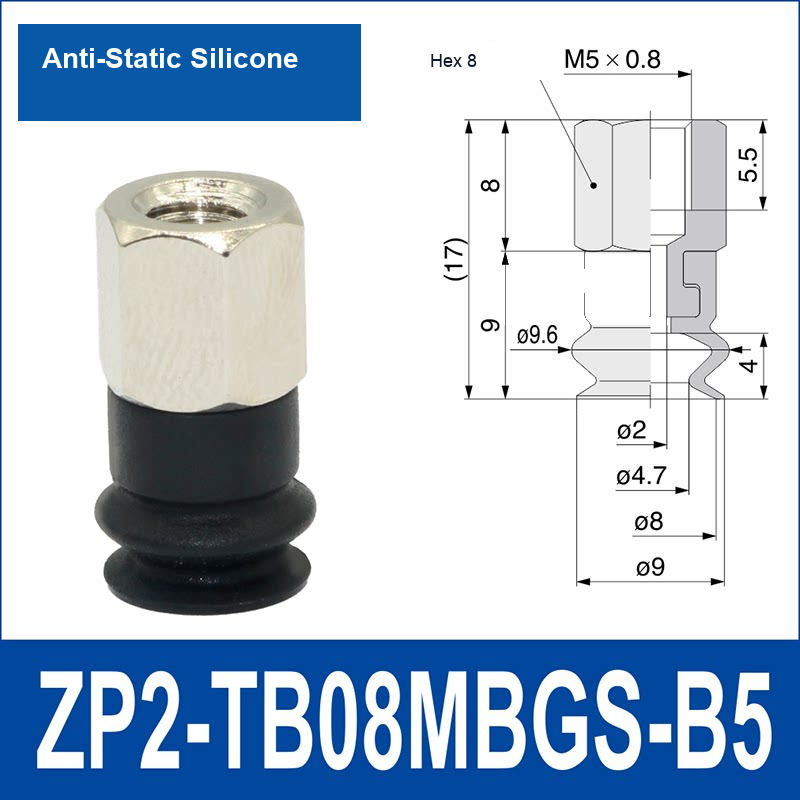

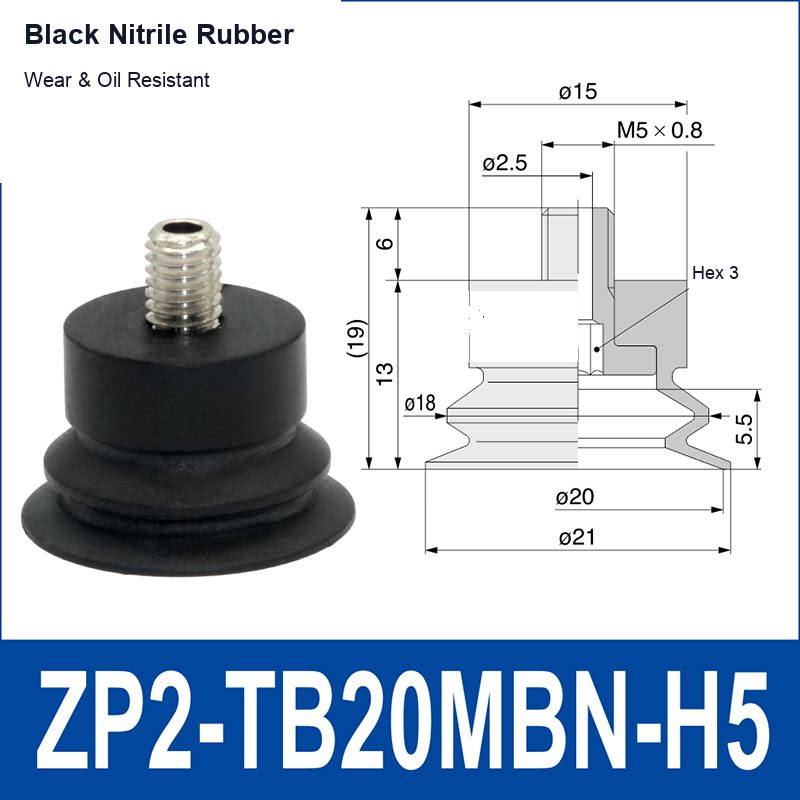

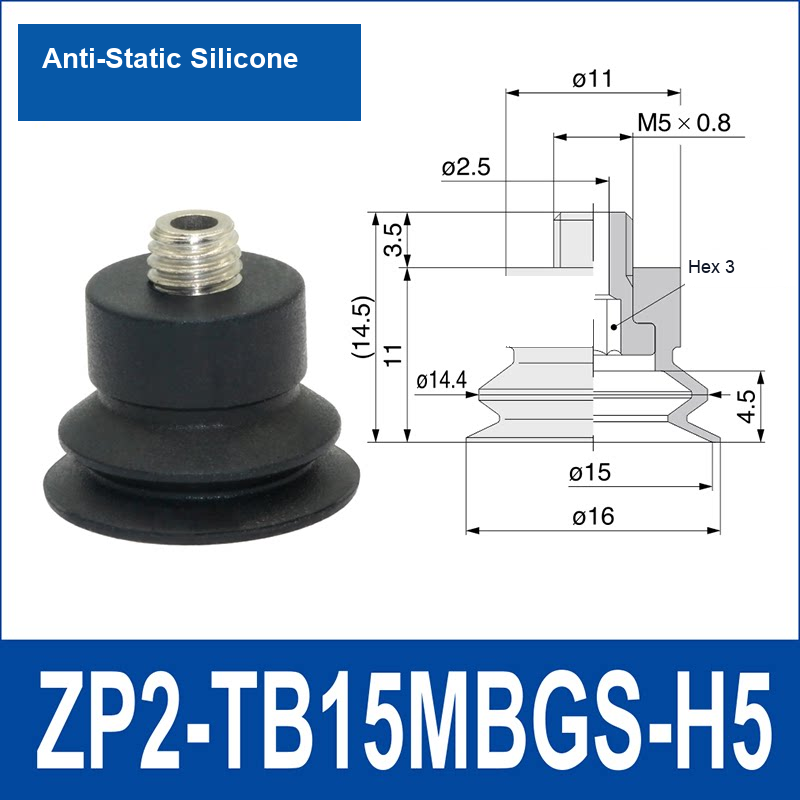

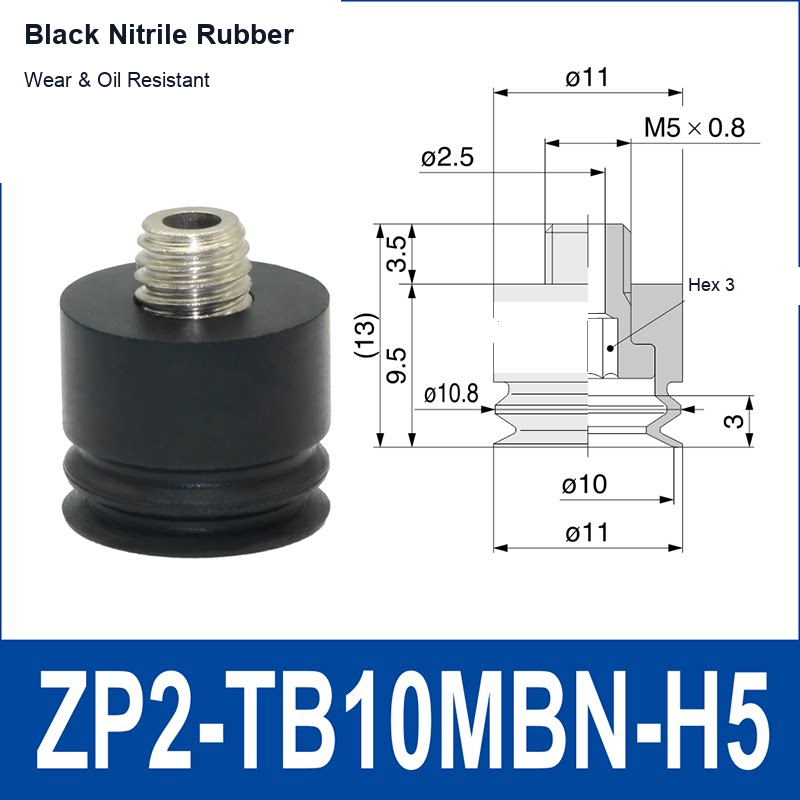

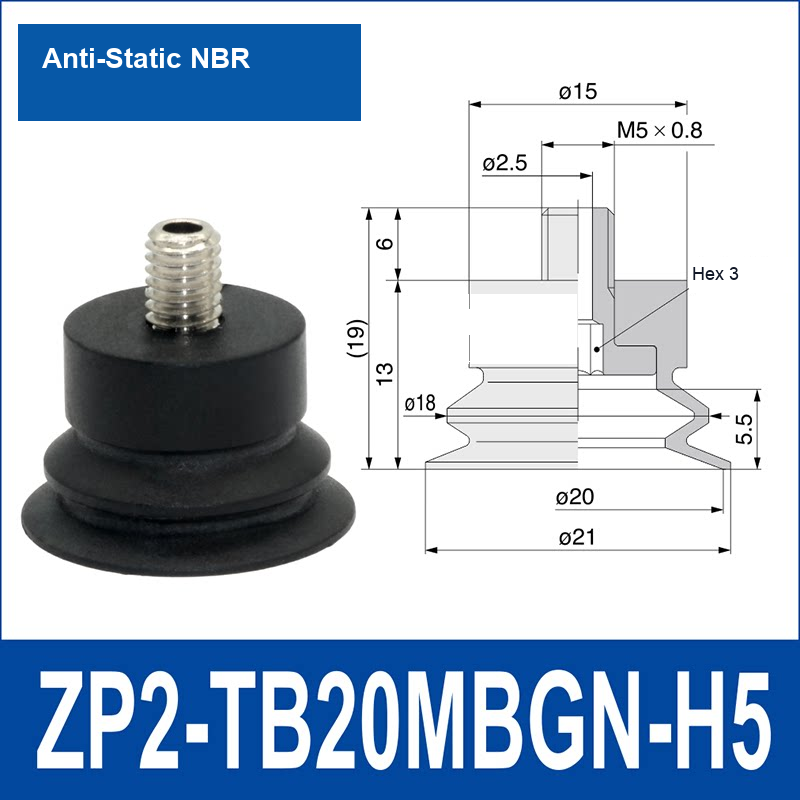

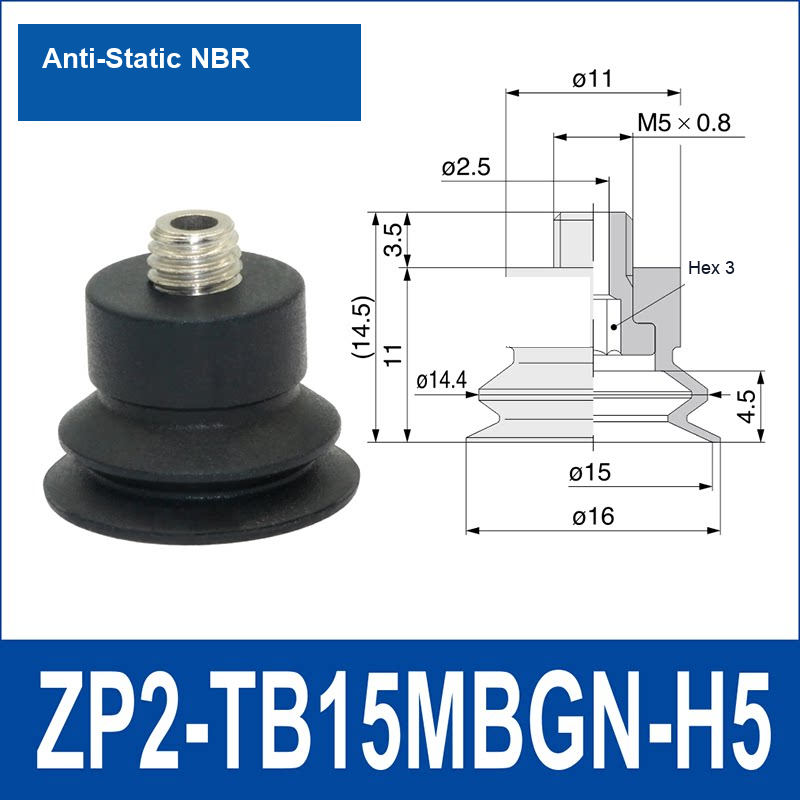

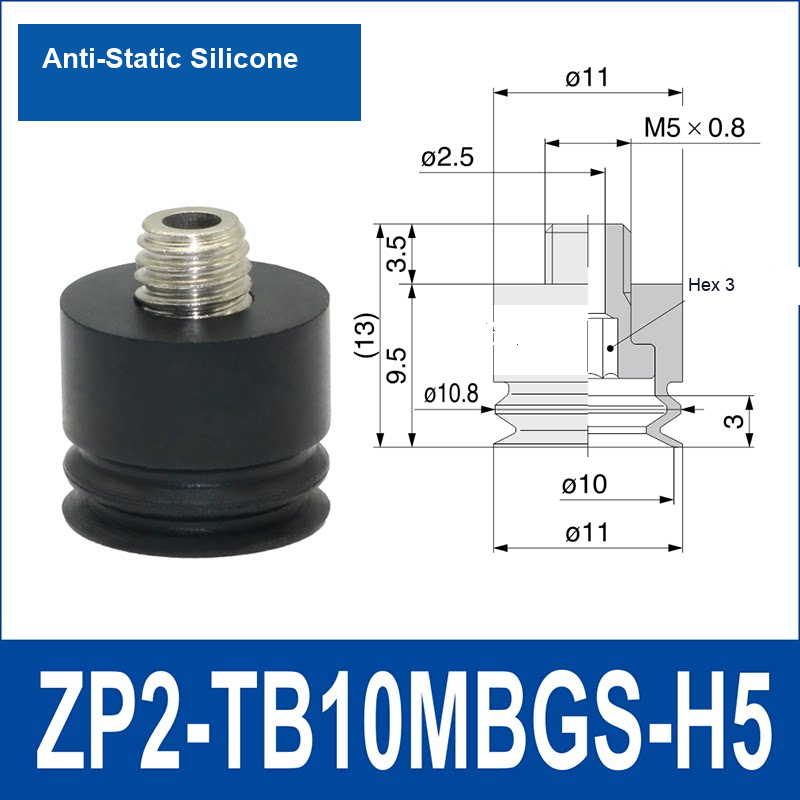

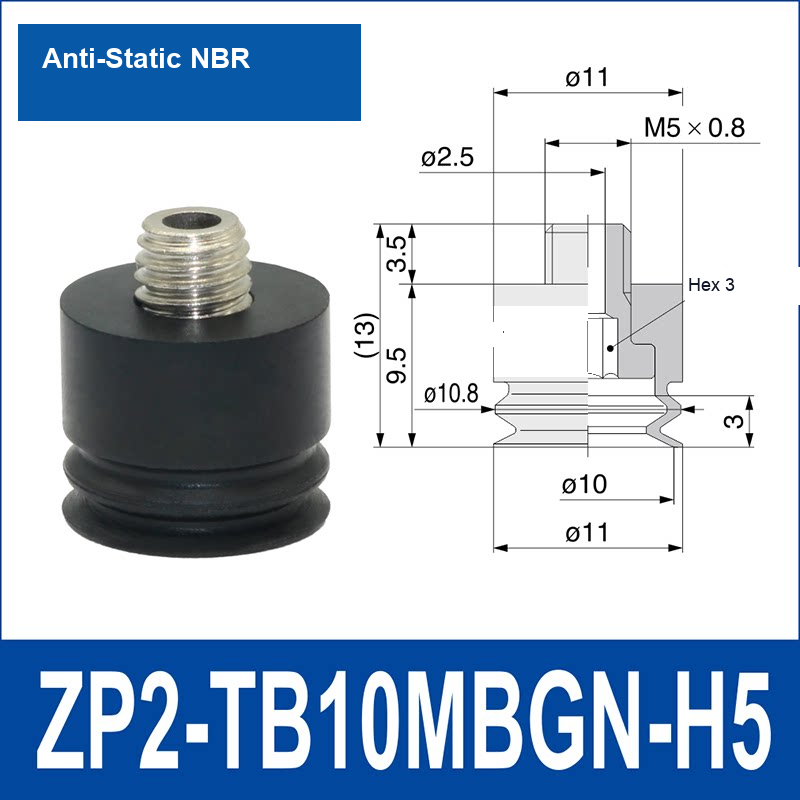

- Model images show exact dimensions and technical specifications
Applications and Suitable Workpieces
ZP2-TB MB Mini Bellows Vacuum Suction Cups with A3 H5 B5 Fittings: These compact cups are intended for precision pickup of small parts where limited contact area, low mass and accurate positioning are important.
Recommended applications
- Electronic components, small plastic parts, glass pieces, labels, packaging components and precision assemblies.
- Compact robots, pneumatic pick-and-place units, sorting systems, inspection equipment and small-part assembly.
- Flat to slightly uneven parts requiring a small footprint and model-specific height compensation.
Model and selection notes
- ZP2-TB MB diameter, MBS/MBN/MBGS/MBGN material code and A3/H5/B5 connection together define the complete model.
- Select the smallest diameter that provides adequate holding force without covering features or edges.
- Flat models improve positioning stability; multi-bellows models compensate for height and curvature; conductive materials are only for static-sensitive handling where identified.
- Confirm surface porosity, vacuum level, release time, acceleration and part cleanliness on the real component.
