ZP2-B MB Series Bellows Vacuum Suction Cups & Adapters
Quantity

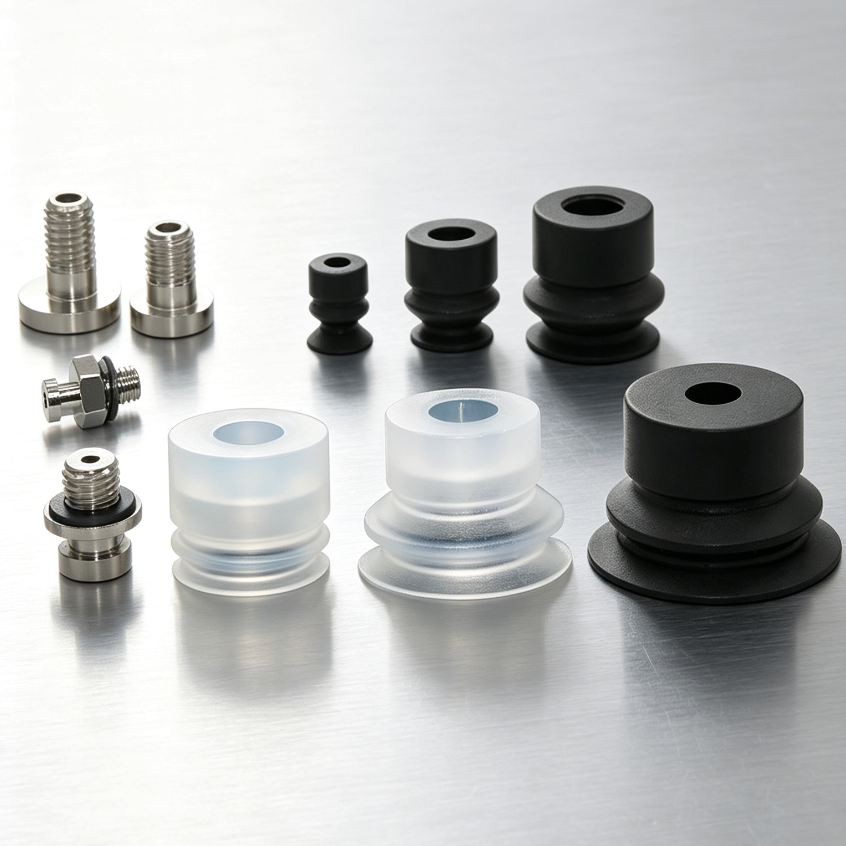

ZP2-B MB Series Bellows Vacuum Suction Cups
Compact bellows vacuum cups and matching mounting adapters for automated handling, packaging equipment and general pick-and-place applications.

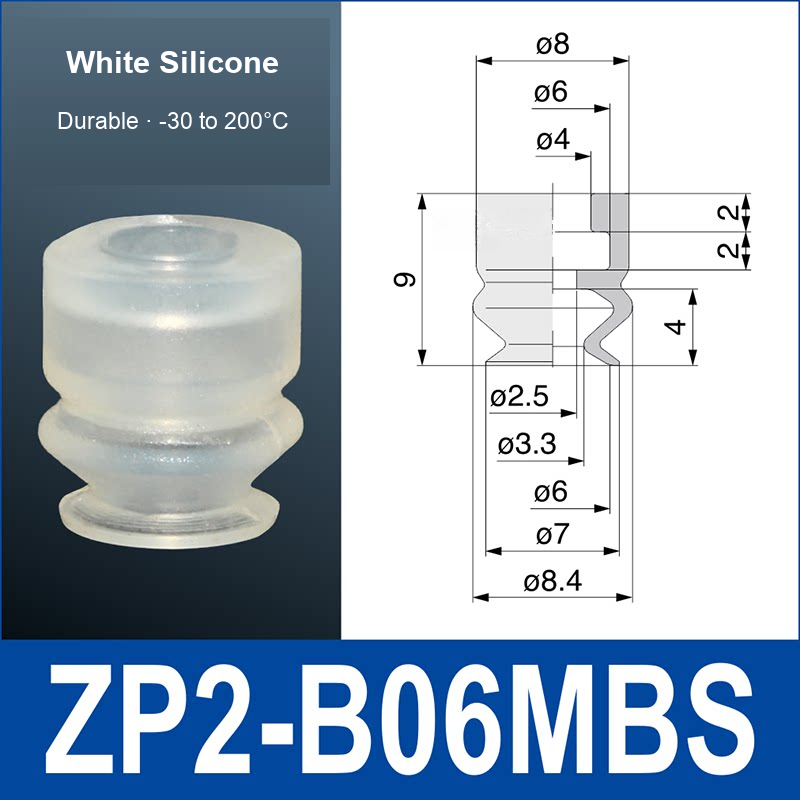

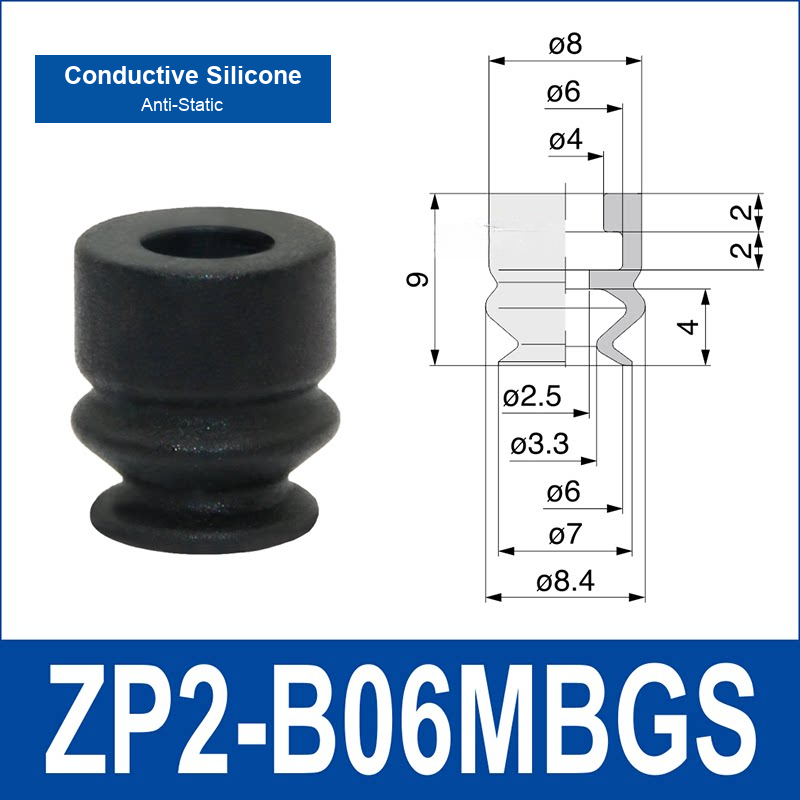

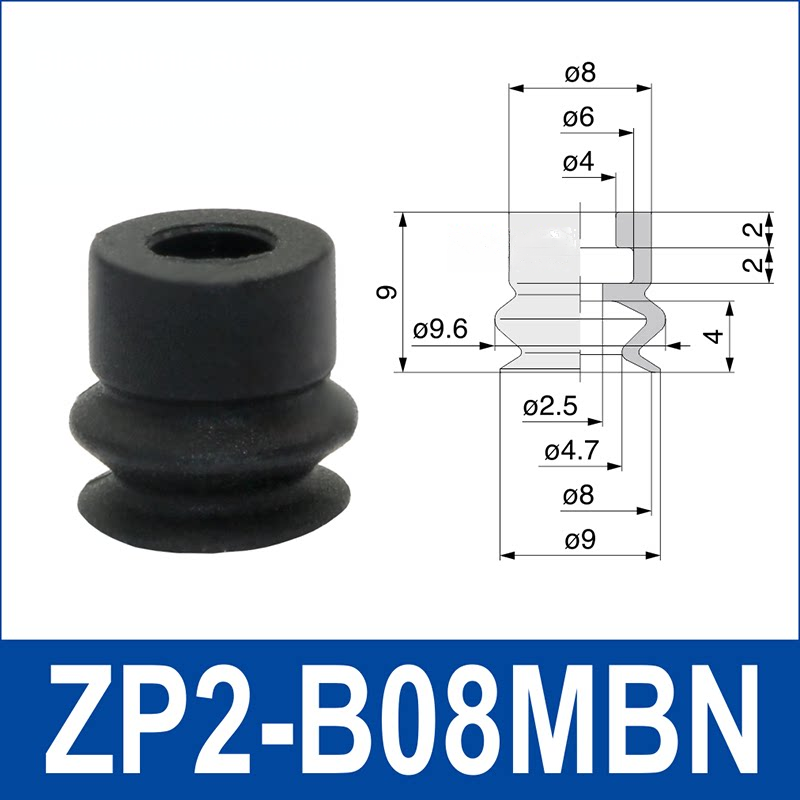

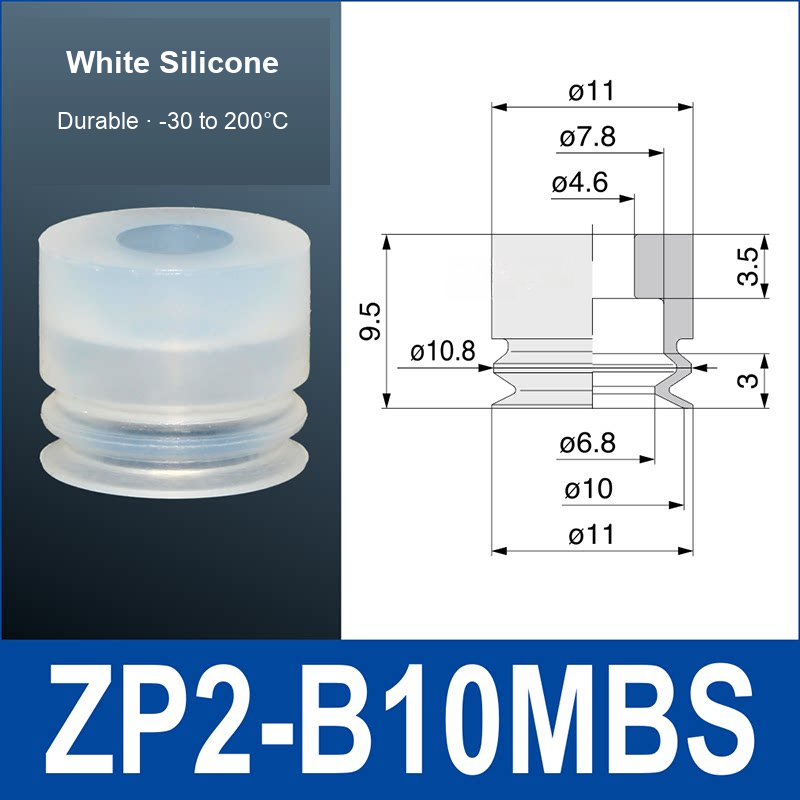

- White silicone, black nitrile rubber and anti-static conductive material options

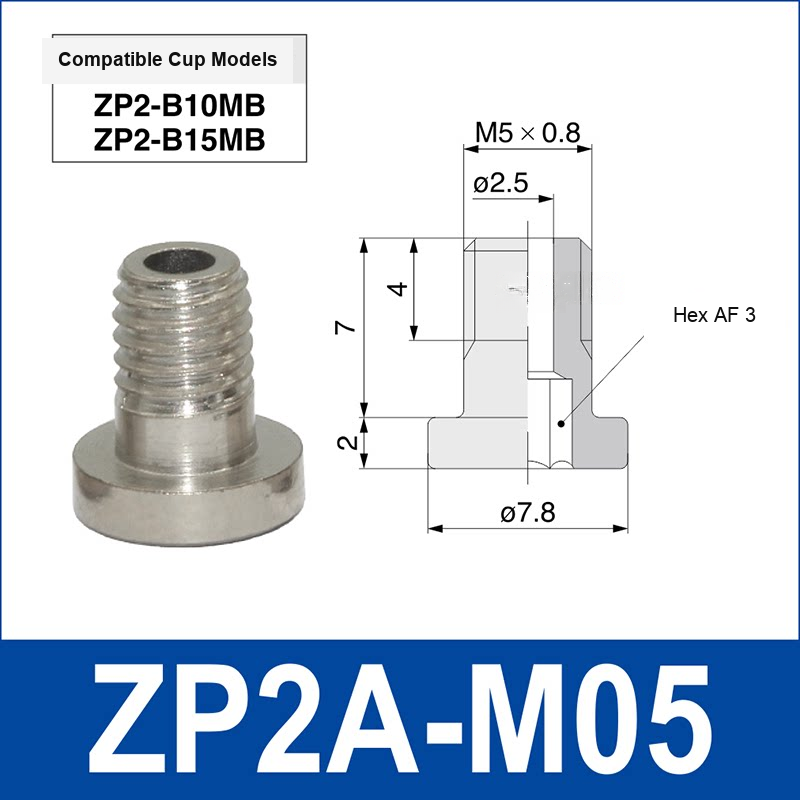

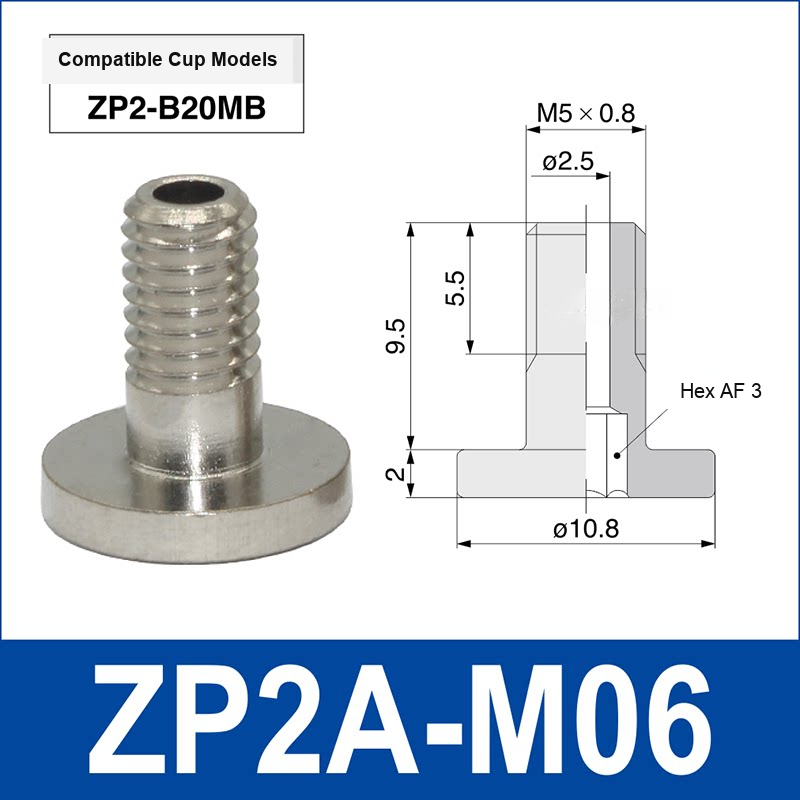

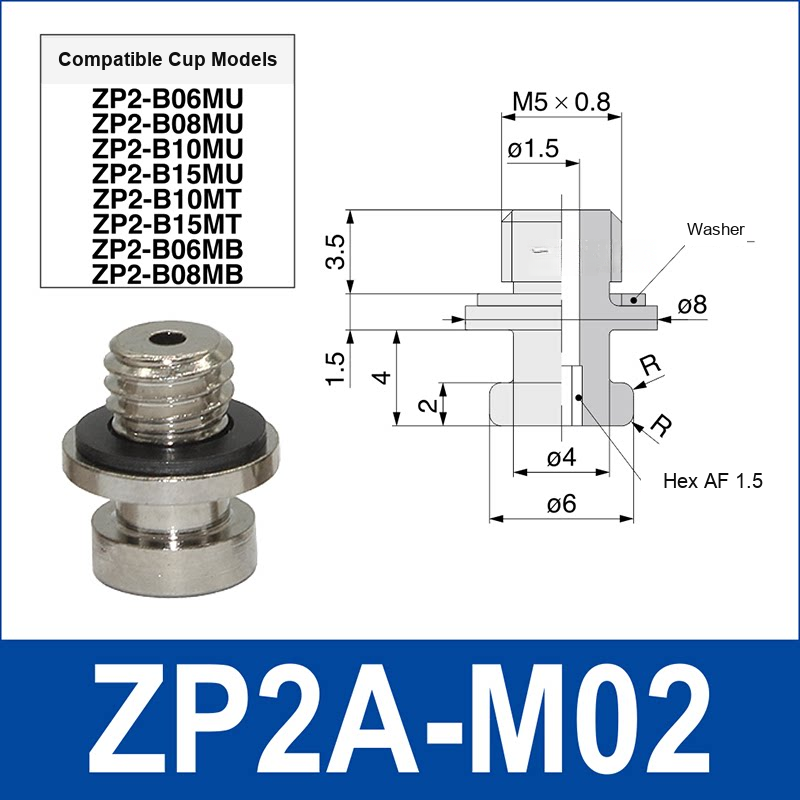

- ZP2A mounting adapters for compatible ZP2-B cup sizes
- Model-specific product views retain dimensional drawings and technical data
Applications and Suitable Workpieces
ZP2-B MB Series Bellows Vacuum Suction Cups & Adapters: These compact cups are intended for precision pickup of small parts where limited contact area, low mass and accurate positioning are important.
Recommended applications
- Electronic components, small plastic parts, glass pieces, labels, packaging components and precision assemblies.
- Compact robots, pneumatic pick-and-place units, sorting systems, inspection equipment and small-part assembly.
- Flat to slightly uneven parts requiring a small footprint and model-specific height compensation.
Model and selection notes

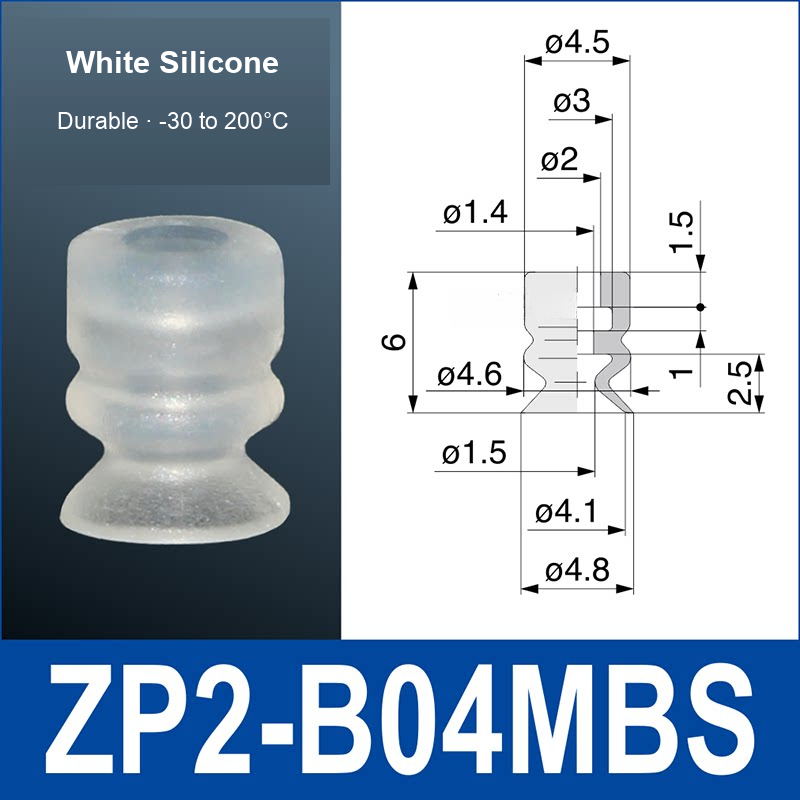

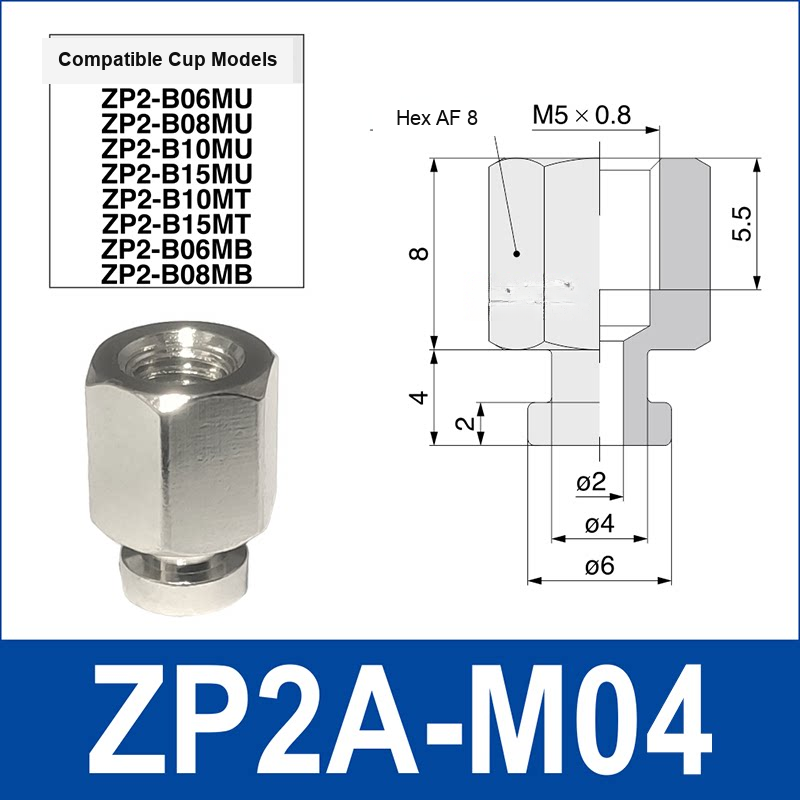

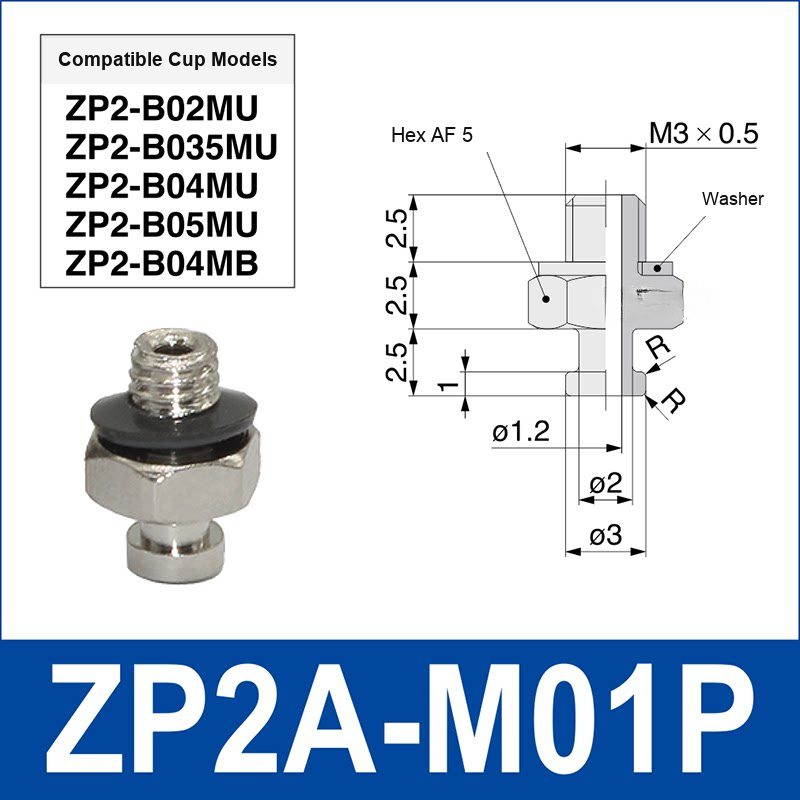

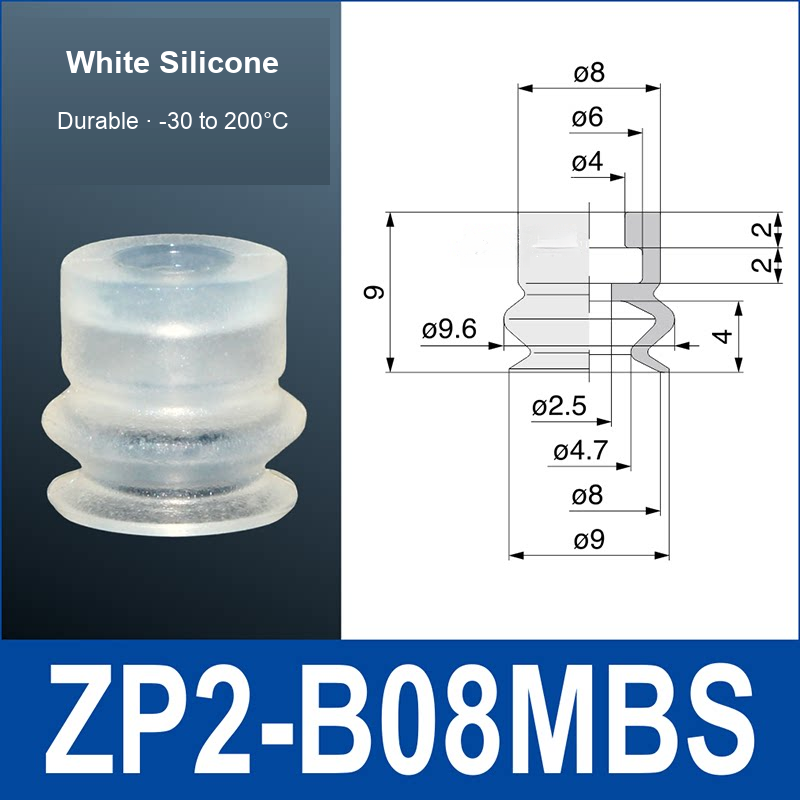

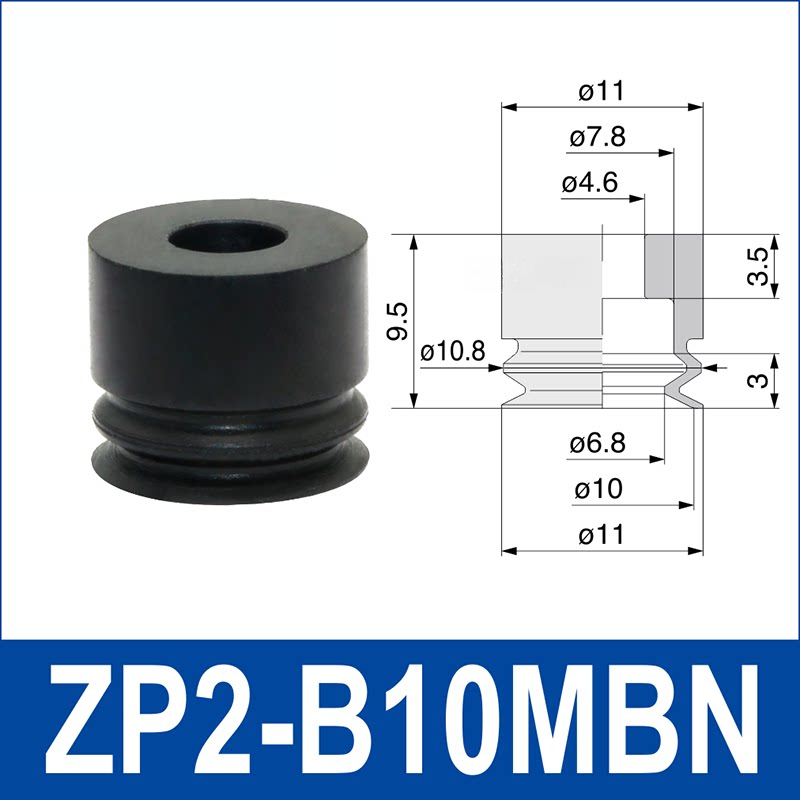

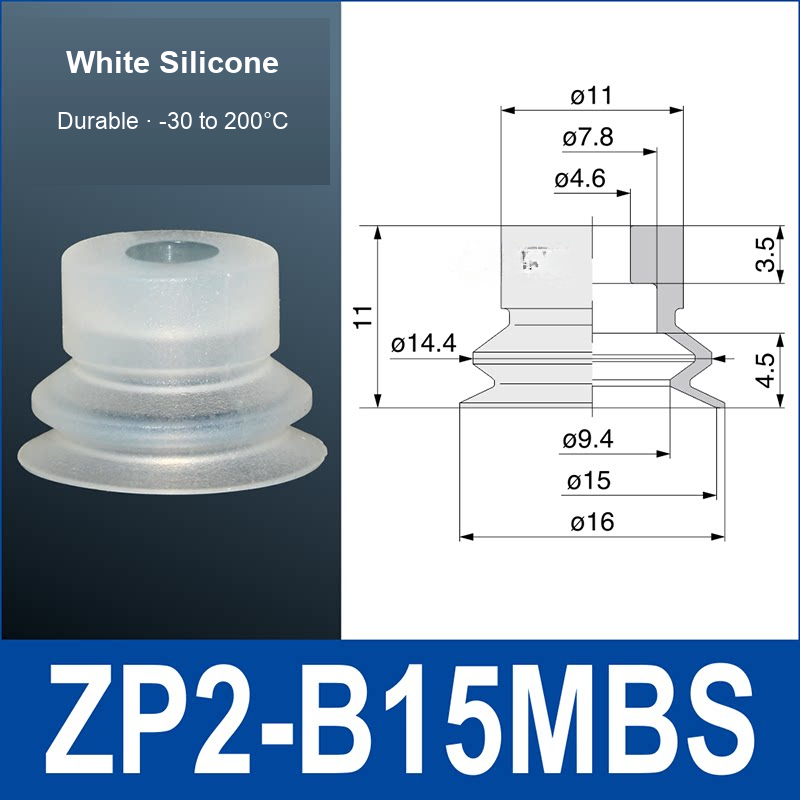

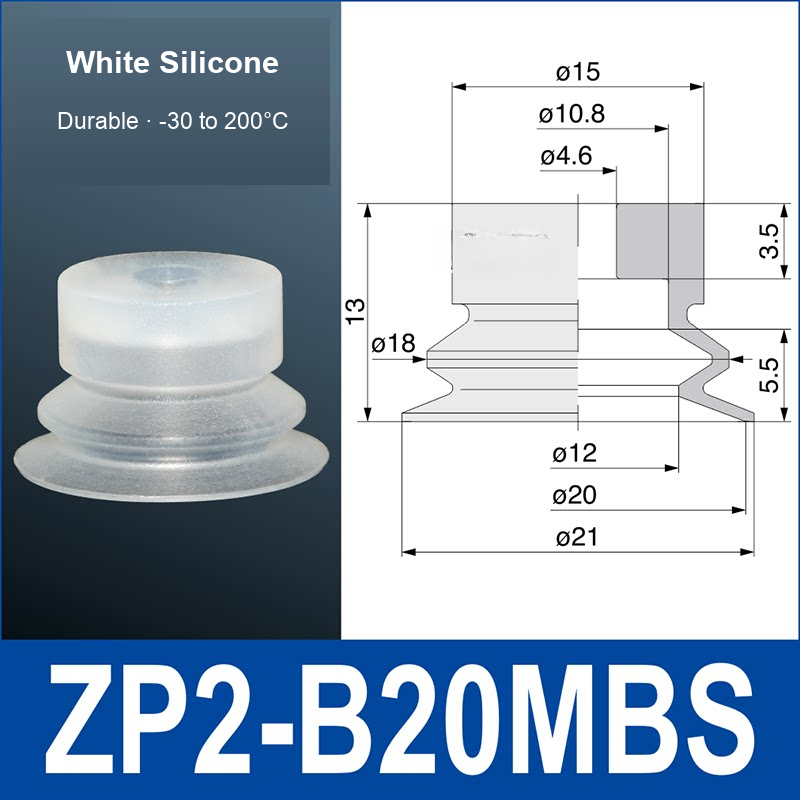

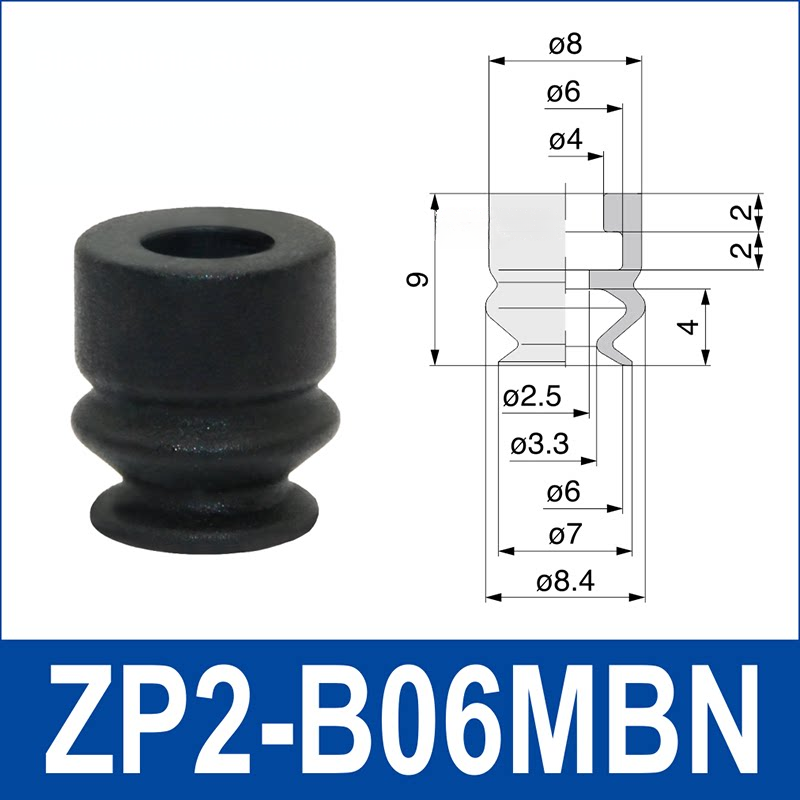

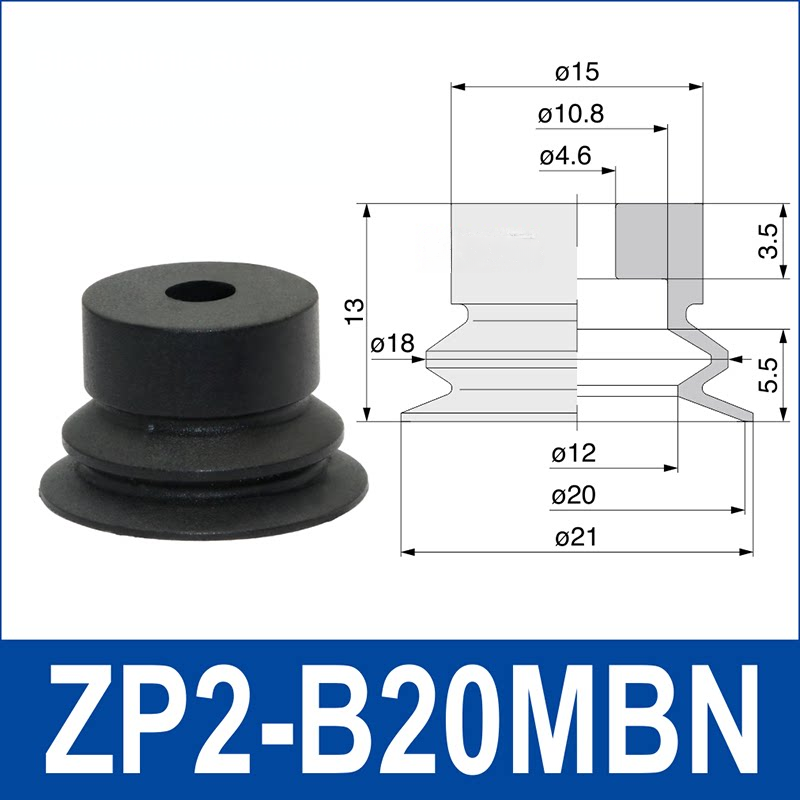

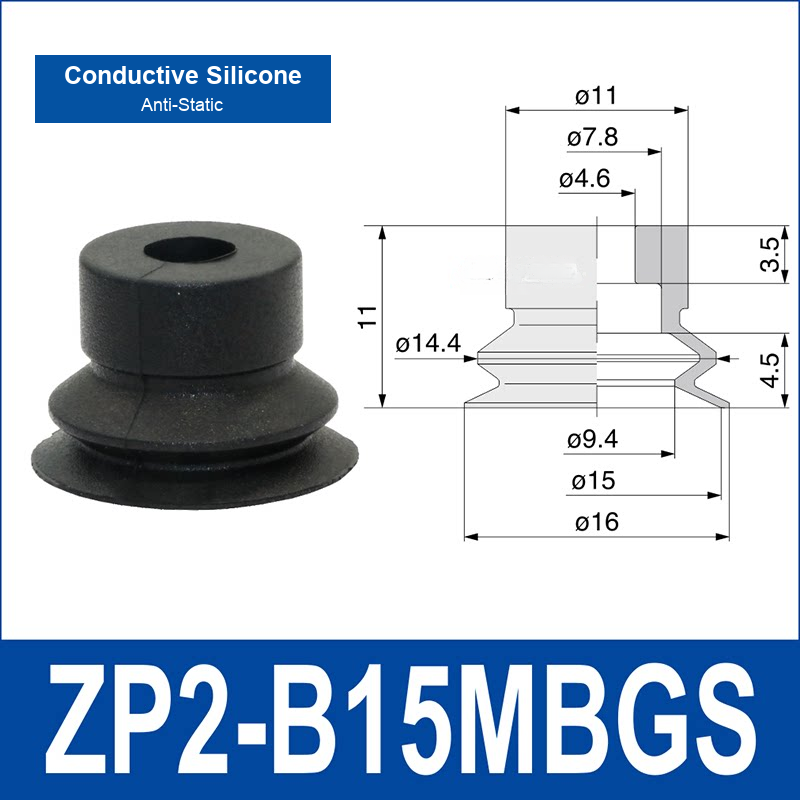

- ZP2-B MB diameter and MBS/MBN/MBGS material code identify the cup; ZP2A variants are mounting adapters and must match the stated diameter range.
- Select the smallest diameter that provides adequate holding force without covering features or edges.
- Flat models improve positioning stability; multi-bellows models compensate for height and curvature; conductive materials are only for static-sensitive handling where identified.
- Confirm surface porosity, vacuum level, release time, acceleration and part cleanliness on the real component.
