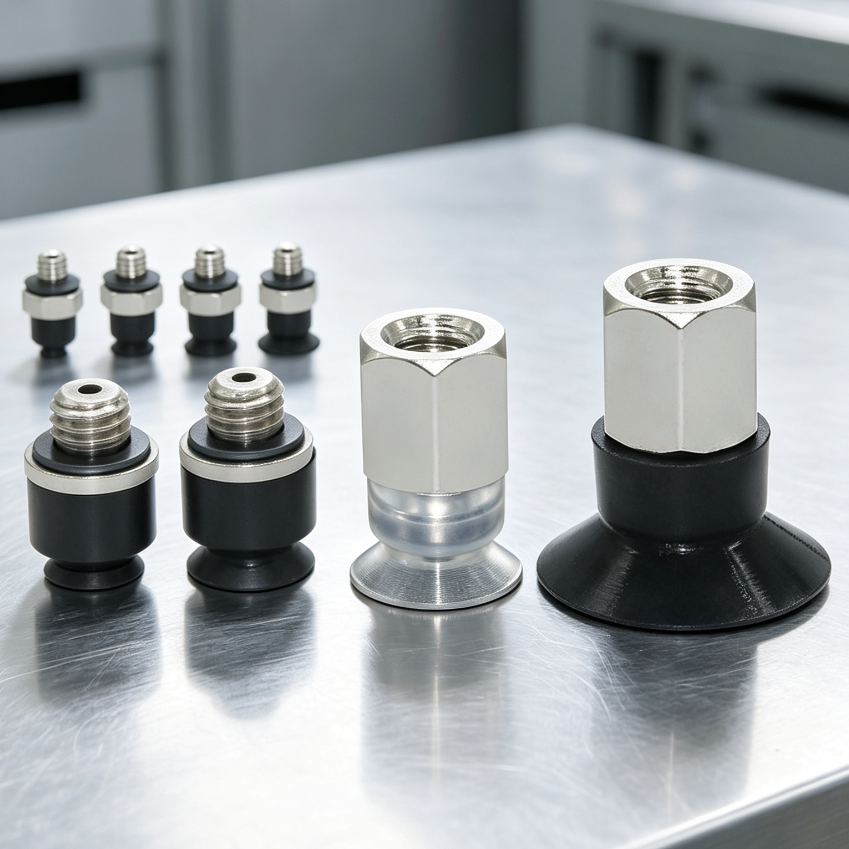

ZP2-TB MU Low-Profile Flat Vacuum Suction Cups
Compact low-profile vacuum suction cups supplied with A3, H5 or B5 mounting fittings for precise handling of small workpieces.
ZP2-TB MU Size and Mounting Groups
These low-profile flat cups are listed with white-silicone MUS or black-nitrile MUN options. Select the required diameter and fitting group together for compact small-part handling.
| Listed option | Selection check |
|---|---|

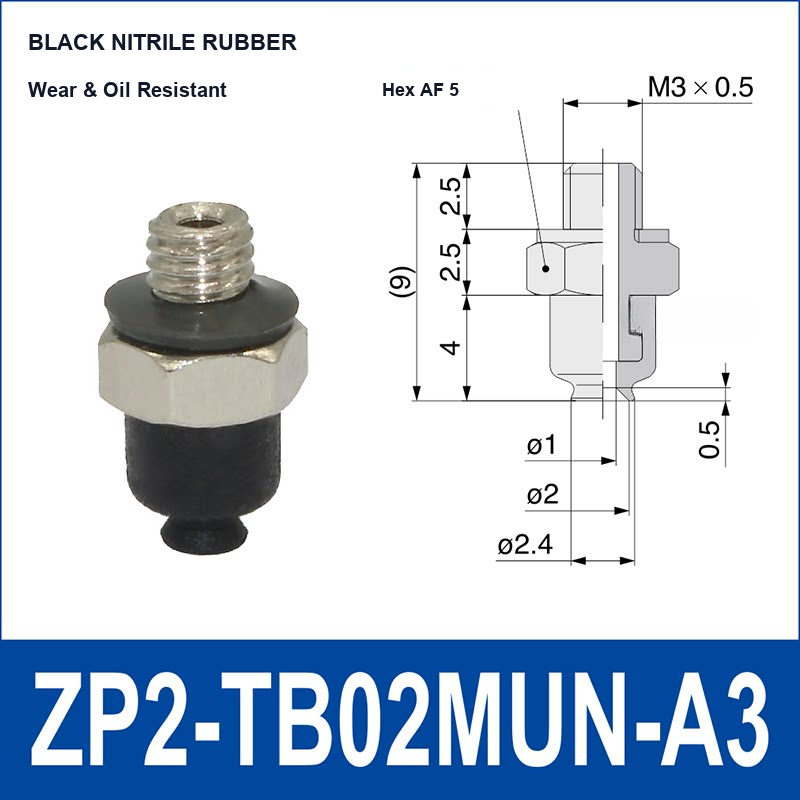

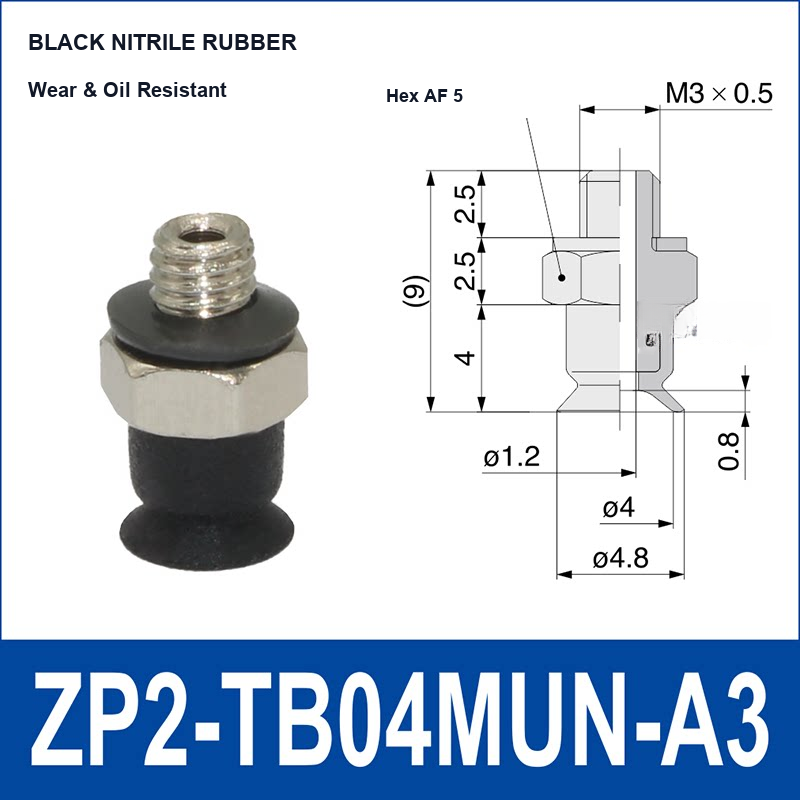

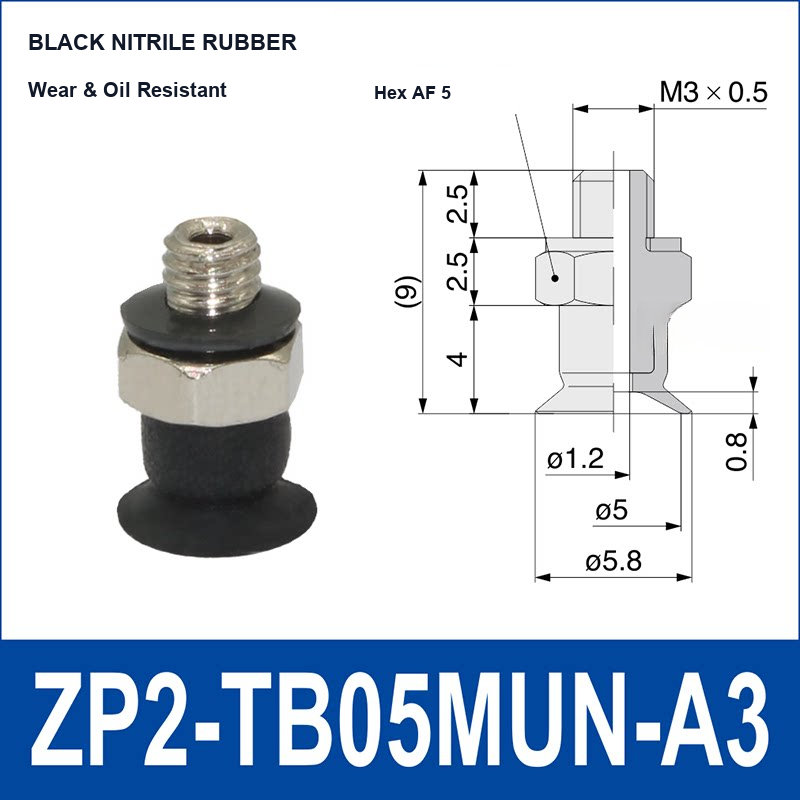

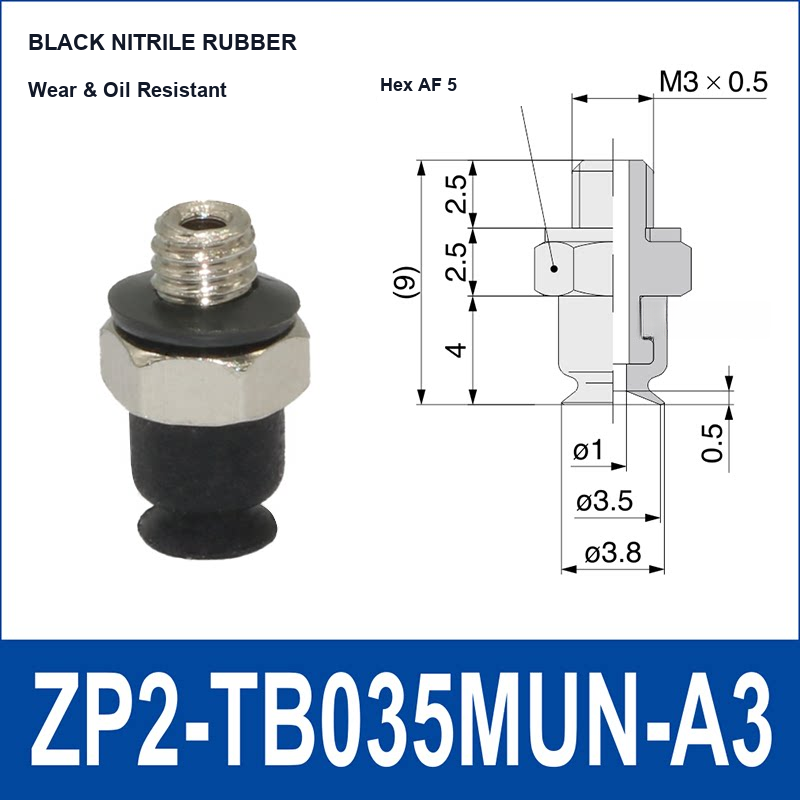

| 2 / 3.5 / 4 / 5 mm | Listed with A3 configurations, using TB02, TB035, TB04 and TB05 model codes. |

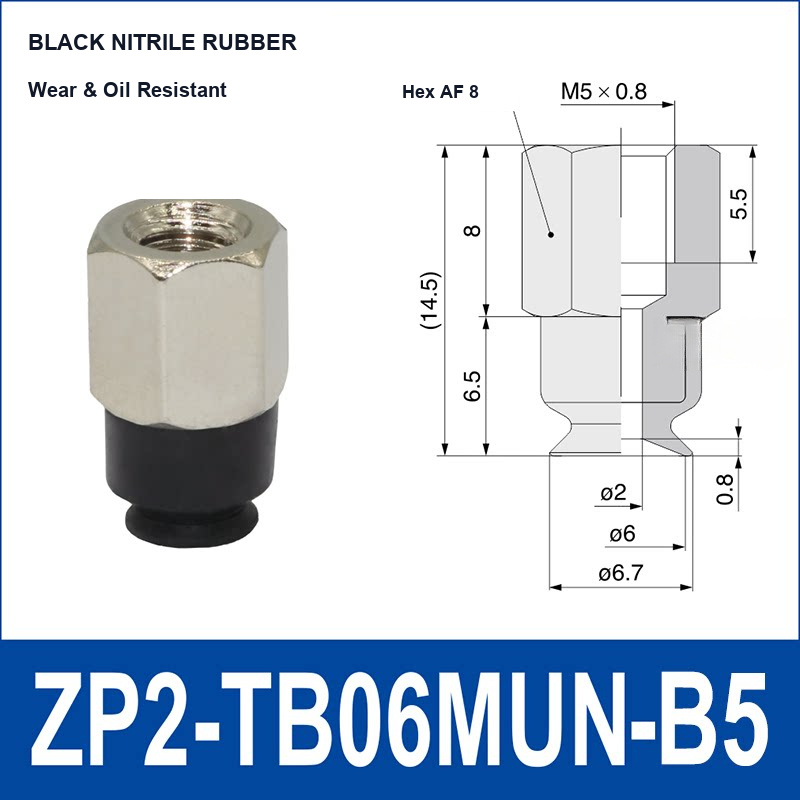

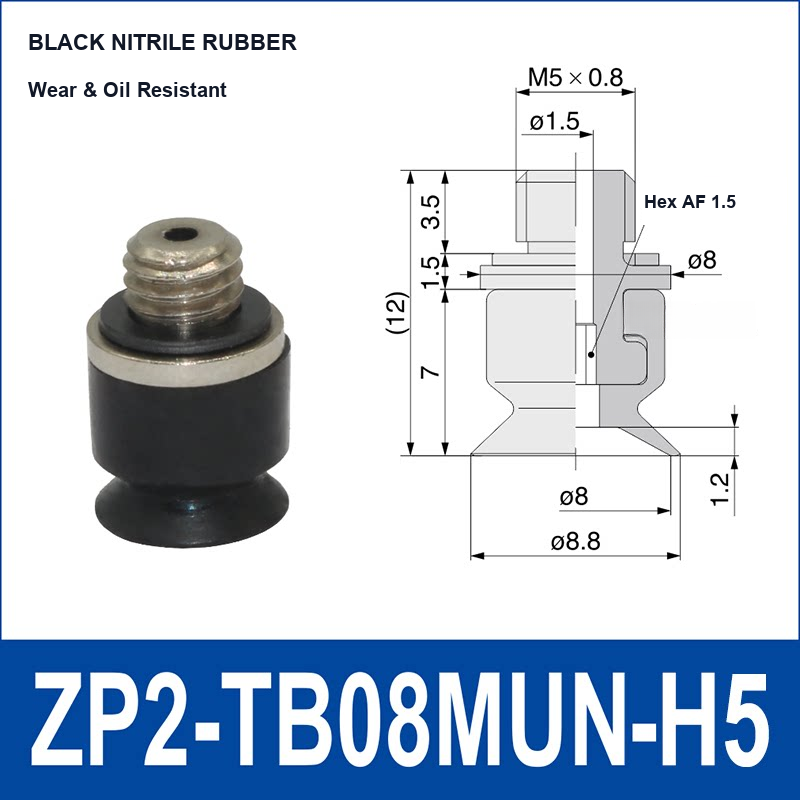

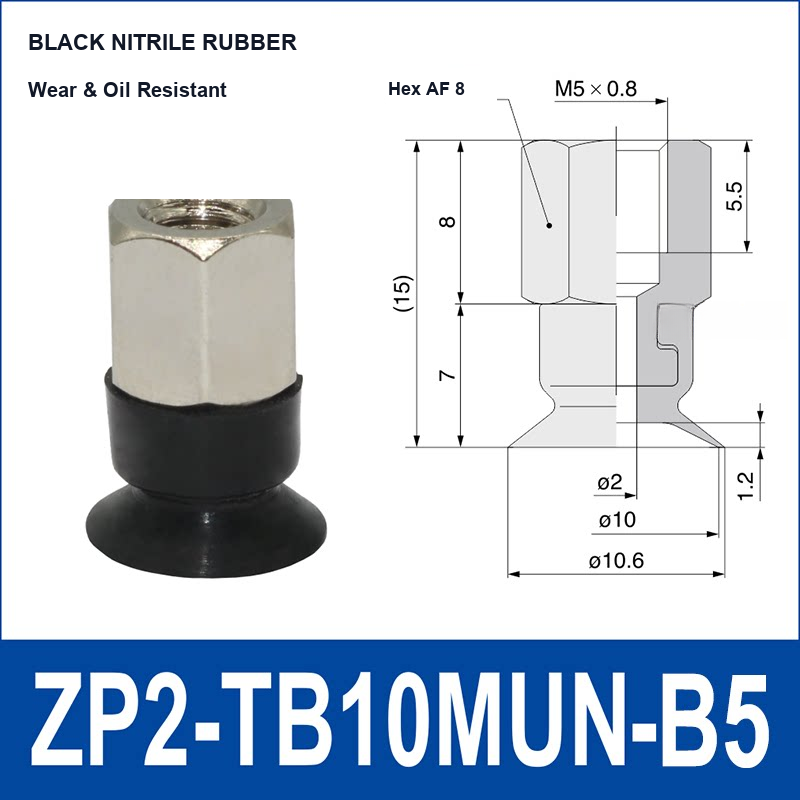

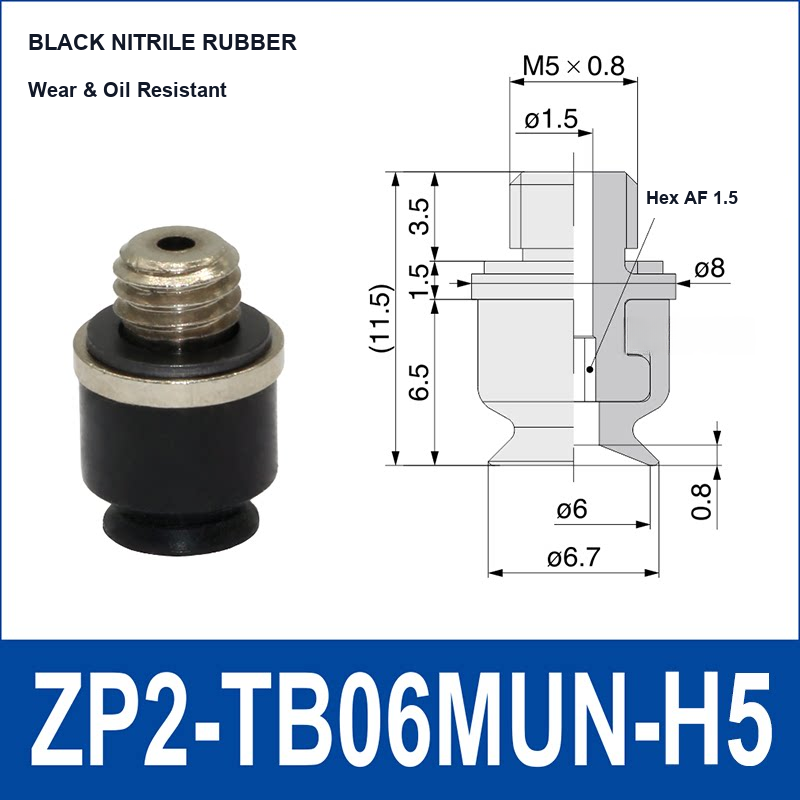

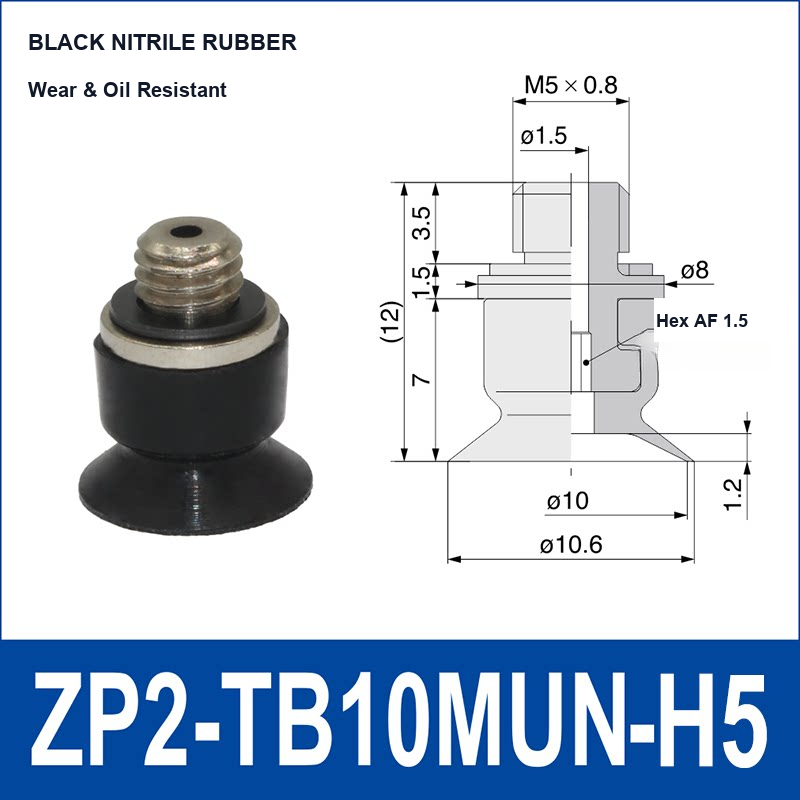

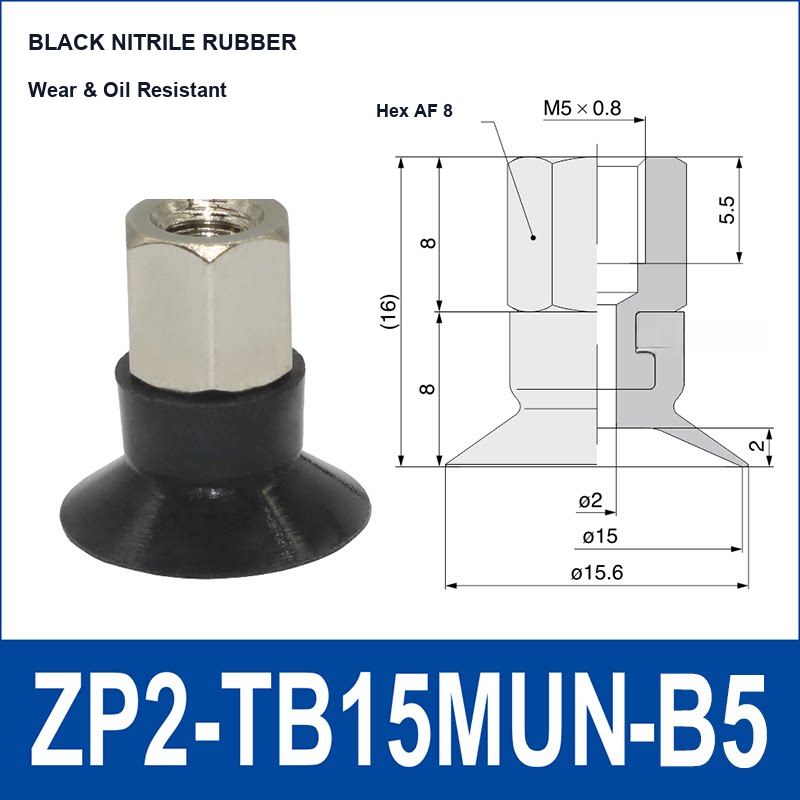

| 6 / 8 / 10 / 15 mm | Listed with H5 and B5 alternatives. Match the complete suffix to the selected drawing. |
| MUS versus MUN | White silicone versus black nitrile rubber; the material code does not change the need to verify the mounting interface. |
For ICs and small flat parts, check cup contact area, installed clearance and release behavior. Do not assume these standard silicone or NBR labels establish ESD suitability, or that a flat MU model is interchangeable with a bellows MB model.
Compare Related Product Families
These links are for comparison, not a confirmed interchangeability or fit list. Verify the complete model and drawing.
- White silicone and black nitrile rubber material options
- Available cup diameters: 2, 3.5, 4, 5, 6, 8, 10 and 15 mm
- A3, H5 and B5 fitting configurations with model-specific technical dimensions
- Use the selected model image to verify the cup profile, dimensions and mounting interface
Applications / Suitable For
- Handling IC chips and compatible small, flat electronic components
- Precision pick-and-place of small smooth parts
- Automated assembly, inspection, sorting and miniature material-transfer equipment
- Robotic end-of-arm tooling where cup diameter, material and fitting have been verified
Confirm the selected model drawing, mounting thread, workpiece surface, vacuum level, load, acceleration, temperature and material compatibility before use. No regulatory or food-contact certification is claimed.
