ZP3 Mini Vacuum Cups & A3/B3 Mounting Fittings

ZP3 Mini Vacuum Cups & A3/B3 Mounting Fittings

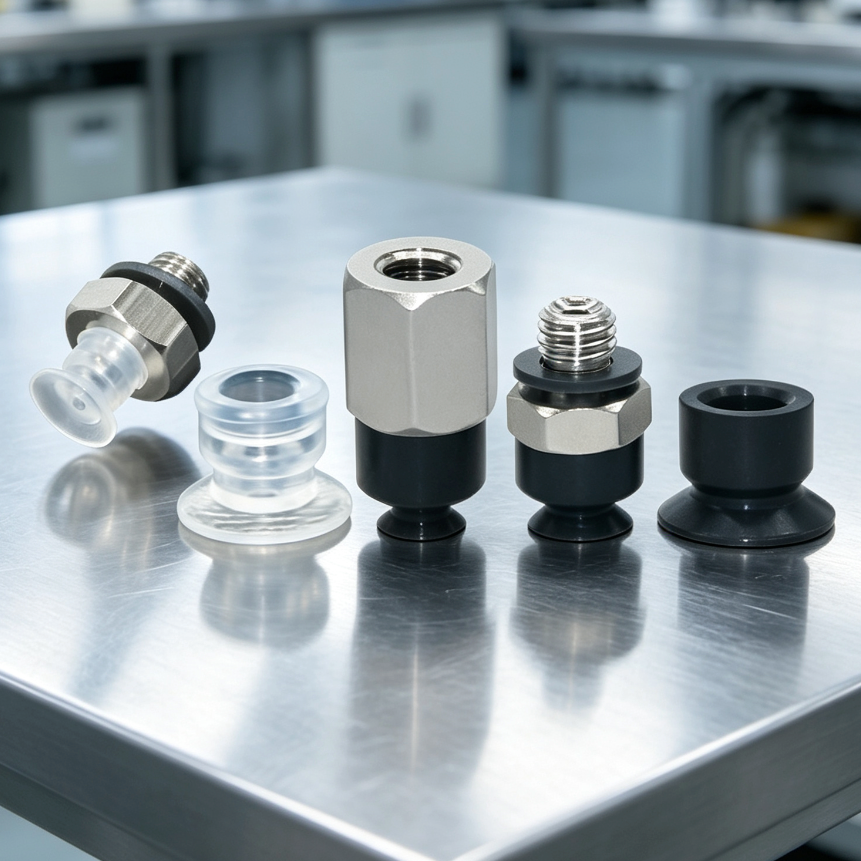

Compact ZP3 vacuum cups and model-specific A3 male or B3 female mounting fittings for compatible industrial pick-and-place and robotic end-of-arm tooling. Select the exact model, material and mounting style shown in the corresponding model image.

• 24 selectable model configurations

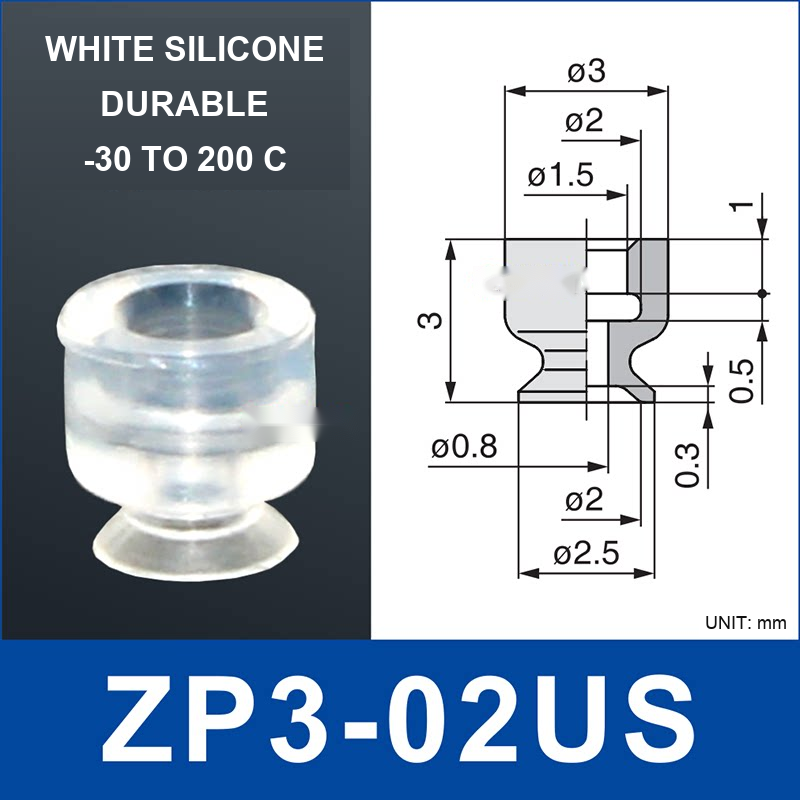

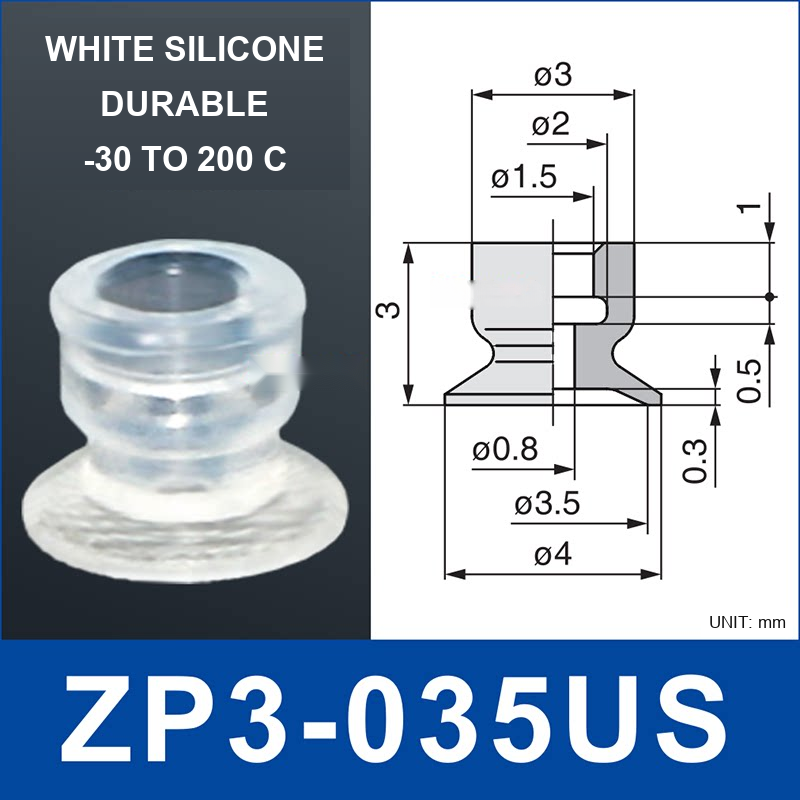

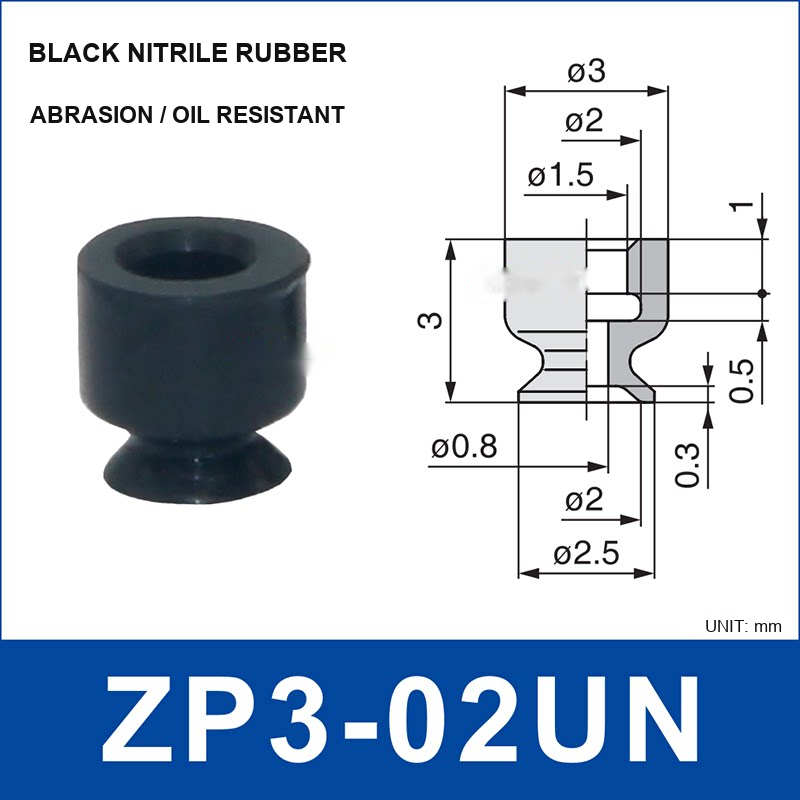

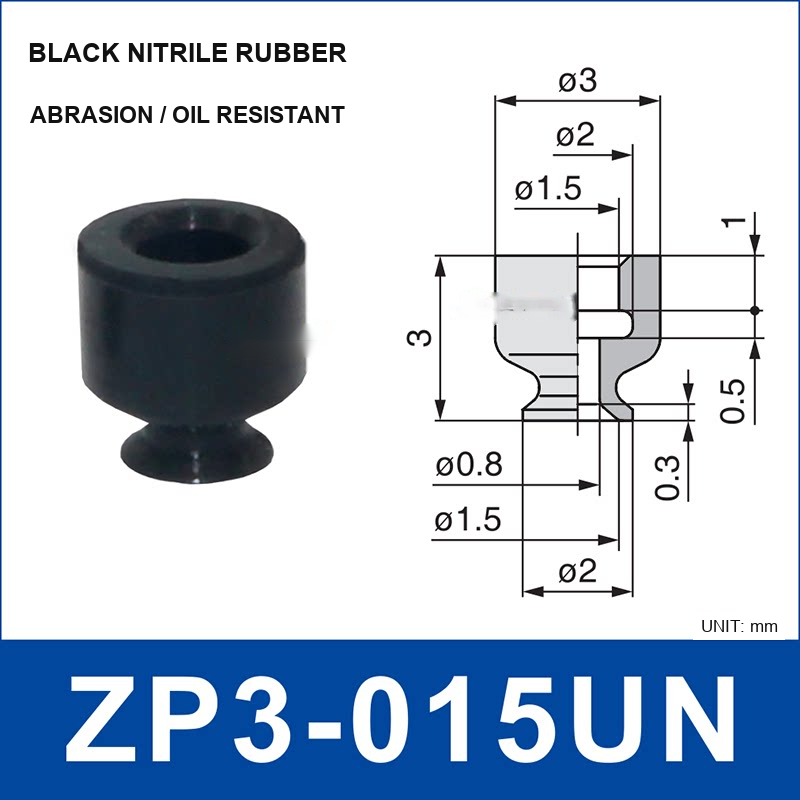

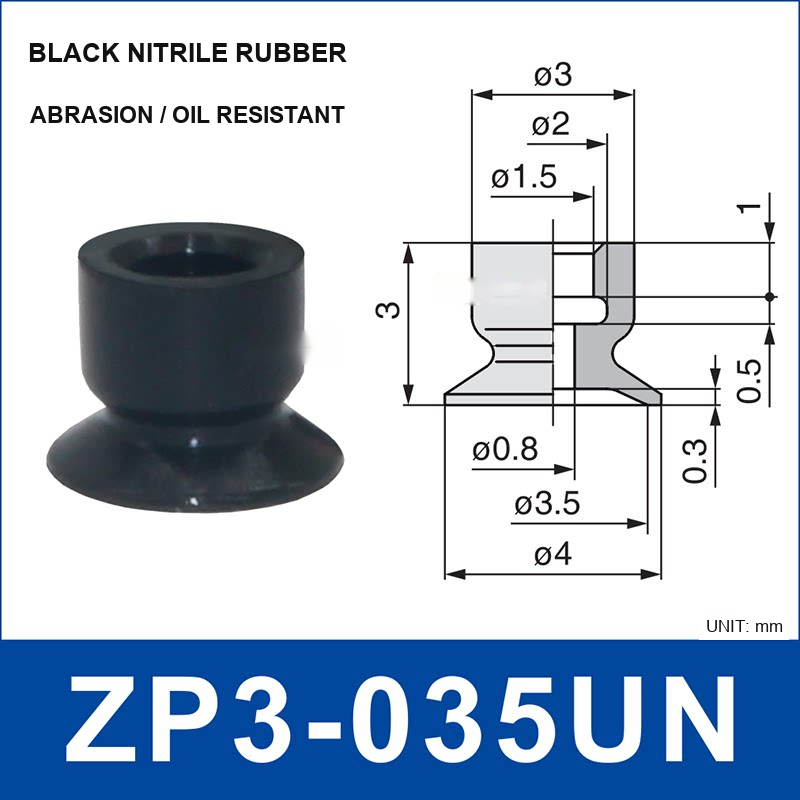

• Nine straight-neck mini vacuum cups

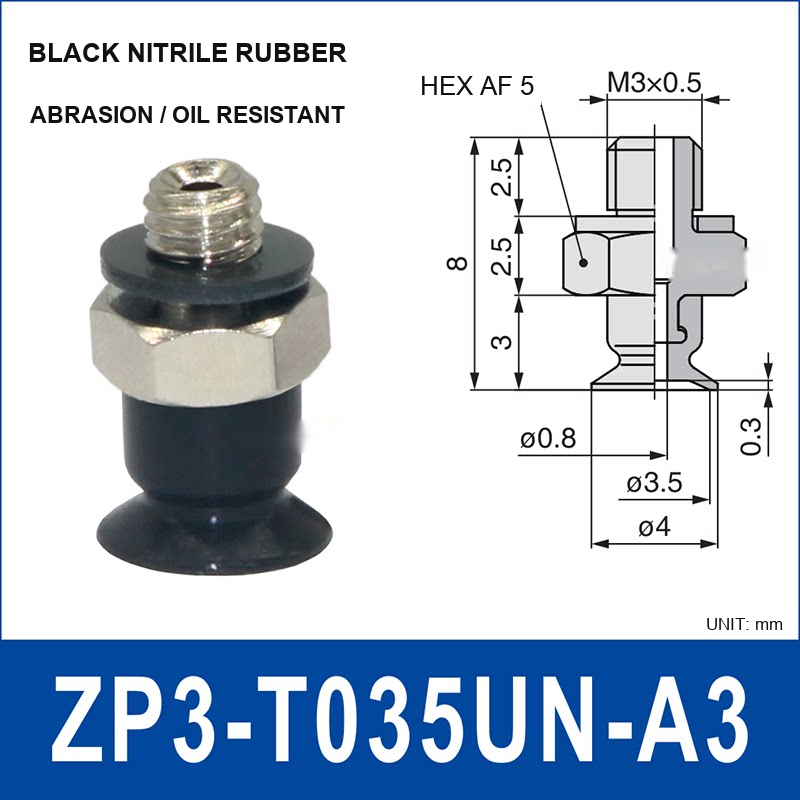

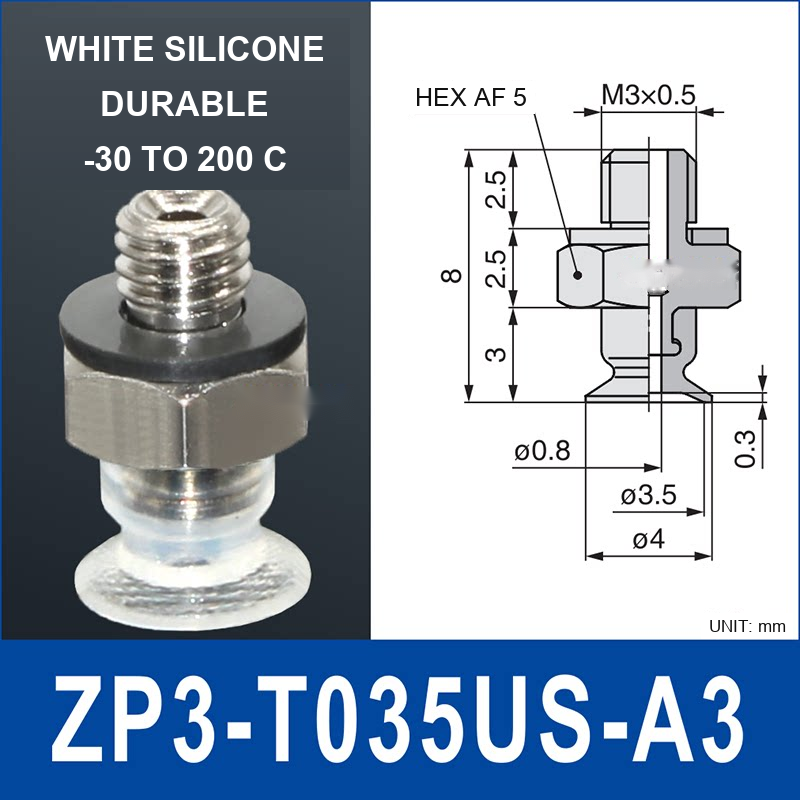

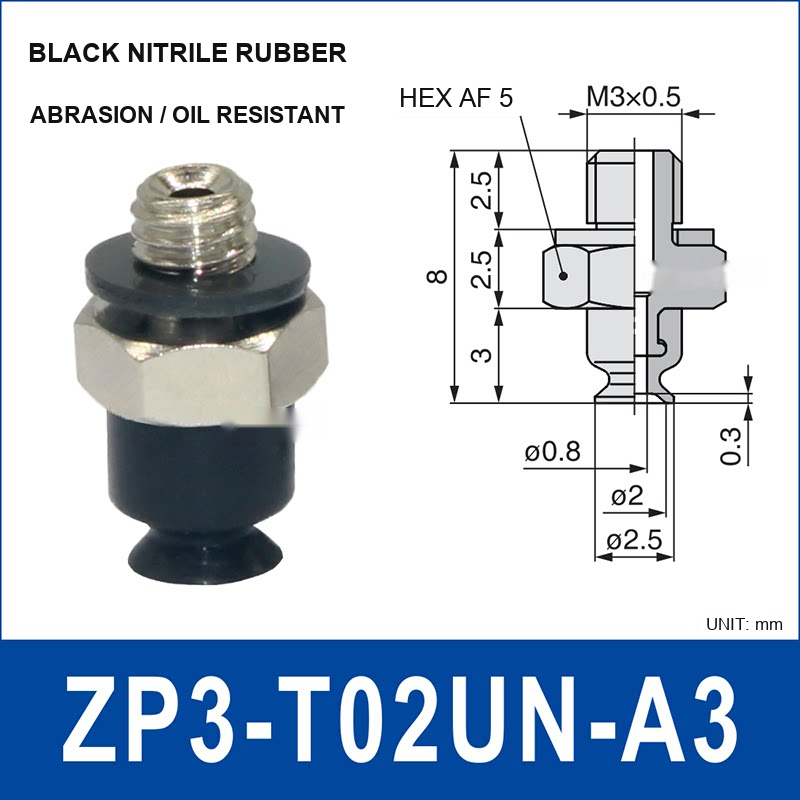

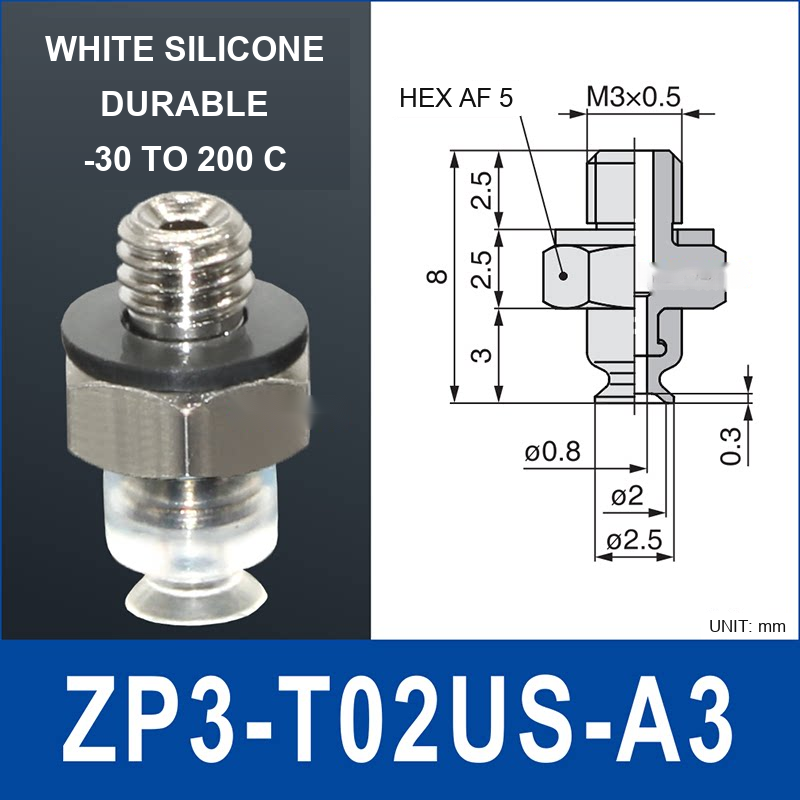

• Nine cup assemblies with A3 M3 x 0.5 male fittings

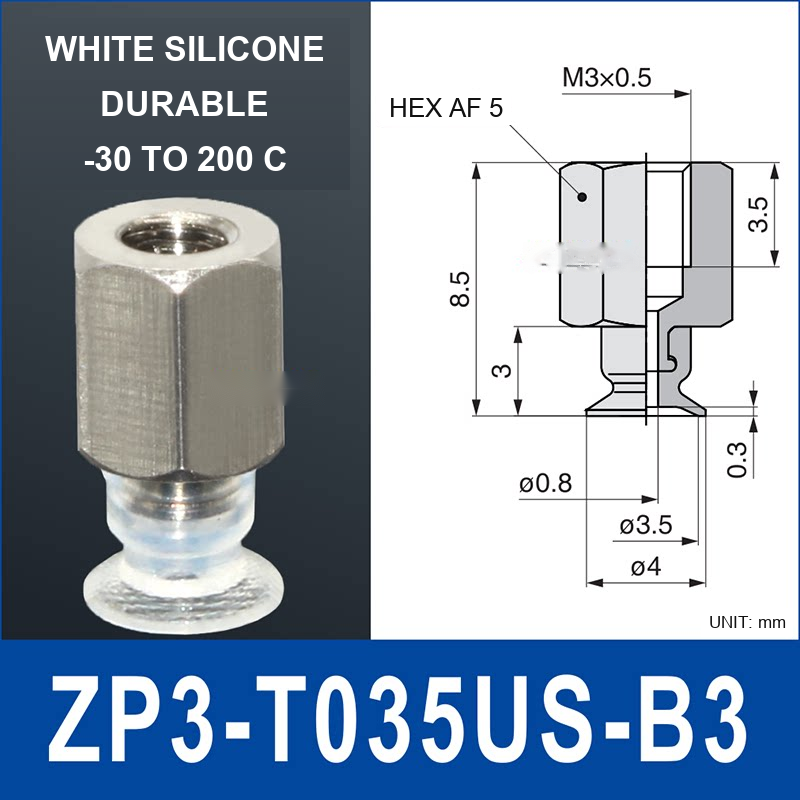

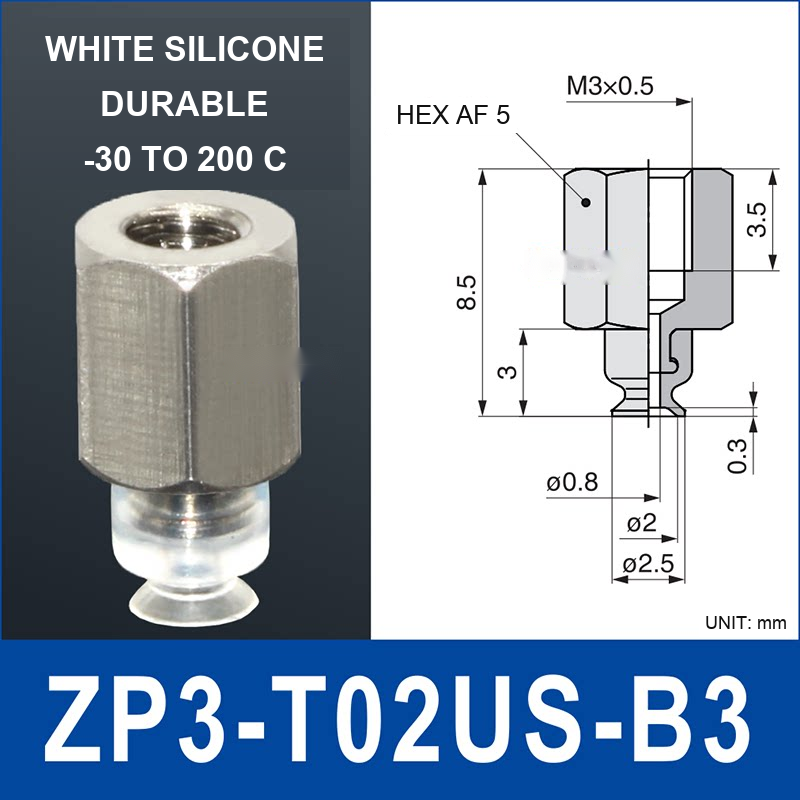

• Six cup assemblies with B3 M3 x 0.5 female fittings
• 1.5, 2.0 and 3.5 mm cup-size options
• White silicone, black nitrile rubber and black antistatic silicone options
• White silicone specified temperature range: -30 to 200 degrees C
• Black nitrile rubber is specified for abrasion and oil resistance
• Antistatic silicone is specified to prevent static sparks
• Product images show dimensions, thread callouts and mechanical structure

Applications / Suitable For

• Small-component pick-and-place, sorting and transfer equipment
• Compact vacuum end-of-arm tooling and pneumatic handling assemblies
• Packaging, electronics and light industrial automation

Confirm the selected model drawing, material, mounting thread, mating hardware, workpiece surface, vacuum level, load, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
