VP Series Vacuum Cups (1–4 mm)
Miniature vacuum cups for compatible industrial vacuum systems, compact automated handling equipment and robotic end-effectors. Choose the complete model by cup diameter, rubber material and whether an A3 adapter is required.
Quick selection
- Choose cup diameter: select 1 mm, 1.5 mm, 2 mm, 3 mm or 4 mm to suit the part size and available contact area.
- Choose cup material: RMS is white silicone; RMN is black nitrile rubber; RMSE is black antistatic rubber. Confirm material compatibility with the workpiece and operating environment.

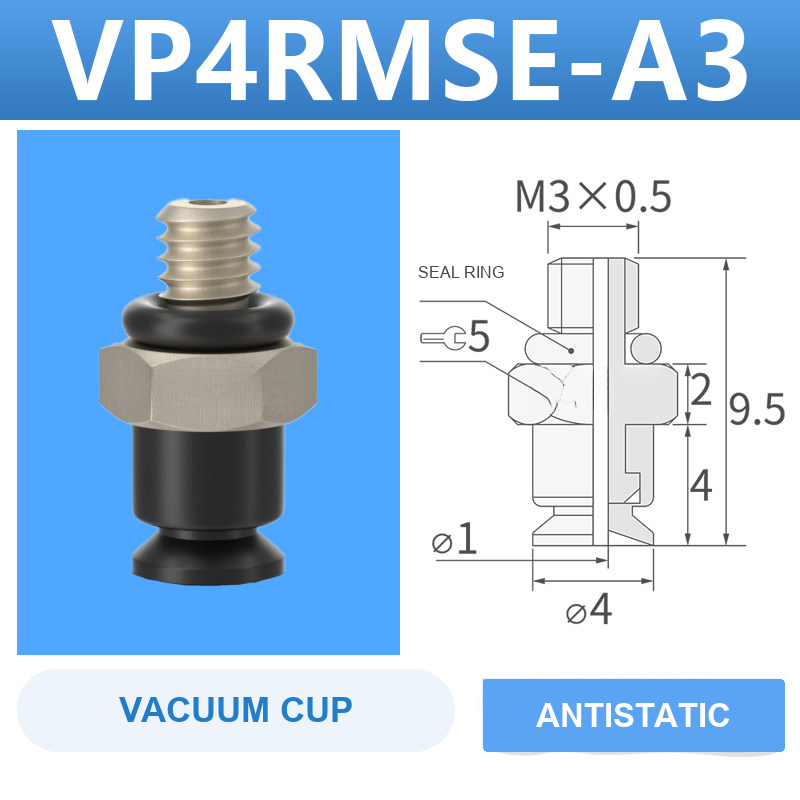

- Choose the mounting style: select the cup-only model for an existing compatible holder, or the A3 version when the threaded adapter assembly is required.
- Check the drawing: confirm the complete product code, dimensions, mounting connection, workpiece surface and installation clearance before ordering.
Product-code guide

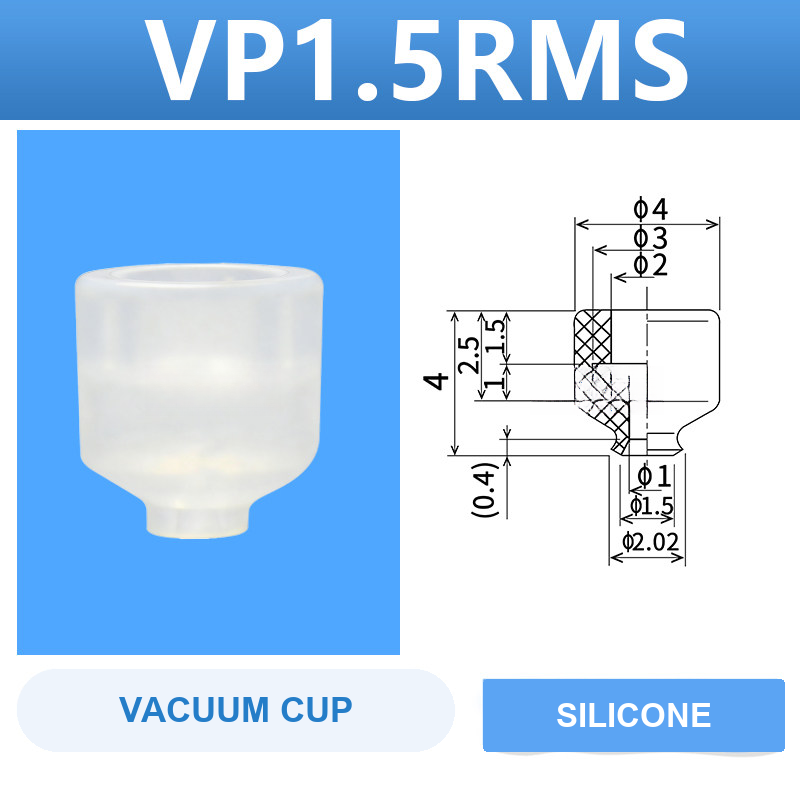

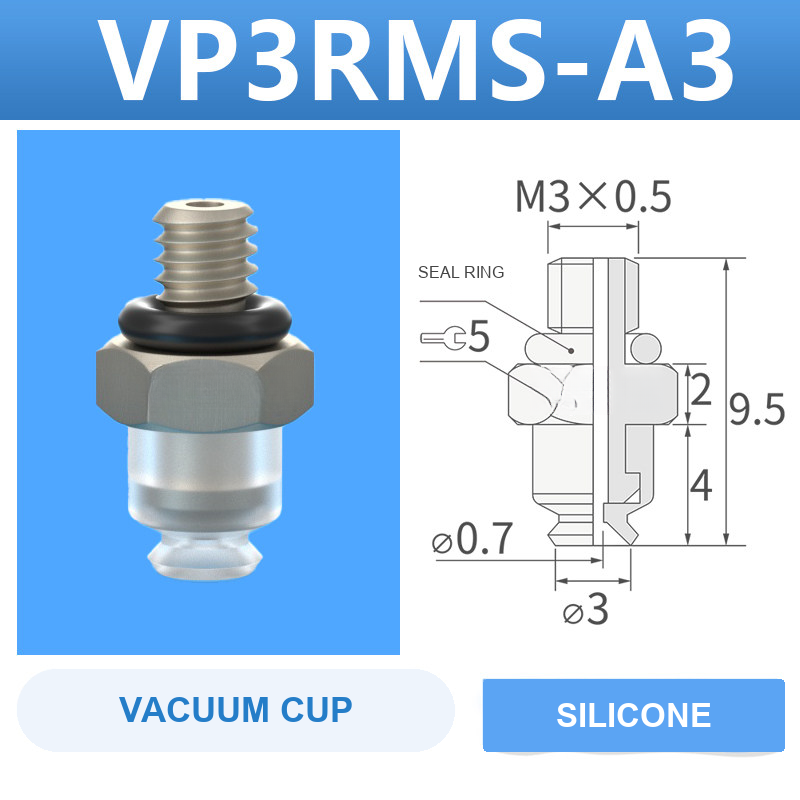

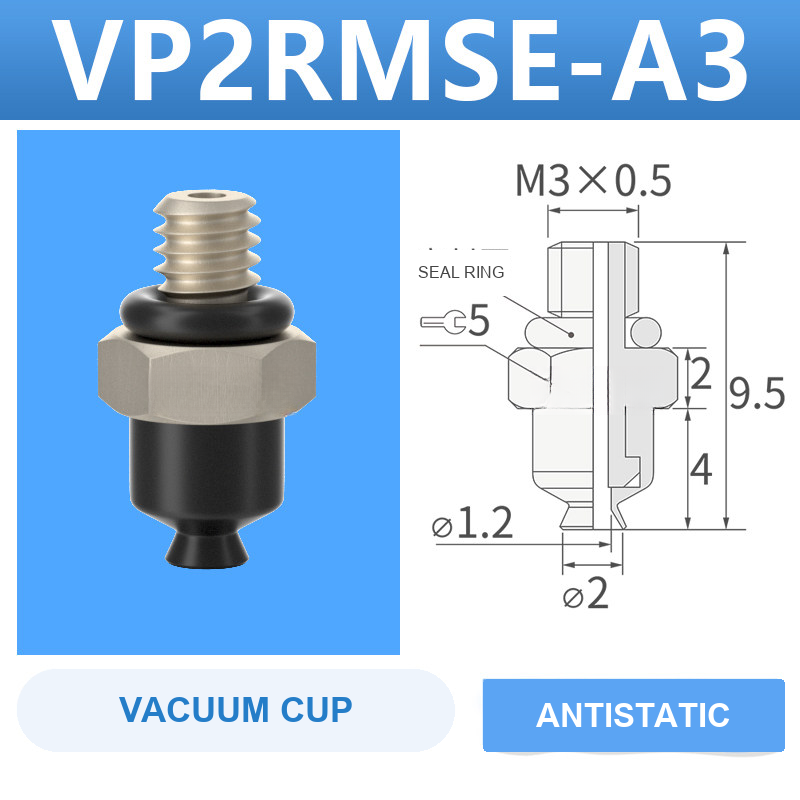

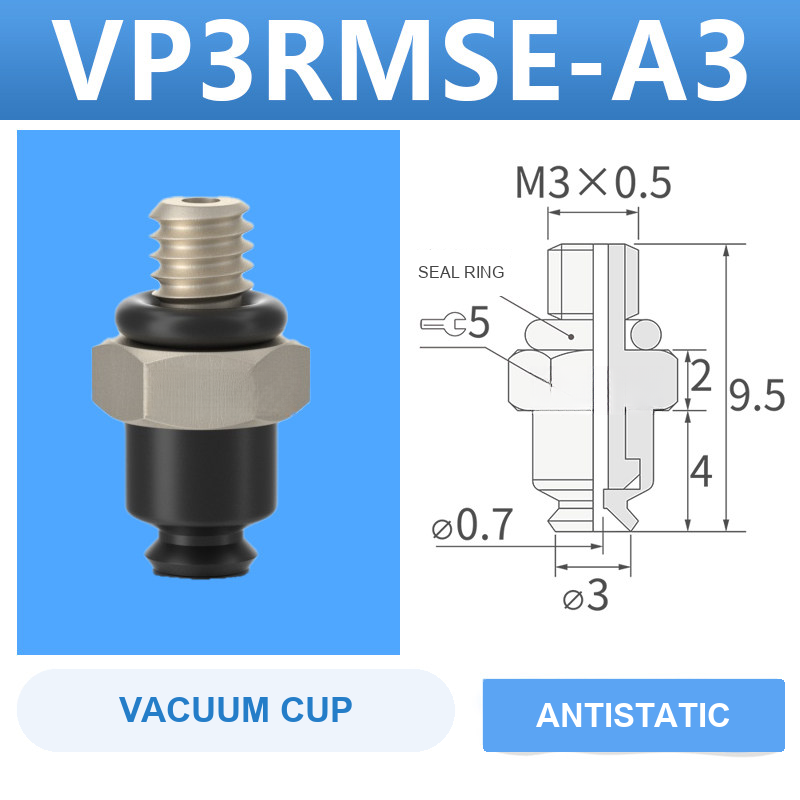

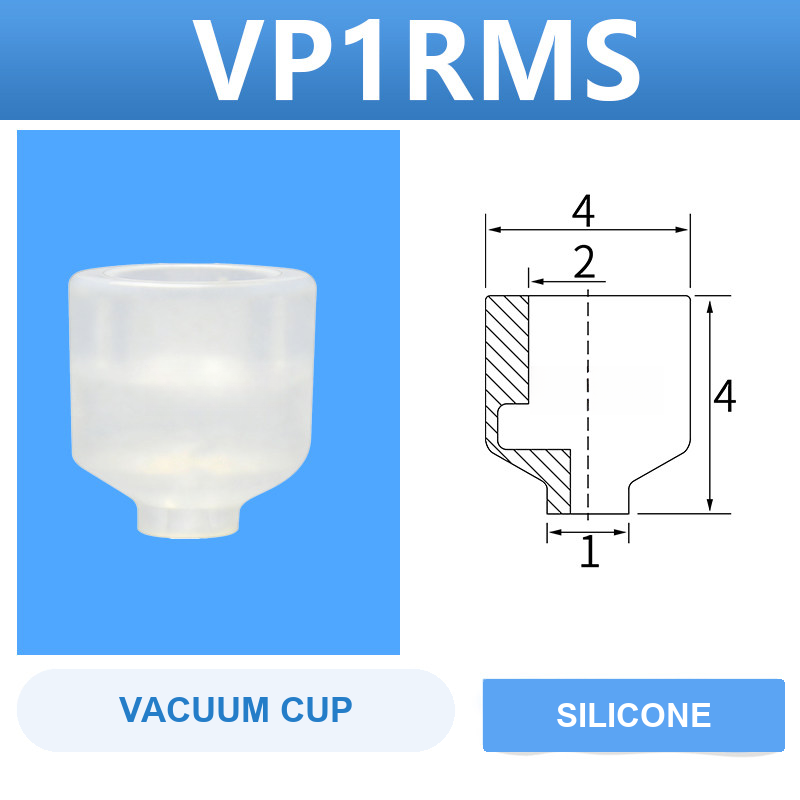

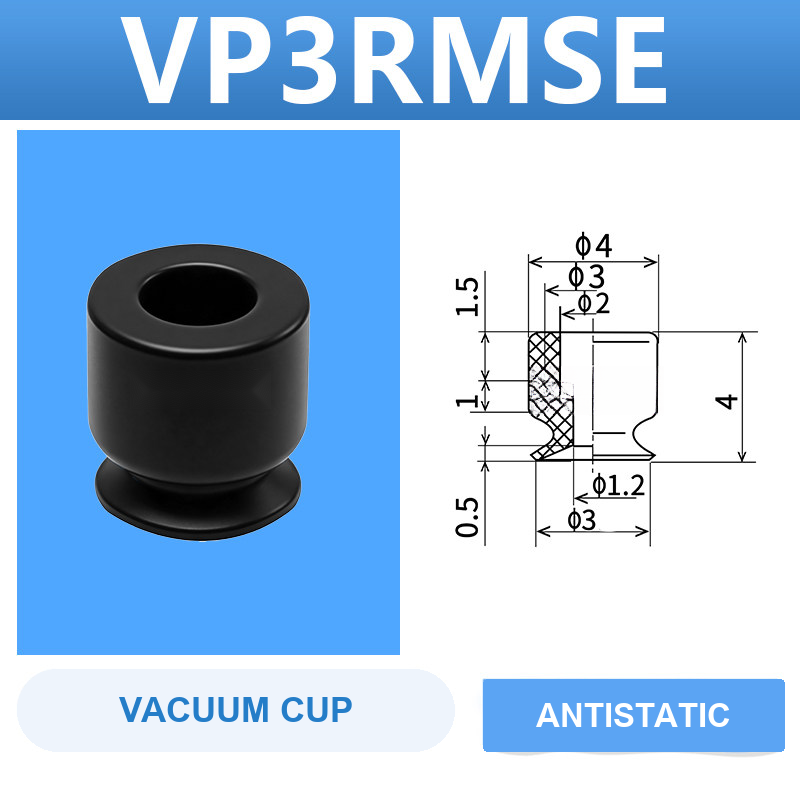

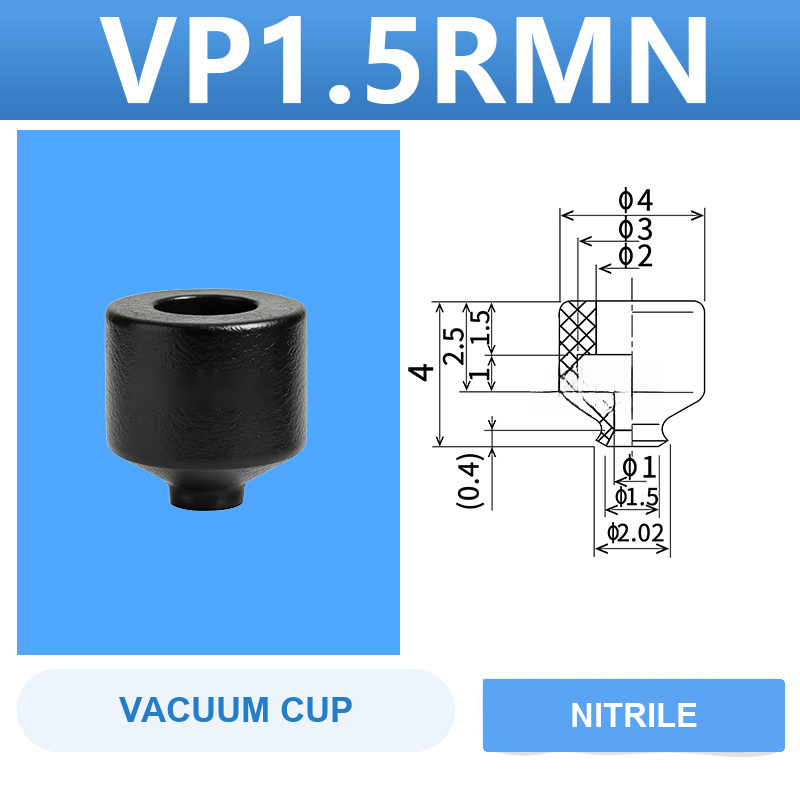

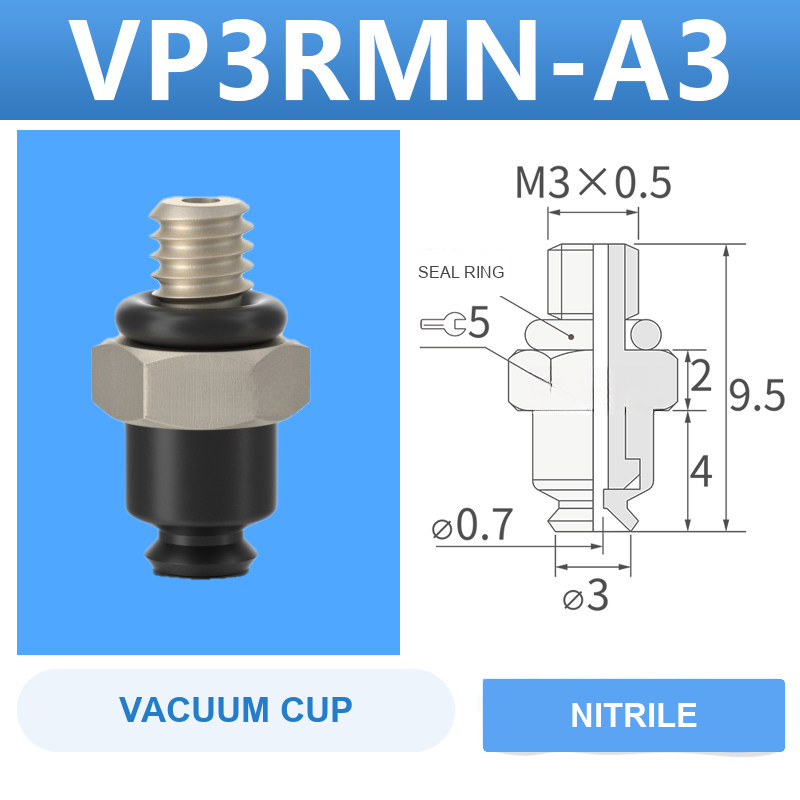

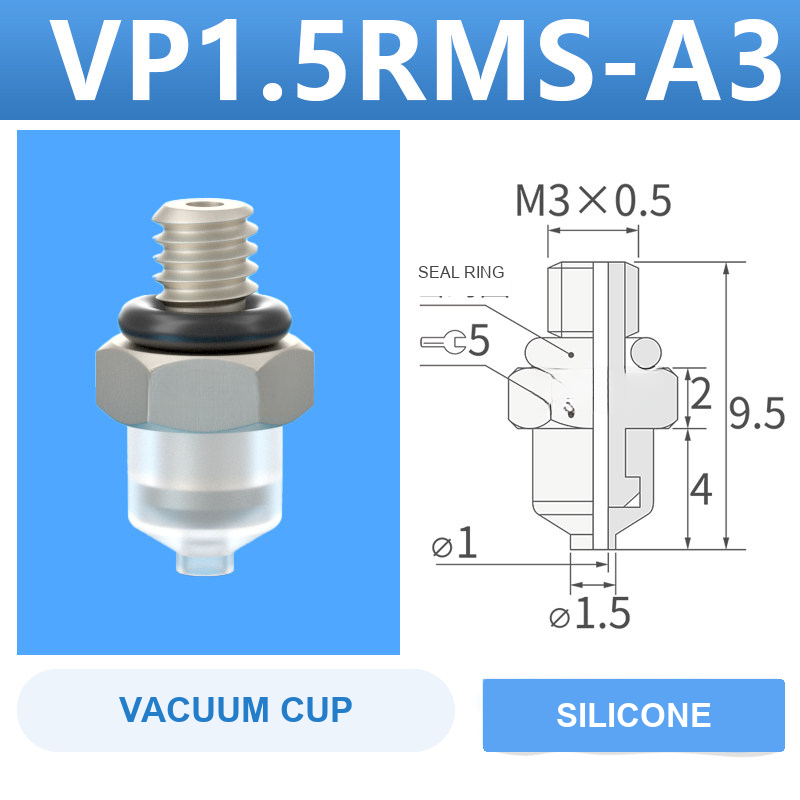

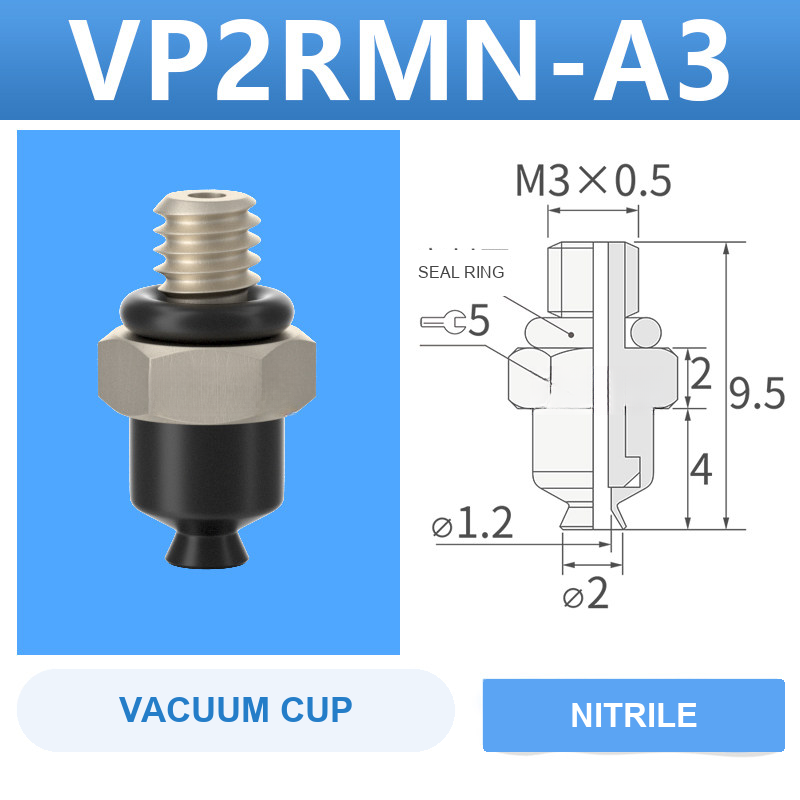

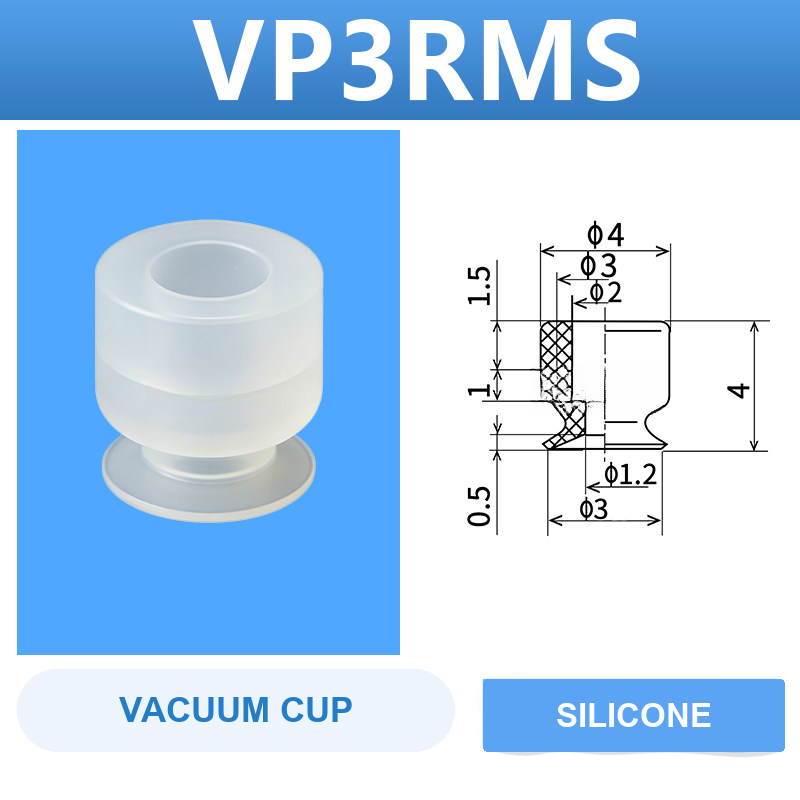

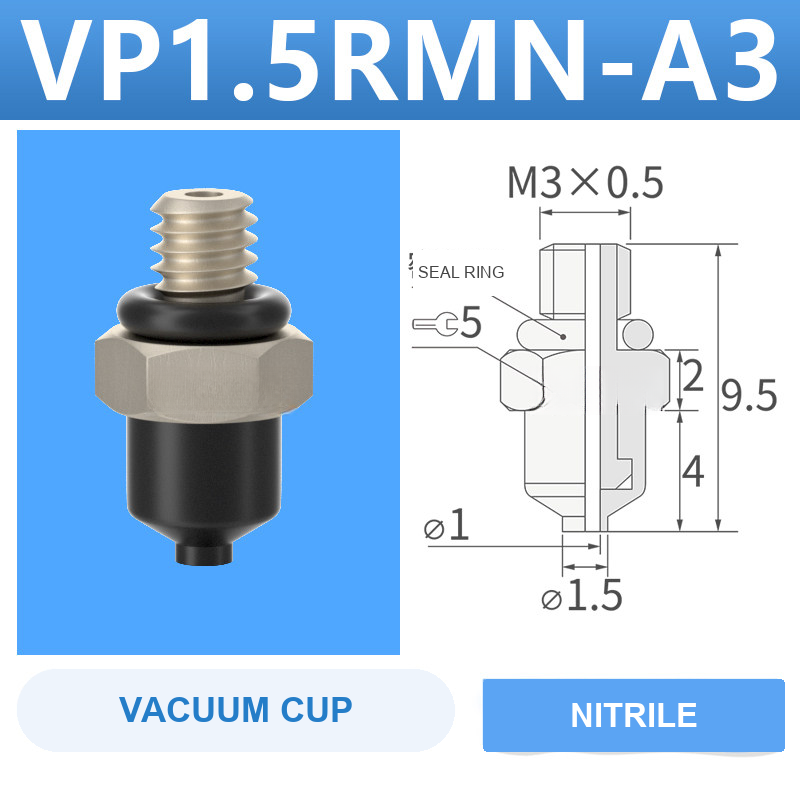

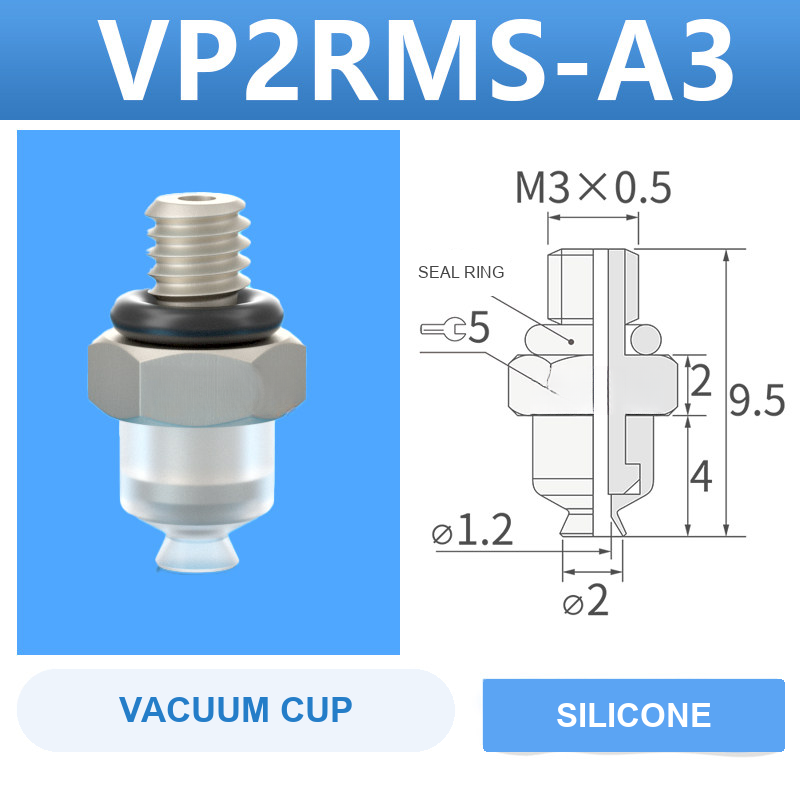

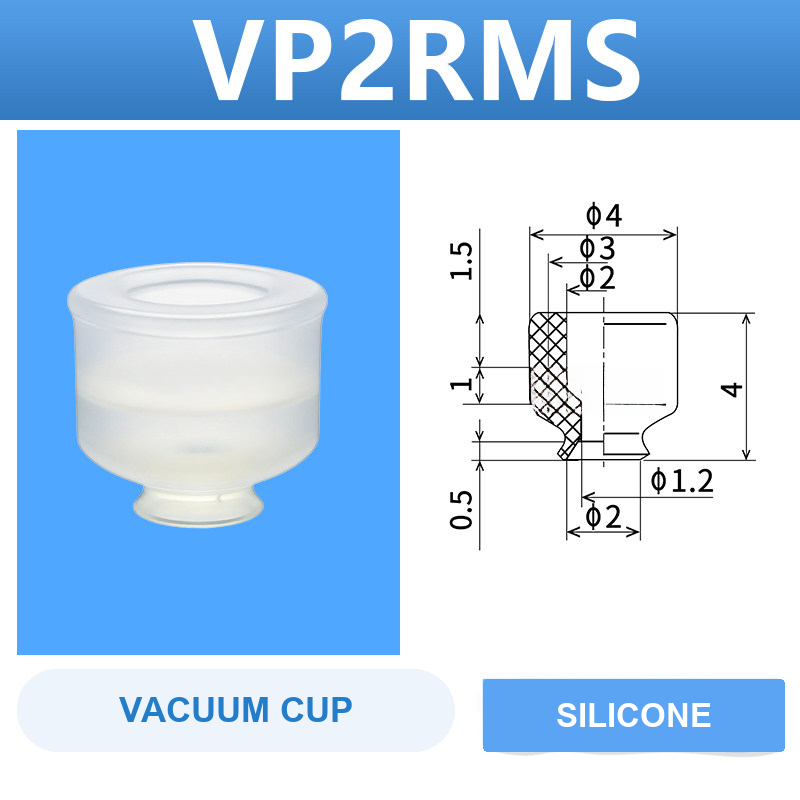

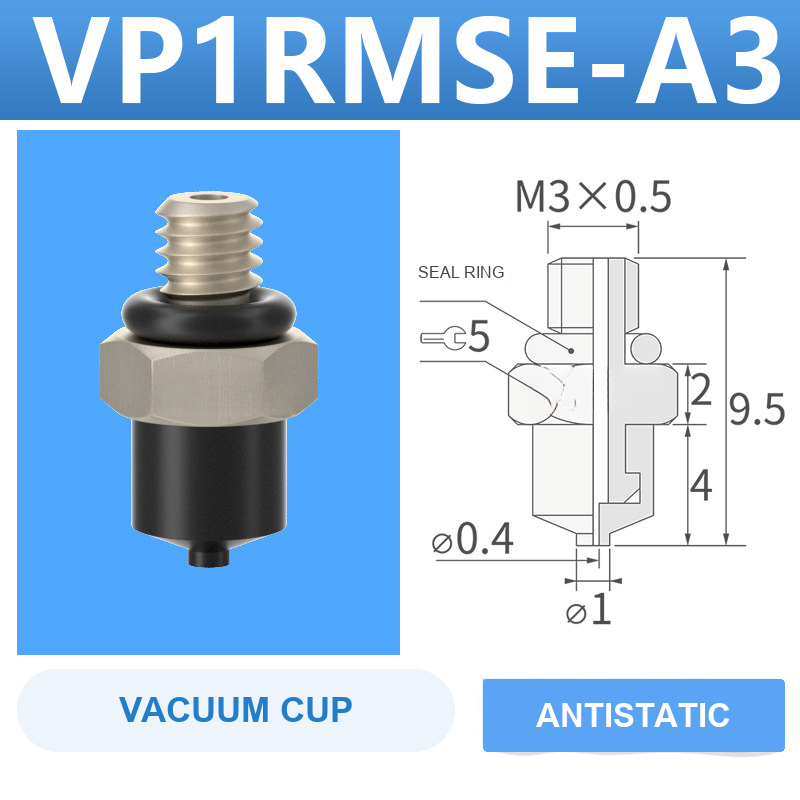

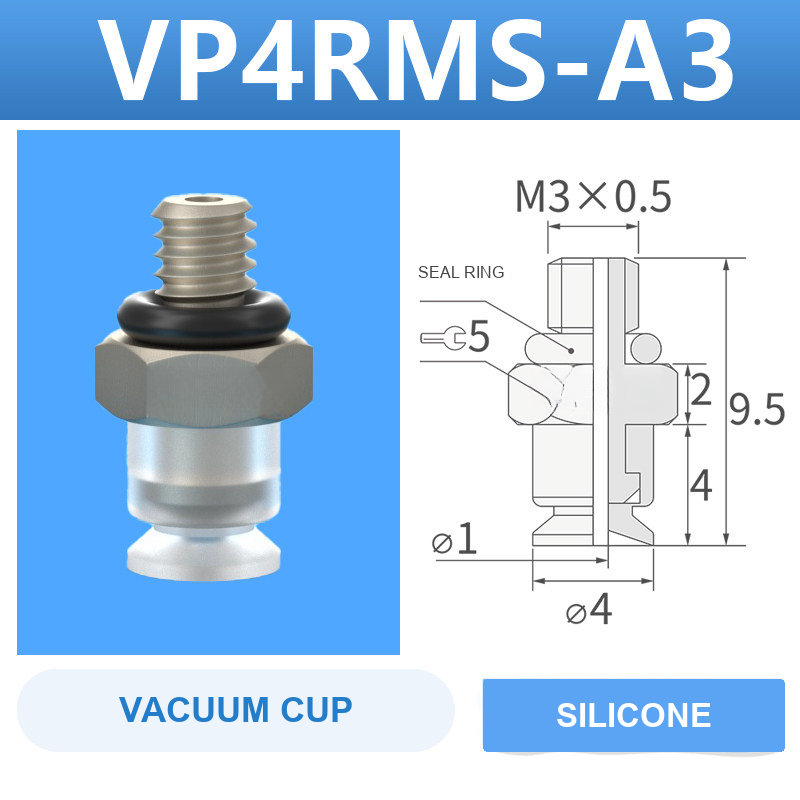

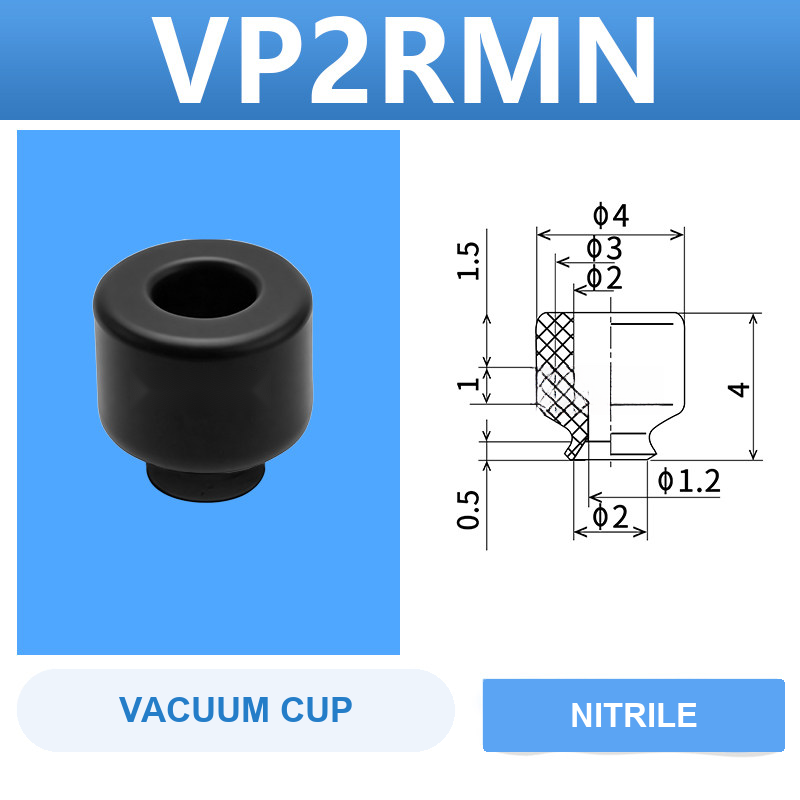

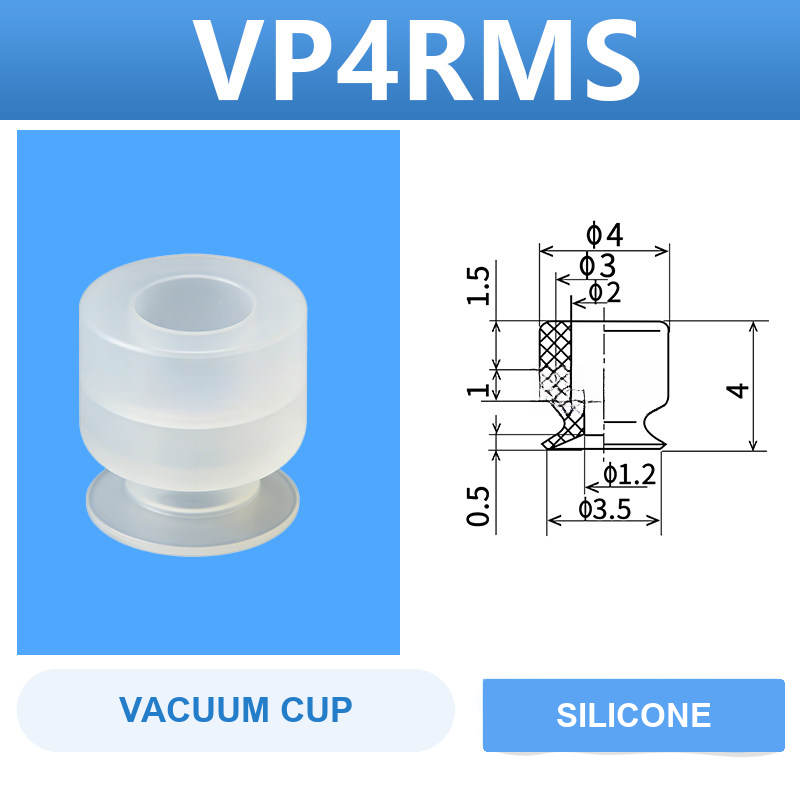

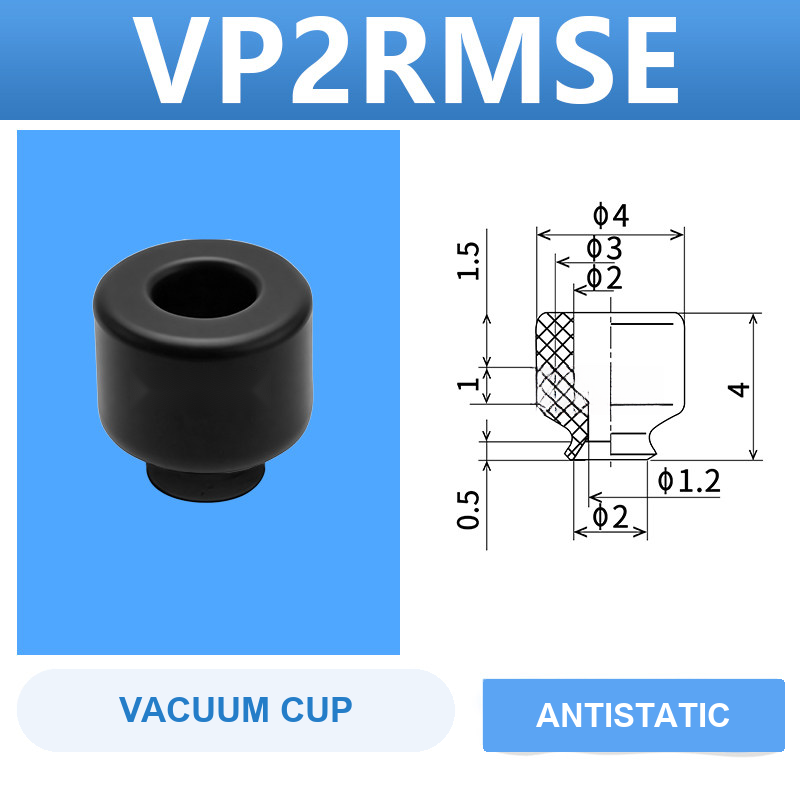

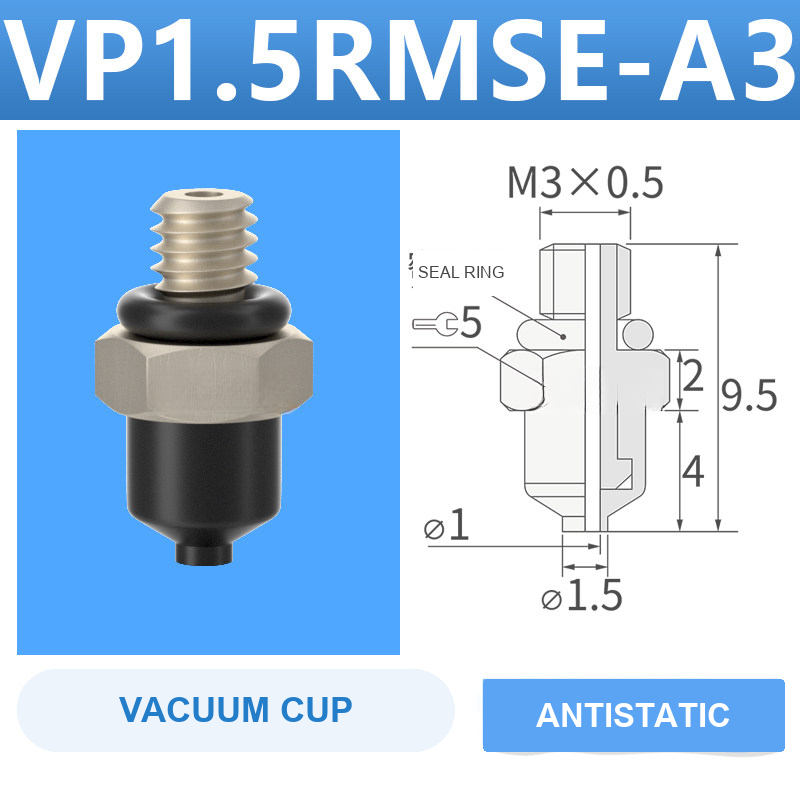

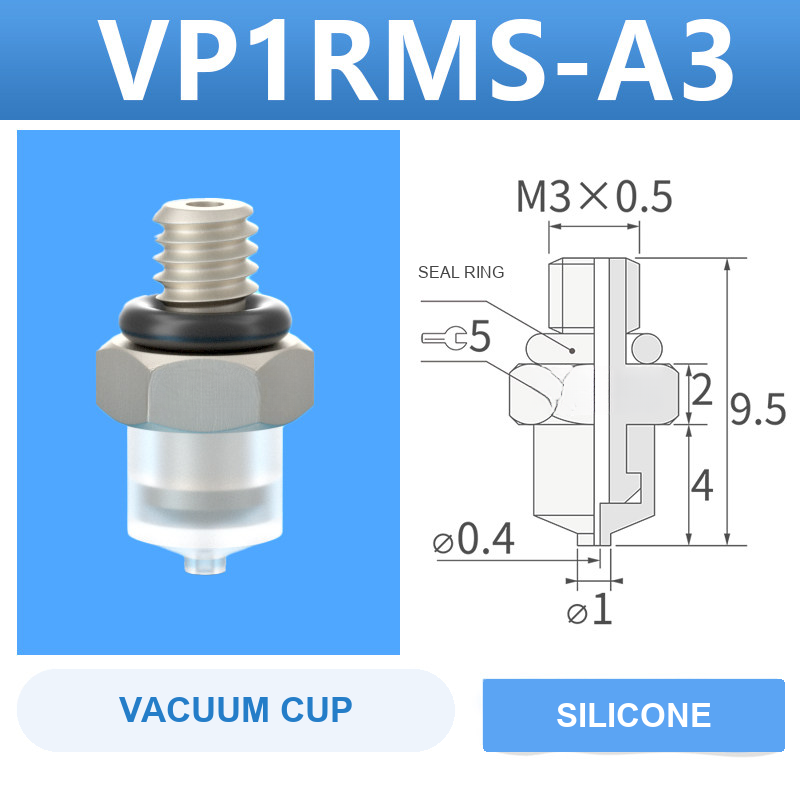

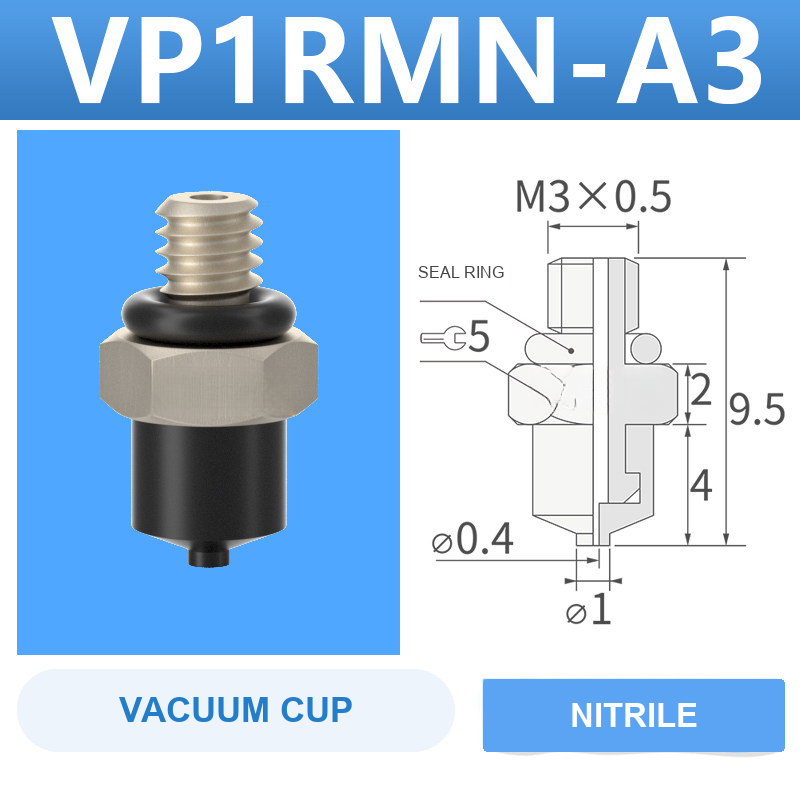

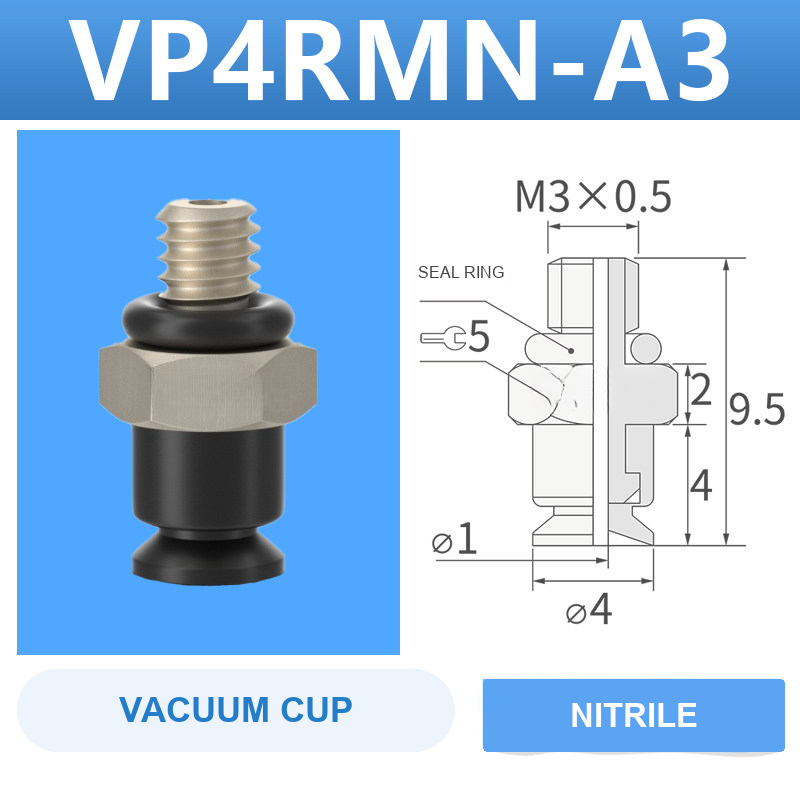

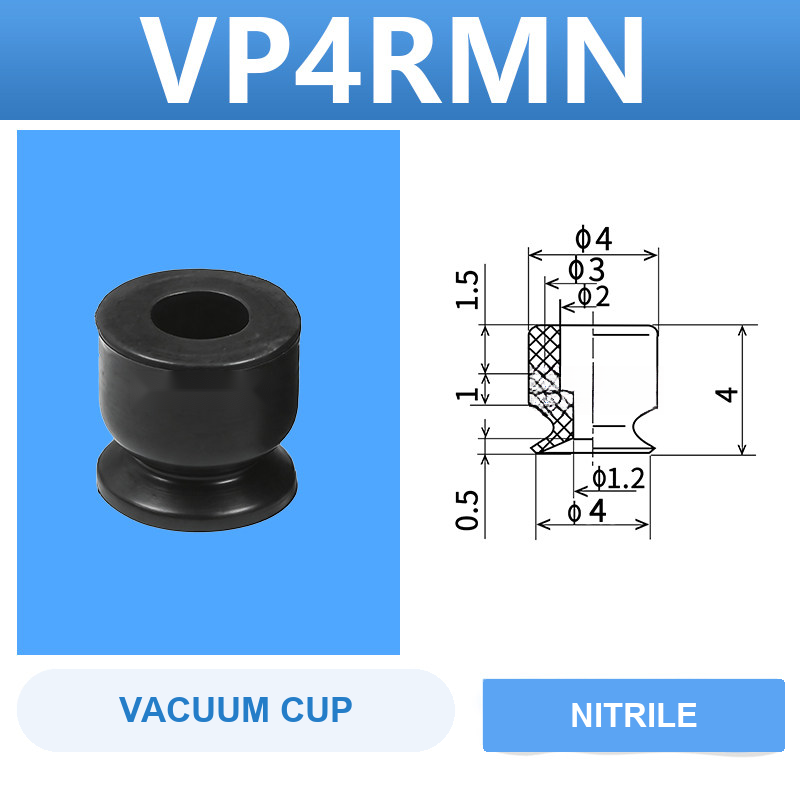

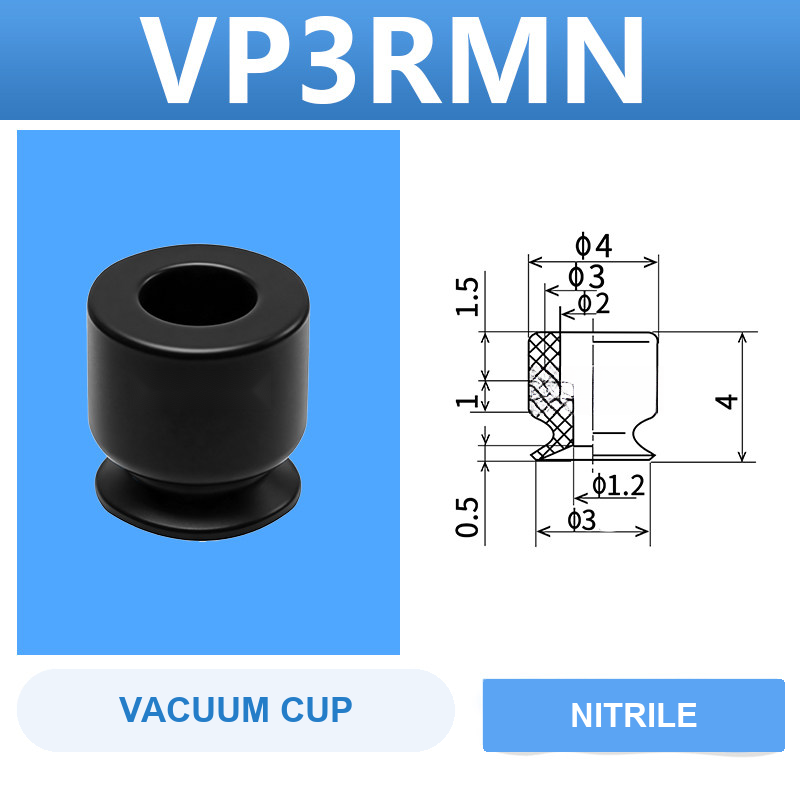

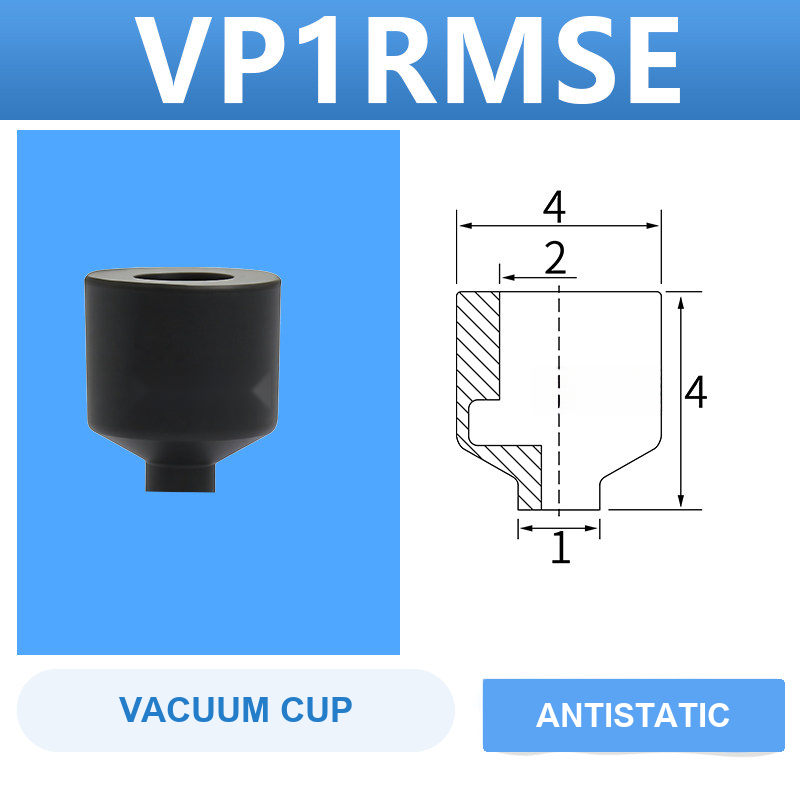

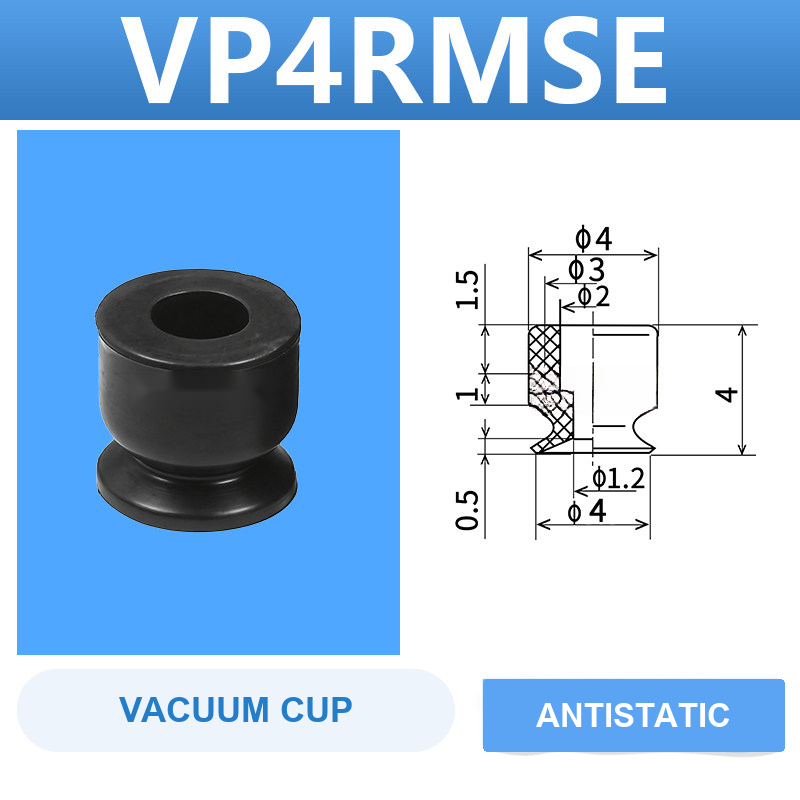

VP[1/1.5/2/3/4]RM[S/N/SE][-A3]: cup diameter in millimetres, rubber material and, where shown, the A3 adapter configuration. Each option displays its matching product view and dimensional drawing.
Suitable for
- Miniature industrial vacuum pick-and-place applications
- Compact robotic end-effectors and automation tooling
- Small smooth or gently contoured workpieces after compatibility checks
- Replacement and configuration work for compatible vacuum assemblies
Before use
Confirm the complete selected product code, drawing, cup material, mounting connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Which material should I choose? Choose white silicone, black nitrile or black antistatic rubber according to the workpiece and operating environment. When is the A3 version needed? Select it only when the adapter shown in the selected model image and drawing matches your mounting requirement.
