J-WET71 and J-WET72 Miniature Vacuum Cups

J-WET71 and J-WET72 Miniature Vacuum Cups

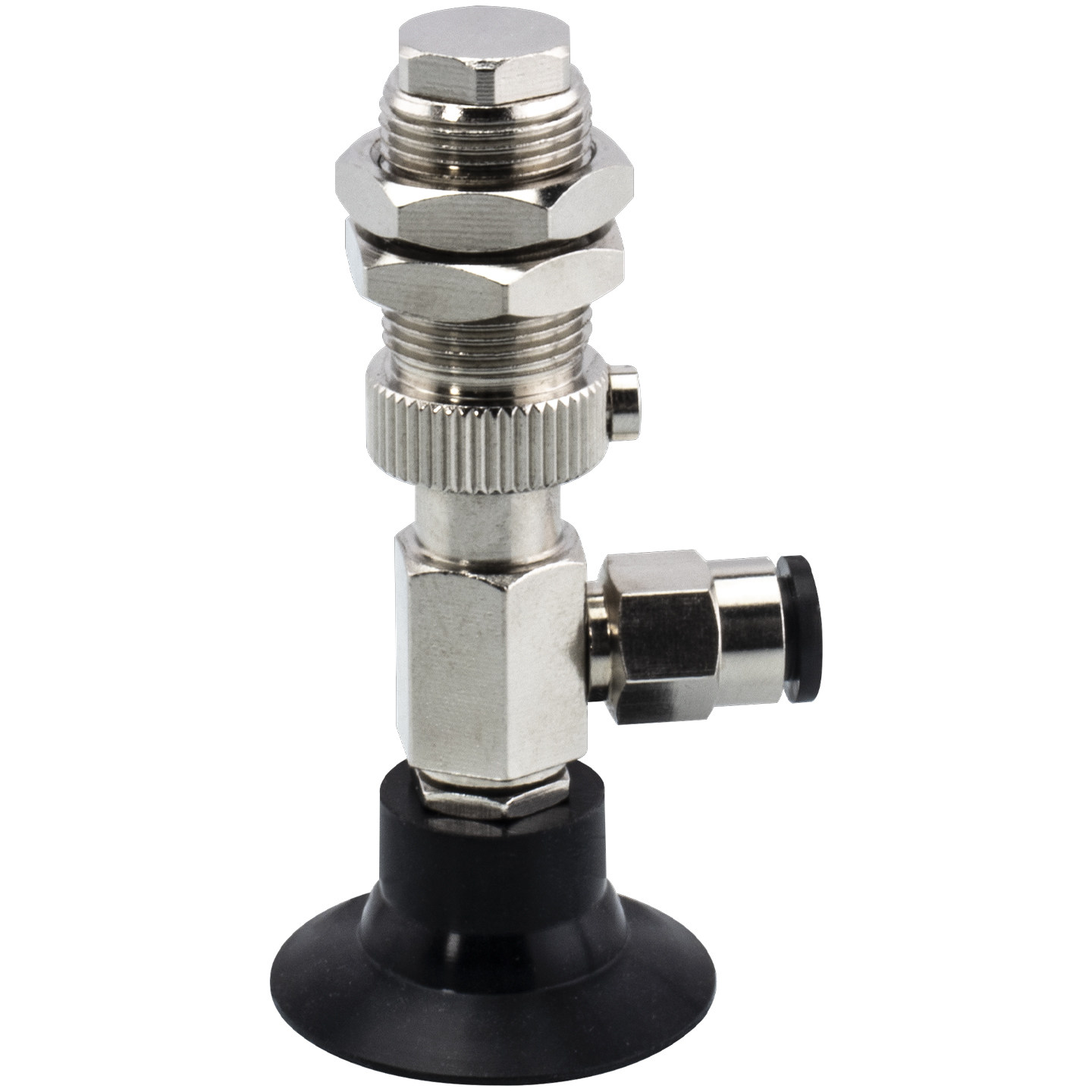

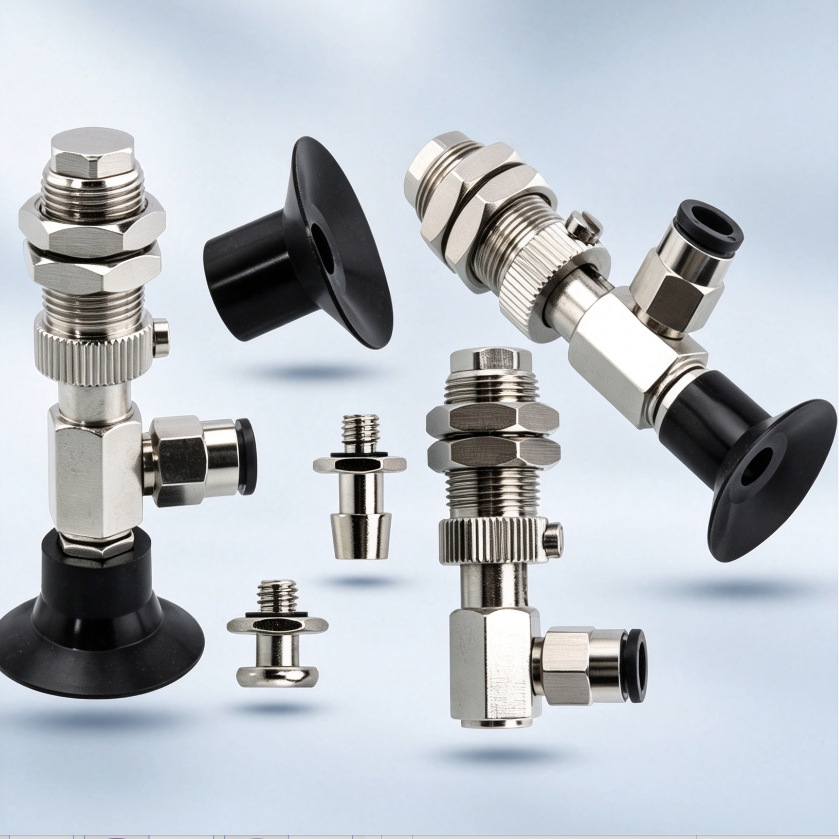

Compact miniature vacuum cup and holder assemblies with a side vacuum connection for small-part pick-and-place and precision automation.

Quick Model Finder

• J-WET71: black nitrile-rubber cup models.
• J-WET72: black anti-static silicone cup models.
• D04 to D40: select the required cup diameter and verify the exact installed dimensions in the corresponding drawing.
• Use the selected model image to confirm the M14×1 mounting thread, side connection, cup profile and overall height.

Suitable for

• Small electronic and precision components
• Industrial robotic pick-and-place
• Compact packaging, sorting and assembly equipment

Before Use

Confirm the complete model code, selected drawing, cup material, mounting interface, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
