ZP2-TB Flat Vacuum Suction Cups with Mounting Fittings
$3.50 USD
ZP2-TB Flat Vacuum Suction Cups with Mounting Fittings
Quantity

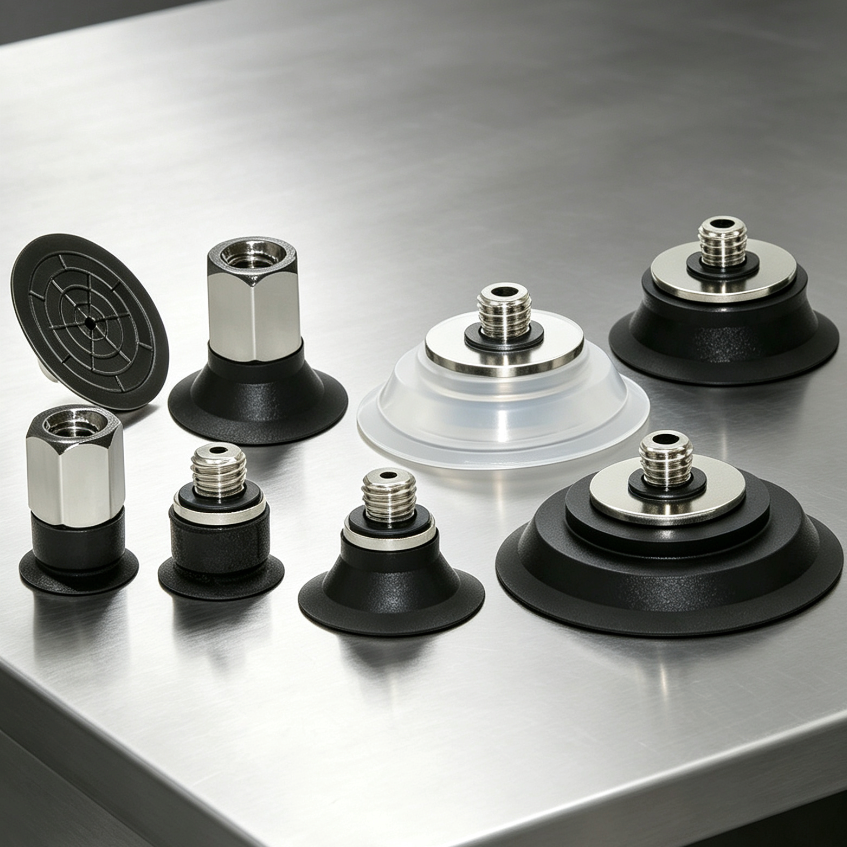

ZP2-TB Flat Vacuum Suction Cups
Flat vacuum suction cups with integrated mounting fittings for automated handling, packaging, electronics, sheet materials and general industrial pick-and-place systems.
- H5, B5, H6 and A5 mounting configurations
- White silicone, black nitrile rubber, conductive silicone and conductive NBR variants

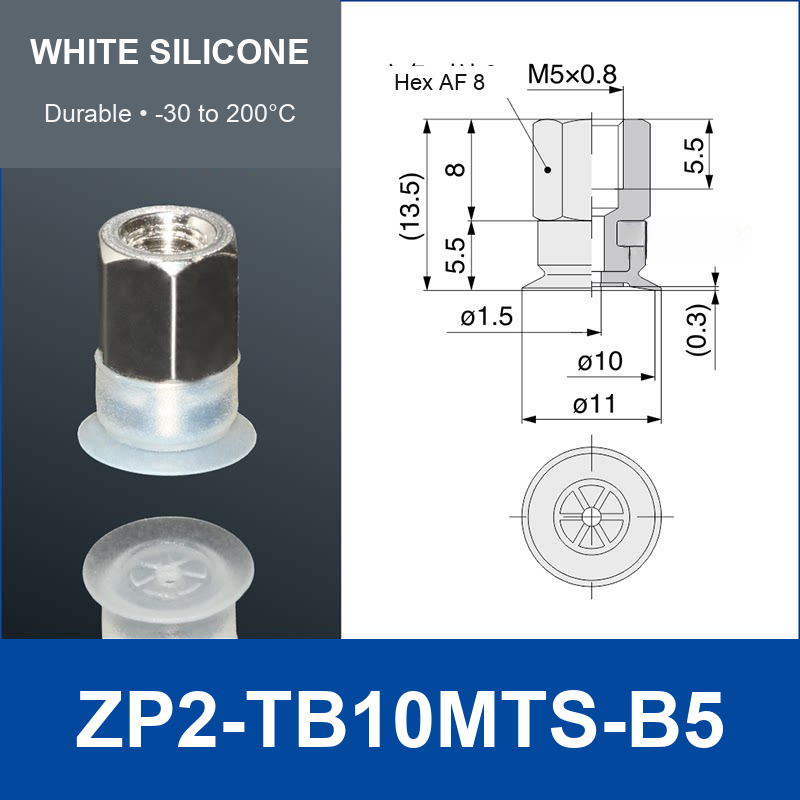

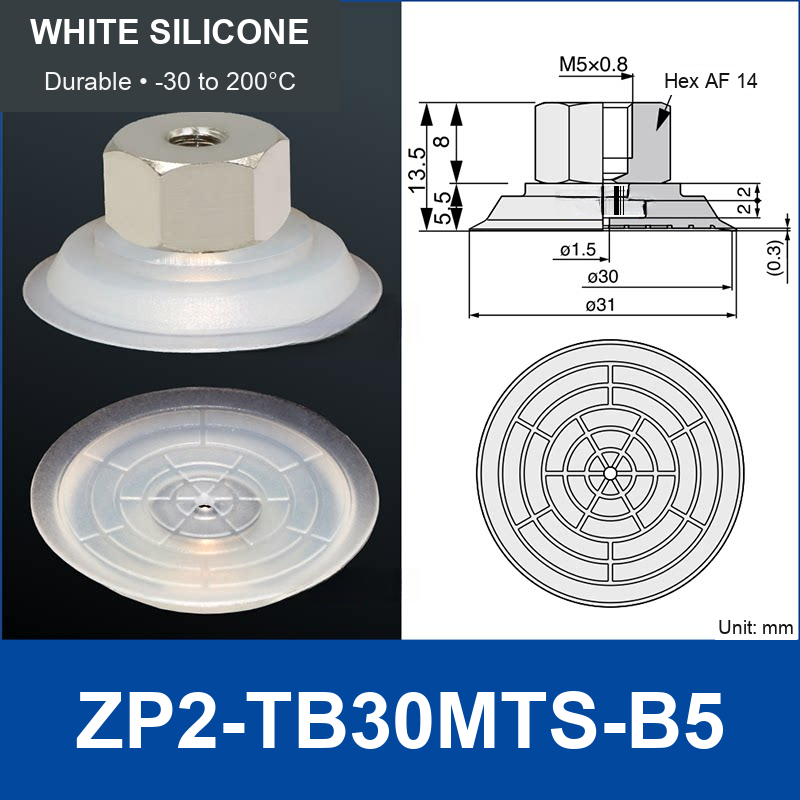

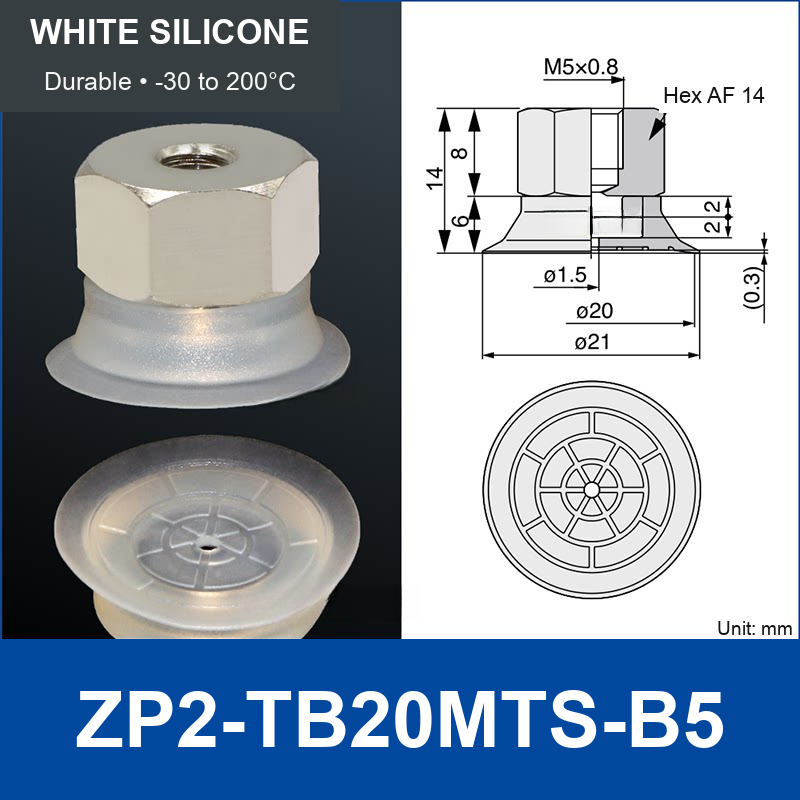

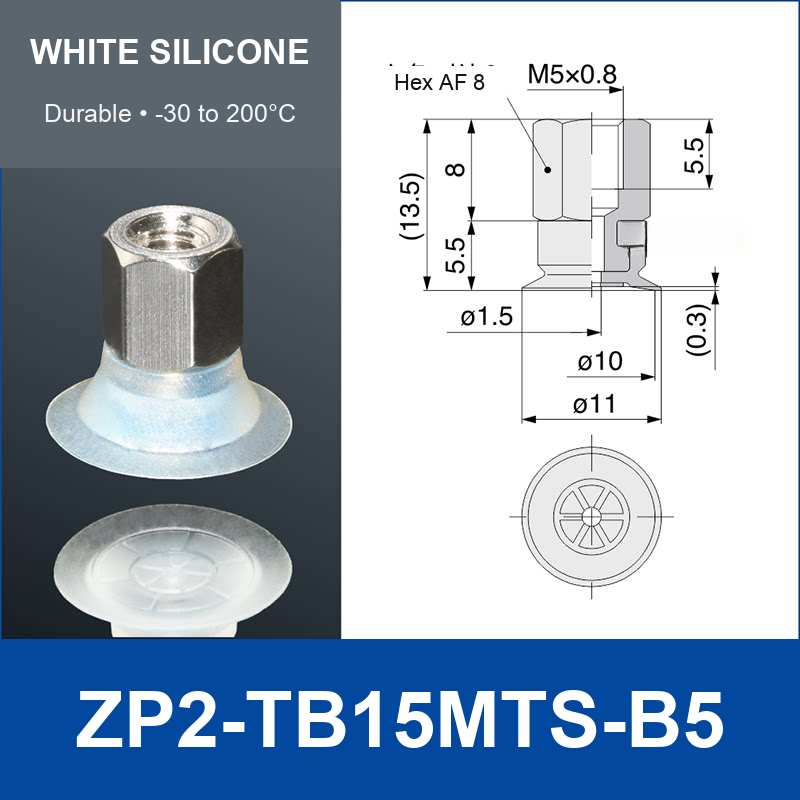

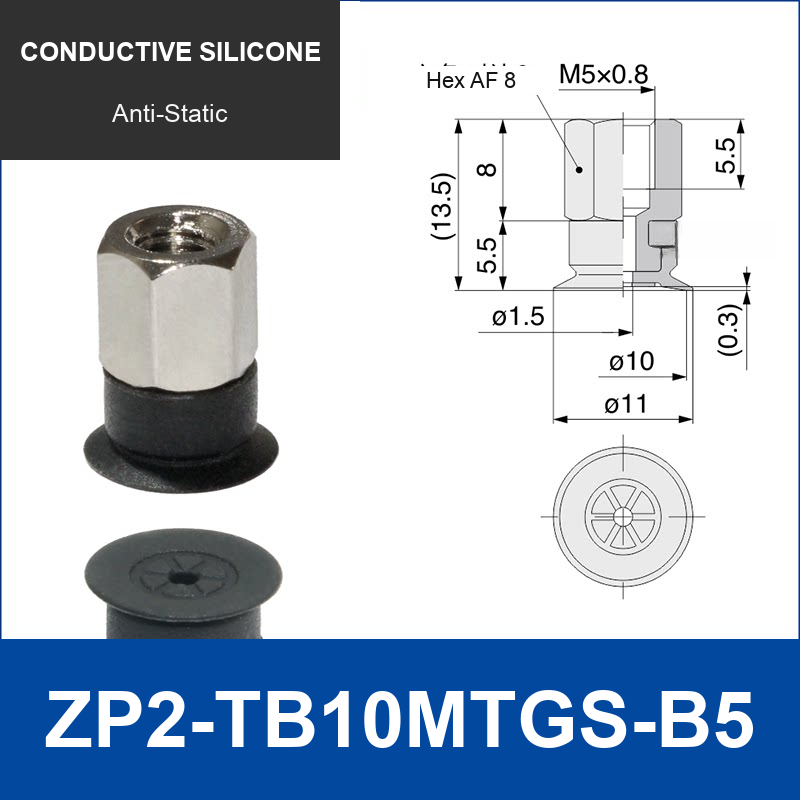

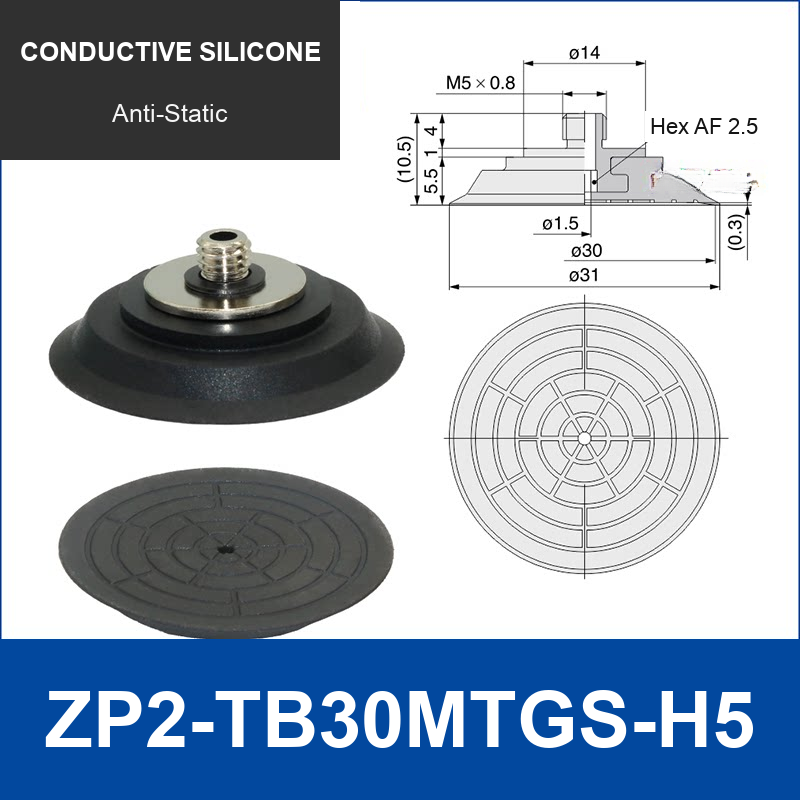

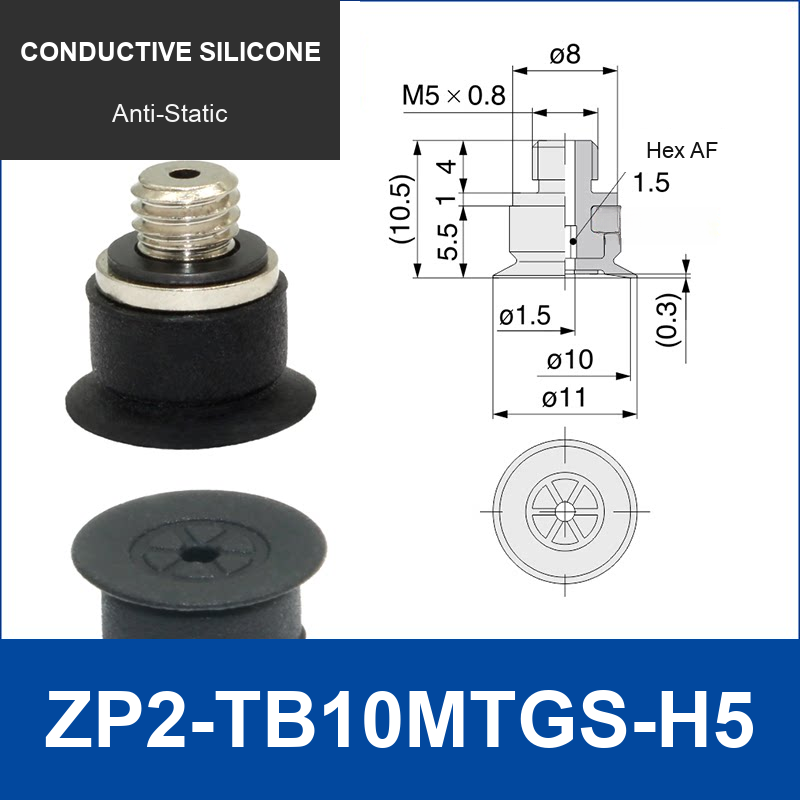

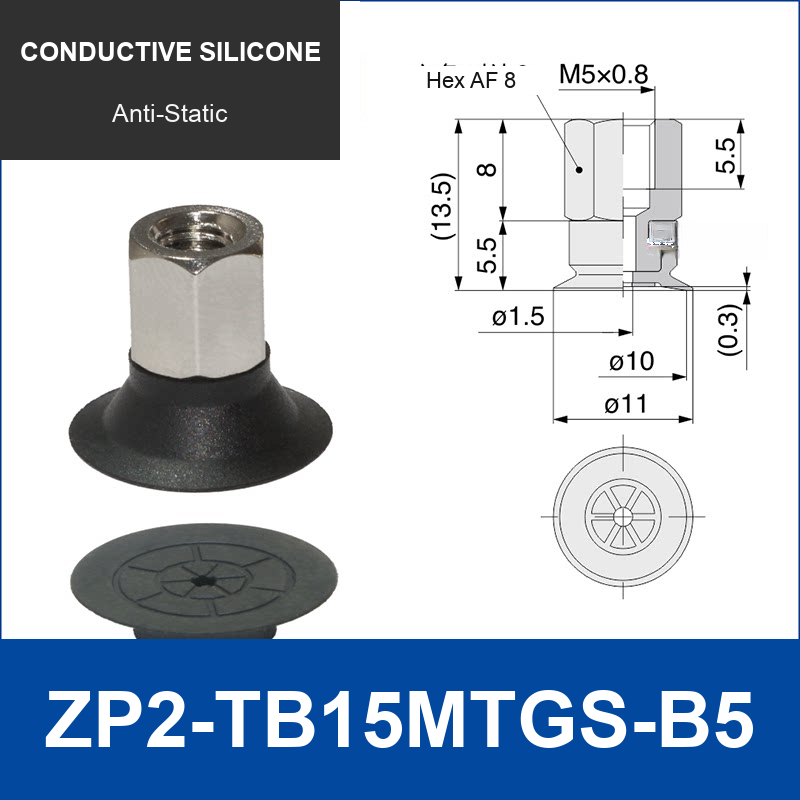

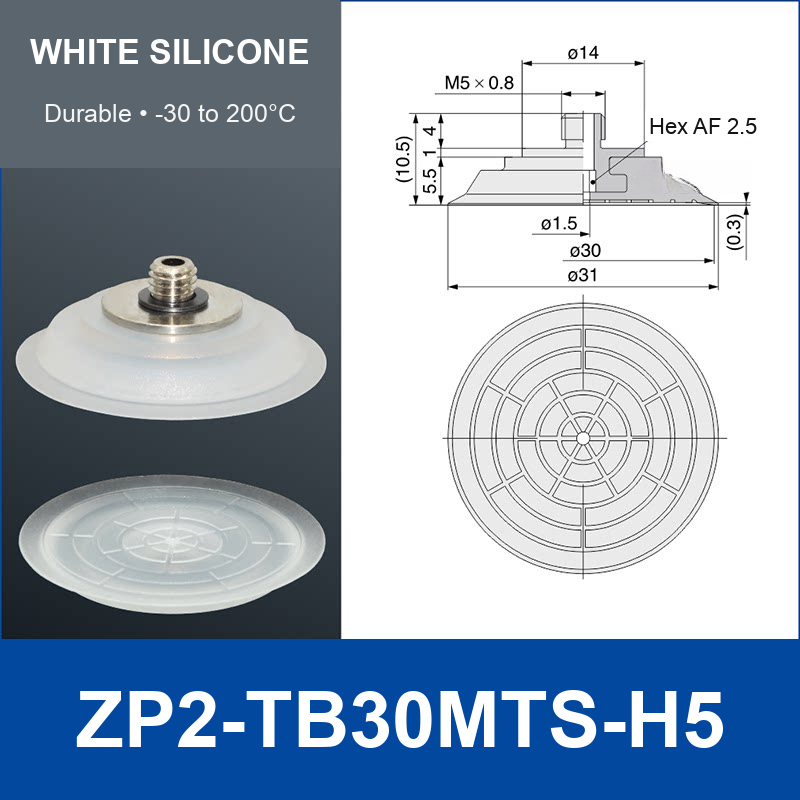

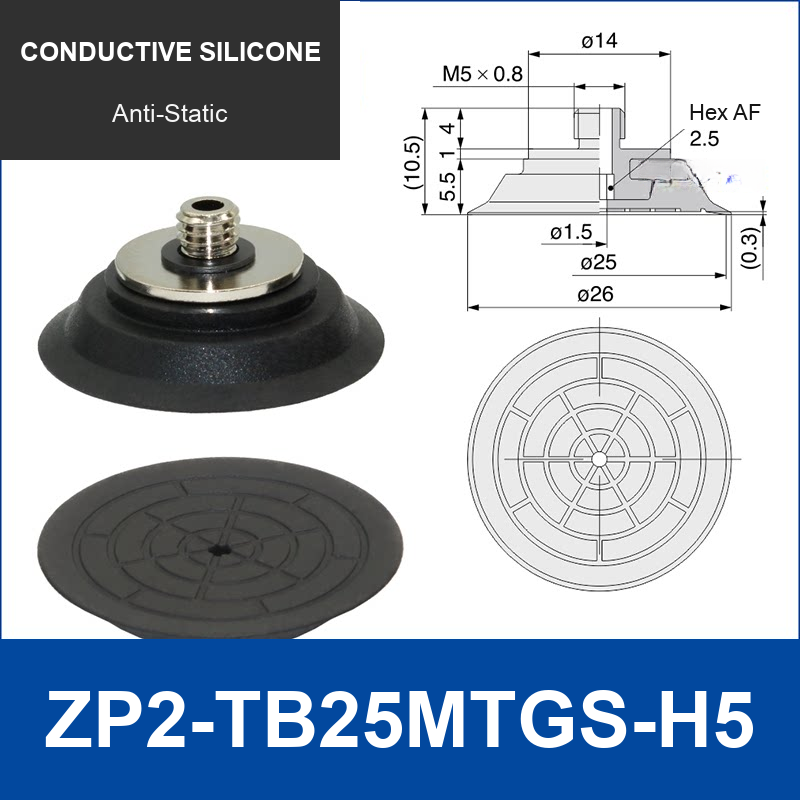

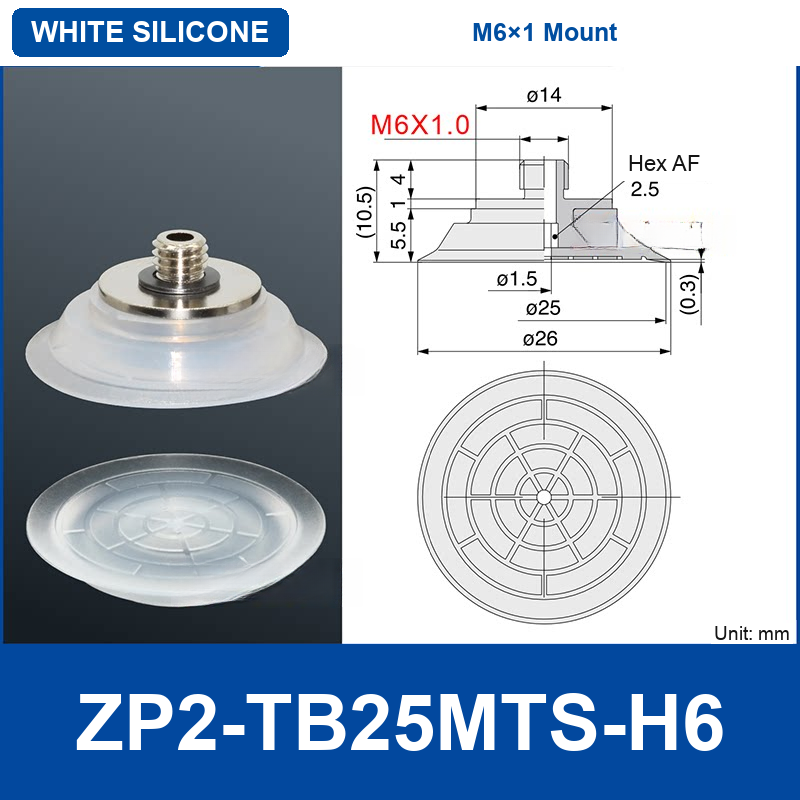

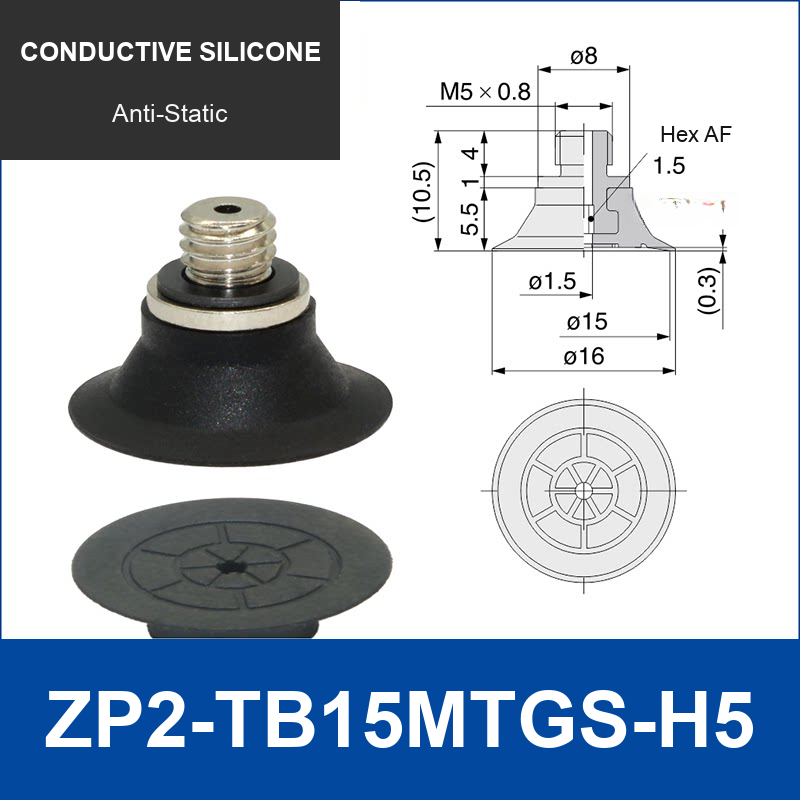

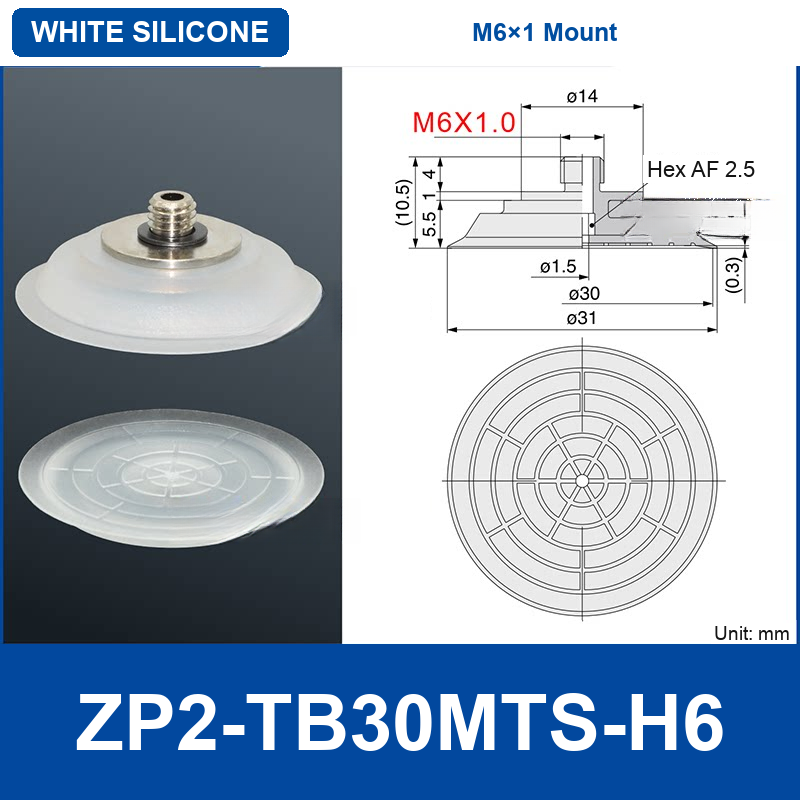

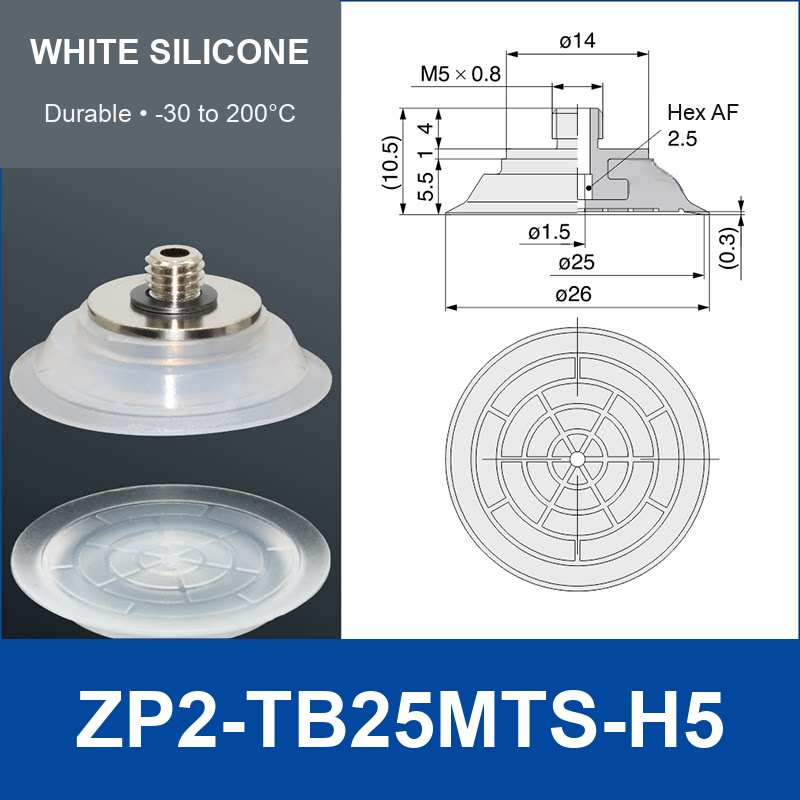

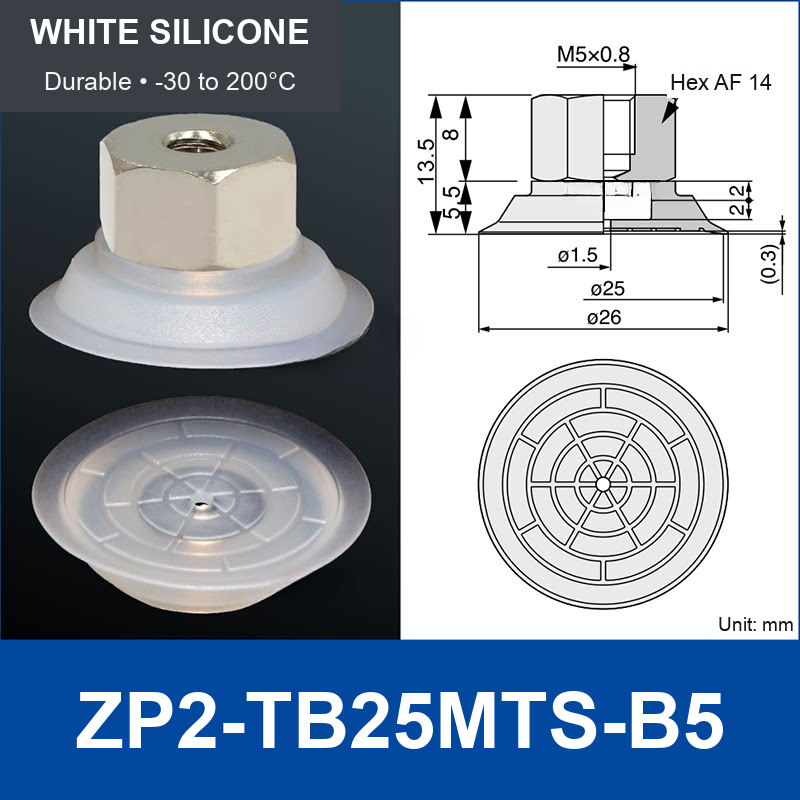

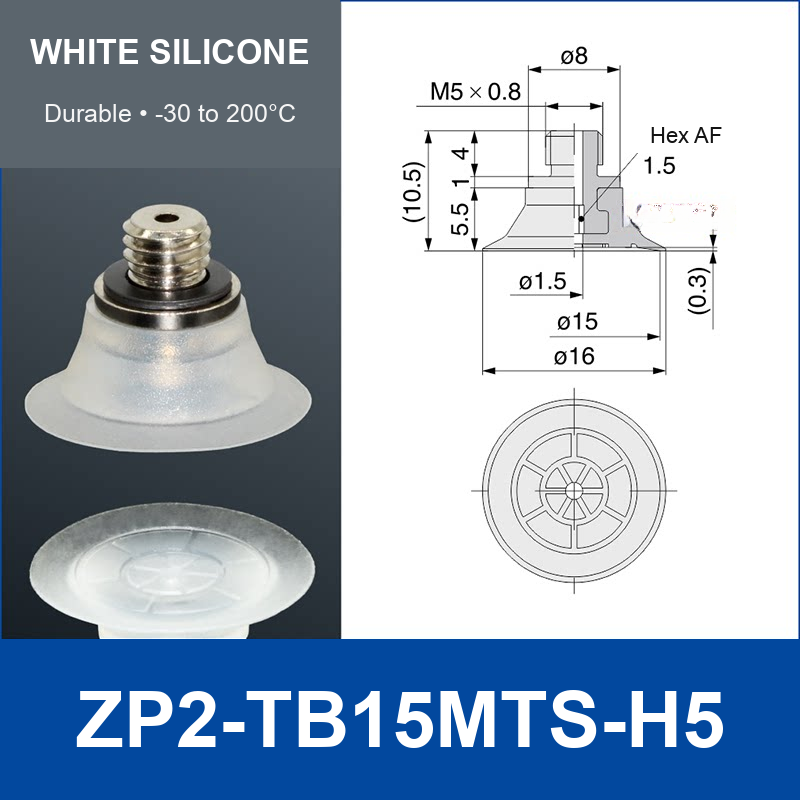

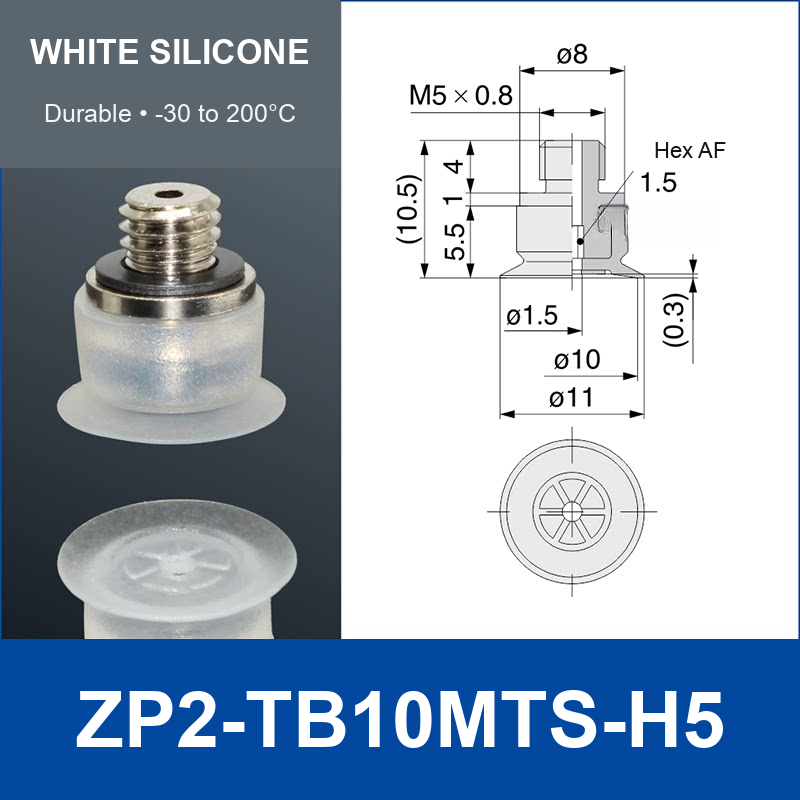

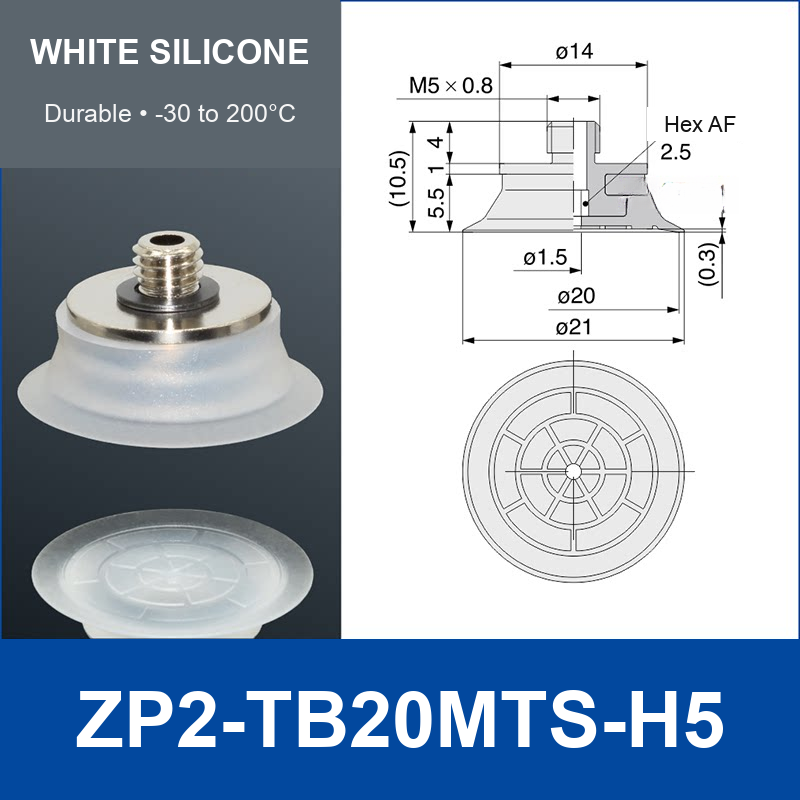

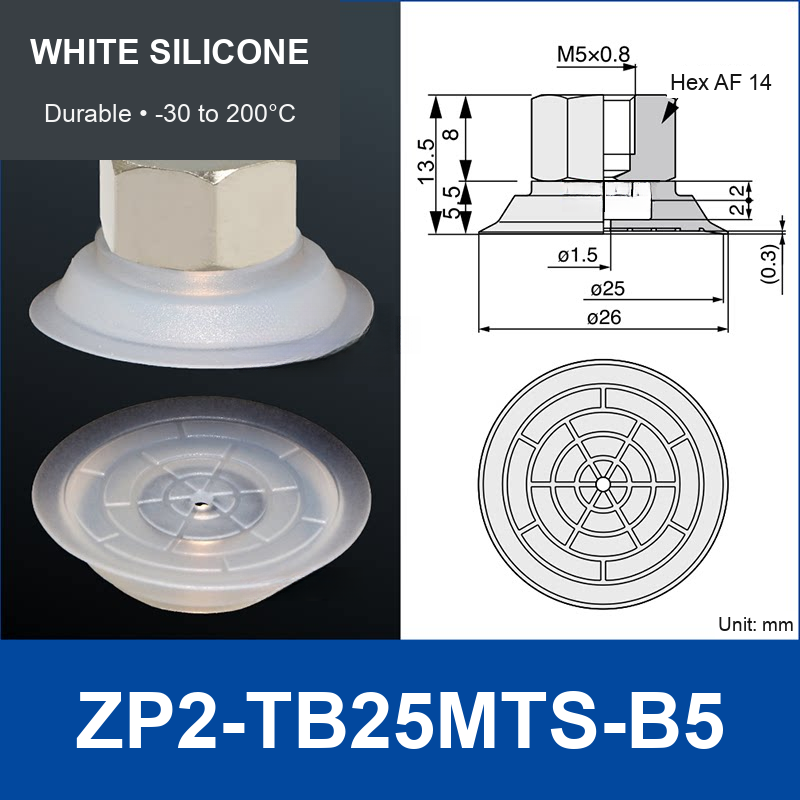

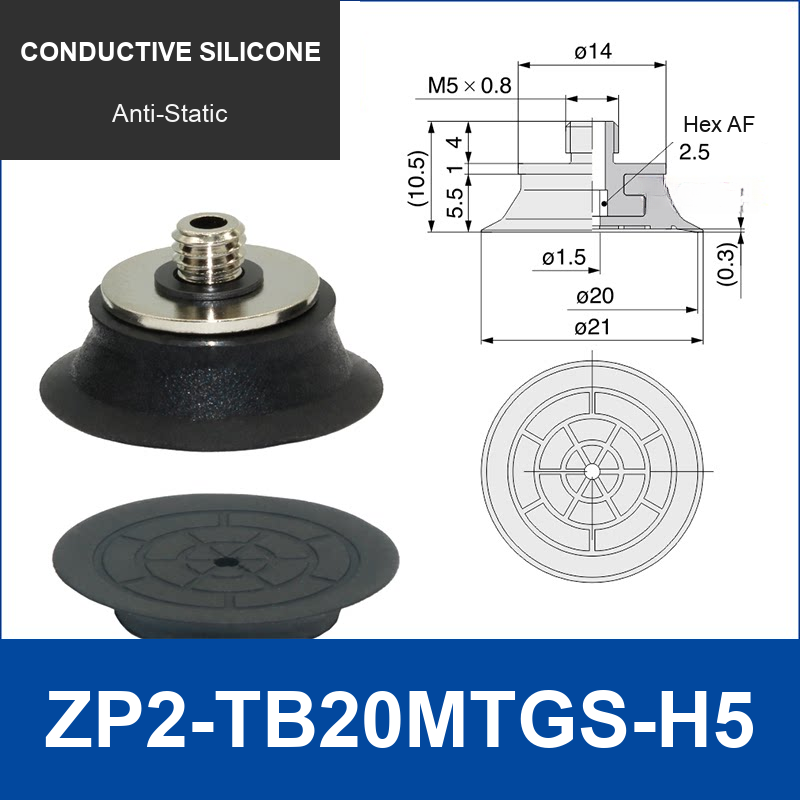

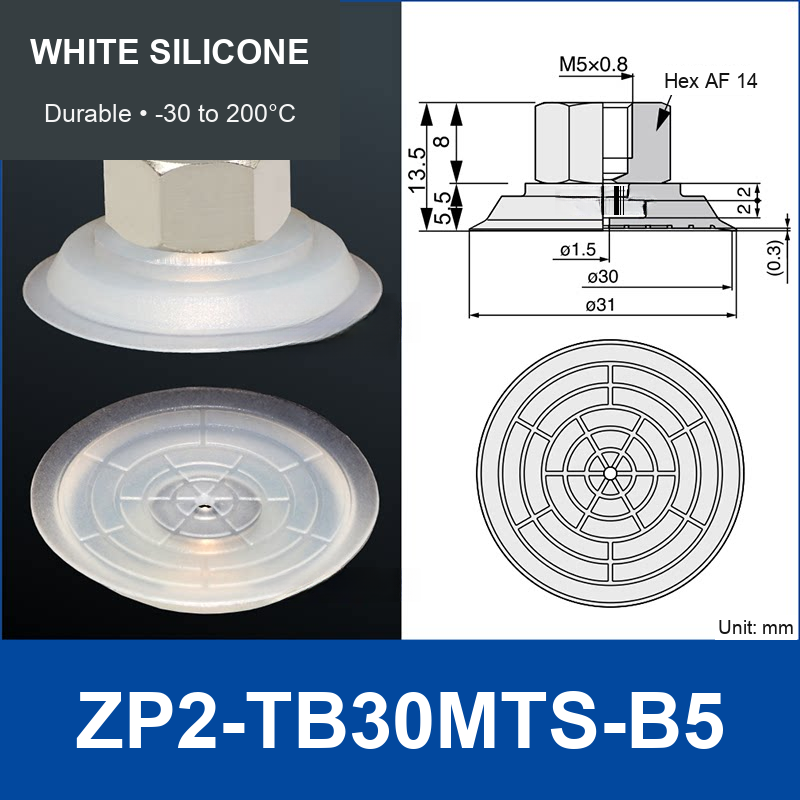

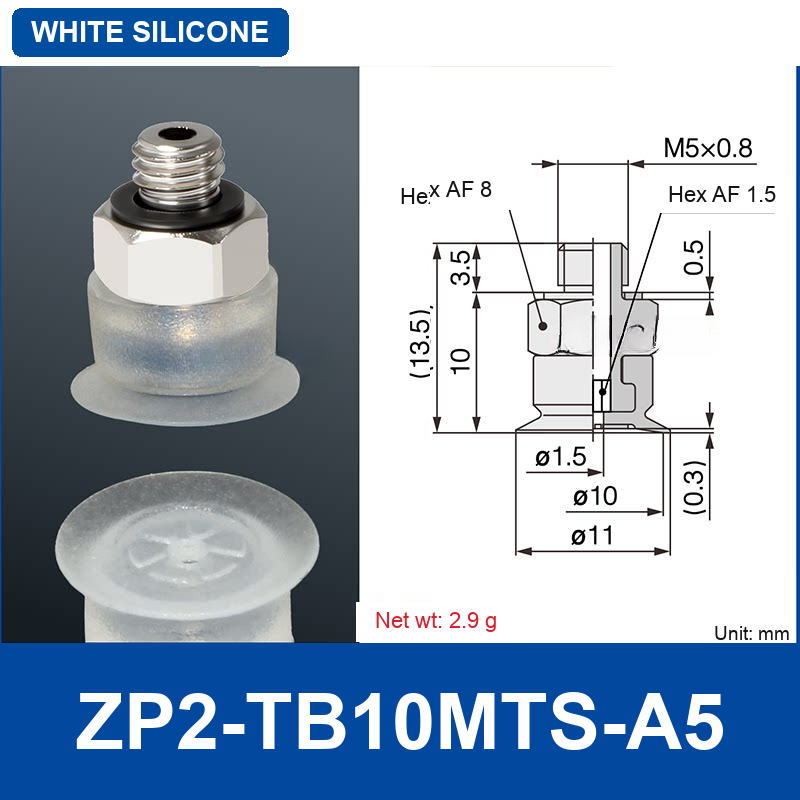

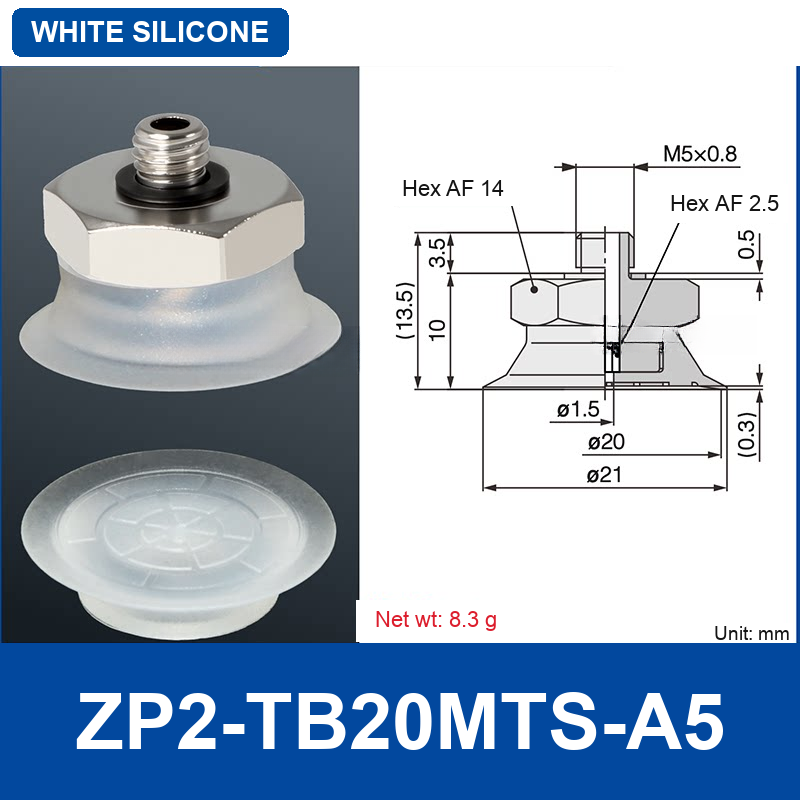

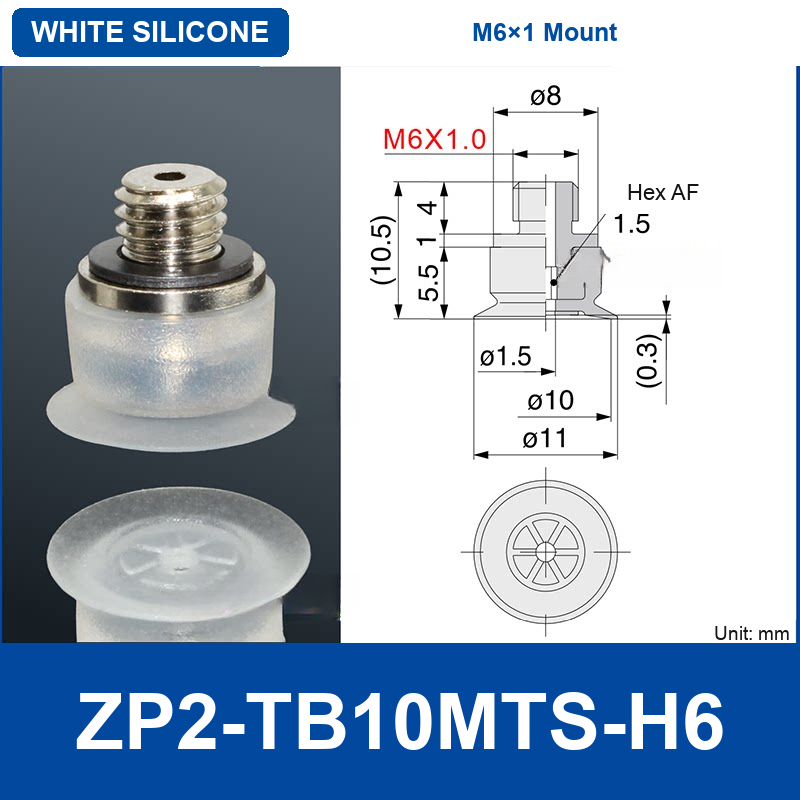

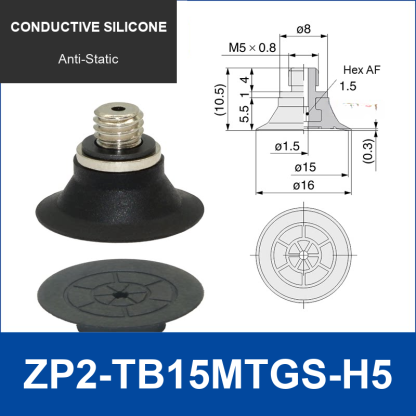

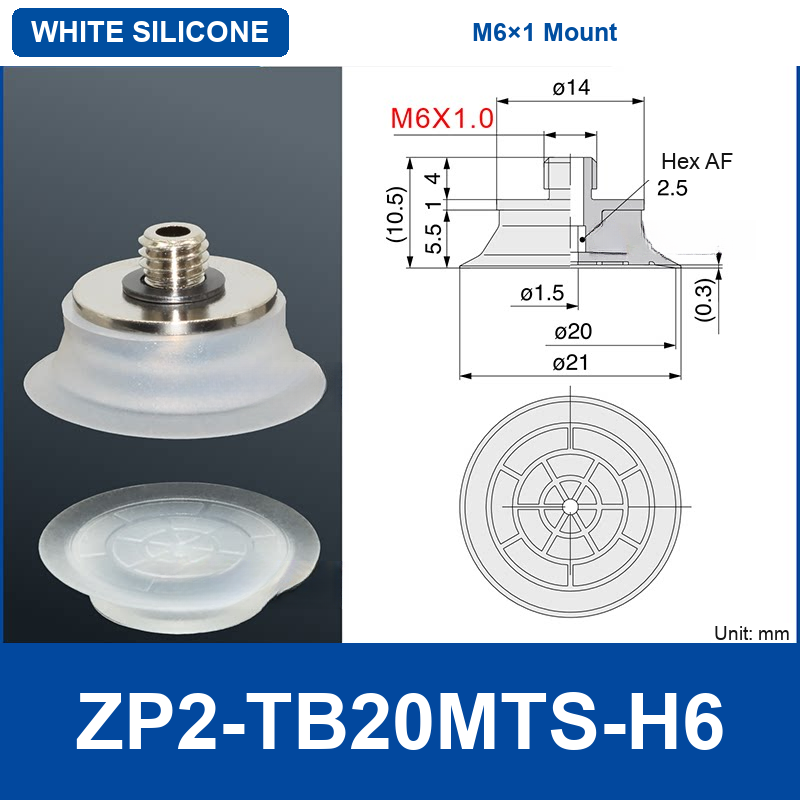

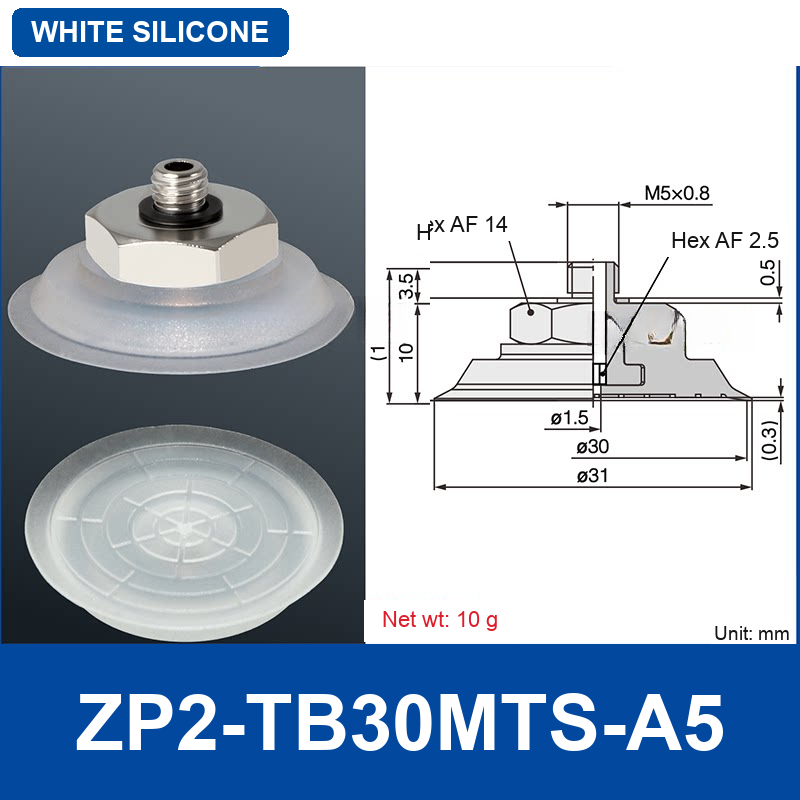

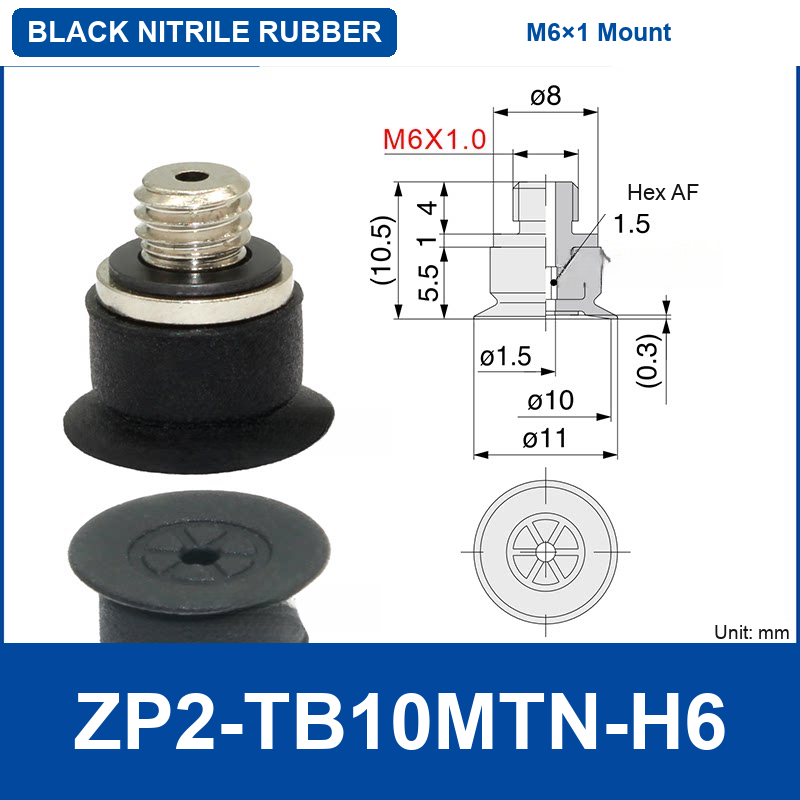

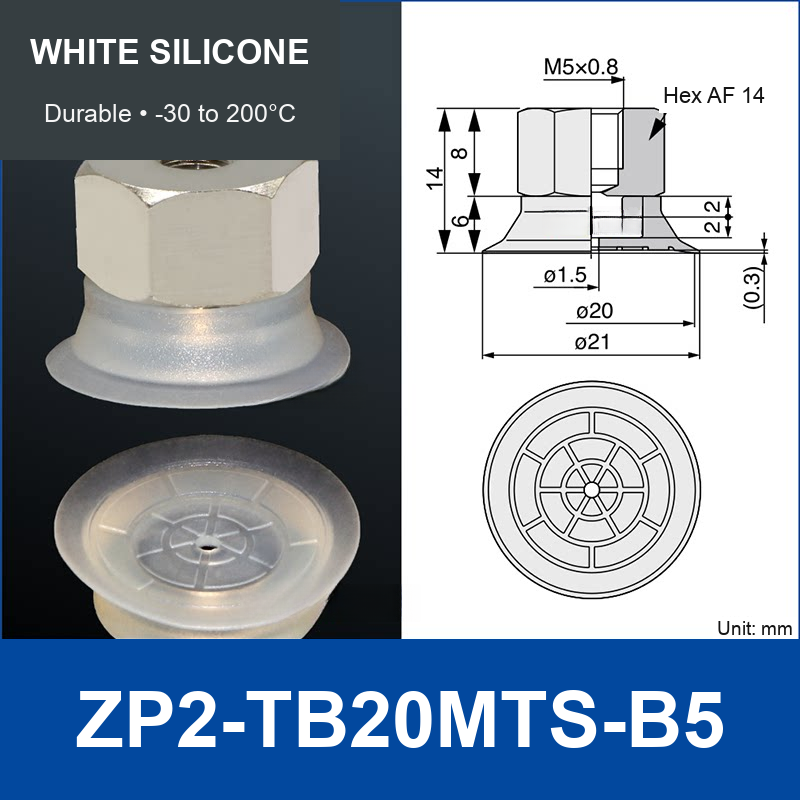

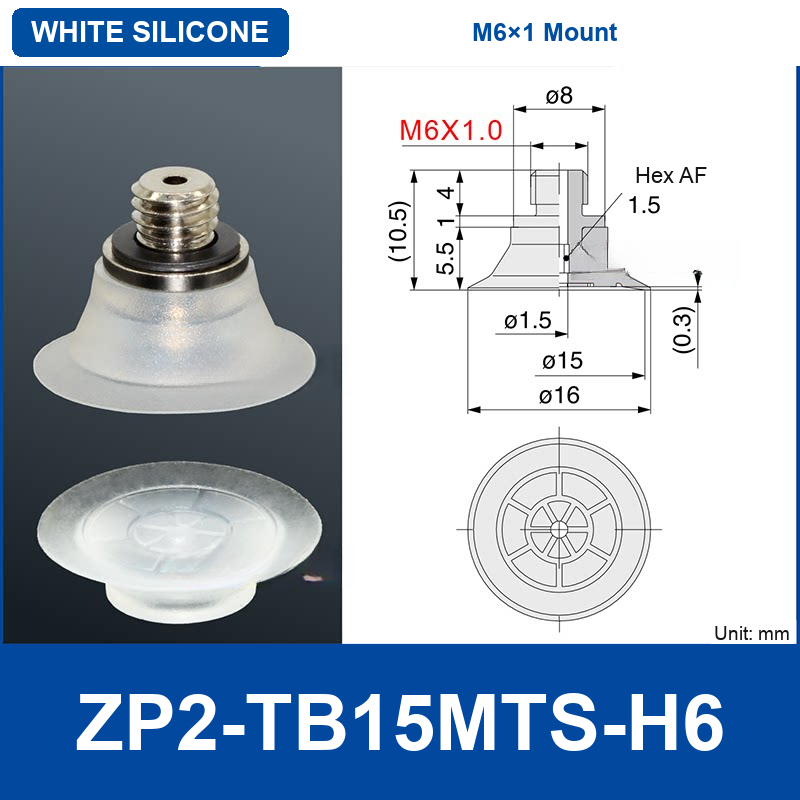

- Model-specific product views with dimensional drawings
Applications and Suitable Workpieces
ZP2-TB Flat Vacuum Suction Cups with Mounting Fittings: Flat suction cups provide stable positioning on smooth, flat or only slightly curved non-porous workpieces.
Recommended applications
- Sheet metal, glass, smooth plastic parts, coated panels, electronics panels and other flat industrial components.
- Machine loading and unloading, sorting, assembly, transfer and general automated pick-and-place.
- Thin sheets where a low internal volume and controlled vacuum can help reduce movement during pickup.
Model and selection notes
- ZP2-TB diameter, H5/B5/H6/A5 mounting style and MTS/MTN/MGS material code together define the complete model.
- Select diameter according to the available sealing area, workpiece mass, acceleration and mounting direction.
- Silicone suits clean parts and wider temperature conditions; NBR suits general industrial use, abrasion and lightly oily surfaces; conductive grades are only for static-sensitive handling where identified.
- Rough, porous, deeply curved or perforated surfaces may not seal. Confirm holding force on the actual part with an appropriate safety factor.
