ZP2-05/08/11 Vacuum Pads & Z21P Mounting Fittings

ZP2 Compact Vacuum Pads & Z21P Mounting Fittings

Compact vacuum pads and model-specific mounting fittings for compatible industrial pick-and-place and robotic end-of-arm tooling. Select the exact model, material and thread shown in the corresponding model image.

• 15 selectable model configurations
• ZP2-05, ZP2-08 and ZP2-11 vacuum-pad model families
• White silicone, black nitrile rubber and conductive silicone rubber options
• Universal Z21P metal fitting options with M4 x 0.7 or M5 x 0.8 threads
• T-series pad-and-fitting assemblies with M5 x 0.8 mounting threads
• White silicone specified temperature range: -30 to 200 degrees C
• Black nitrile rubber is specified for abrasion and oil resistance

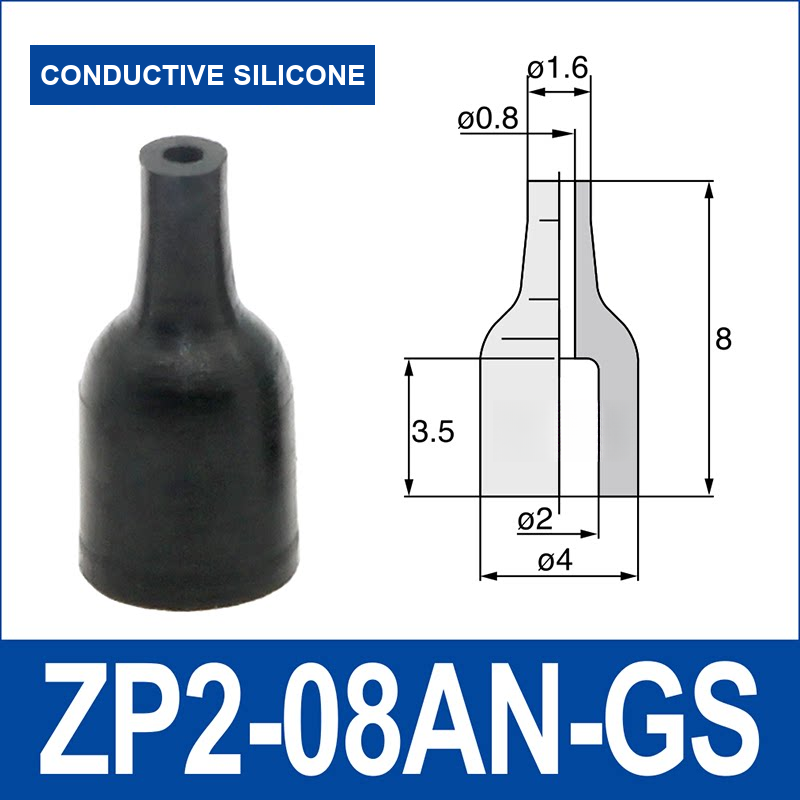

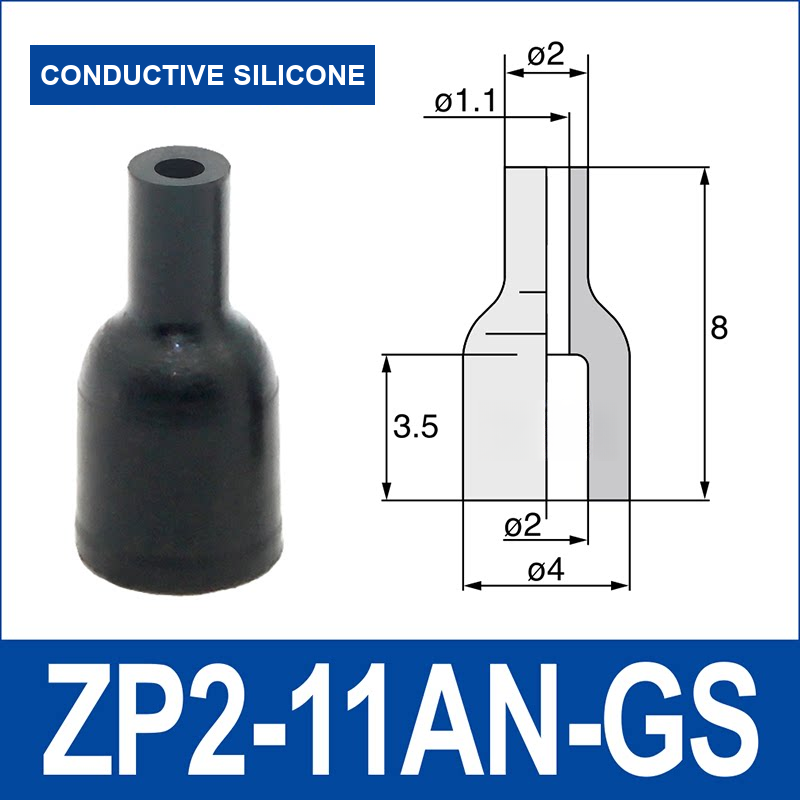

• Product images show dimensions, thread callouts and mechanical structure

Applications / Suitable For

• Small-part pick-and-place, sorting and transfer equipment
• Compact vacuum end-of-arm tooling and pneumatic handling assemblies
• Packaging, electronics and light industrial automation

Confirm the selected model drawing, material, thread, mating hardware, workpiece surface, vacuum level, load, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
