ZP2-AN Vacuum Cups, Threaded Holders & Fittings (5–11 mm)
ZP2-AN Vacuum Cups, Threaded Holders & Fittings
Compact ZP2-AN vacuum cups, threaded holders and compatible fittings for automated handling, pick-and-place equipment and replacement work. Select the complete model only after comparing the product image and dimensional drawing.
Quick selection

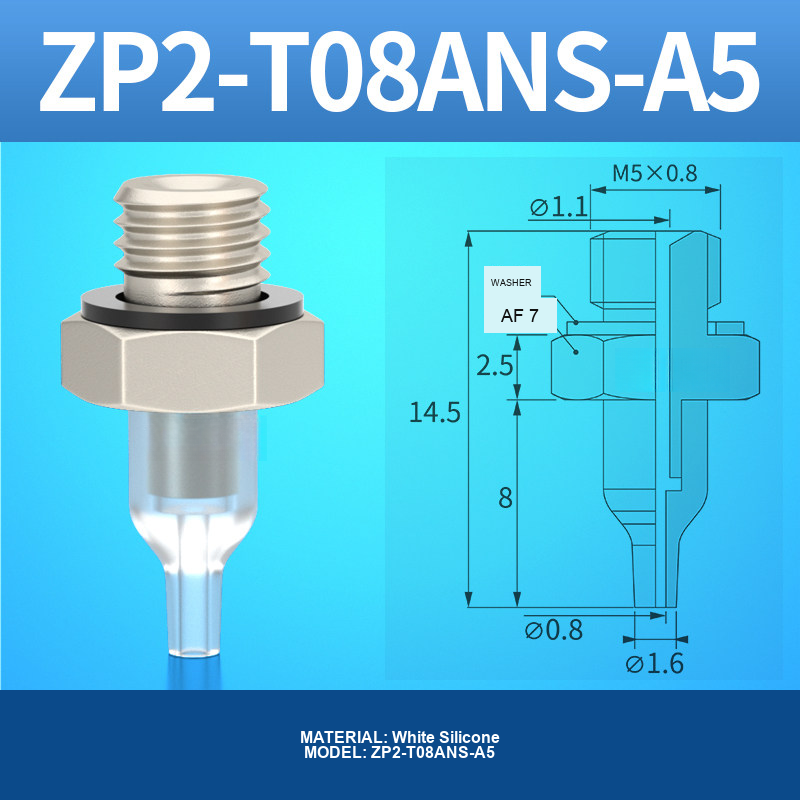

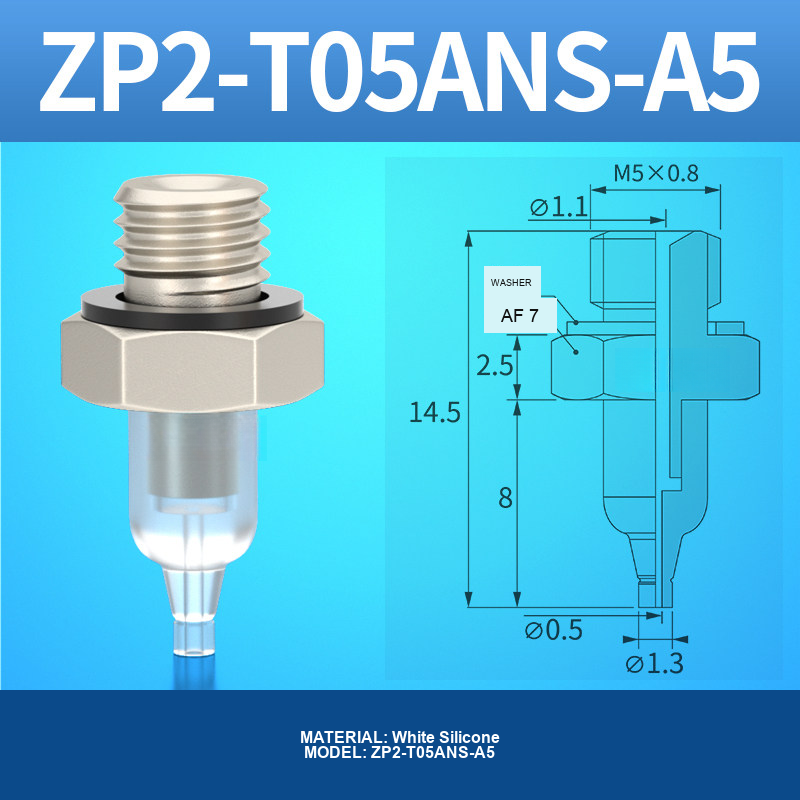

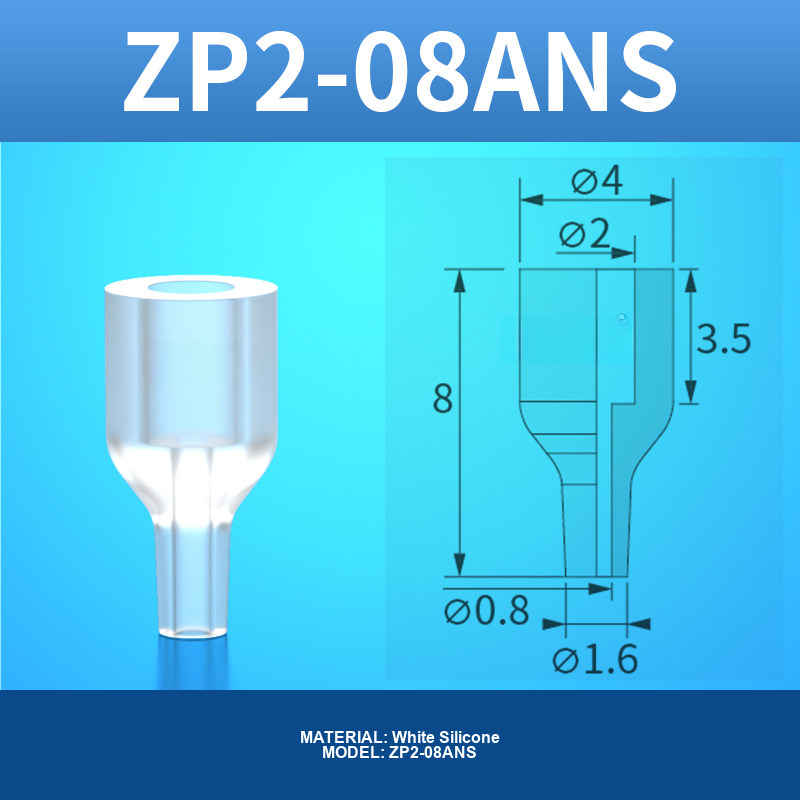

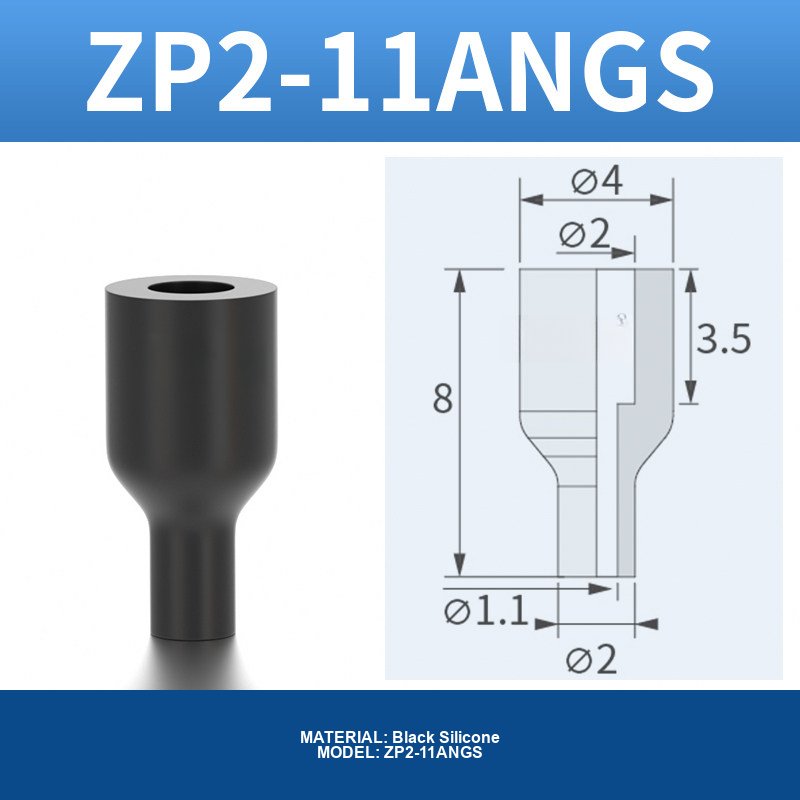

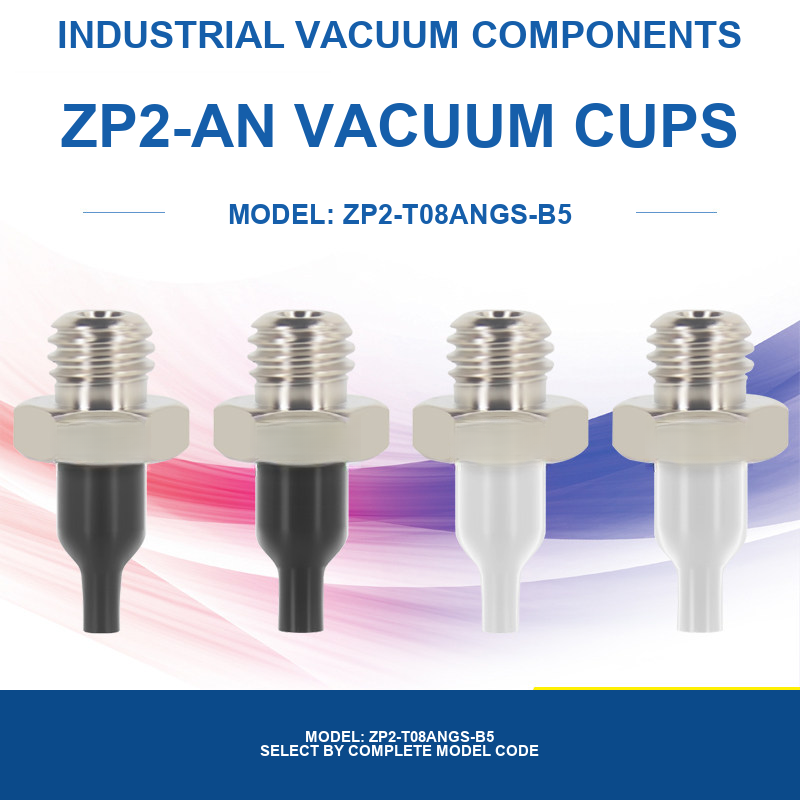

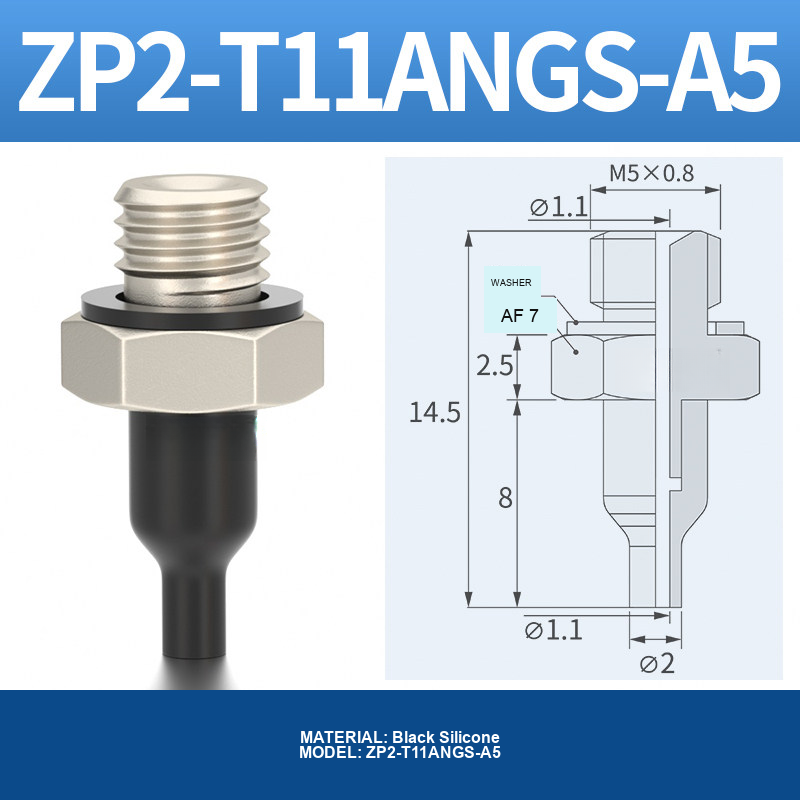

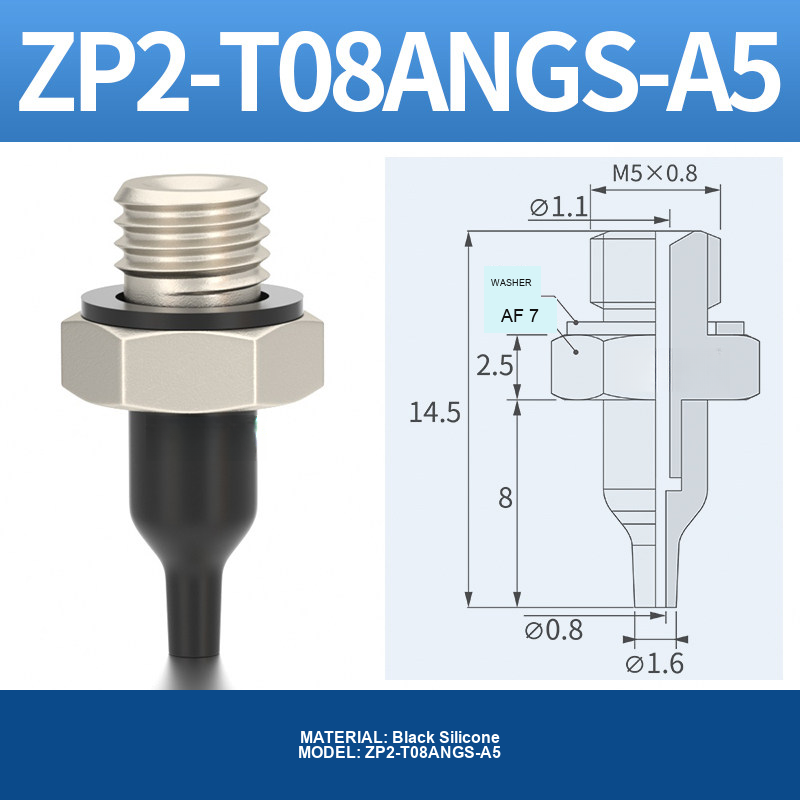

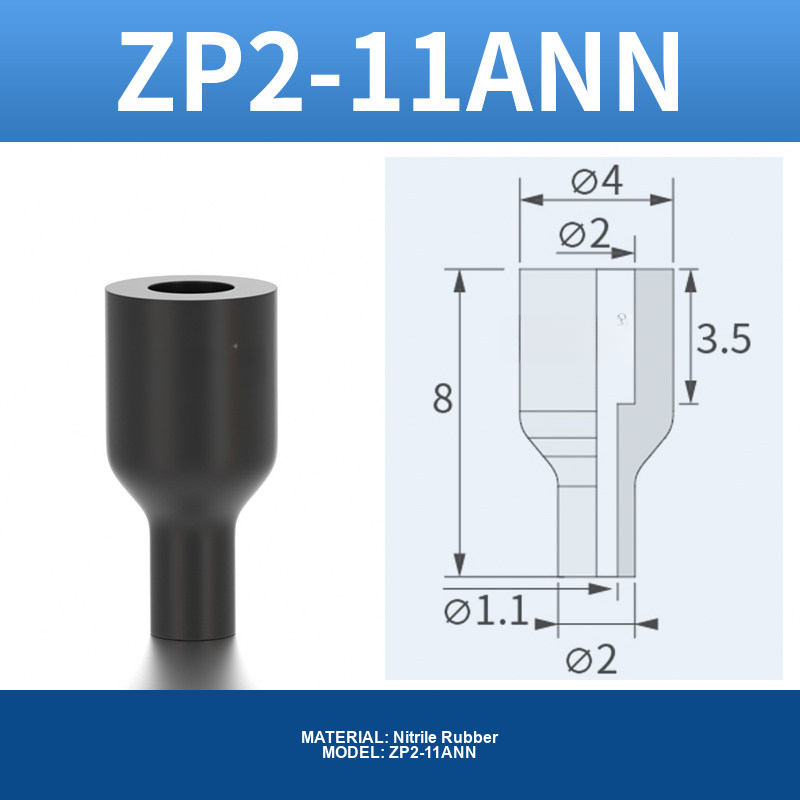

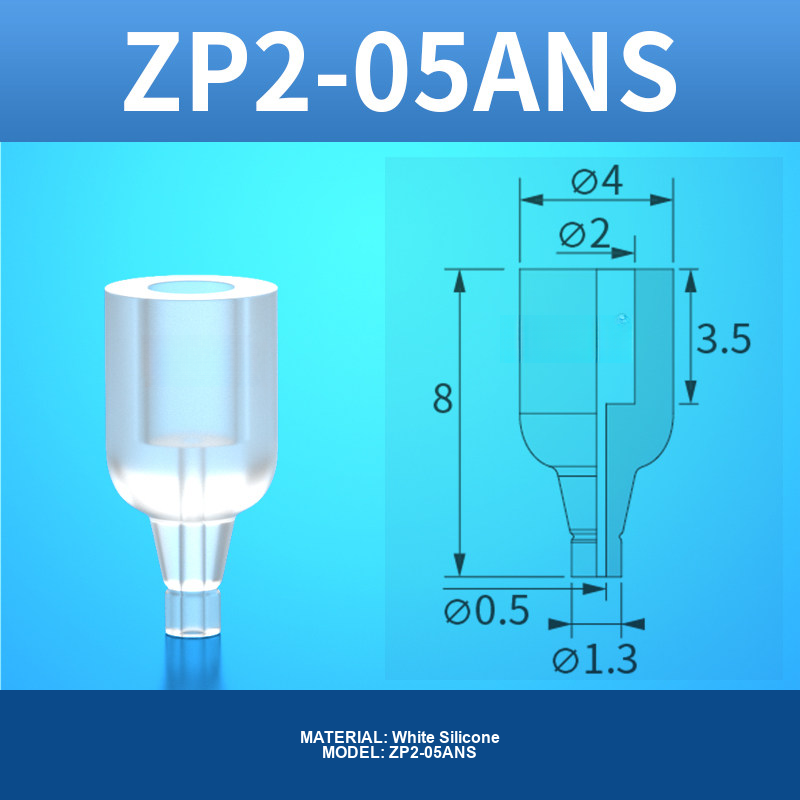

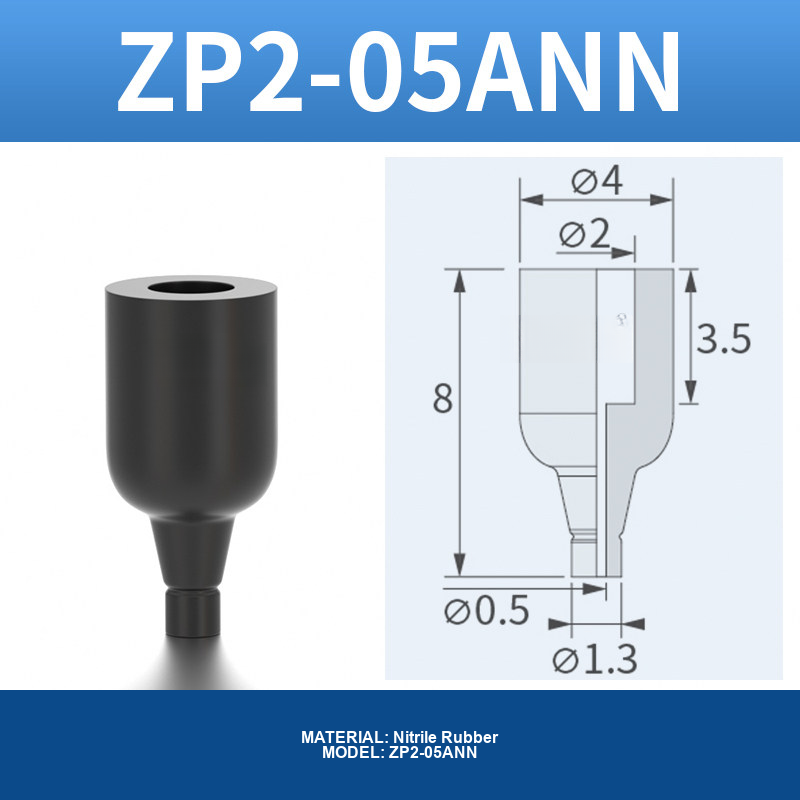

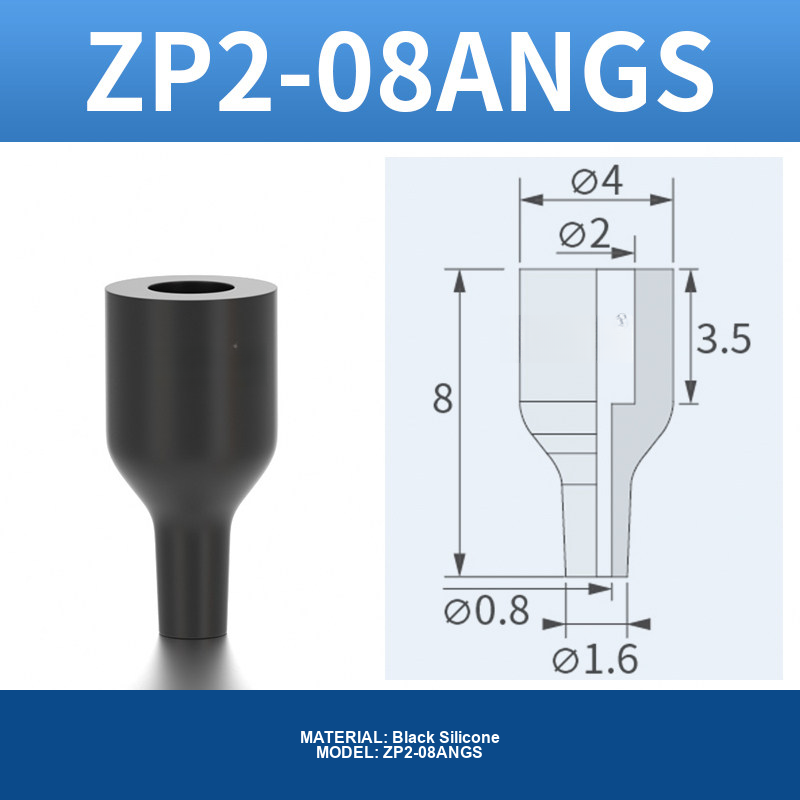

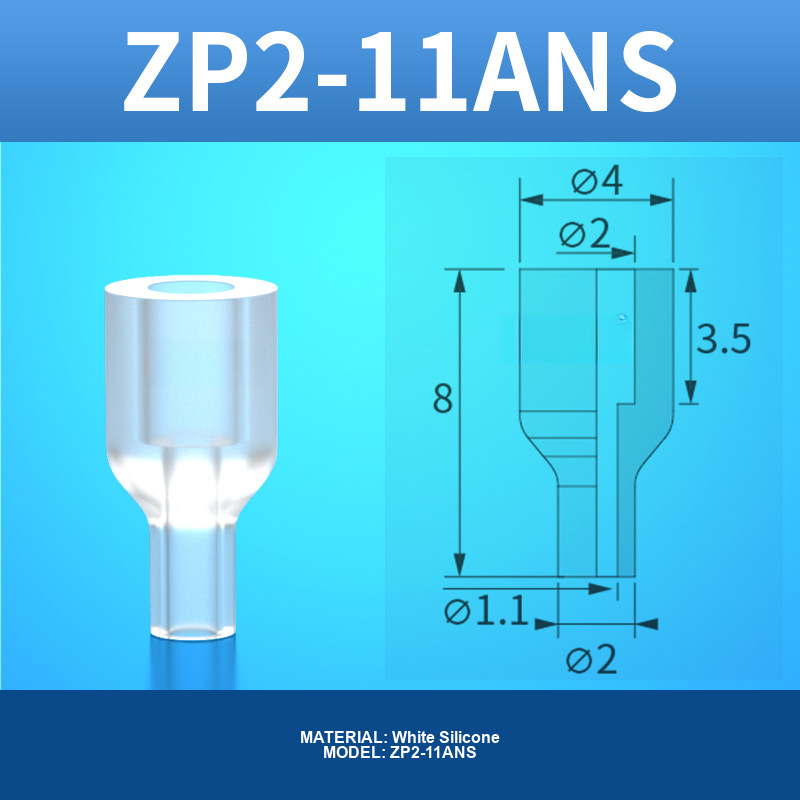

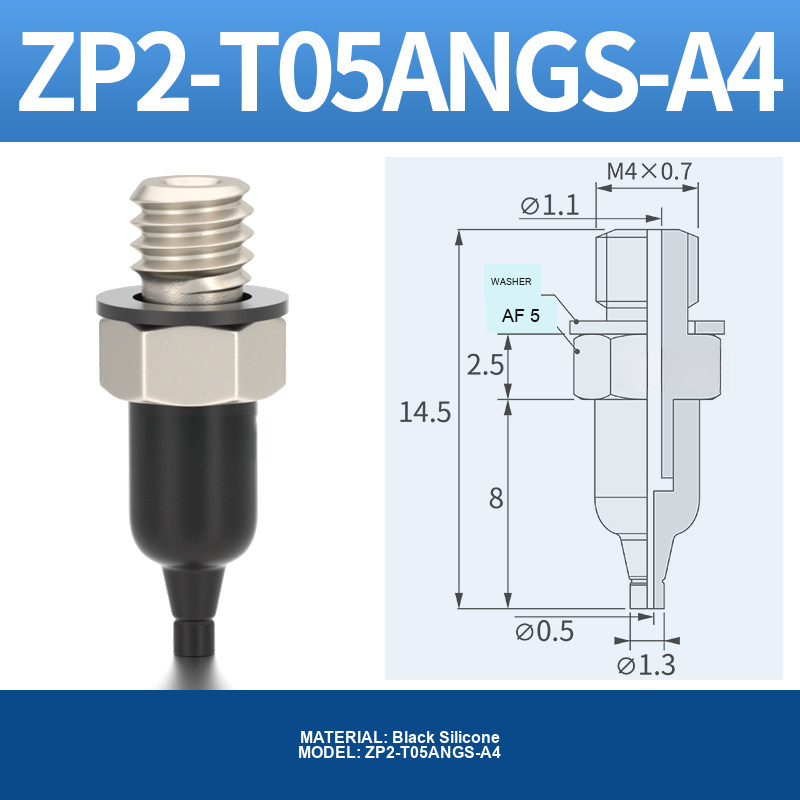

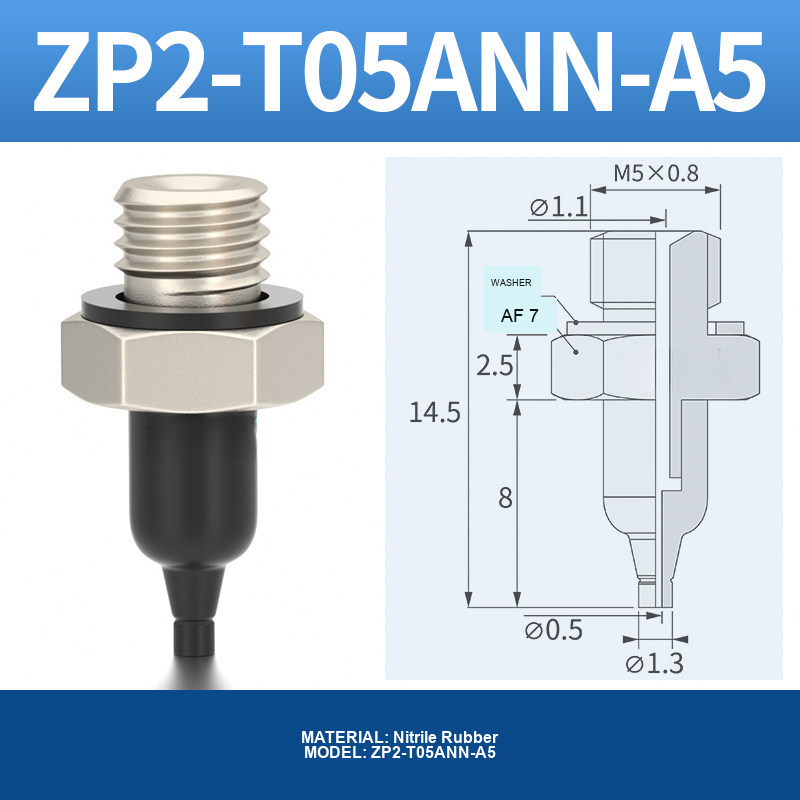

- Choose the cup size and material: ZP2-05, ZP2-08 and ZP2-11 designate the compact cup size family. ANS is white silicone, ANN is nitrile rubber, and ANGS is black silicone.

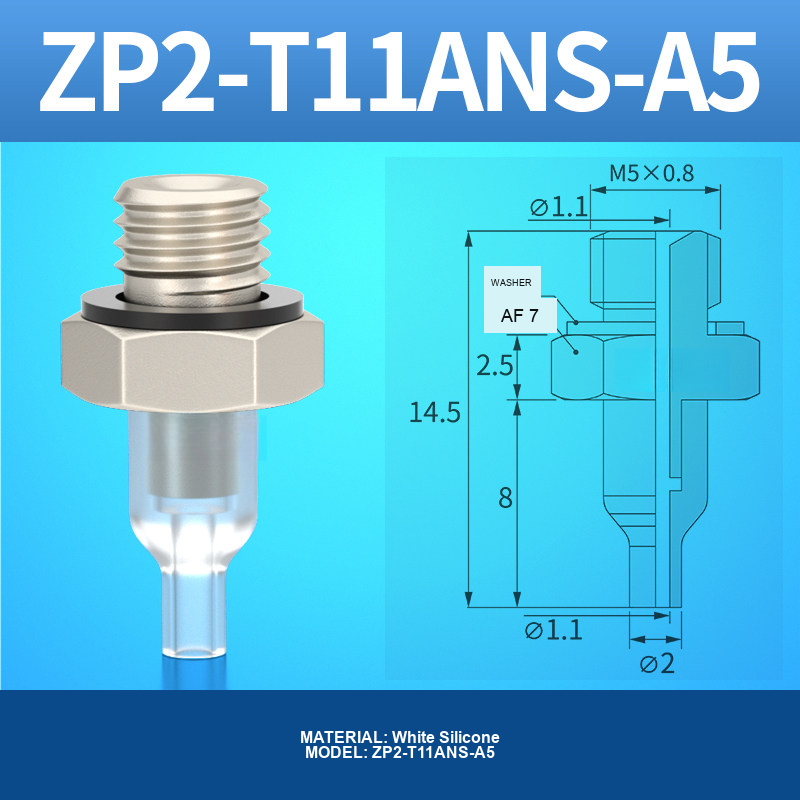

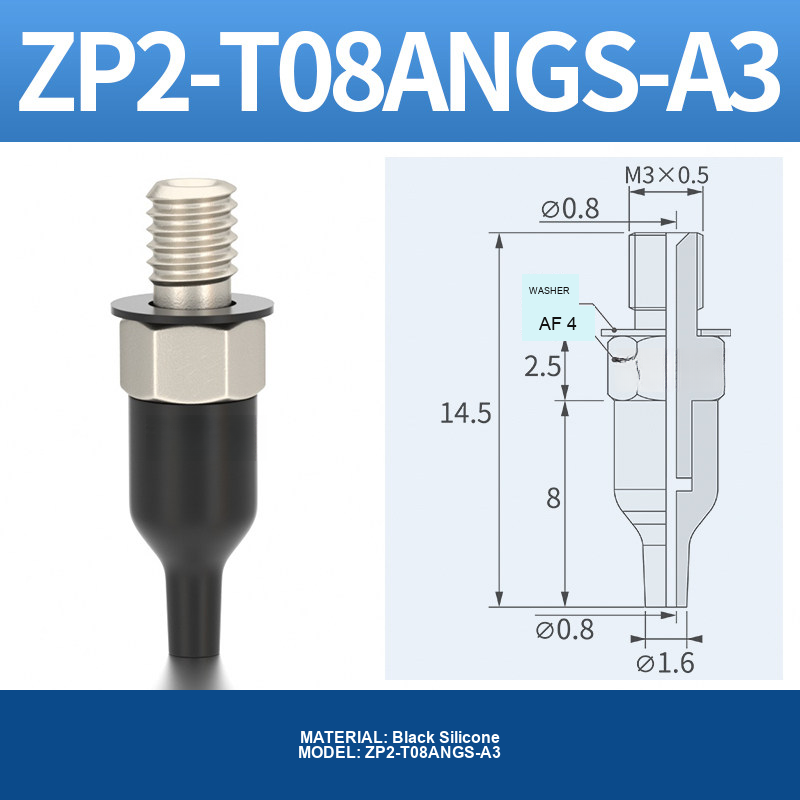

- Choose the holder or fitting: codes ending in A3, A4, A5, B3 or B5 identify the threaded holder or fitting configuration. Select the complete code rather than only the cup diameter.
- Check the drawing: verify thread, across-flats dimension, sealing washer, overall length, cup dimensions and installation clearance before ordering.

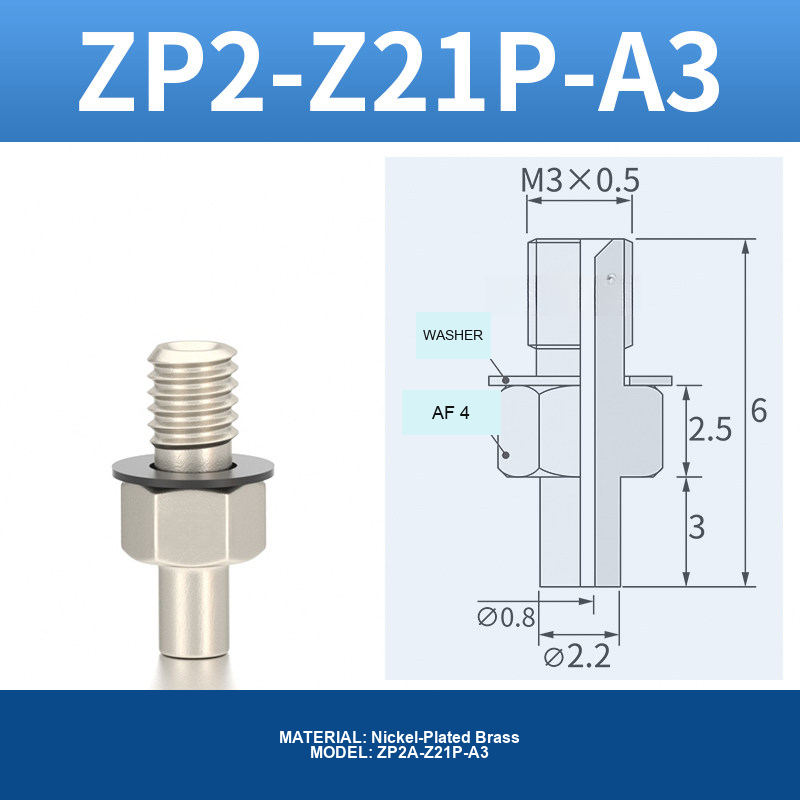

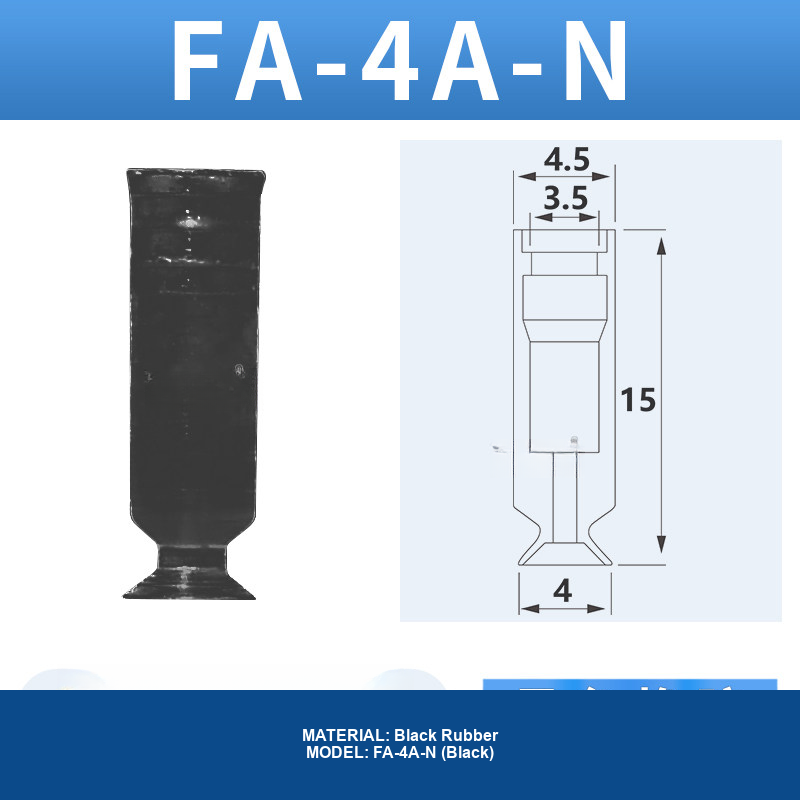

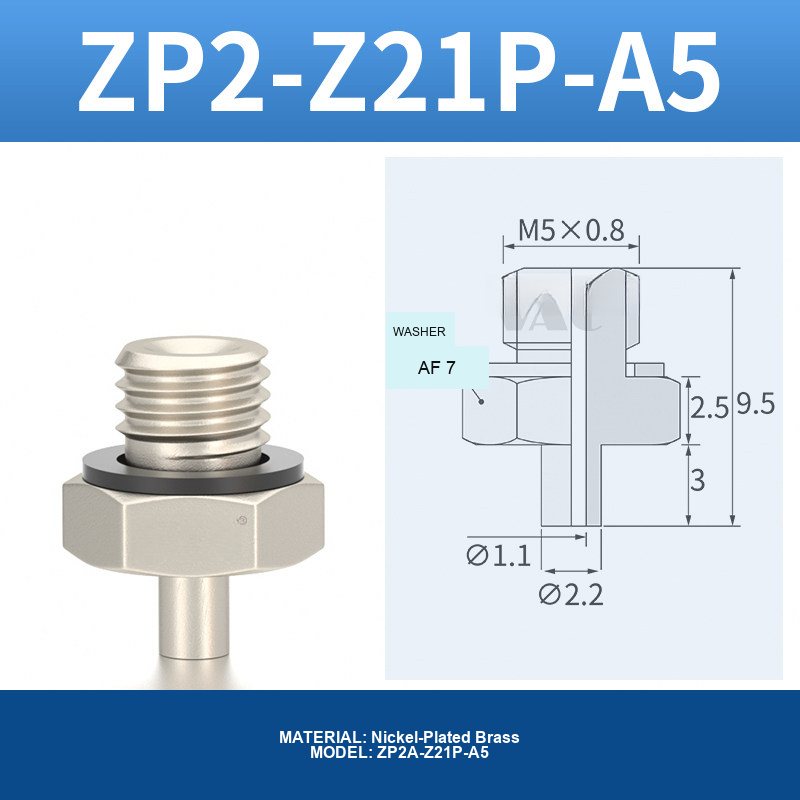

- Accessory models: ZP2A-Z21P, FA-4A-N and F1-3A-S are separate mounting or accessory components. Confirm compatibility with the chosen cup and holder.
Suitable for
- Industrial vacuum pick-and-place equipment
- Compact robotic end-effectors
- Replacement cups, threaded holders and mounting fittings
- Small-component handling after compatibility checks
Before use
Confirm the complete model code, thread specification, dimensions, cup material, workpiece surface, payload, acceleration, temperature and operating environment before installation. Components are not automatically interchangeable across different model codes. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I choose between ANS, ANN and ANGS? Start with the complete model image: ANS is white silicone, ANN is nitrile rubber, and ANGS is black silicone. Then verify the drawing and application conditions. Can I order a holder separately? Yes, where a separate holder or fitting model is listed; compare its thread and drawing with the selected cup before ordering.
