STP35–STP60 Bag-Opening Vacuum Cup Assemblies and Components

STP35–STP60 Bag-Opening Vacuum Cup Assemblies and Components

STP-series vacuum cups, vacuum-generator assemblies and related components for bag opening, automated handling and compatible vacuum grippers. Select the complete model by cup size, thread form, colour/material and assembly configuration.

Quick Model Finder

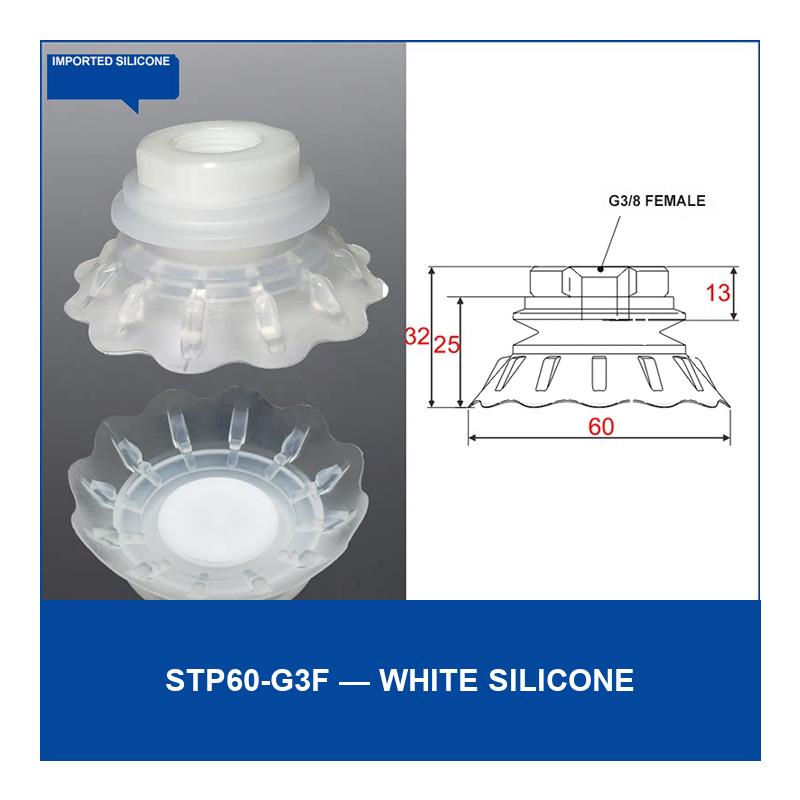

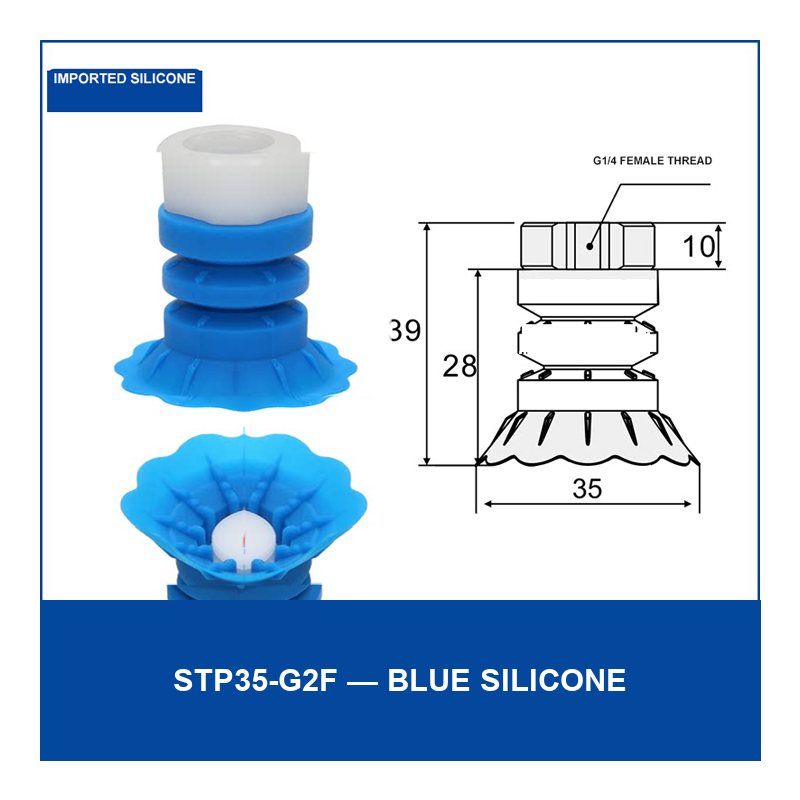

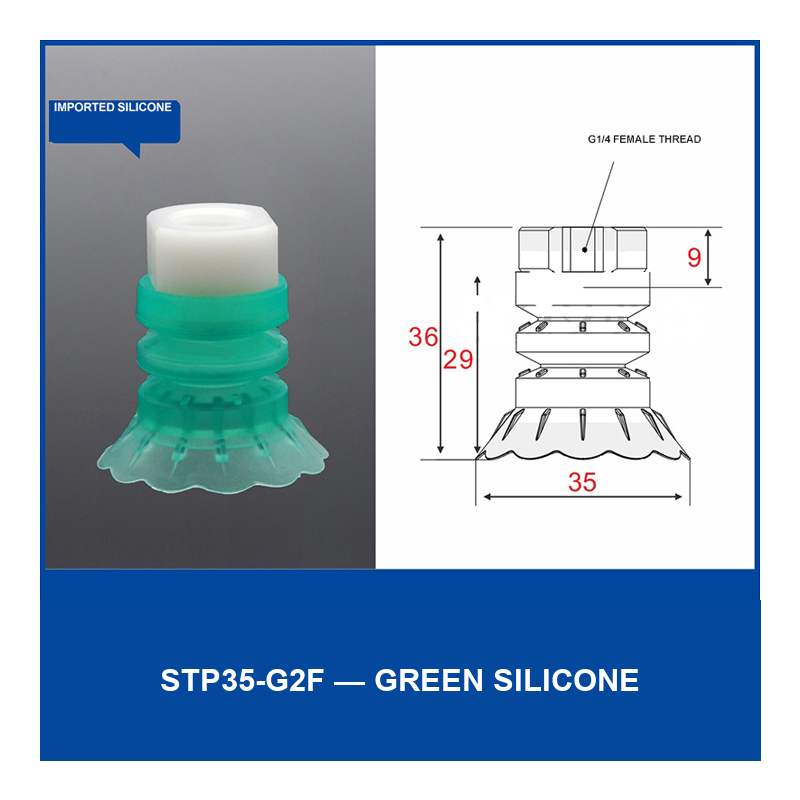

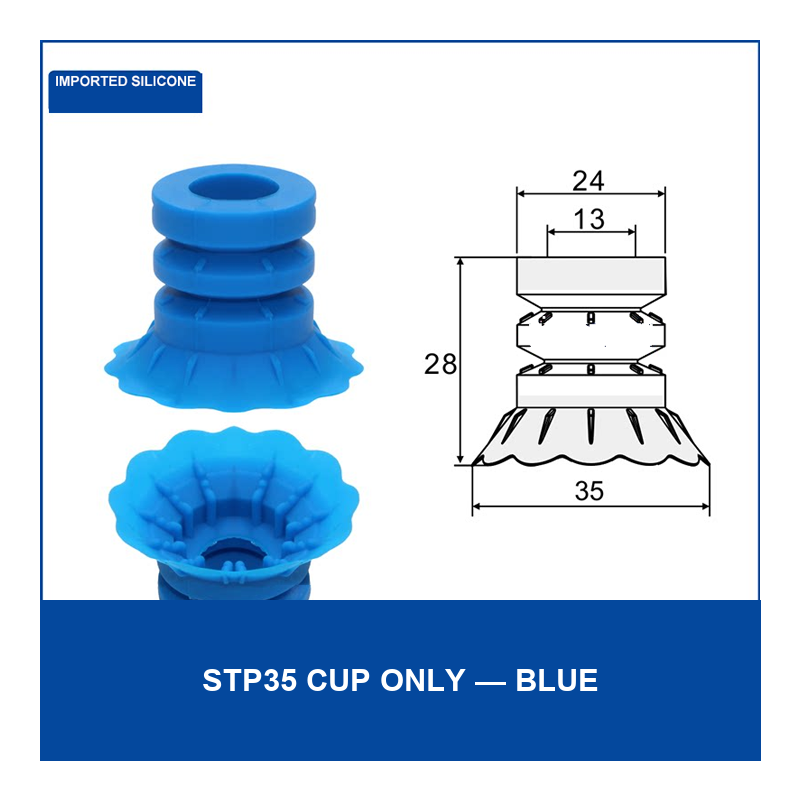

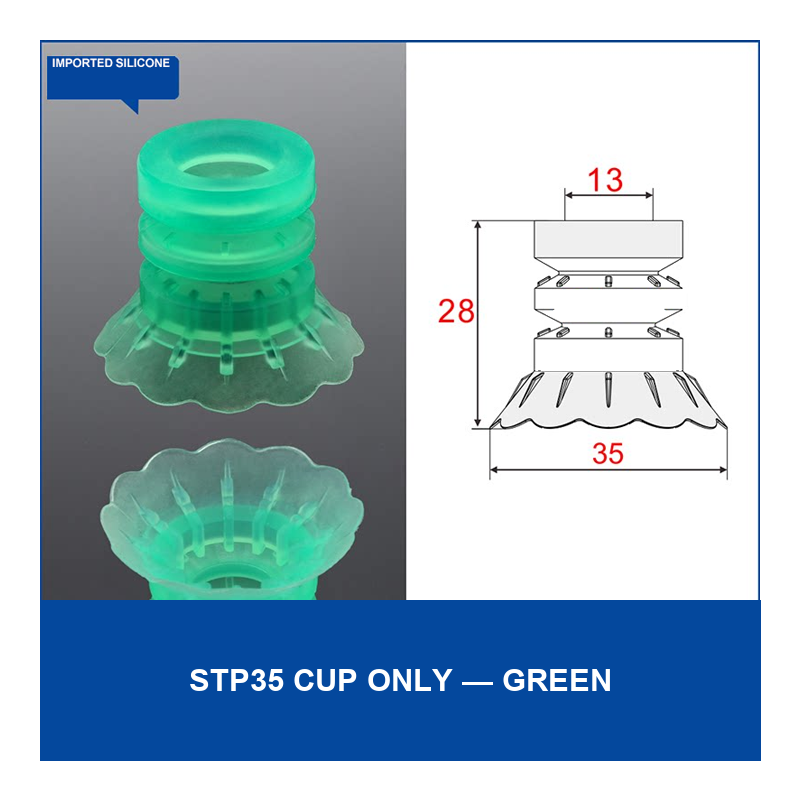

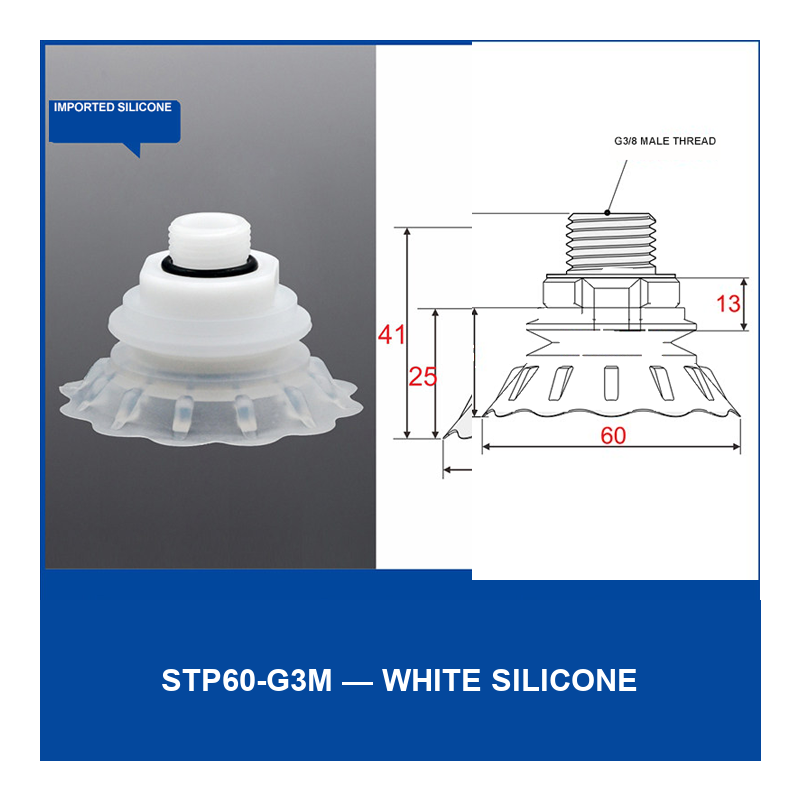

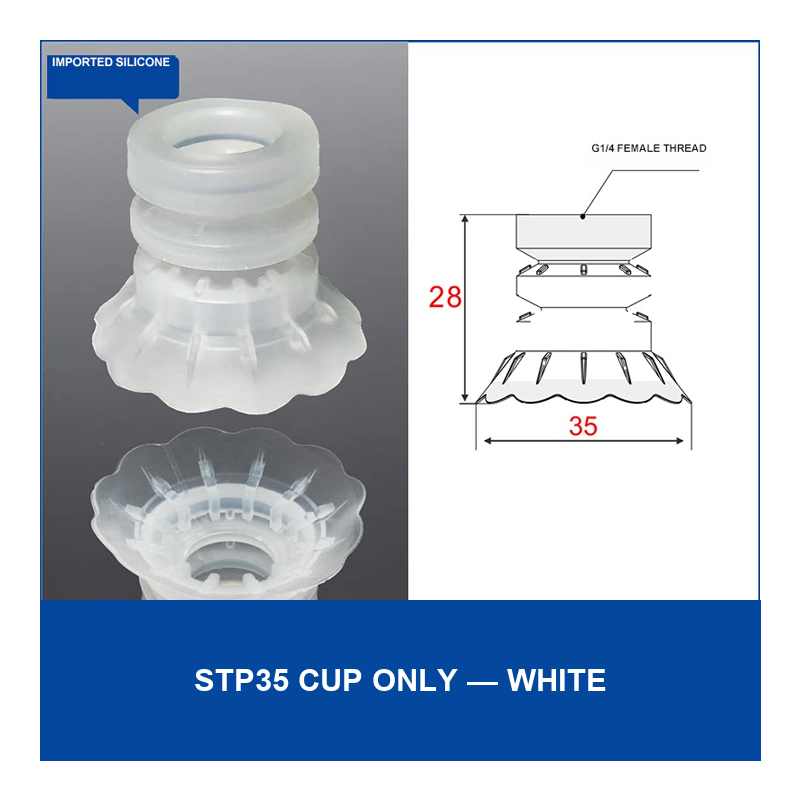

1. Select the cup size: choose STP35 or STP60 according to the selected image and dimensional drawing.

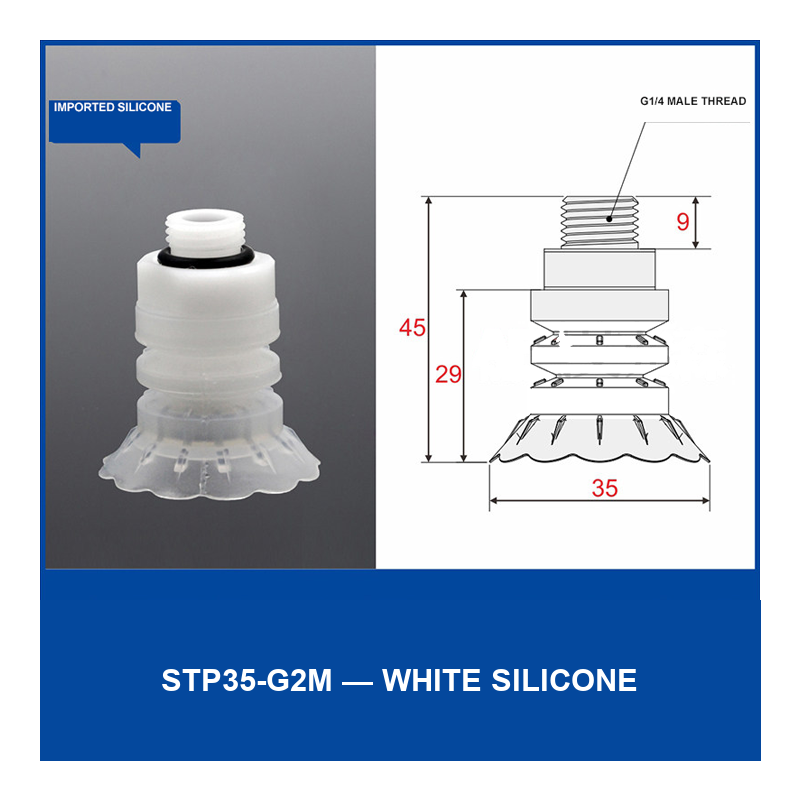

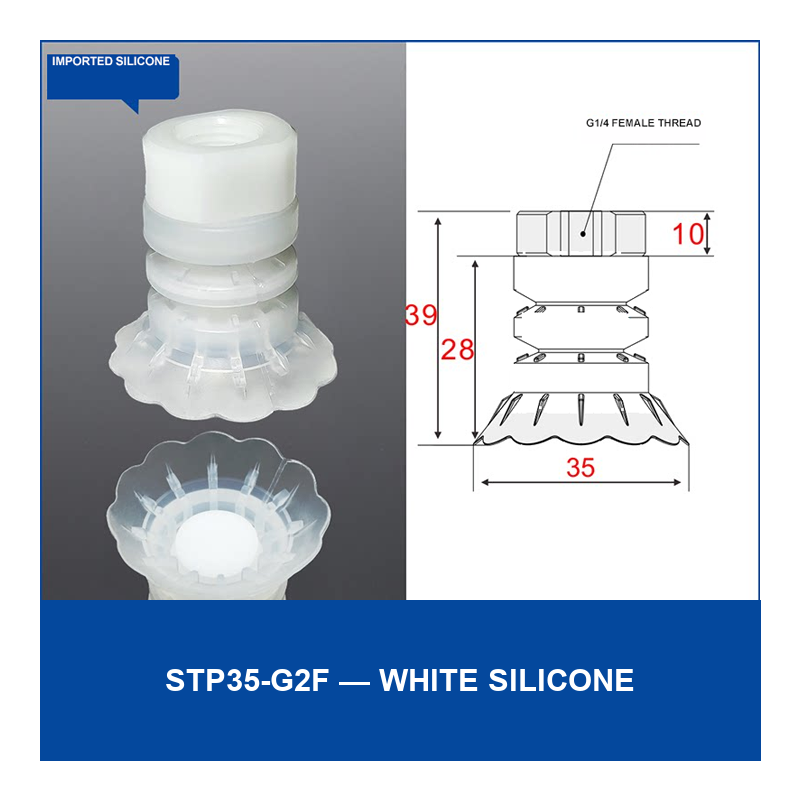

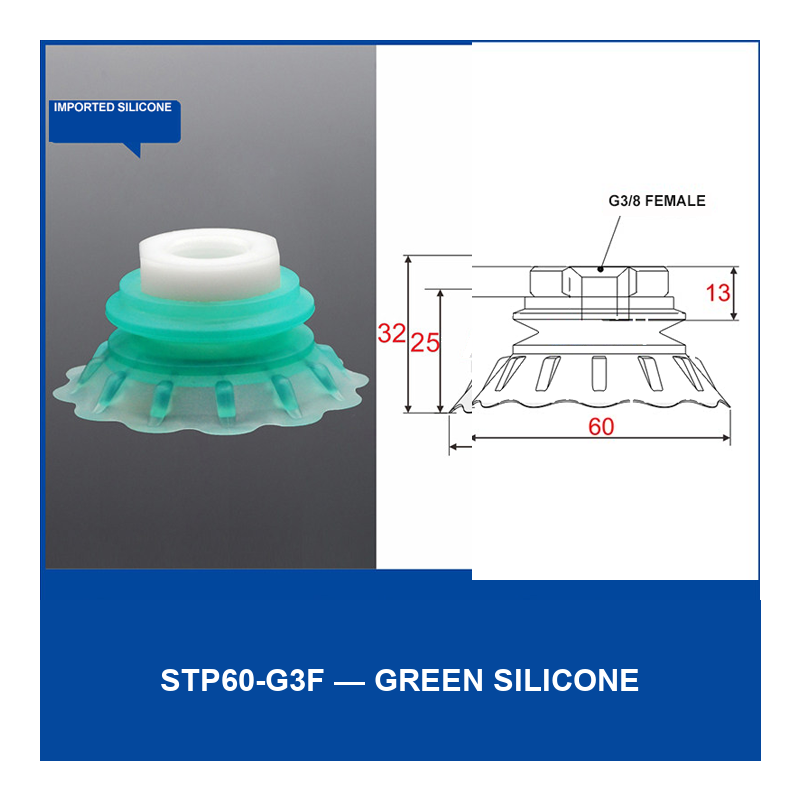

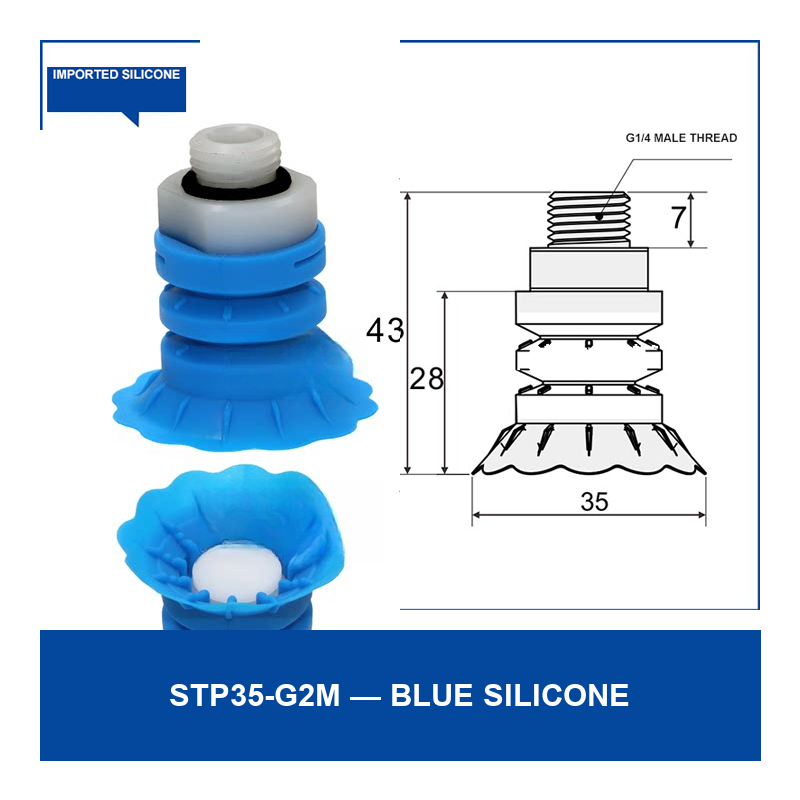

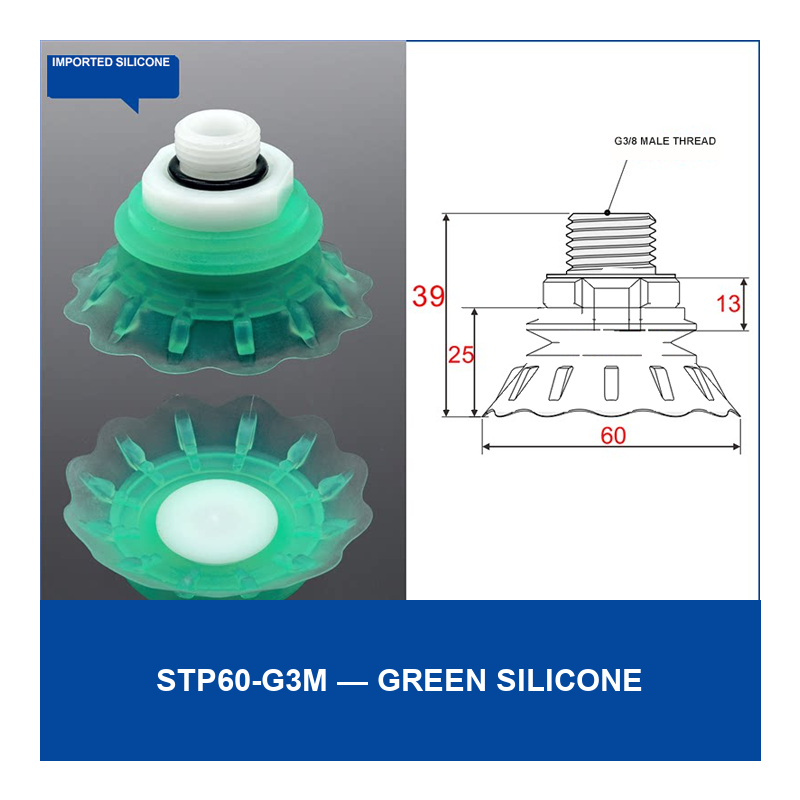

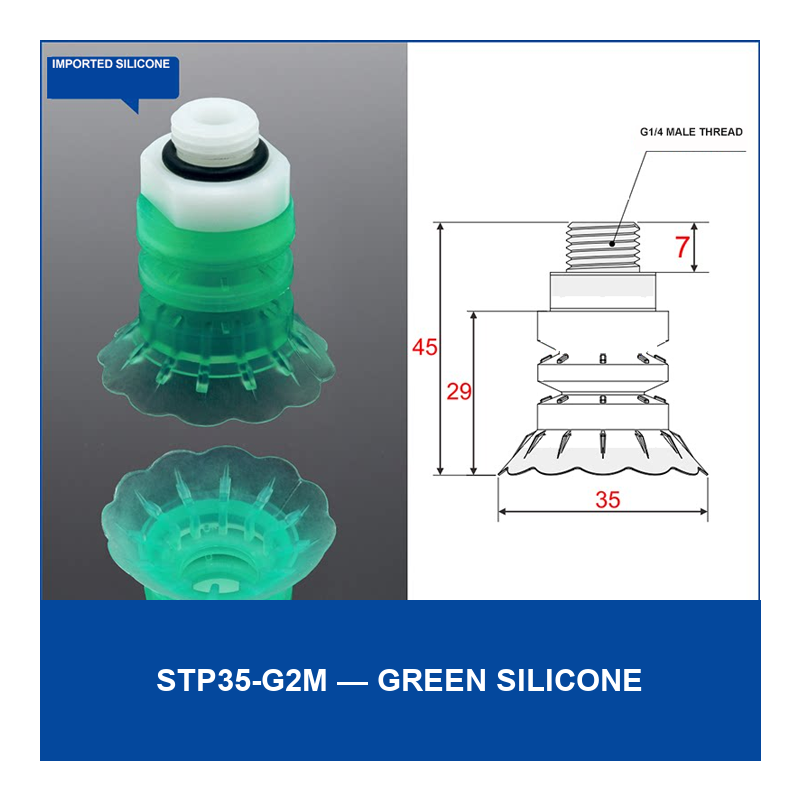

2. Select the mounting form: G2M/G3M and G2F/G3F identify the displayed male or female threaded configurations.

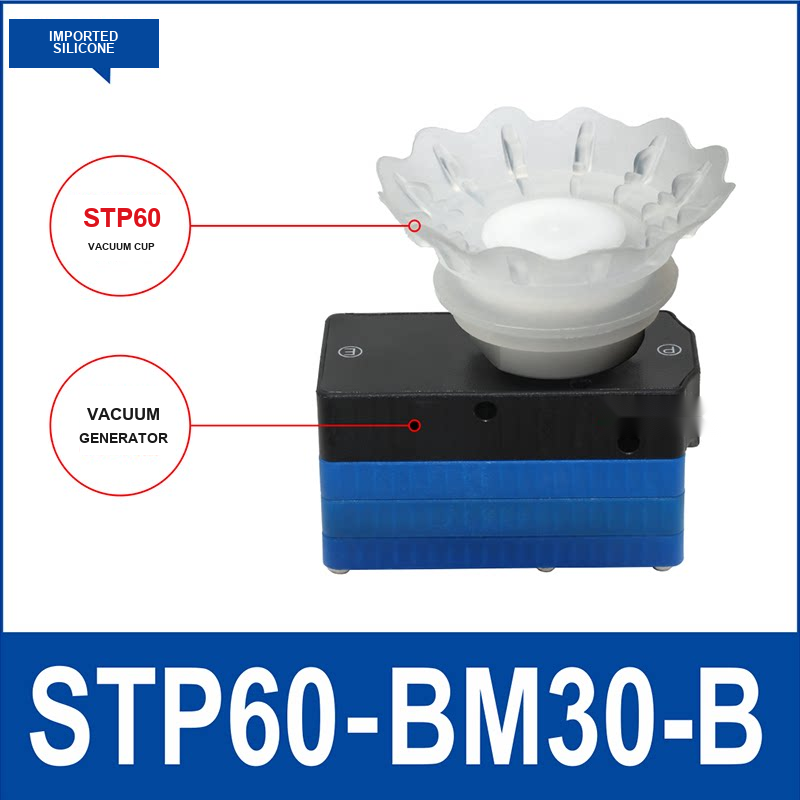

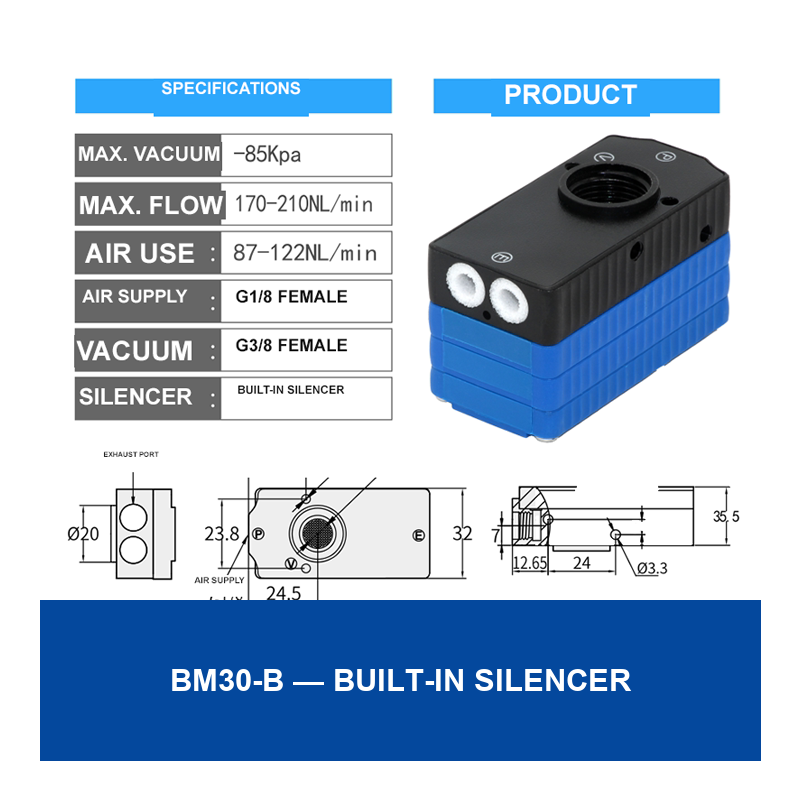

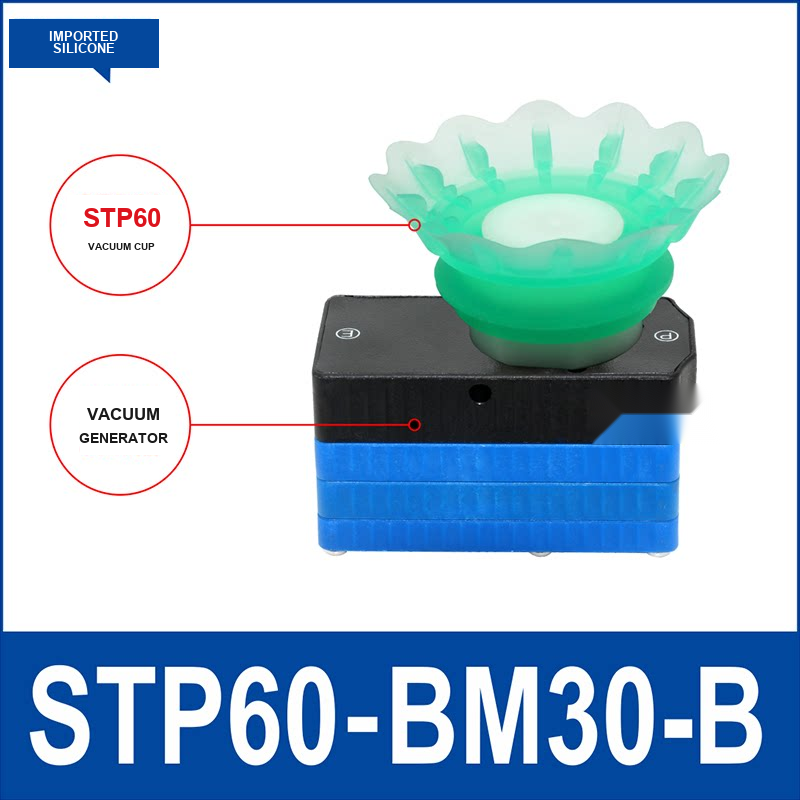

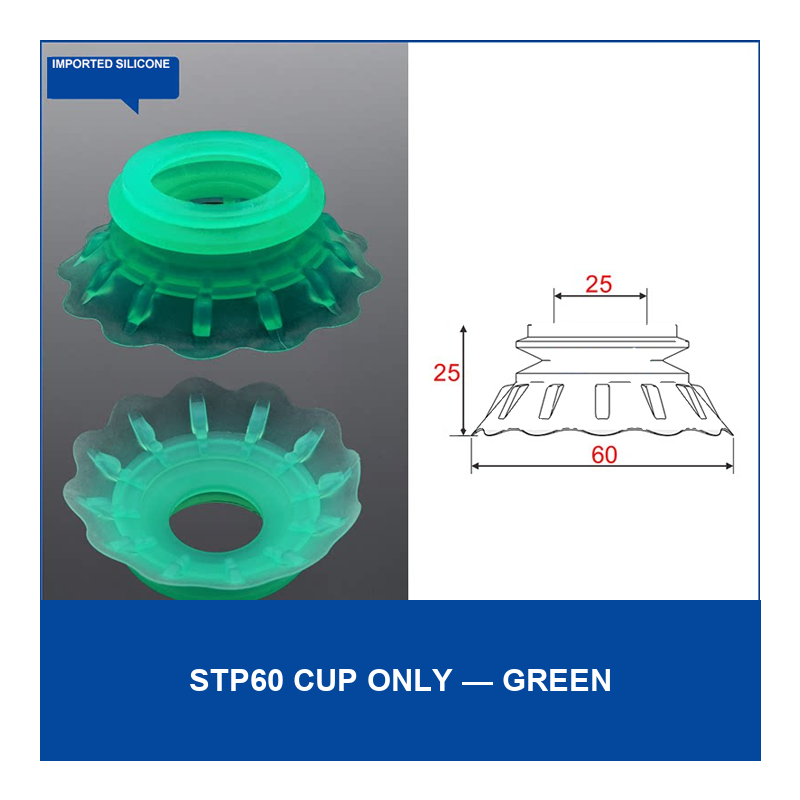

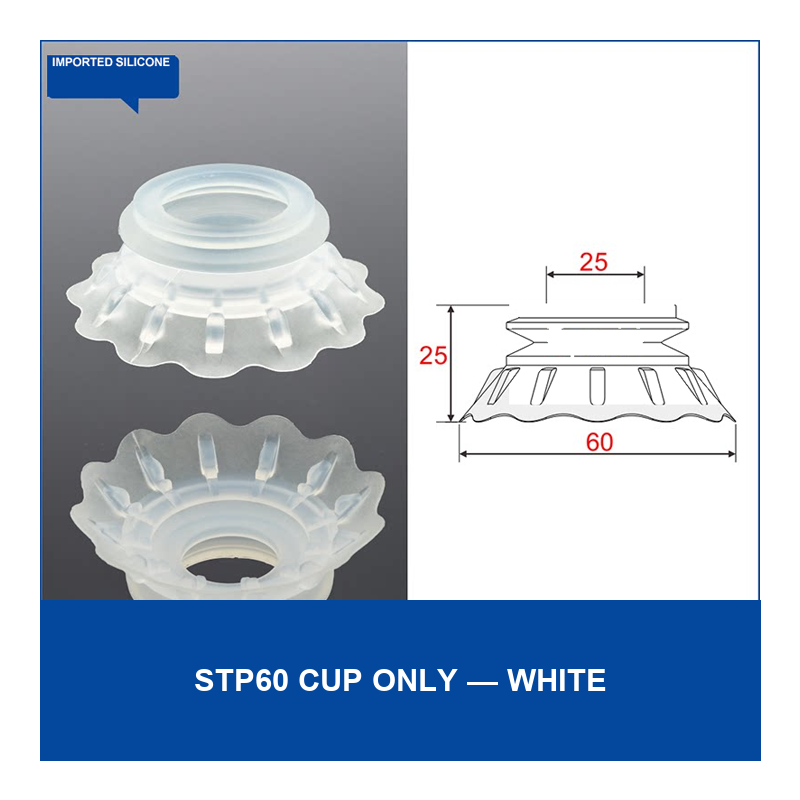

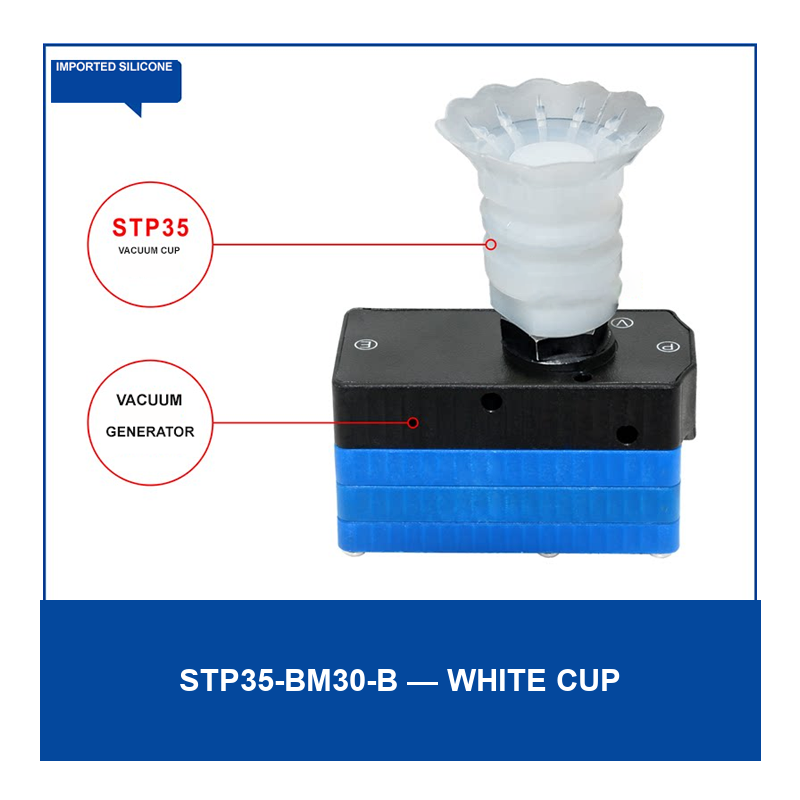

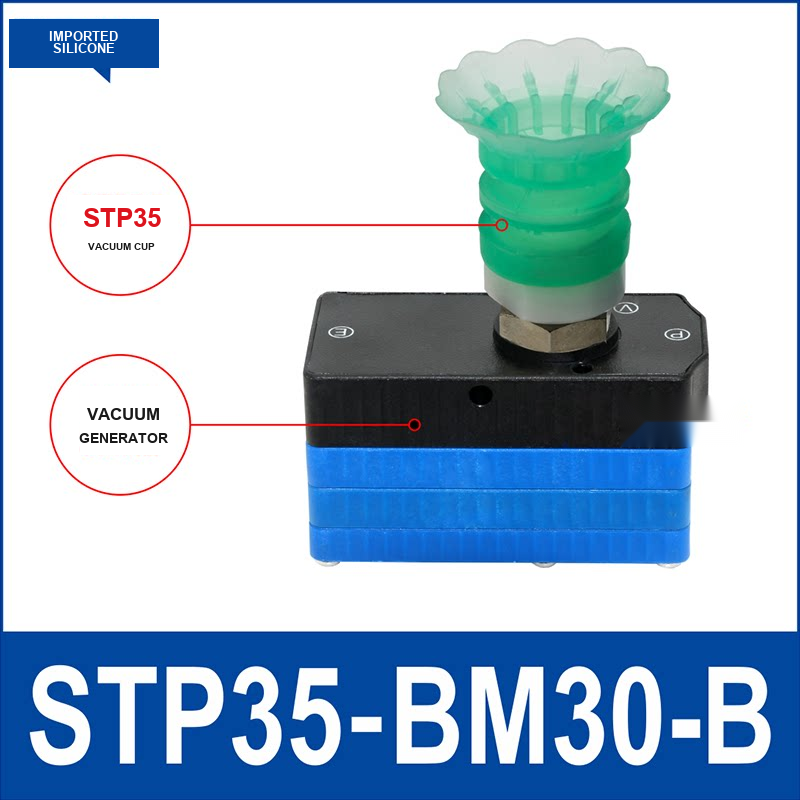

3. Select an assembly or component: choose a complete BM30-B assembly when a vacuum generator is required, or select a cup-only / silencer item for a compatible replacement.
4. Confirm before ordering: verify the complete model, drawing, thread, cup material, connection and installed dimensions shown for the selected option.

Suitable for

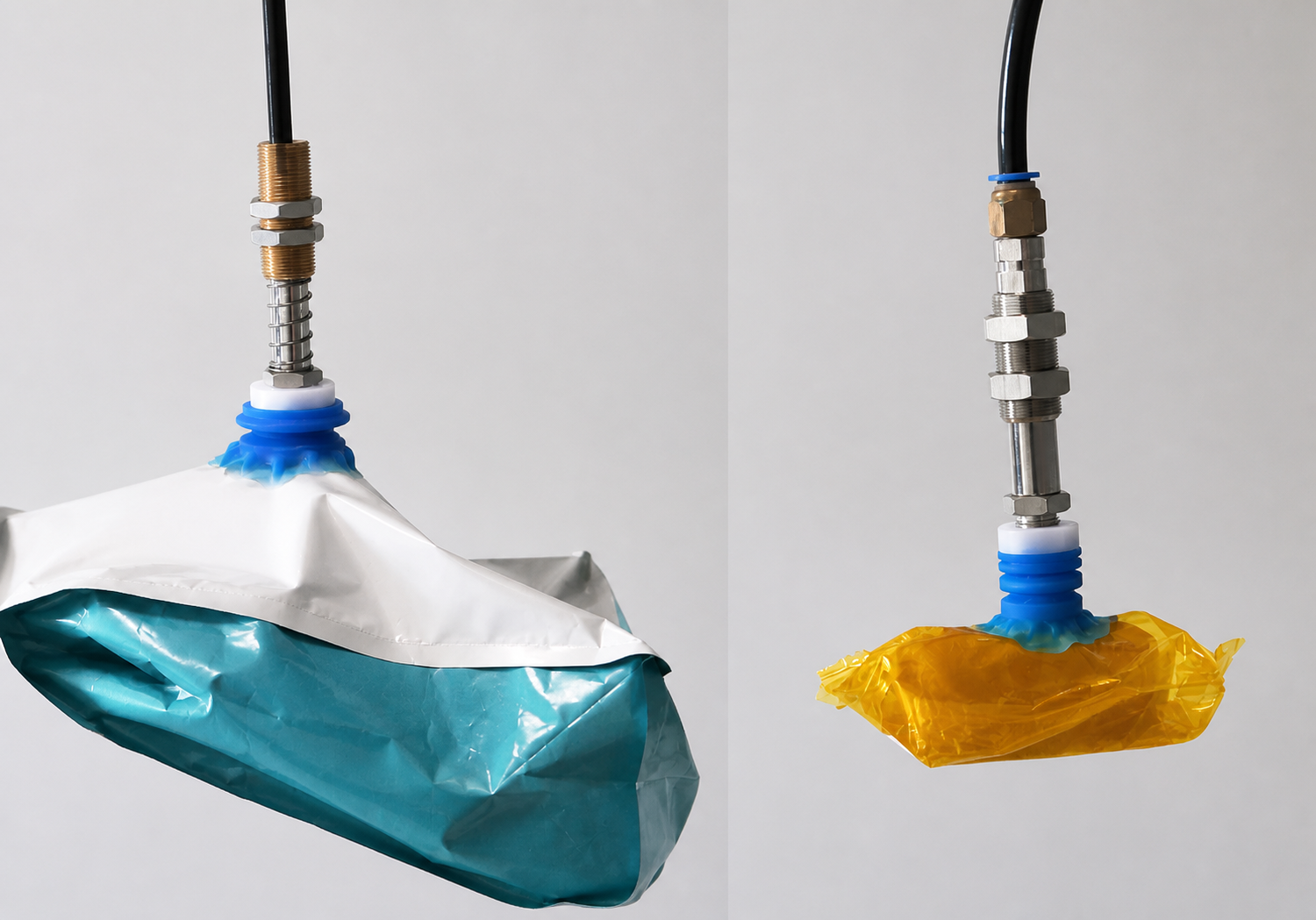

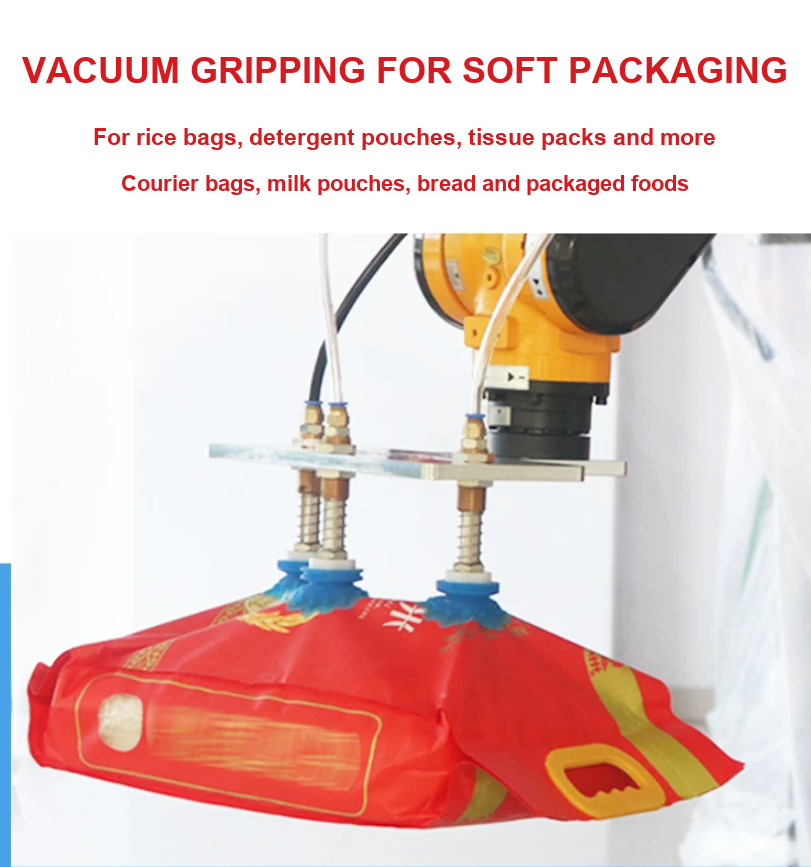

• Bag opening and flexible-packaging automation
• Industrial pick-and-place and robotic end-effectors
• Replacement of compatible vacuum cups, generator assemblies and silencers

Before use

Confirm the selected model, drawing, cup material, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.

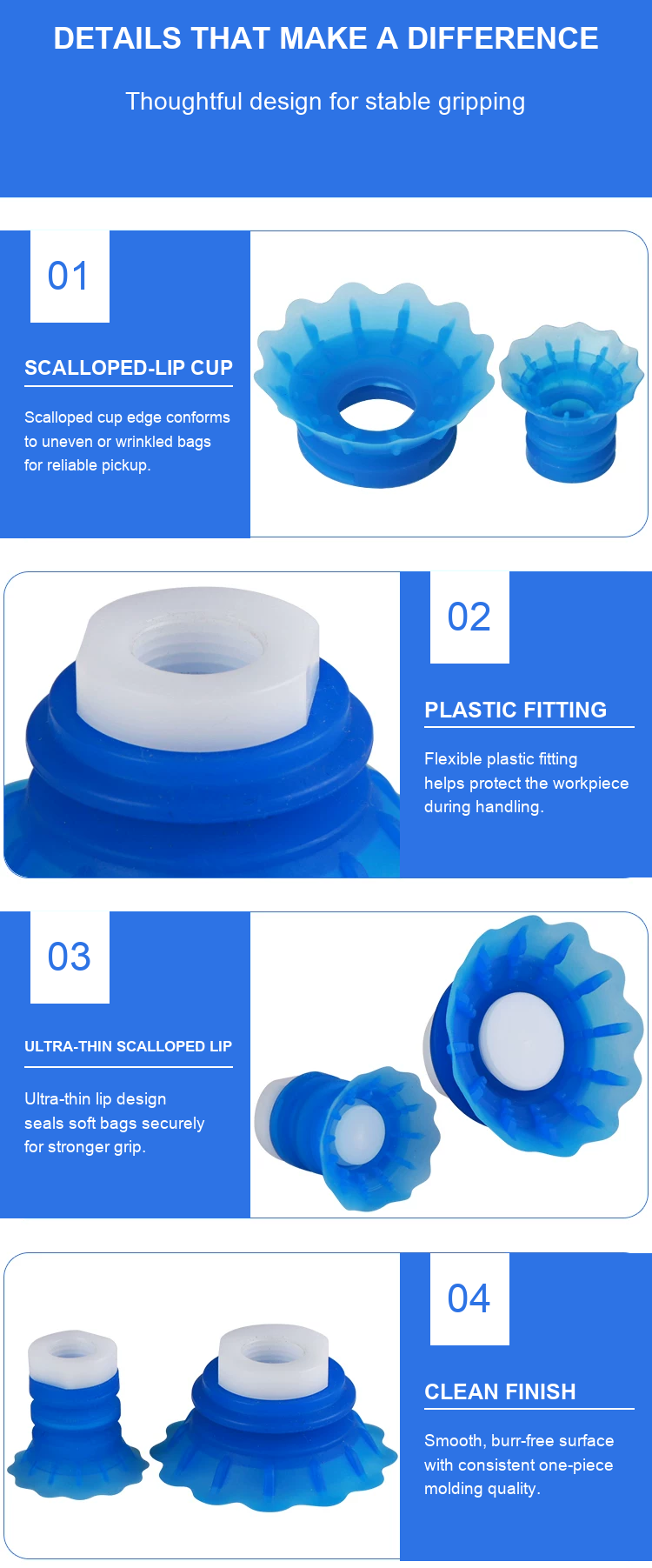

STP35/STP60 Application and Product Details
