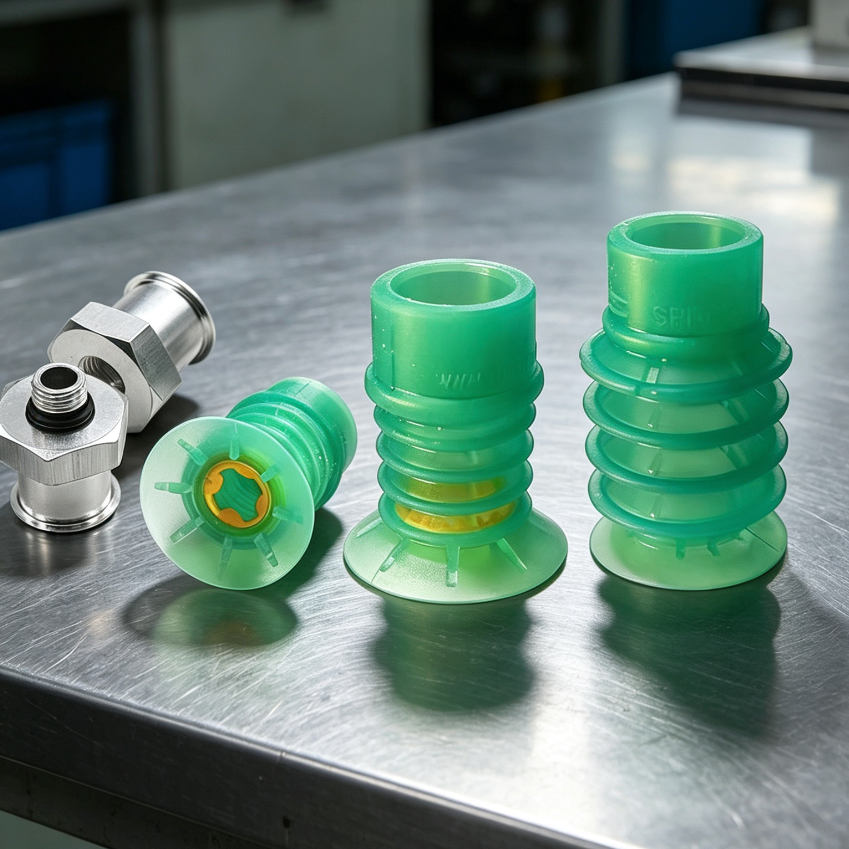

SPB4 30 SI-55 Silicone Vacuum Suction Cups
$140.00 USD
SPB4 30 SI-55 Silicone Vacuum Suction Cups
Quantity
SPB4 30 SI-55 Silicone Vacuum Suction Cups
Wear-resistant silicone vacuum suction cups for automated carton handling and packaging applications.
- Two matching SPB4 models are available.
- Model images show dimensions and technical drawings.
- Select a model to view its corresponding product image.
Applications and Suitable Workpieces
SPB4 30 SI-55 Silicone Vacuum Suction Cups: These packaging cups are intended for carton, cardboard and rigid-package handling where surface porosity, panel flex and height variation must be accommodated.
Recommended applications
- Corrugated boxes, carton blanks, trays, rigid packaging and cardboard sheets.
- Carton erecting, magazine feeding, case packing, palletizing, depalletizing and top- or side-loading machines.
- Flat, curved or slightly uneven package panels requiring short cycle times and reliable level compensation.
Model and selection notes

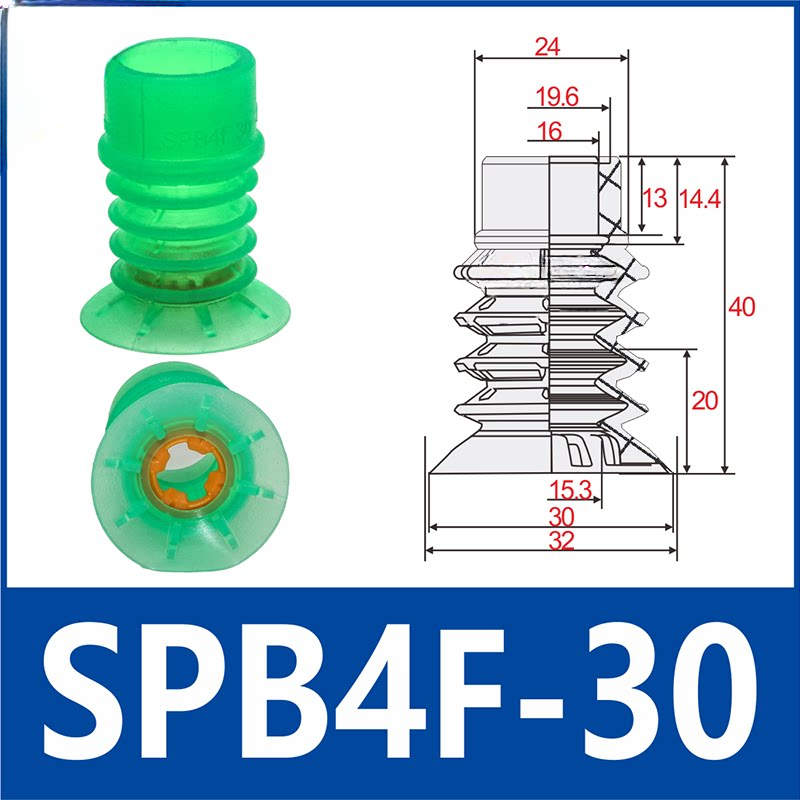

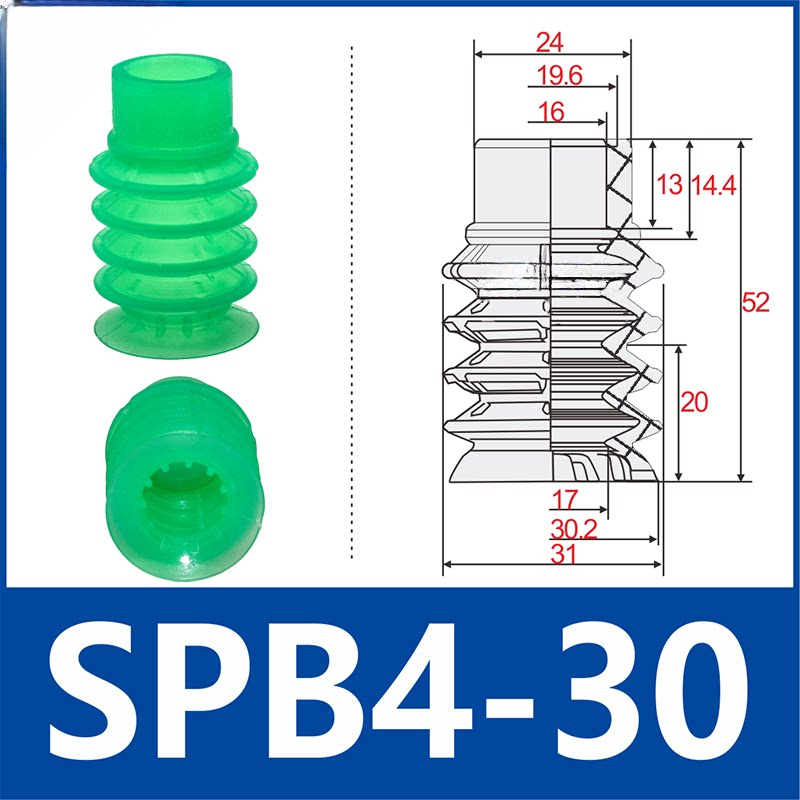

- SPB4 30 and SPB4F 30 are different 30 mm profiles; confirm the exact SC080 drawing before replacement.
- Bellows models provide additional stroke for curved or height-varying panels; flatter models give more stable positioning on rigid surfaces.
- Polyurethane and wear-resistant compounds are preferred for repeated high-cycle contact with abrasive board.
- Porous cardboard can leak through the surface. Confirm vacuum flow, cup quantity, spacing and safety factor on the actual carton.
