BOLTTE BGX34, BGX41 and BGX48 Silicone Vacuum Cups and Threaded Assemblies

Blue silicone double-layer vacuum cups and threaded assemblies for compatible robotic handling, packaging and industrial automation equipment.

Quick Model Finder

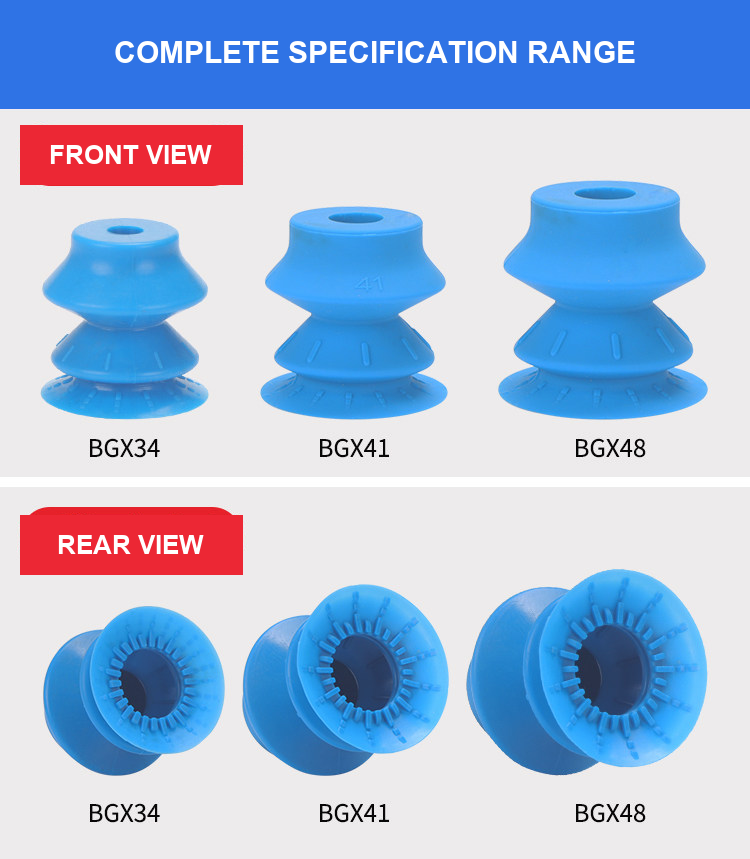

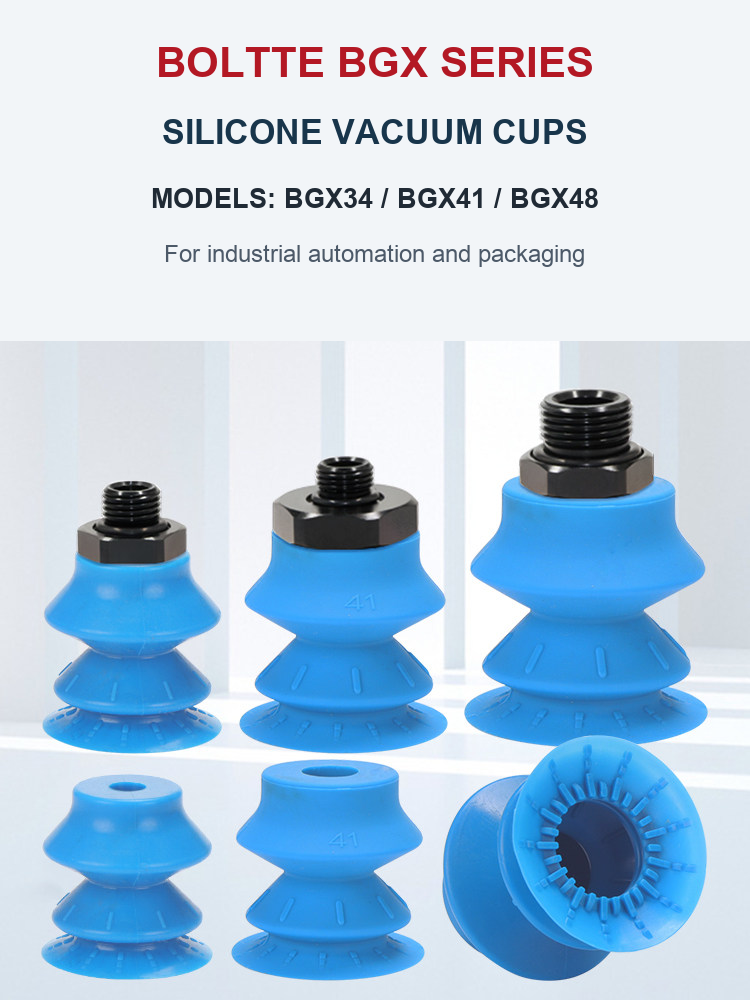

• BGX34, BGX41 and BGX48: cup diameters 34 mm, 41 mm and 48 mm.

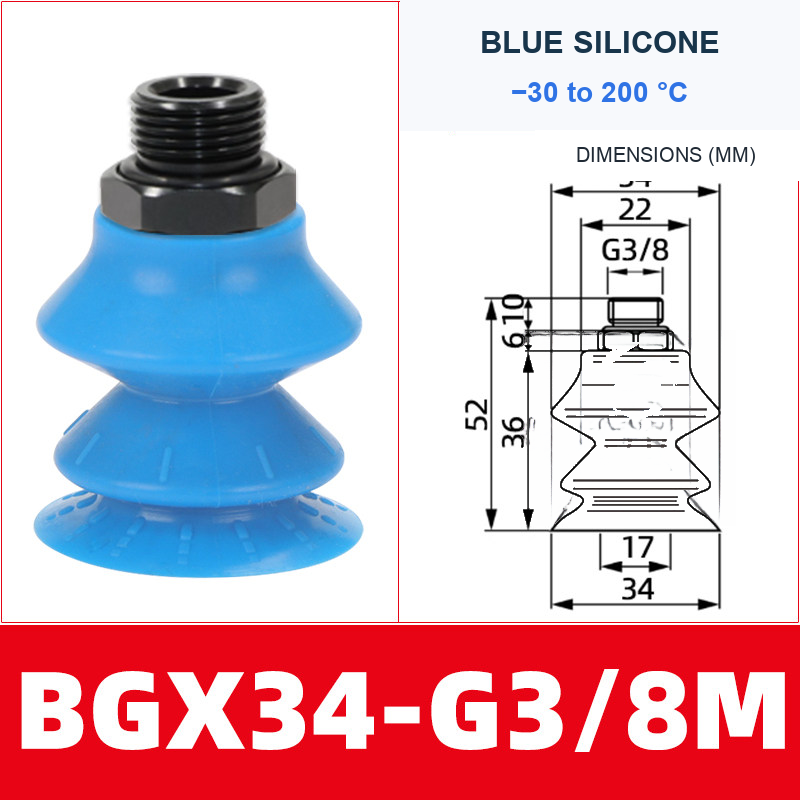

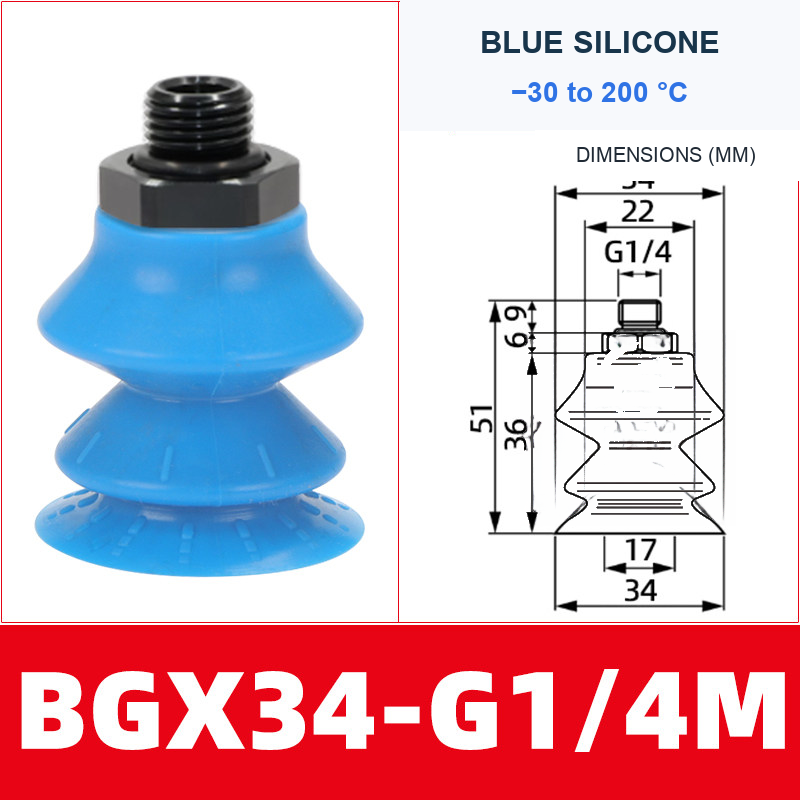

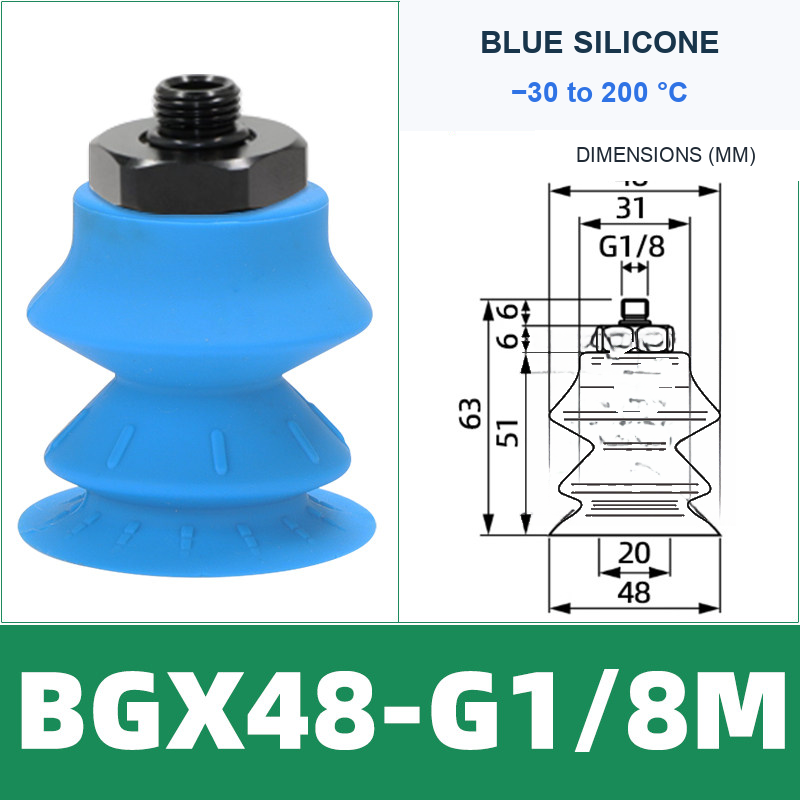

• G1/4M, G1/8M and G3/8M: threaded assembly options for the corresponding cup size.

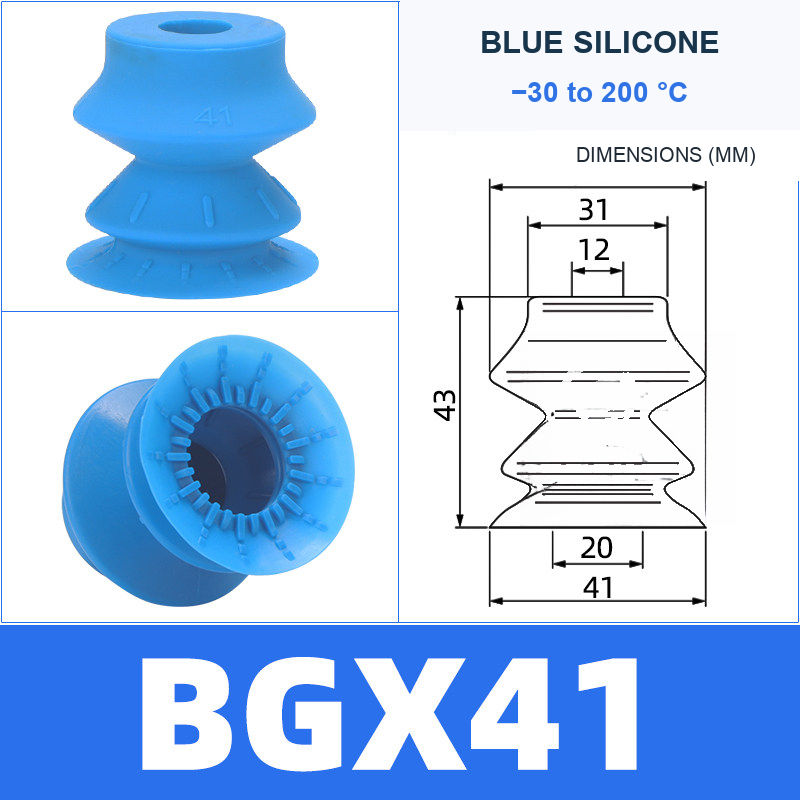

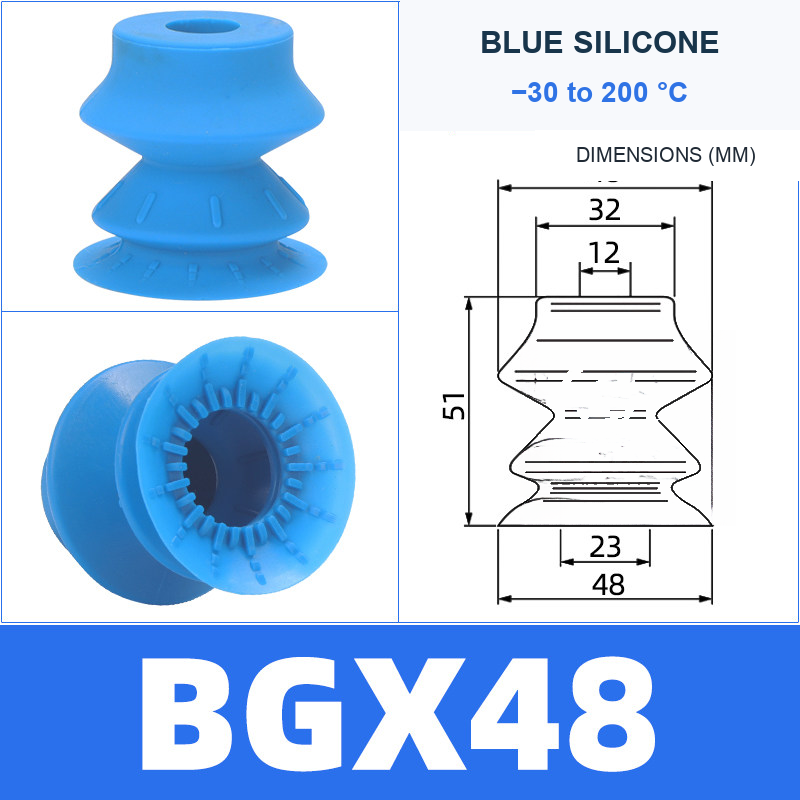

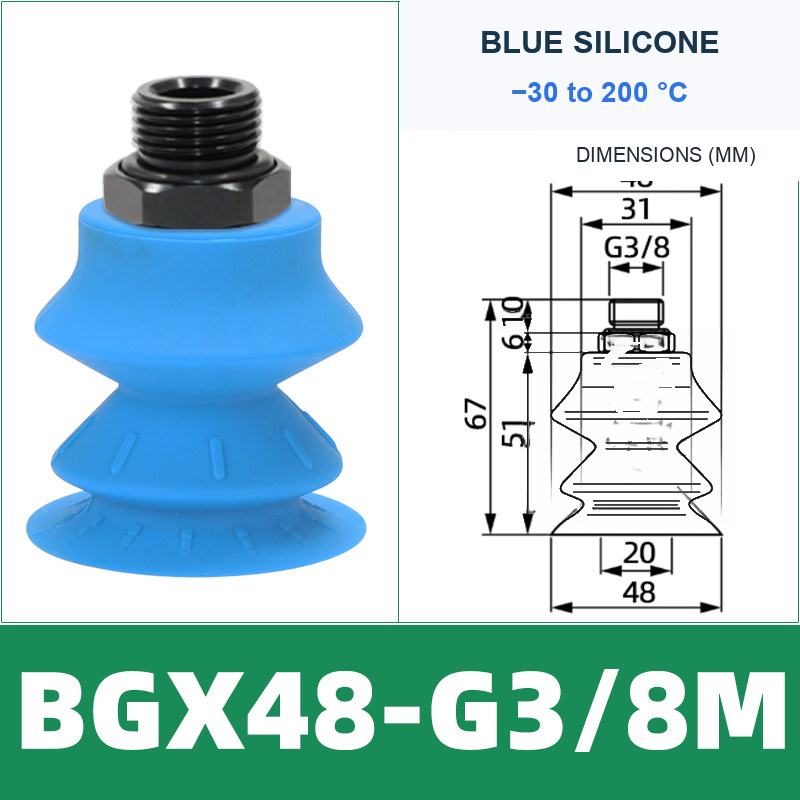

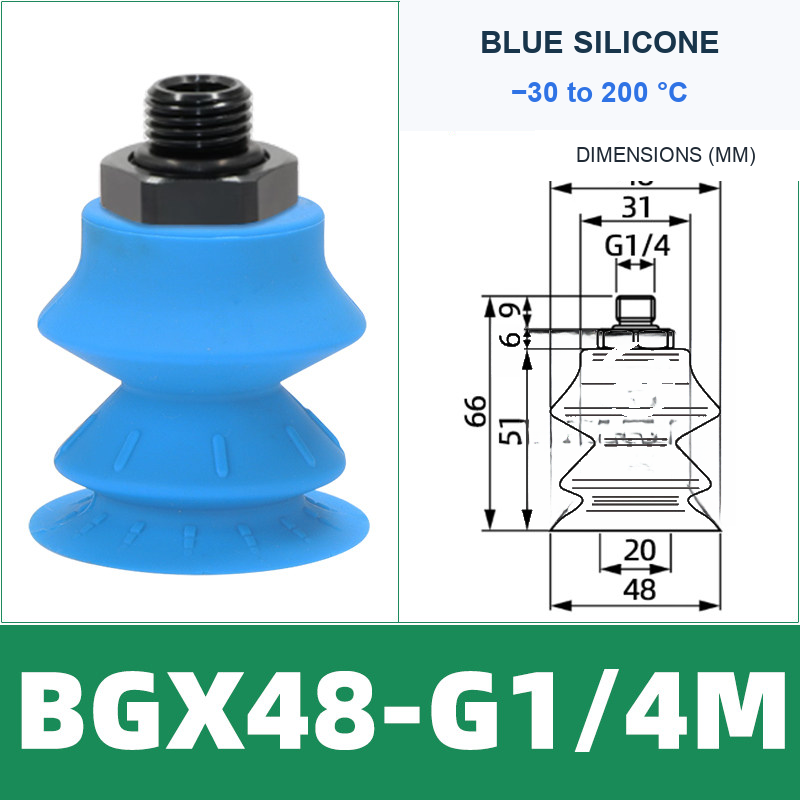

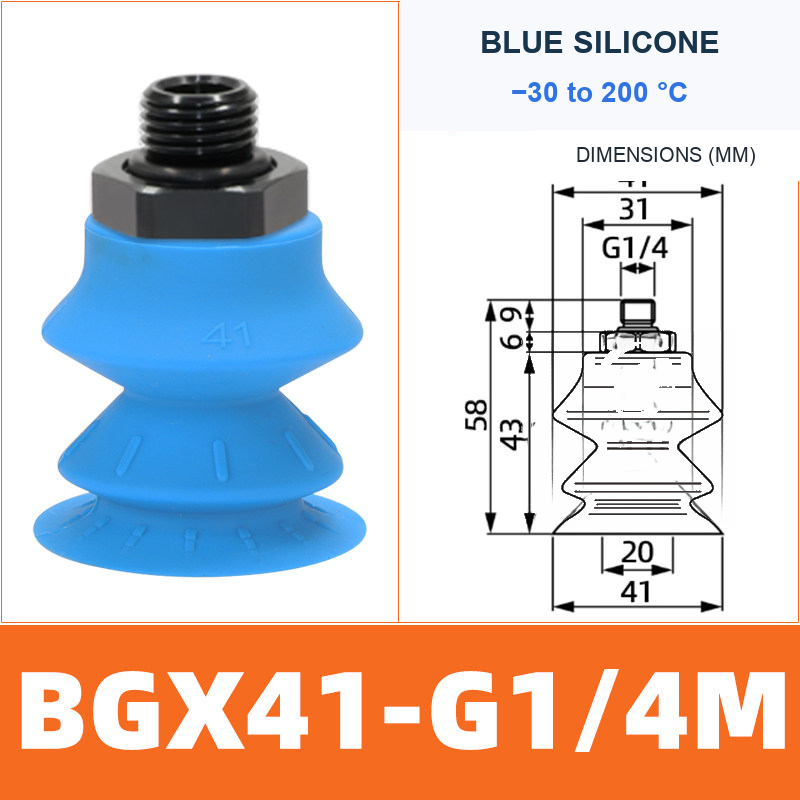

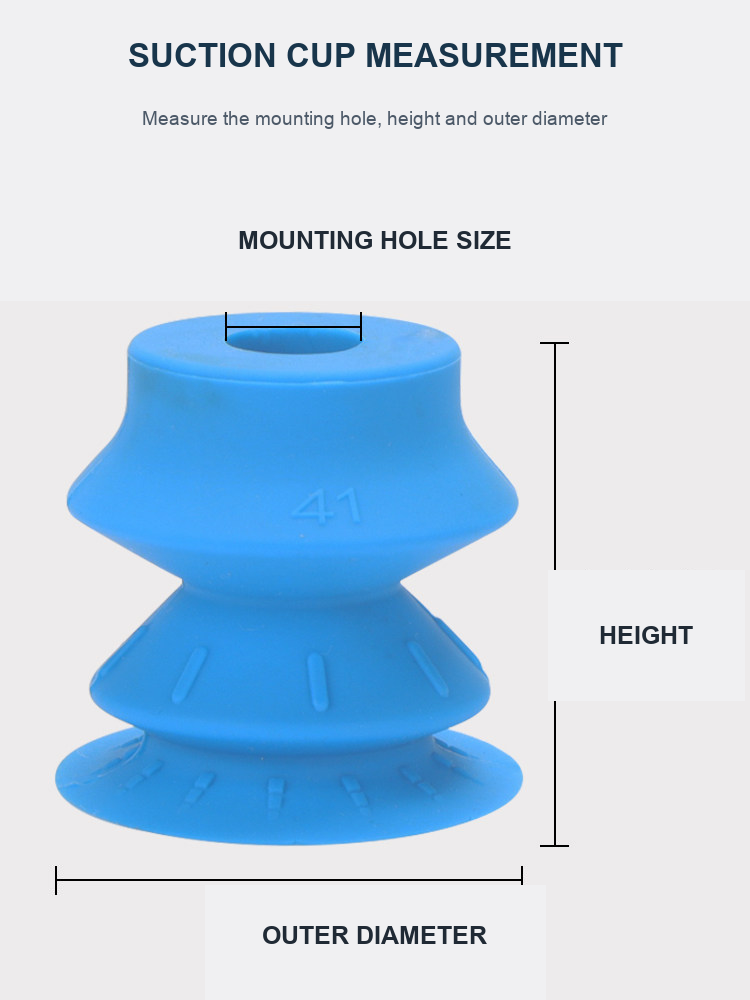

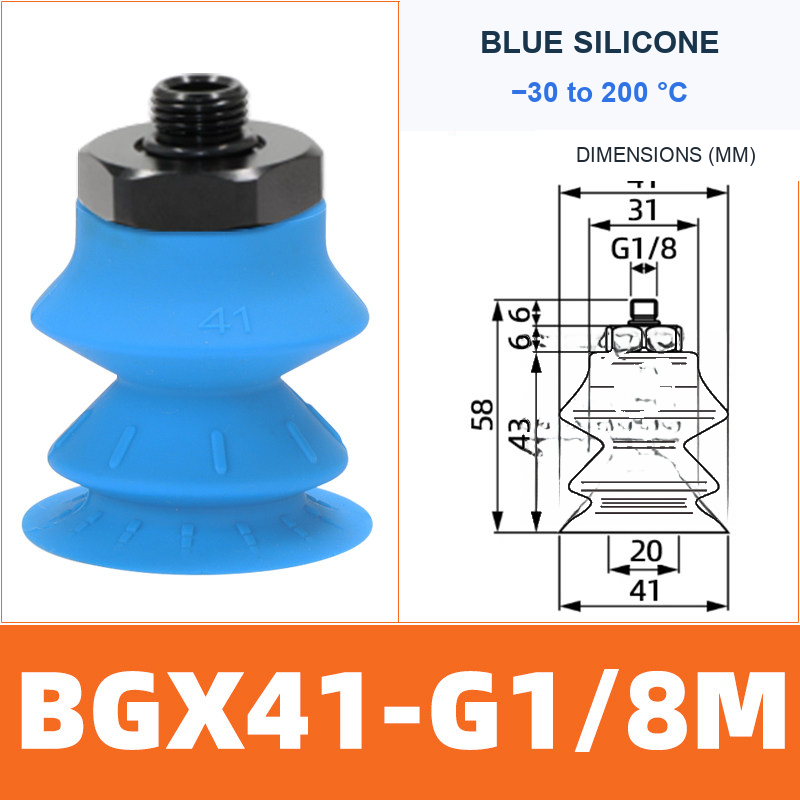

• Use the selected model drawing to confirm the cup diameter, opening, height and thread before installation.

Construction and Applications

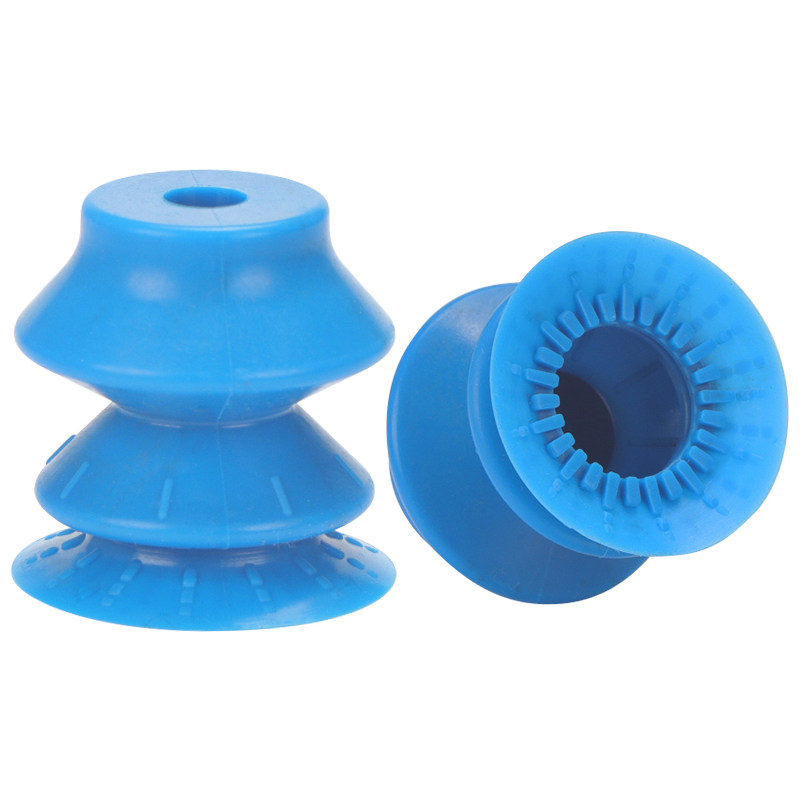

• Flexible blue silicone sealing body with a double-layer profile.

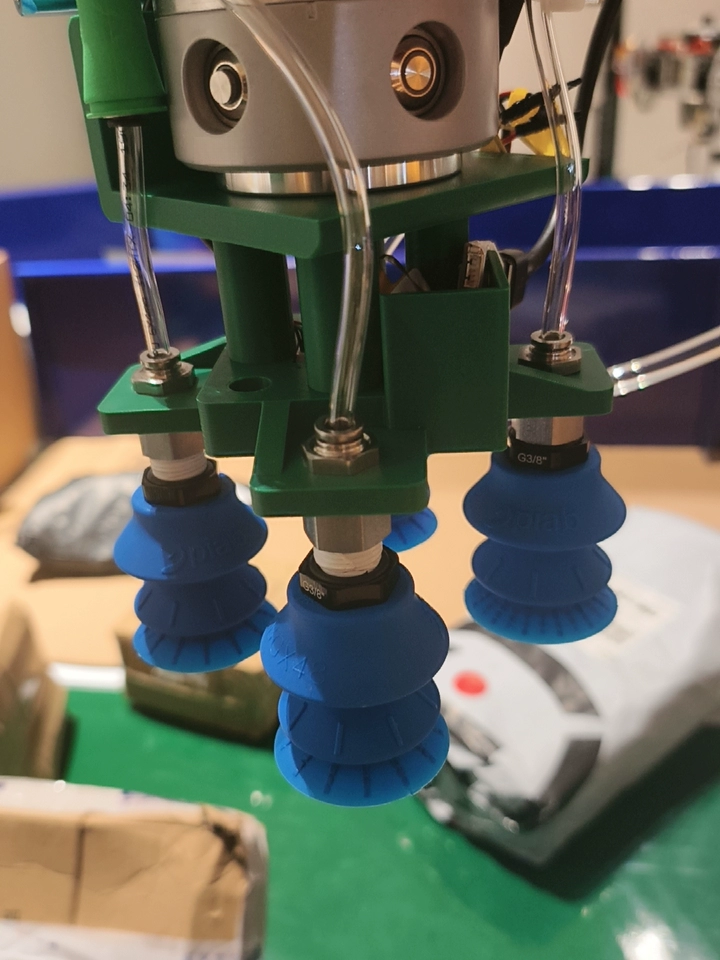

• Compatible with pneumatic vacuum handling and robotic pick-and-place equipment.
• Suitable for compatible packaging, logistics and material-handling surfaces.

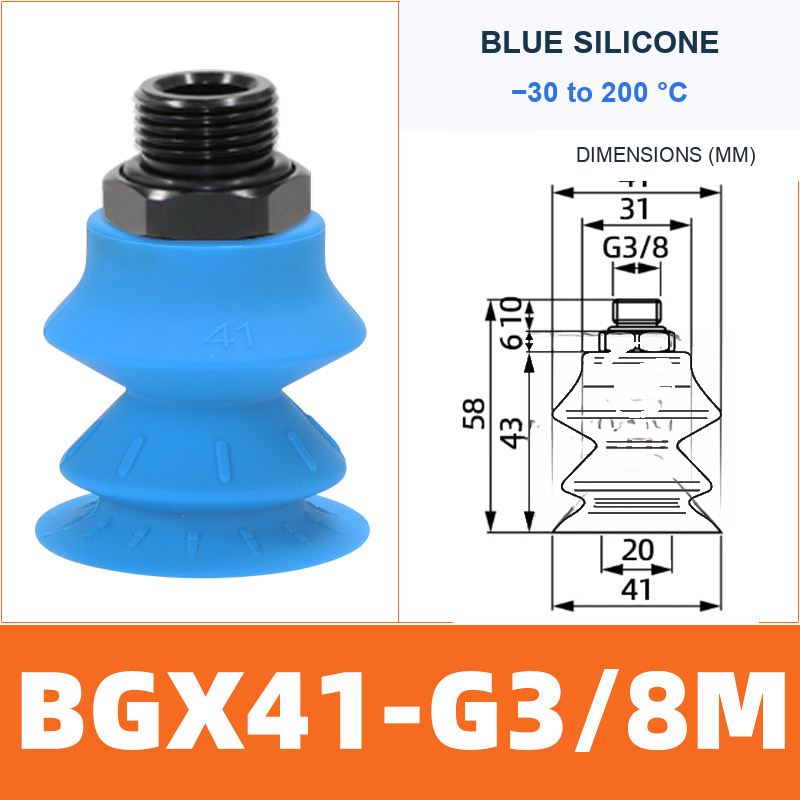

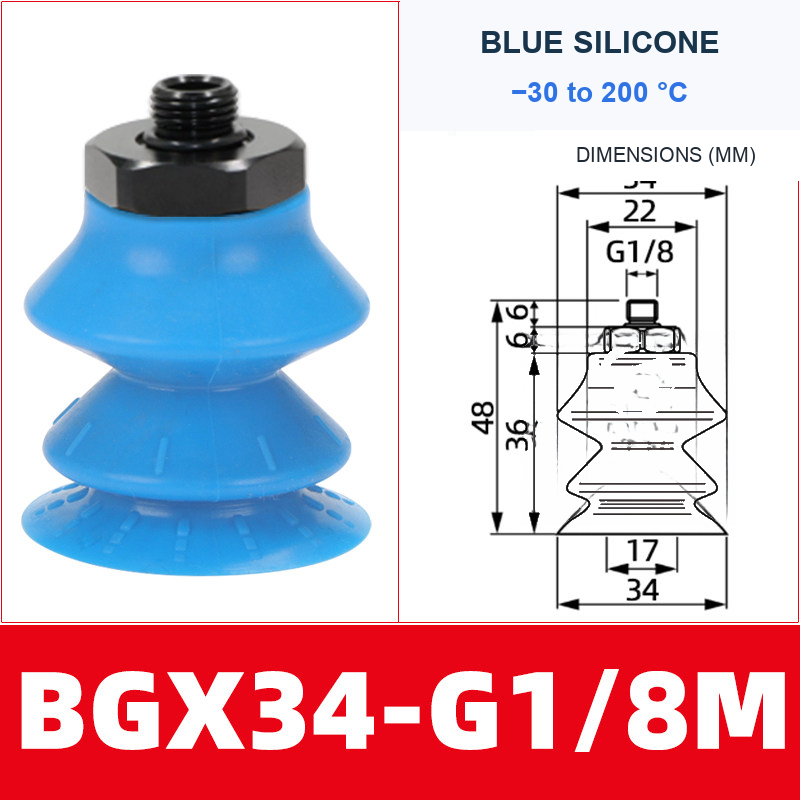

• Technical drawings show the model-specific dimensions and mounting interface.

Before Use

Confirm the selected model, cup diameter, opening, height, thread, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. Actual holding force depends on system conditions and the workpiece.
