FX55 FX77 Carton Palletizing Vacuum Suction Cups & Assemblies

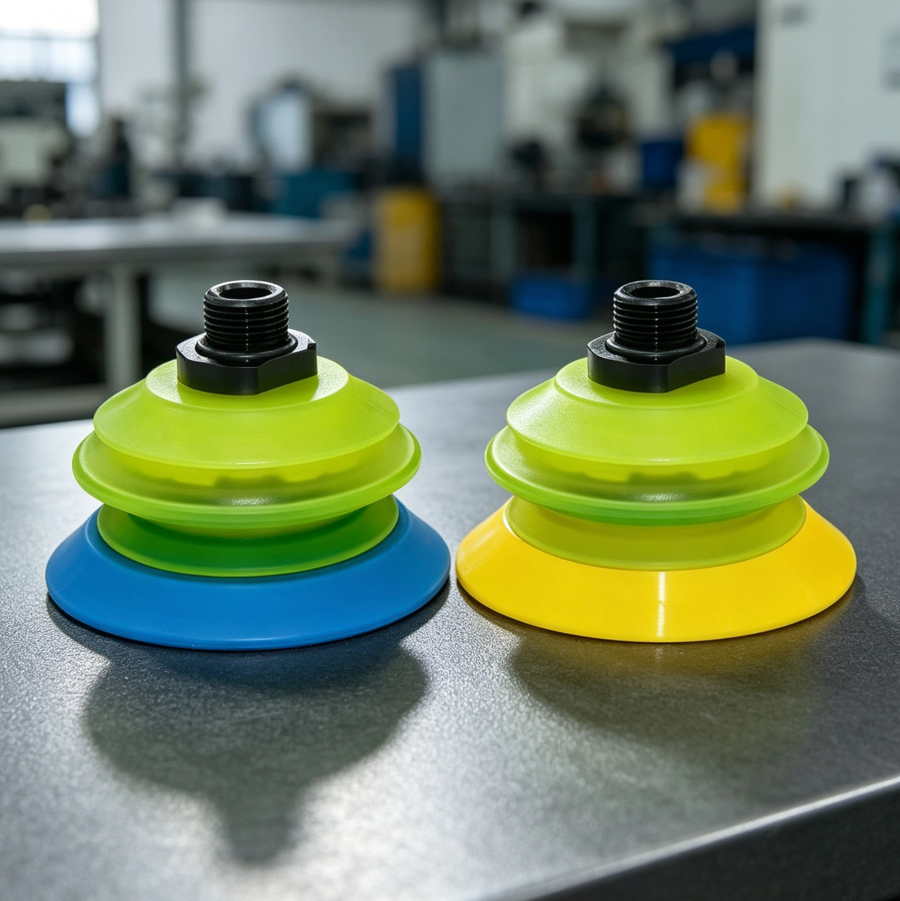

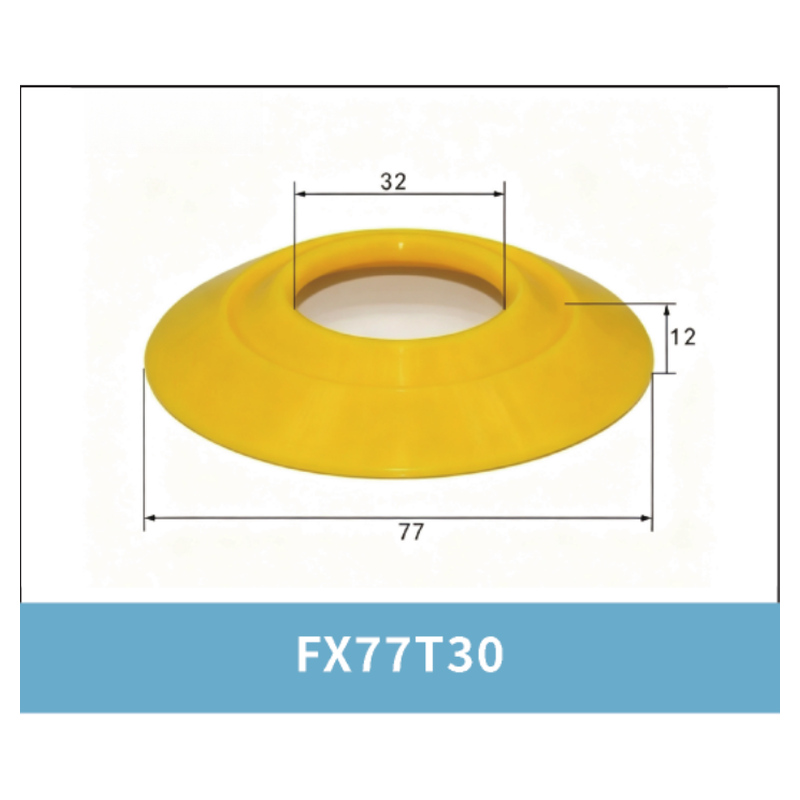

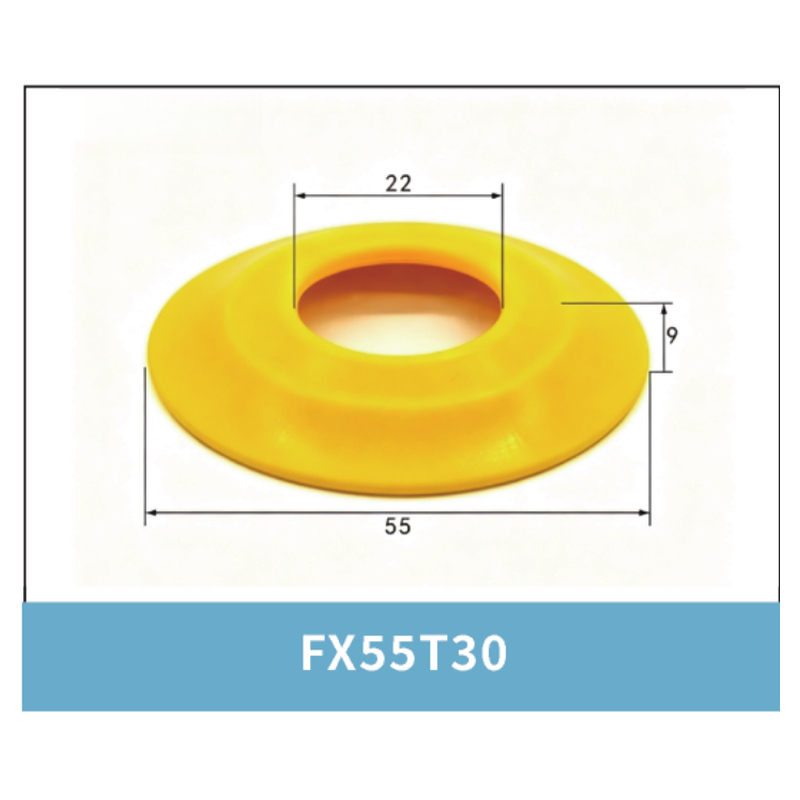

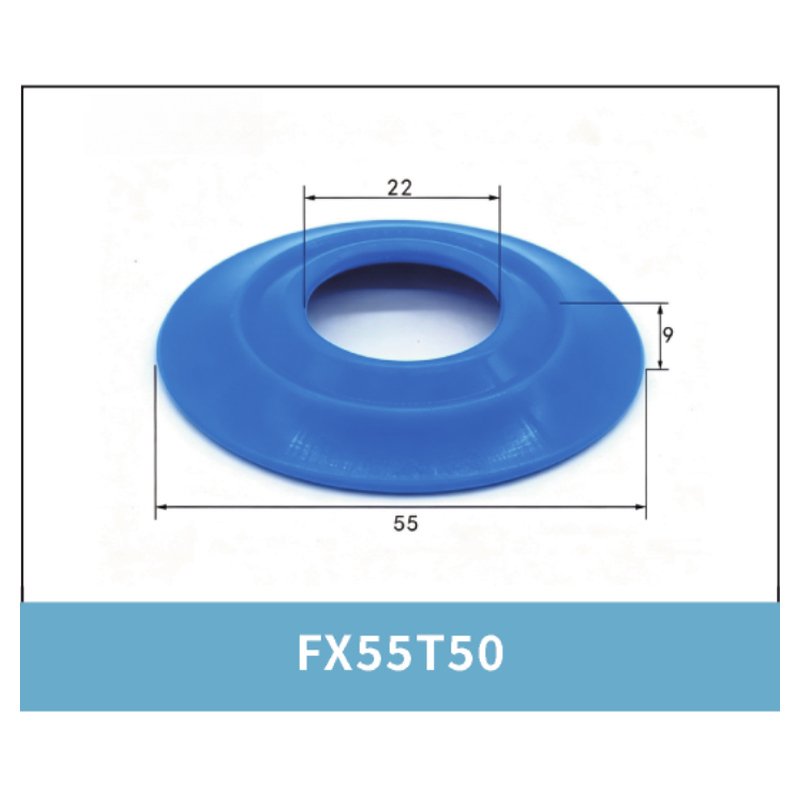

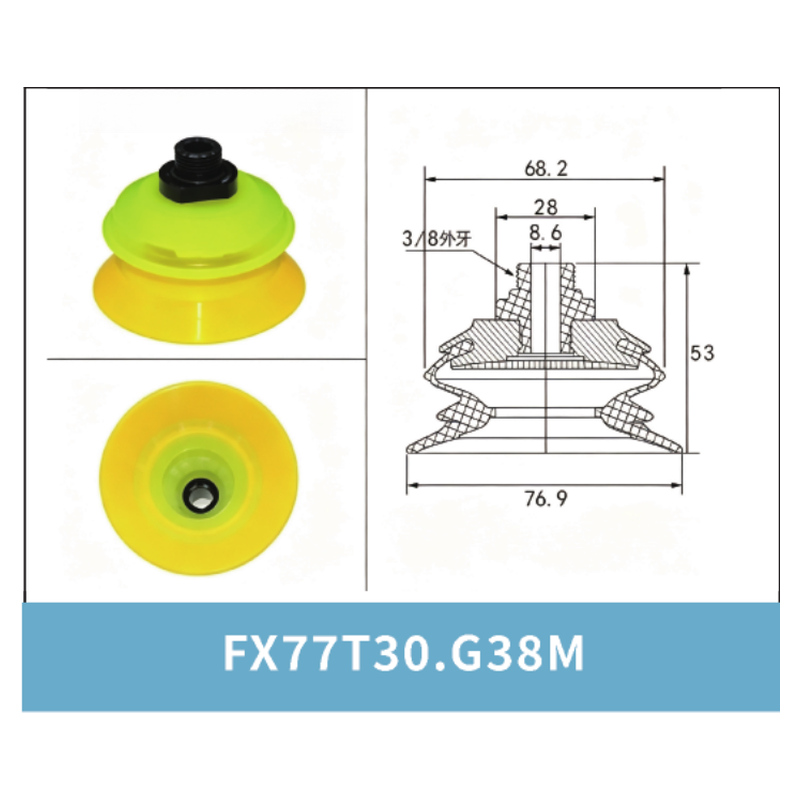

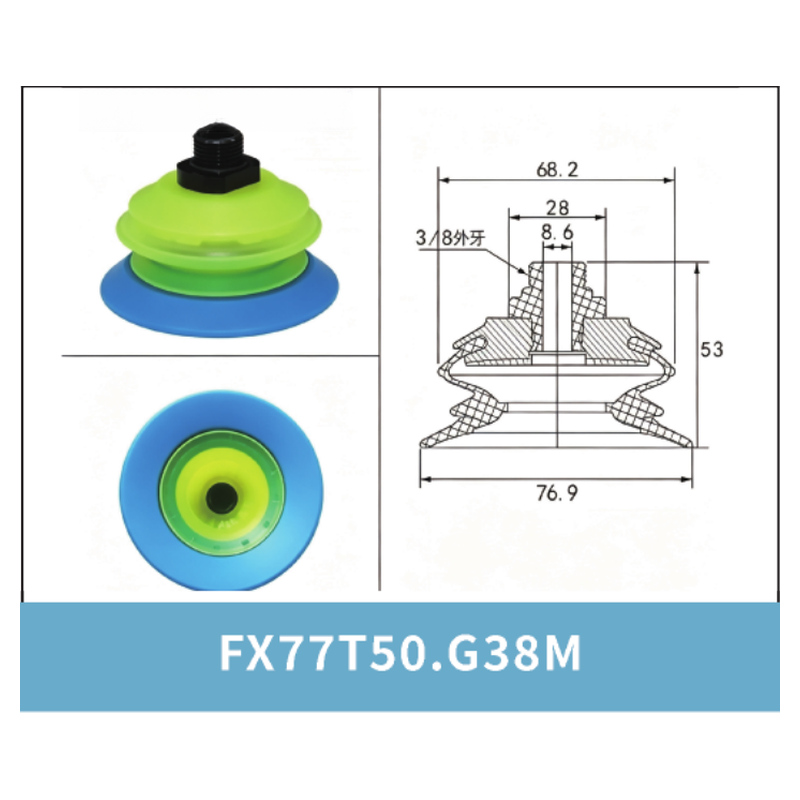

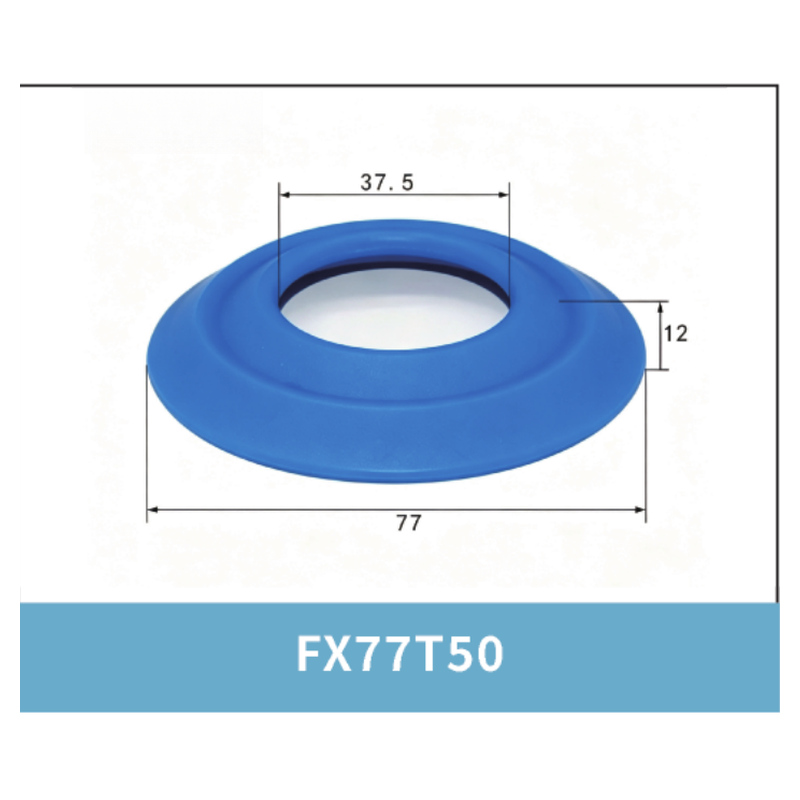

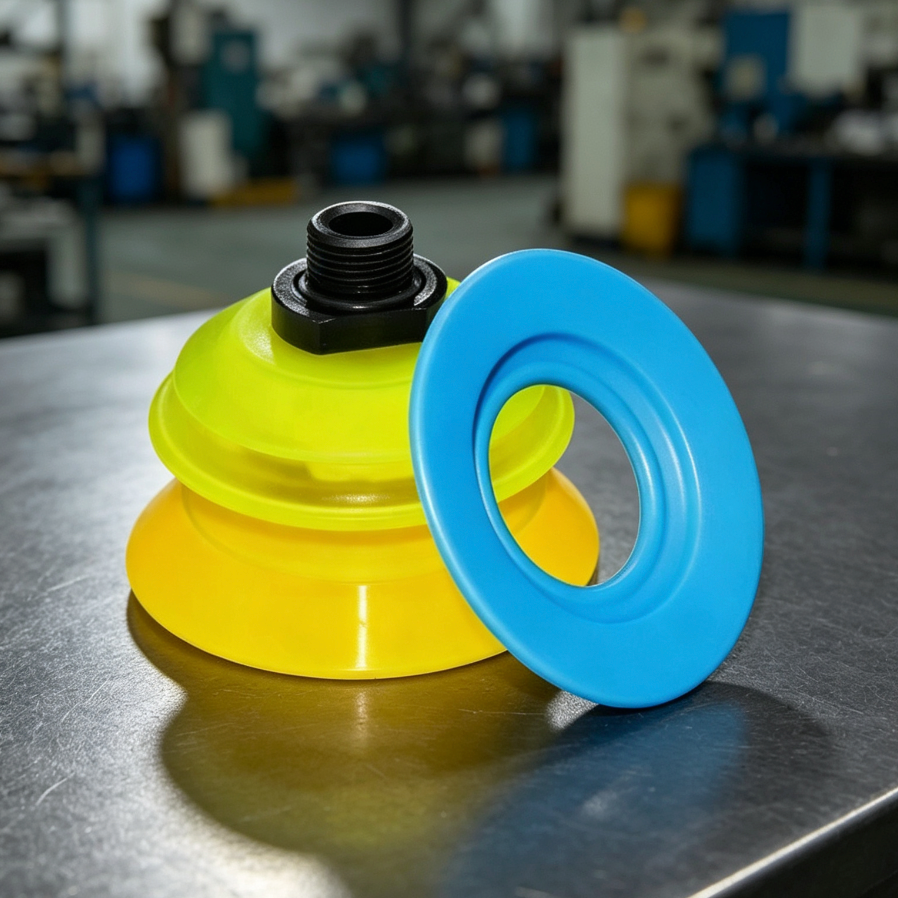

FX55/FX77: Lip-Only and G3/8 Assembly Options

Choose the required supply form before selecting the T30 or T50 version. The current selector has four cup-lip options and two FX77 assembly options; an assembly is not listed for every lip model.

T30 and T50 are distinct version labels. Confirm the compound, hardness test method and performance data for the exact selected version. For palletizing, verify board porosity, pickup position, cup spacing and the complete system on the real carton.

Does selecting FX55 include a G3/8 assembly?

No FX55 G3/8 assembly appears in the current selector. The FX55 options are labelled Cup Lip Only; the listed assemblies are FX77 models.

Compare Related Product Families

These links are for comparison, not a confirmed interchangeability or fit list. Verify the complete model and drawing.

• Compare SPB4/SPB4F 30 SI-55 carton-handling profiles
• Compare BG soft-bag cups for deformable packages

Applications and Suitable Workpieces

FX55 FX77 Carton Palletizing Vacuum Suction Cups & Assemblies: These packaging cups are intended for carton, cardboard and rigid-package handling where surface porosity, panel flex and height variation must be accommodated.

Recommended applications

• Corrugated boxes, carton blanks, trays, rigid packaging and cardboard sheets.
• Carton erecting, magazine feeding, case packing, palletizing, depalletizing and top- or side-loading machines.
• Flat, curved or slightly uneven package panels requiring short cycle times and reliable level compensation.

Model and selection notes

• FX55 and FX77 identify cup size; T30 and T50 identify the listed material/hardness version. Cup-lip-only and G3/8 assembly variants are separate.
• Bellows models provide additional stroke for curved or height-varying panels; flatter models give more stable positioning on rigid surfaces.
• Confirm the selected T30 or T50 version against its material documentation and drawing. The version label alone does not establish a compound or a performance rating.
• Porous cardboard can leak through the surface. Confirm vacuum flow, cup quantity, spacing and safety factor on the actual carton.
