SBS Series Spherical Silicone Vacuum Suction Cups

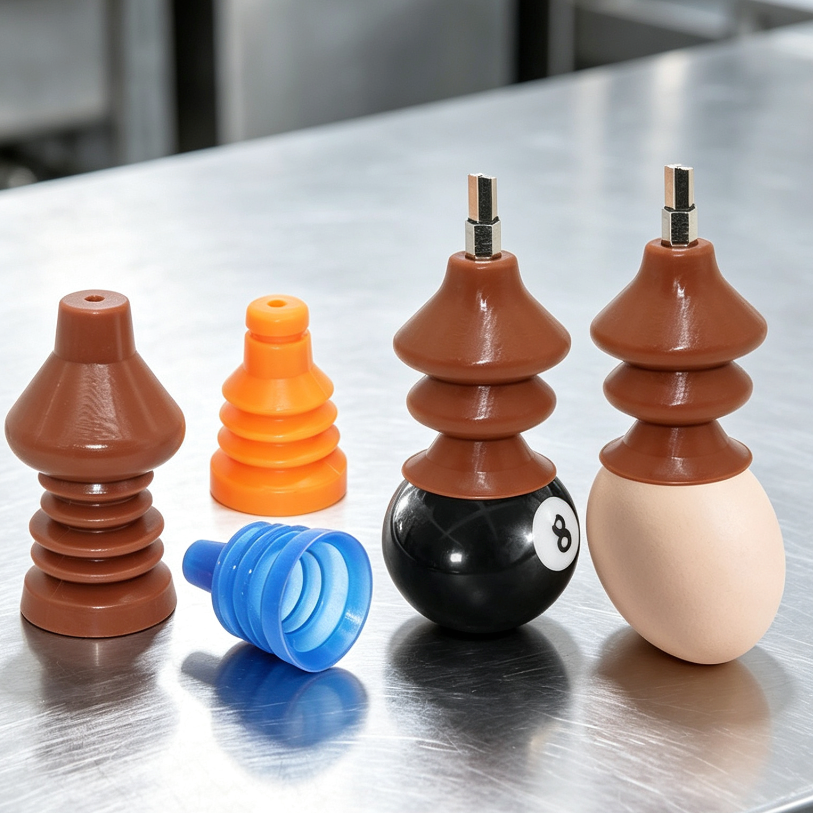

Spherical-profile silicone vacuum cups for gentle automated handling of eggs and other compatible curved or delicate workpieces.
- SBS30, SBS36, SBS32 Orange, SBS32 Blue and SBS37-6 models
- Flexible silicone construction for compatible curved surfaces
- Specified operating-temperature range: -30 to 200°C
- Model images show the product colour and technical dimensions
Choosing an SBS cup for a curved workpiece
SBS30, SBS36, SBS32 Orange, SBS32 Blue and SBS37-6 are distinct selectable models. Compare the drawing with the actual curved contact area rather than choosing by colour or model number alone.
| Selection detail | What to check |
|---|---|
| SBS32 Orange and SBS32 Blue | Keep the selected colour/model label with the order; verify the relevant drawing. |
| Egg or delicate-part handling | Check local contact pressure, sealing and release on representative workpieces. |
| Production qualification | Validate vacuum level, acceleration and breakage risk in the complete handling process. |
Does the egg-handling description mean food-contact certification?
No. Application wording is not a compliance certificate. Obtain suitable material and hygiene documentation before using the cups in a regulated food process.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Gentle handling of eggs and compatible spherical or delicate products
- Automated pick-and-place, sorting and packaging systems
- Robotic end-of-arm tooling for compatible curved surfaces
- General industrial handling after cup size, surface, load, vacuum and temperature compatibility are verified
Confirm the selected model drawing, workpiece surface, vacuum level, load, acceleration, temperature and material compatibility before use. No food-contact or regulatory certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|

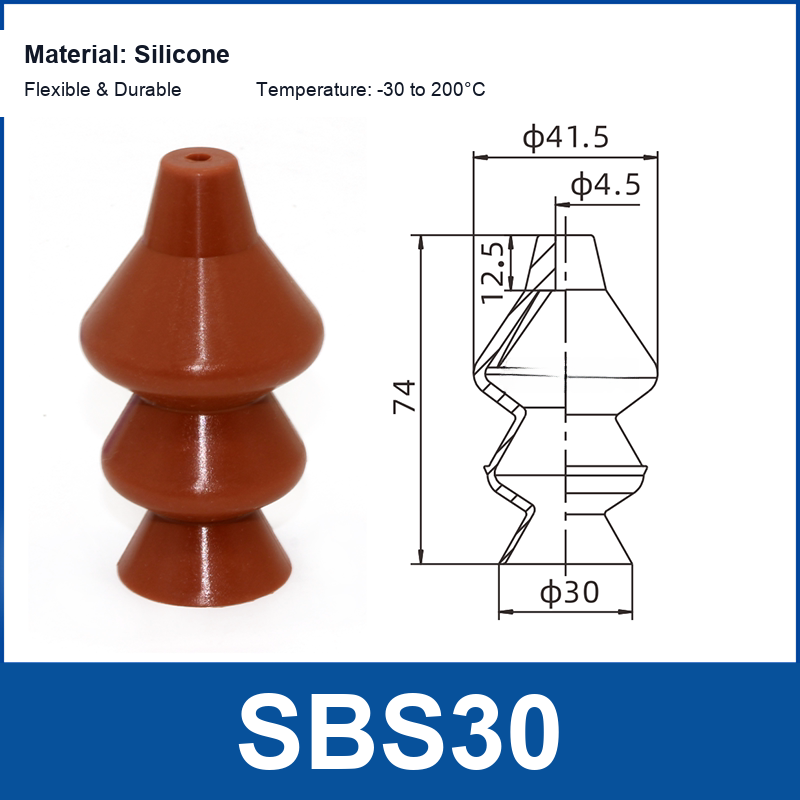

| SBS30 | 4768118336154 |

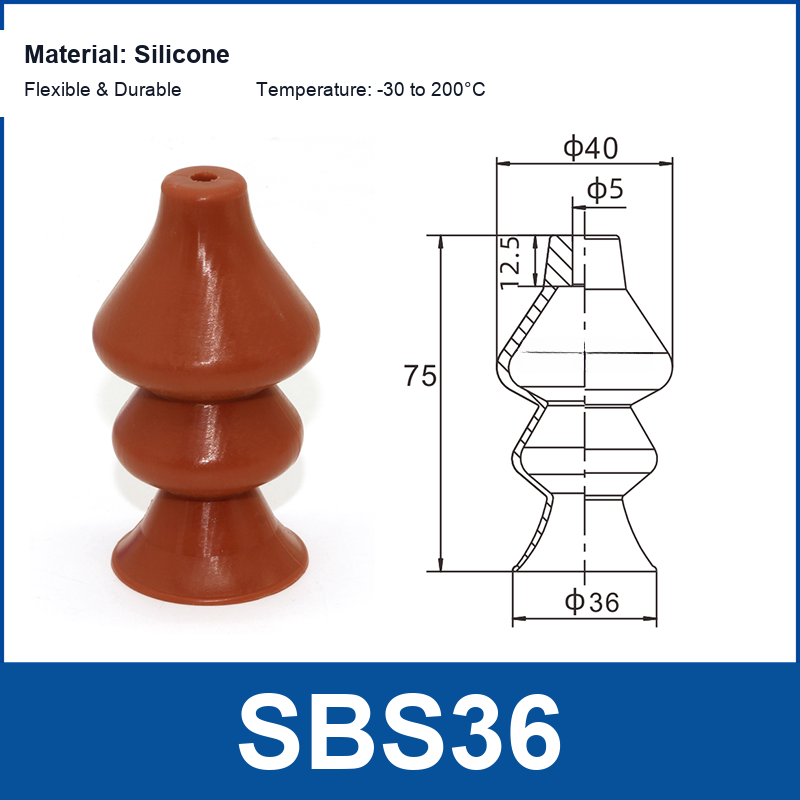

| SBS36 | 4768118336155 |

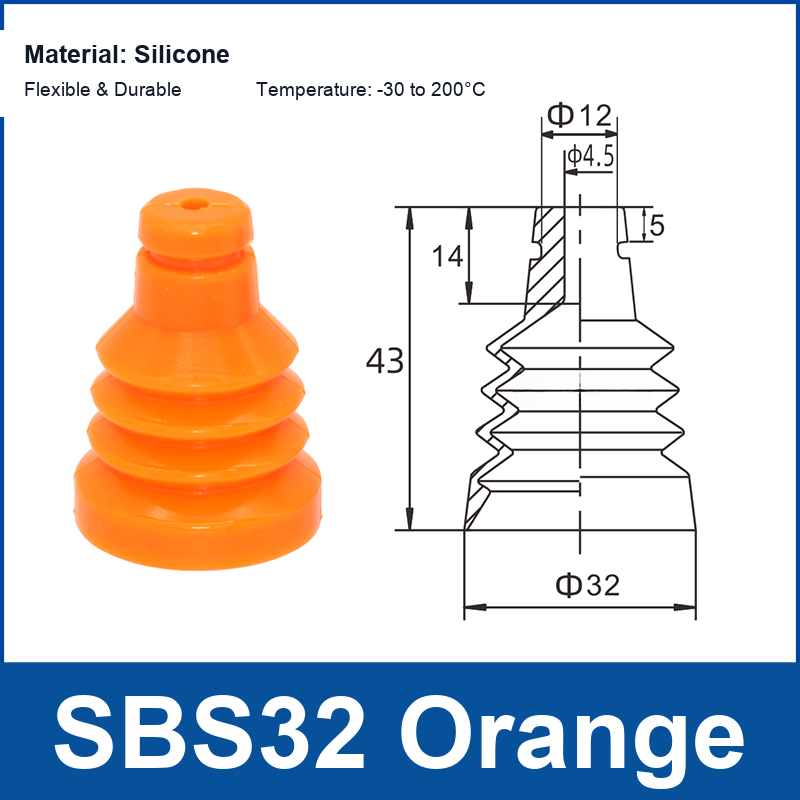

| SBS32 Orange | 4912150988323 |

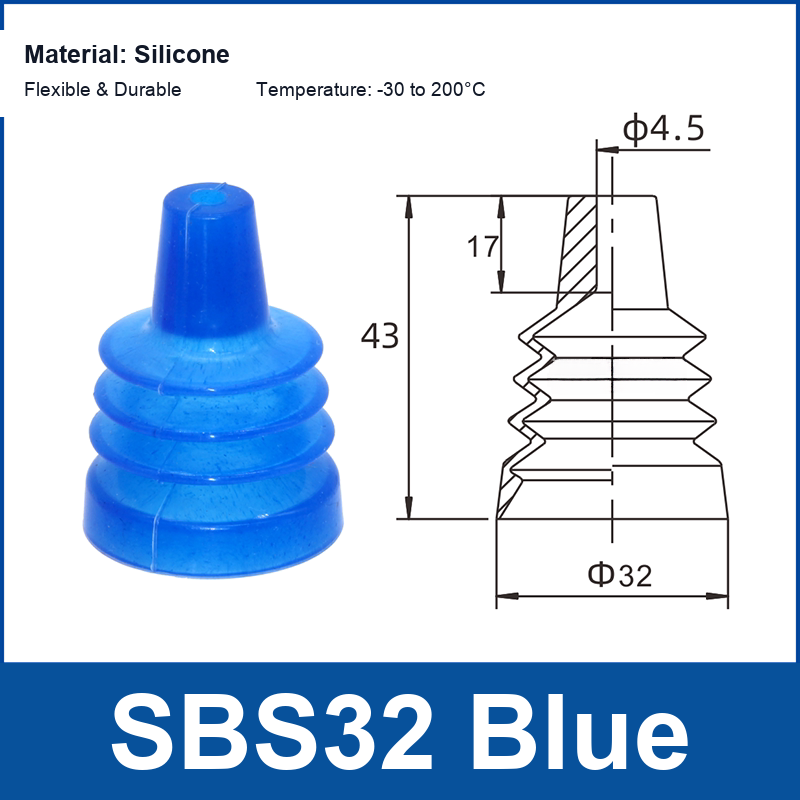

| SBS32 Blue | 4912150988324 |

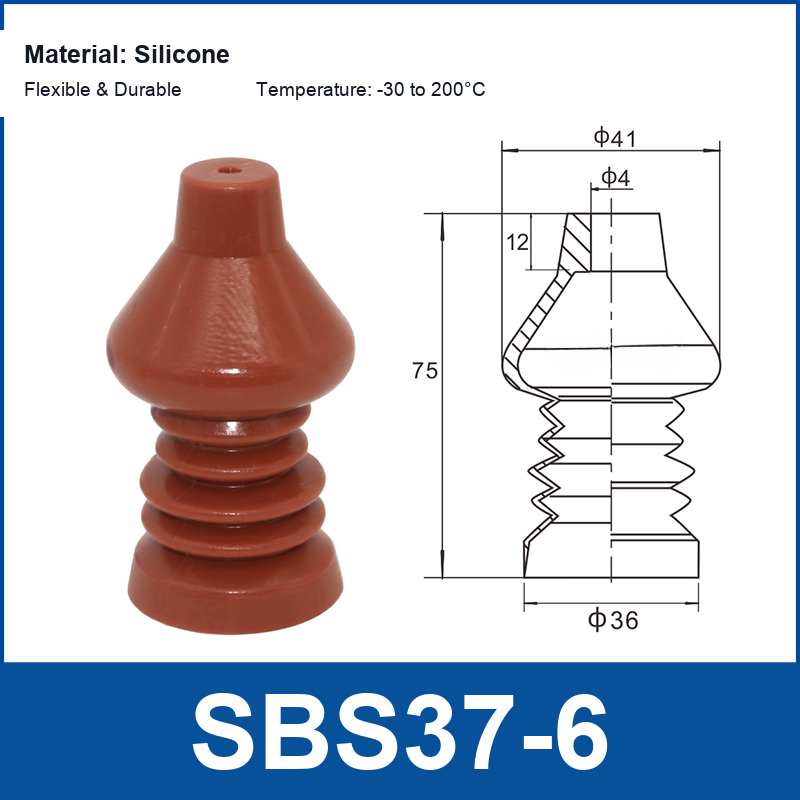

| SBS37-6 | 4912150988325 |
