ESV and ESS Series Multi-Layer Vacuum Suction Cups

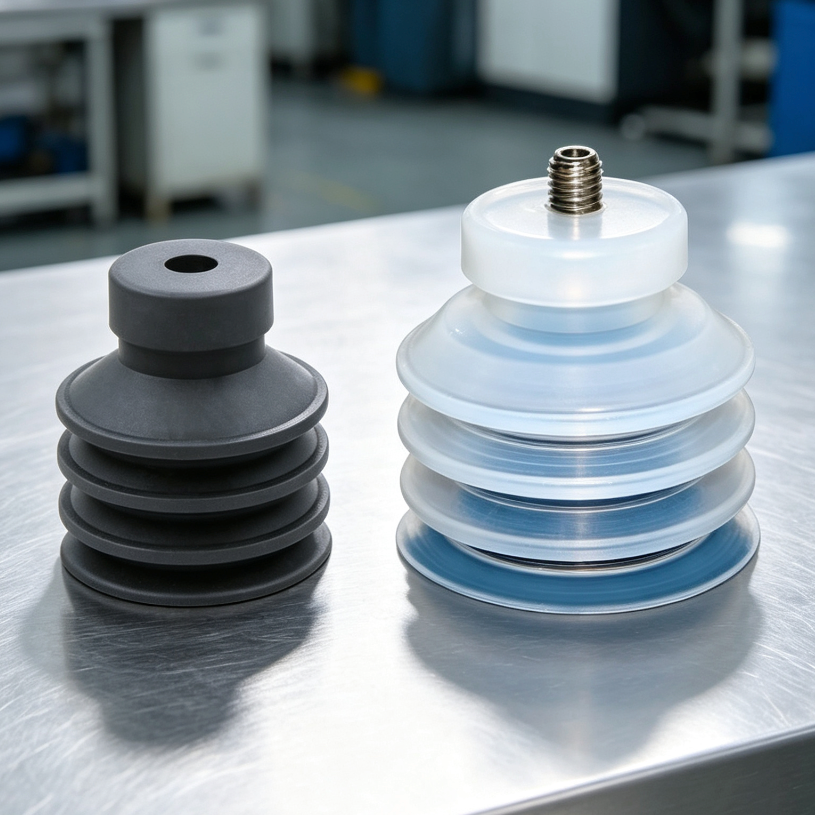

Compact multi-layer industrial vacuum suction cups in black nitrile rubber and white silicone, with cup-only and threaded fitting configurations as shown in the selected model image.
- 20 mm, 30 mm and 40 mm model families
- Black nitrile rubber and flexible white silicone options
- Multi-layer bellows profile for compatible uneven, contoured or height-varying workpieces

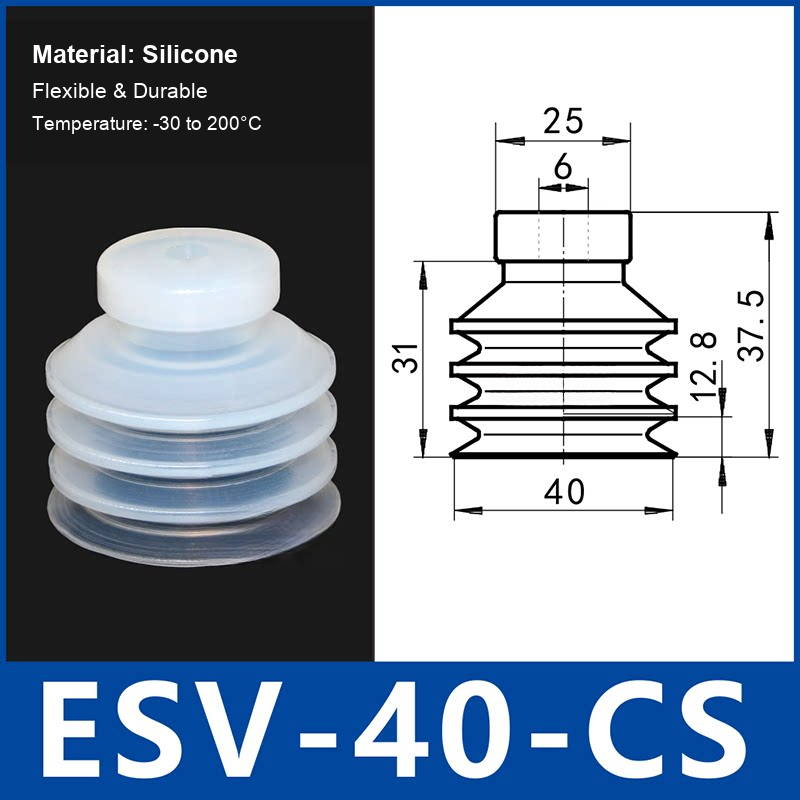

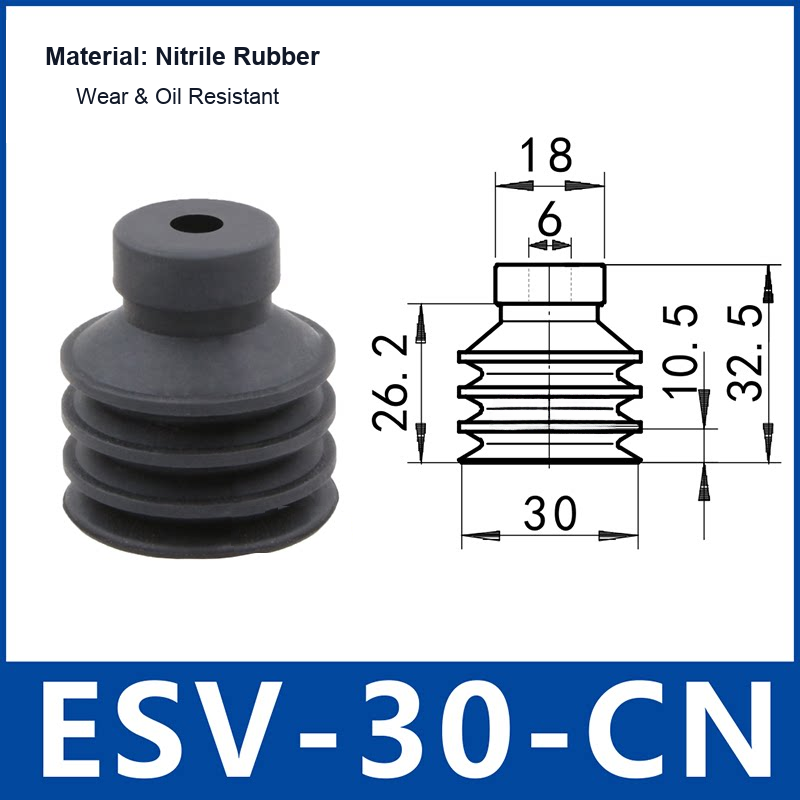

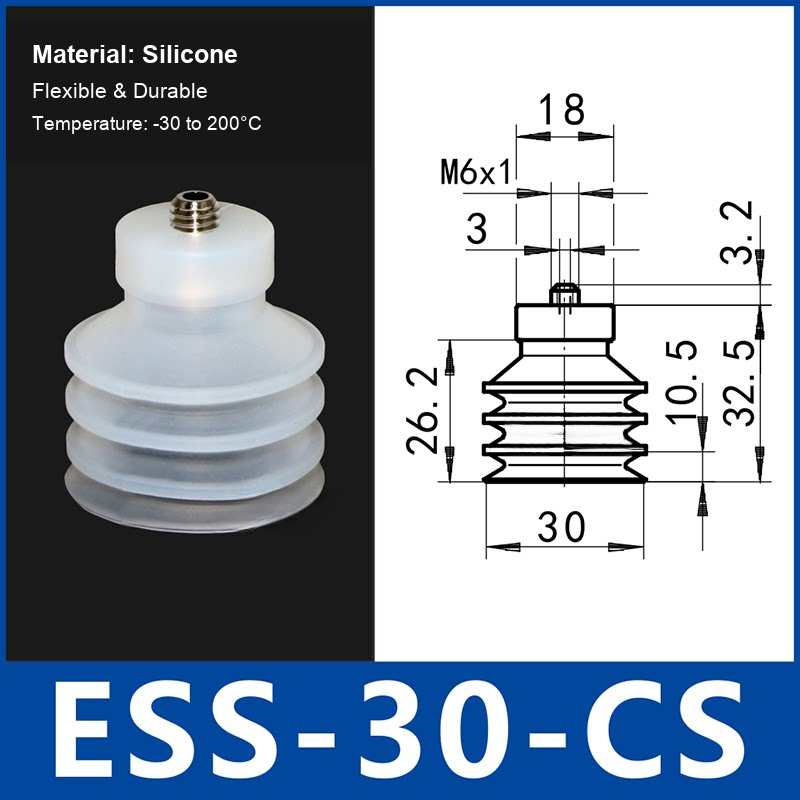

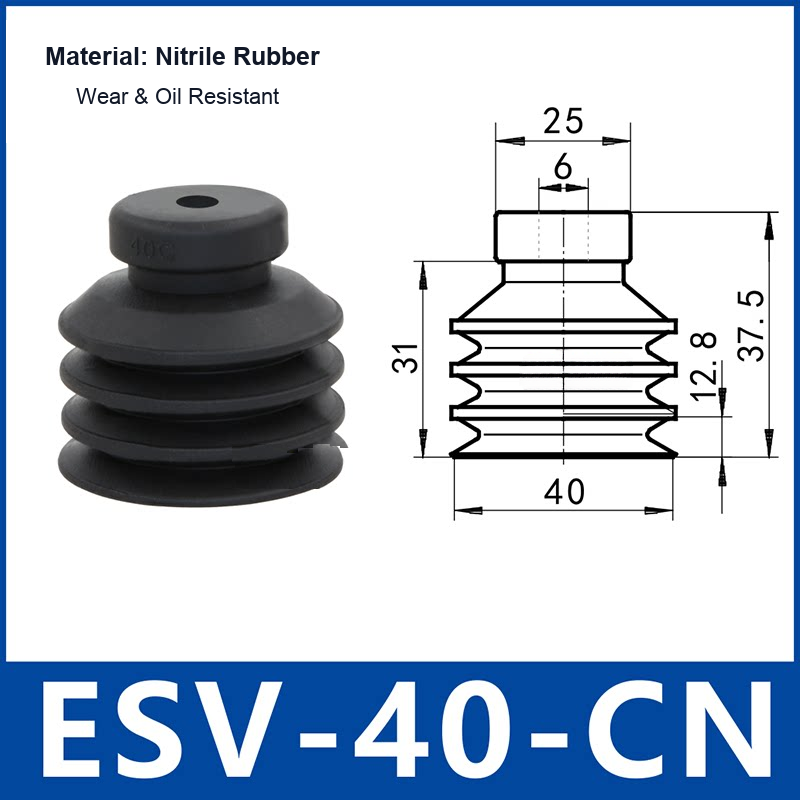

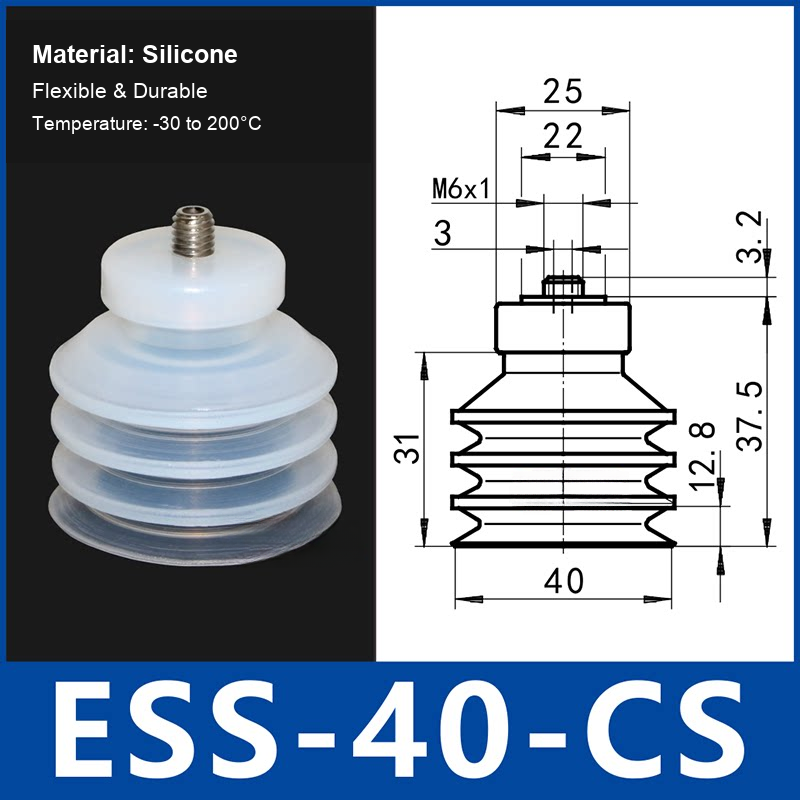

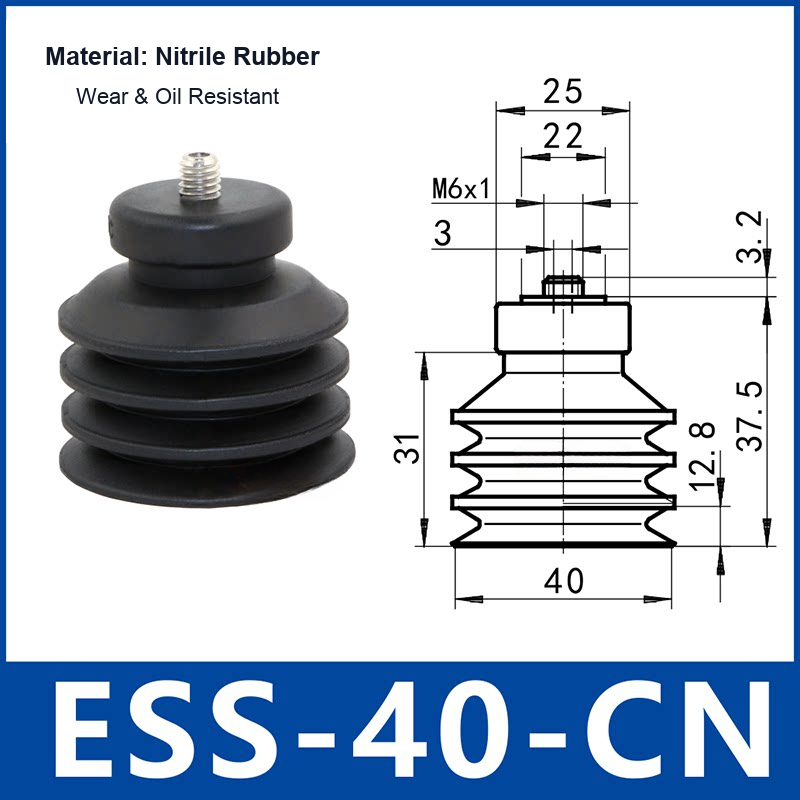

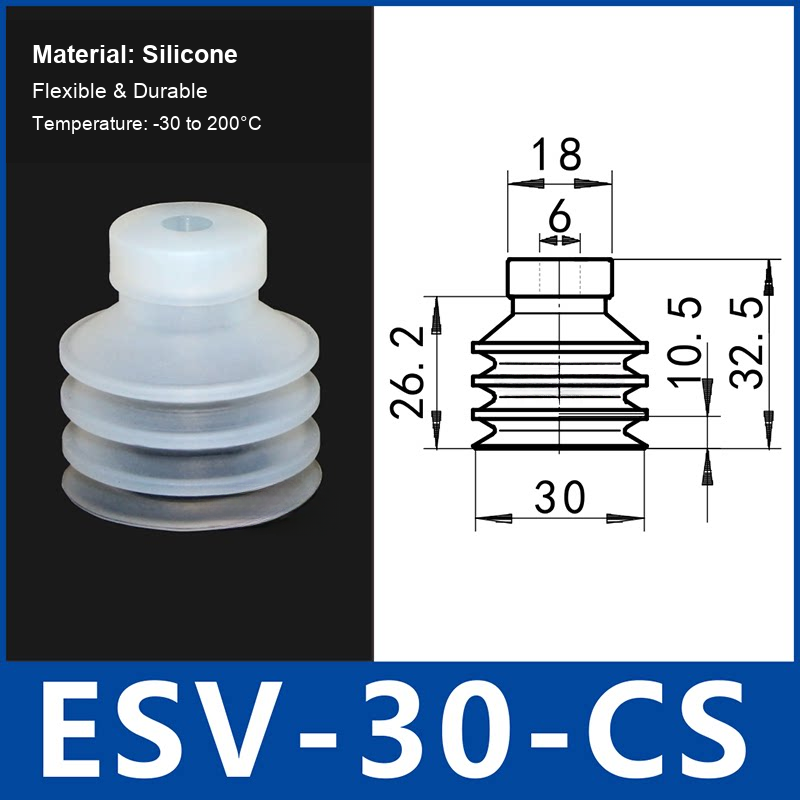

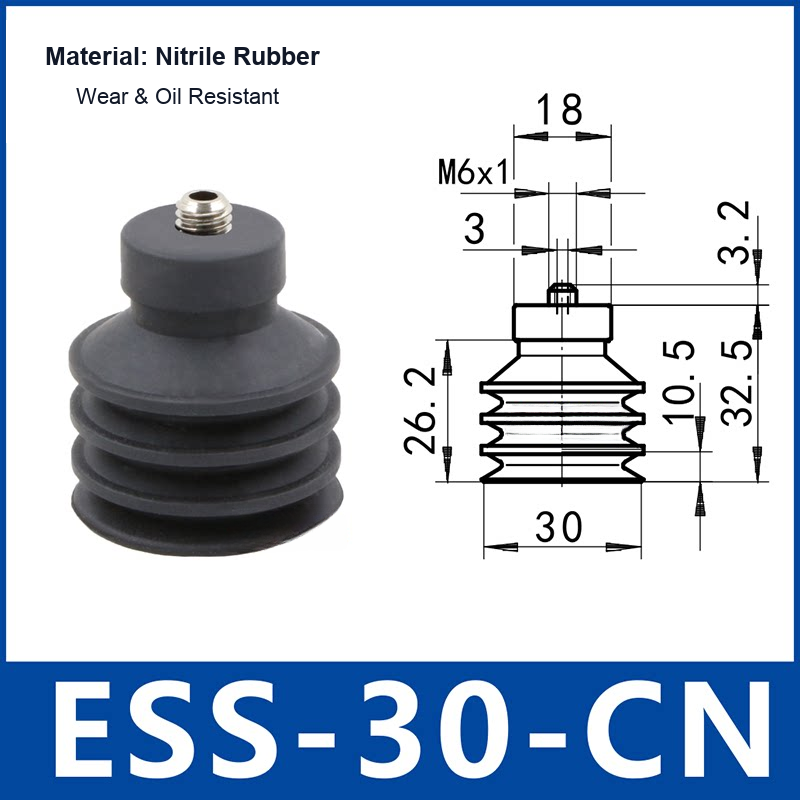

- Model images show the material, product structure and technical dimensions
ESV and ESS: keep prefix, size and material together
Compare the full ESV or ESS option and its fitting illustration. Similar 20, 30 or 40 mm labels do not establish that the cup-only and threaded configurations supply the same parts.
| Selection detail | What to check |
|---|---|
| ESV-30-CN / ESS-30-CN | Black nitrile-rubber options; compare the selected mounting structure. |
| ESV-30-CS / ESS-30-CS | White-silicone options; check the complete profile and connection. |
| Multi-layer bellows | Assess required compliance and stability as well as clearance in the tooling. |
Does a compliant bellows guarantee a seal on rough material?
No. Surface leakage still matters. Test the actual texture and porosity with the intended vacuum source before selecting a production configuration.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Automated pick-and-place, packaging, sorting and assembly equipment
- Handling compatible uneven, curved or lightly textured workpiece surfaces
- Robotic end-of-arm tooling and industrial material transfer
- General manufacturing applications after model, material, cup diameter and mounting compatibility are verified
Confirm the selected model drawing, mounting connection, workpiece surface, vacuum level, load, acceleration, temperature and material compatibility before use. No regulatory or food-contact certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|
| ESV-20-CN | 5776333796245 |
| ESV-20-CS | 5776333796246 |
| ESS-20-CN | 5776333796247 |
| ESS-20-CS | 5776333796244 |
| ESV-30-CN Black Nitrile Rubber | 5844424507078 |
| ESS-30-CN Black Nitrile Rubber | 5844424507079 |
| ESV-30-CS White Silicone | 5844424507080 |
| ESS-30-CS White Silicone | 5844424507081 |
| ESV40-CN Black Nitrile Rubber | 5844424507082 |
| ESS-40-CN Black Nitrile Rubber | 5844424507083 |
| ESV-40-CS White Silicone | 5844424507084 |
| ESS-40-CS White Silicone | 5844424507085 |
