BS-S7 Bottle Preform Vacuum Suction Cups with L55 Pneumatic Fittings

BS-S7 Bottle Preform Vacuum Suction Cups with L55 Pneumatic Fittings

White silicone vacuum suction cups for bottle-preform and cosmetic-container handling, with selectable L55-M12-11 pneumatic fitting configurations for side or rear air inlet arrangements.

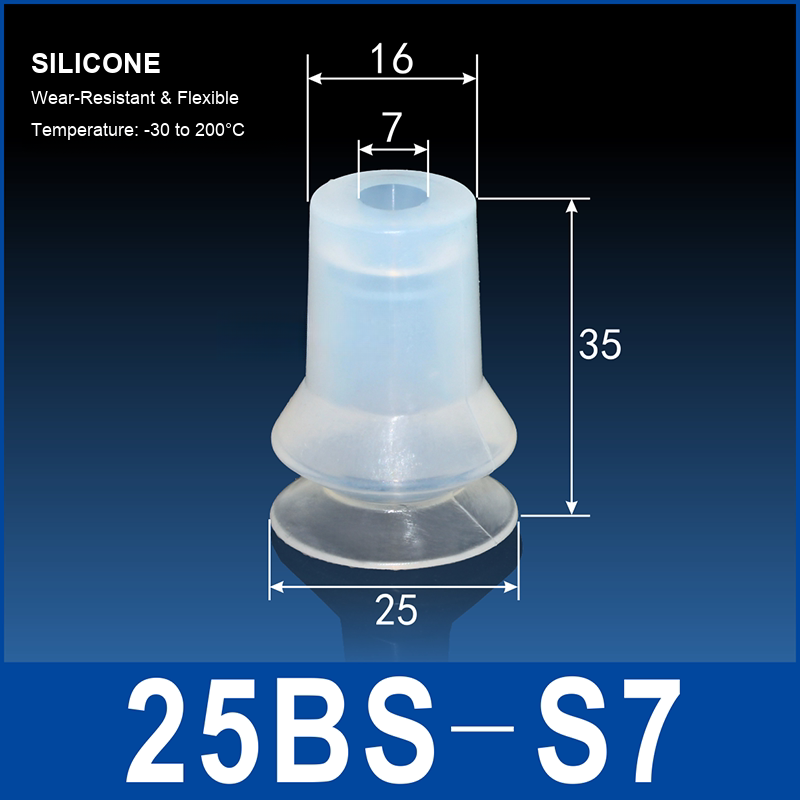

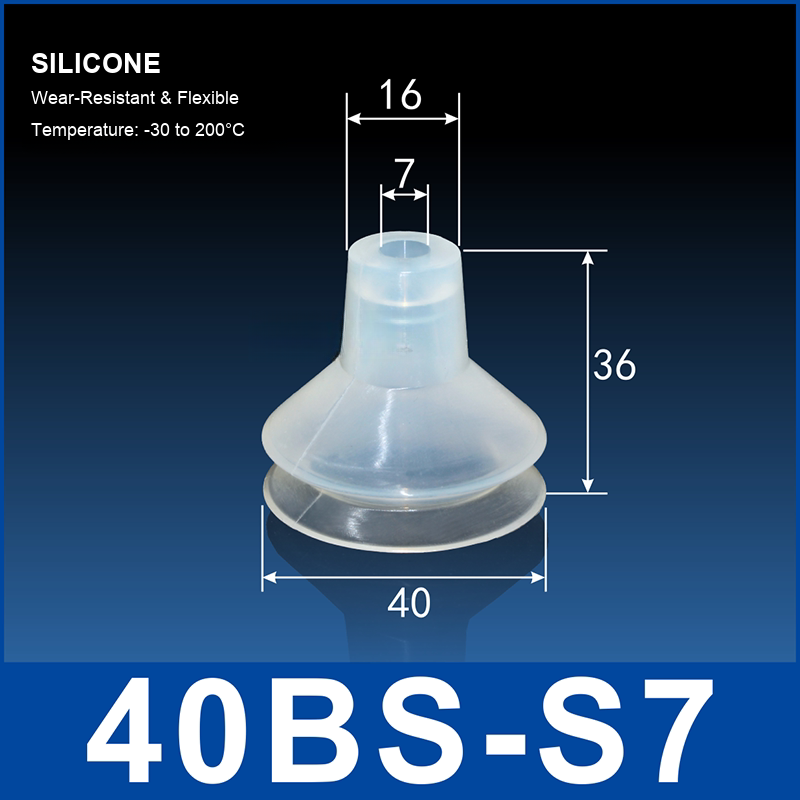

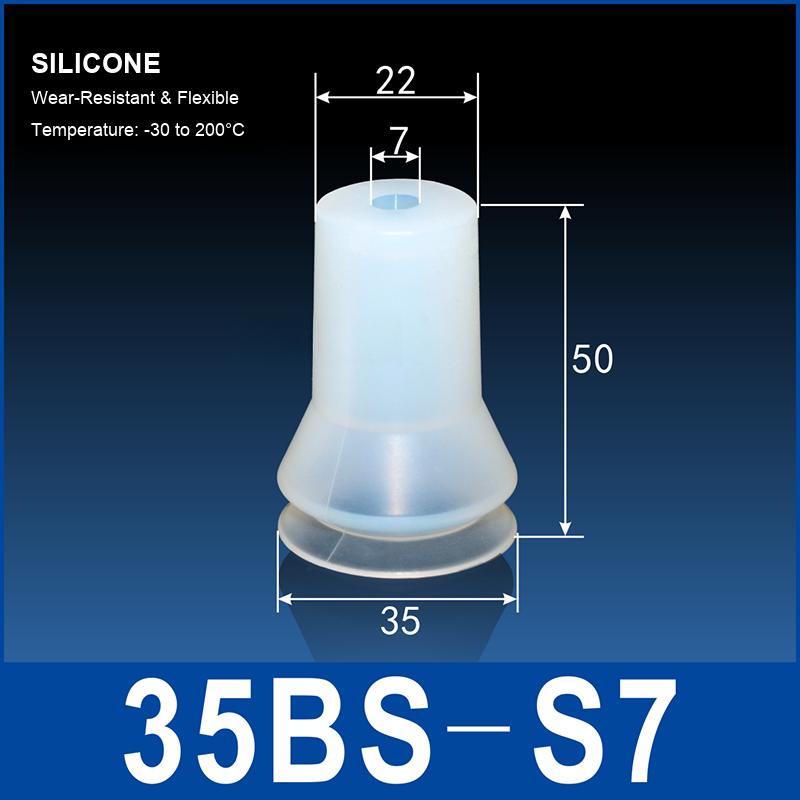

• 25BS-S7, 35BS-S7 and 40BS-S7 cup sizes with model-specific dimensions
• Flexible, wear-resistant silicone with a specified -30 to 200°C temperature range
• L55 fitting options with M12×1.0 thread, M5 female connection and 6 mm tube interface as shown
• Model-specific product images are provided for each variant

Applications / Suitable For

• Robotic bottle-preform transfer and cosmetic-bottle handling
• Packaging machinery, automated pick-and-place and end-of-arm vacuum tooling
• Handling compatible smooth plastic, glass and container surfaces
• Industrial automation requiring compact pneumatic vacuum-cup connections

Confirm the selected model drawing, cup diameter, material, connection direction, workpiece surface, vacuum level, load, acceleration and operating temperature before use. No food-contact, medical, cleanroom or regulatory certification is claimed.
