M14 Side-Inlet Rotary and Anti-Rotation Vacuum Cup Mounting Fittings

M14 Side-Inlet Rotary and Anti-Rotation Vacuum Cup Mounting Fittings

Compact M14 side-inlet vacuum cup mounting fittings for industrial pneumatic handling assemblies. Select the exact length and rotary or anti-rotation configuration.

• 11 model-specific configurations from M14-L52 through M14-L118 and K-series options
• Rotary, anti-rotation and anti-rotation magnetic mounting configurations as listed

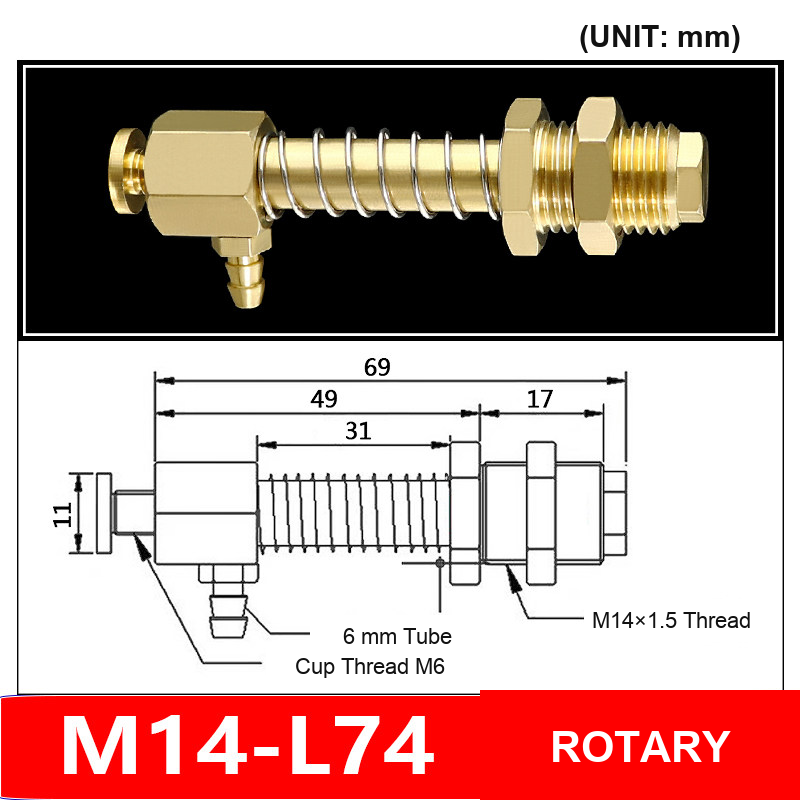

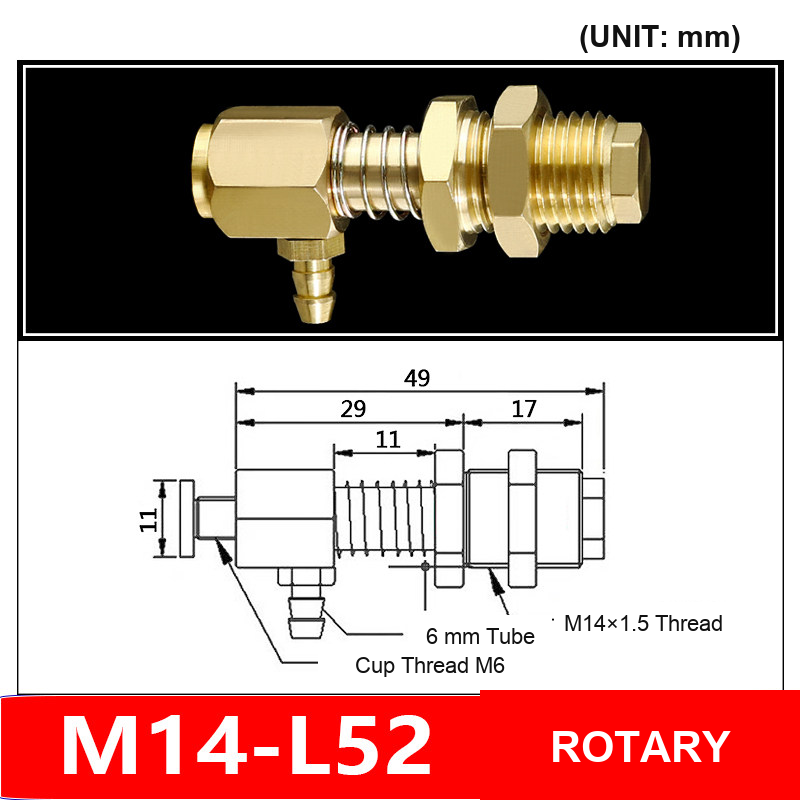

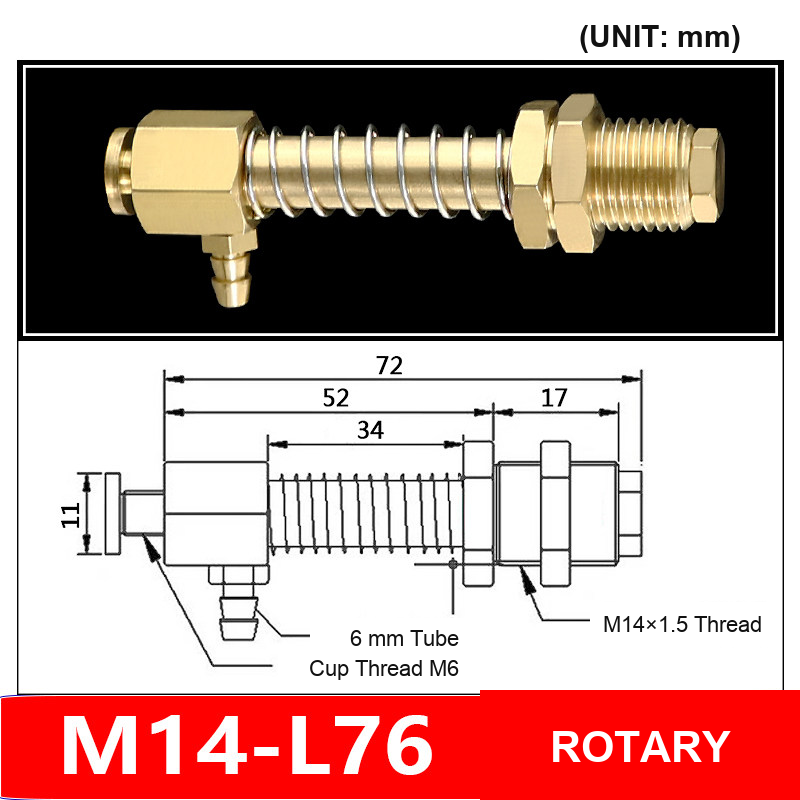

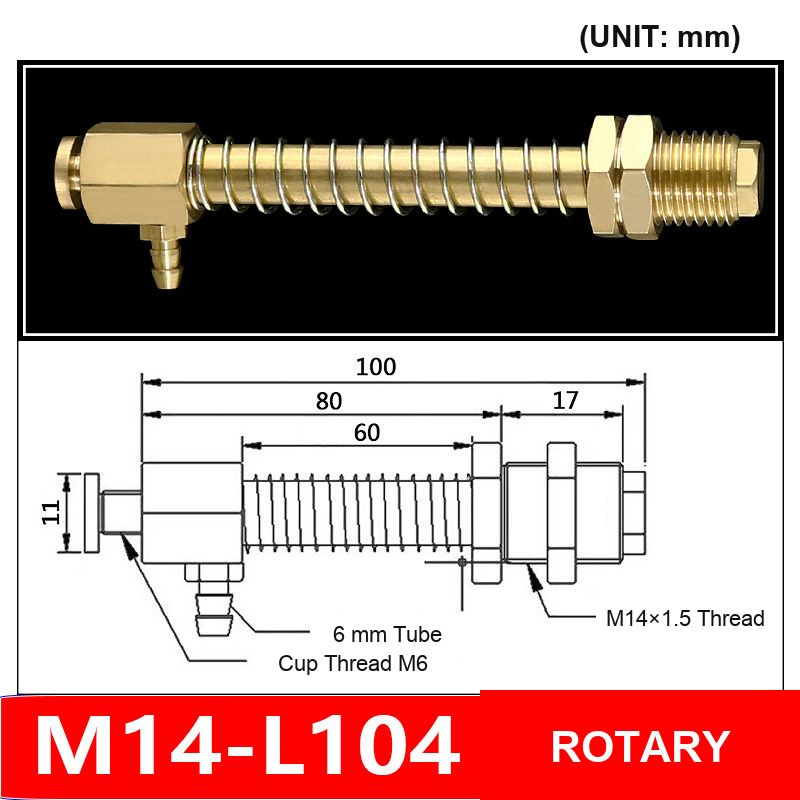

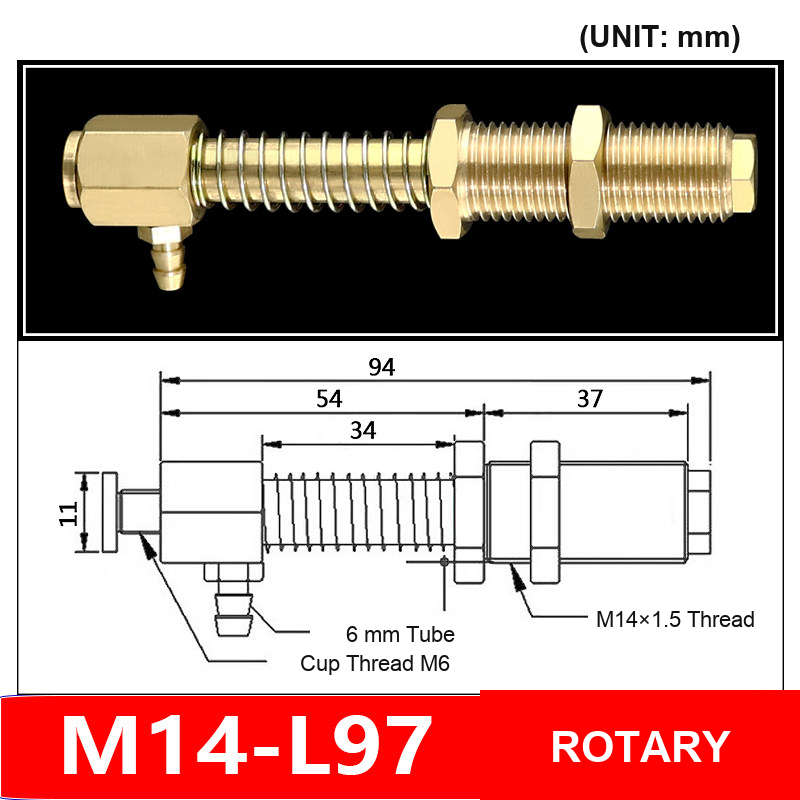

• 6 mm tube connection, M6 suction-cup thread and M14 x 1.5 mounting thread where shown
• Model-specific product and dimensional images are provided

Applications / Suitable For

• Vacuum cup mounting in pick-and-place and packaging equipment
• Robotic end-of-arm tooling and compact pneumatic handling systems
• Assemblies requiring side air entry with rotary or anti-rotation behavior

Confirm the selected model drawing, mounting thread, tube size, rotation behavior, vacuum cup compatibility, load, acceleration and operating environment before use. No food-contact, medical or regulatory certification is claimed.
