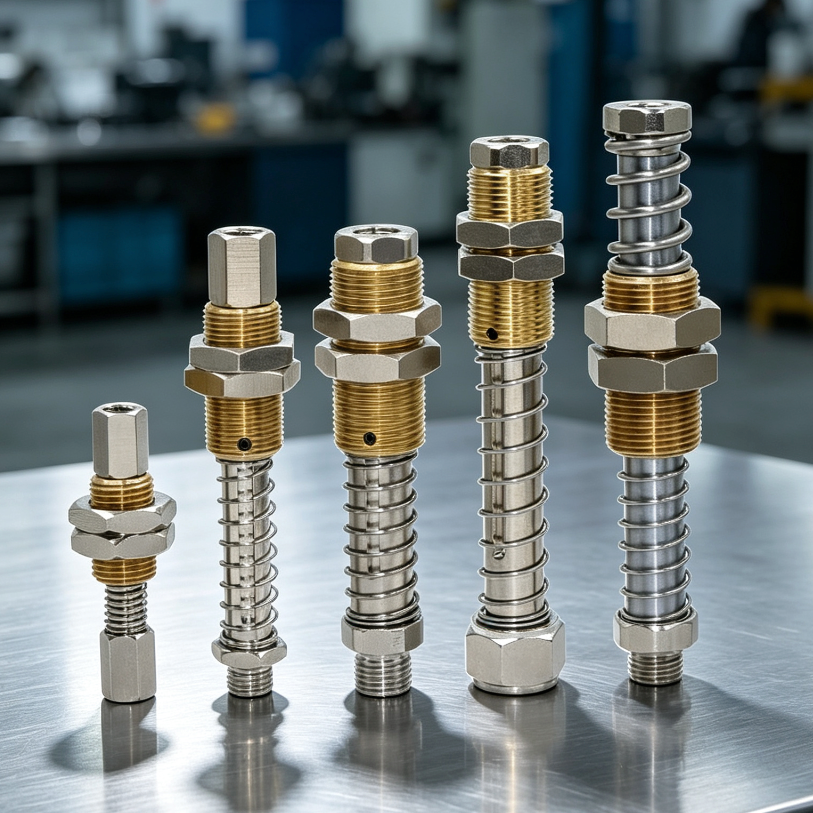

FSTE/FSTA Vacuum Cup Buffer Mounts – M6/M16/M20/M22

FSTE/FSTA Vacuum Cup Buffer Mounts

Spring-loaded vacuum cup buffer mounts and threaded fittings for compatible industrial pick-and-place and robotic end-of-arm tooling. Select the exact model code and verify every dimension in its model-specific drawing before installation.

• 26 exact model configurations with M6-group, M16, M20 or M22 mounting arrangements
• 19 anti-rotation variants where identified by the selected model
• G1/8, G1/4 and G3/8 male or female connections according to model code
• 15 mm, 25 mm, 50 mm and 75 mm spring-travel configurations where shown
• Compact M3/M5 female-thread fitting configurations are also included
• Model-specific product and dimensional images are provided

Applications / Suitable For

• Robotic pick-and-place and packaging automation
• Vacuum end-of-arm tooling requiring spring compliance or anti-rotation control
• Replacement buffer mounts for dimensionally compatible vacuum-cup assemblies

Confirm the selected model drawing, mounting thread, port gender, spring travel, compatible cup, sealing method, vacuum level, load, acceleration and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
