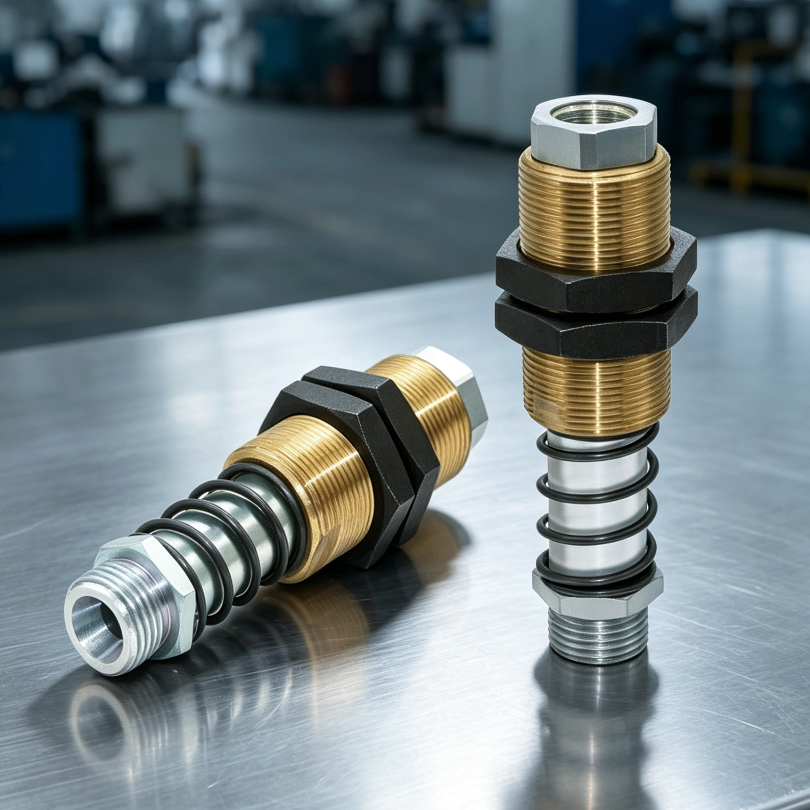

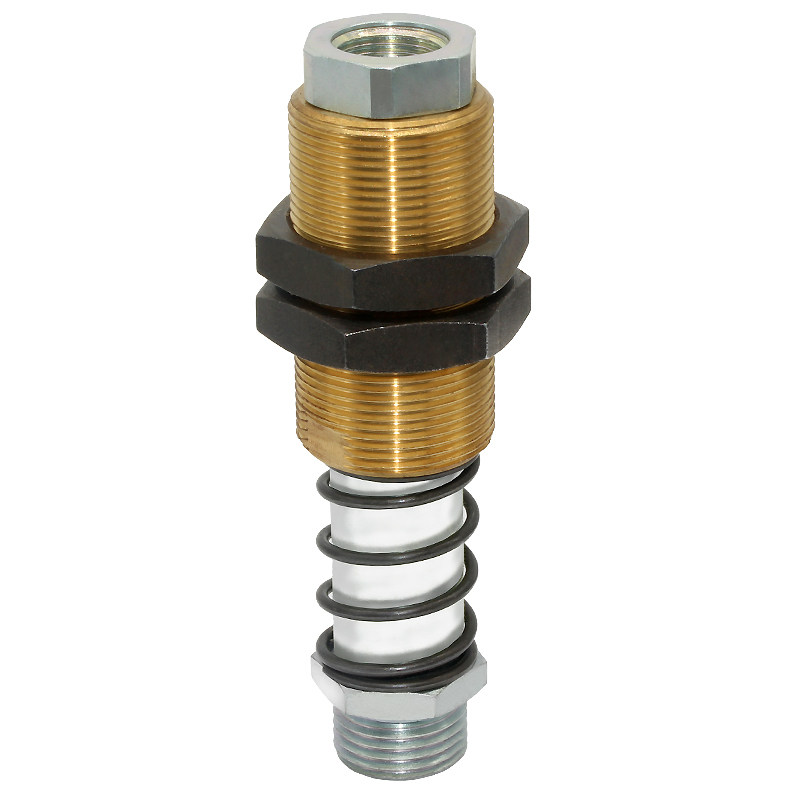

FSTE-G1/2-AG-25 Heavy-Duty Vacuum Cup Buffer Mount
Heavy-duty spring-buffer mounting hardware for compatible industrial vacuum cups and robotic end-of-arm tooling. Verify the M30 x 1.5 mounting thread, G1/2 cup-side connection and every dimension in the model-specific drawing before installation.
- Model: FSTE-G1/2-AG-25
- M30 x 1.5 mounting thread and G1/2 cup-side connection
- 25 mm spring stroke and 36 mm across-flats specification
- Copper-and-iron construction

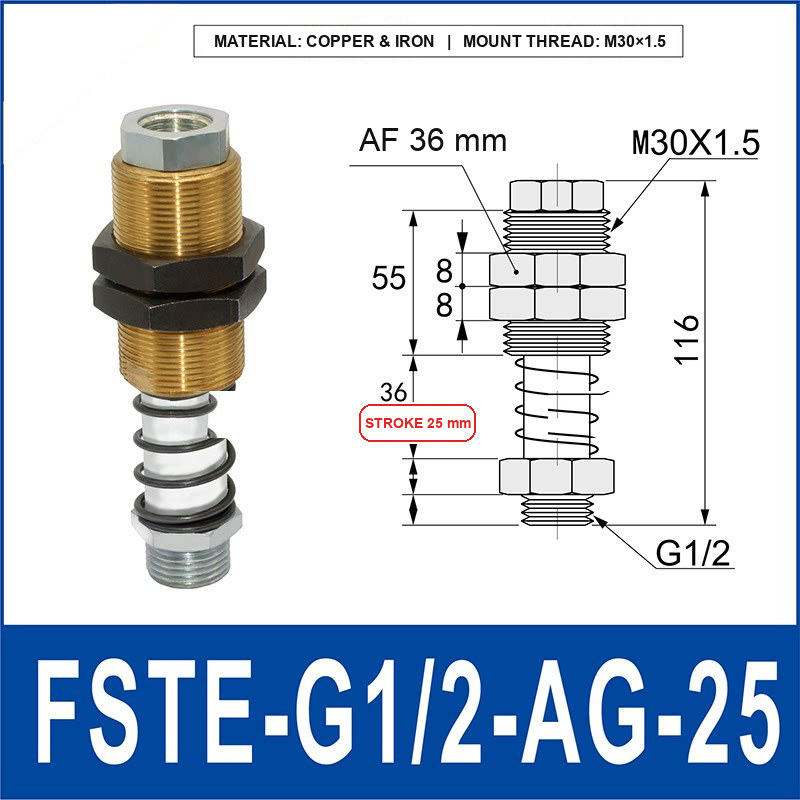

- Product images show model codes, key dimensions and mechanical structure
- Model-specific product and dimensional images are provided
FSTE-G1/2-AG-25: verify fixture and cup interfaces
This is a single-model spring-buffer mount. Its M30 x 1.5 mounting thread and G1/2 cup-side connection serve different interfaces and must both match the installation.
| Selection detail | What to check |
|---|---|
| M30 x 1.5 | Check the fixture thread, engagement and surrounding clearance. |
| G1/2 cup-side connection | Verify the mating cup/fitting and sealing arrangement. |
| 25 mm stroke; 36 mm across flats | Allow space for travel and installation tools; stroke does not state the allowable load. |
Is a vacuum cup included in this mount selection?
Treat this listing as mounting hardware. Confirm the cup and any additional fittings required for your assembly before ordering.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Heavy-duty pick-and-place, packaging and assembly equipment
- Robotic end-of-arm tooling requiring vertical compliance
- Replacement buffer mounts for dimensionally compatible vacuum assemblies
Confirm the model drawing, mounting and cup-side threads, stroke, across-flats dimension, mating part, sealing method, vacuum level, load and operating environment before use. Compatibility is dimensional and must be verified; no food-contact, medical, lifting-safety or regulatory certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|
| FSTE-G1/2-AG-25 | 5060513972791 |
