AFS Large-Diameter Flat Vacuum Cups – Nitrile Rubber, 160–300 mm

AFS Large-Diameter Flat Vacuum Cups

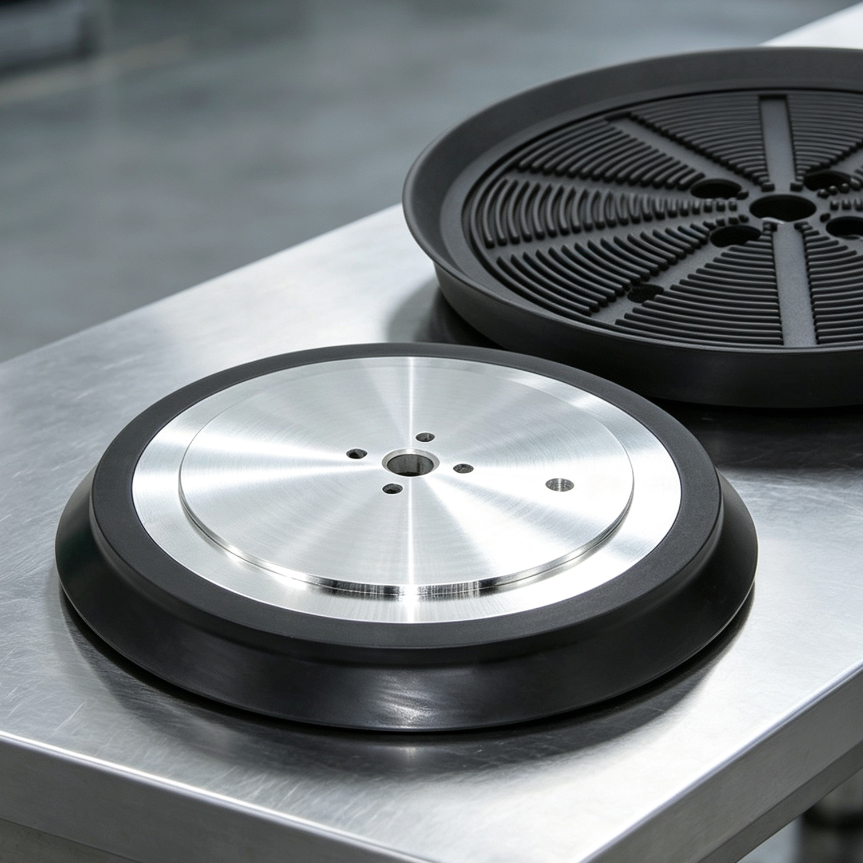

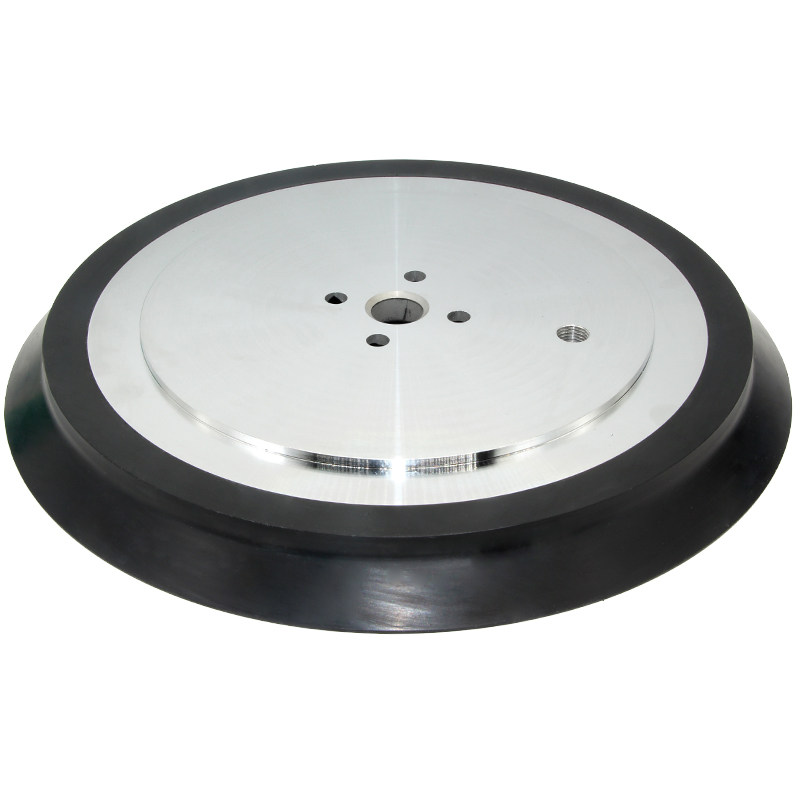

Large flat vacuum cups with a rigid metal mounting plate and a black nitrile-rubber contact face for industrial vacuum handling. The wide ribbed underside helps distribute suction across broad, relatively flat workpieces.

• Three selectable nominal diameters: 160, 230 and 300 mm
• Black nitrile rubber for wear and oil resistance
• Rigid metal mounting plate
• G1/4 vacuum port

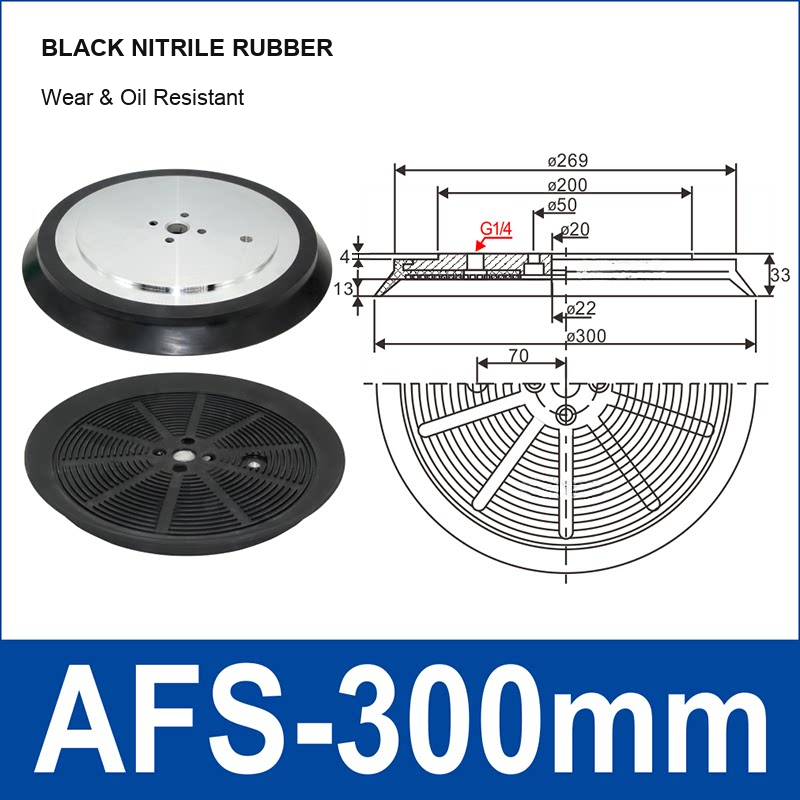

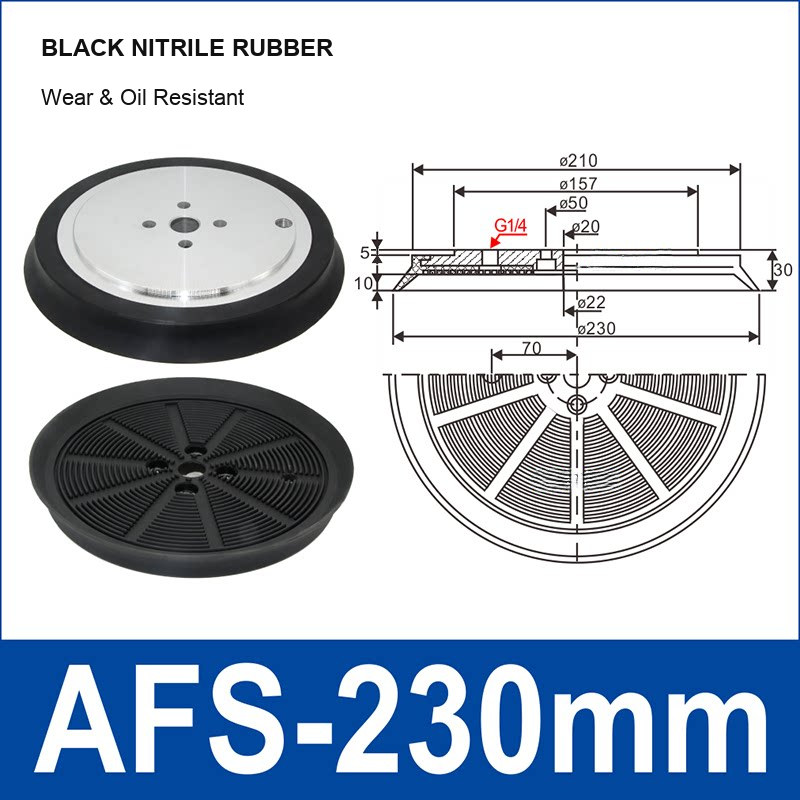

• Model drawings show cup, plate, port, hole and overall-height dimensions
• Ribbed contact-face structure for broad-area vacuum distribution

Applications / Suitable For

• Automated handling of glass, sheet metal and coated panels
• Large flat parts in fabrication, loading and transfer systems
• End-of-arm tooling that requires a broad suction contact area

Confirm the selected diameter, mounting pattern, port, workpiece surface, vacuum level, leakage rate, payload, acceleration and operating environment before use. Large or heavy workpieces require an application-specific safety factor and redundant retention measures. No food-contact, medical, personnel-lifting, overhead-lifting or regulatory certification is claimed.
