Heavy-Duty Vacuum Cups and Square-Tube Mount Assemblies

Large 230 mm and 300 mm vacuum cups, square-tube mounting fittings and complete spring-loaded assemblies for compatible industrial material-handling systems. Select the exact cup material and square-tube size shown in the model-specific image.

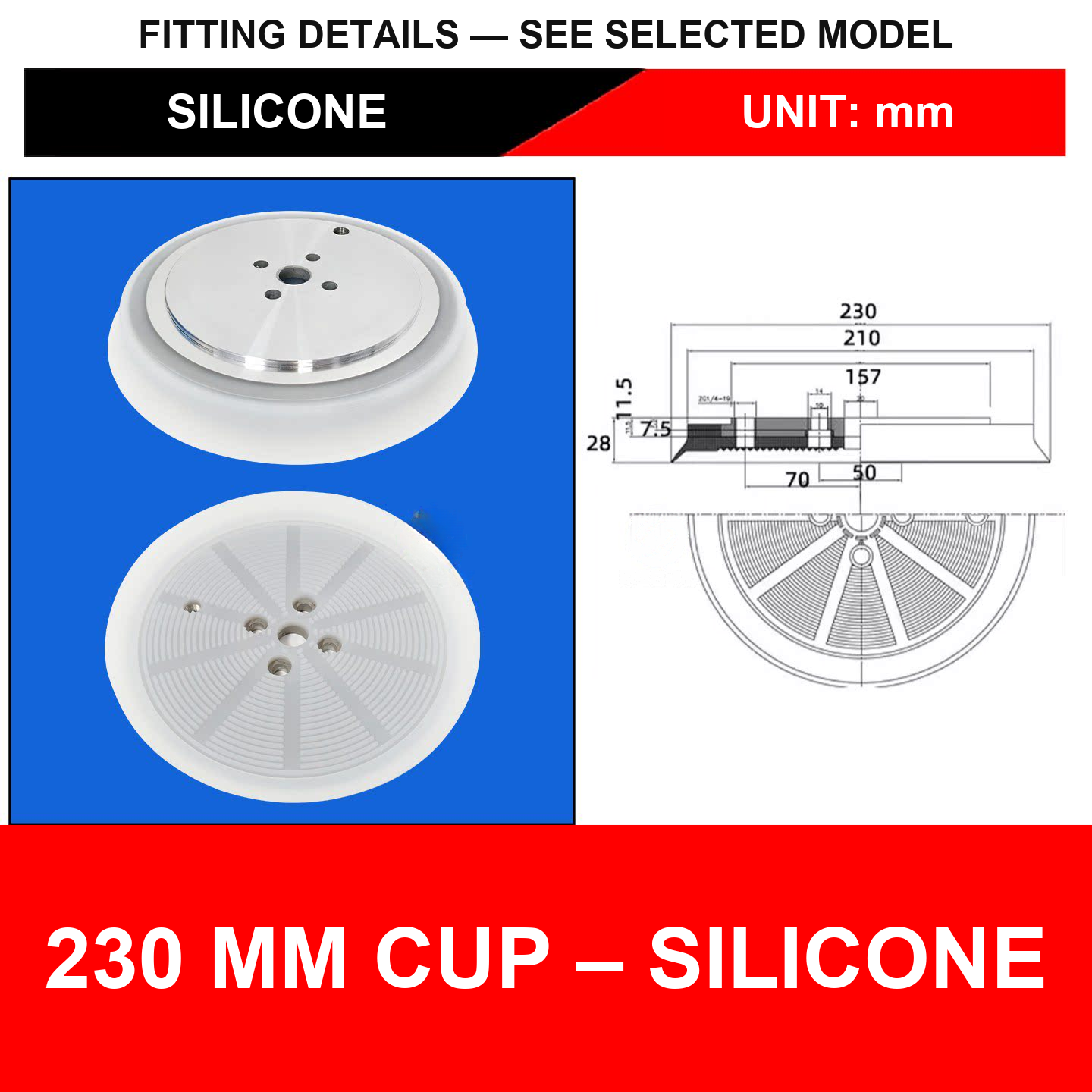

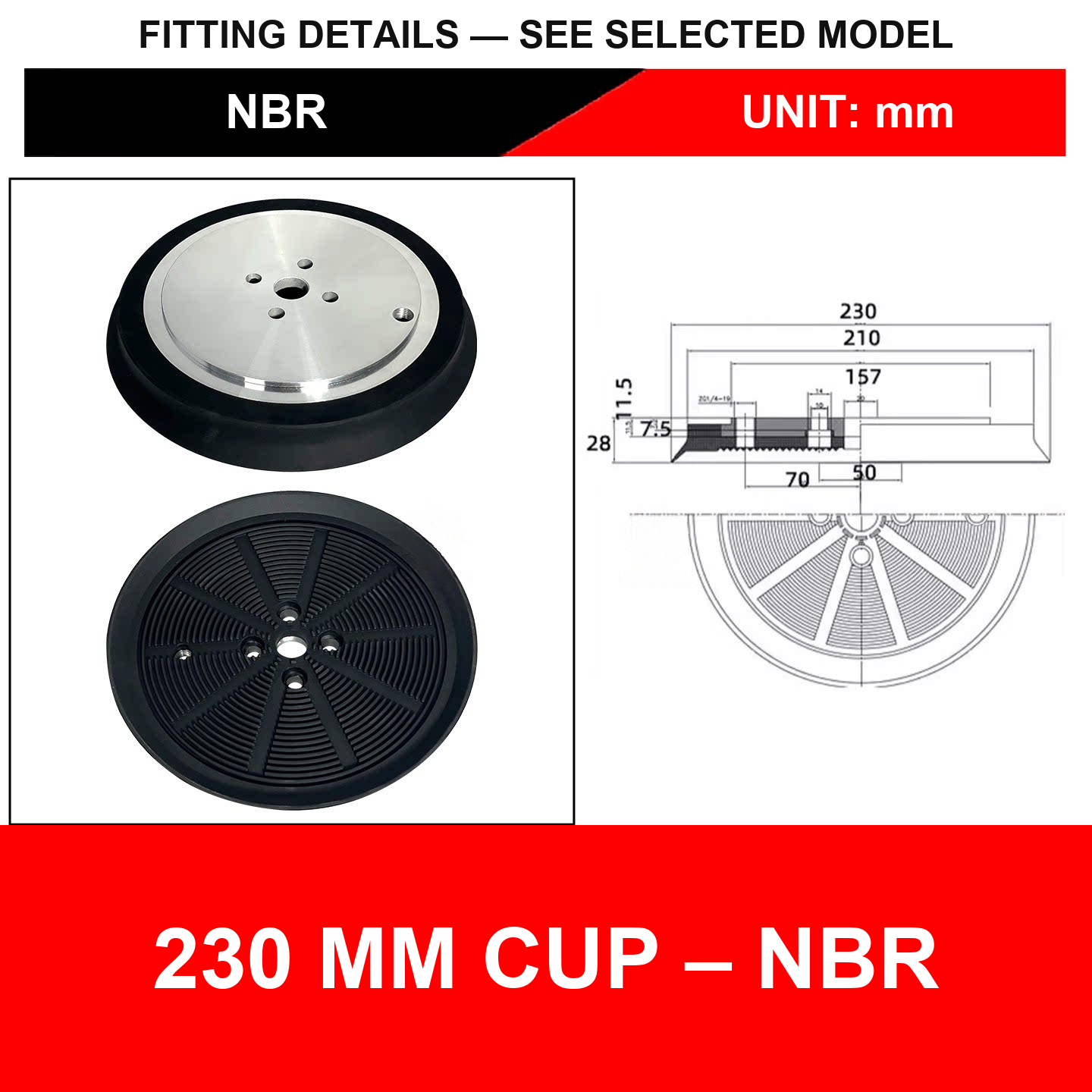

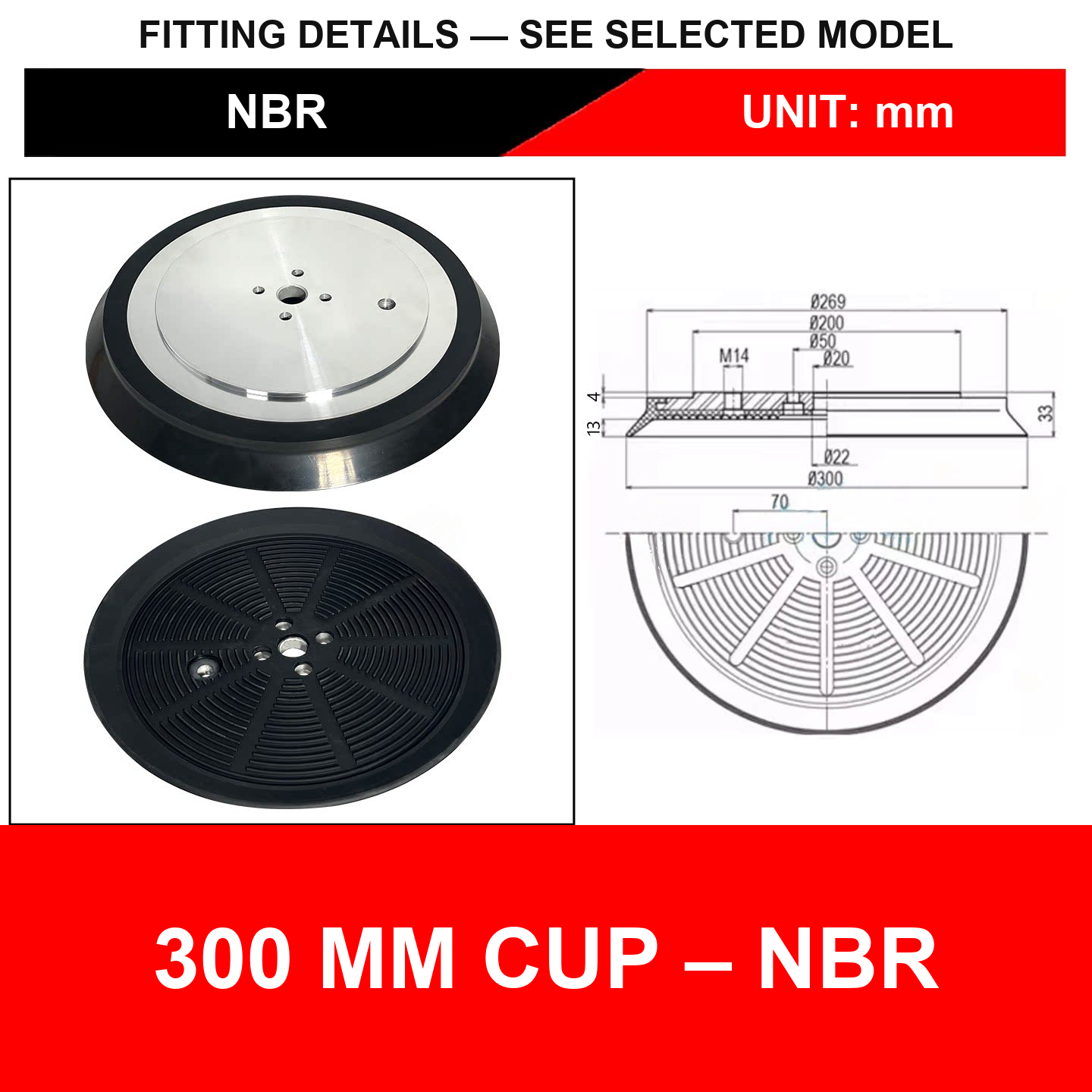

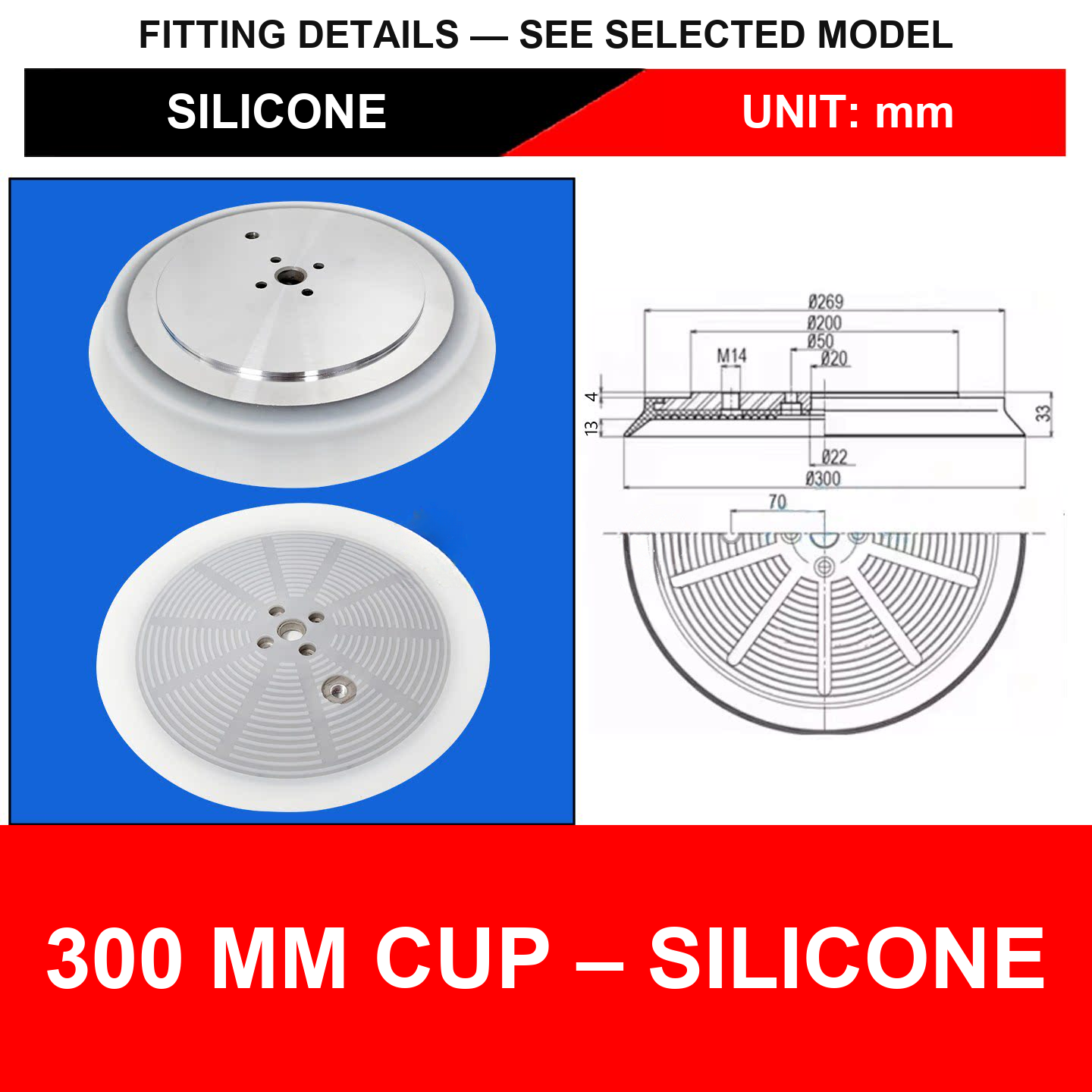

• 230 mm and 300 mm cup-only configurations in NBR or silicone
• 40 x 40 mm and 50 x 50 mm square-tube mounting fittings

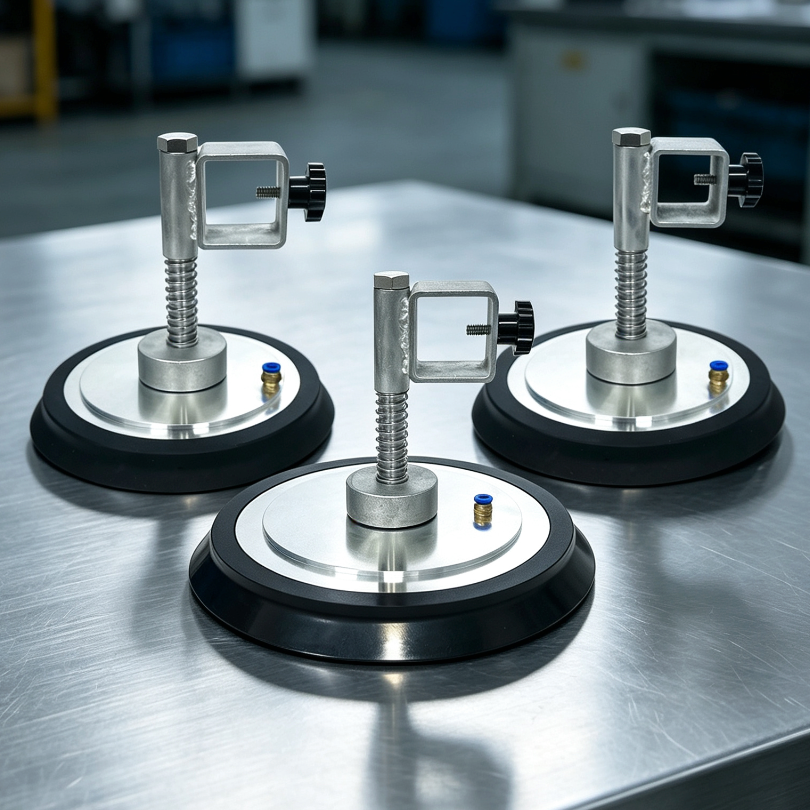

• Complete 40 mm or 50 mm square-tube assemblies with 230 mm or 300 mm cups
• Product images show spring-loaded mounting hardware and dimensional annotations
• Model-specific product images are provided for all variants

Applications / Suitable For

• Compatible glass, sheet metal, stainless-steel sheet and flat panel handling
• Large-format loading, unloading, transfer and positioning equipment
• Robotic end-of-arm tooling using compatible square-tube support structures

Confirm the selected model drawing, cup material, workpiece surface, vacuum level, payload, acceleration, mounting geometry and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
