PBF Series Flat Vacuum Cups, 10–50 mm, Silicone or Nitrile

PBF Series Flat Vacuum Cups

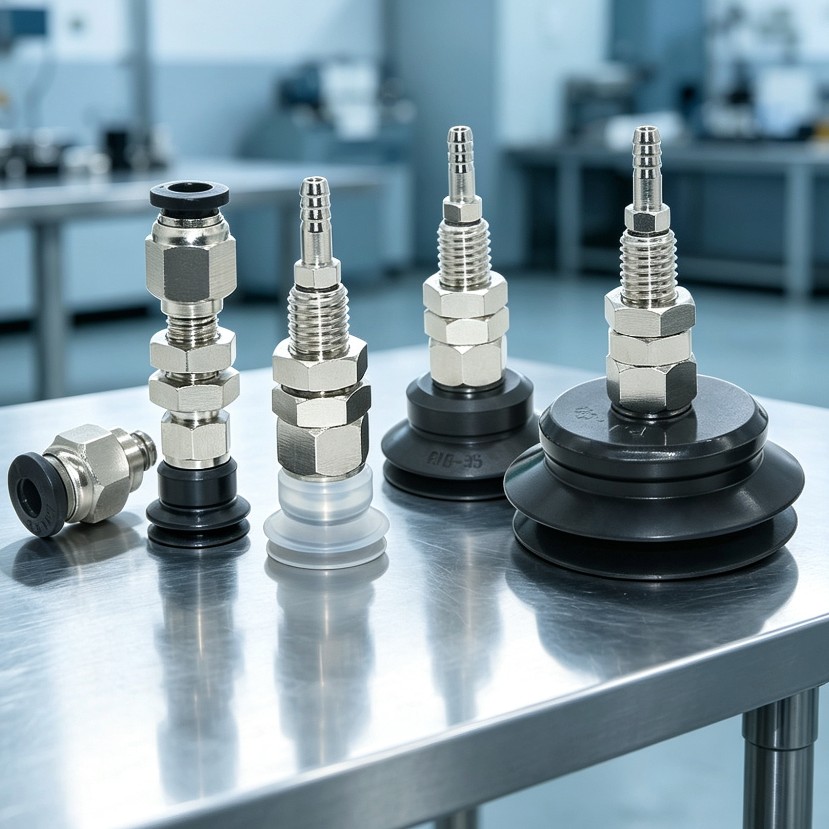

PBF flat vacuum cup assemblies in white silicone or black nitrile rubber for compatible industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling systems.

• 31 selectable configurations covering 10 to 50 mm cup sizes
• Standard PBF assemblies plus 04 and 06 push-in configurations
• White silicone options with a stated -30 to 200 degrees C range
• Black nitrile rubber options specified for wear and oil resistance

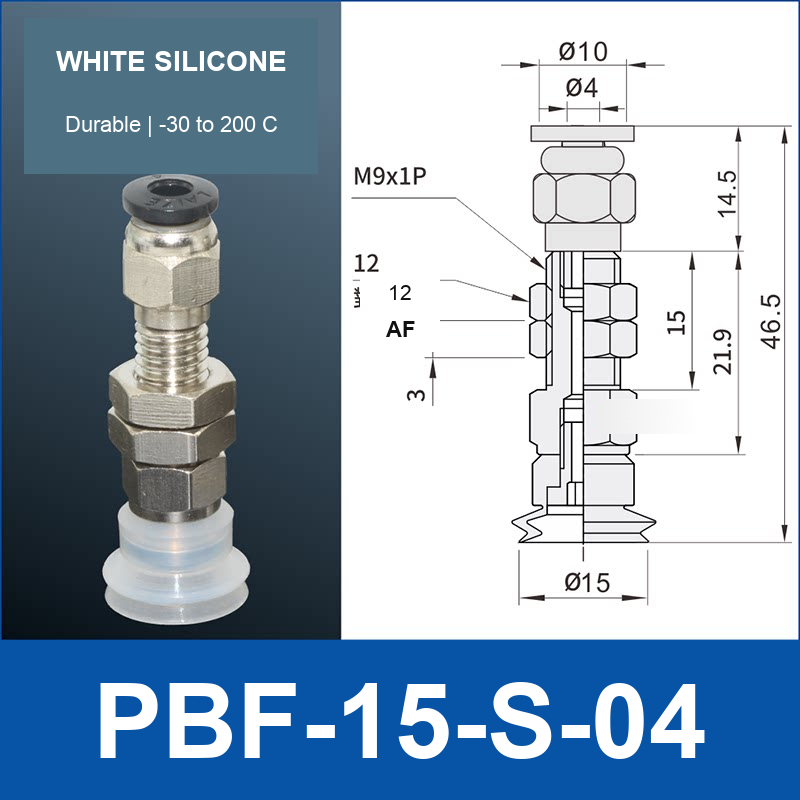

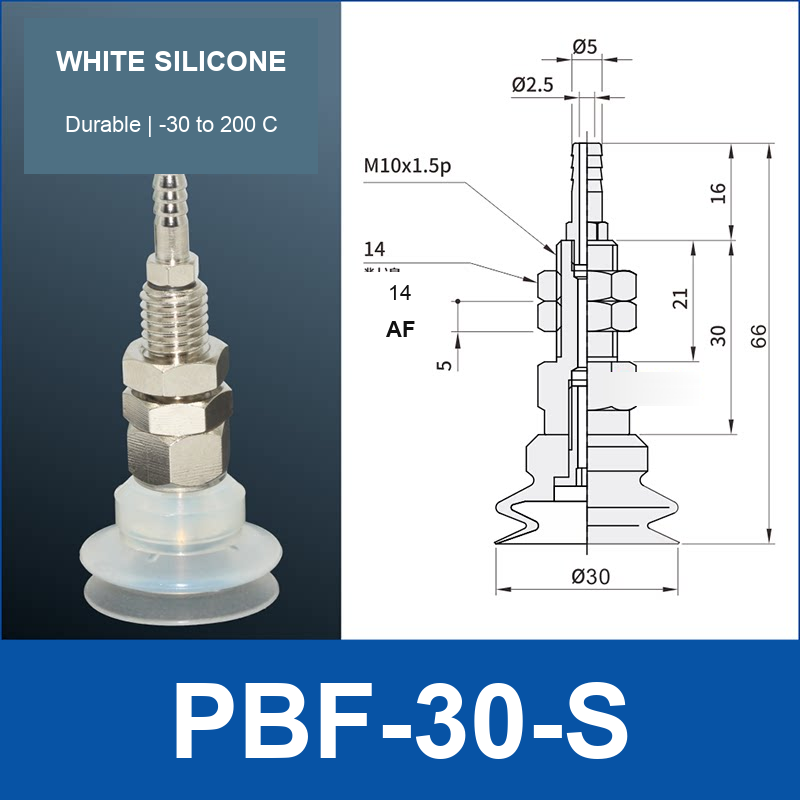

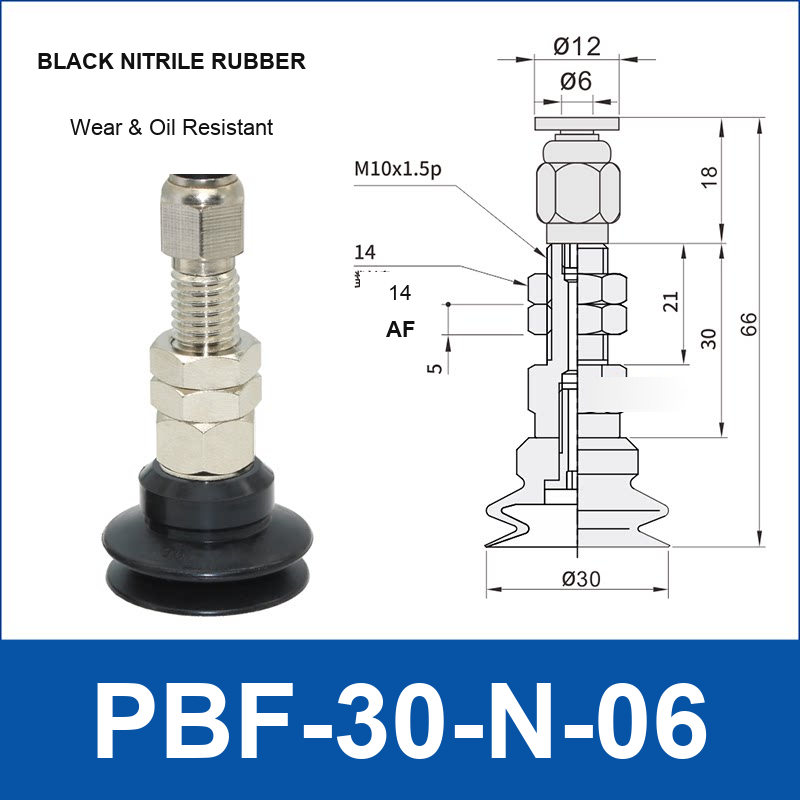

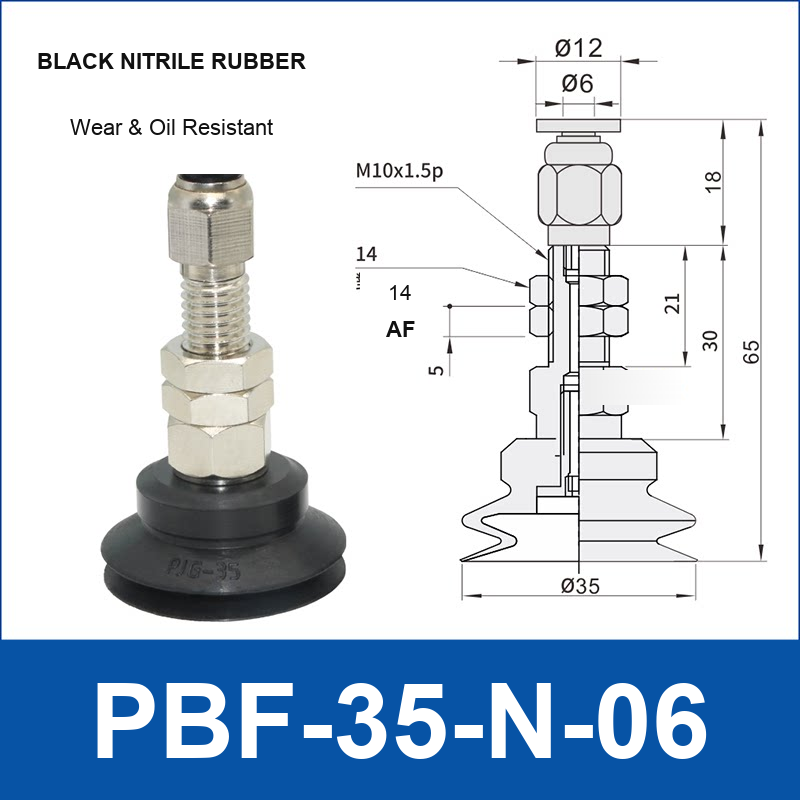

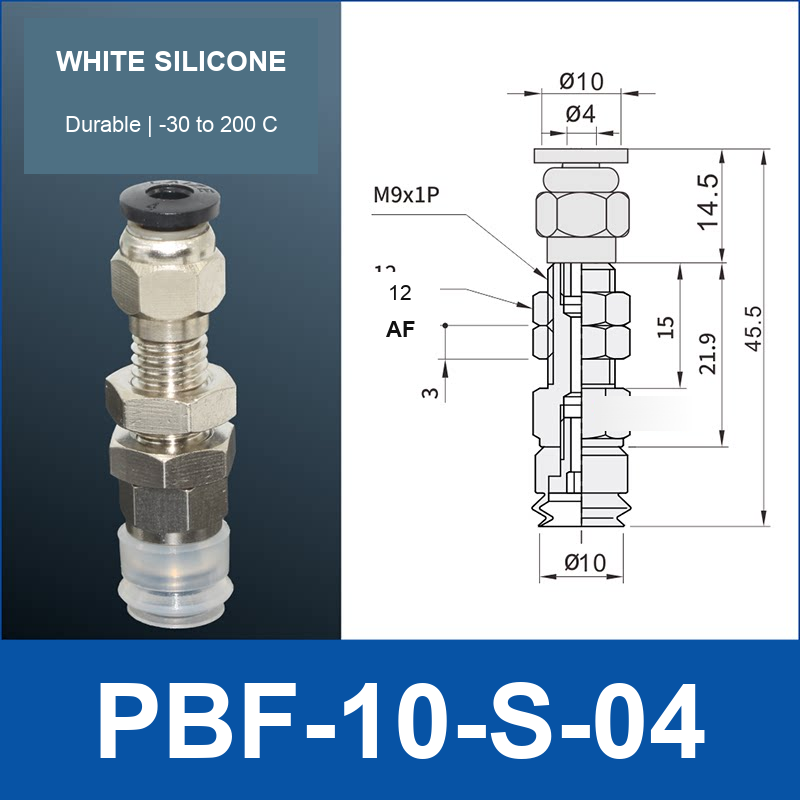

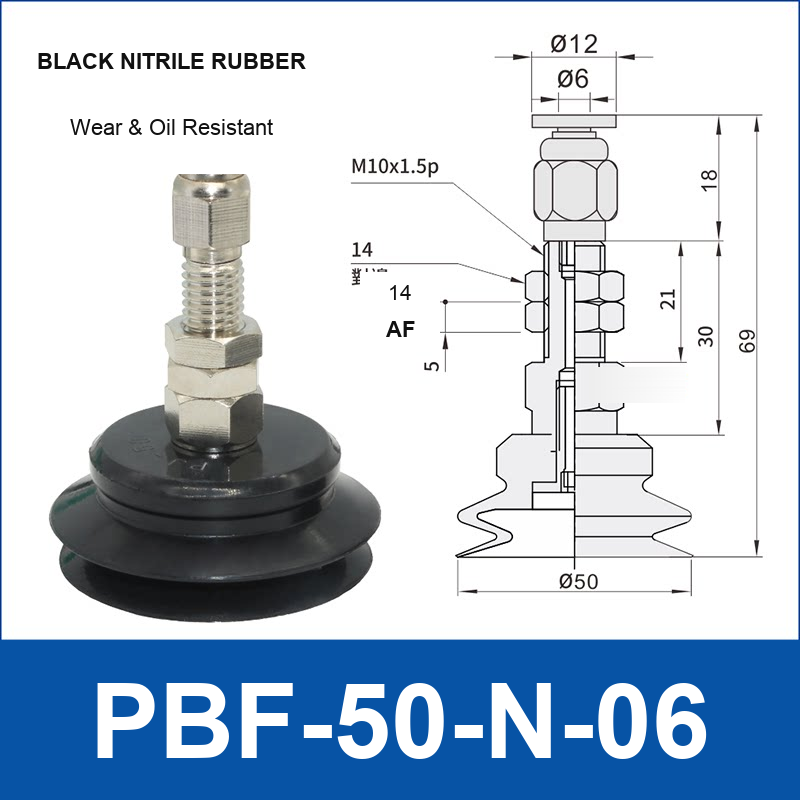

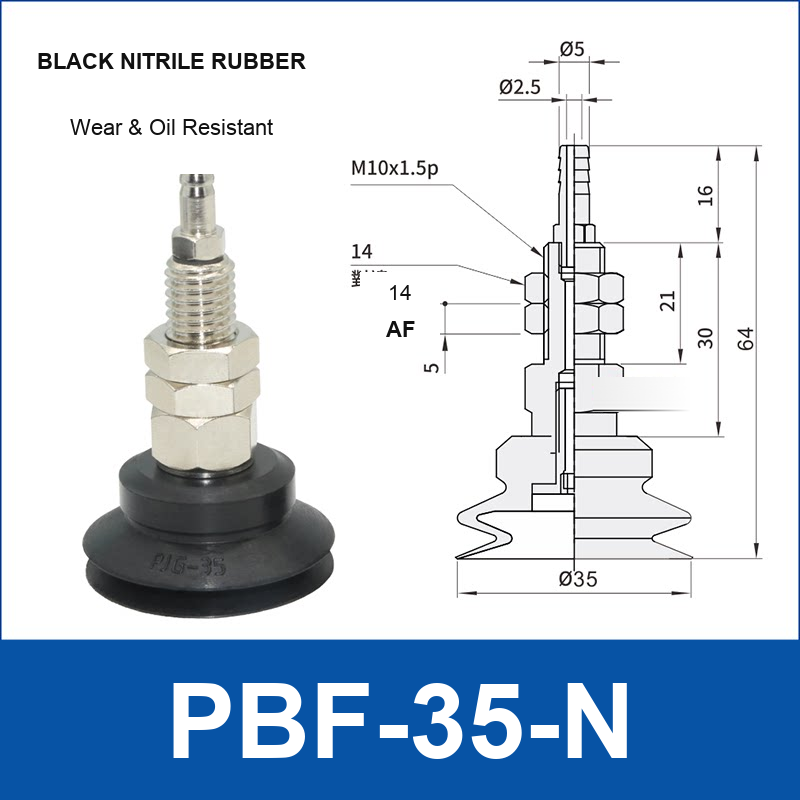

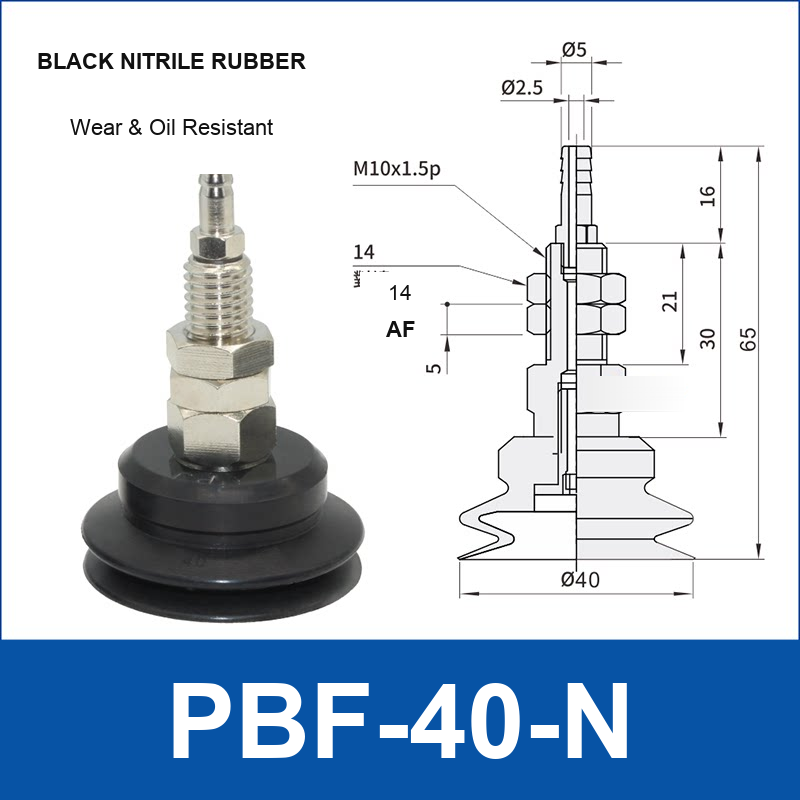

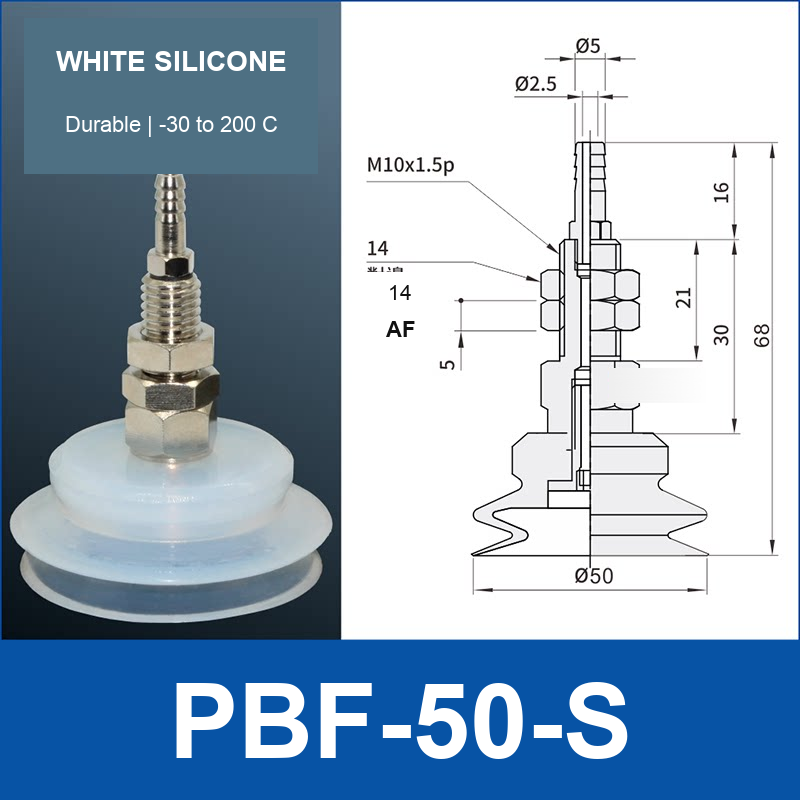

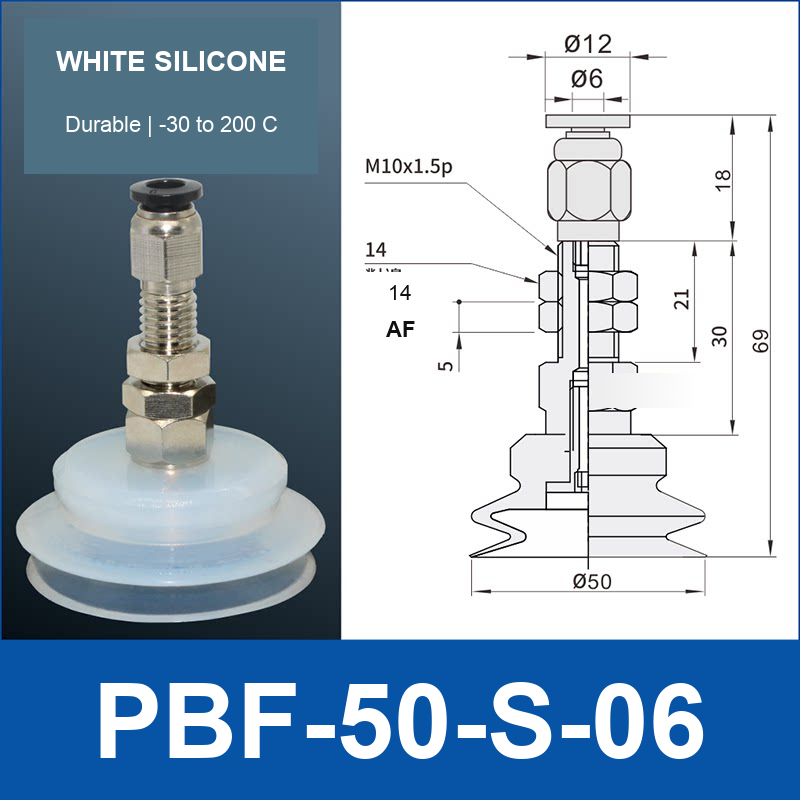

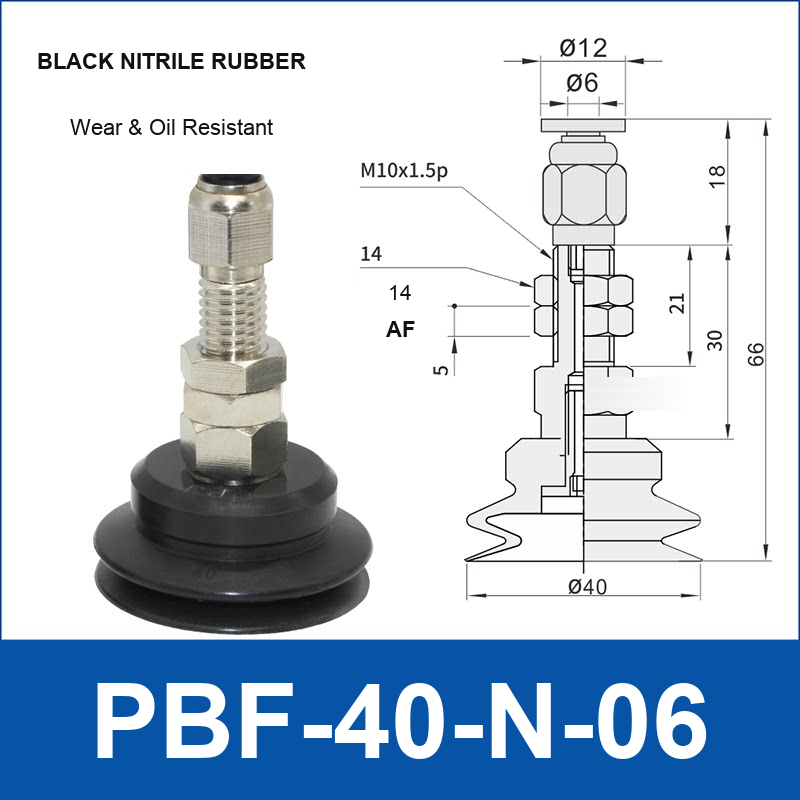

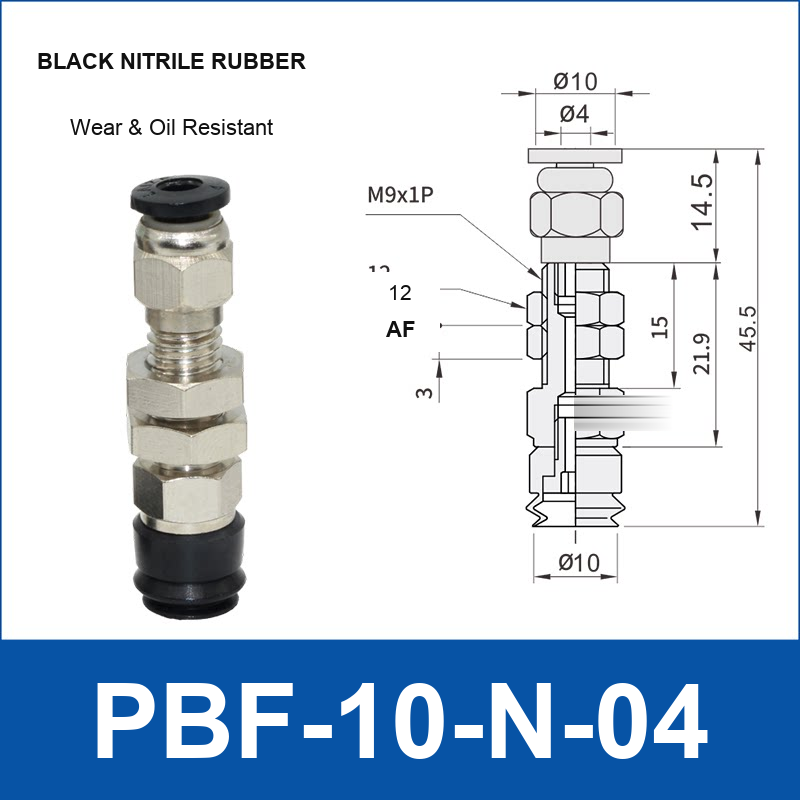

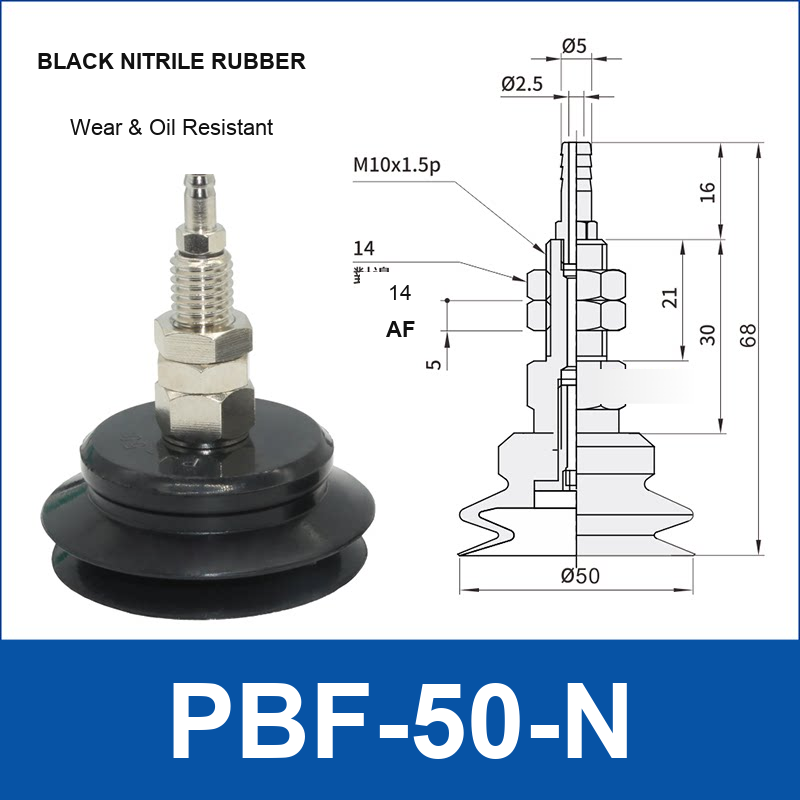

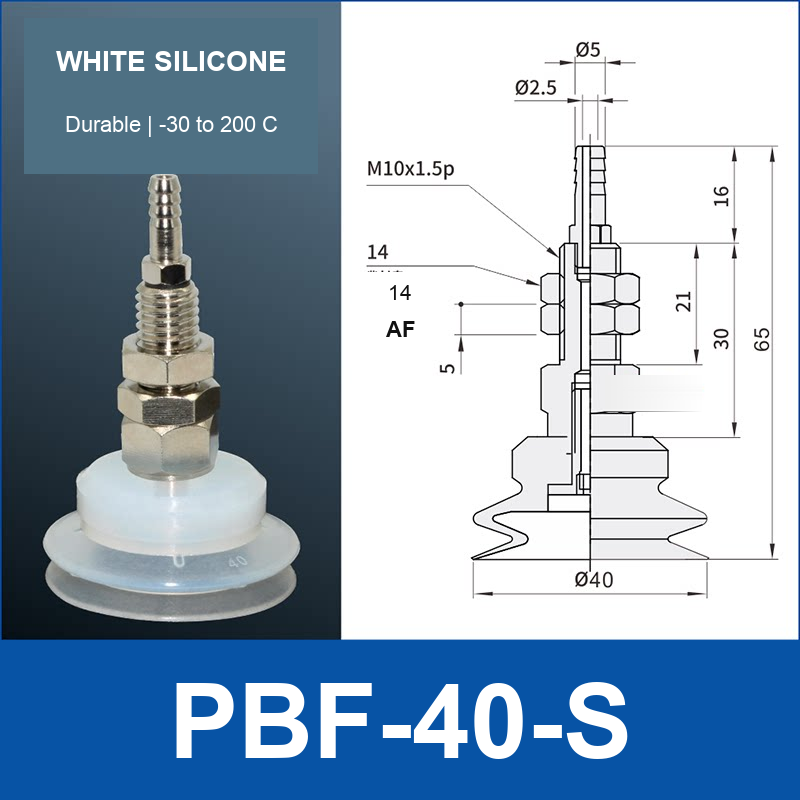

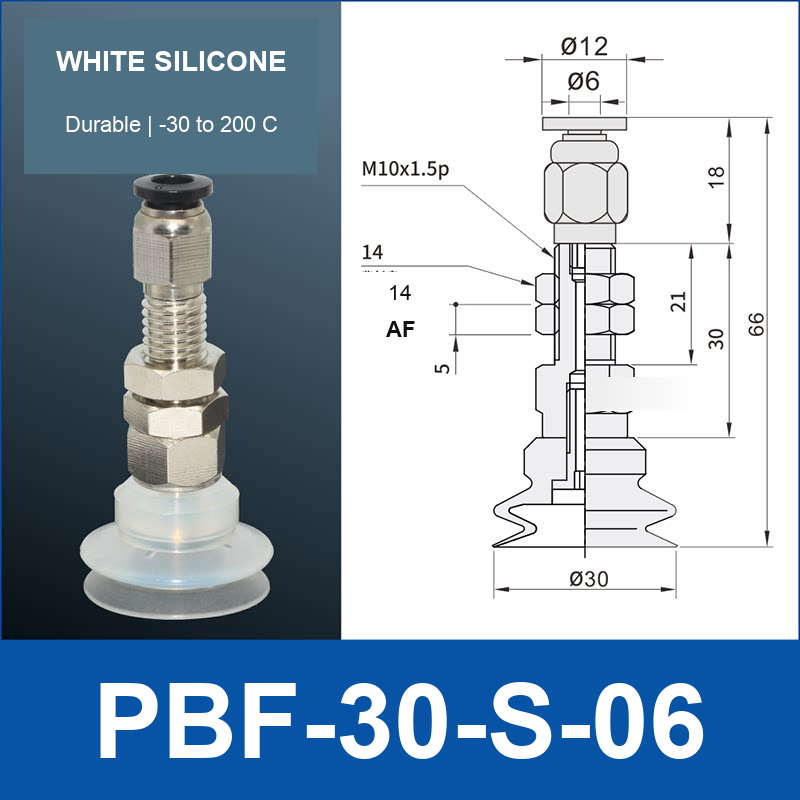

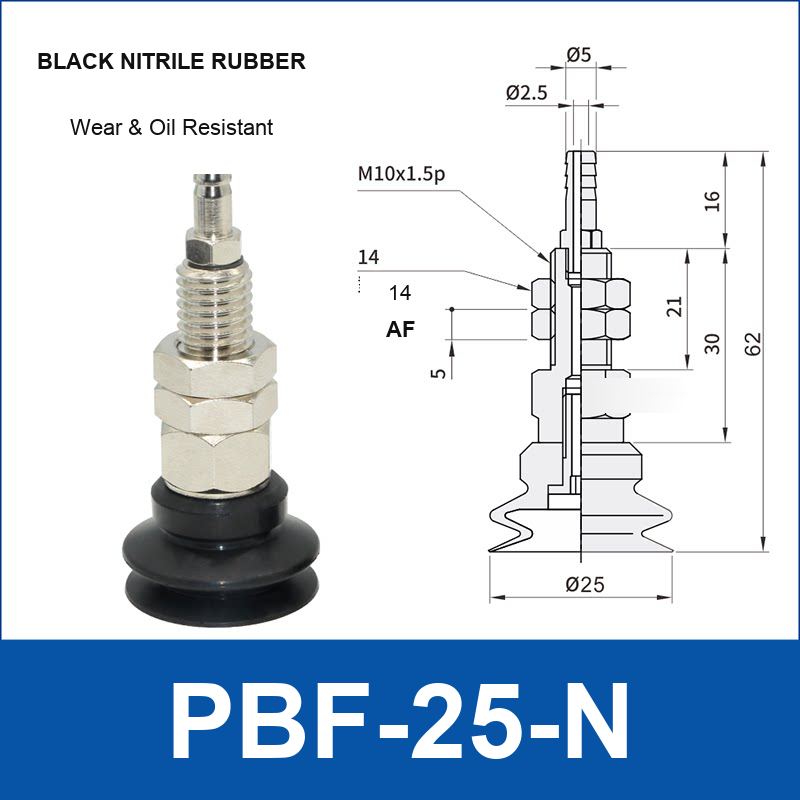

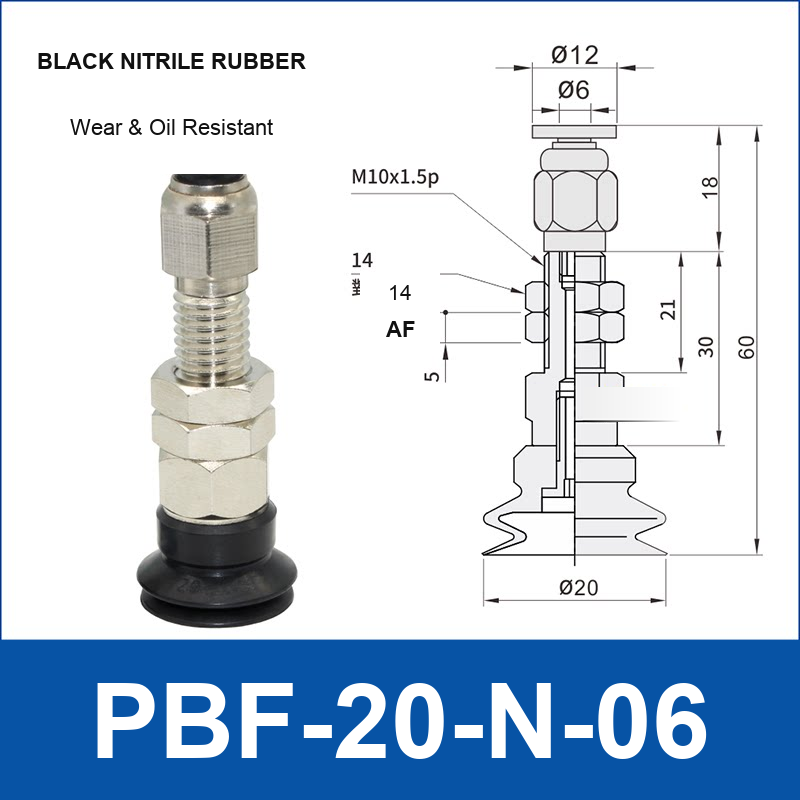

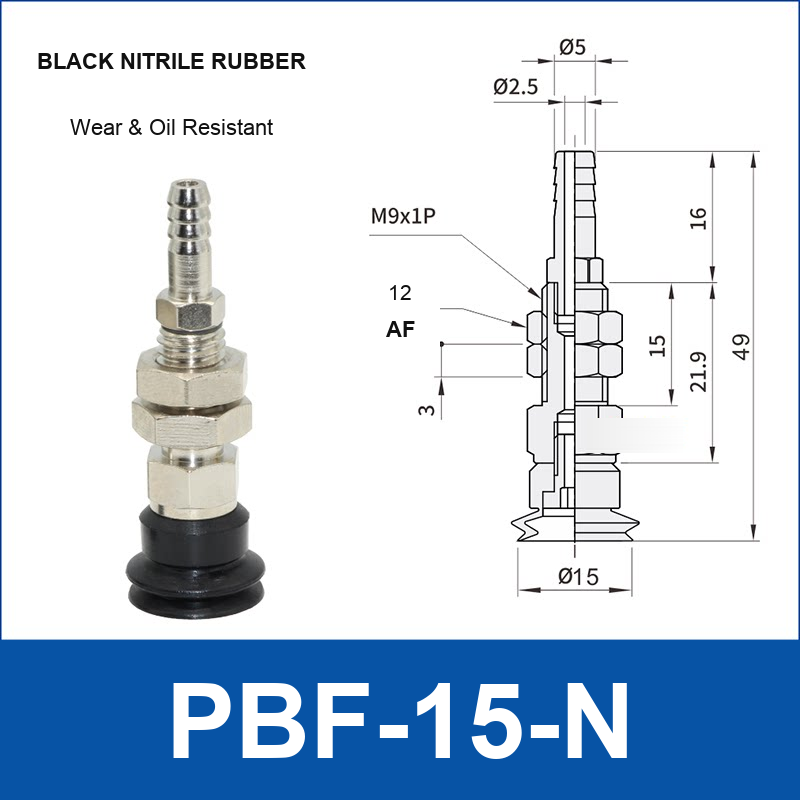

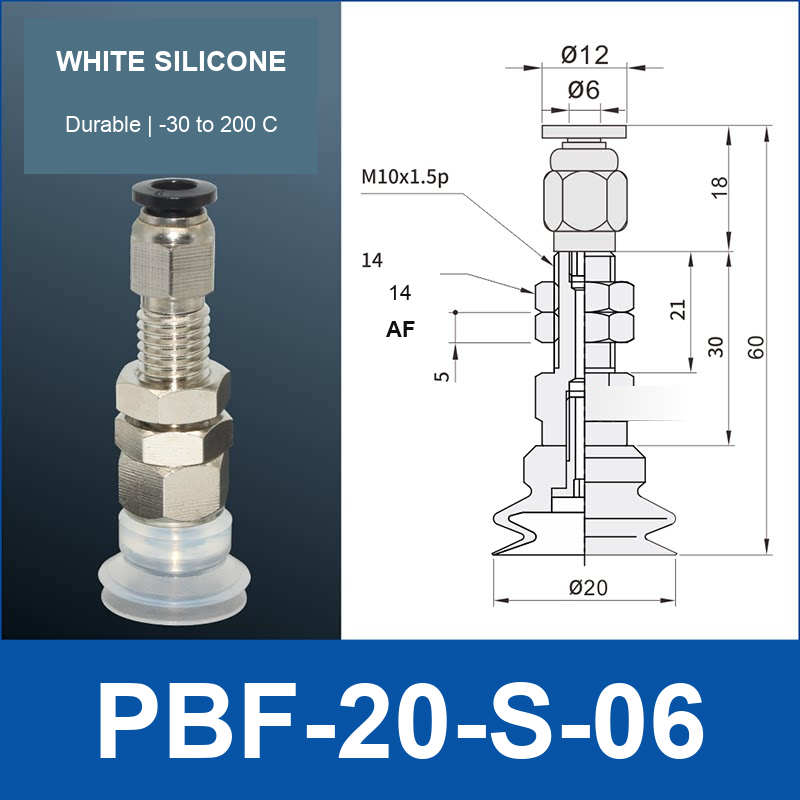

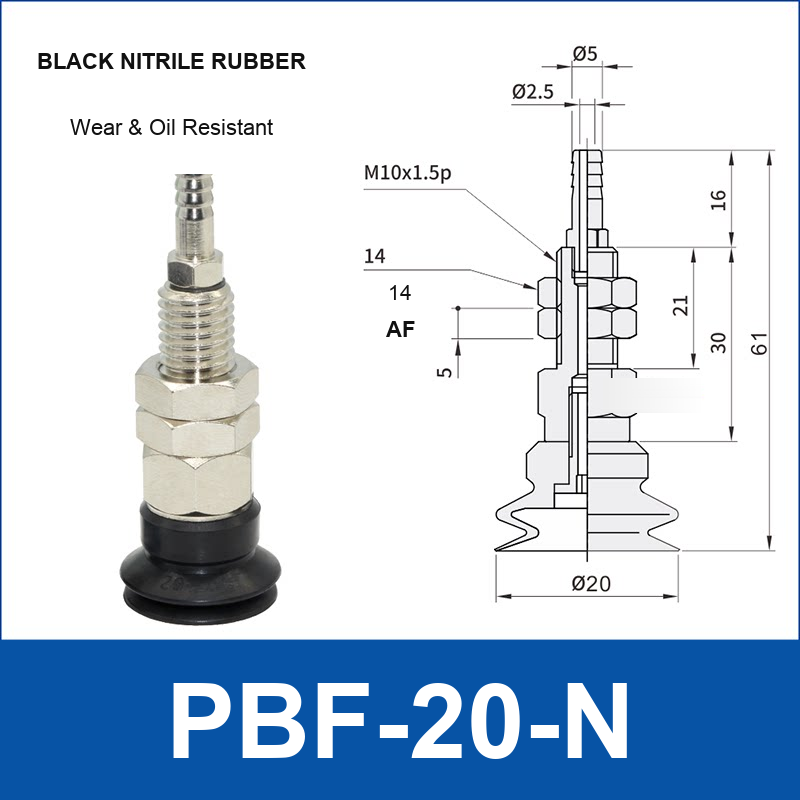

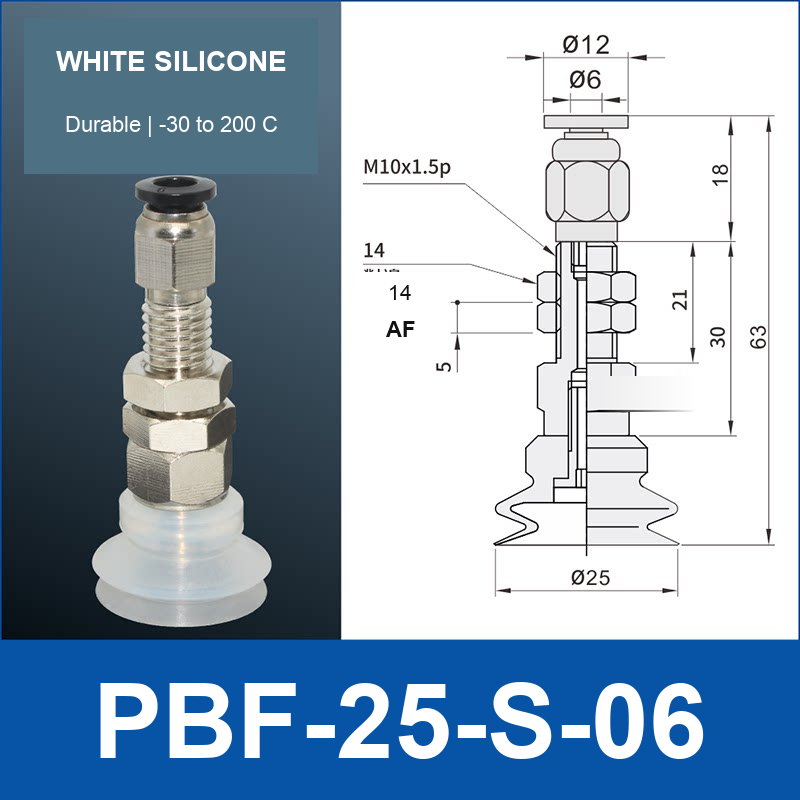

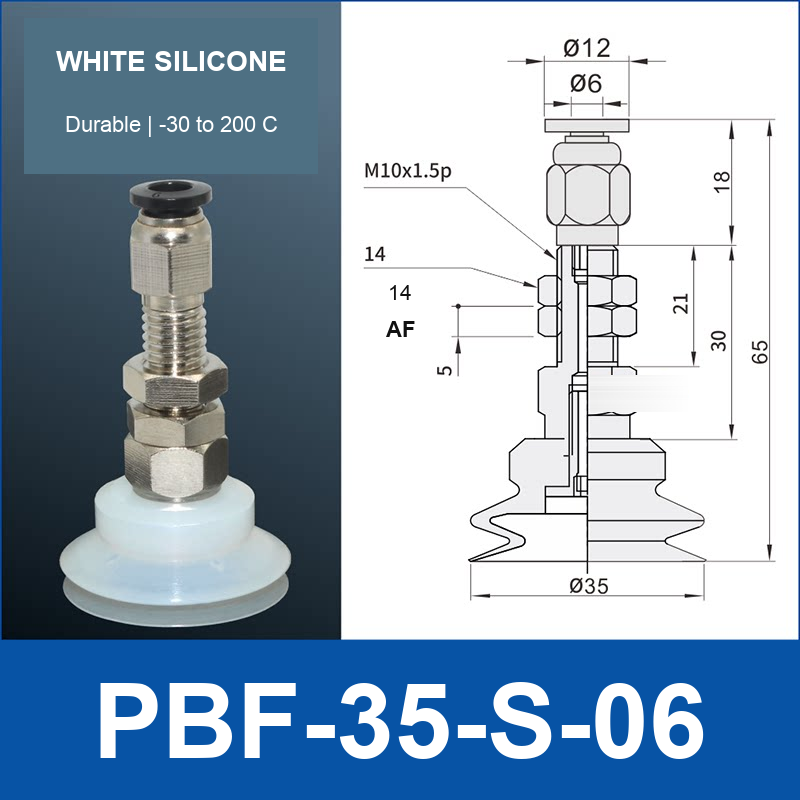

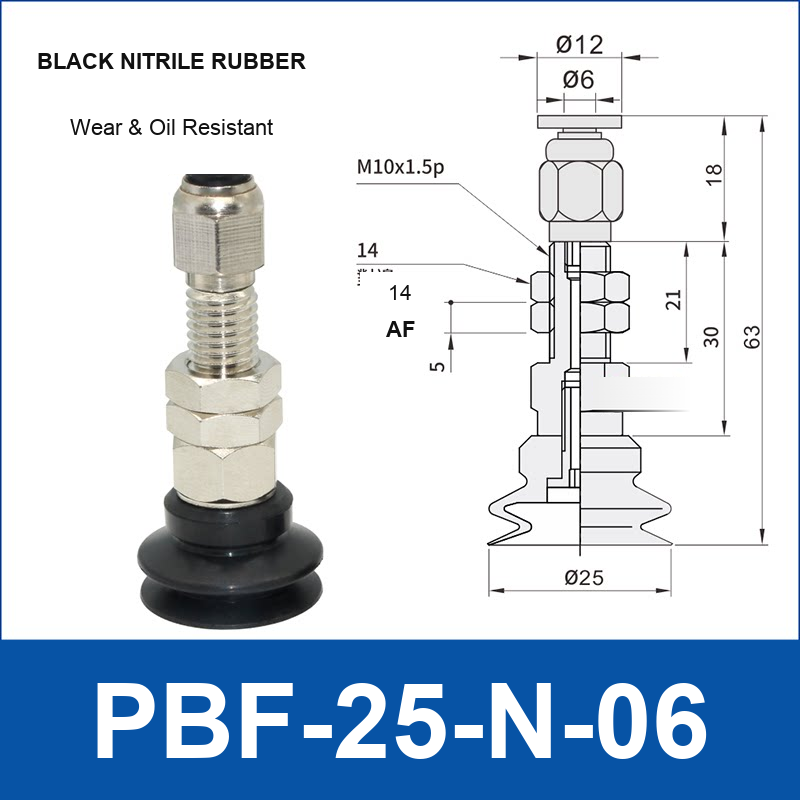

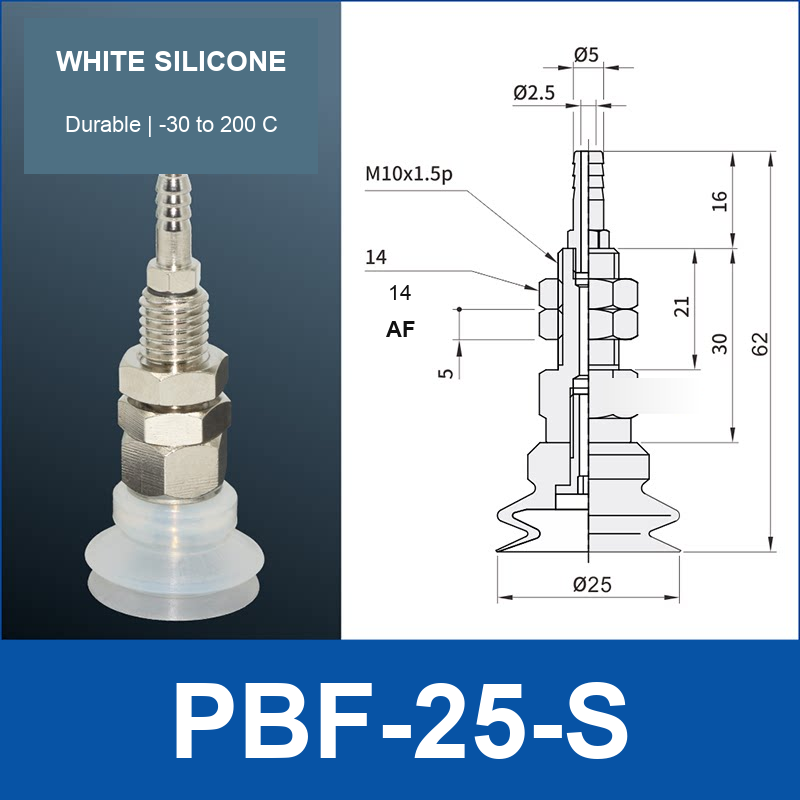

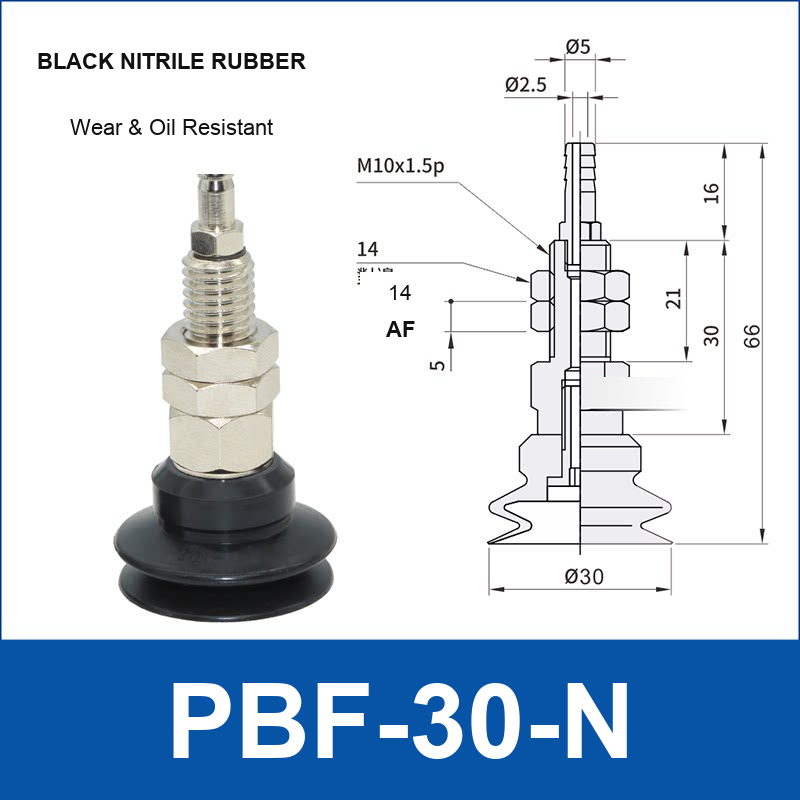

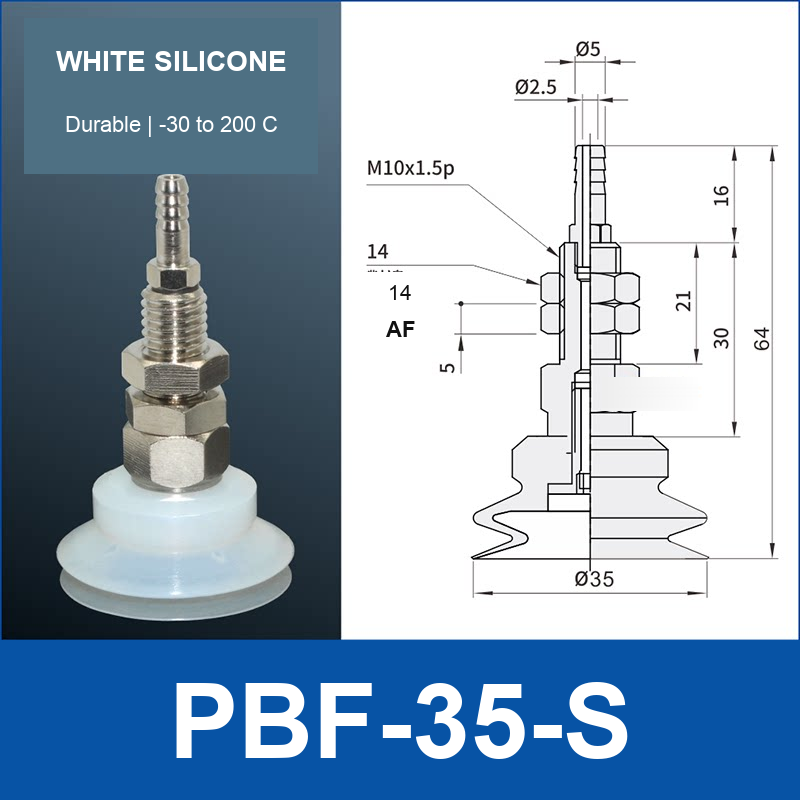

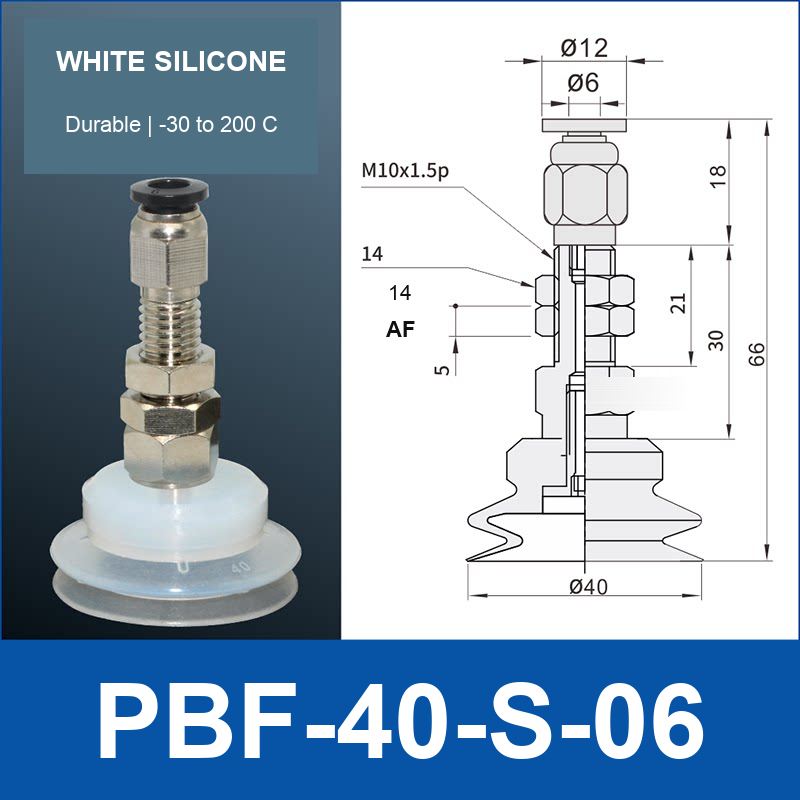

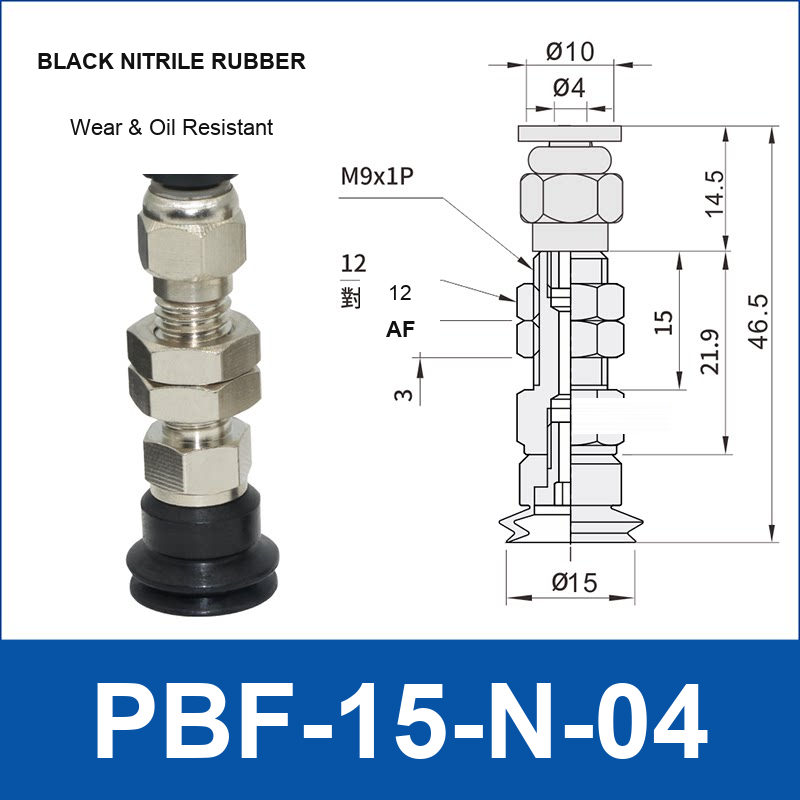

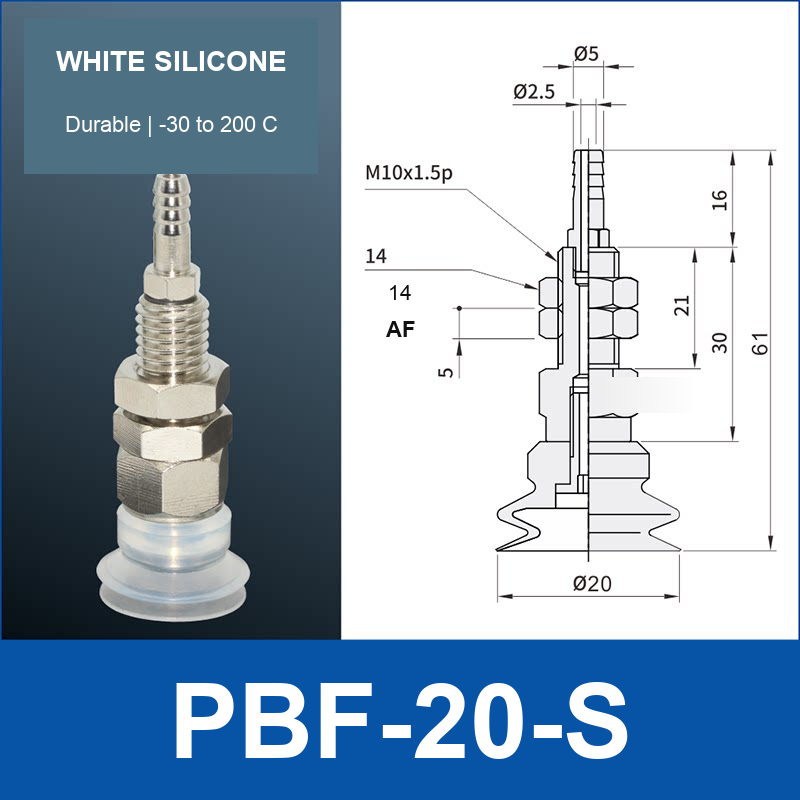

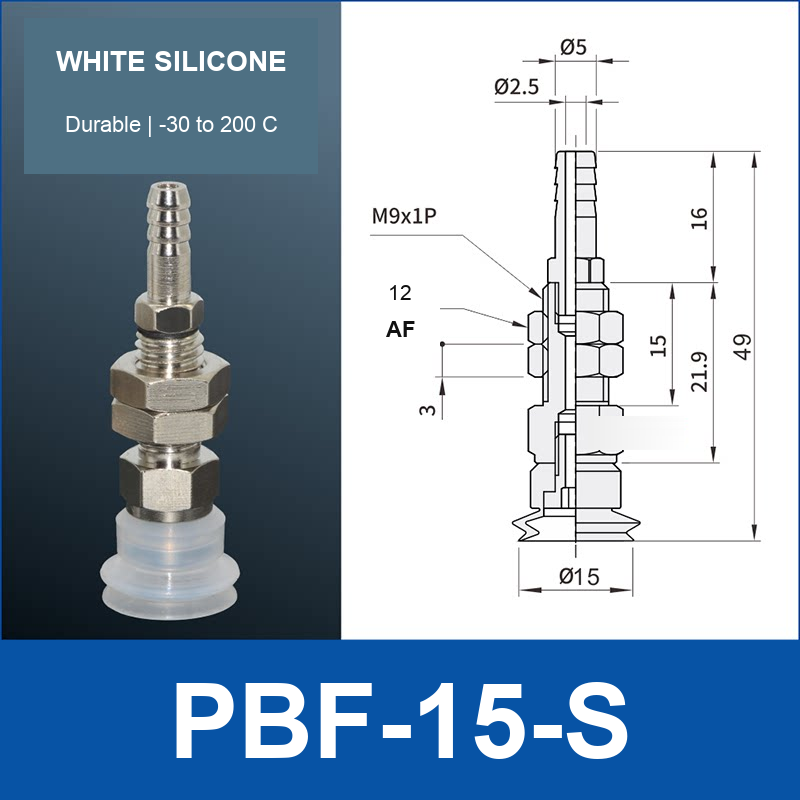

• Model drawings show the applicable cup, mount, interface and key dimensions

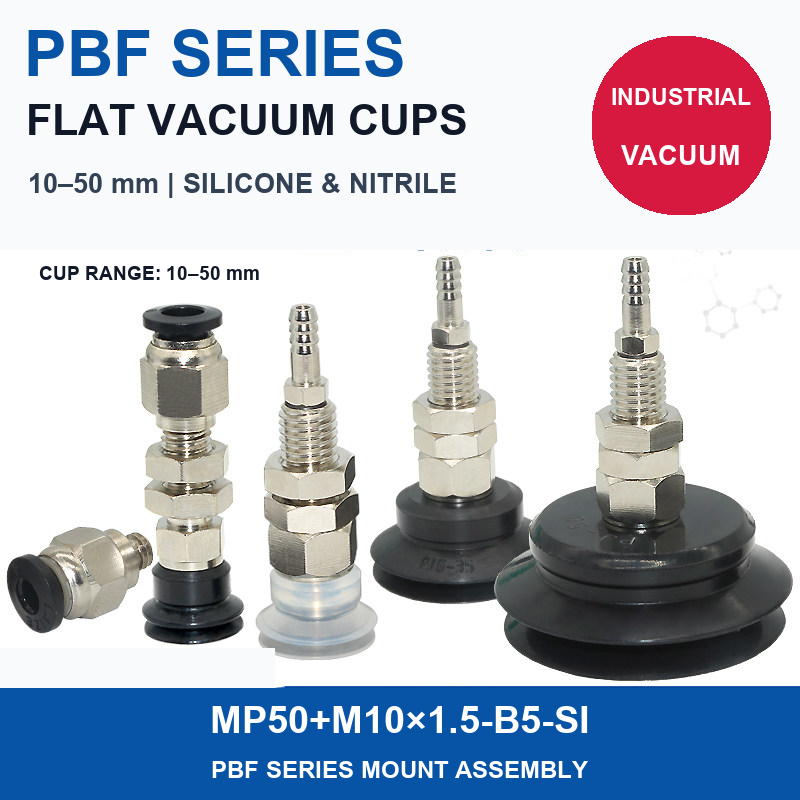

• MP50+M10 x 1.5-B5-SI mount assembly option

Applications / Suitable For

• Robotic pick-and-place, sorting and transfer equipment
• Packaging, assembly and general industrial automation
• Vacuum end-of-arm tooling for compatible flat or mildly uneven surfaces
• Workpiece handling after application-specific testing

Confirm the selected model code, drawing, cup diameter, material, mounting thread or push-in size, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. Temperature and resistance wording describes the listed material option only. No food-contact, medical, lifting-safety or regulatory certification is claimed.
