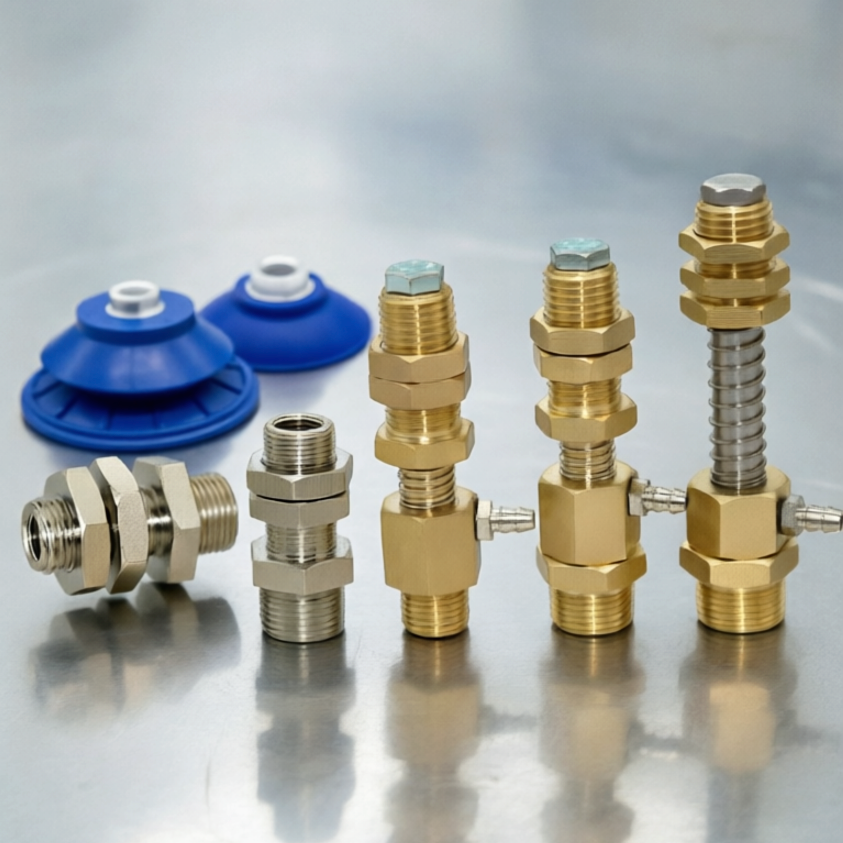

M14/M16 Vacuum Cup Holders and Spring-Loaded Buffer Mounts

M14/M16 Vacuum Cup Holders and Spring-Loaded Buffer Mounts

Threaded vacuum cup holders and spring-loaded buffer mounts for industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies.

• 9 selectable M14 and M16 configurations
• G1/4, G3/8 and B5-08 connection options
• Rigid, Buffer 6, Buffer 22 and 50 mm stroke configurations
• Nickel-plated brass and stainless-steel options where specified

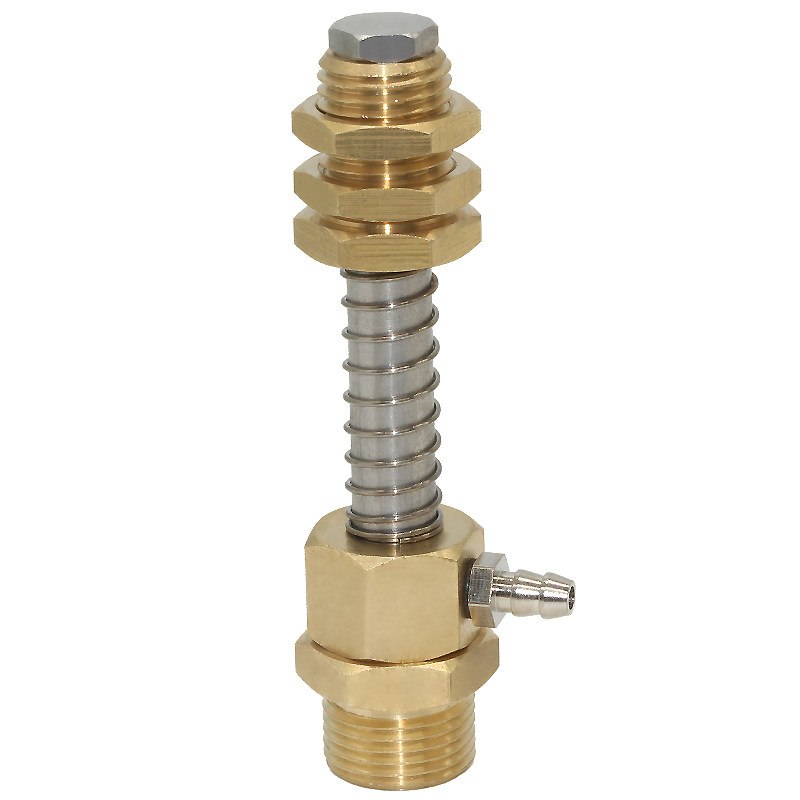

• Replaceable push-in fittings on the spring-loaded configurations

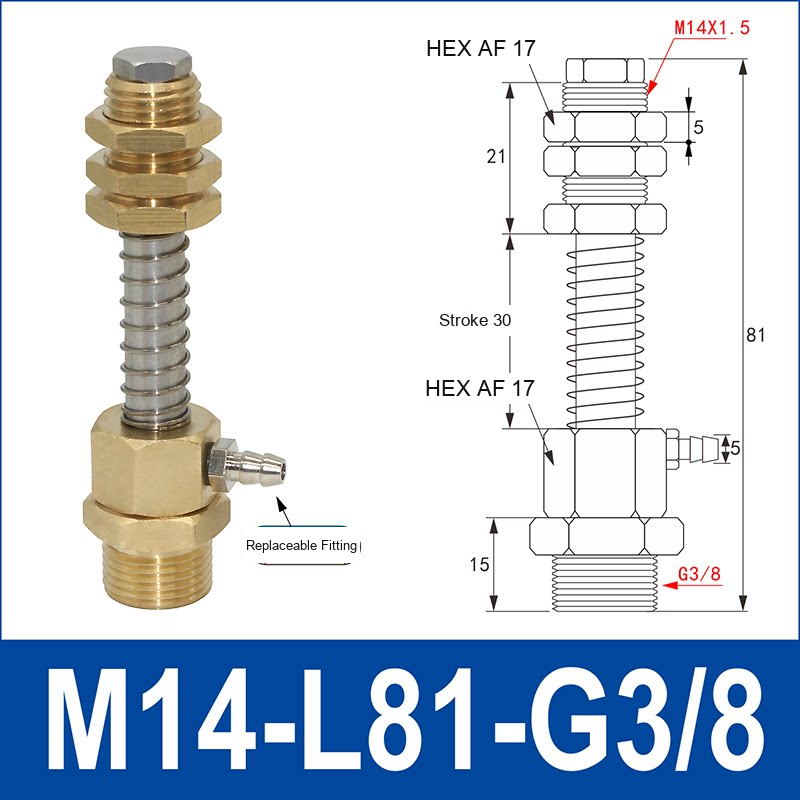

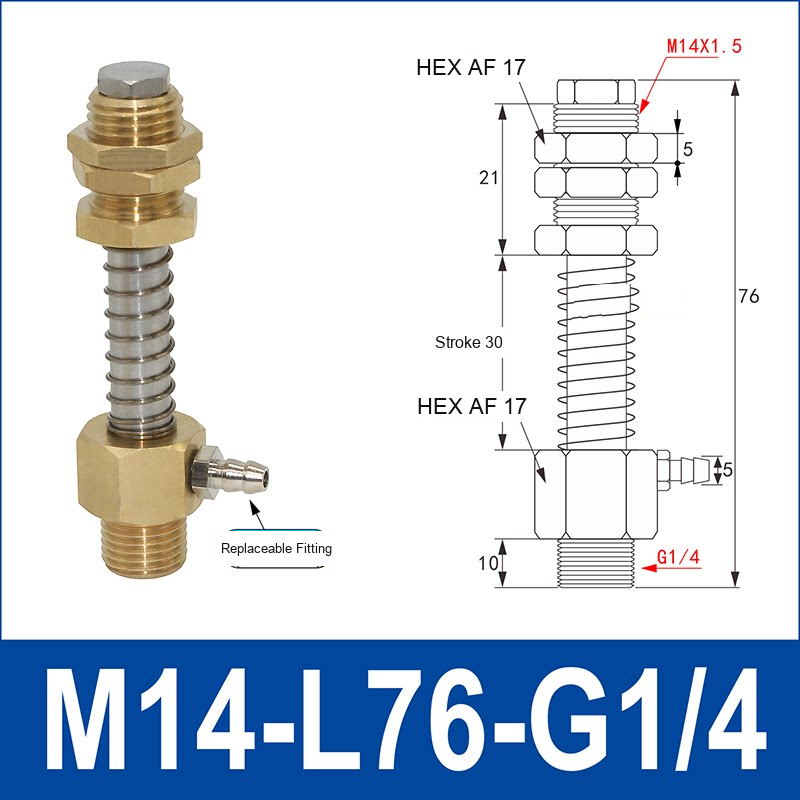

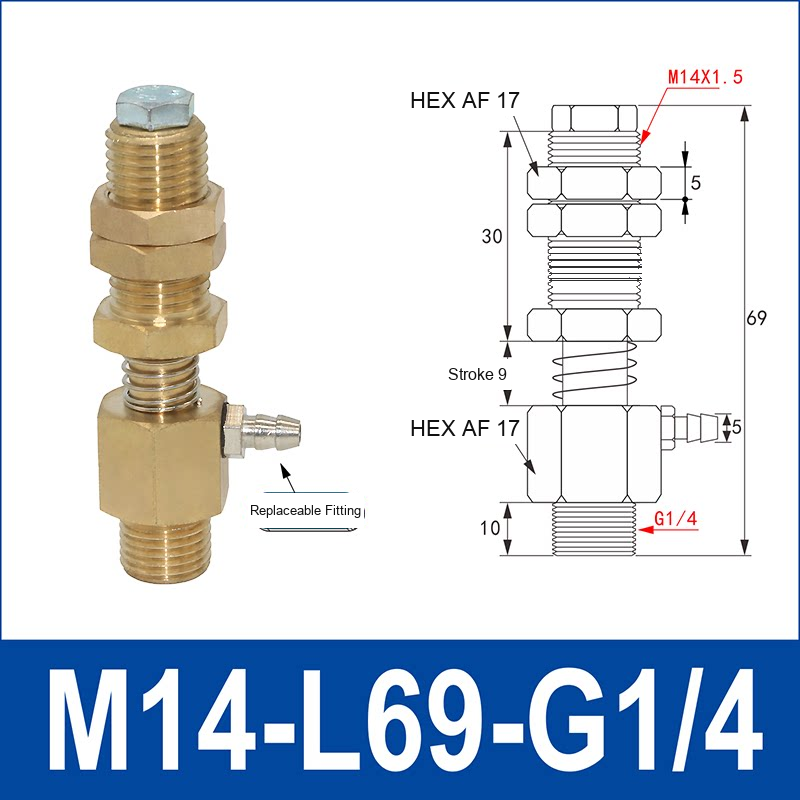

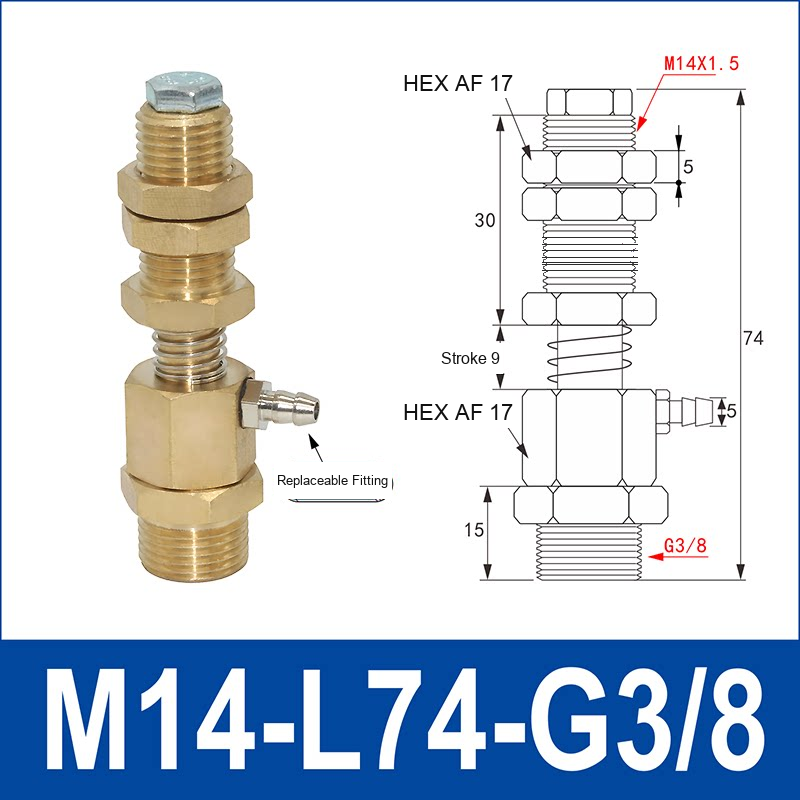

• Overall length, thread callouts, stroke and wrench-flat dimensions are shown for the applicable models

Applications / Suitable For

• Vacuum pick-and-place and component-transfer equipment
• Robotic end-of-arm tooling that needs compact threaded mounting
• Packaging, assembly, sorting and general industrial automation

Confirm the selected model code, connection, mounting thread, buffer or stroke configuration, material, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
