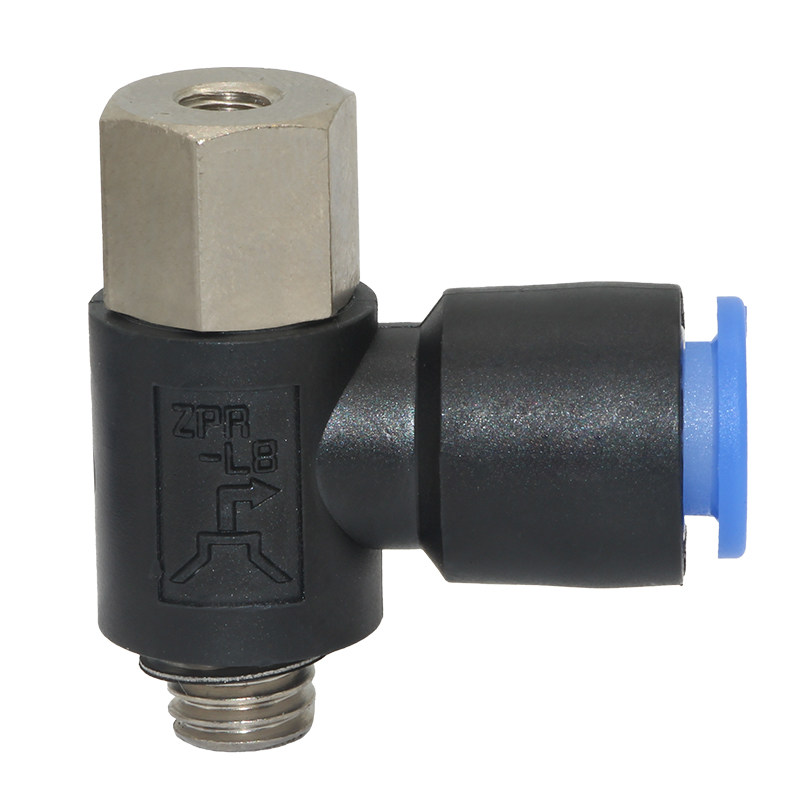

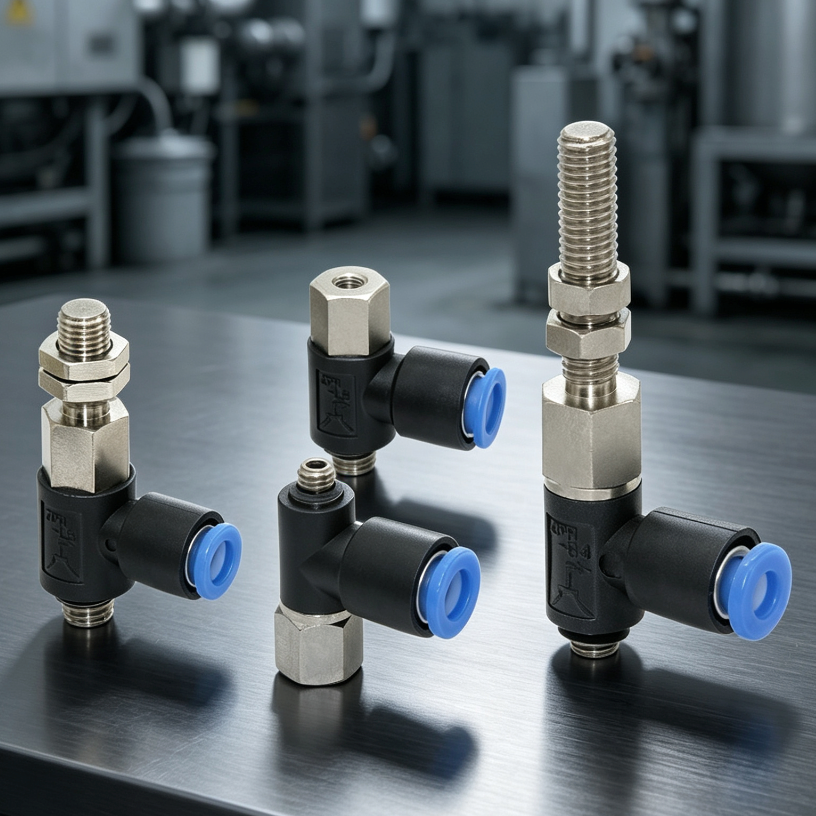

ZPRS/ZPRL Side-Port Vacuum Cup Holders and ZPT Adapters
Compact side-port vacuum cup holders and matching ZPT adapters for industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies. Select the model code that matches the required tube size and connection.
- 26 selectable ZPRS, ZPRL and ZPT configurations
- ZPRS and ZPRL holder options for 4, 6 and 8 mm tube outside diameters
- B4, B5, B6, B8, A5, A6 and A8 connection-code options
- ZPT1, ZPT2, ZPT3 and ZPT4 vacuum cup adapter configurations
- Push-to-connect side tube routing on the holder models

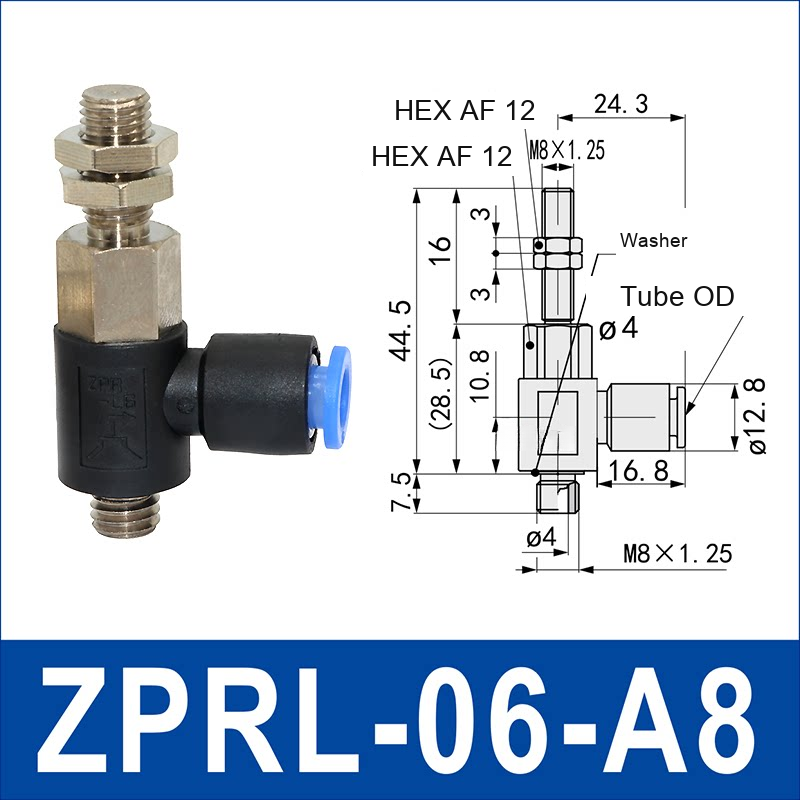

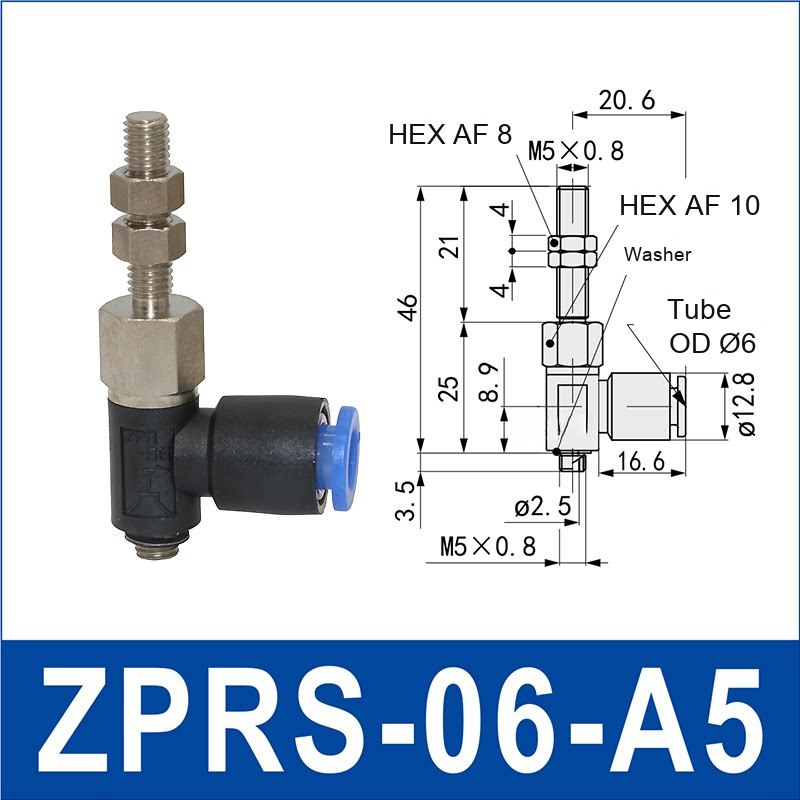

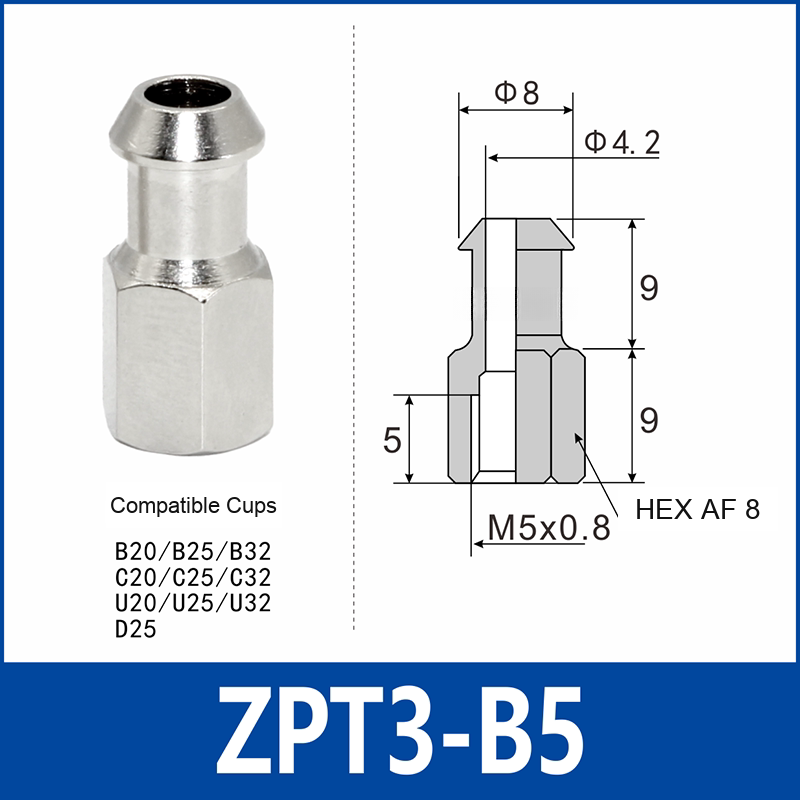

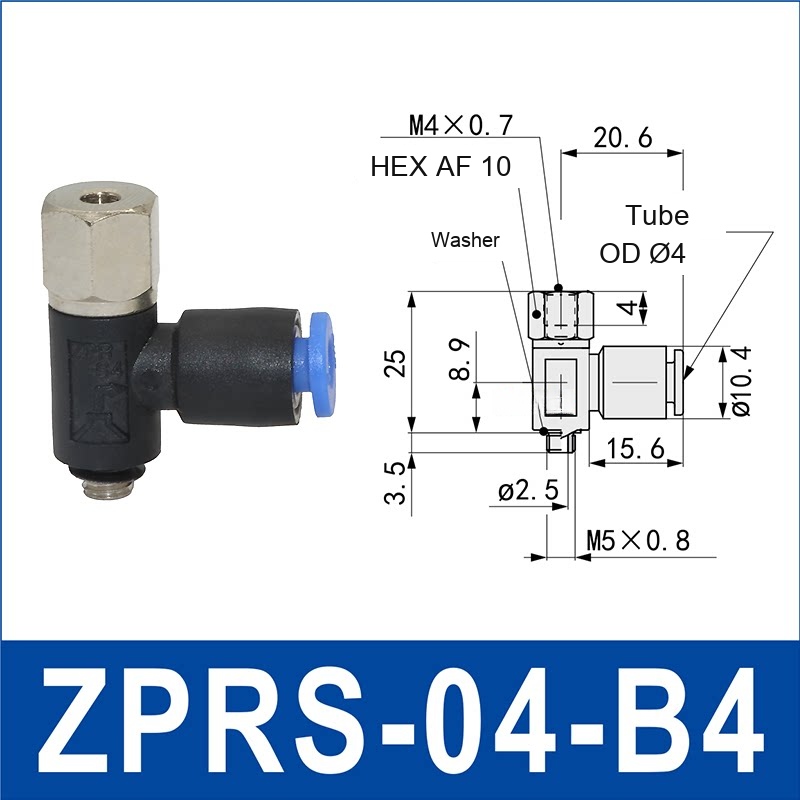

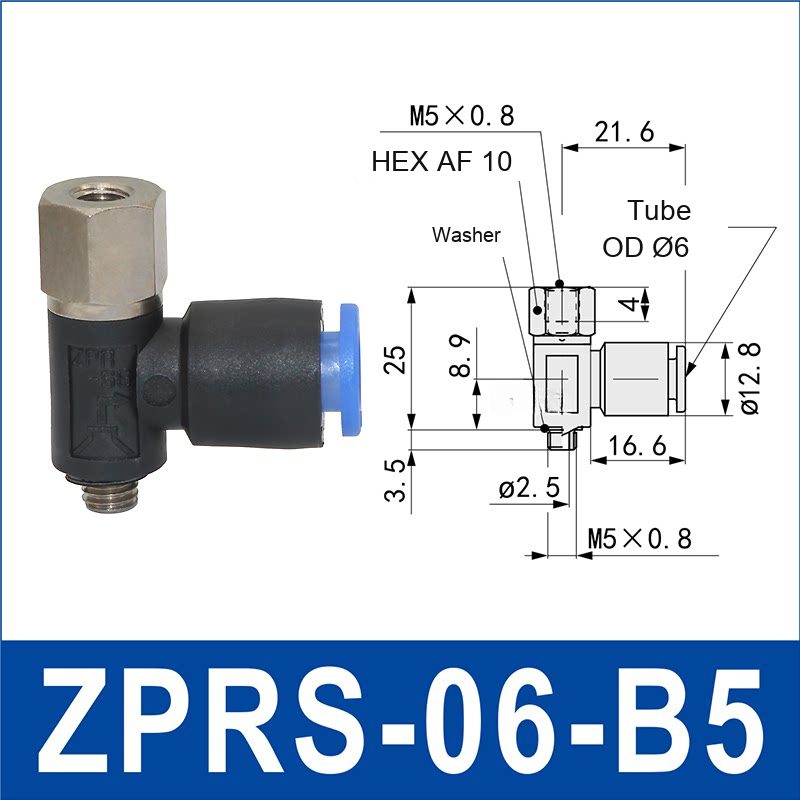

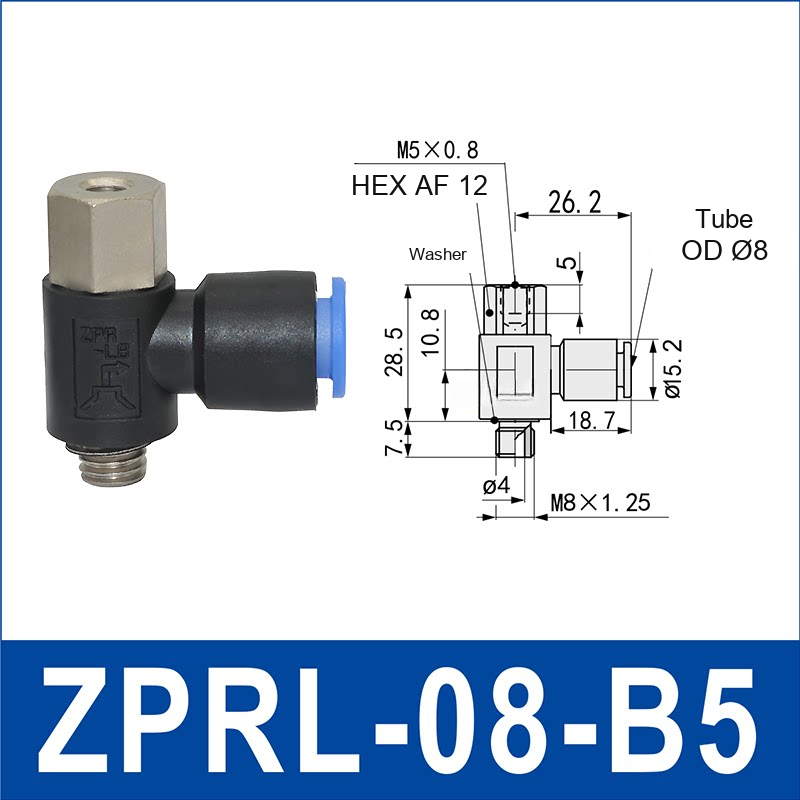

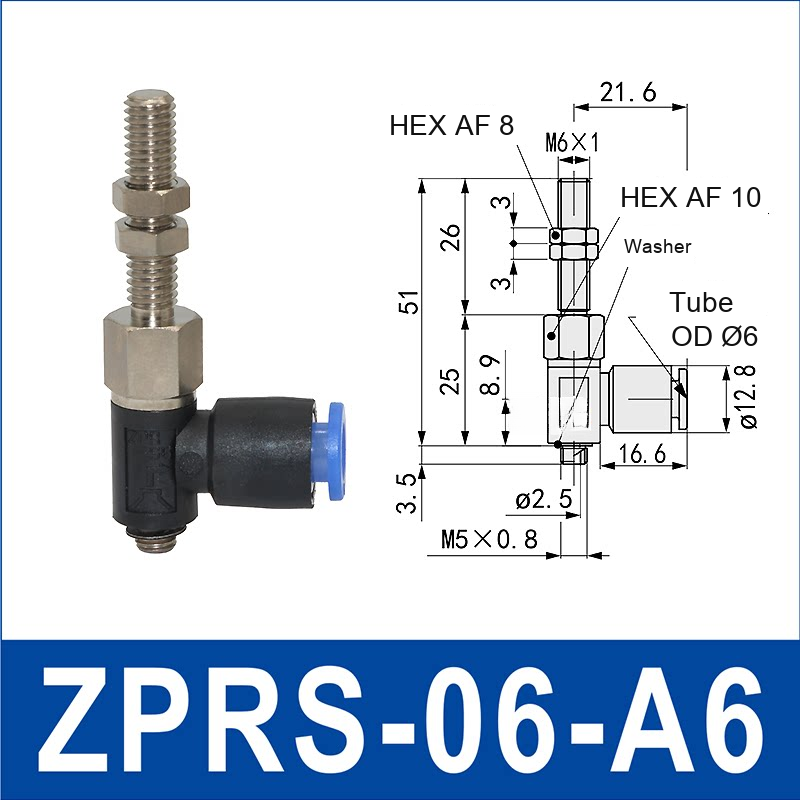

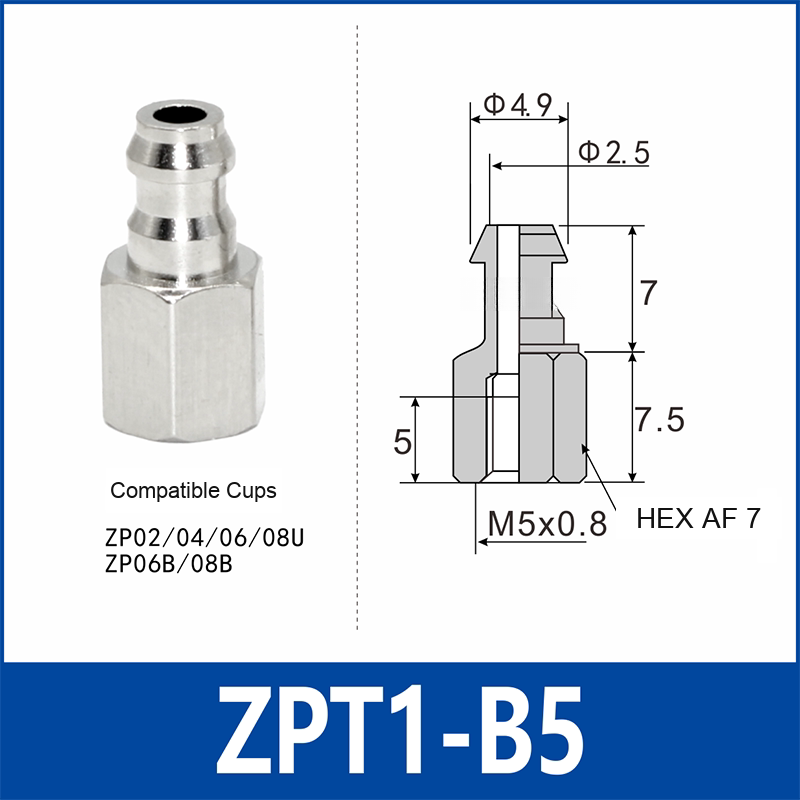

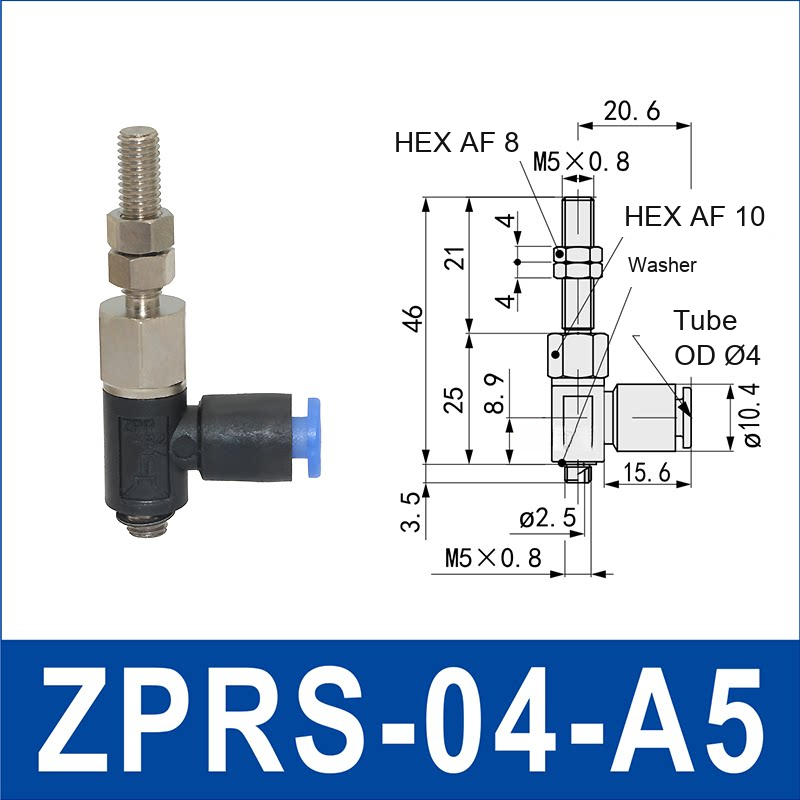

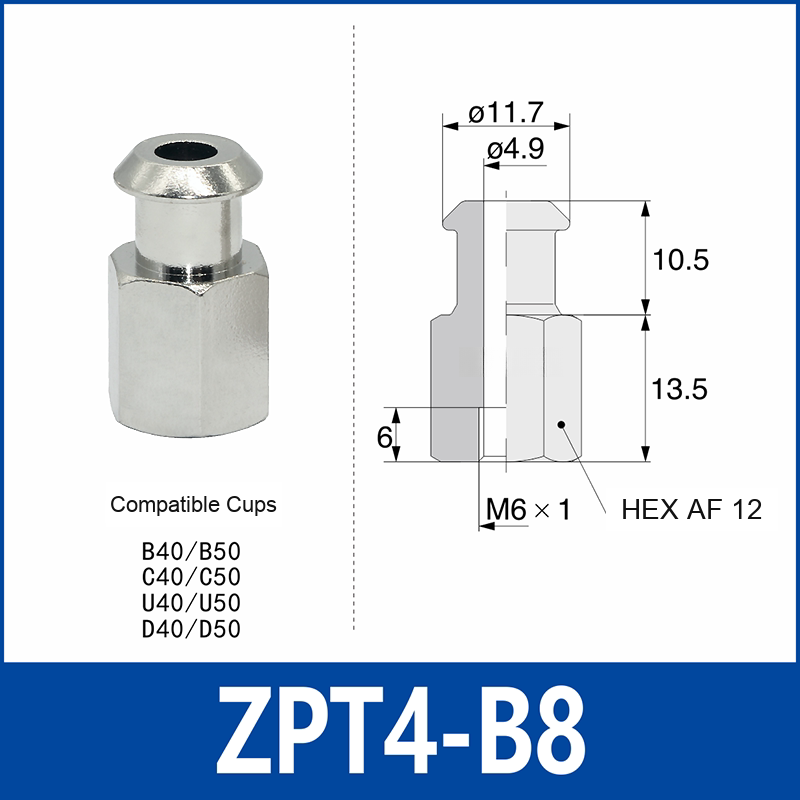

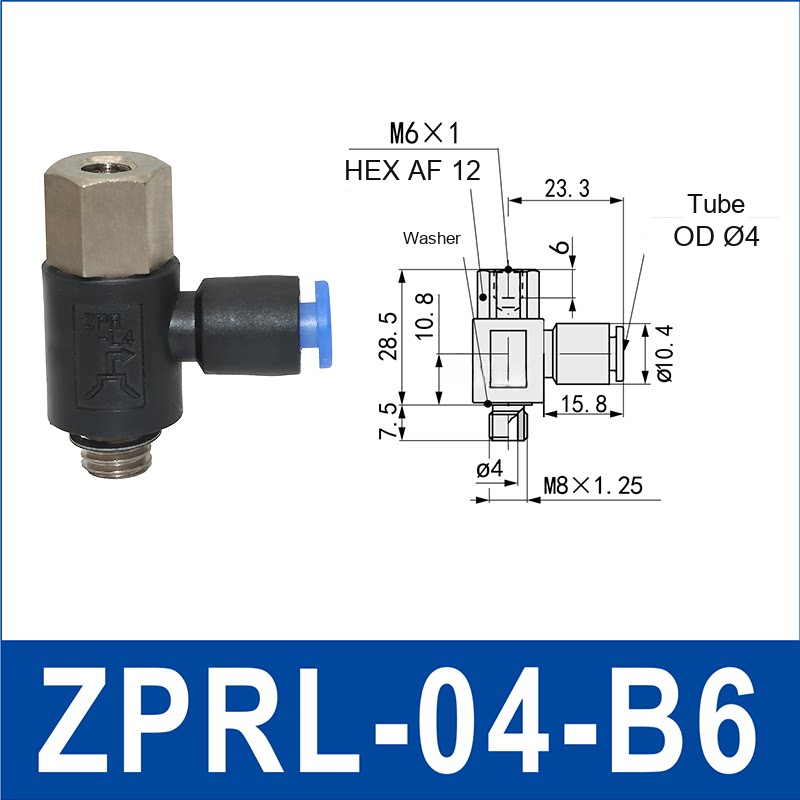

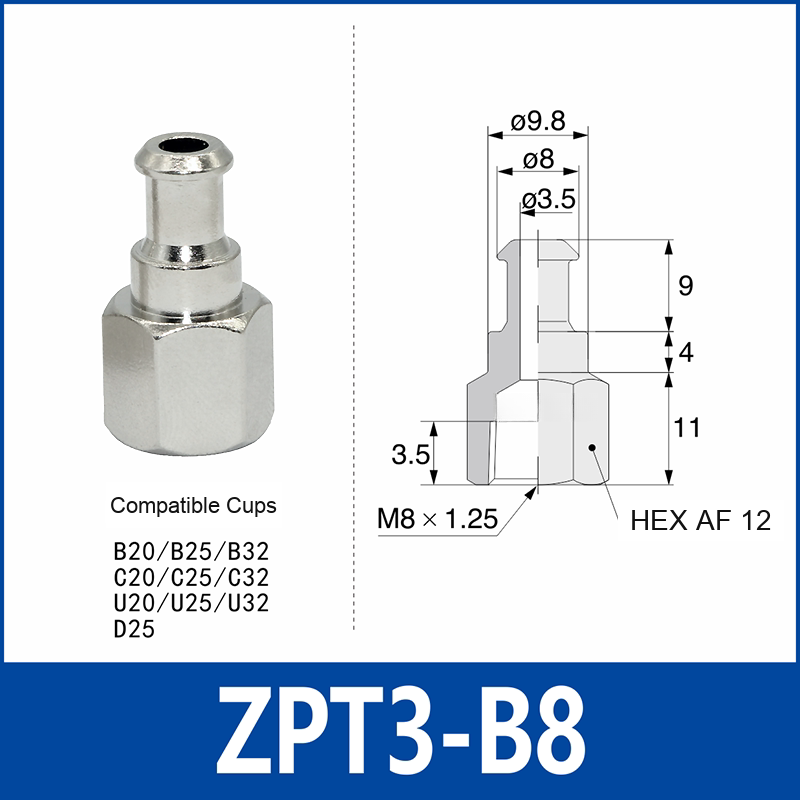

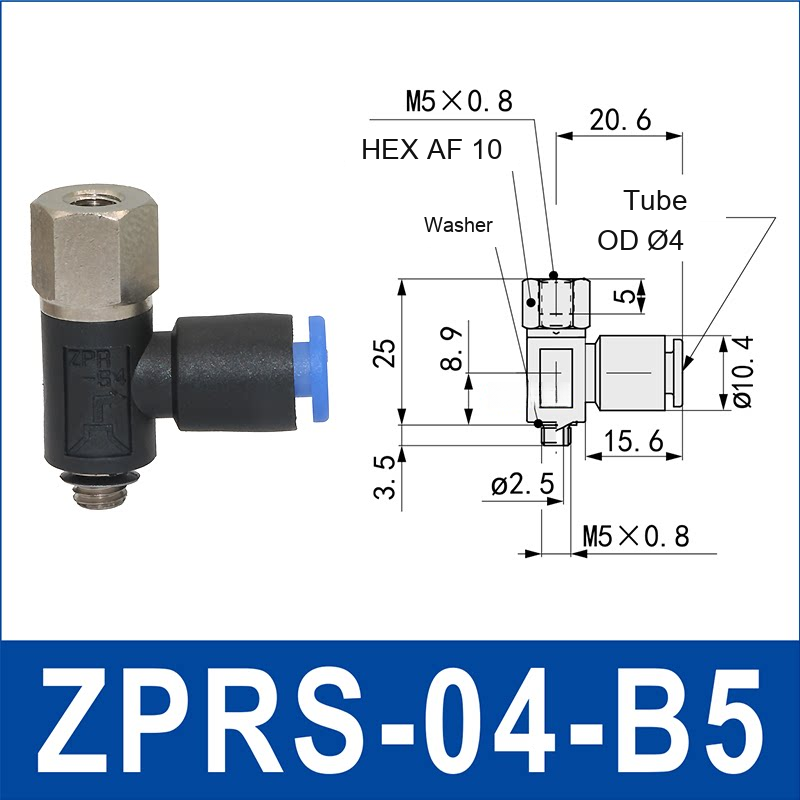

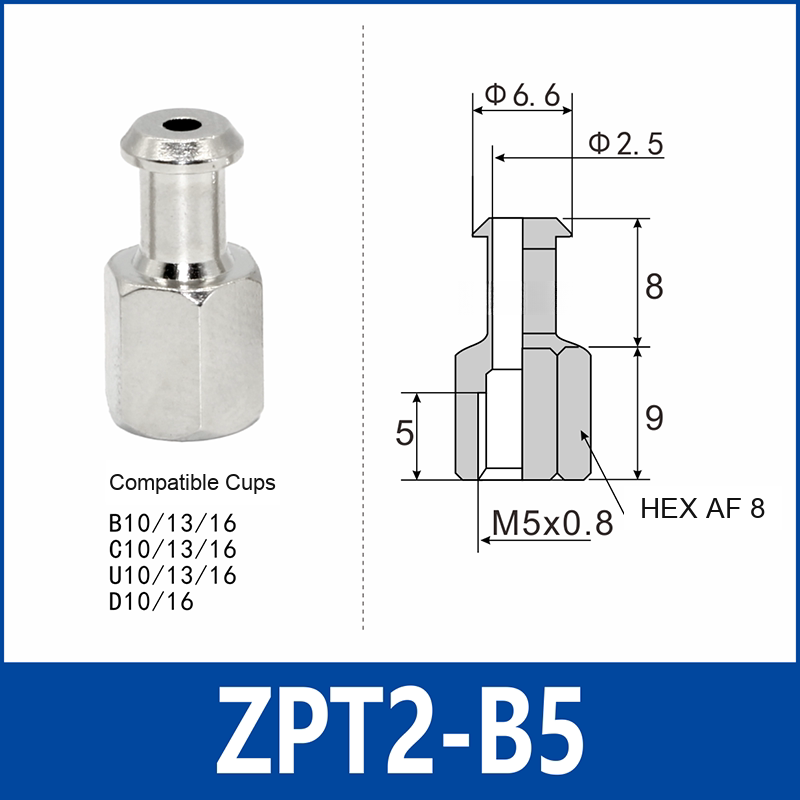

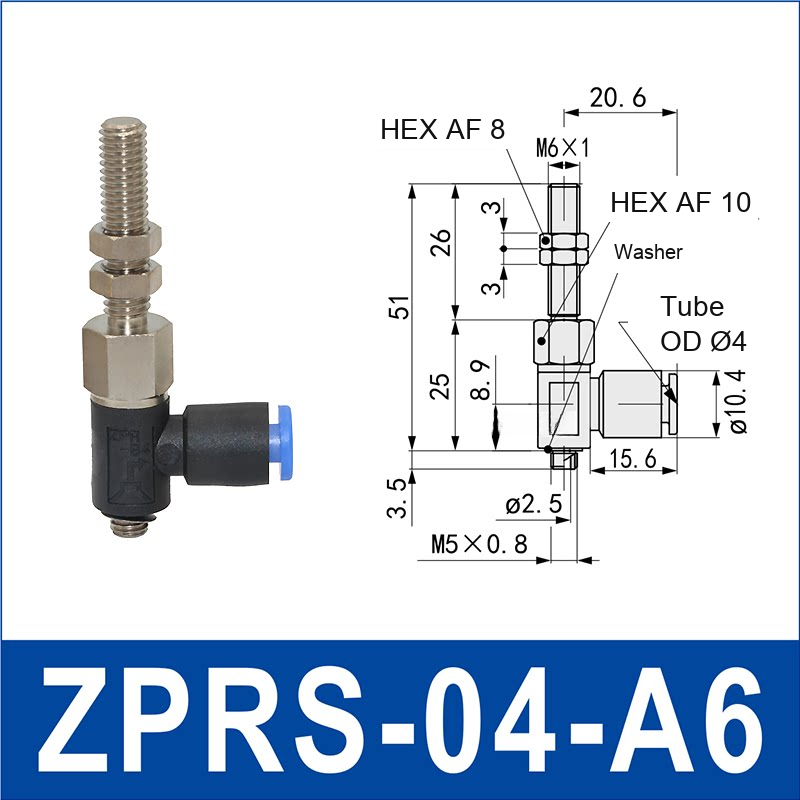

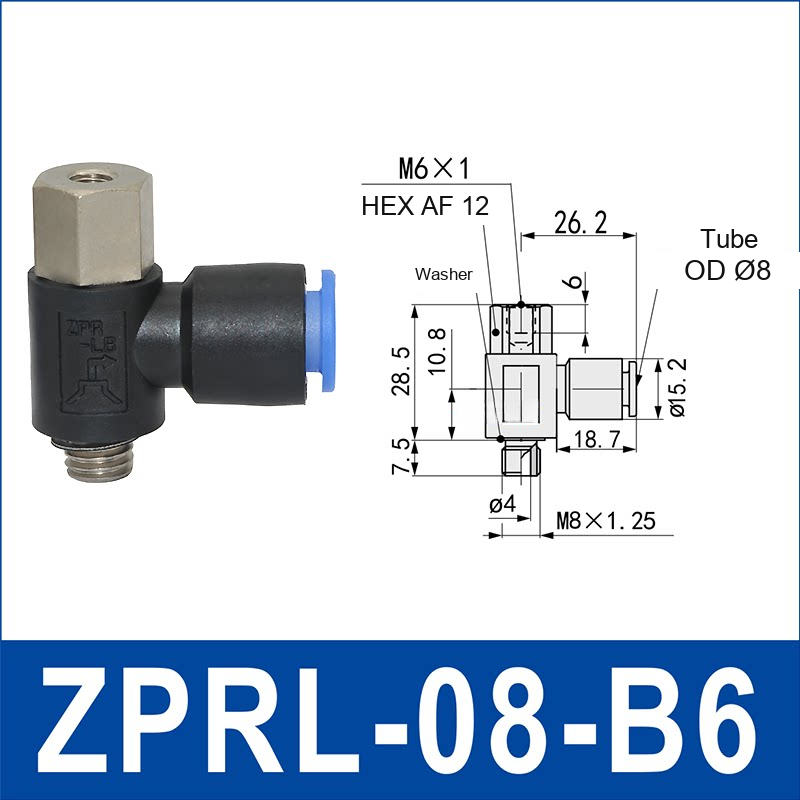

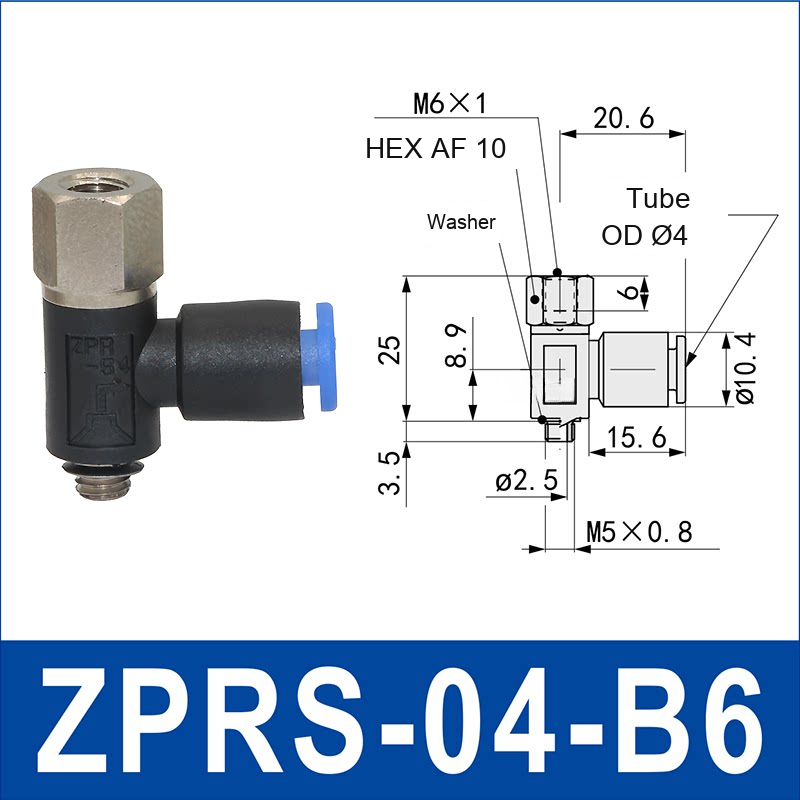

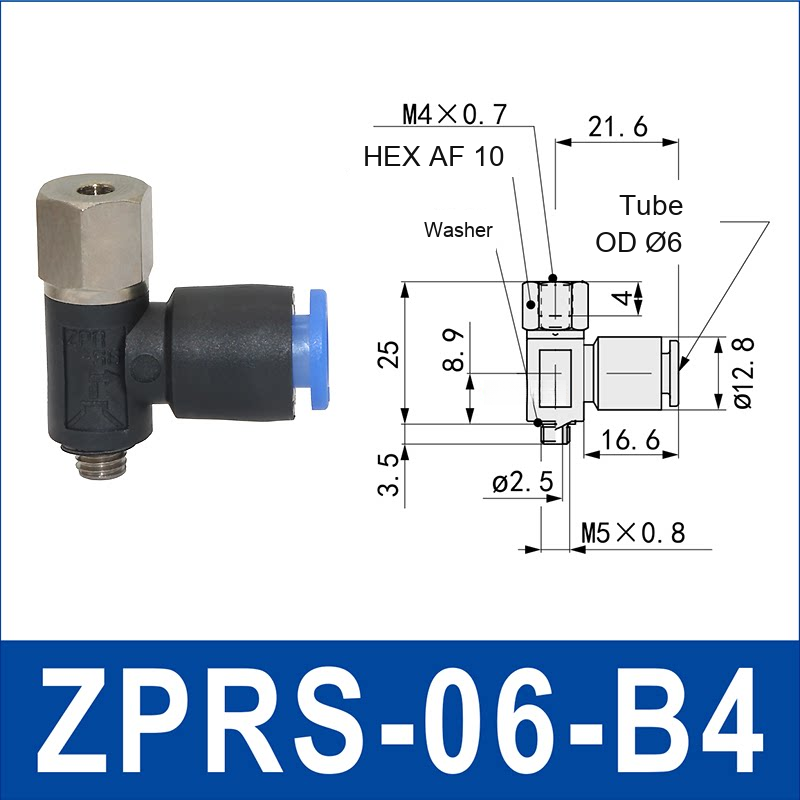

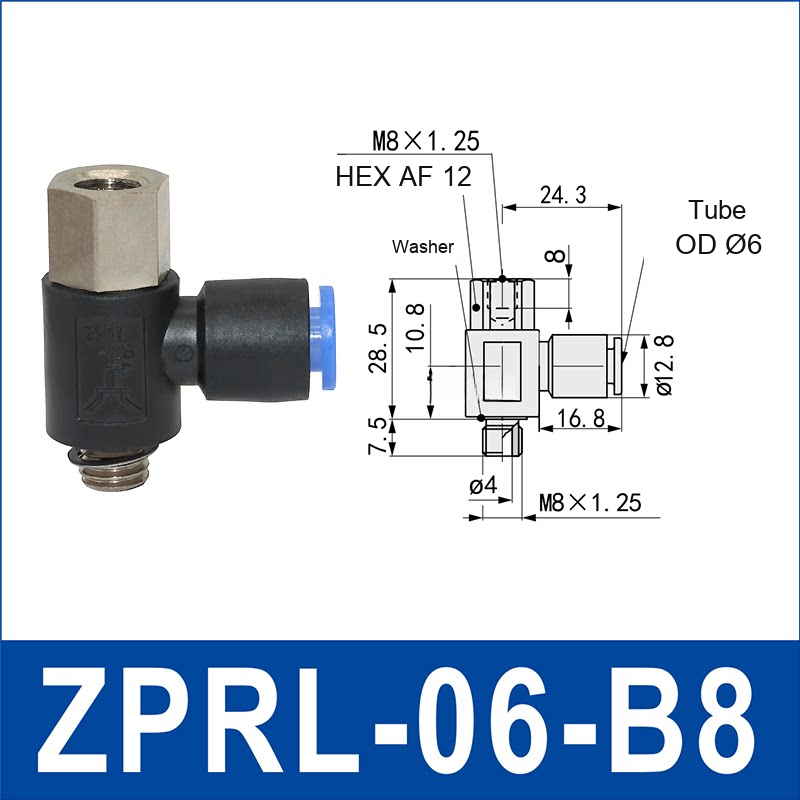

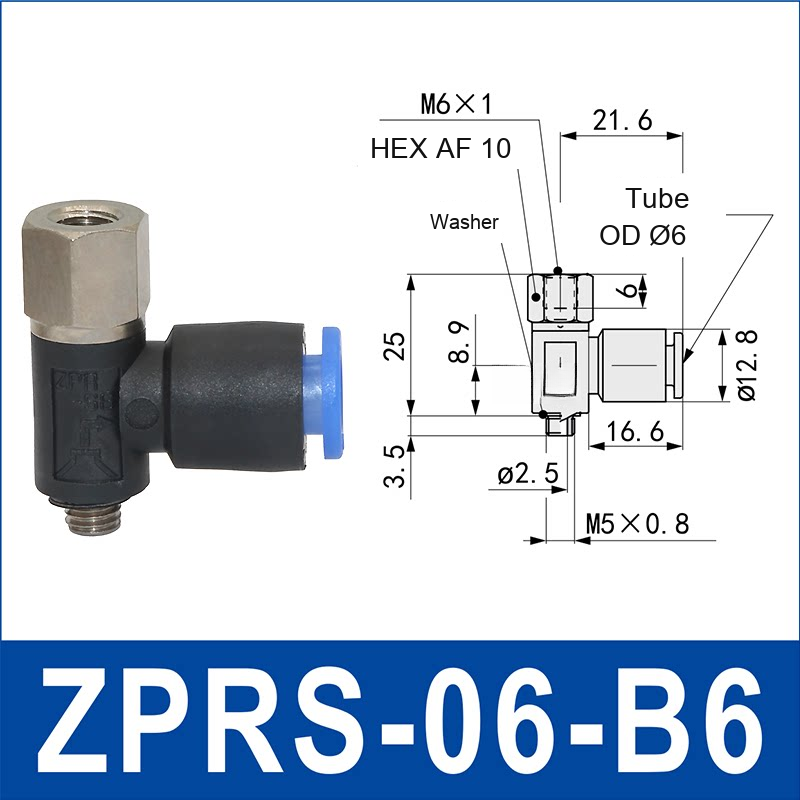

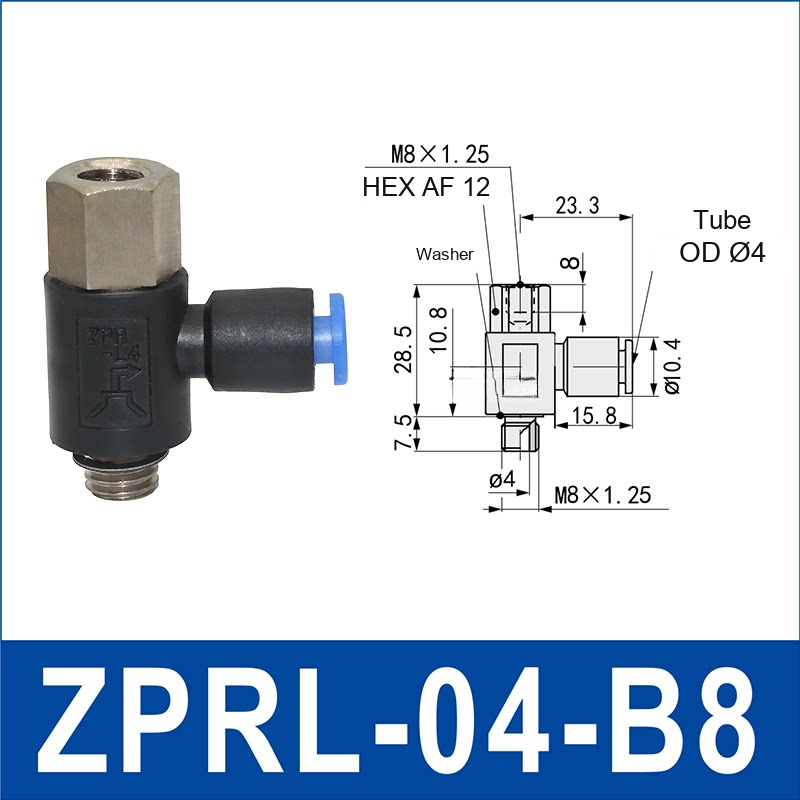

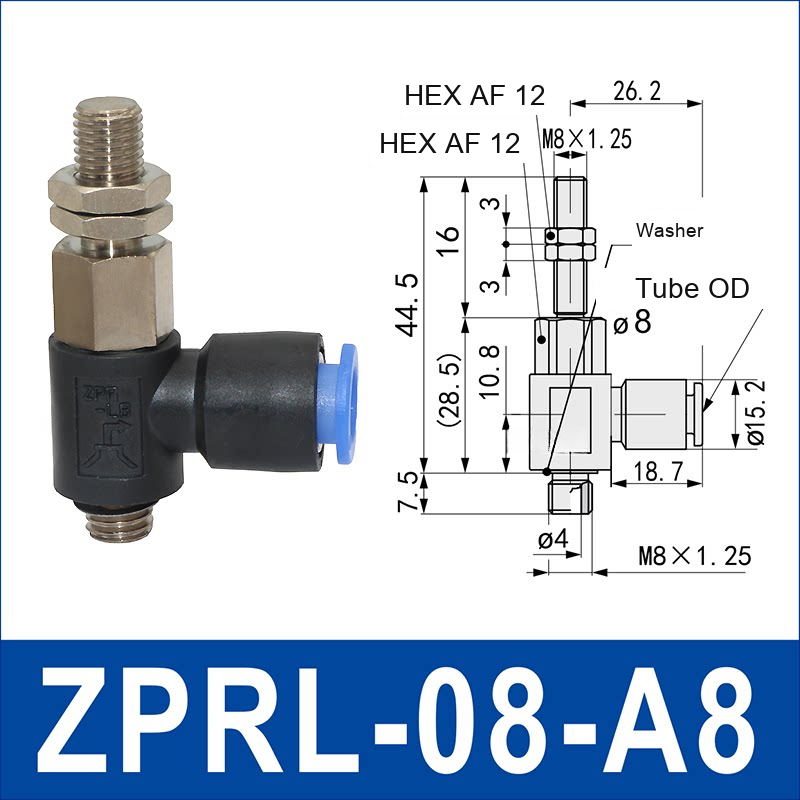

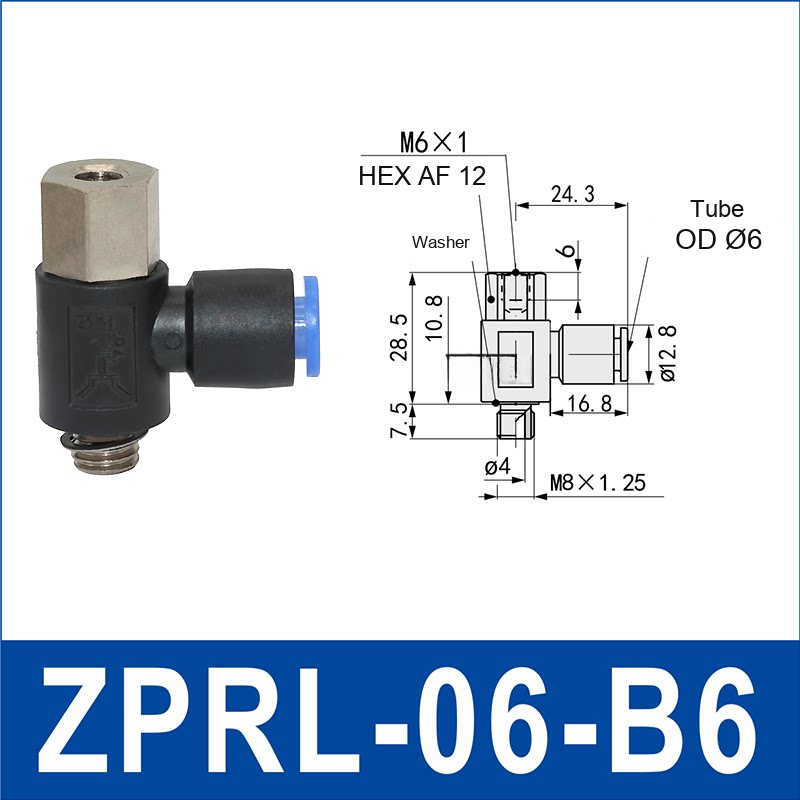

- Model dimensions, thread callouts and wrench-flat sizes are shown in each image
ZPRS, ZPRL or ZPT: which component are you selecting?
This page contains holder and adapter configurations. Identify the component type first, then match the complete connection code and selected drawing to the existing cup and tooling.
| Family | Listed selection | Do not assume |
|---|---|---|
| ZPRS holders | 4 or 6 mm tube outside diameter | A/B connection codes are not interchangeable thread sizes. |
| ZPRL holders | 4, 6 or 8 mm tube outside diameter | Not every connection code is available with every tube size. |
| ZPT adapters | ZPT1, ZPT2, ZPT3 and ZPT4 listed variants | An adapter selection is not automatically a complete holder-and-cup assembly. |

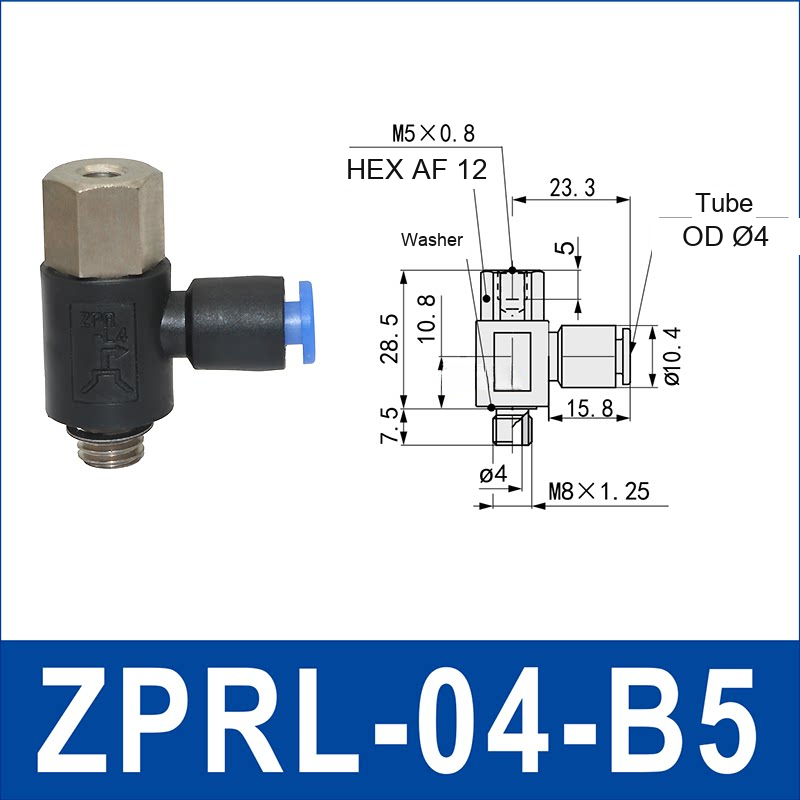

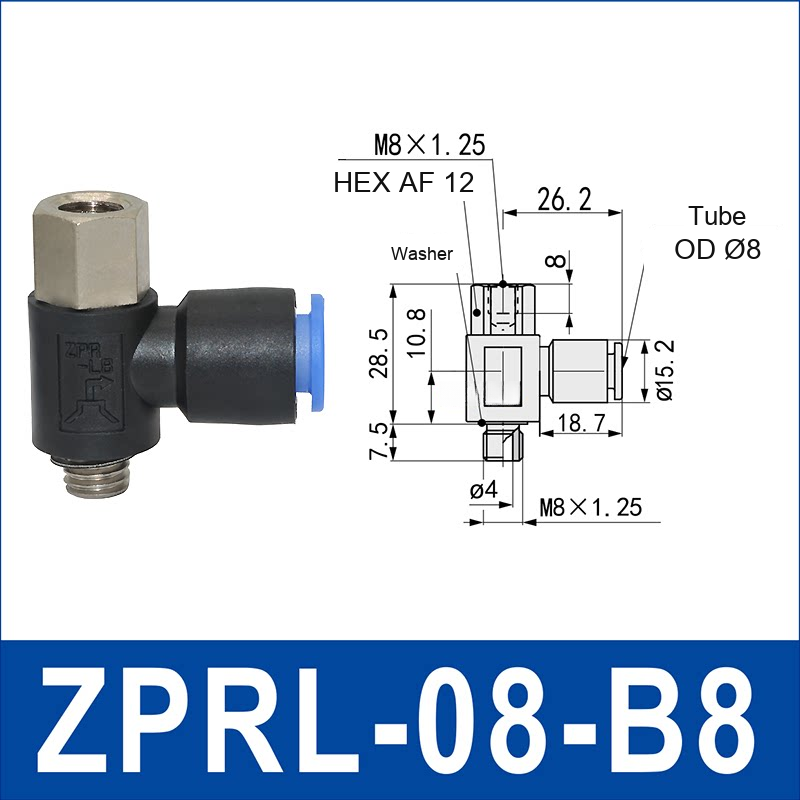

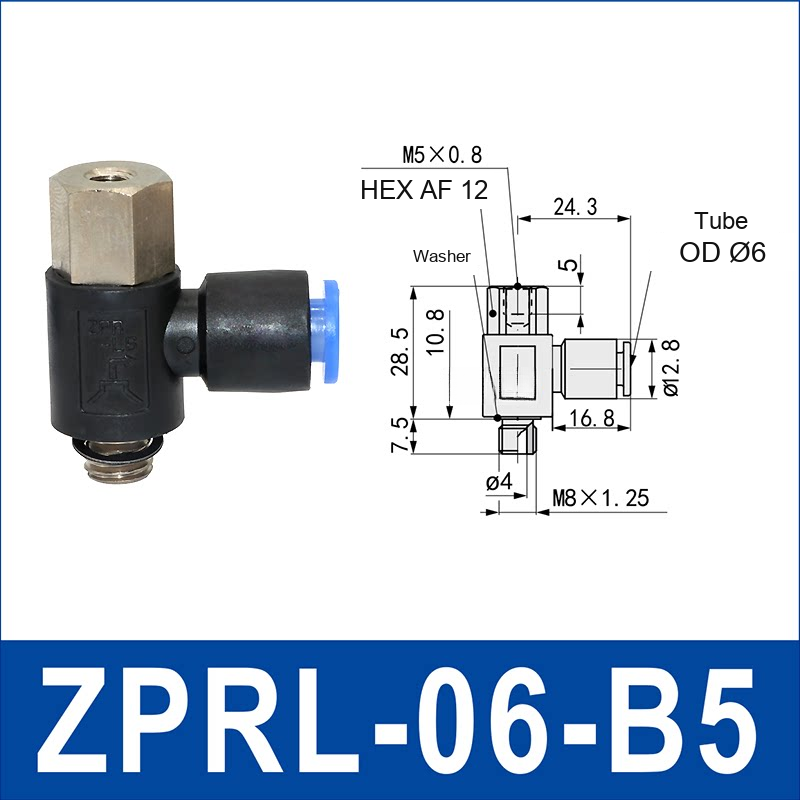

Use the exact selected model image for thread callouts, dimensions and wrench flats. Verify sealing method and cup fit before installation.
Applications / Suitable For
- Vacuum pick-and-place and component-transfer equipment
- Robotic end-of-arm tooling with compact side hose routing
- Packaging, assembly, sorting and general industrial automation
Confirm the selected model drawing, compatible cup, tube outside diameter, connection code, mounting thread, sealing method, vacuum level, load, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
