G & T Series Silicone Vacuum Suction Cups | Black Foam
$20.37 USD
$16.30 USD
20% OFF
G & T Series Silicone Vacuum Suction Cups | Black Foam
Quantity
G & T Series Silicone Vacuum Suction Cups

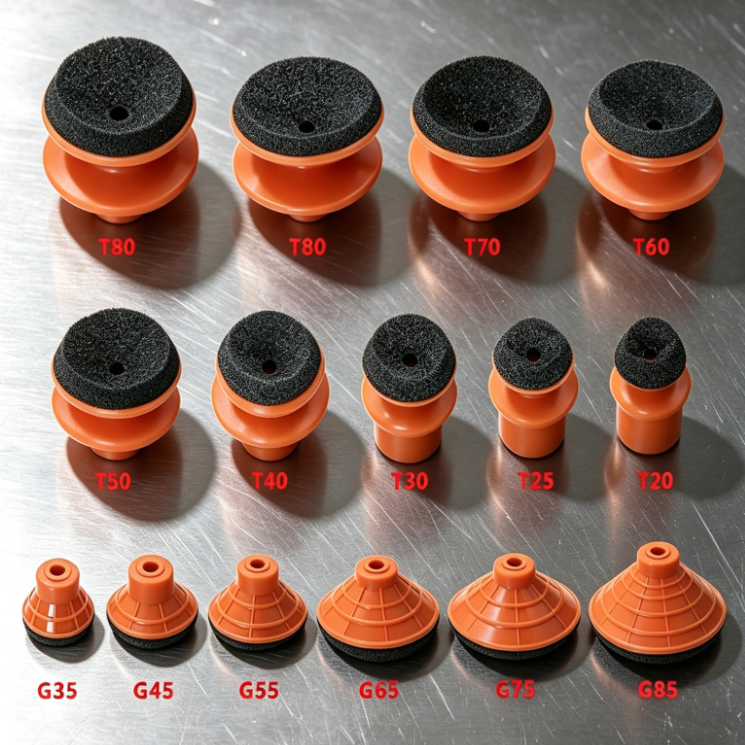

G-series and T-series silicone vacuum suction cup models with black foam.
- G-series models: G35, G45, G55, G65, G75 and G85
- T-series models: T20, T25, T30, T40, T50, T60, T70 and T80

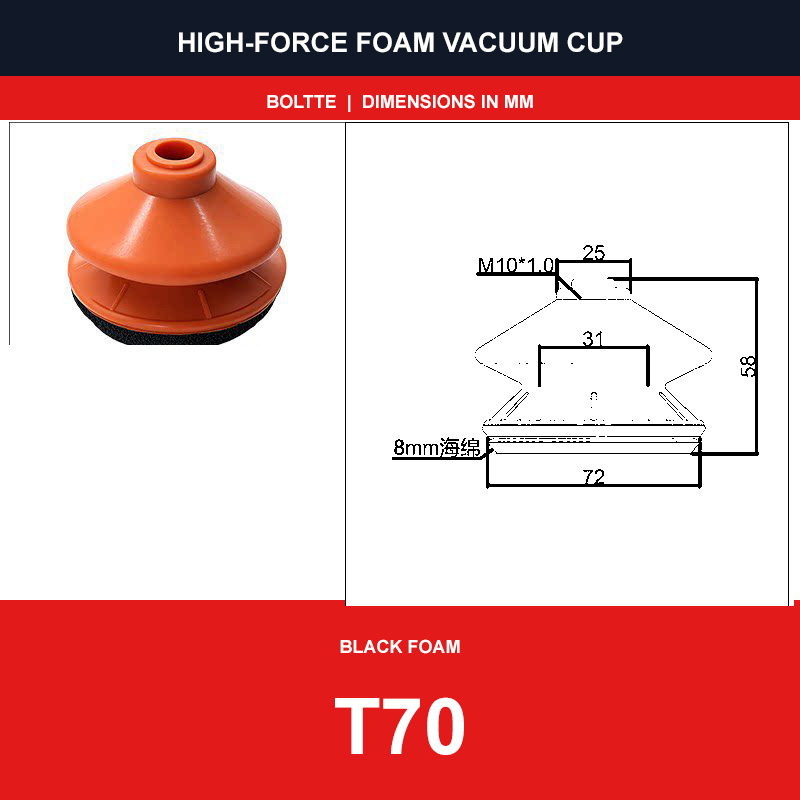

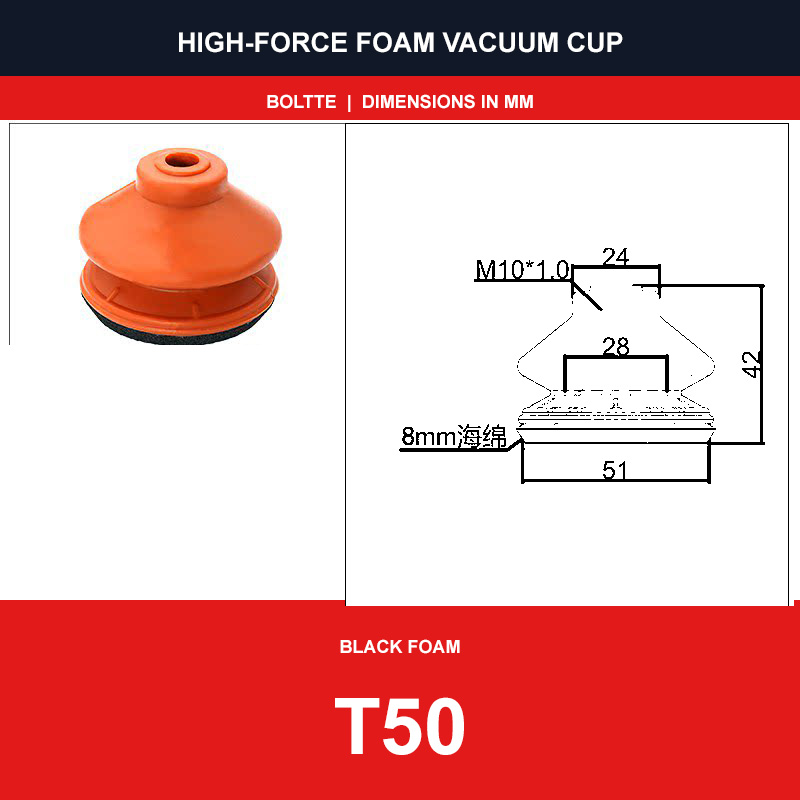

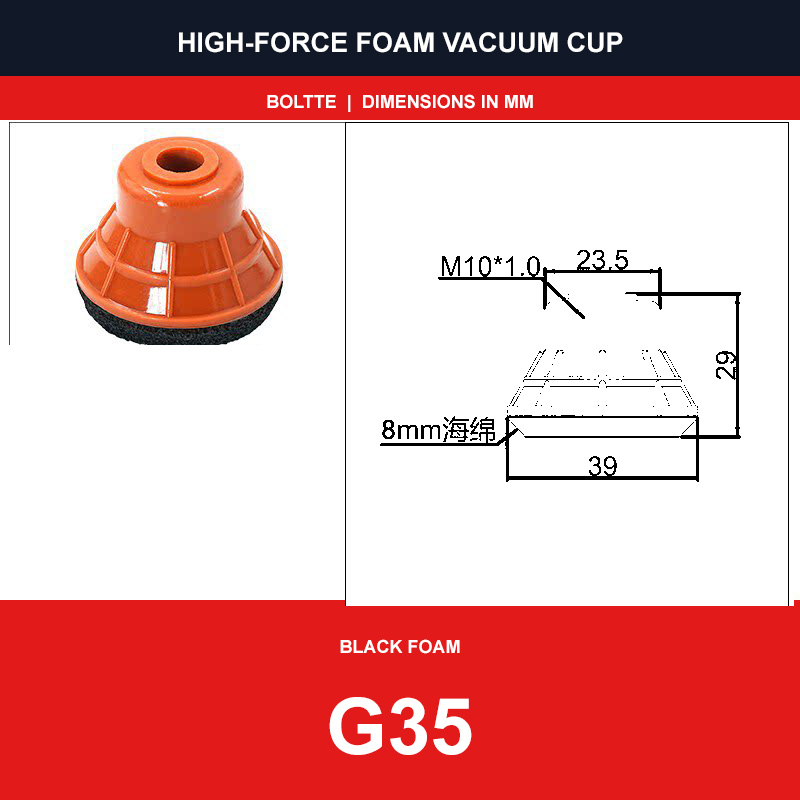

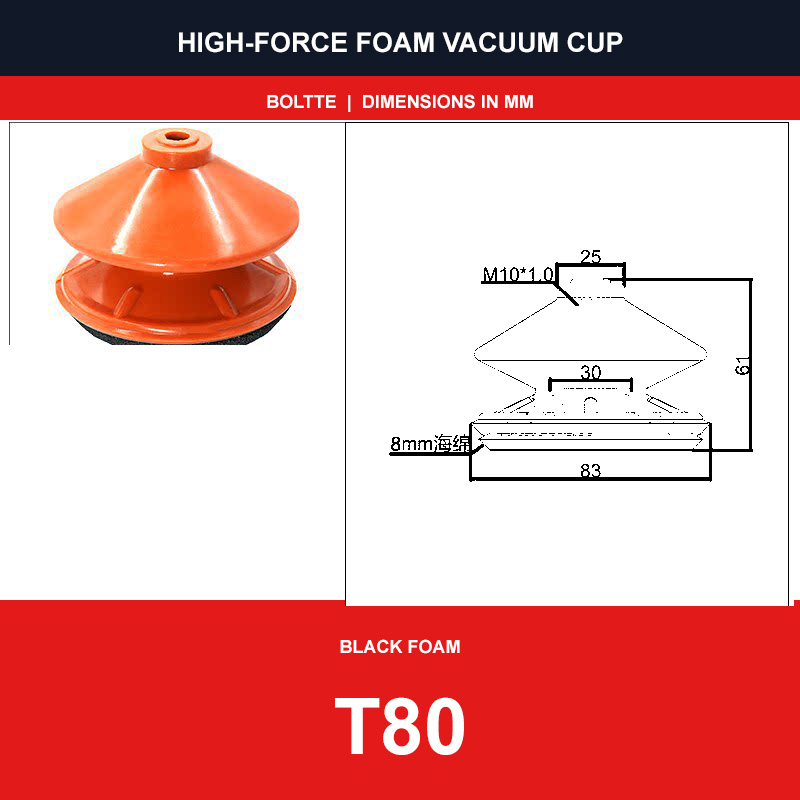

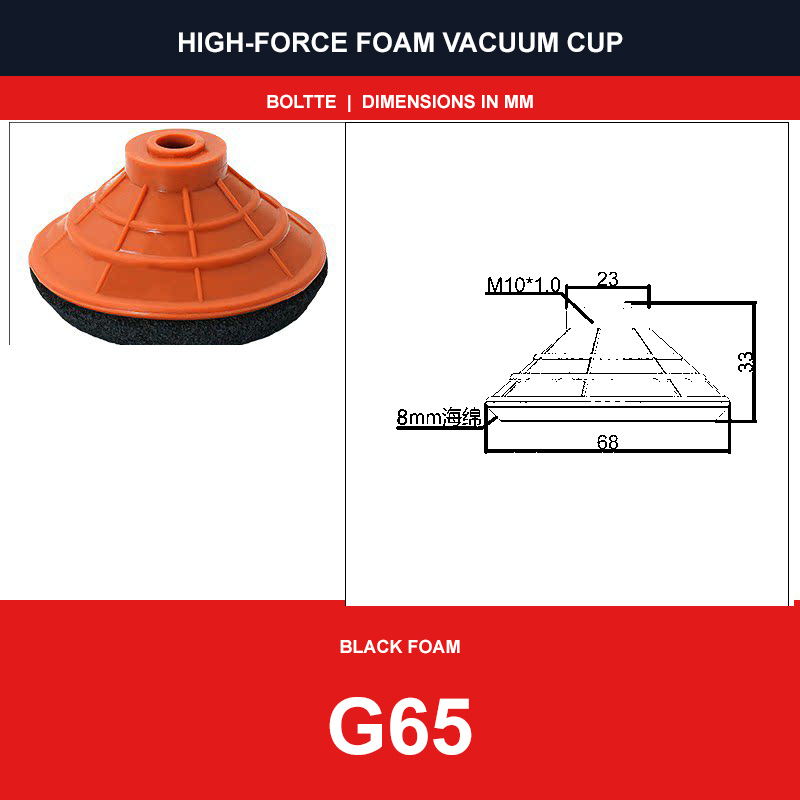

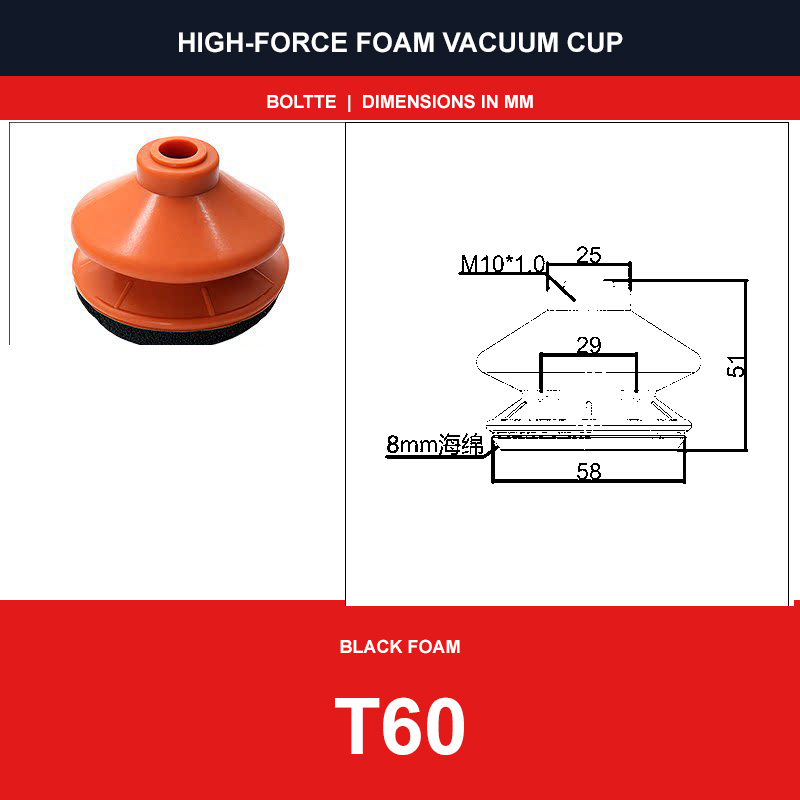

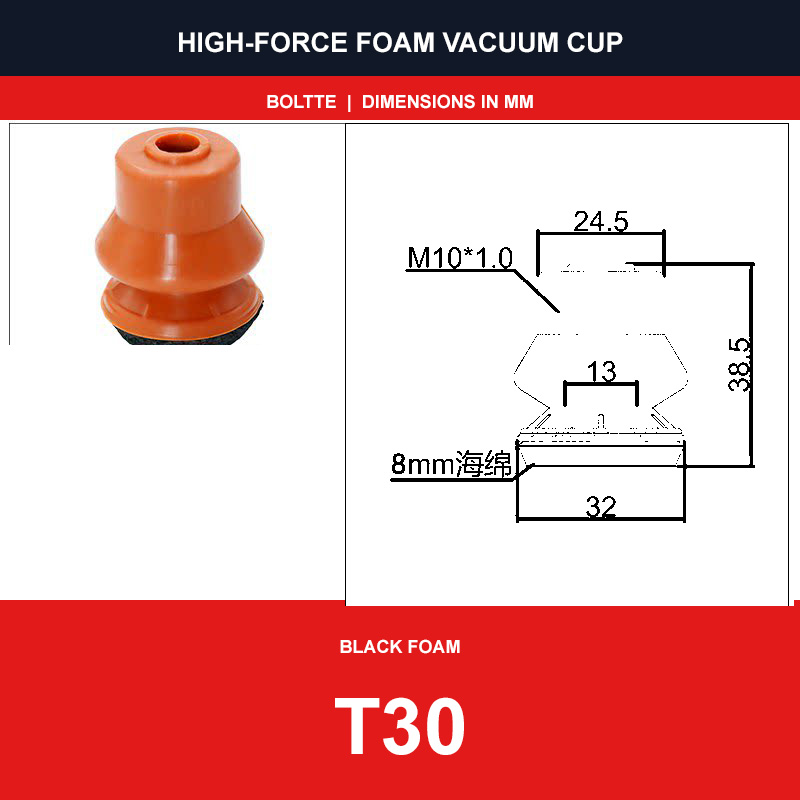

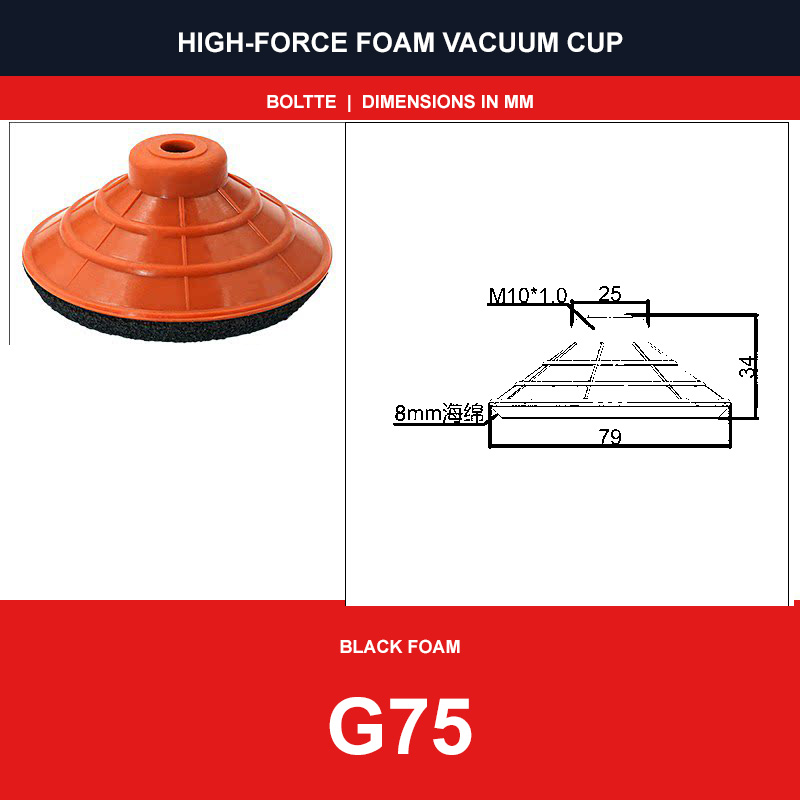

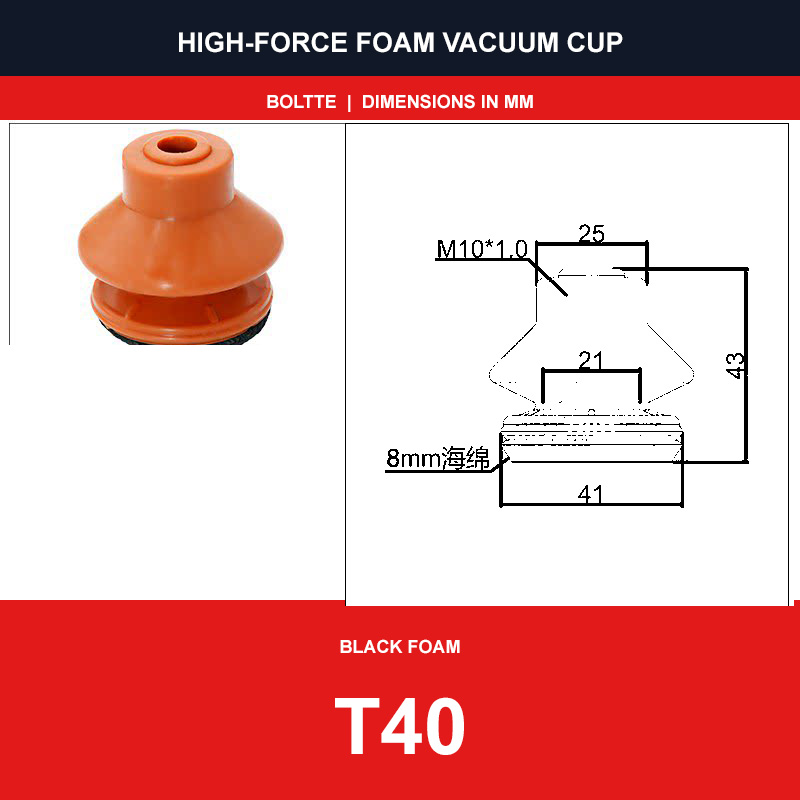

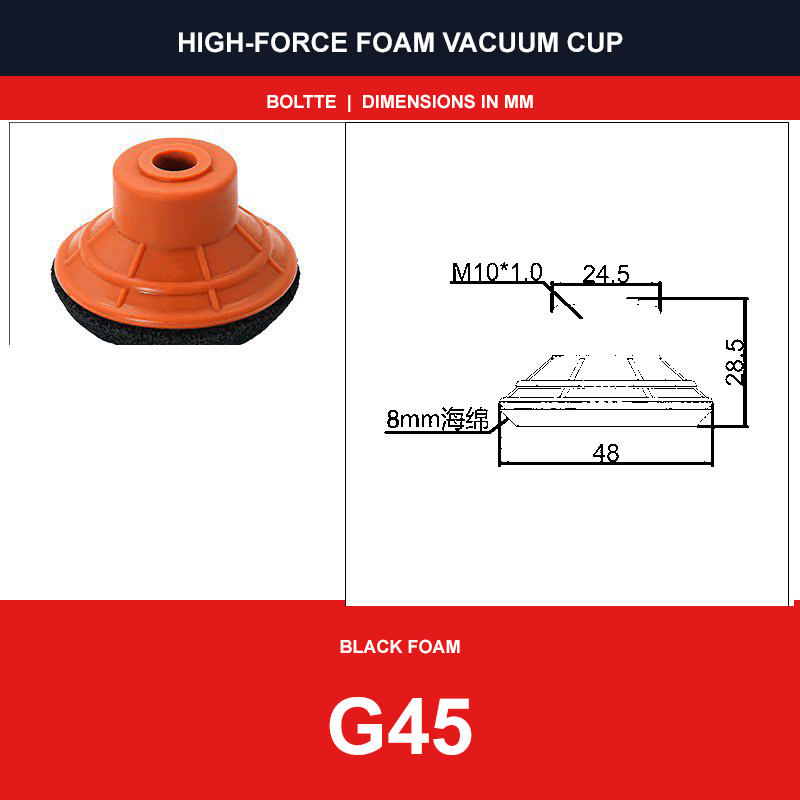

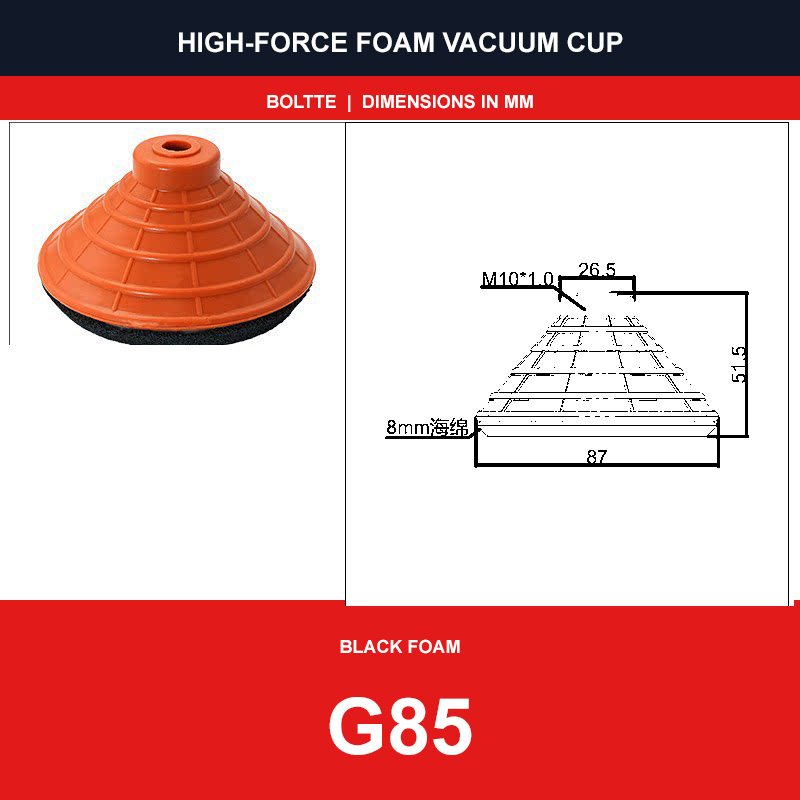

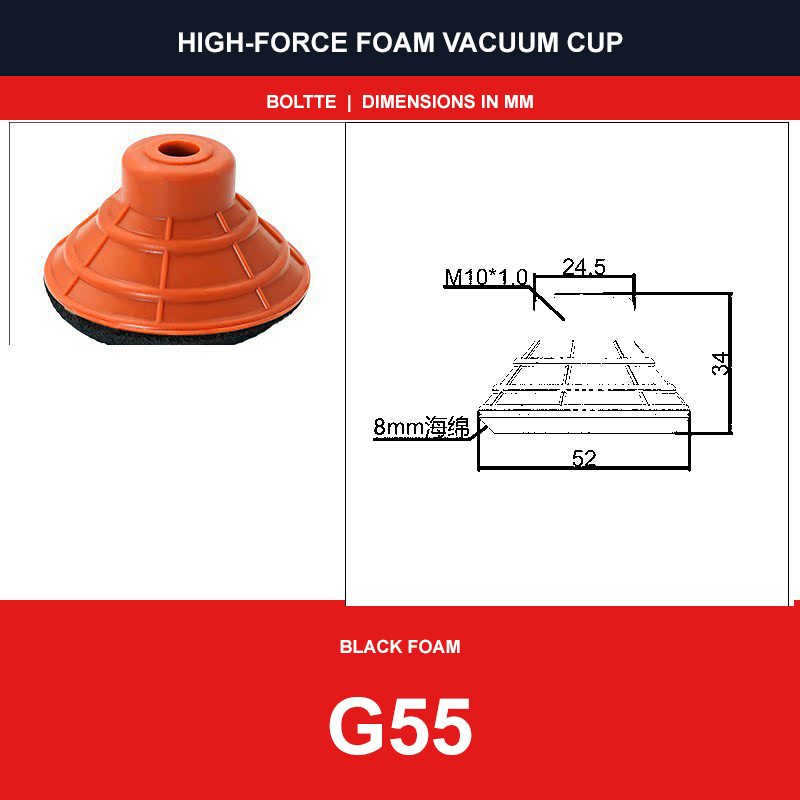

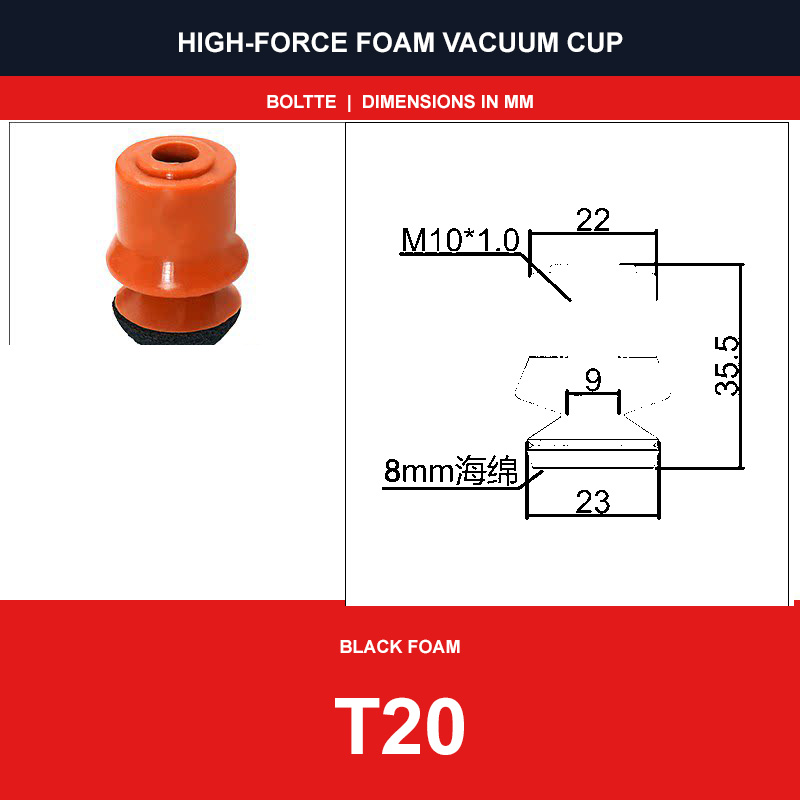

- Each model includes a corresponding dimensional drawing
Select the exact model and confirm the dimensions shown in its image before ordering.
Applications and Suitable Workpieces
G & T Series Silicone Vacuum Suction Cups | Black Foam: Foam contact pads conform to textured, slightly uneven or mildly porous workpieces that are difficult to seal with a plain rubber lip.
Recommended applications
- Cardboard, cartons, coated or uncoated sheet material, textured plastic, wood panels, composites and other flat or slightly uneven parts.
- Robot grippers, palletizing, depalletizing, panel transfer, pick-and-place and general material-handling systems.
- Workpieces with small gaps, surface texture or height variation where the foam can bridge minor leakage paths.
Model and selection notes
- G and T series use different geometries and size ranges. Do not substitute by diameter alone; match the technical drawing and mounting dimensions.
- Select the cup diameter and foam footprint according to the available contact area and required holding force.
- Single-, double- and multi-layer bodies provide progressively more stroke and height compensation; choose the model shown in the technical drawing.
- Foam wears during service and should be inspected regularly. Very porous stock may require a higher-flow vacuum source or multiple cups.
