Foam Vacuum Suction Cups for Robotic Grippers

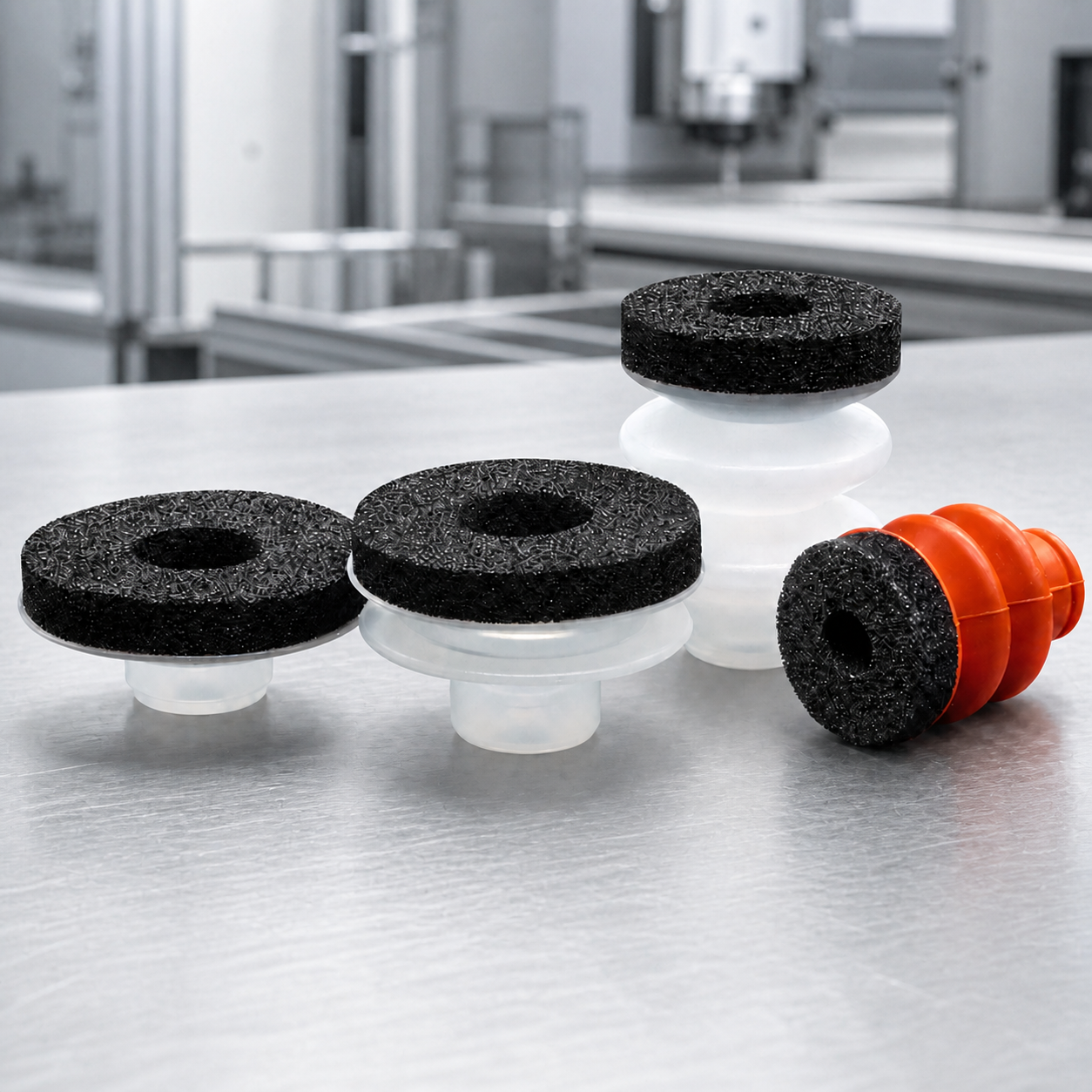

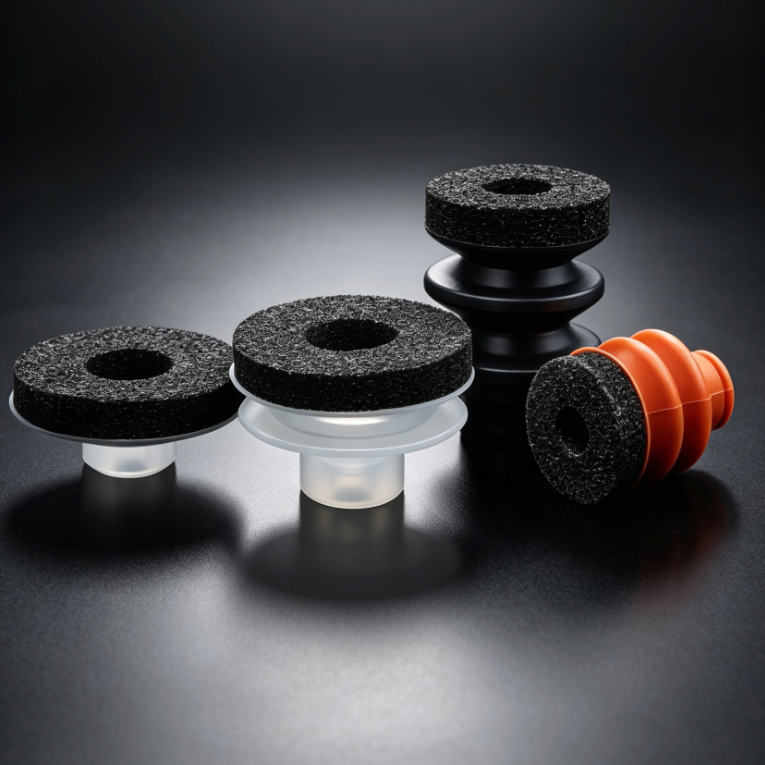

Industrial suction cups with imported silicone bodies and durable foam contact pads for robotic grippers, pneumatic automation, pick-and-place equipment, and material handling.
- Temperature range: -30 to 200°C
- Series: SP, DP and MP
- Mounting hole options: 8 mm standard head and 5 mm small head

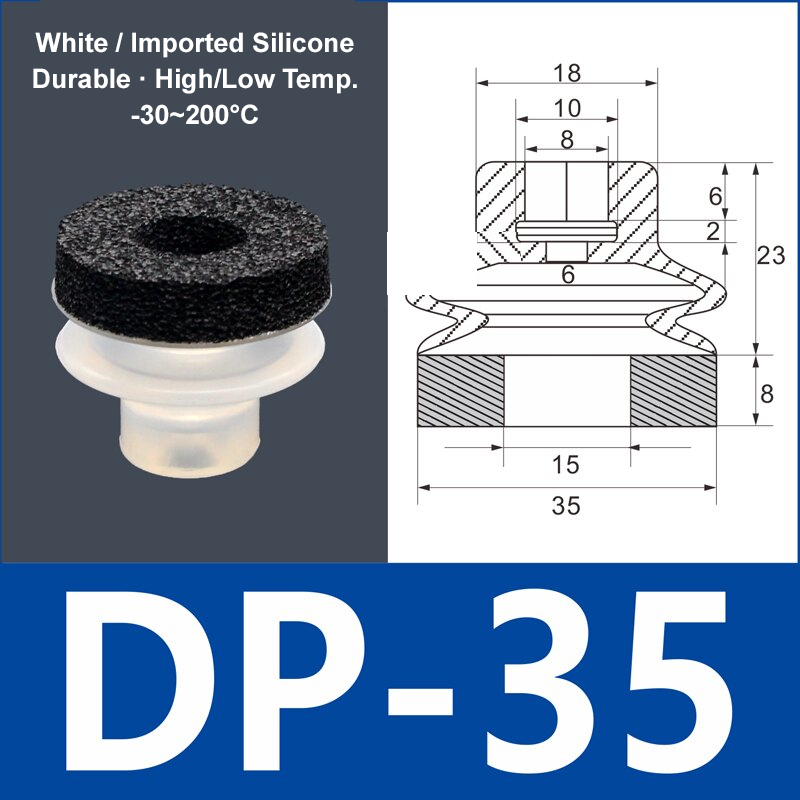

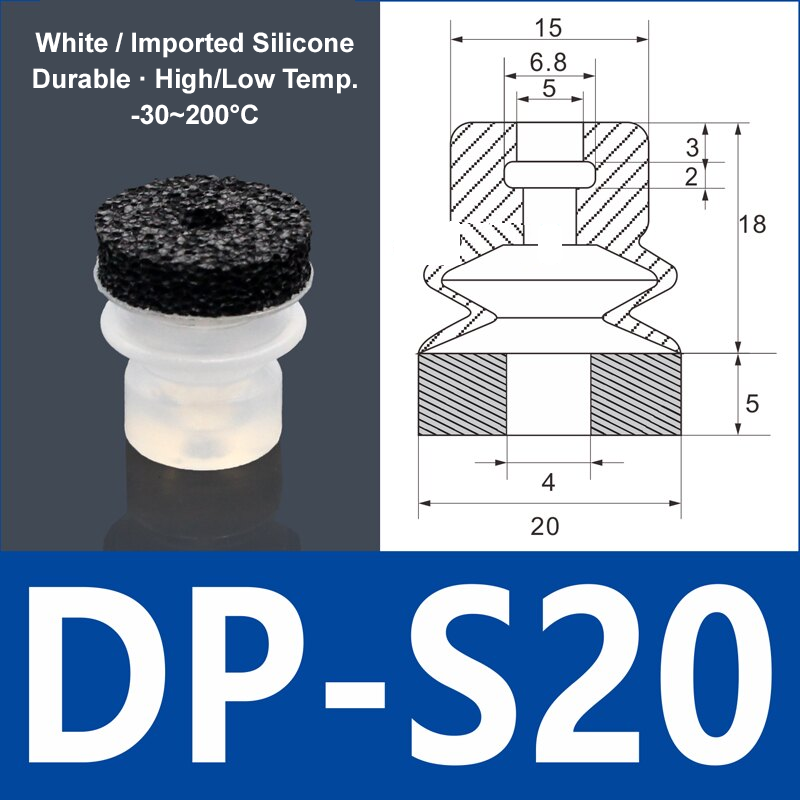

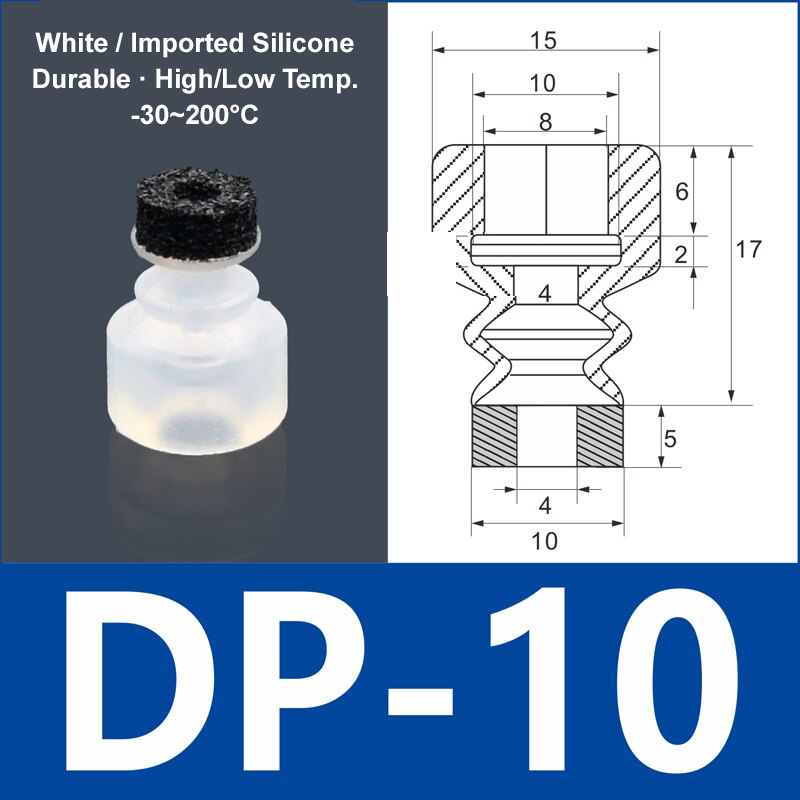

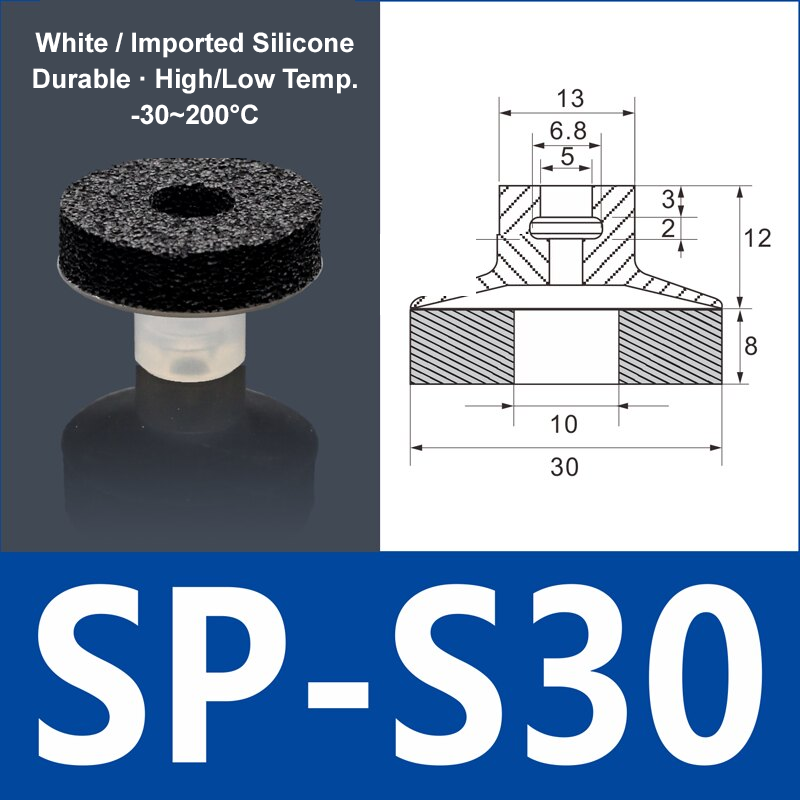

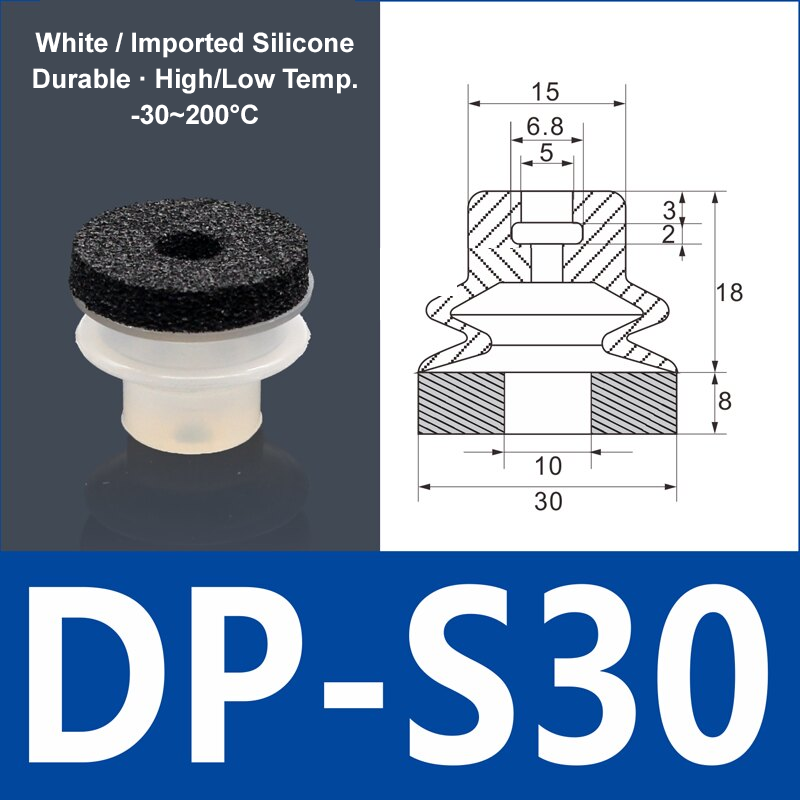

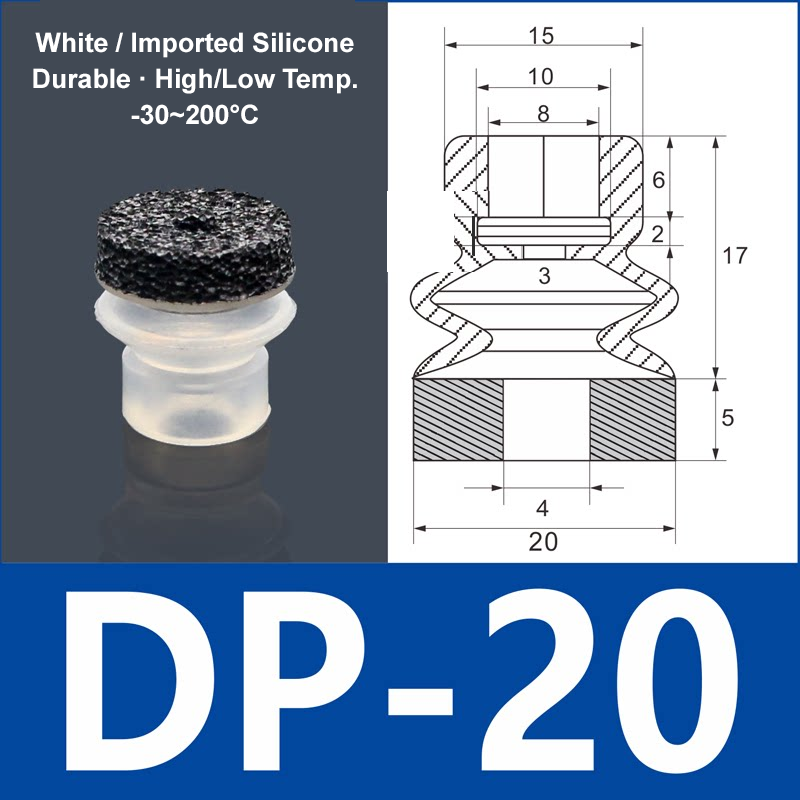

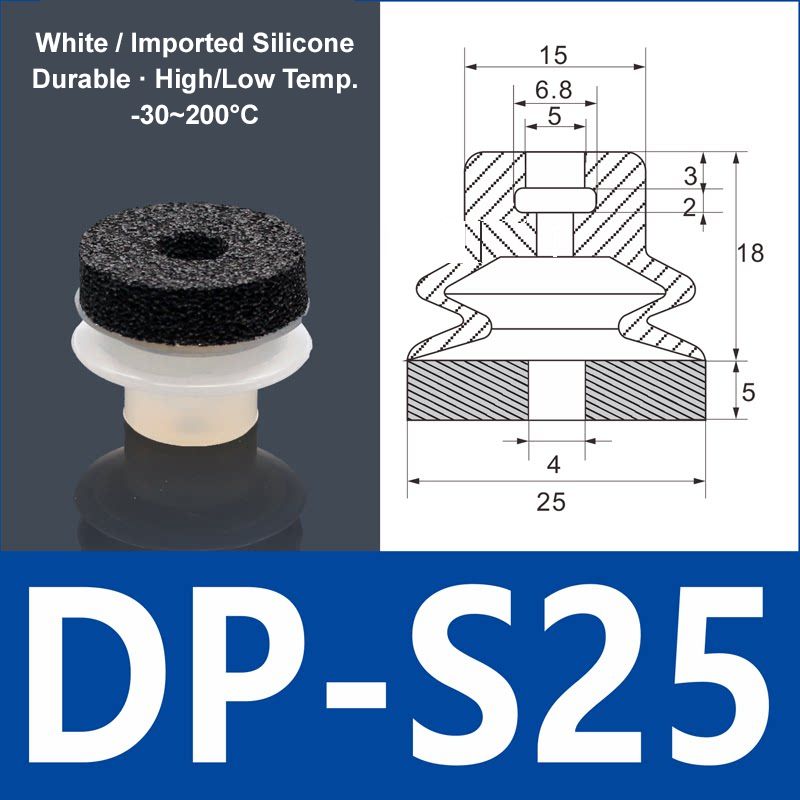

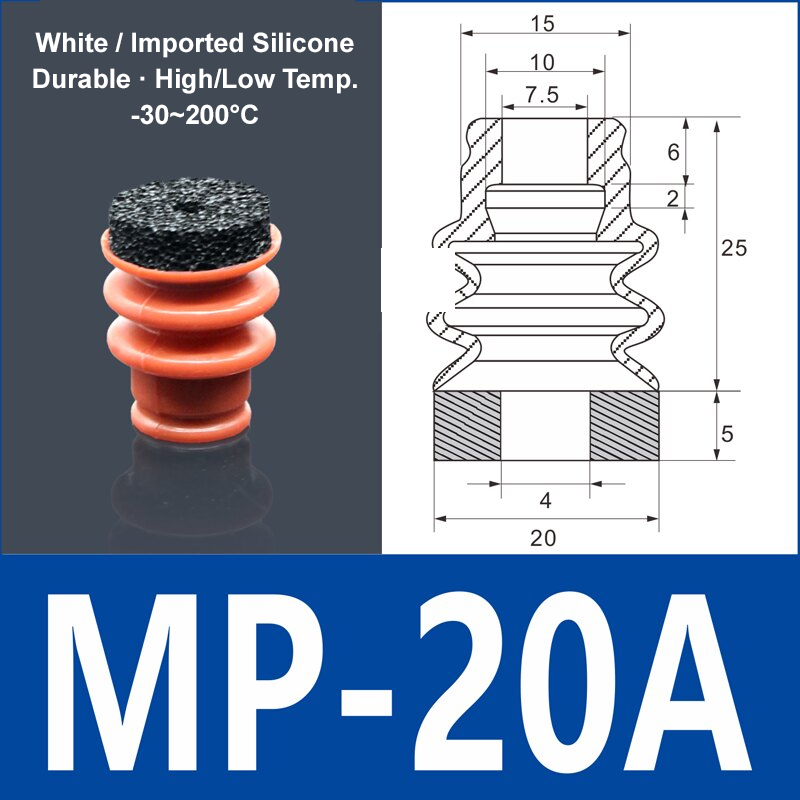

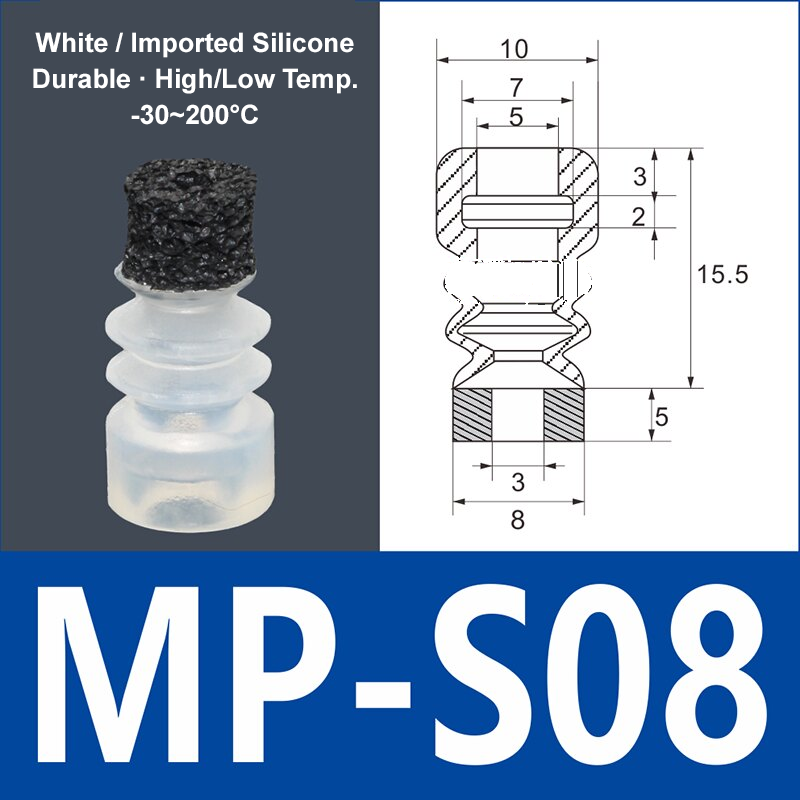

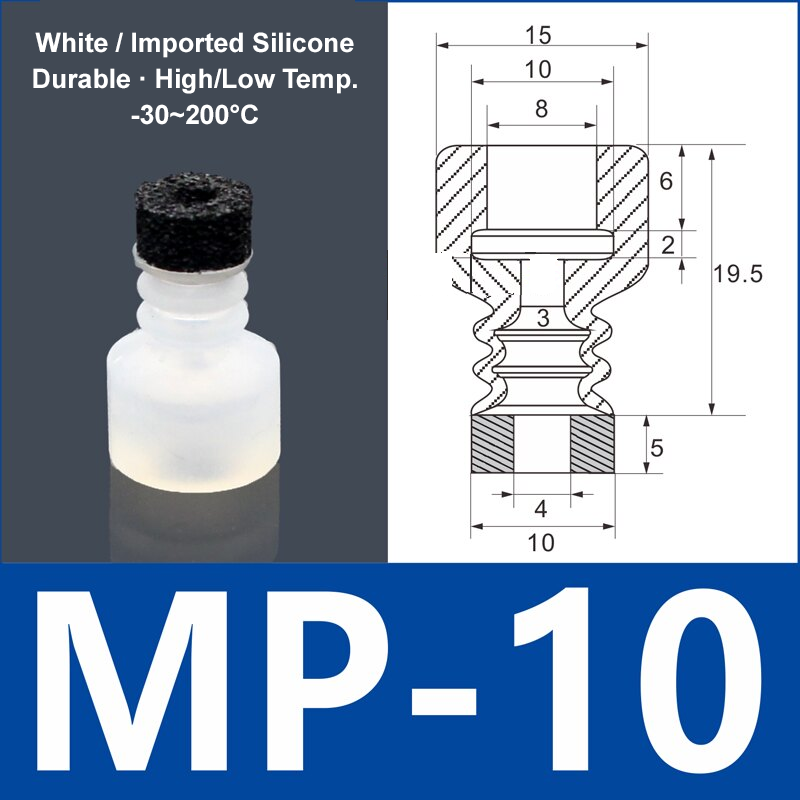

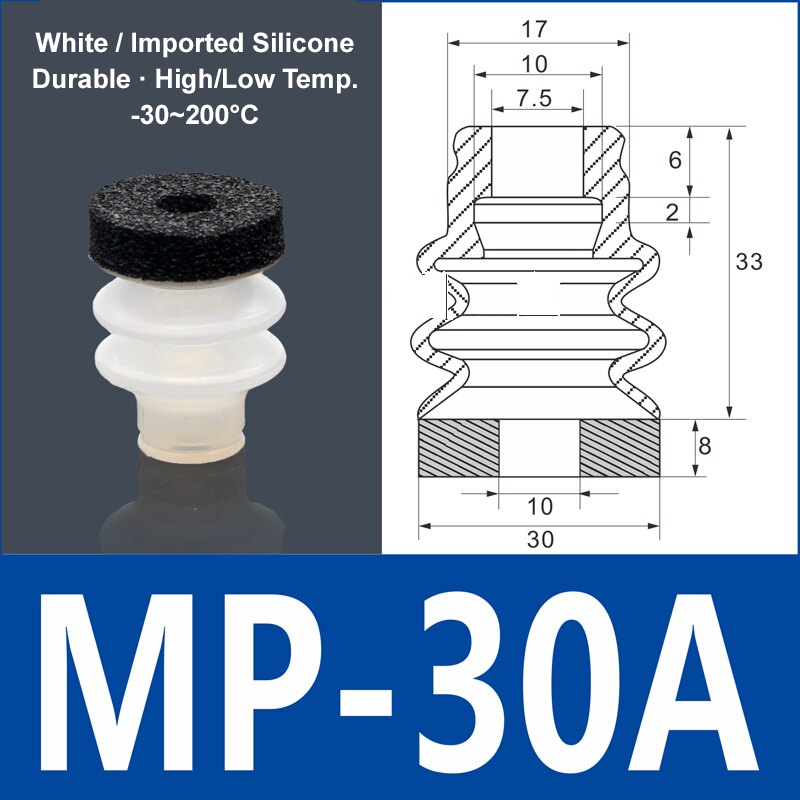

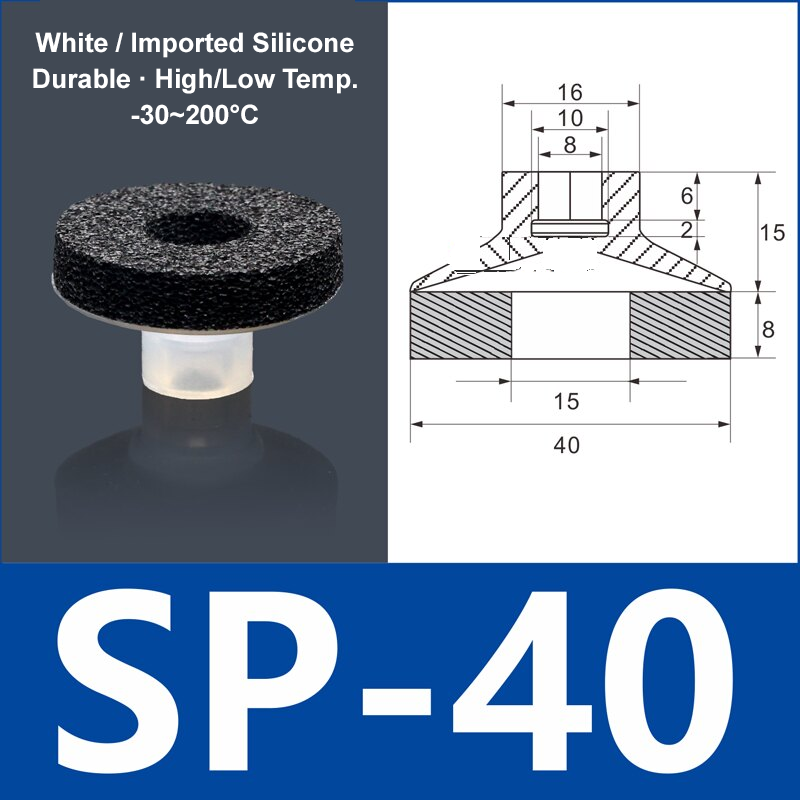

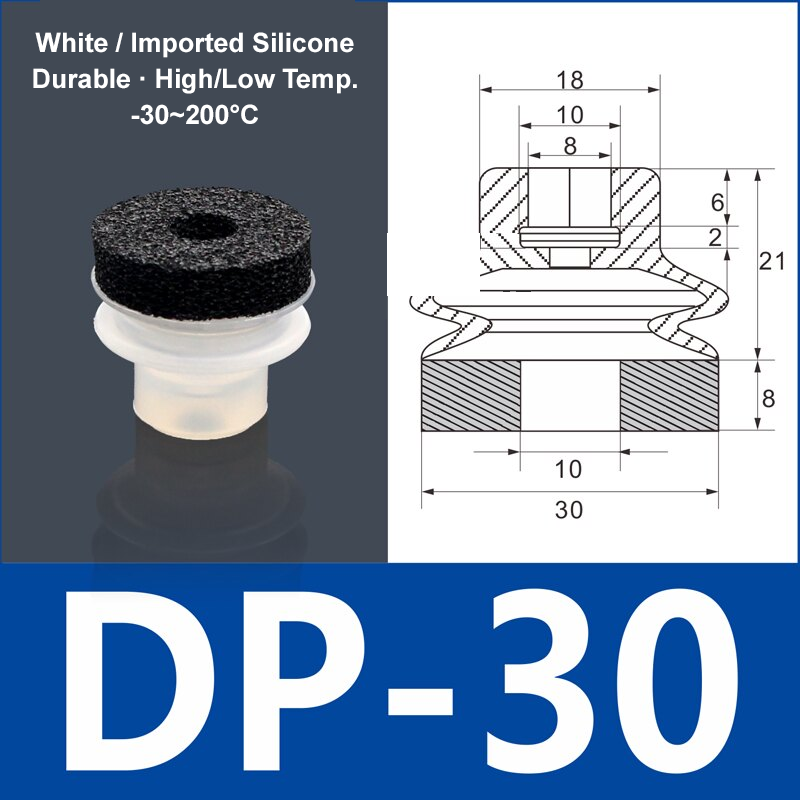

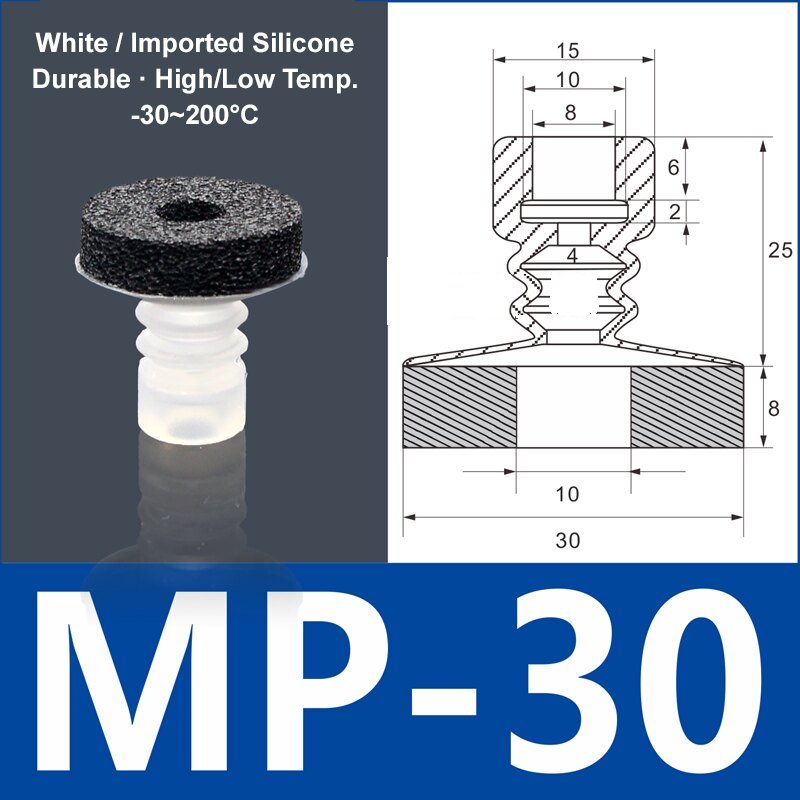

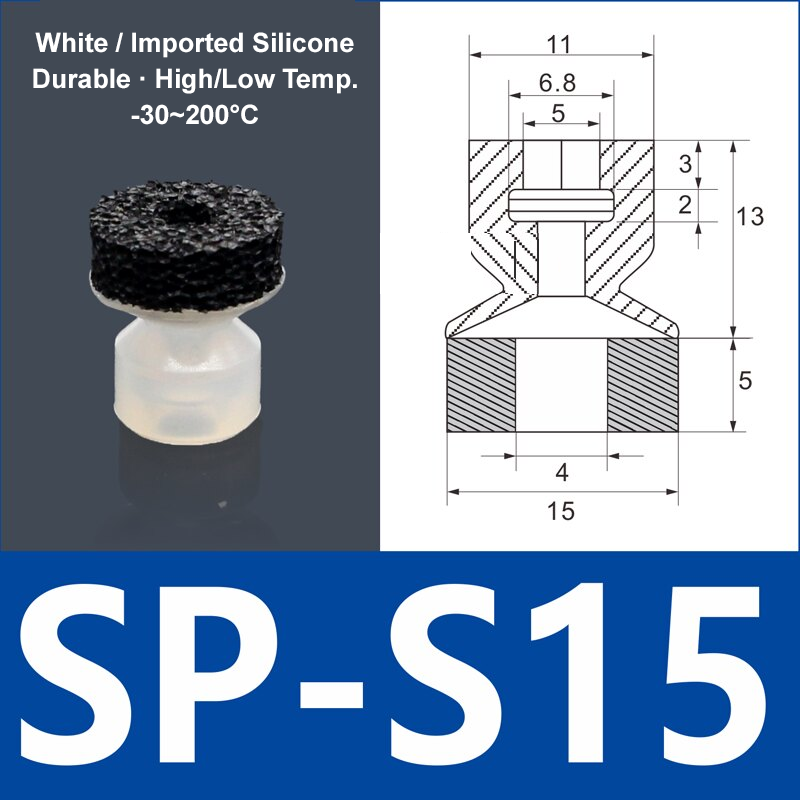

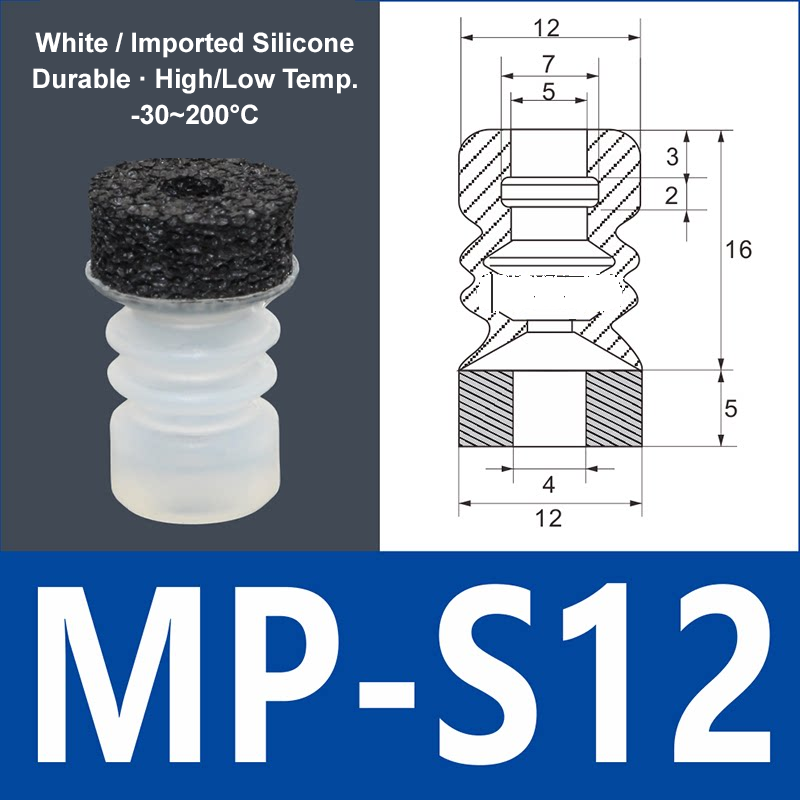

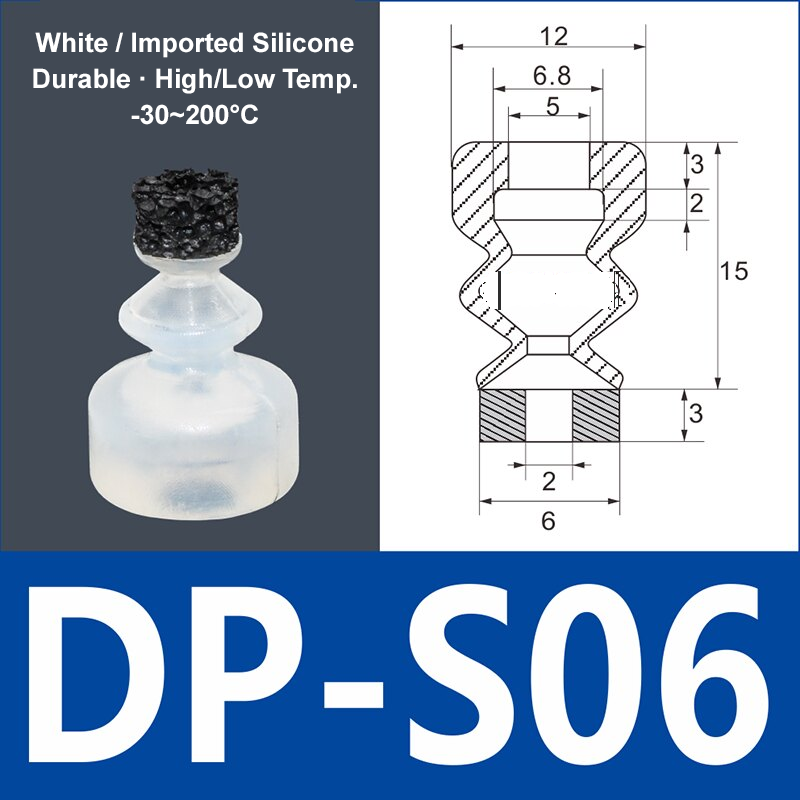

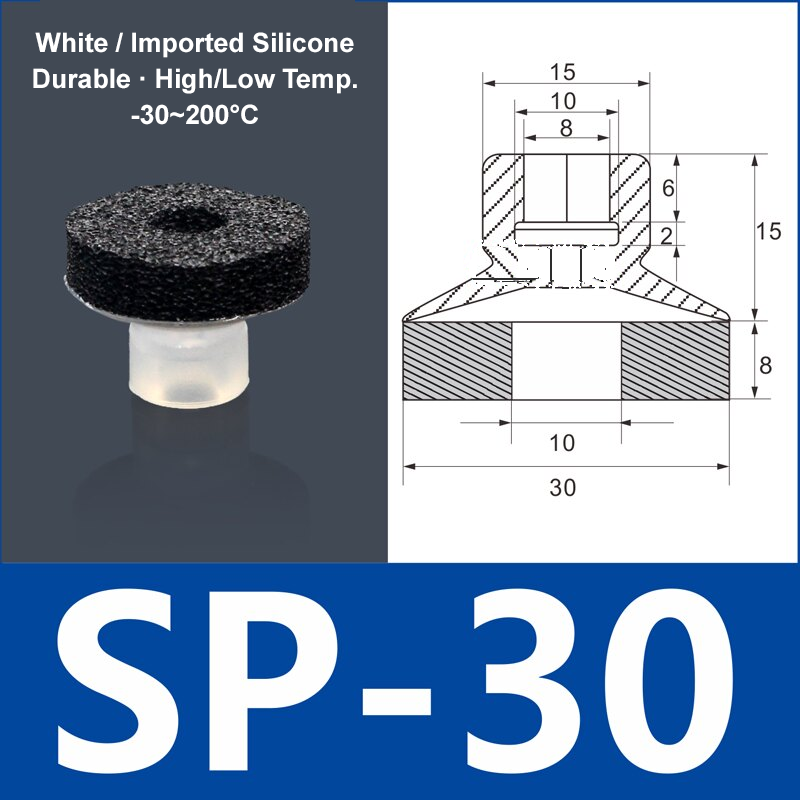

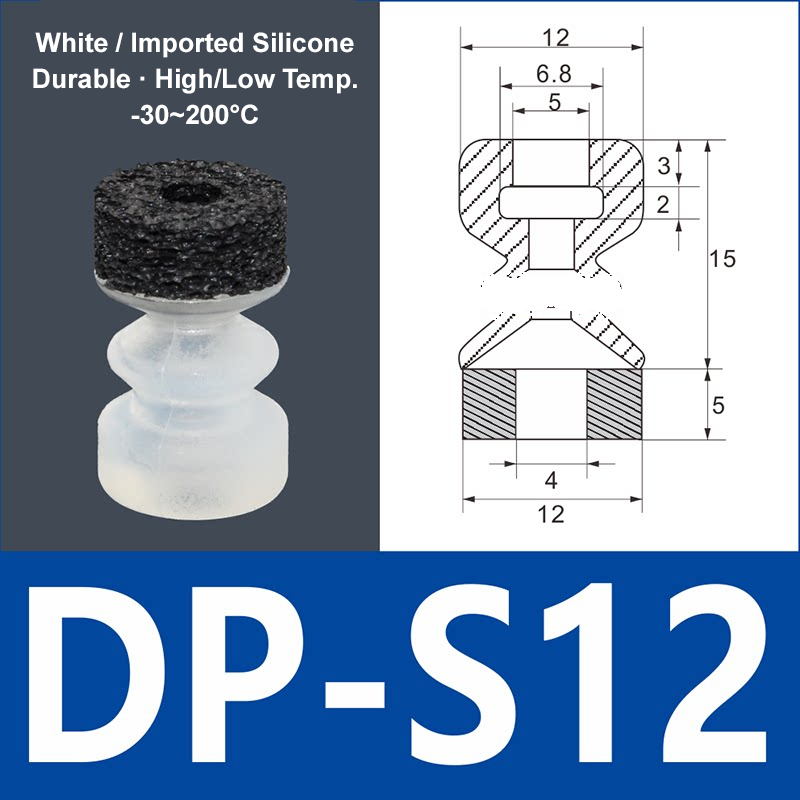

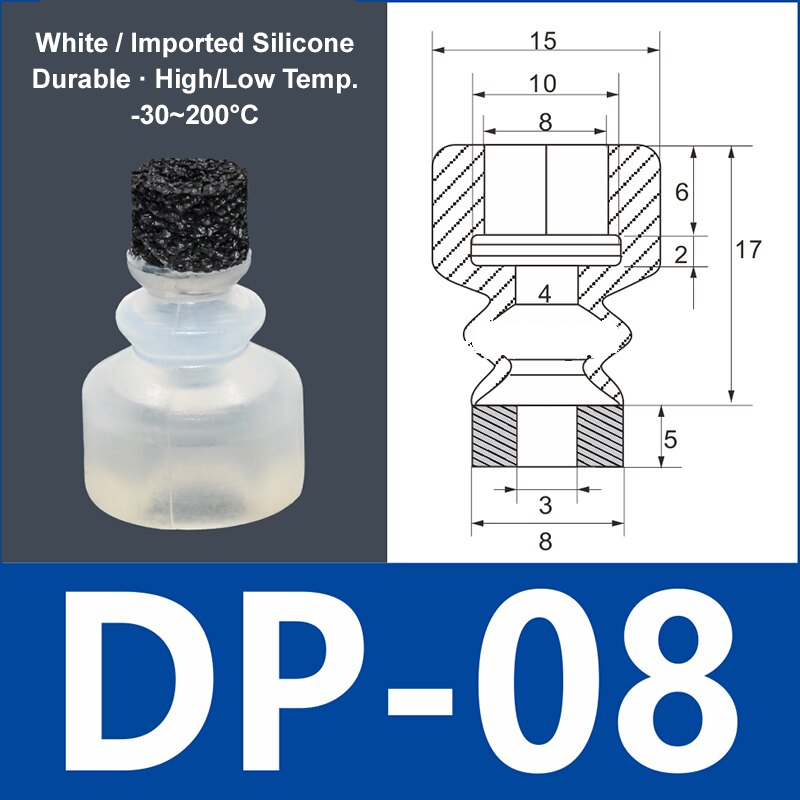

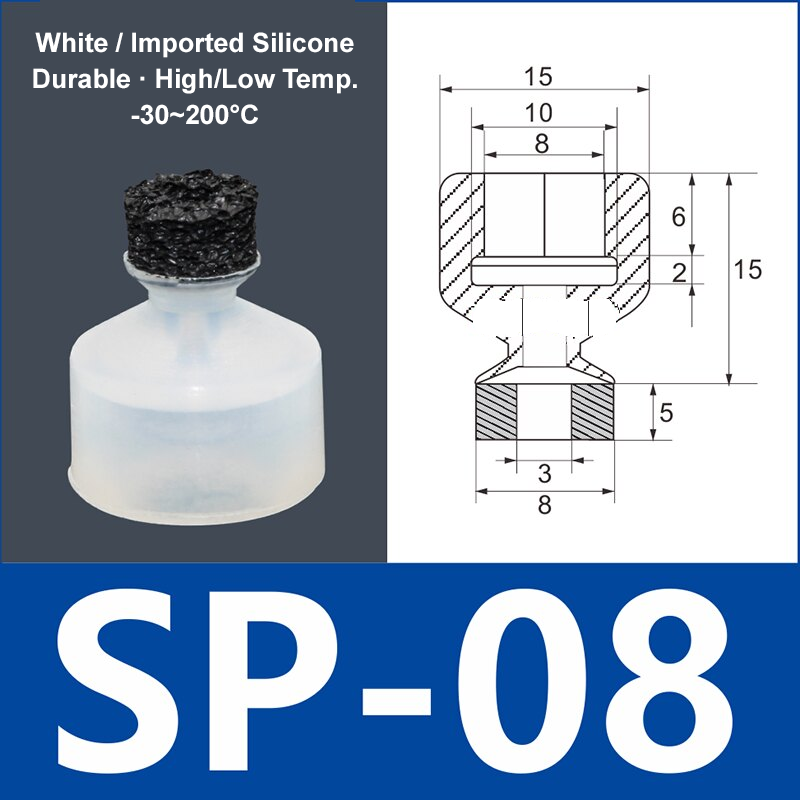

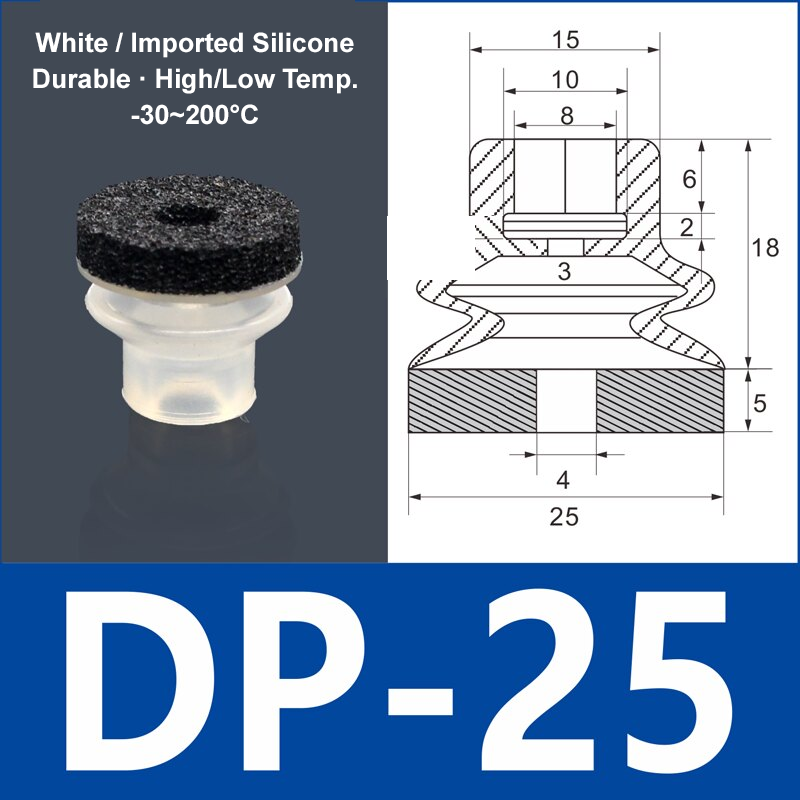

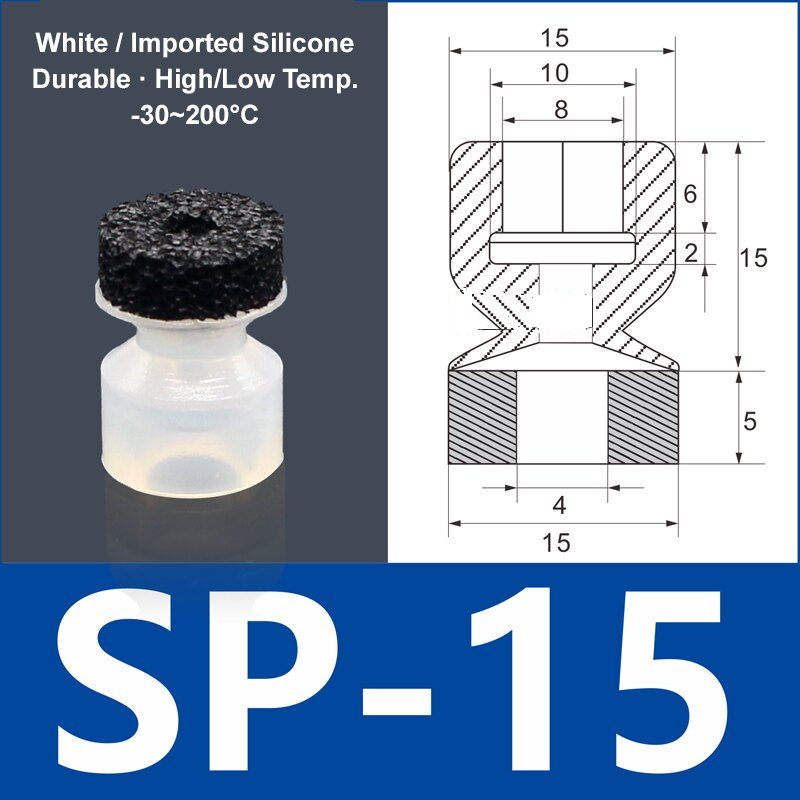

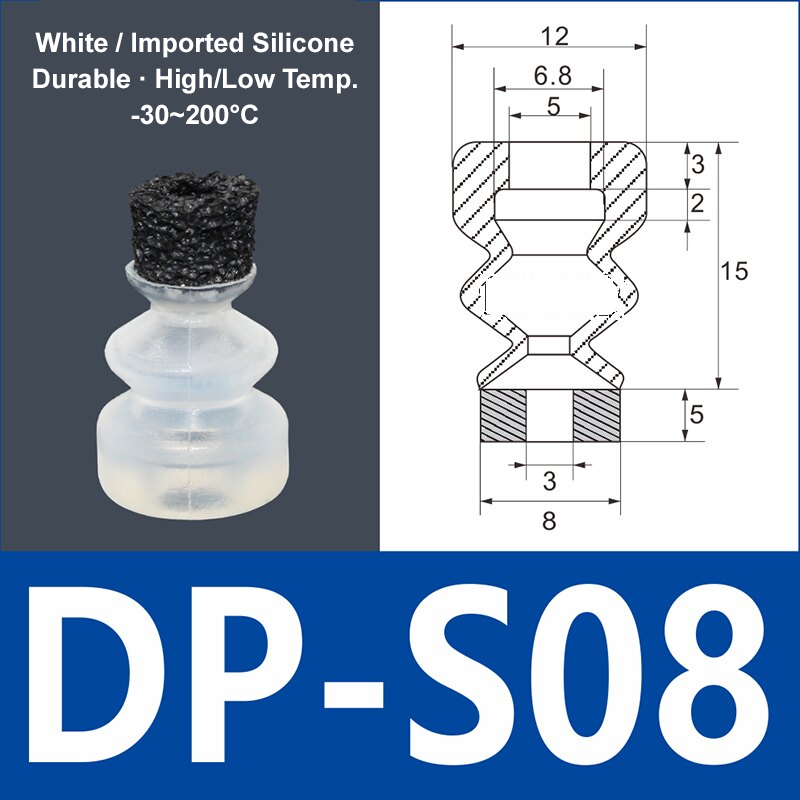

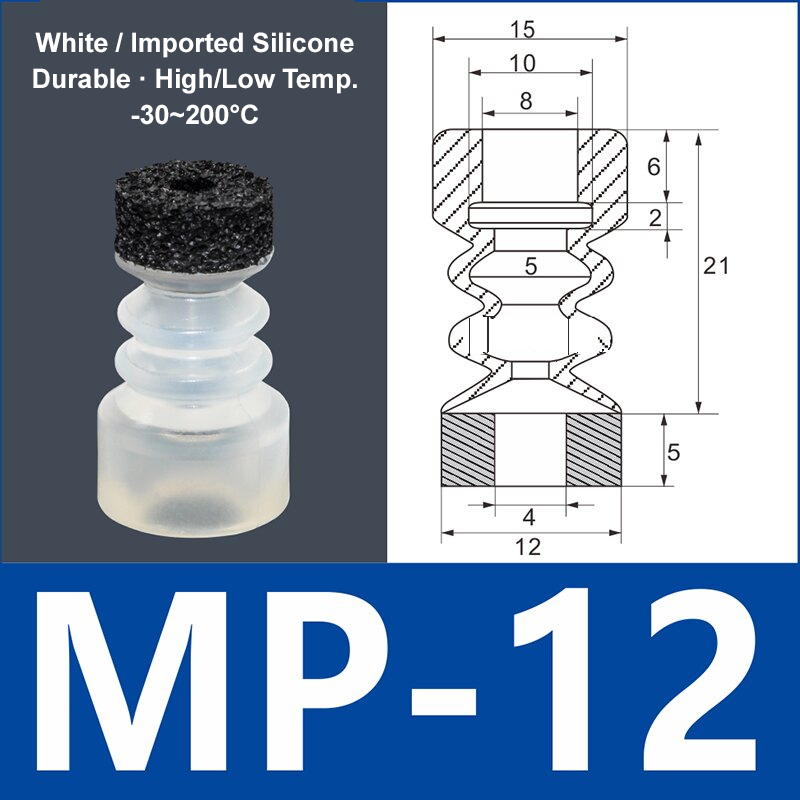

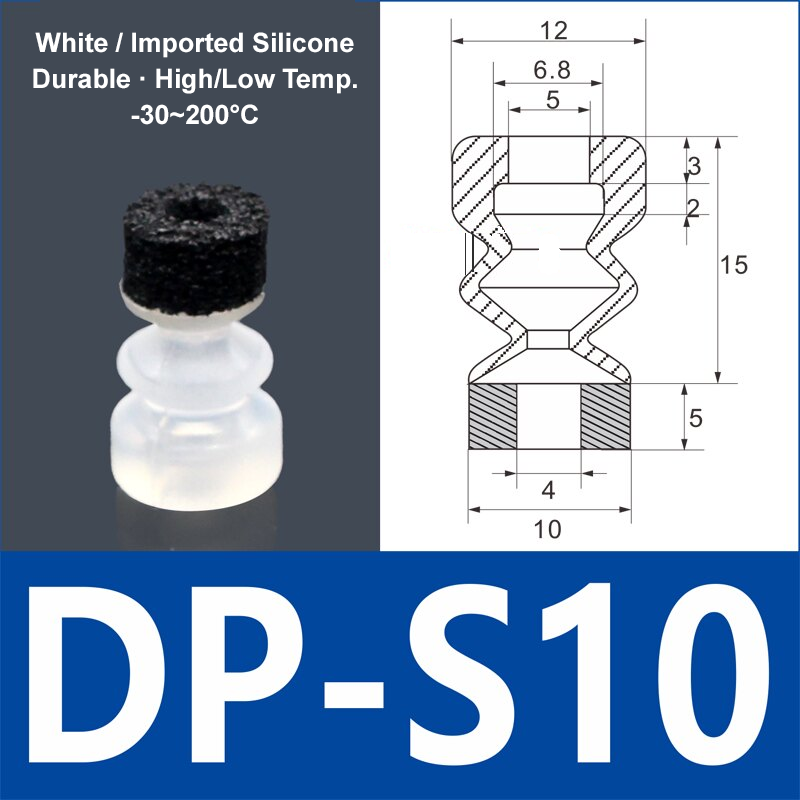

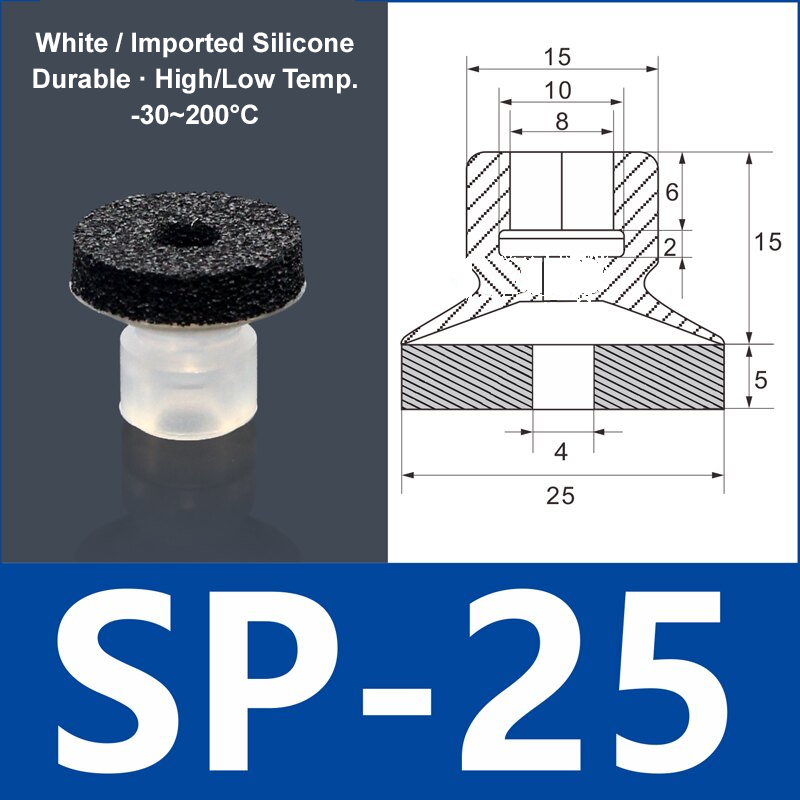

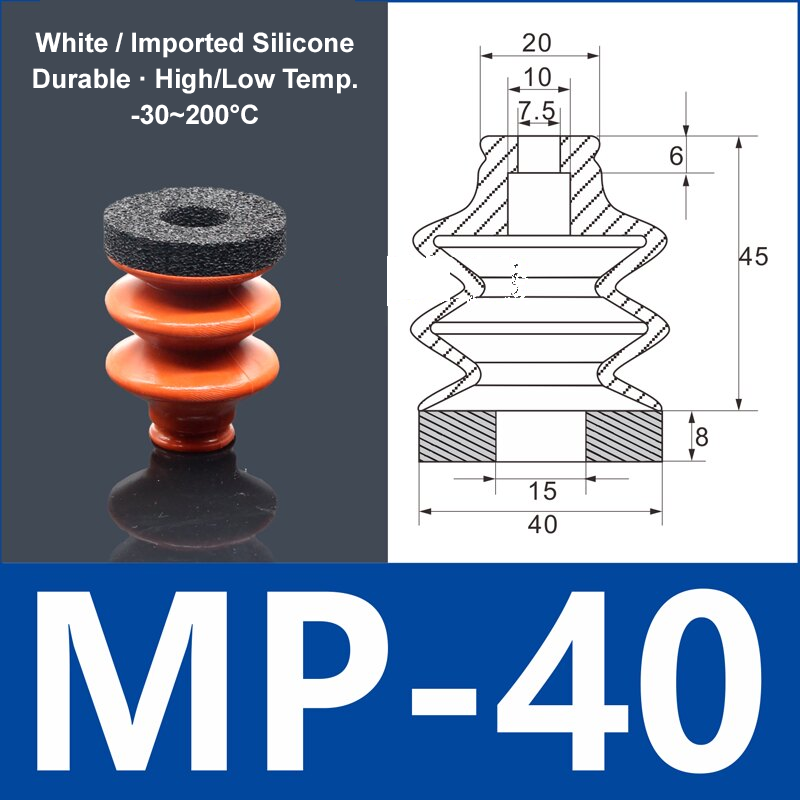

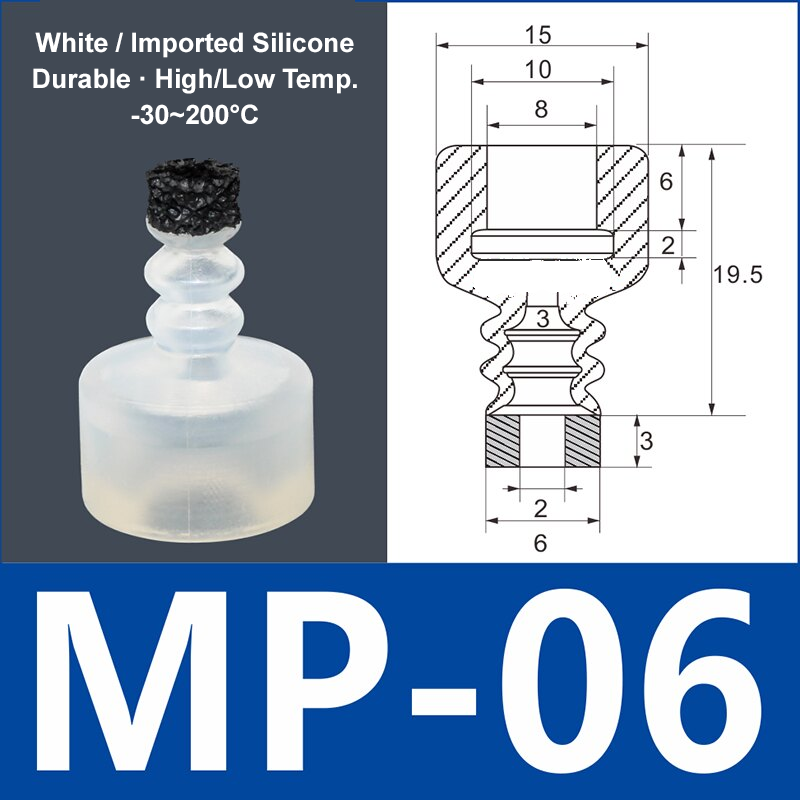

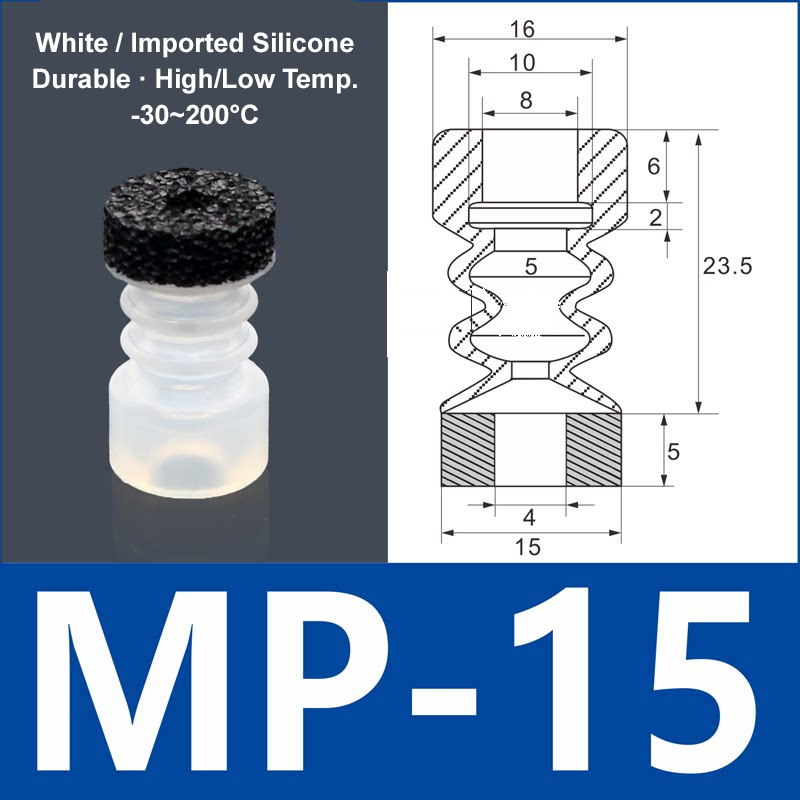

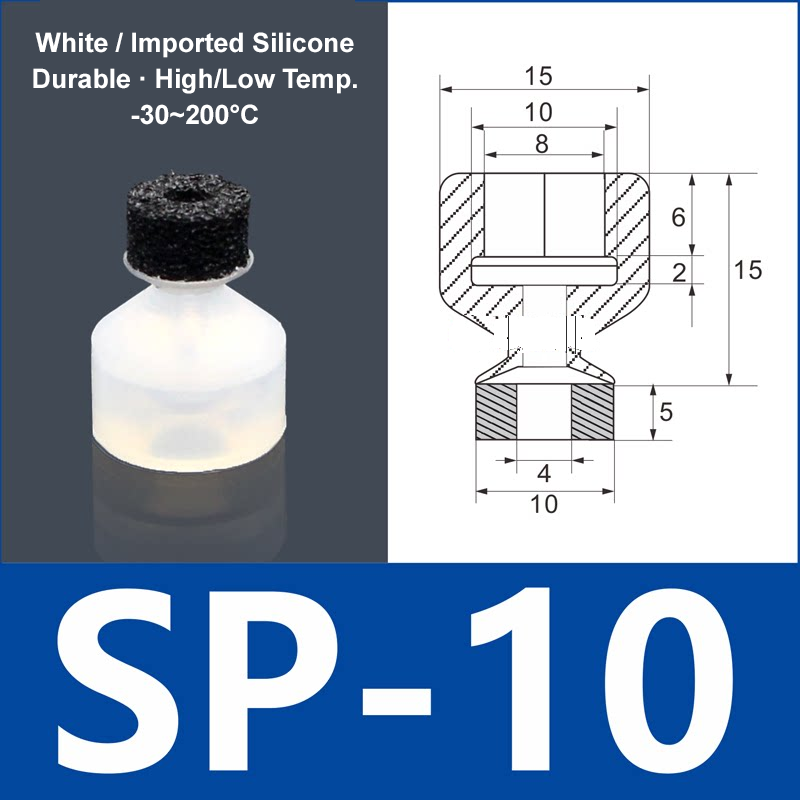

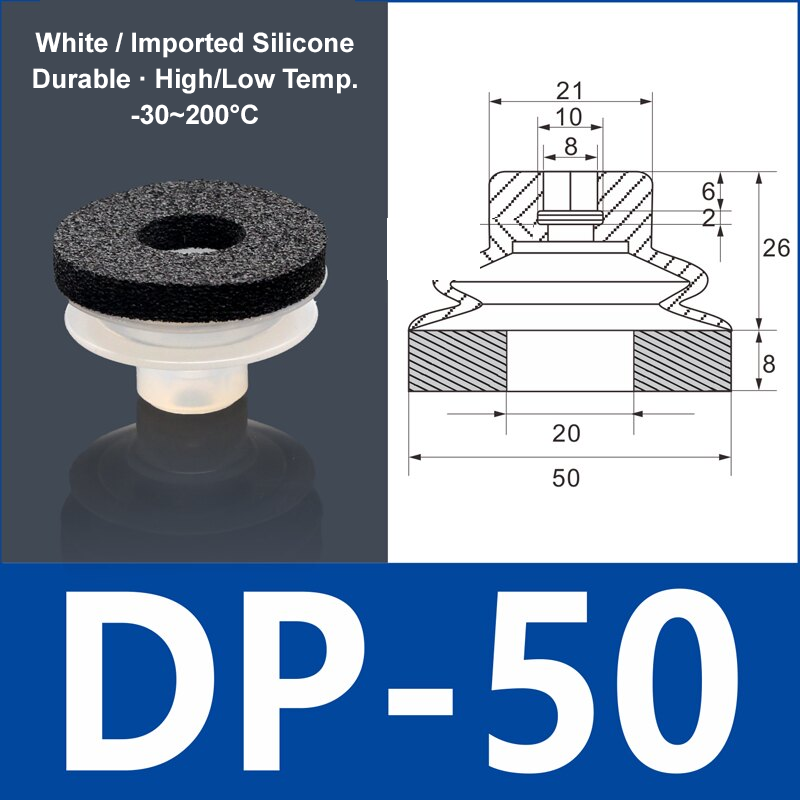

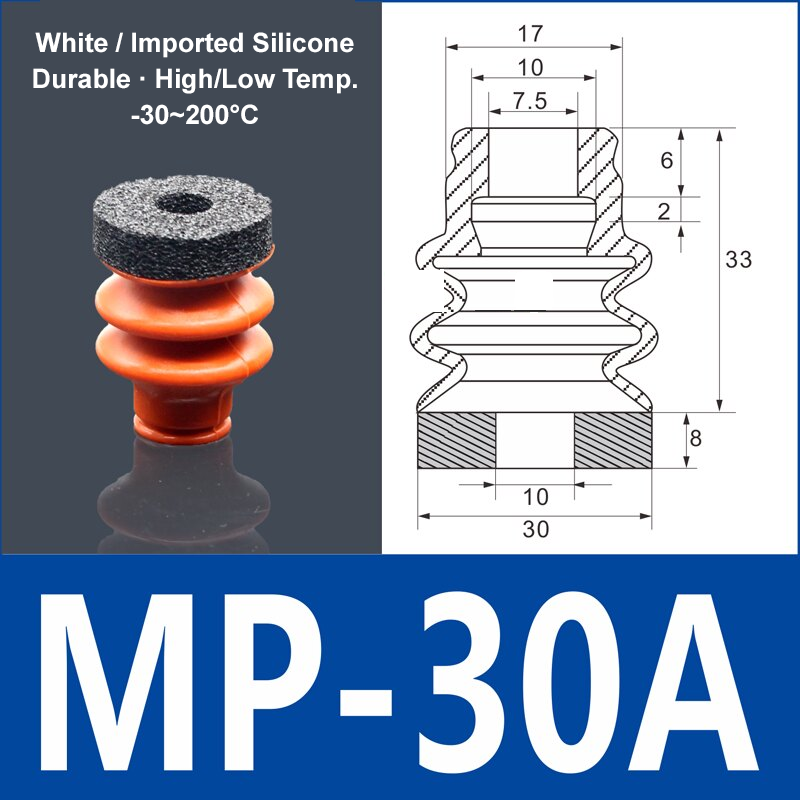

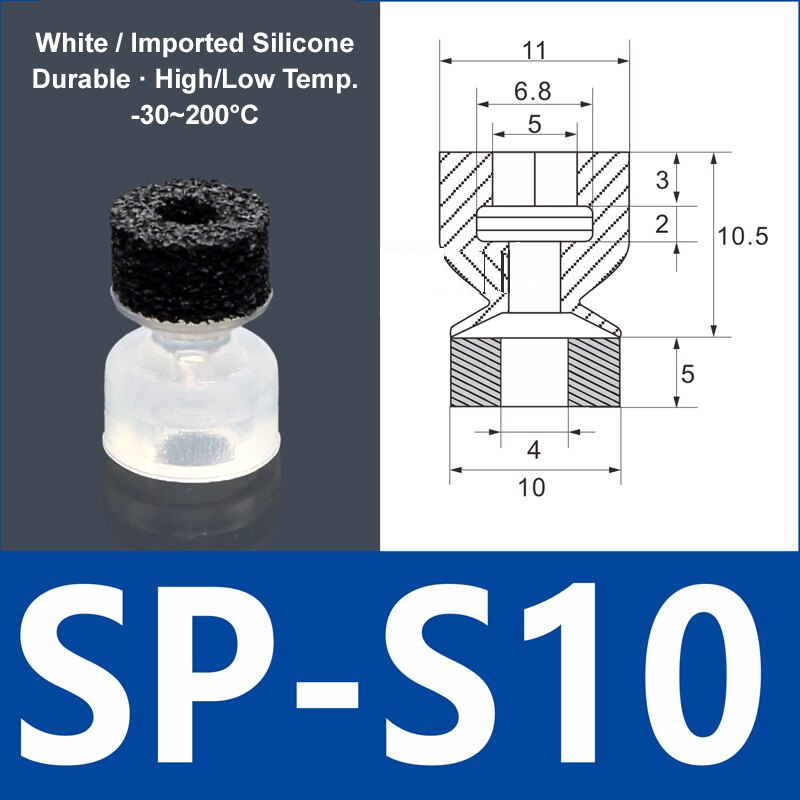

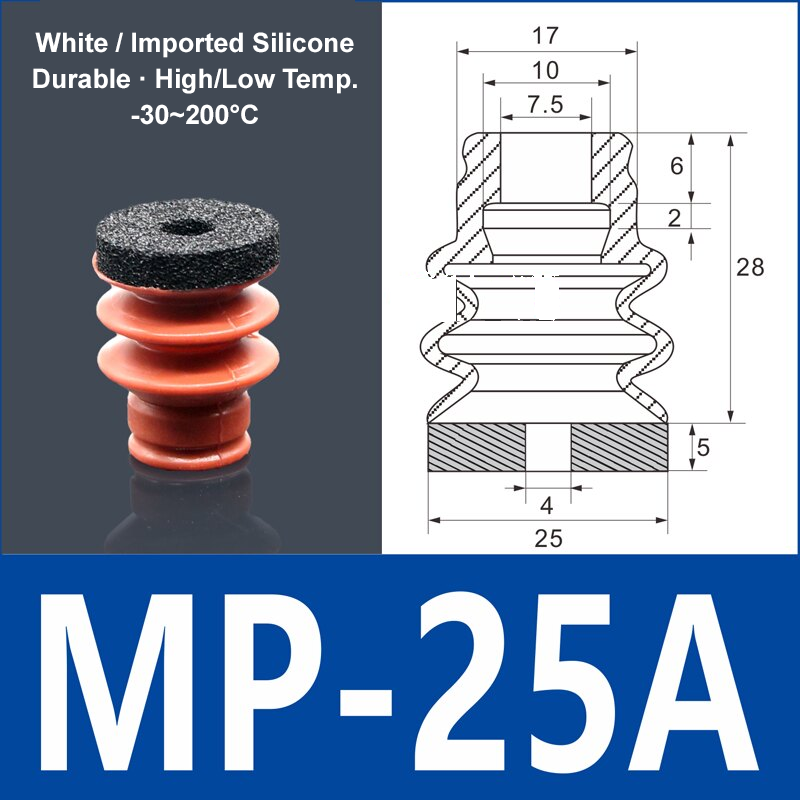

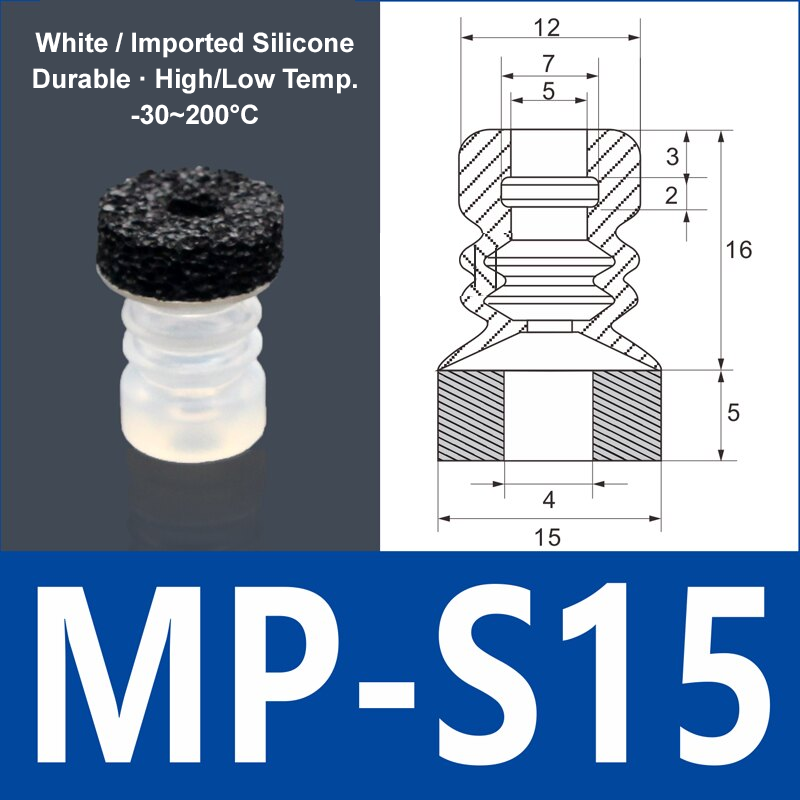

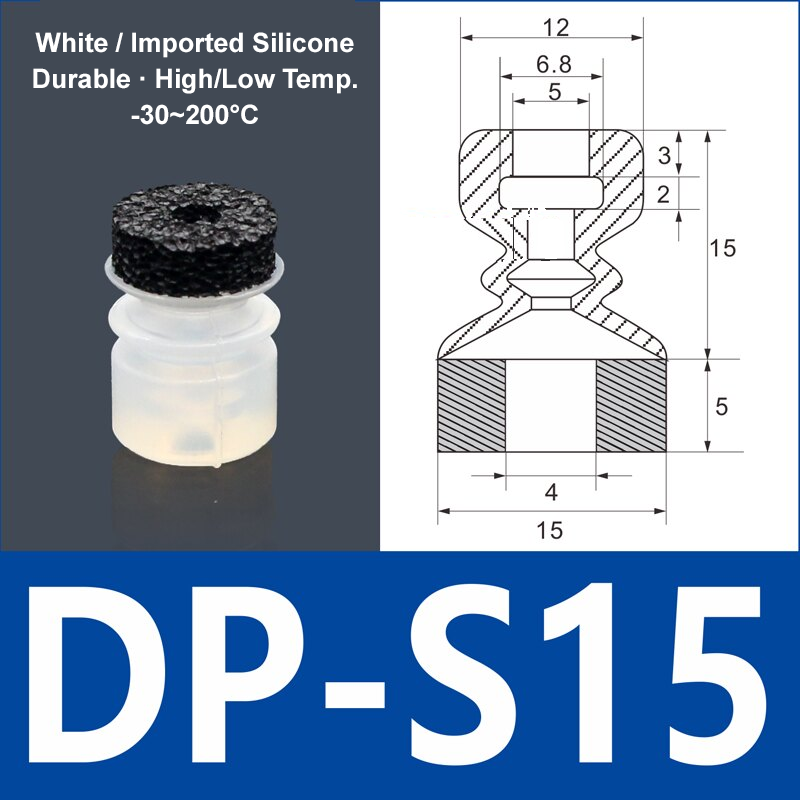

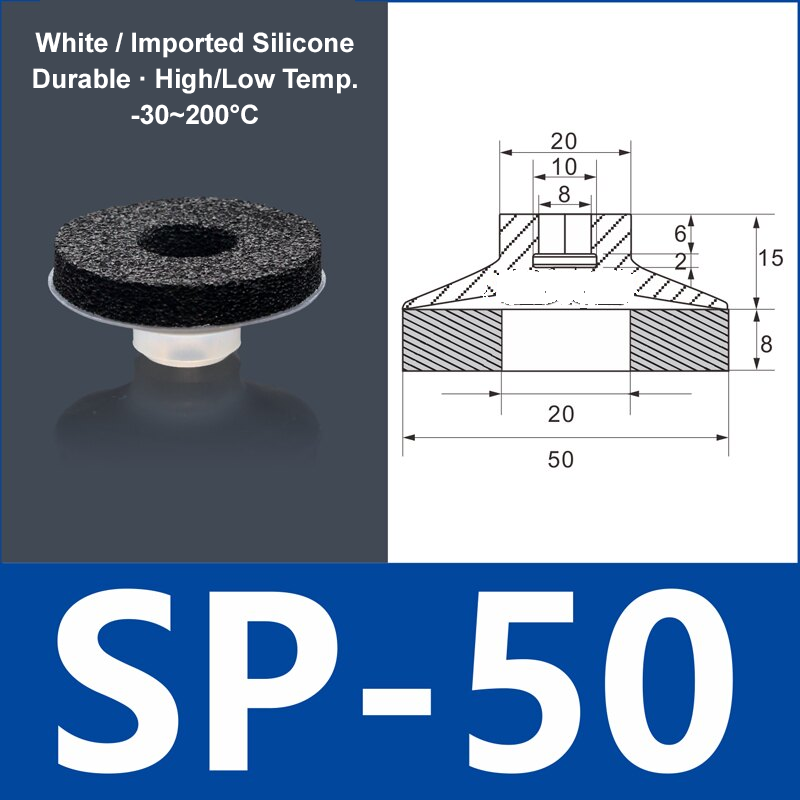

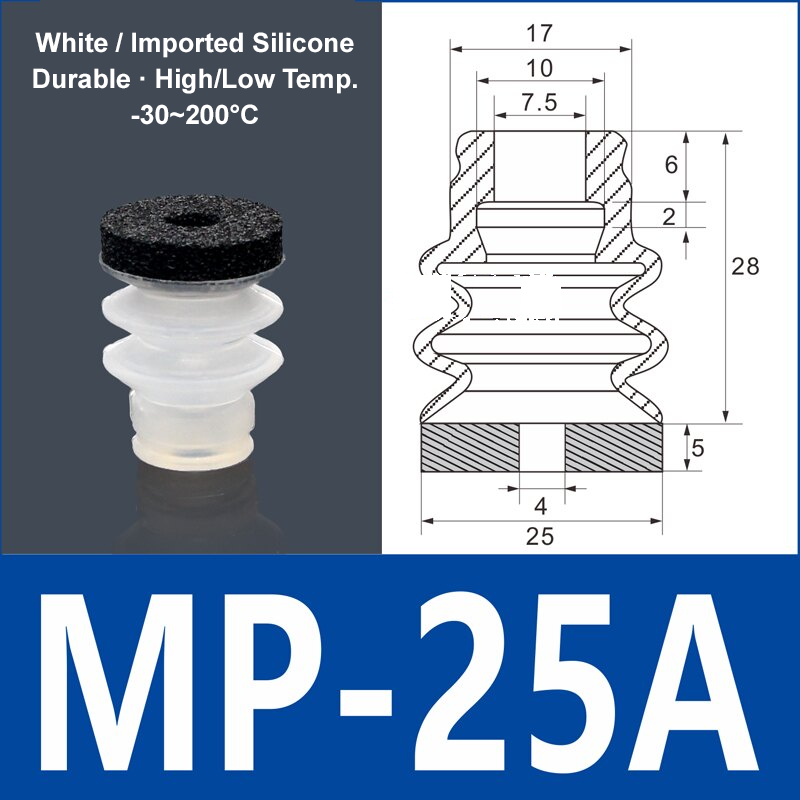

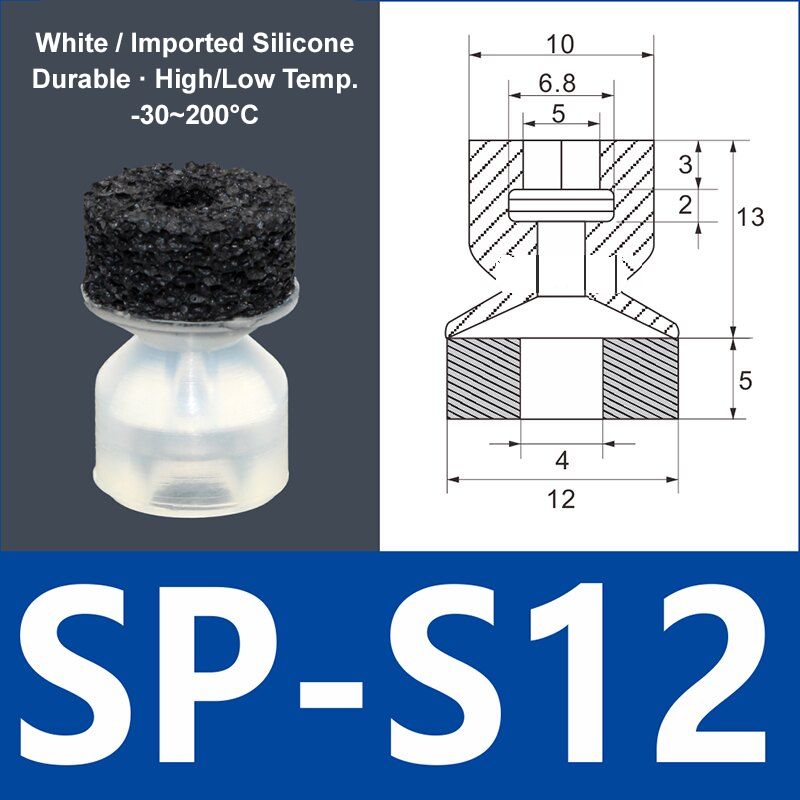

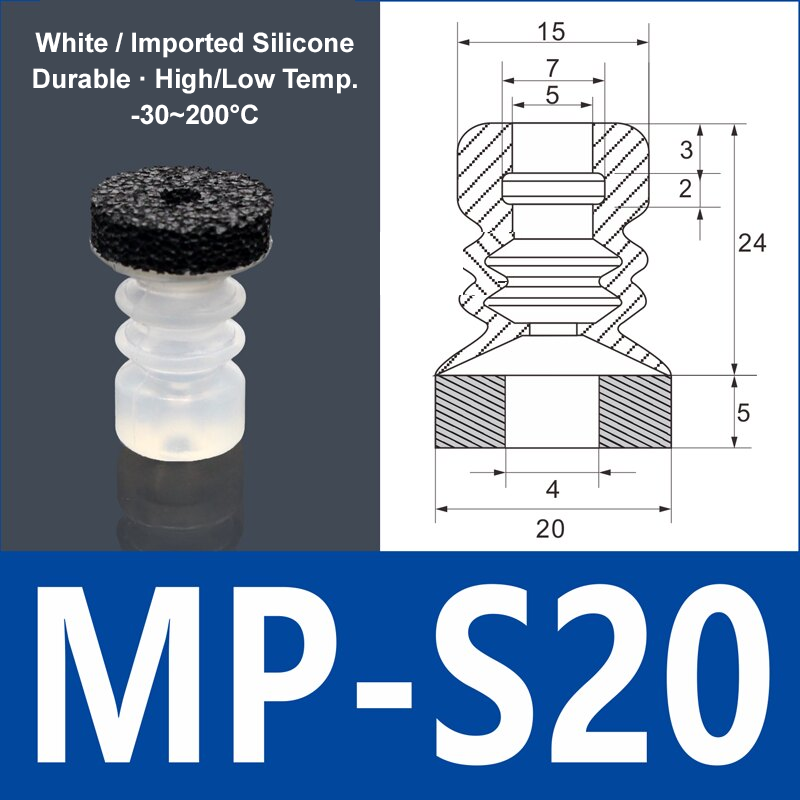

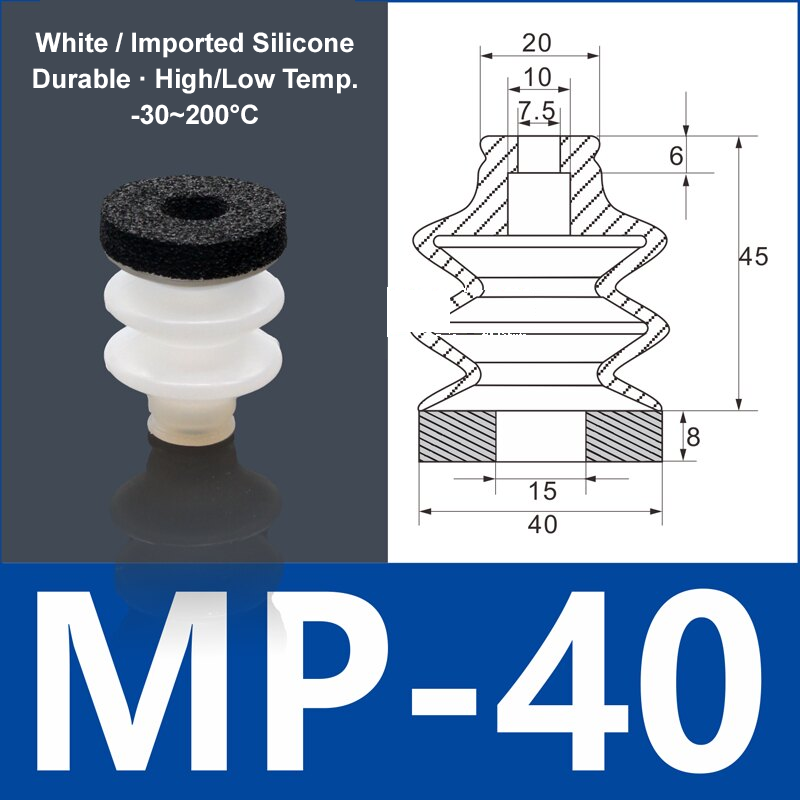

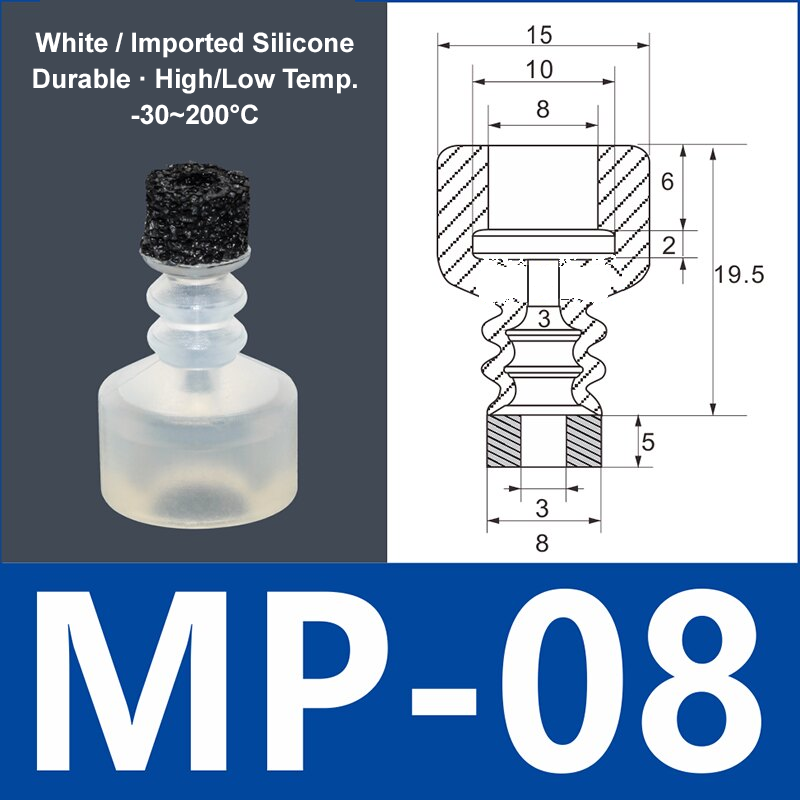

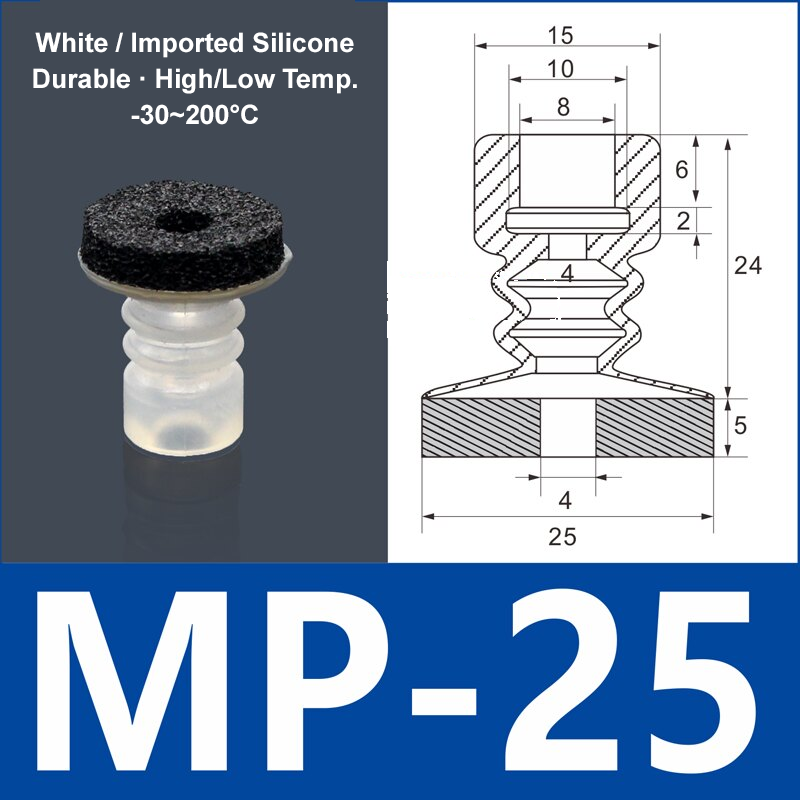

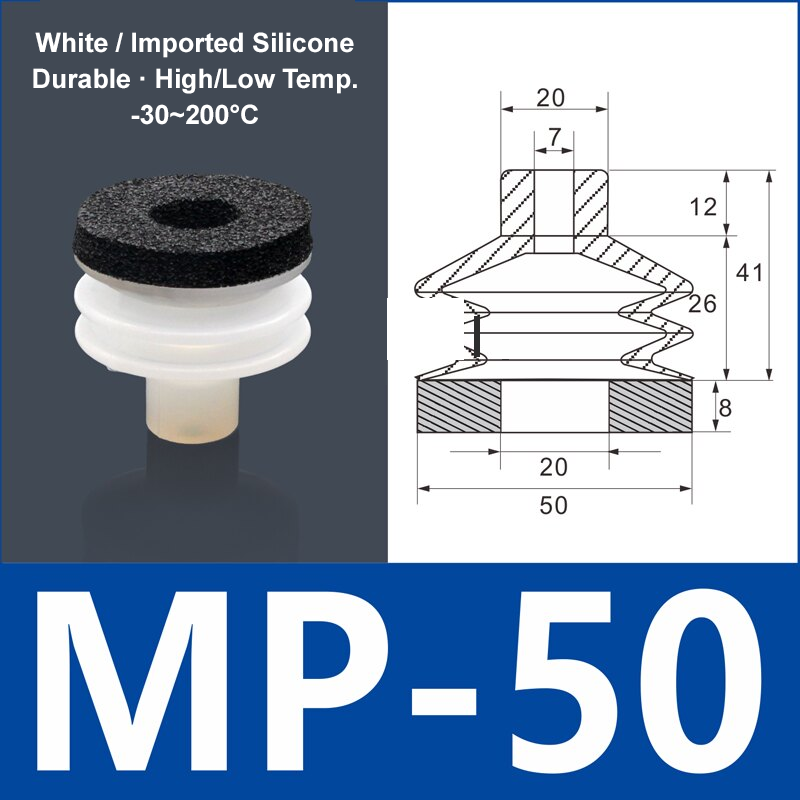

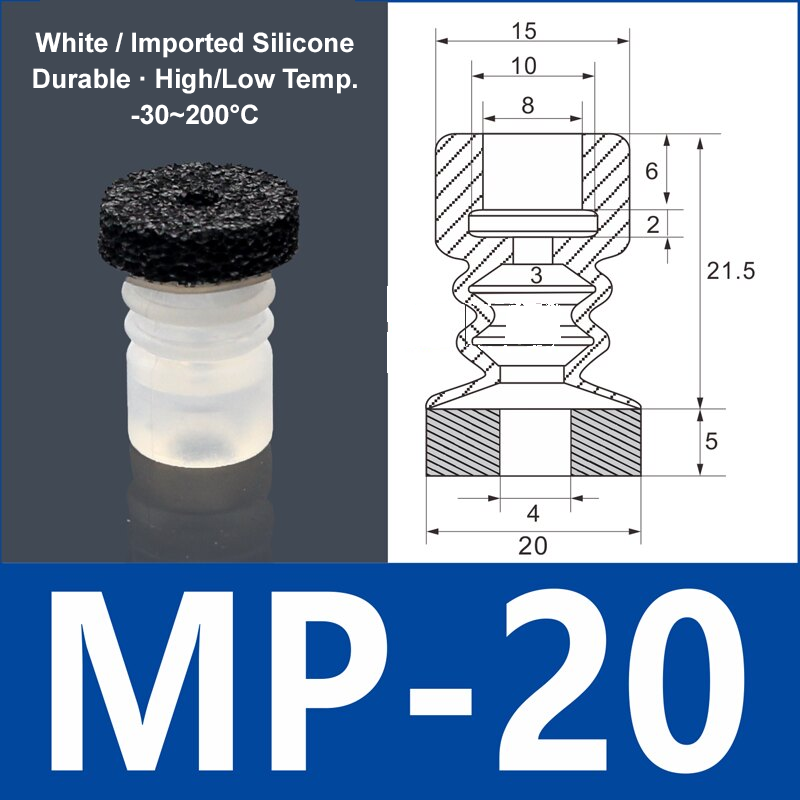

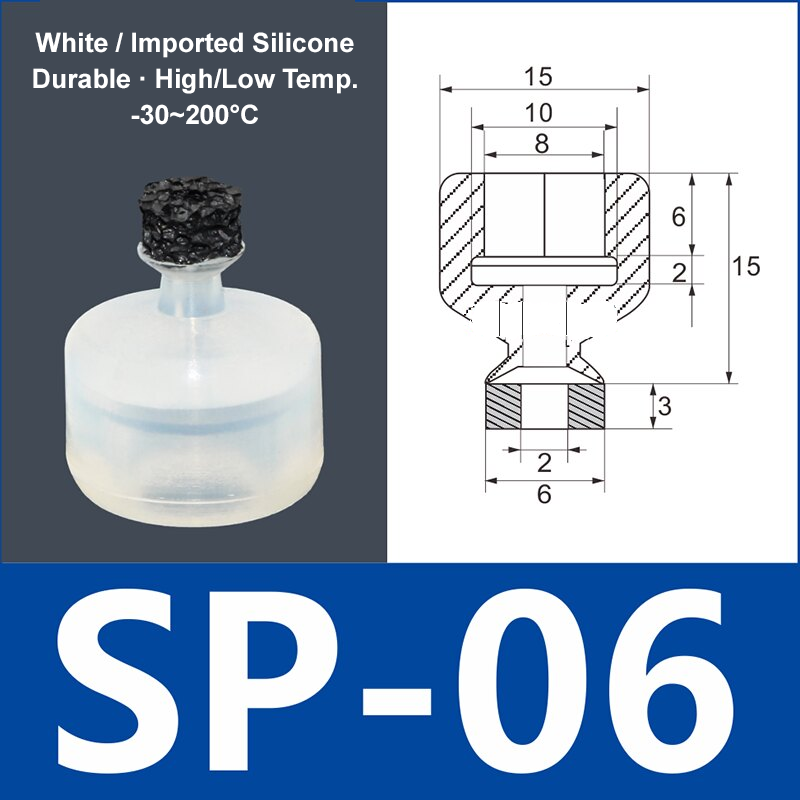

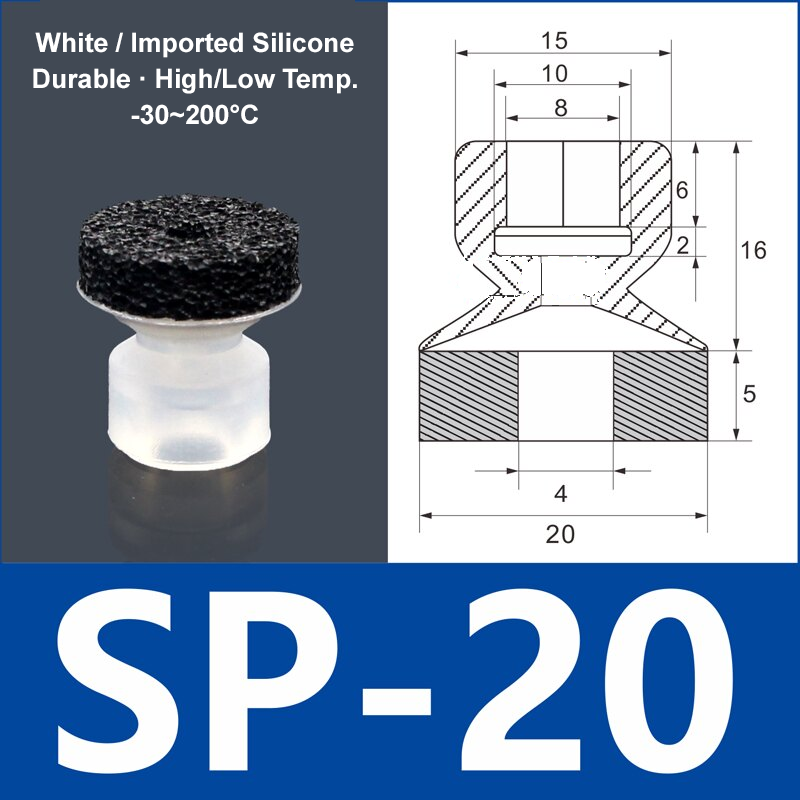

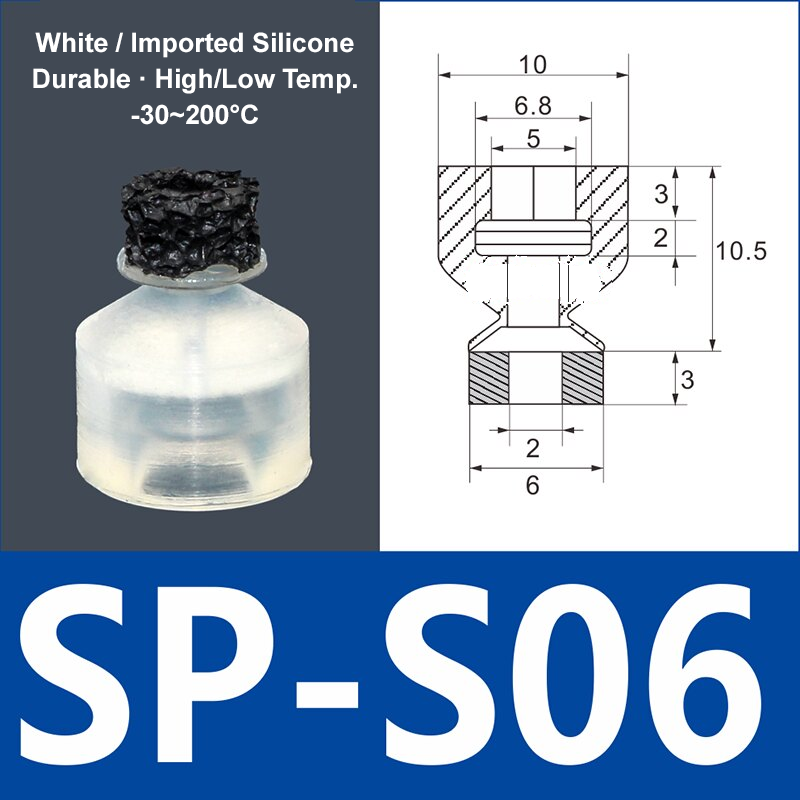

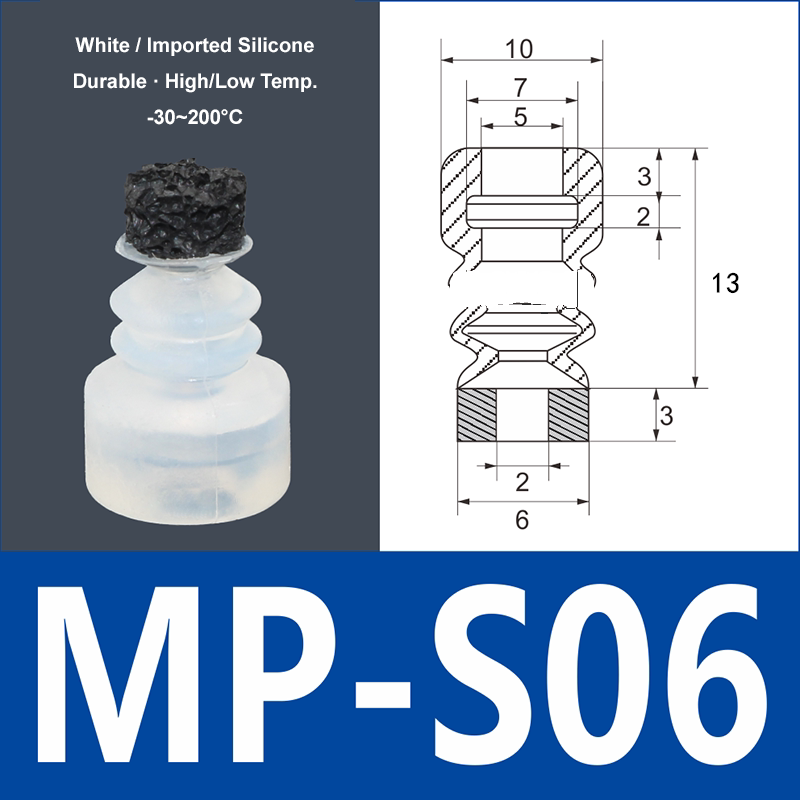

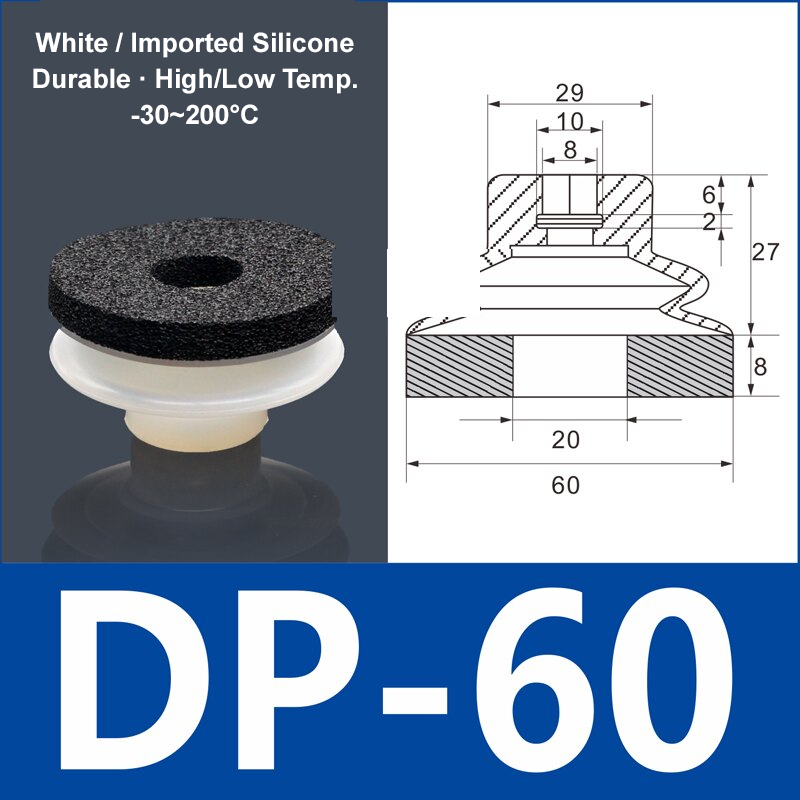

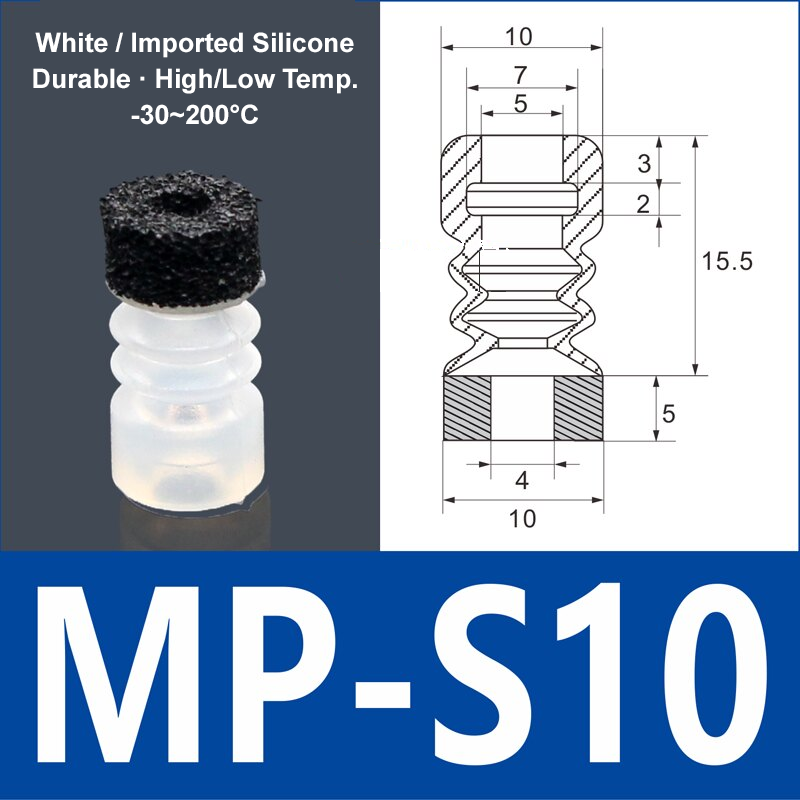

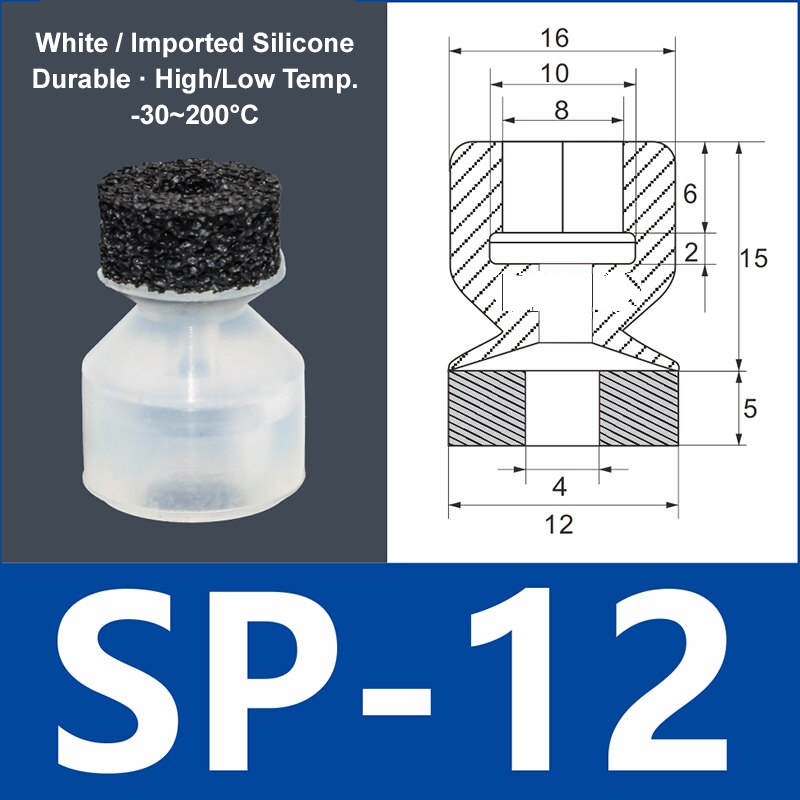

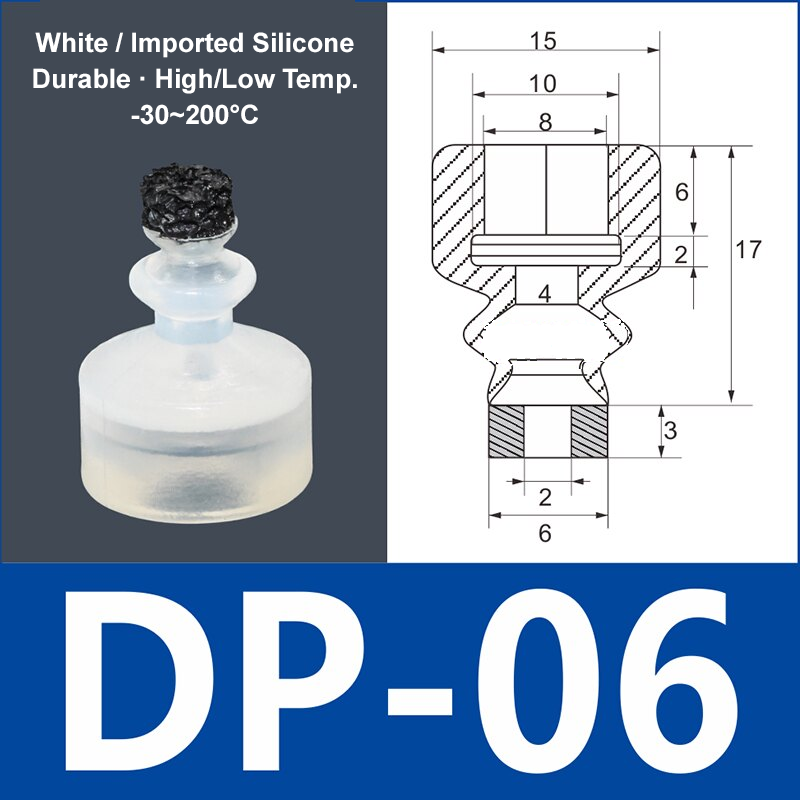

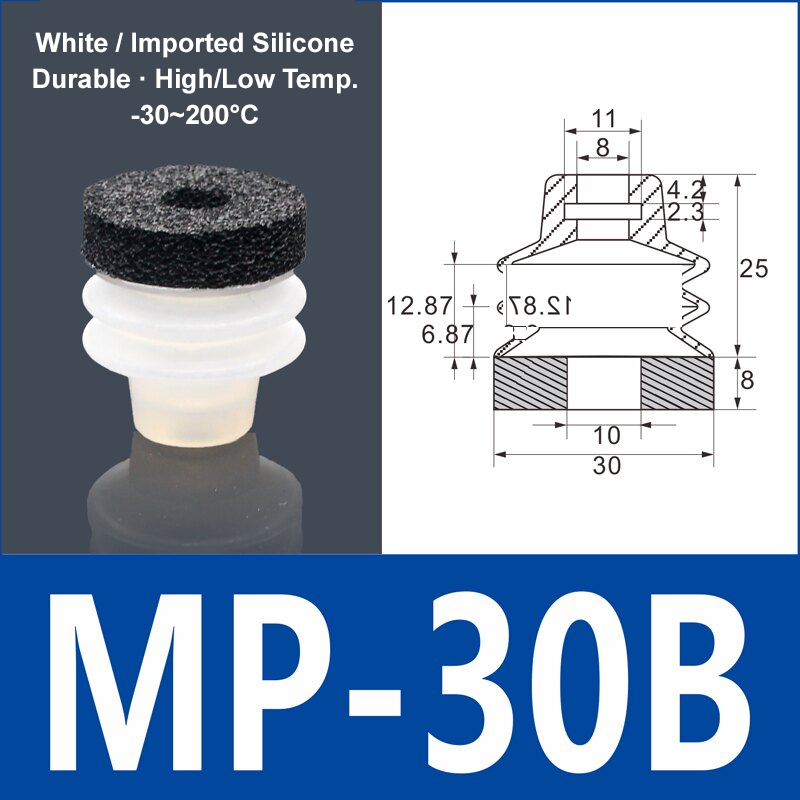

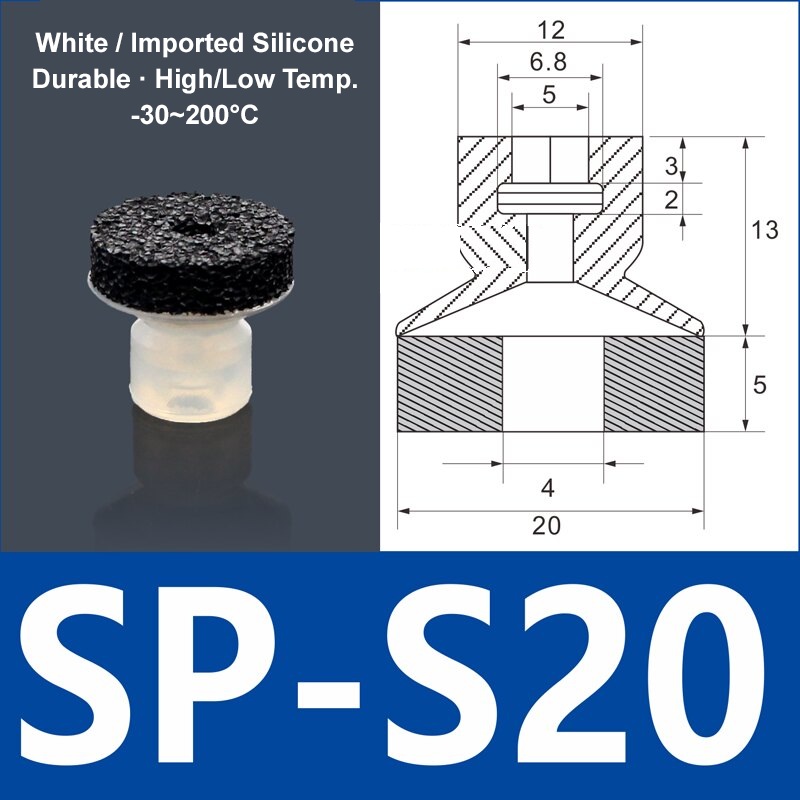

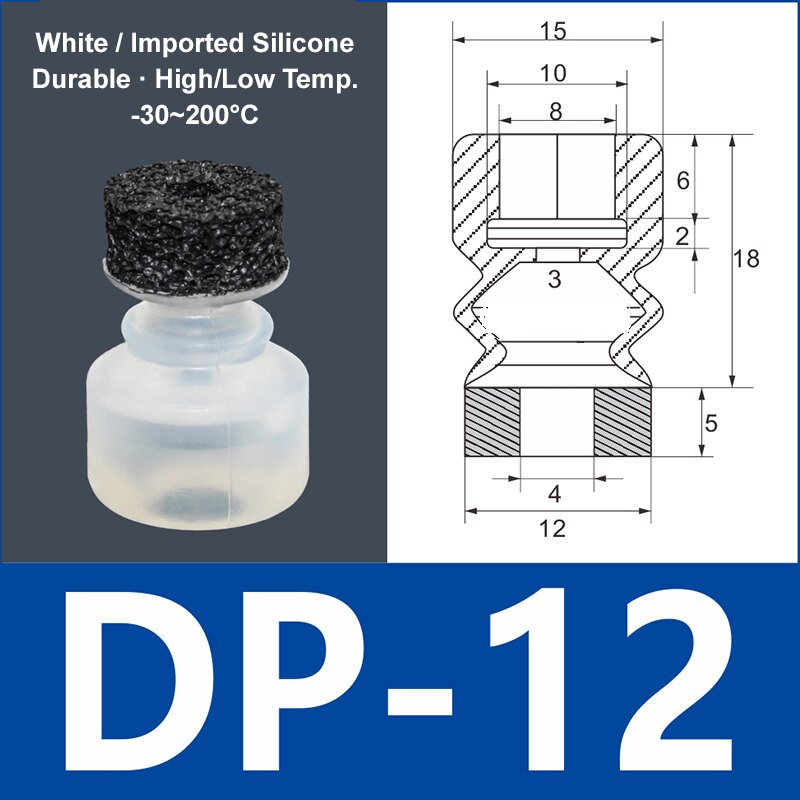

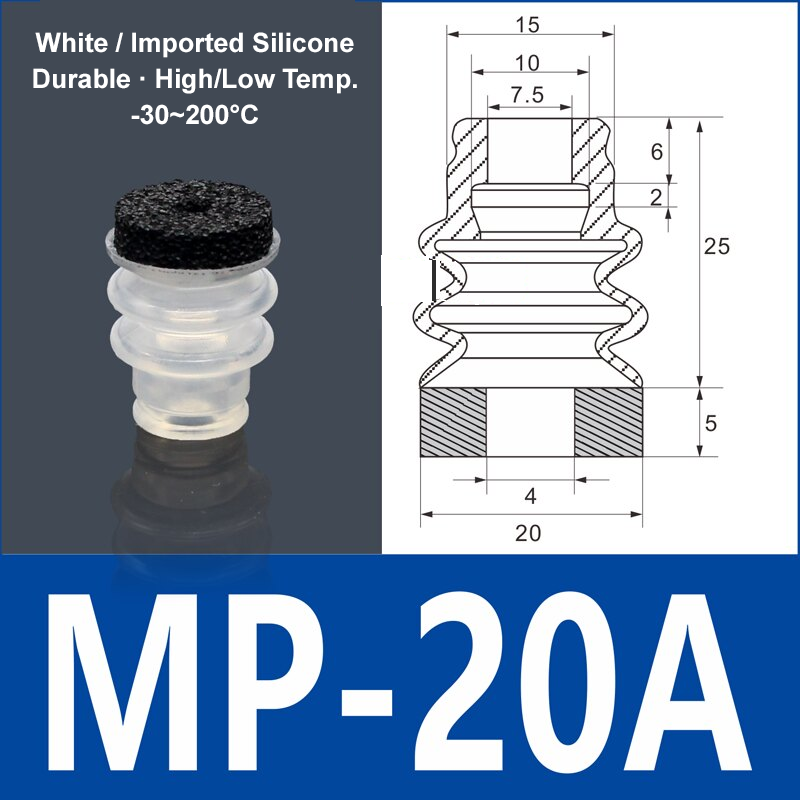

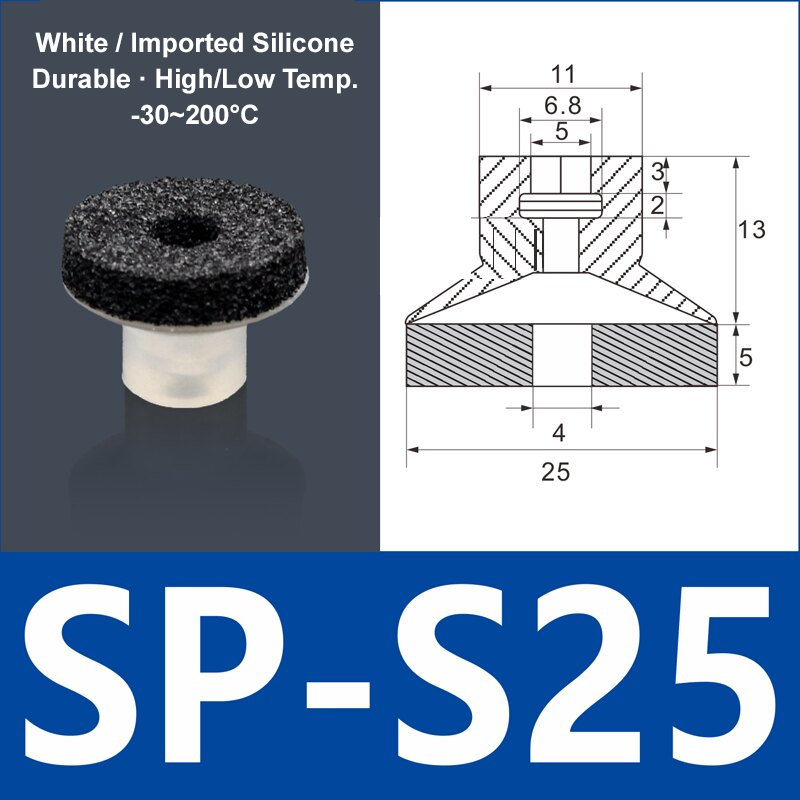

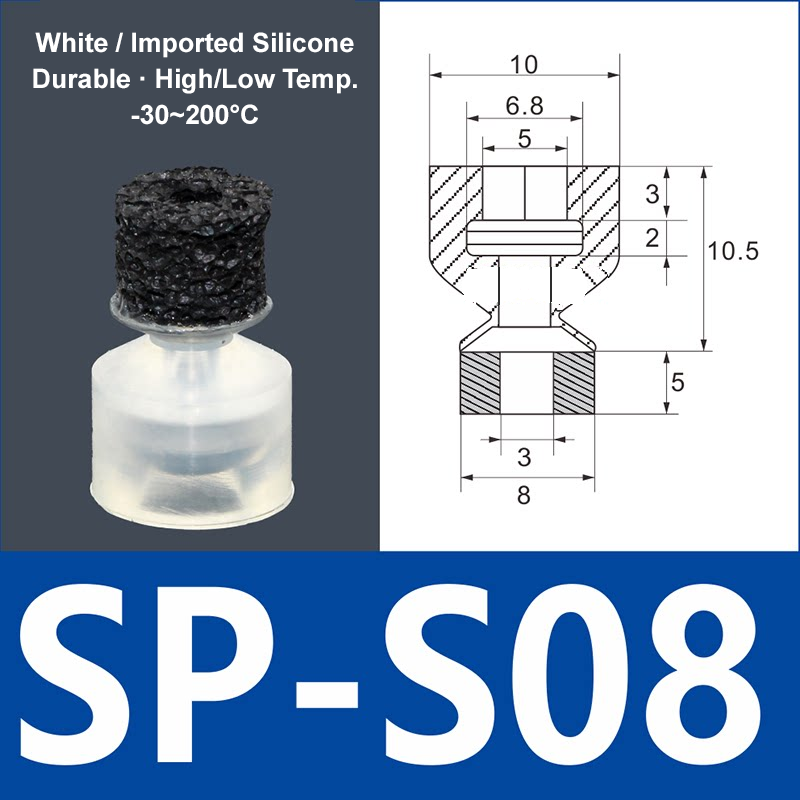

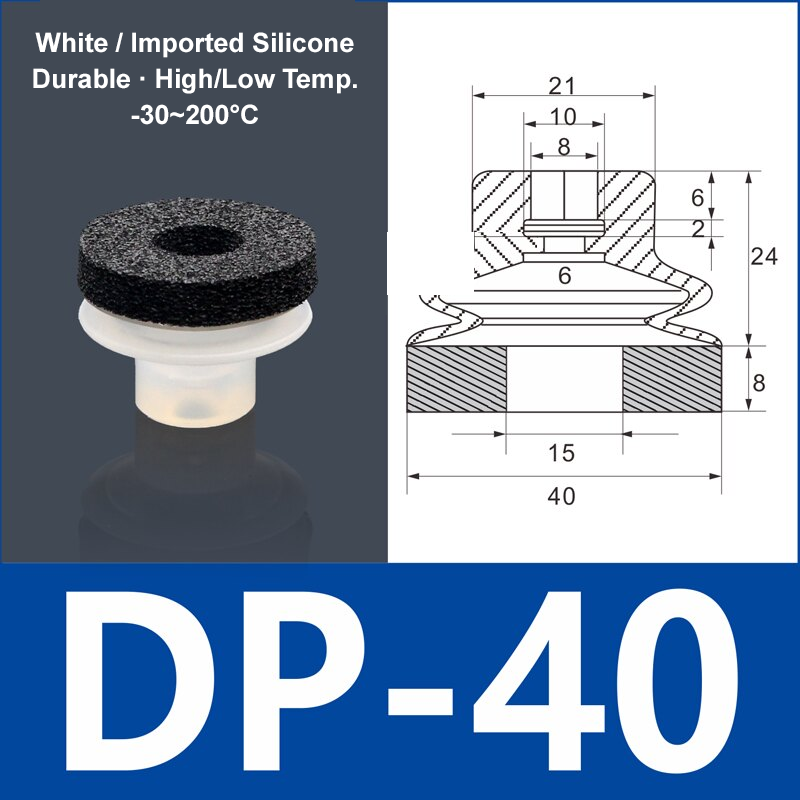

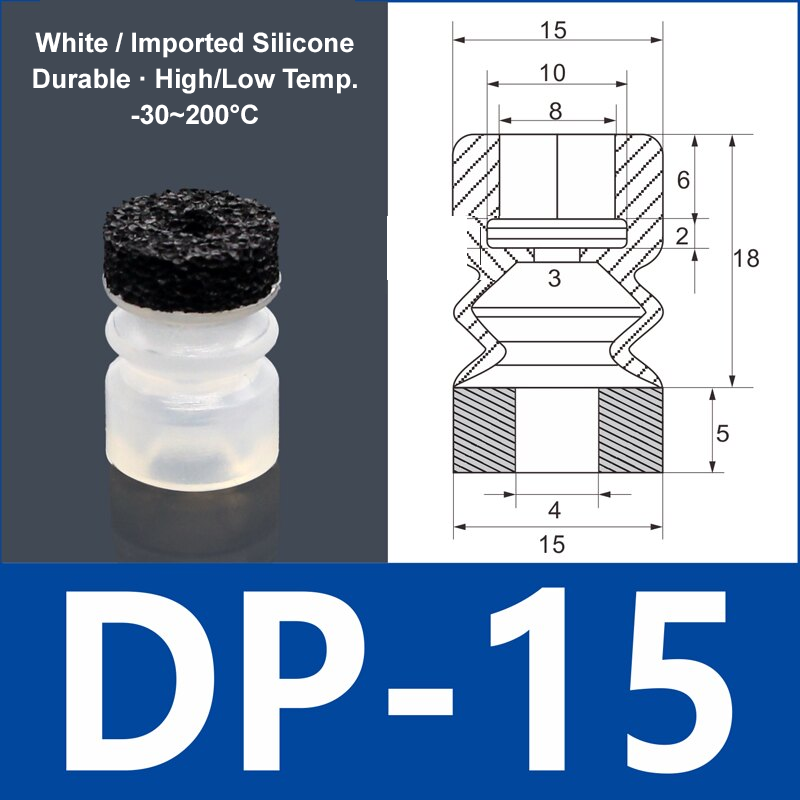

- Each model image includes its corresponding technical drawing and dimensions
Select the required model, mounting hole and color from the variant options. Please confirm dimensions in the model-specific product image before ordering.
Applications and Suitable Workpieces
Foam Vacuum Suction Cups for Robotic Grippers | SP, DP & MP Series: Foam contact pads conform to textured, slightly uneven or mildly porous workpieces that are difficult to seal with a plain rubber lip.
Recommended applications
- Cardboard, cartons, coated or uncoated sheet material, textured plastic, wood panels, composites and other flat or slightly uneven parts.
- Robot grippers, palletizing, depalletizing, panel transfer, pick-and-place and general material-handling systems.
- Workpieces with small gaps, surface texture or height variation where the foam can bridge minor leakage paths.
Model and selection notes
- SP, DP and MP foam models use different body heights and mounting-hole sizes; choose the exact series and technical drawing.
- Select the cup diameter and foam footprint according to the available contact area and required holding force.
- Single-, double- and multi-layer bodies provide progressively more stroke and height compensation; choose the model shown in the technical drawing.
- Foam wears during service and should be inspected regularly. Very porous stock may require a higher-flow vacuum source or multiple cups.
