Small-Head Black Foam Vacuum Suction Cups
SP-S, DP-S and MP-S series models with black foam contact pads.
- 21 model variants from SP-S06 through SP-S30, DP-S06 through DP-S30, and MP-S06 through MP-S15

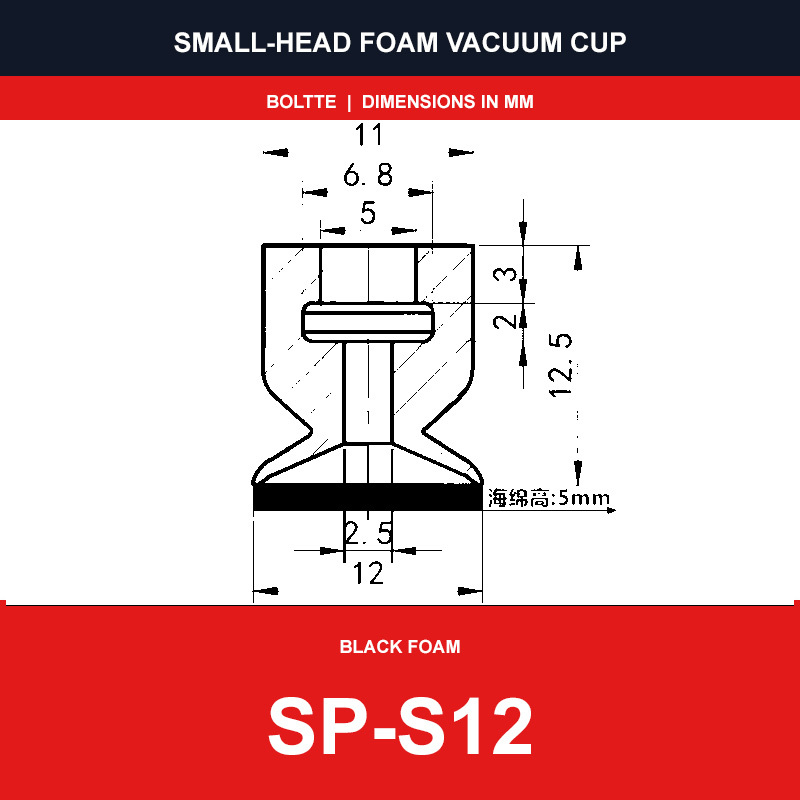

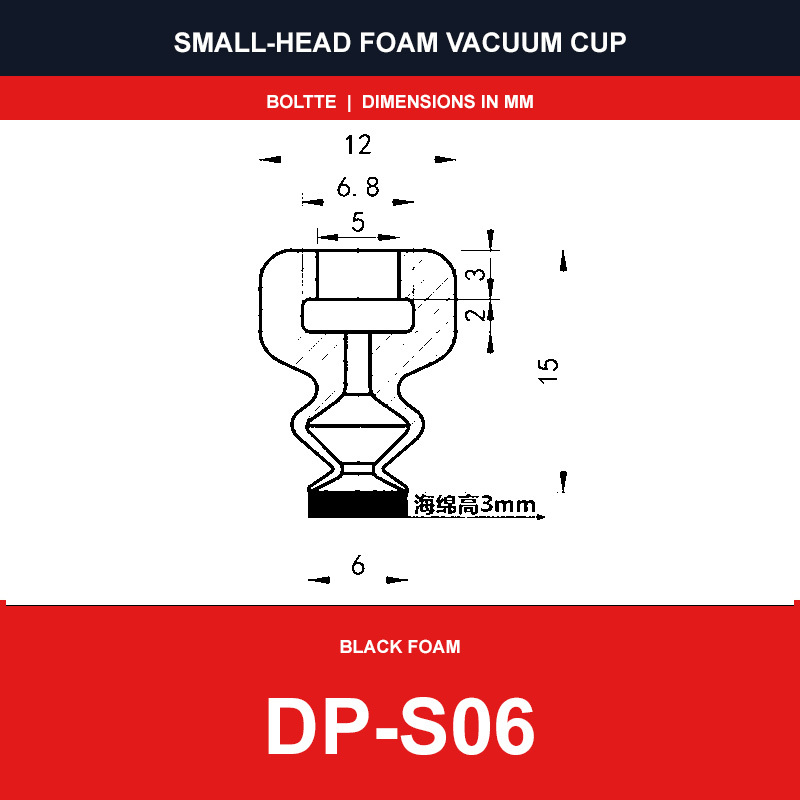

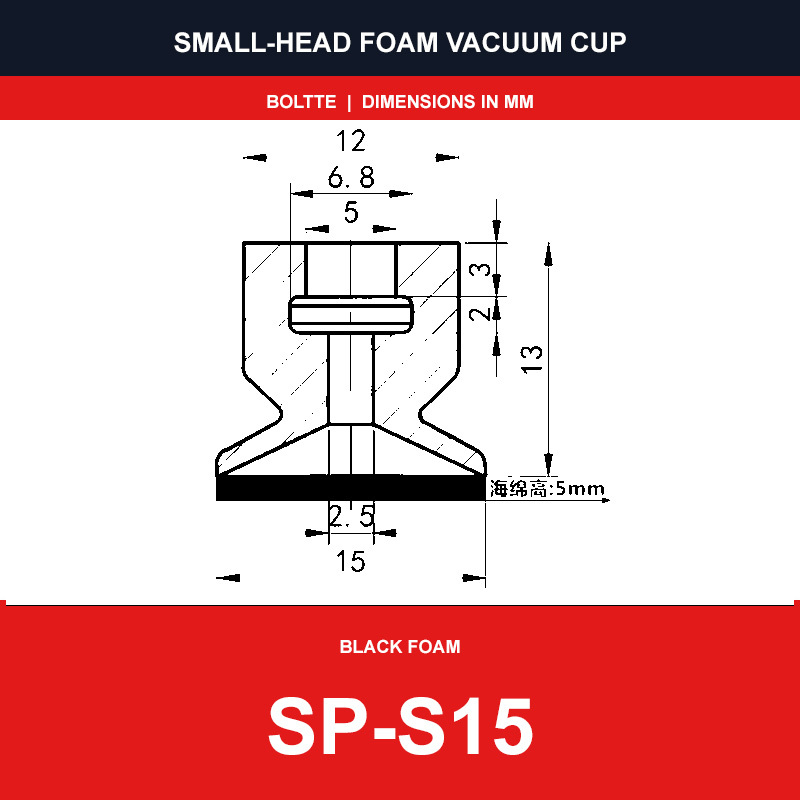

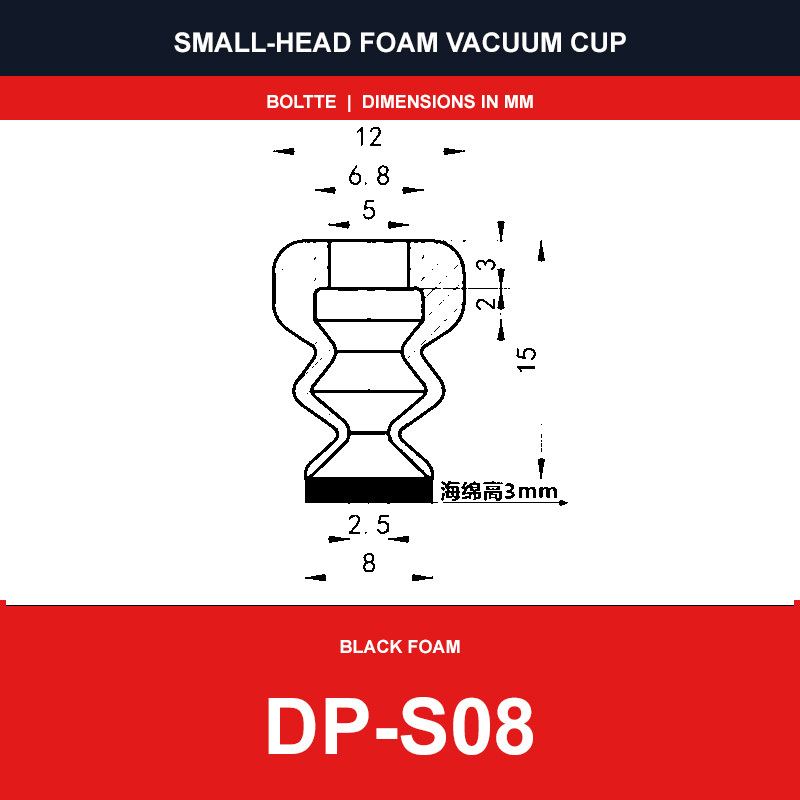

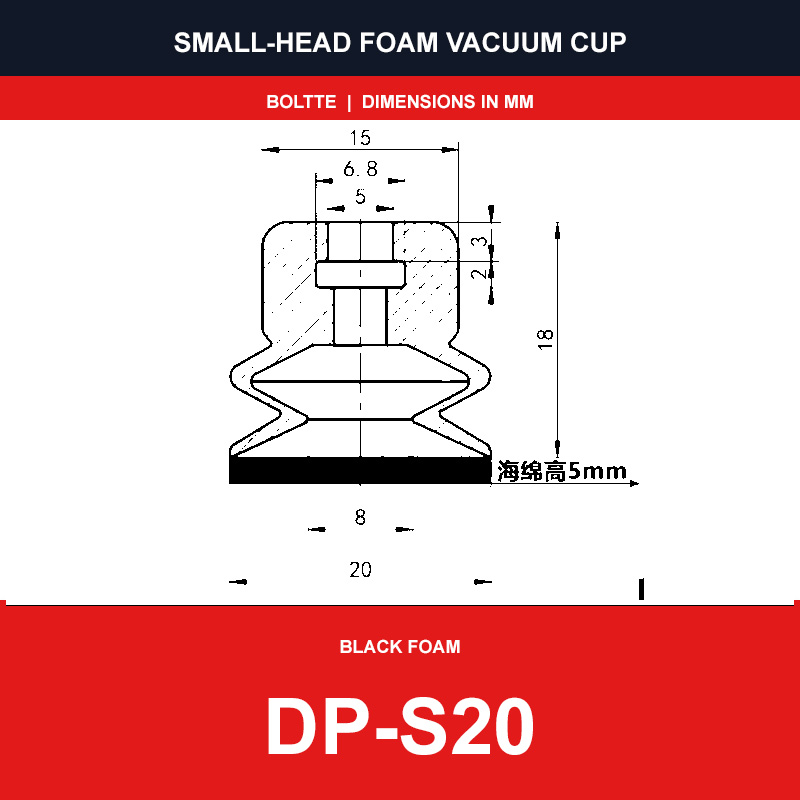

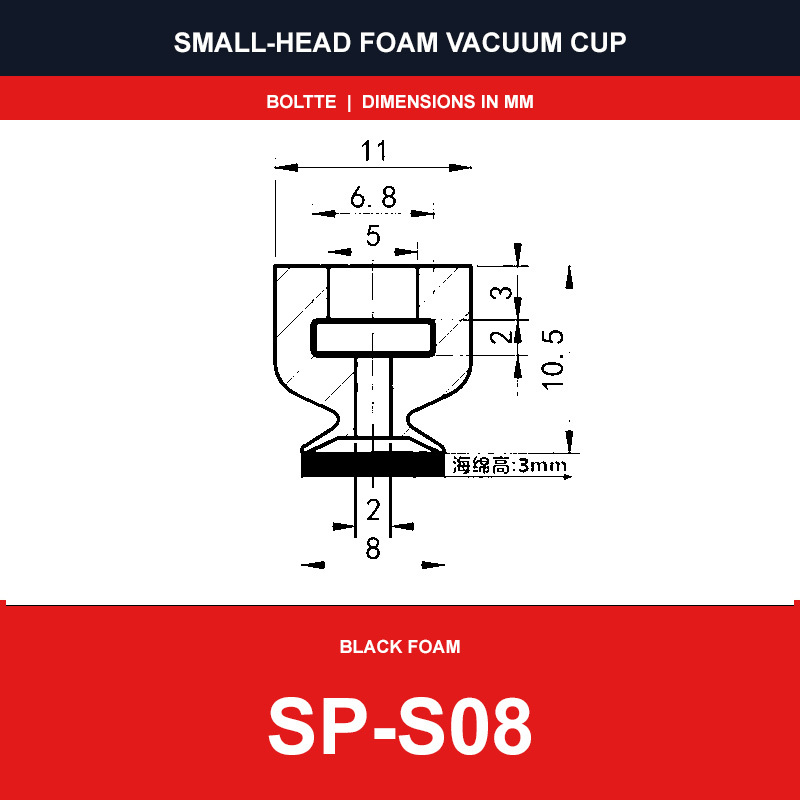

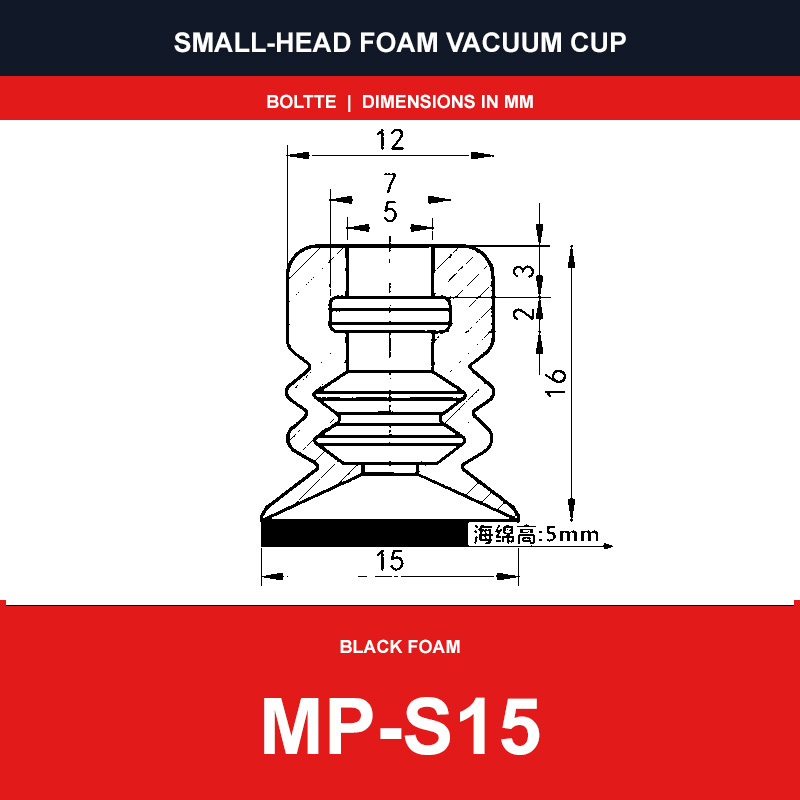

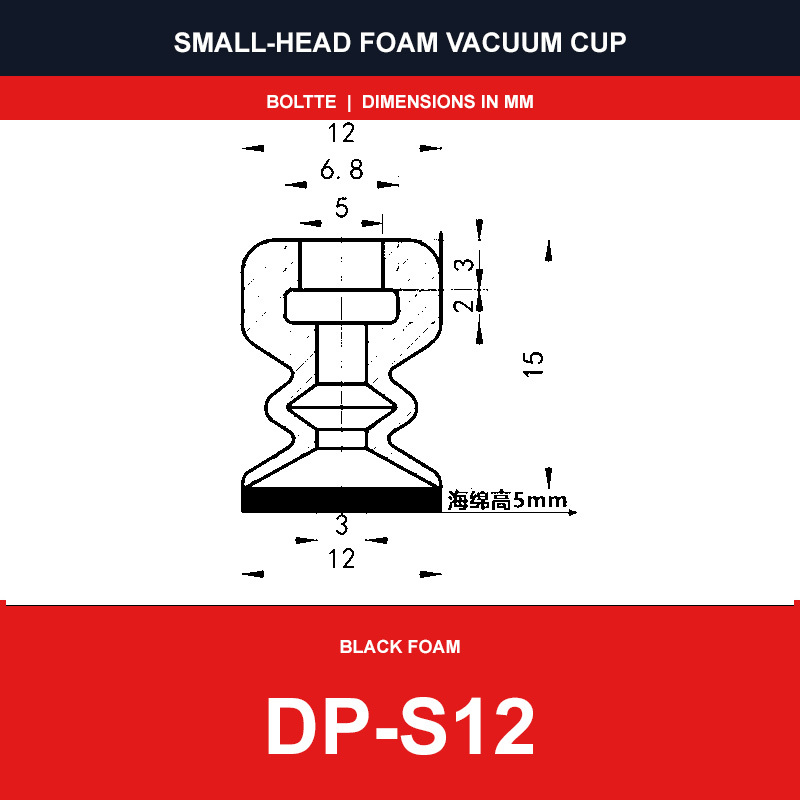

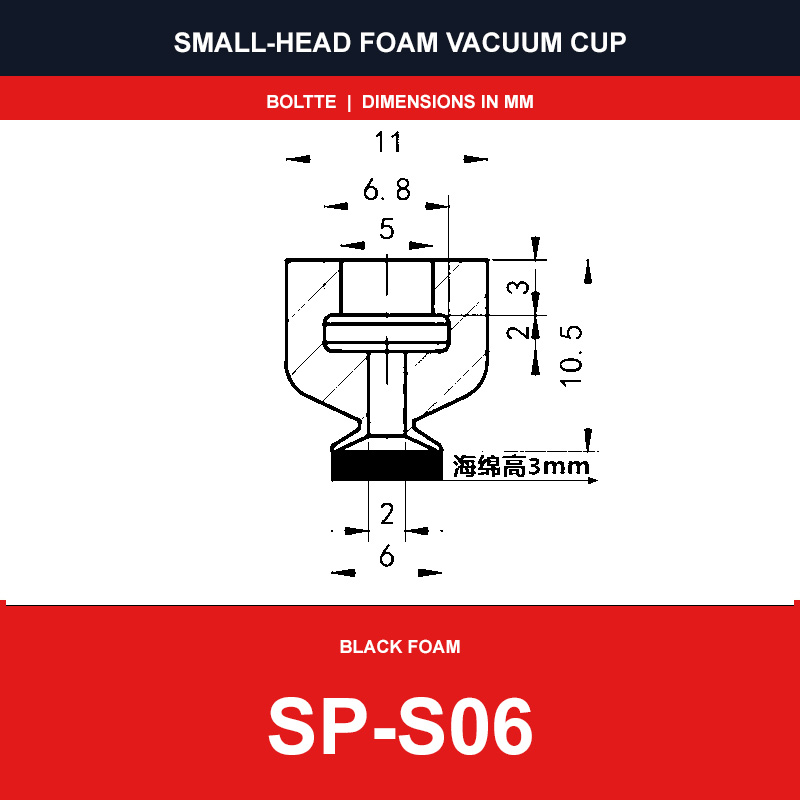

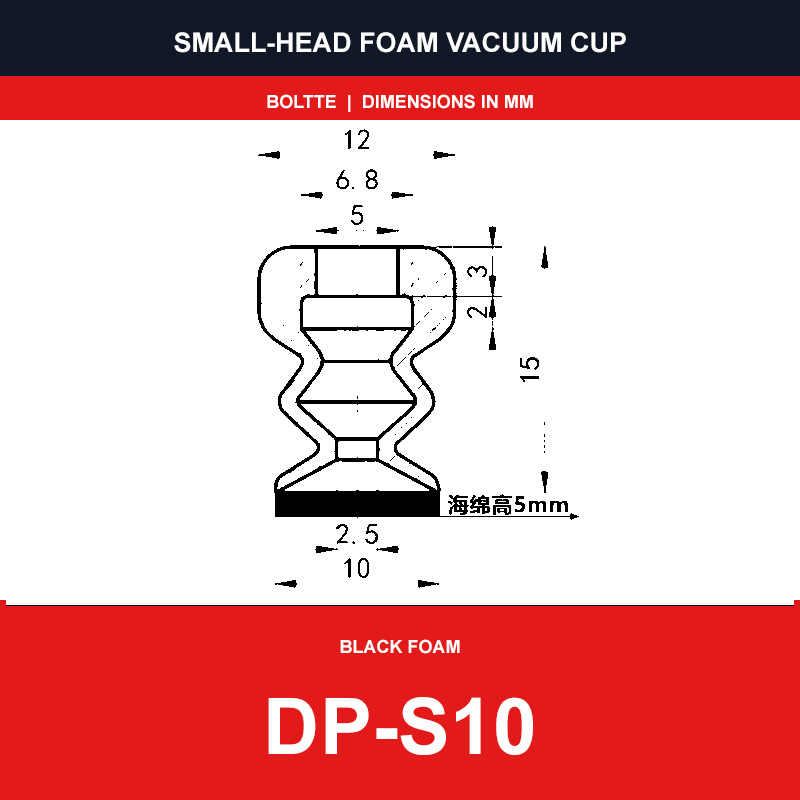

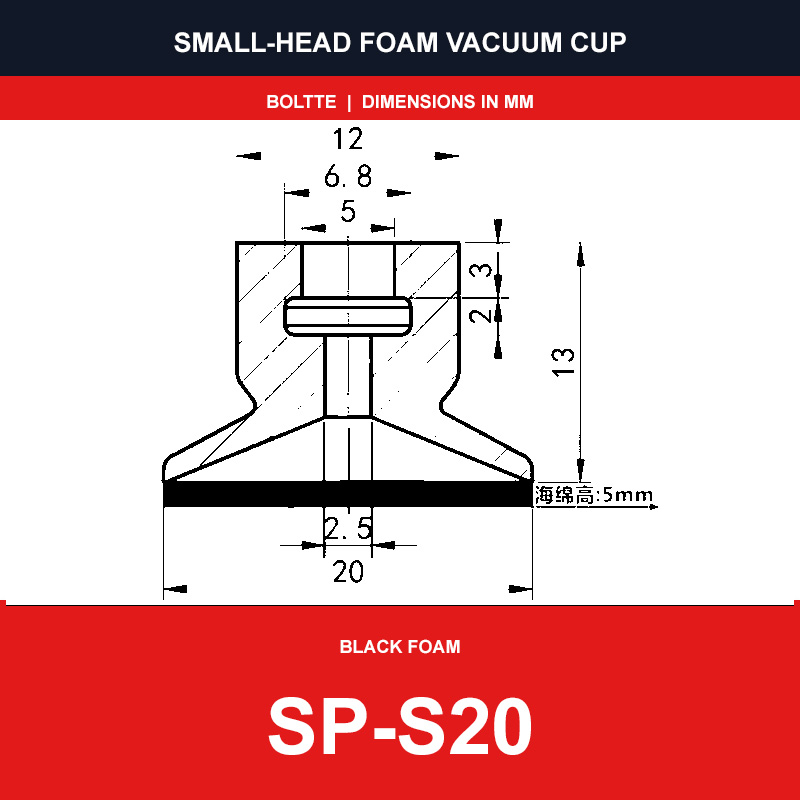

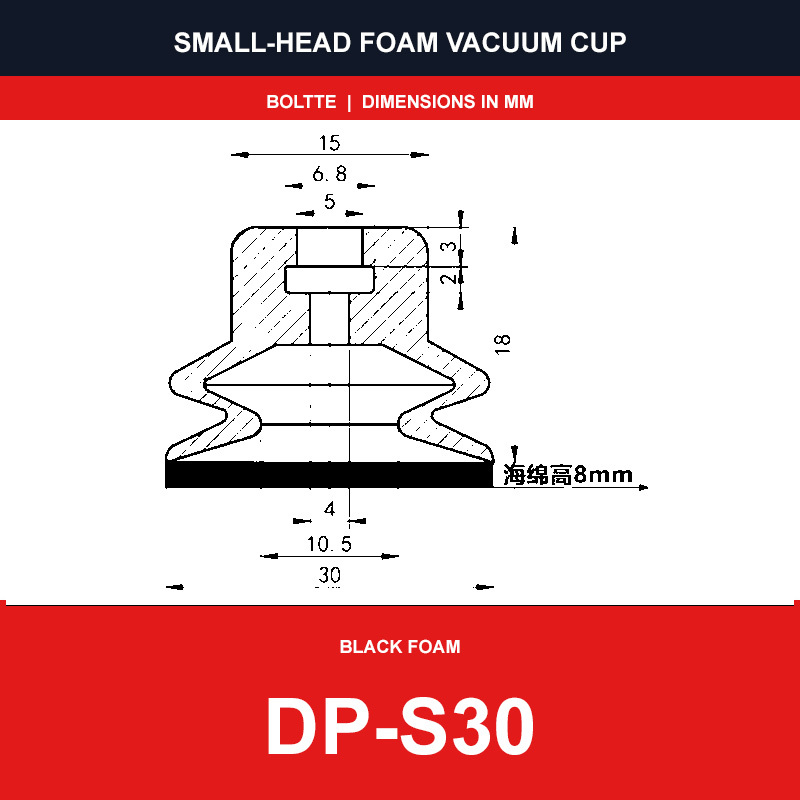

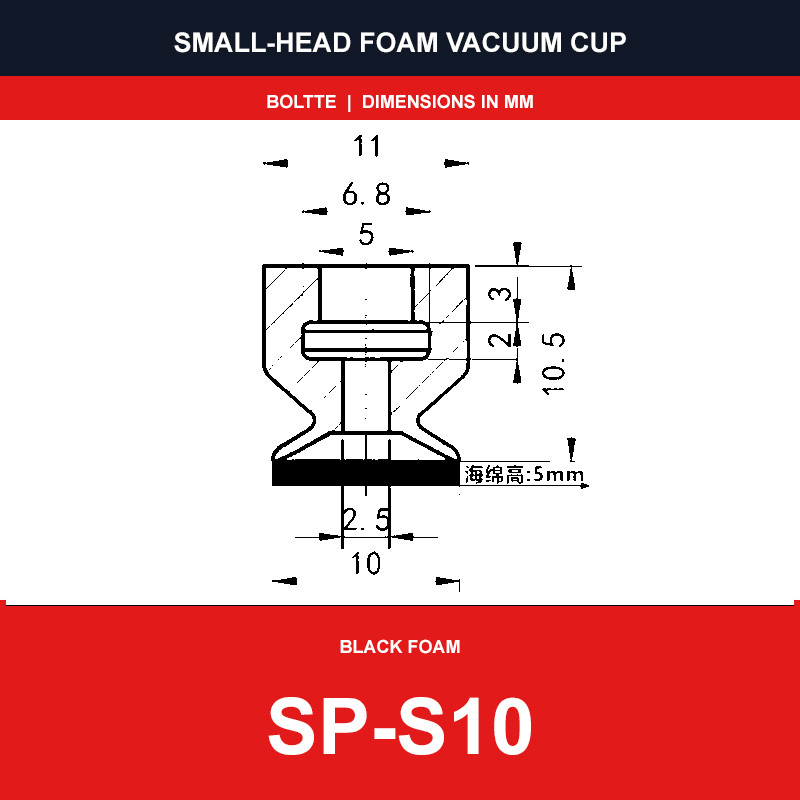

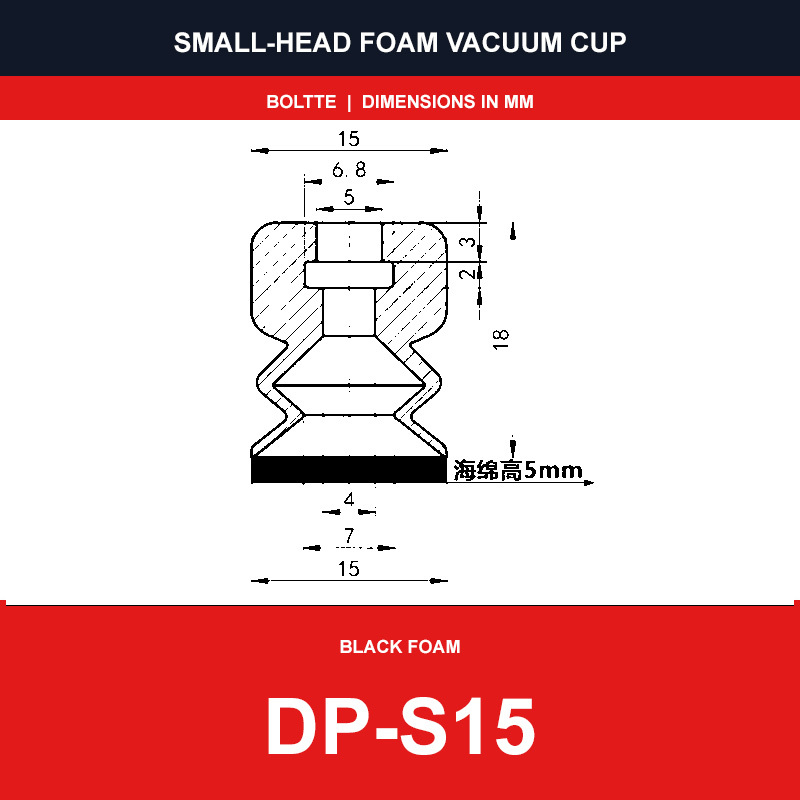

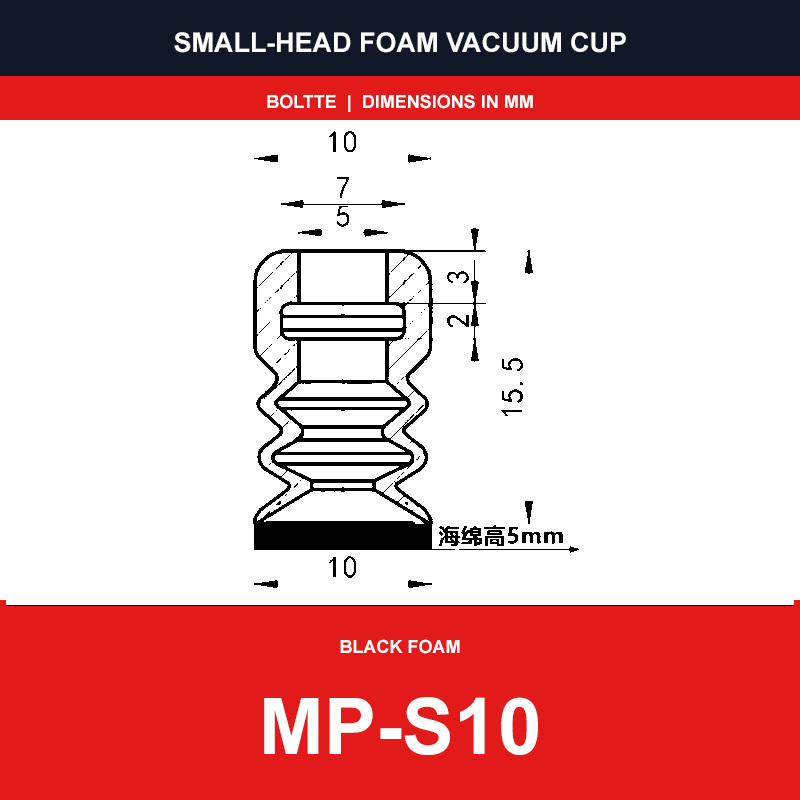

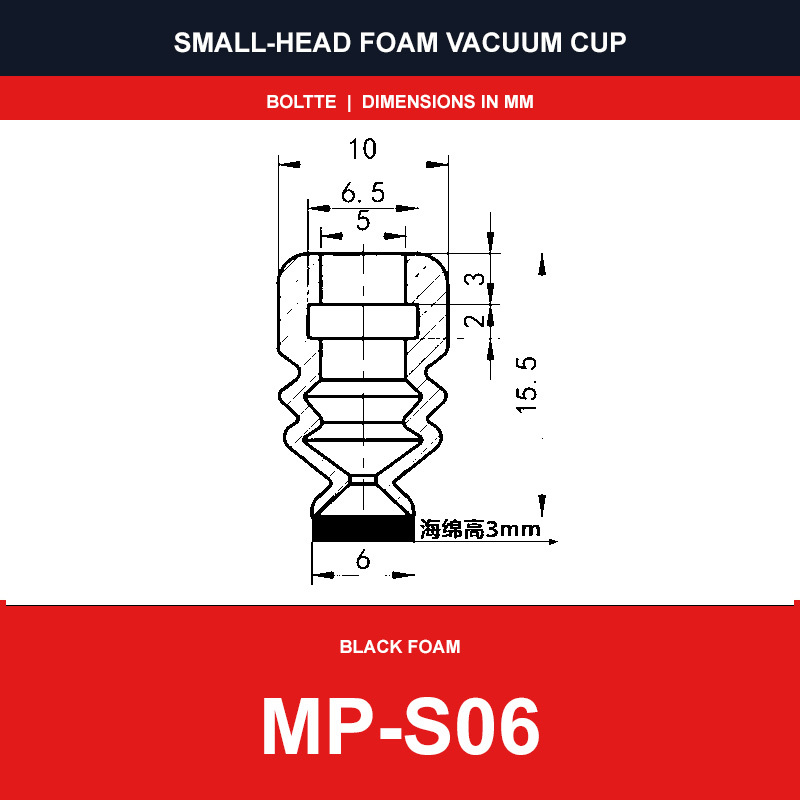

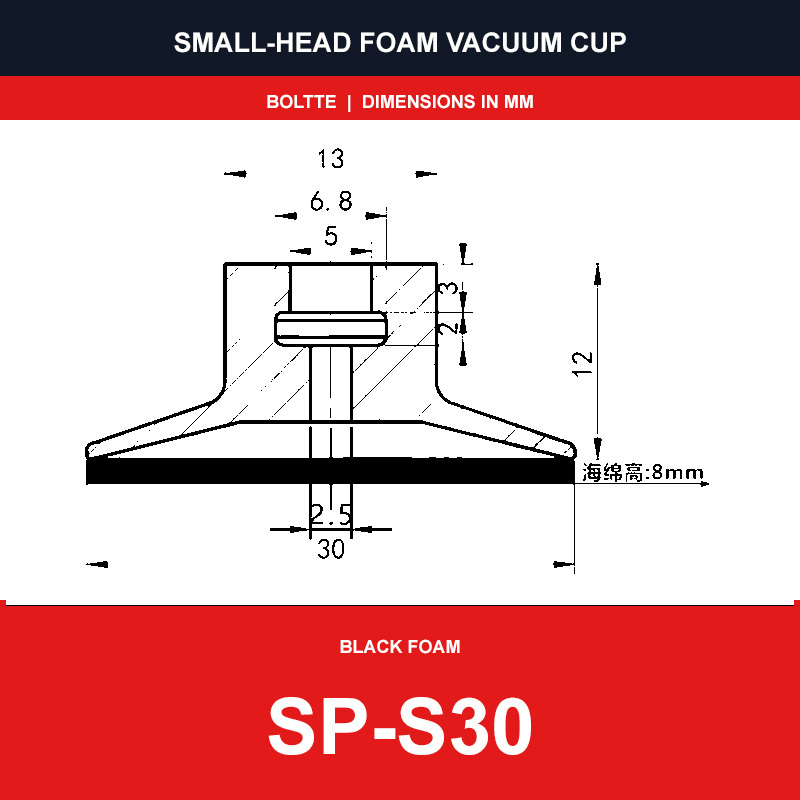

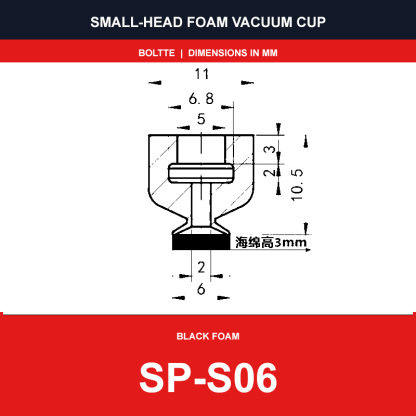

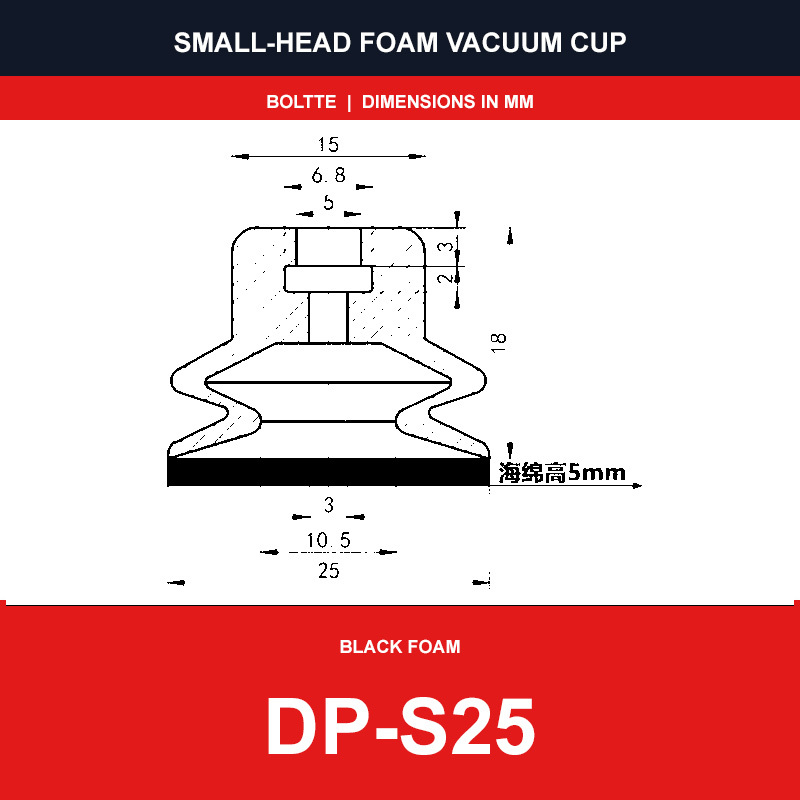

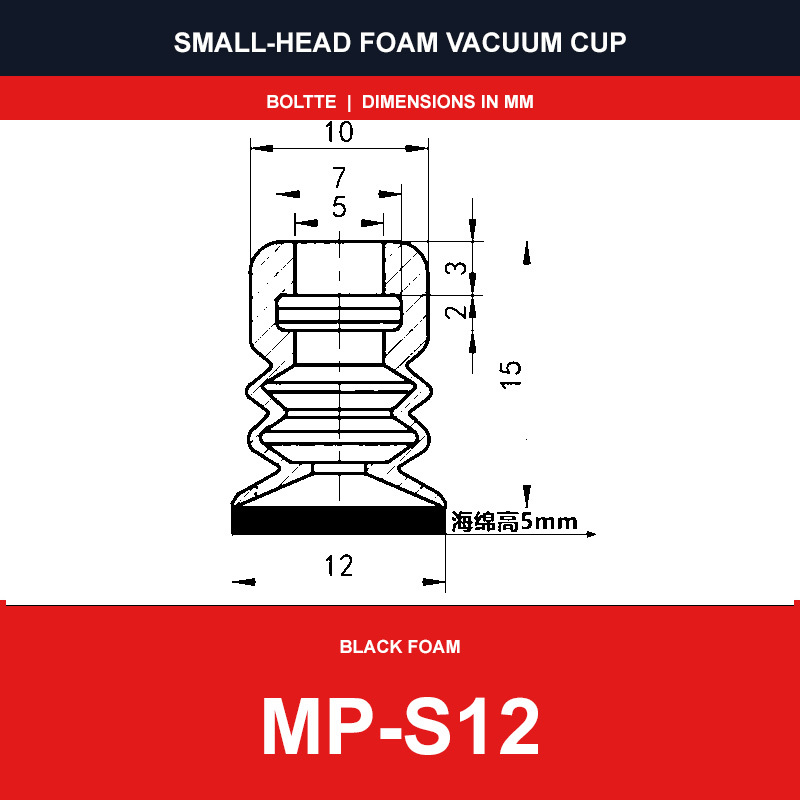

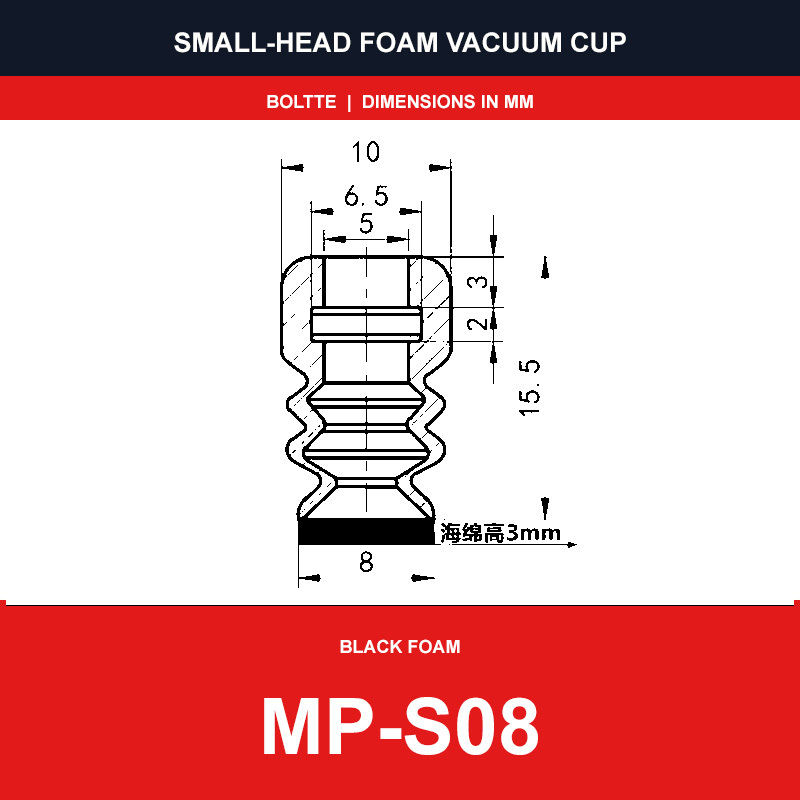

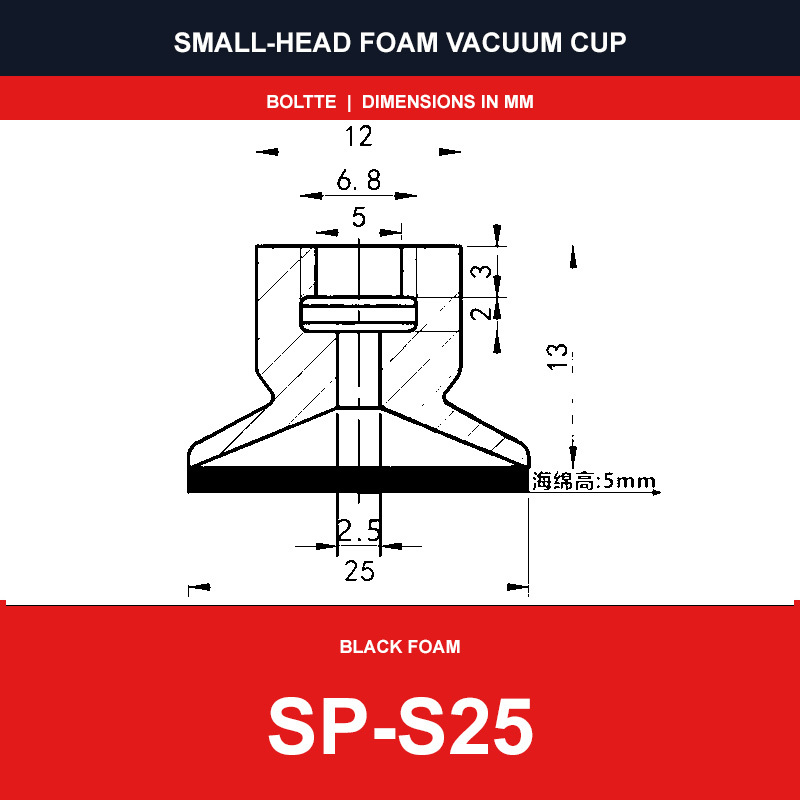

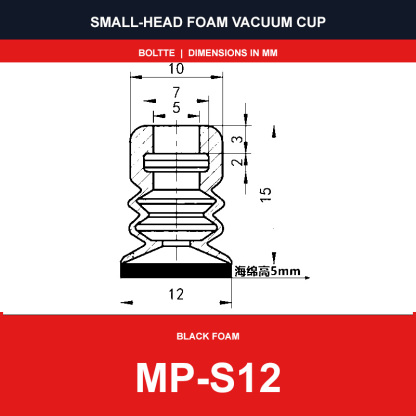

- Each model includes a corresponding dimensional drawing
- Select the exact model required for your application
Confirm the dimensions shown in the model-specific image before ordering.
Applications and Suitable Workpieces
Small-Head Black Foam Vacuum Suction Cups | SP, DP & MP: Foam contact pads conform to textured, slightly uneven or mildly porous workpieces that are difficult to seal with a plain rubber lip.
Recommended applications
- Cardboard, cartons, coated or uncoated sheet material, textured plastic, wood panels, composites and other flat or slightly uneven parts.
- Robot grippers, palletizing, depalletizing, panel transfer, pick-and-place and general material-handling systems.
- Workpieces with small gaps, surface texture or height variation where the foam can bridge minor leakage paths.
Model and selection notes
- SP-S, DP-S and MP-S are small-head versions; select the layer count and 5 mm mounting design shown for the machine interface.
- Select the cup diameter and foam footprint according to the available contact area and required holding force.
- Single-, double- and multi-layer bodies provide progressively more stroke and height compensation; choose the model shown in the technical drawing.
- Foam wears during service and should be inspected regularly. Very porous stock may require a higher-flow vacuum source or multiple cups.
