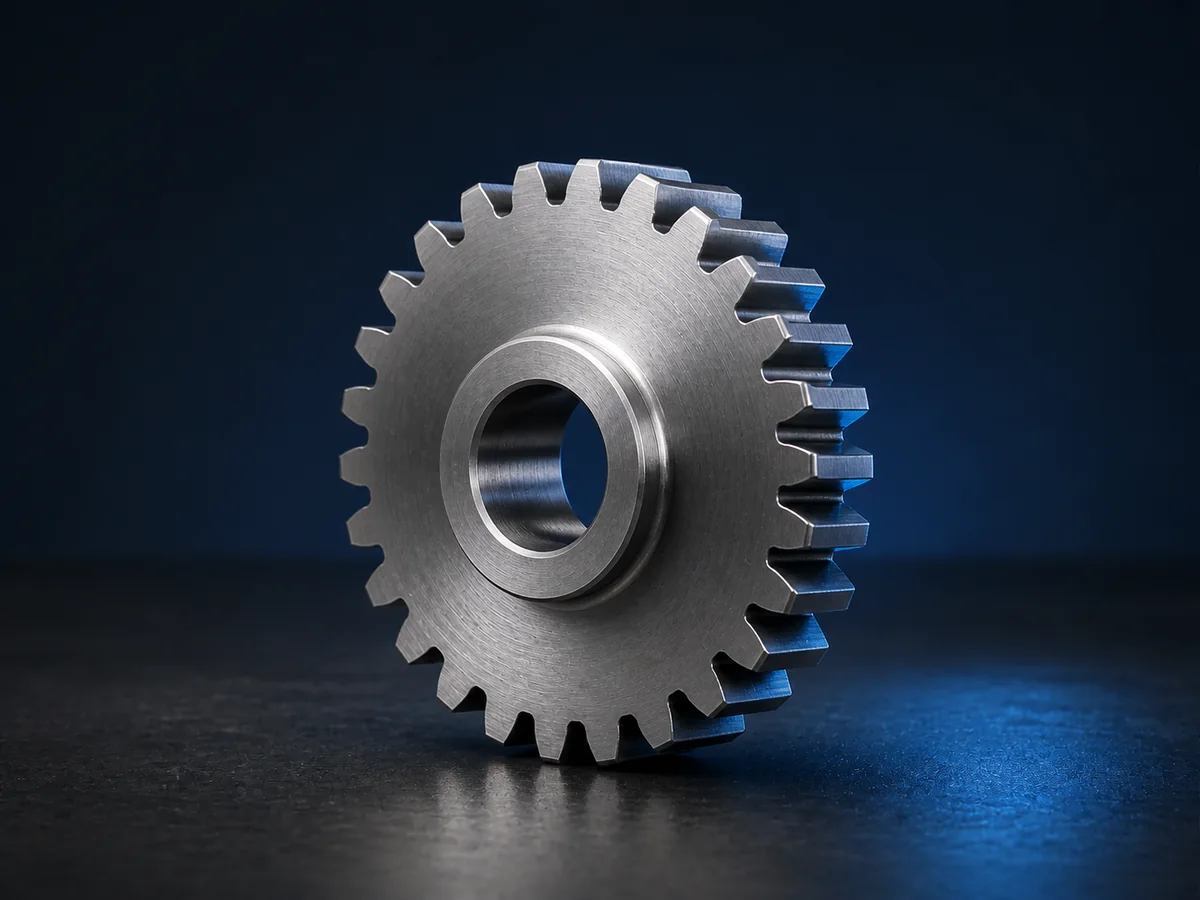

Spur Gears
Straight-tooth gear enquiries reviewed for tooth geometry, bore, keyway, hub, face width and mating conditions.
View RFQ detailsDRAWING-BASED CUSTOM COMPONENTS
Custom Gears Made to Your Drawing or Sample
BOLTTE reviews custom gear and power transmission component enquiries for machinery, maintenance, automation and product development. Every category is non-standard and drawing based. Material, process, accuracy and technical requirements are confirmed only after engineering review.
Browse product categories
Core RFQ categories
Custom gear types
Current visuals are original illustrative renders for RFQ orientation. They are not verified BOLTTE production photographs, stock listings or evidence of a quoted specification.
Illustrative render
01
Drawing required
Illustrative render
02
Drawing required

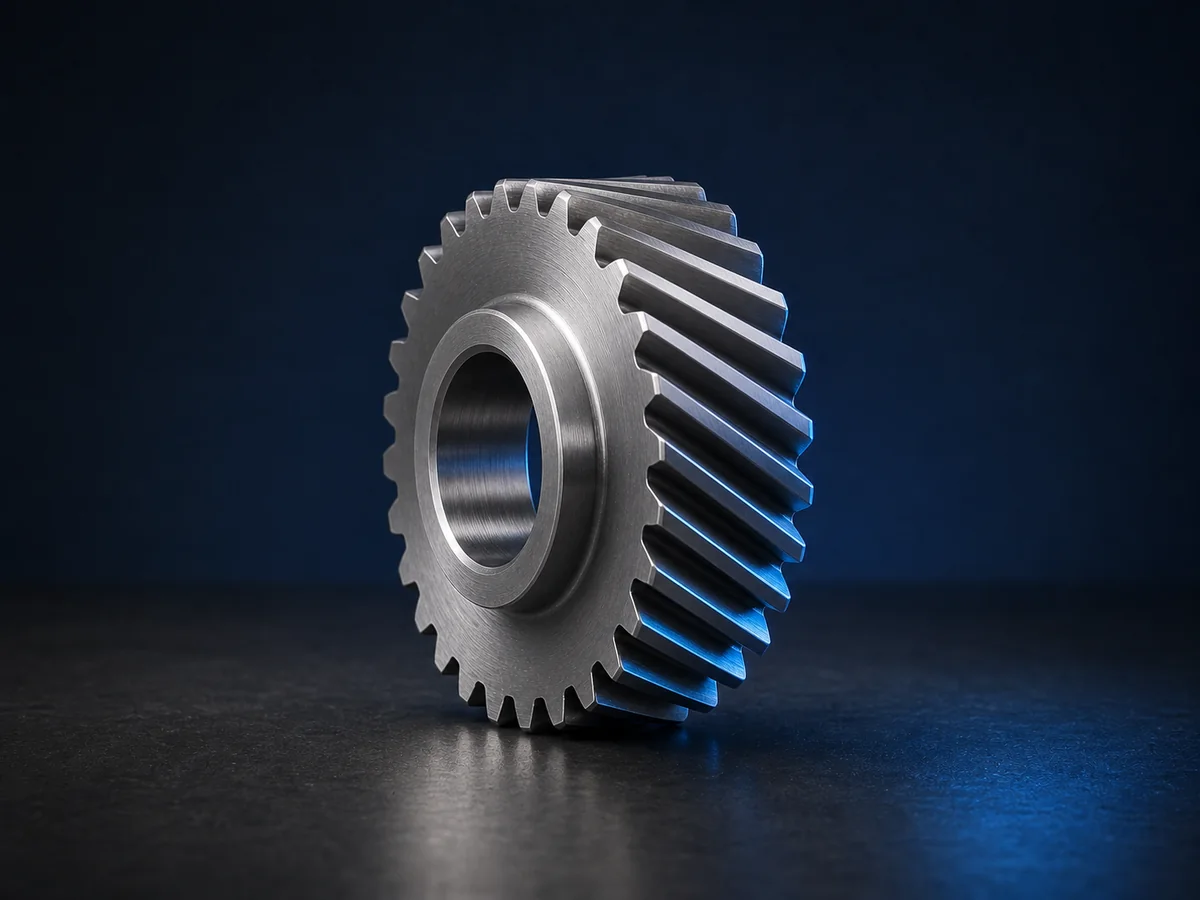

Helical Gears
Helical gear enquiries reviewed for tooth geometry, helix angle and hand, mounting features and mating arrangement.
View RFQ details
Illustrative render
03
Non-standard custom

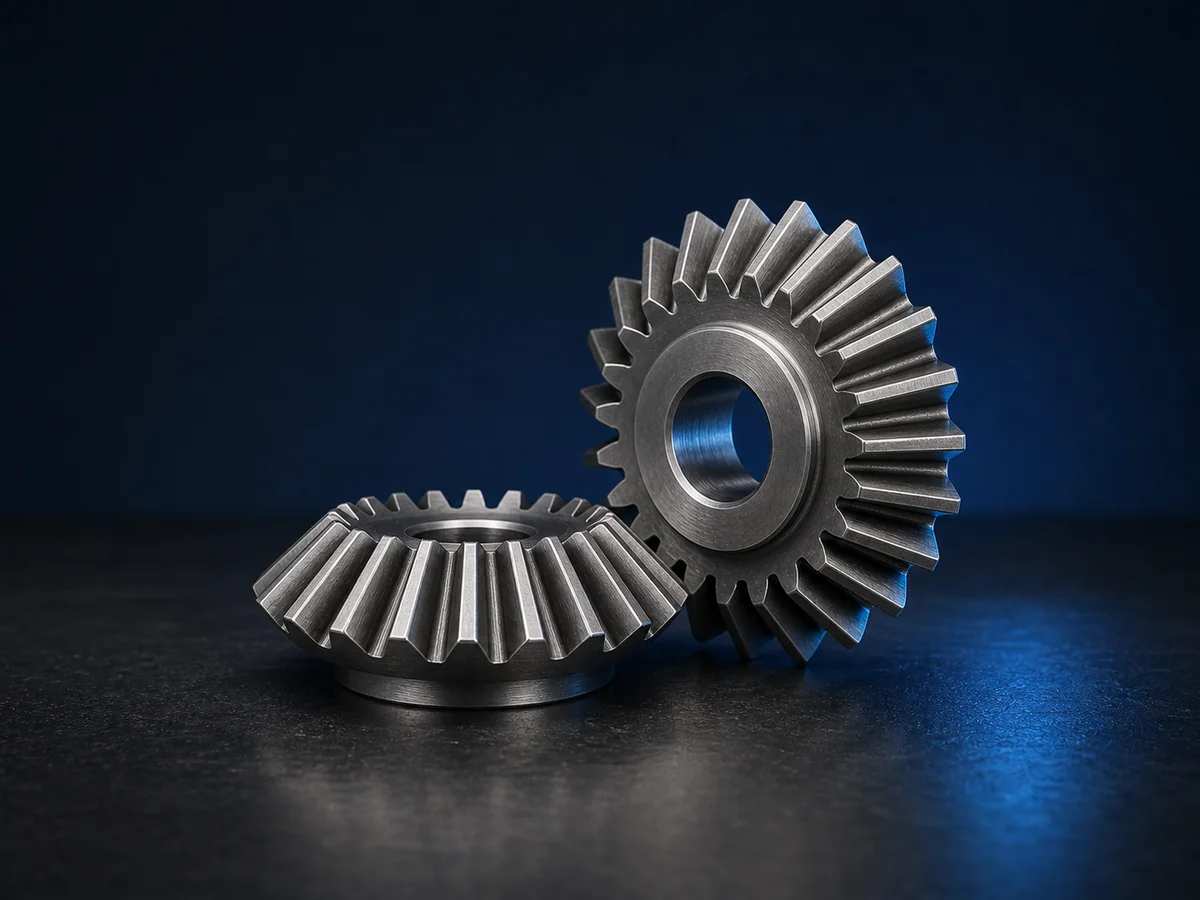

Bevel Gears
Bevel gear enquiries reviewed for tooth geometry, shaft angle, bore and hub features and mating arrangement.
Request custom quote
Illustrative render
04
Non-standard custom

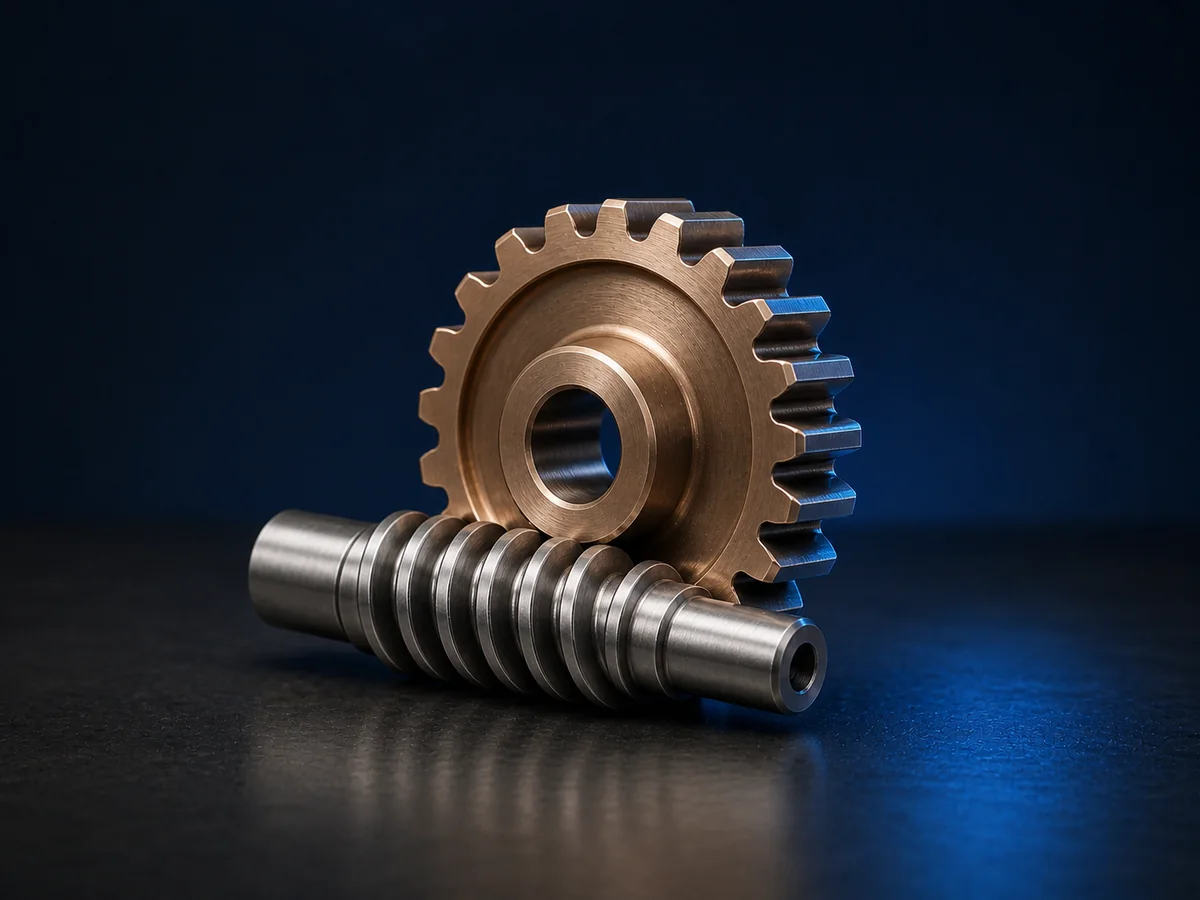

Worm Gears & Worm Shafts
Worm wheel and worm shaft enquiries are reviewed together against the drawing and required mating conditions.
Request custom quote
Illustrative render
05
Non-standard custom

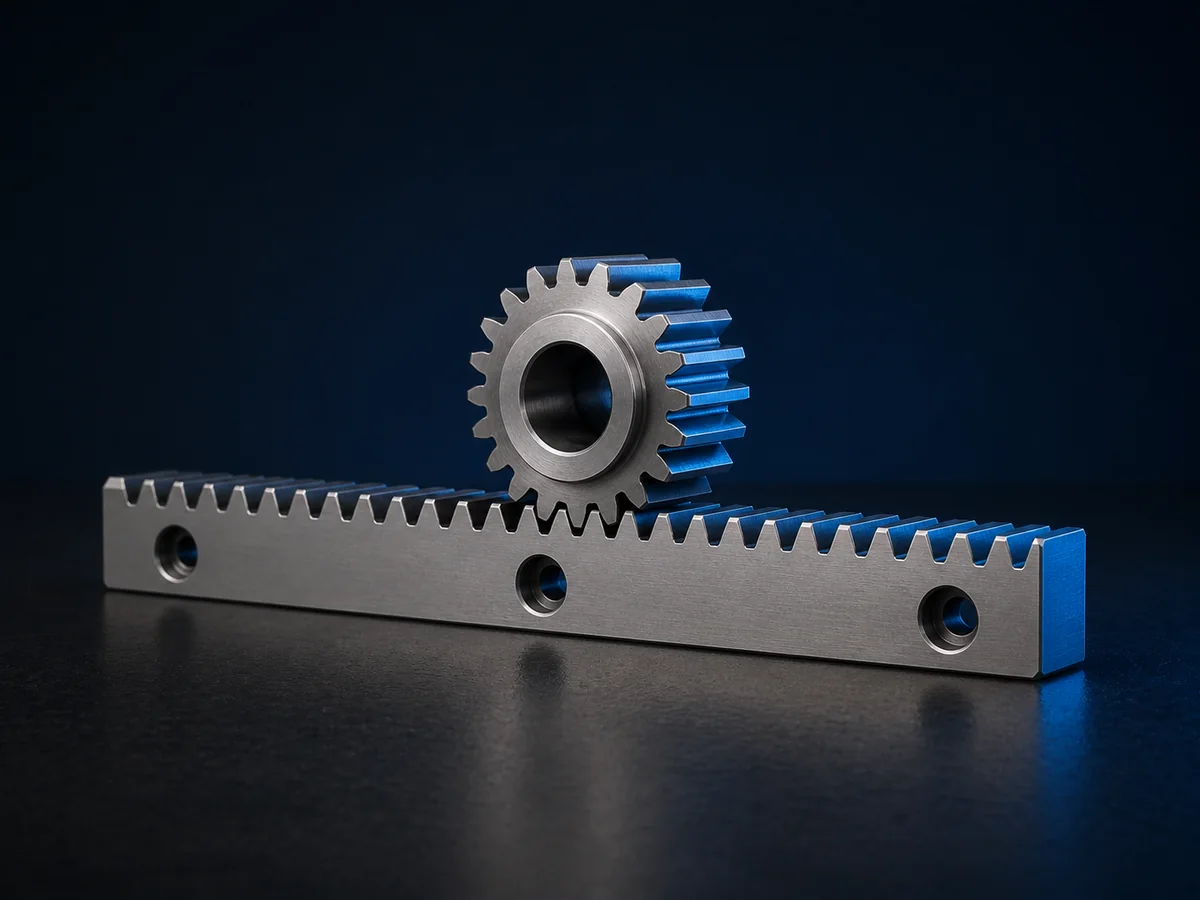

Gear Racks
Custom rack and pinion enquiries reviewed for tooth data, section geometry, mounting features, length and mating requirements.
Request custom quote
Illustrative render
06
Drawing required

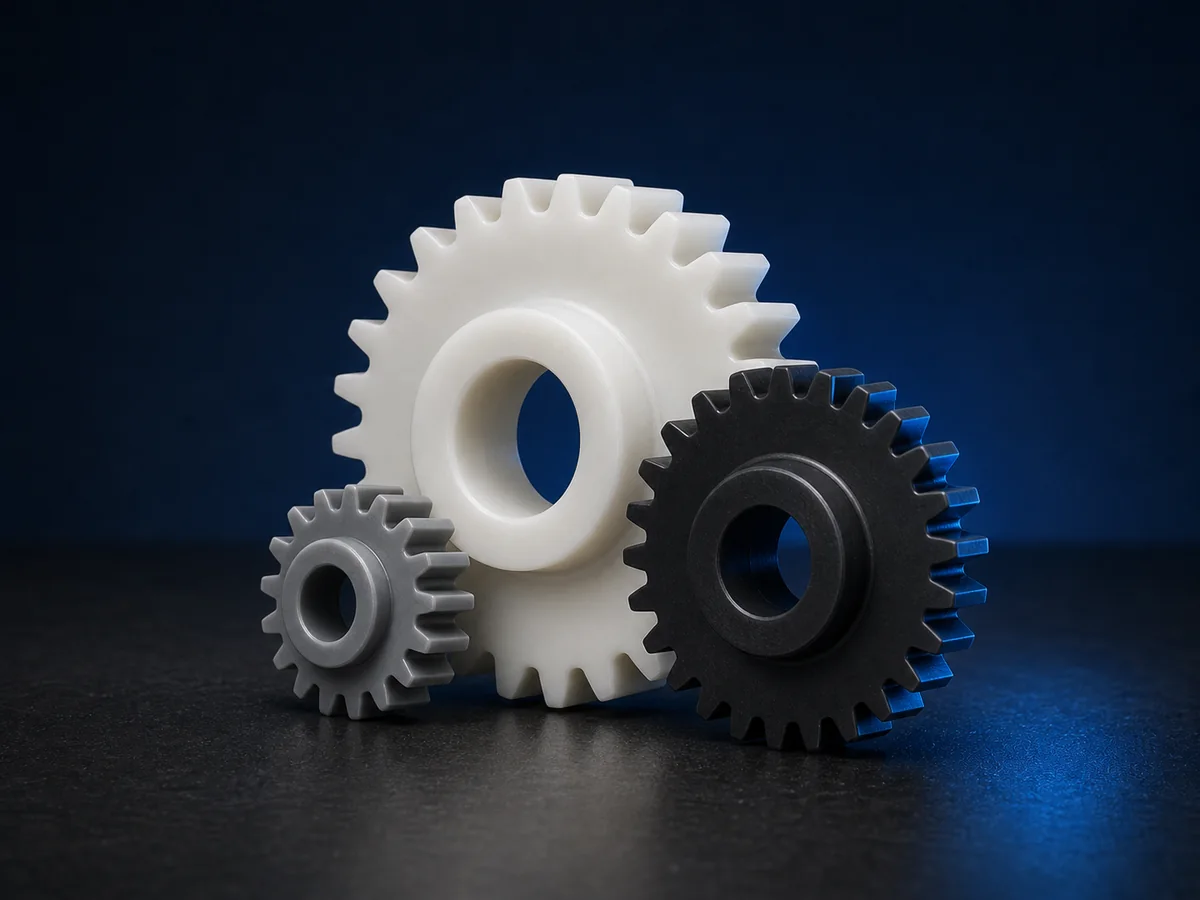

Plastic Gears
Custom plastic gear projects reviewed around geometry, specified material, operating environment and production quantity.
View RFQ details
Illustrative render
07
Drawing or sample

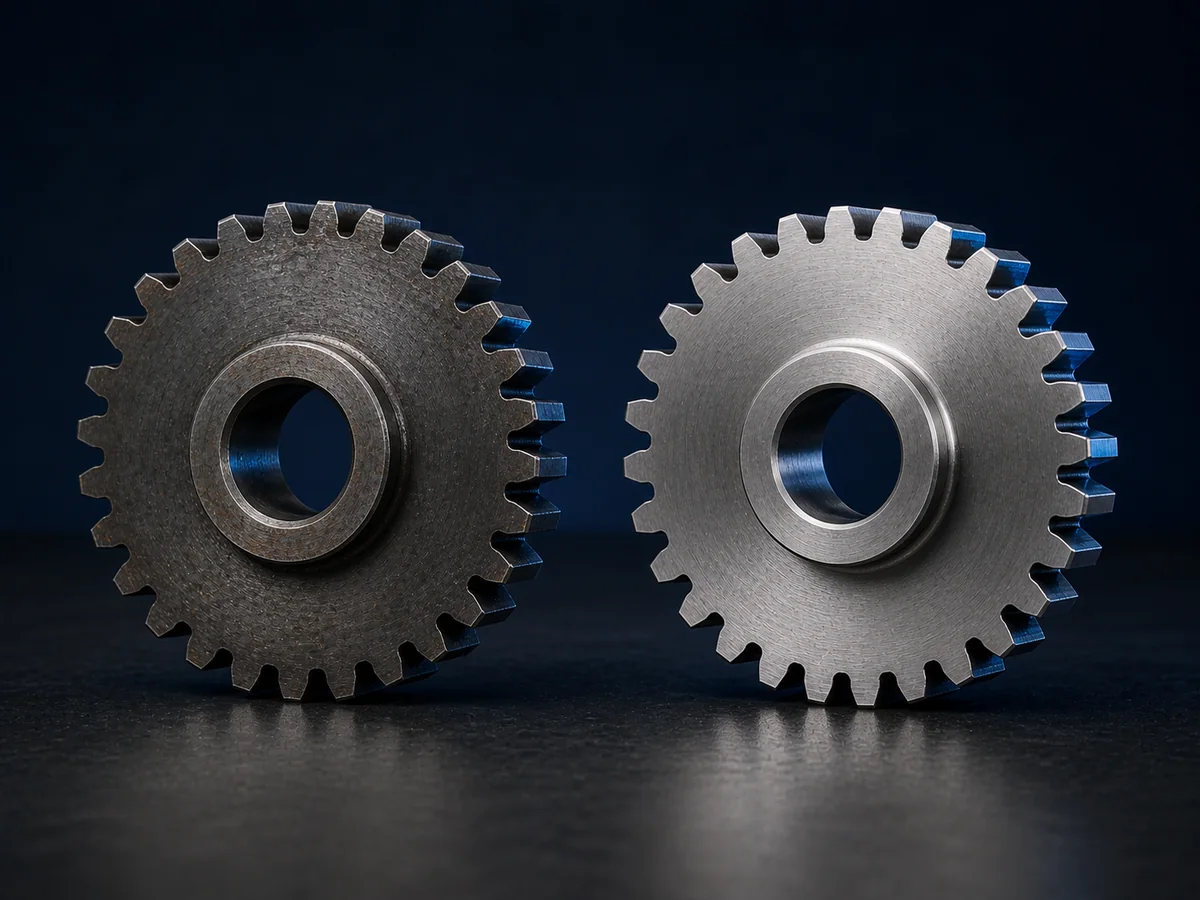

Replacement Gears
Replacement enquiries can begin with a drawing or sample plus mating-part, application and operating-condition details.
View RFQ details
Illustrative render
08
Drawing required

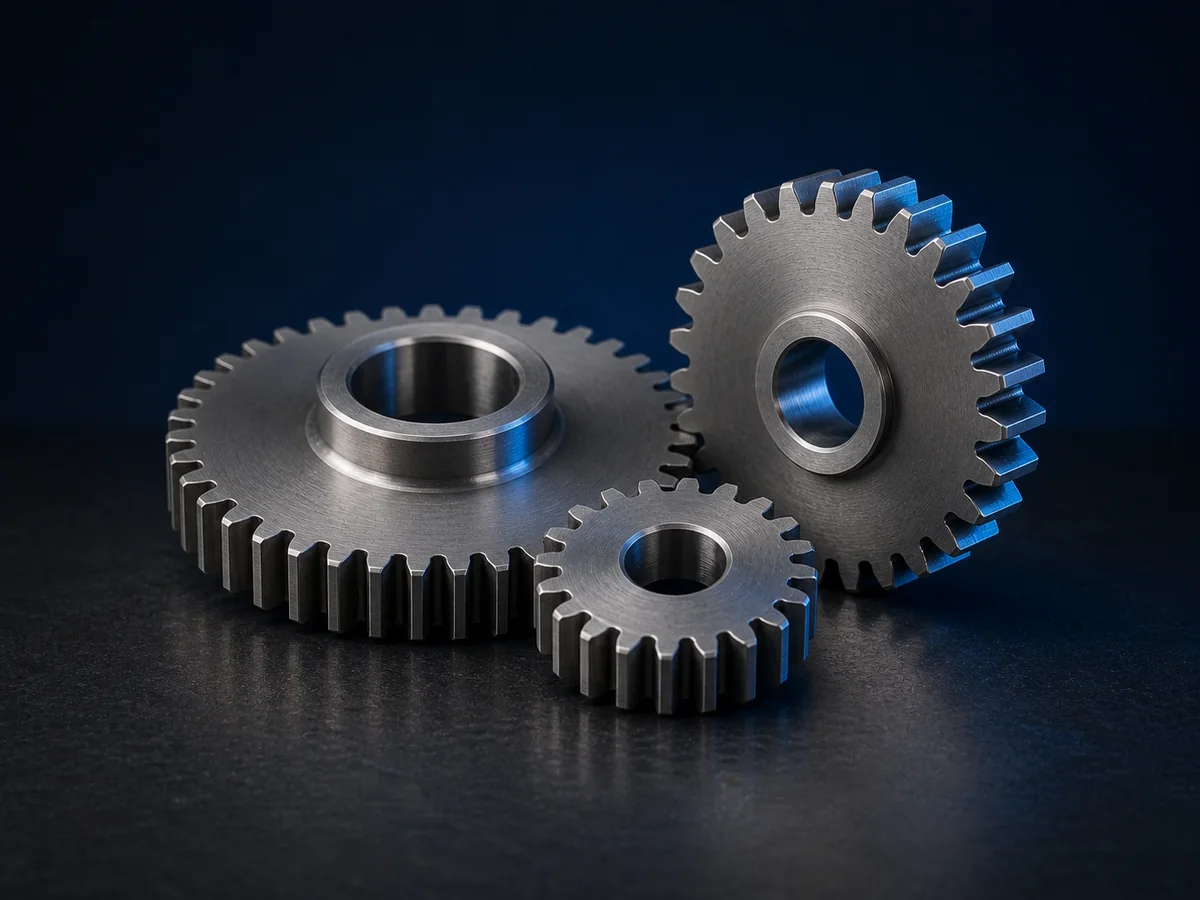

Gear Sets
Matched gear components reviewed together so ratio, center distance, mounting and application requirements can be evaluated.
Request custom quoteRelated custom components
Power transmission components
Sprockets, couplings, timing pulleys, lead screws, universal joints and chains are handled as non-standard custom enquiries. Upload the drawing or sample details for review.
Illustrative render
09
Non-standard custom

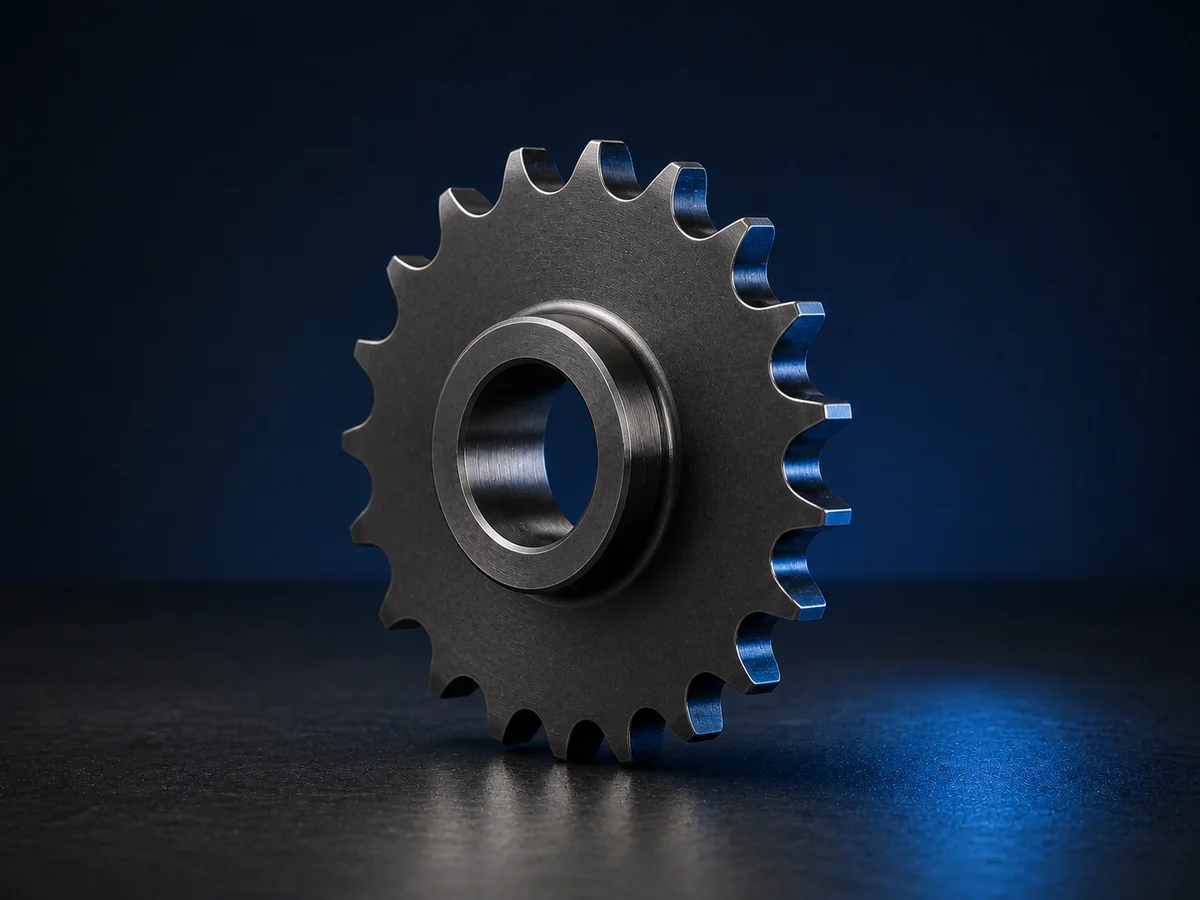

Sprockets
Custom sprocket enquiries reviewed for chain interface, tooth data, bore, keyway, hub and mounting details.
Request custom quote
Illustrative render
10
Non-standard custom

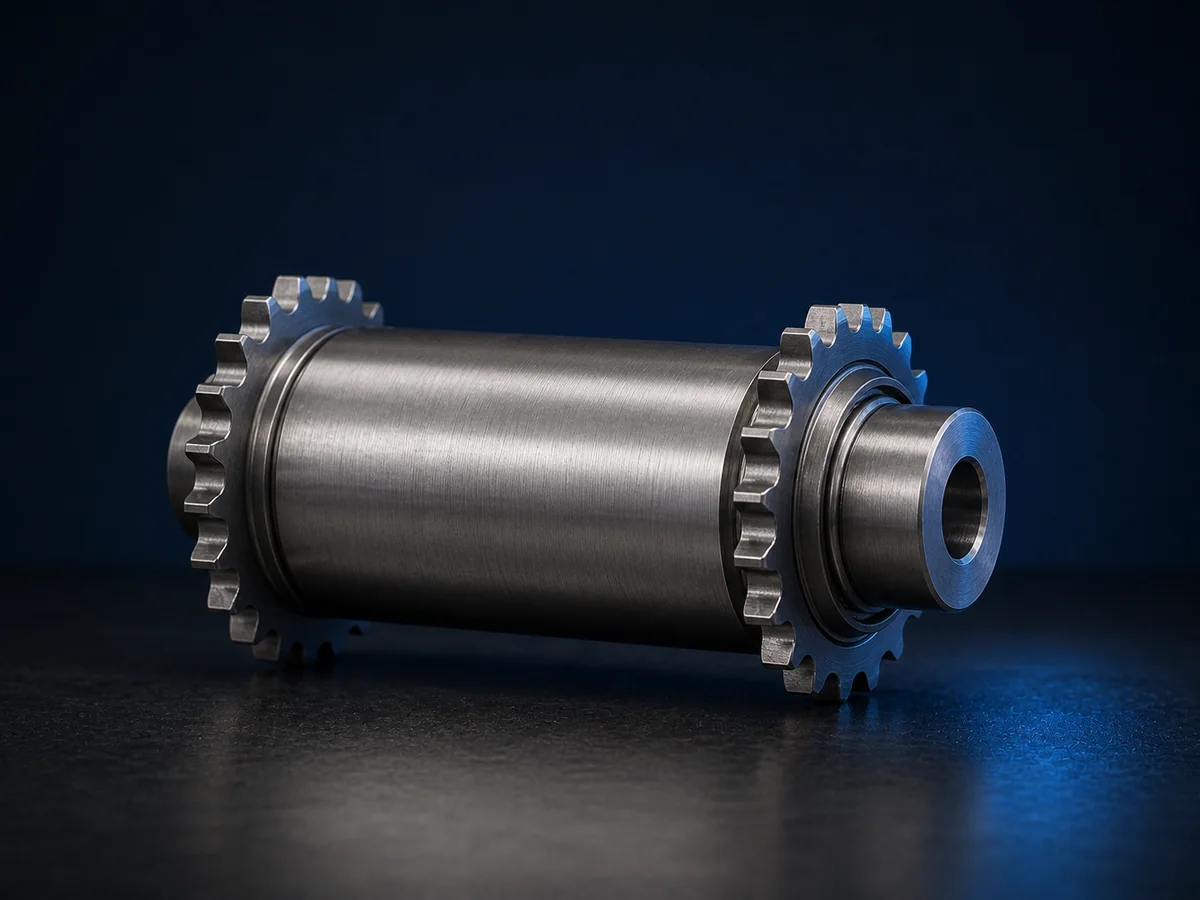

Roller & Drum Sprocket Assemblies
Roller, drum and integrated sprocket enquiries reviewed as assemblies using the customer drawing and mounting requirements.
Request custom quote
Illustrative render
11
Non-standard custom

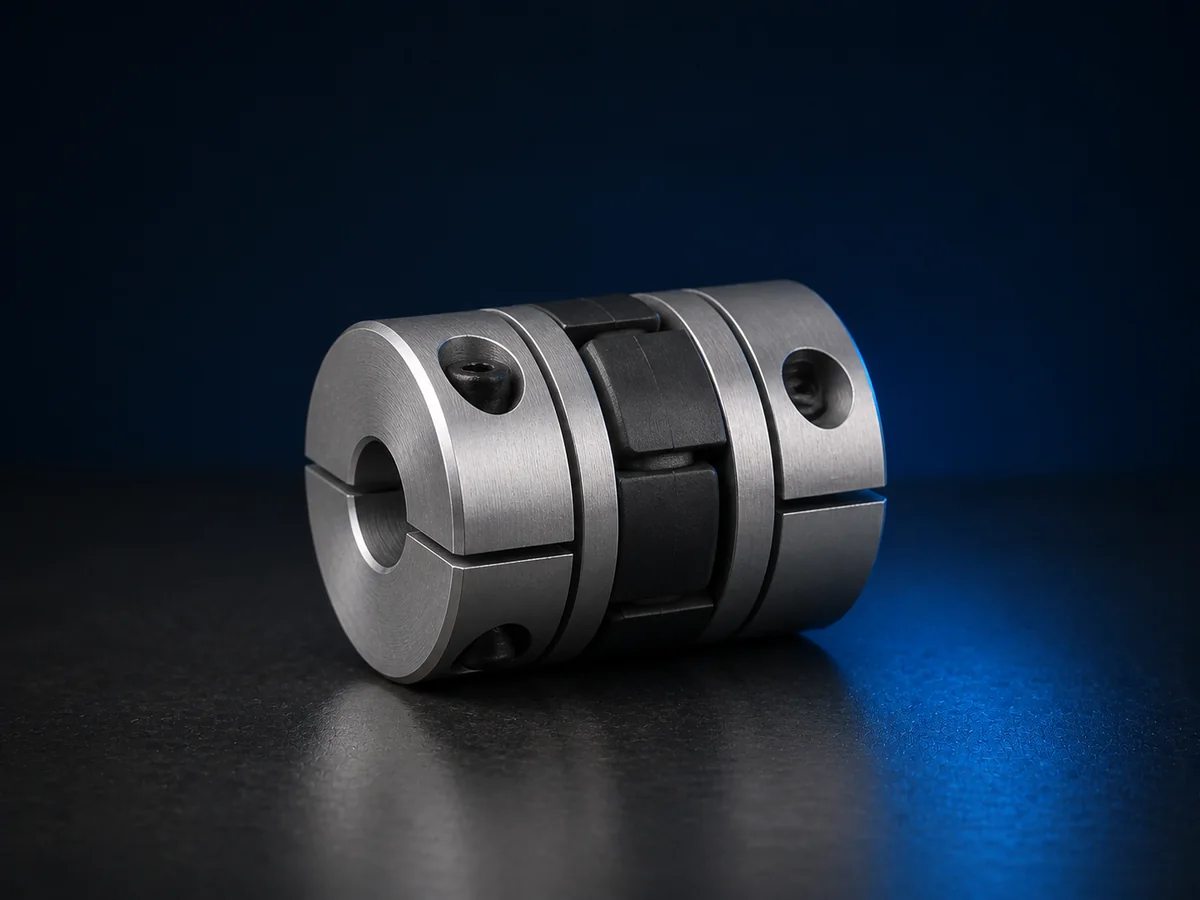

Couplings
Custom coupling enquiries reviewed for shaft connection, bore and keyway, envelope and application conditions.
Request custom quote
Illustrative render
12
Non-standard custom

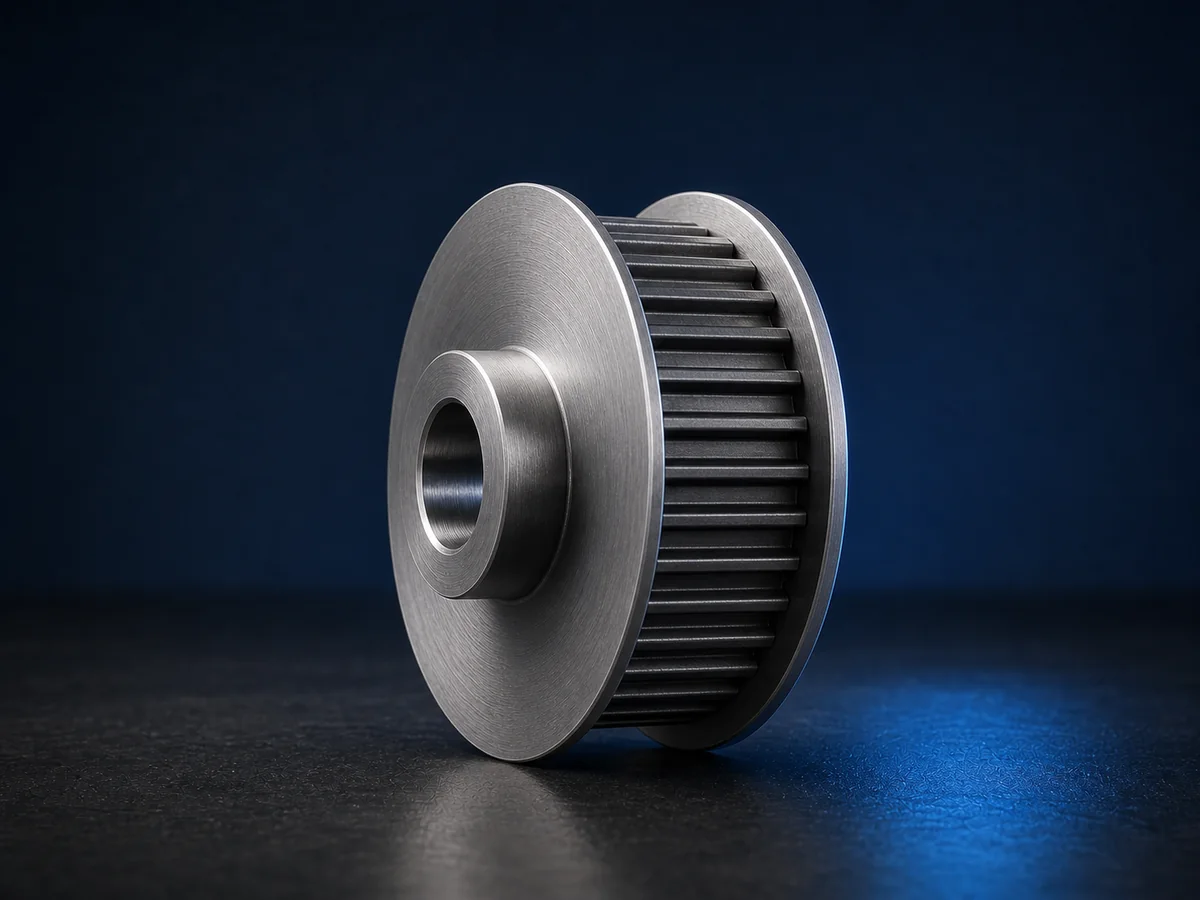

Timing Pulleys
Timing pulley enquiries reviewed for the specified belt interface, tooth data, flange, bore, hub and mounting features.
Request custom quote
Illustrative render
13
Non-standard custom

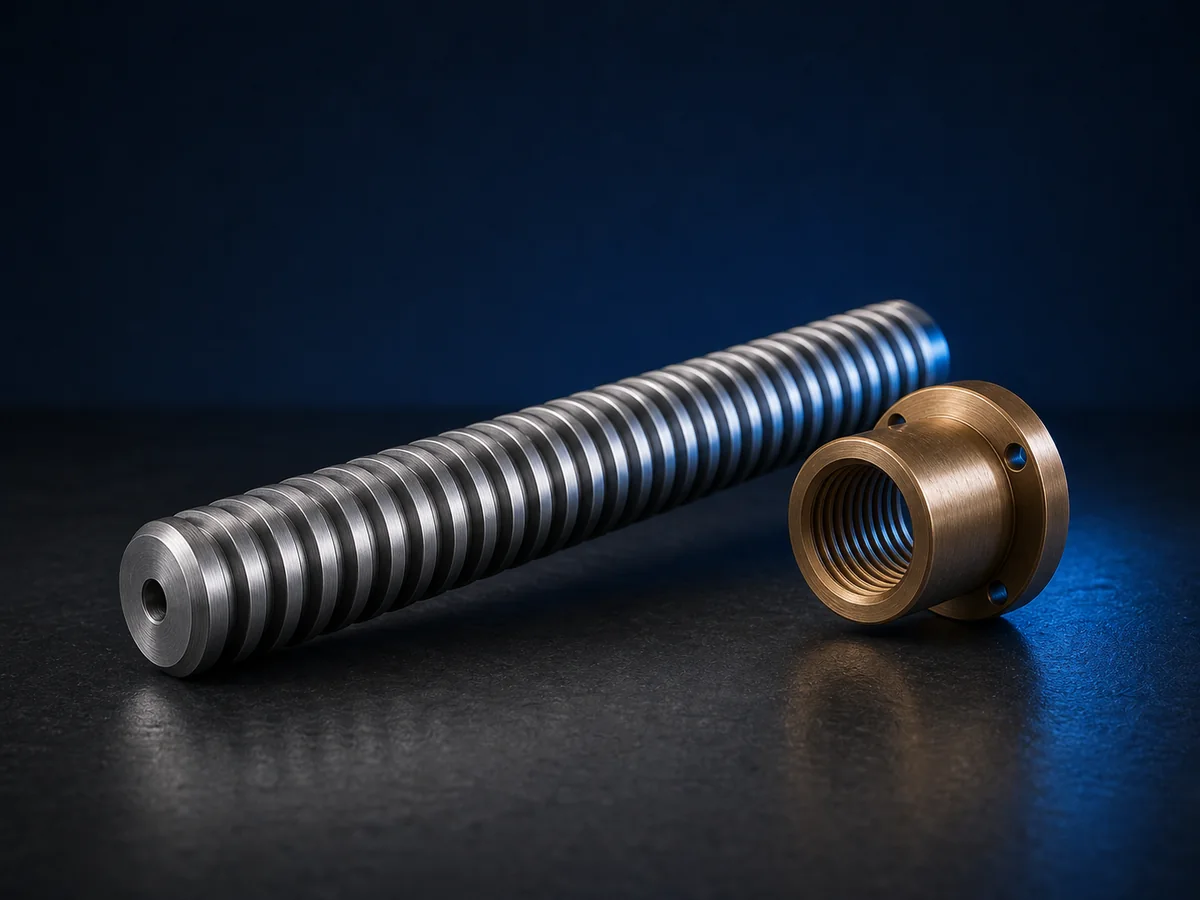

Trapezoidal Lead Screws
Lead screw and nut enquiries reviewed as a set using the thread, end machining, mounting and application details.
Request custom quote
Illustrative render
14
Non-standard custom

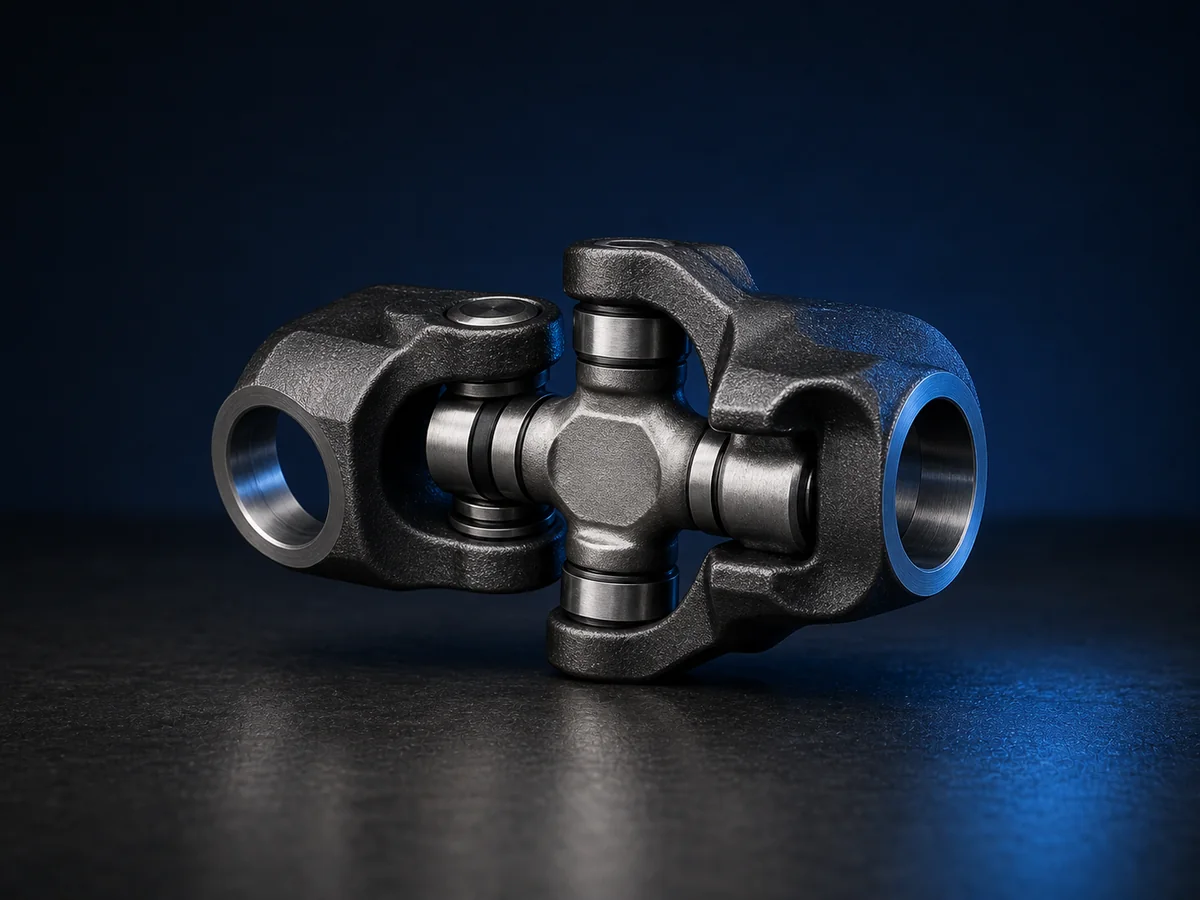

Universal Joints
Universal joint enquiries reviewed for connection geometry, operating angle, envelope and application requirements.
Request custom quote
Illustrative render
15
Non-standard custom

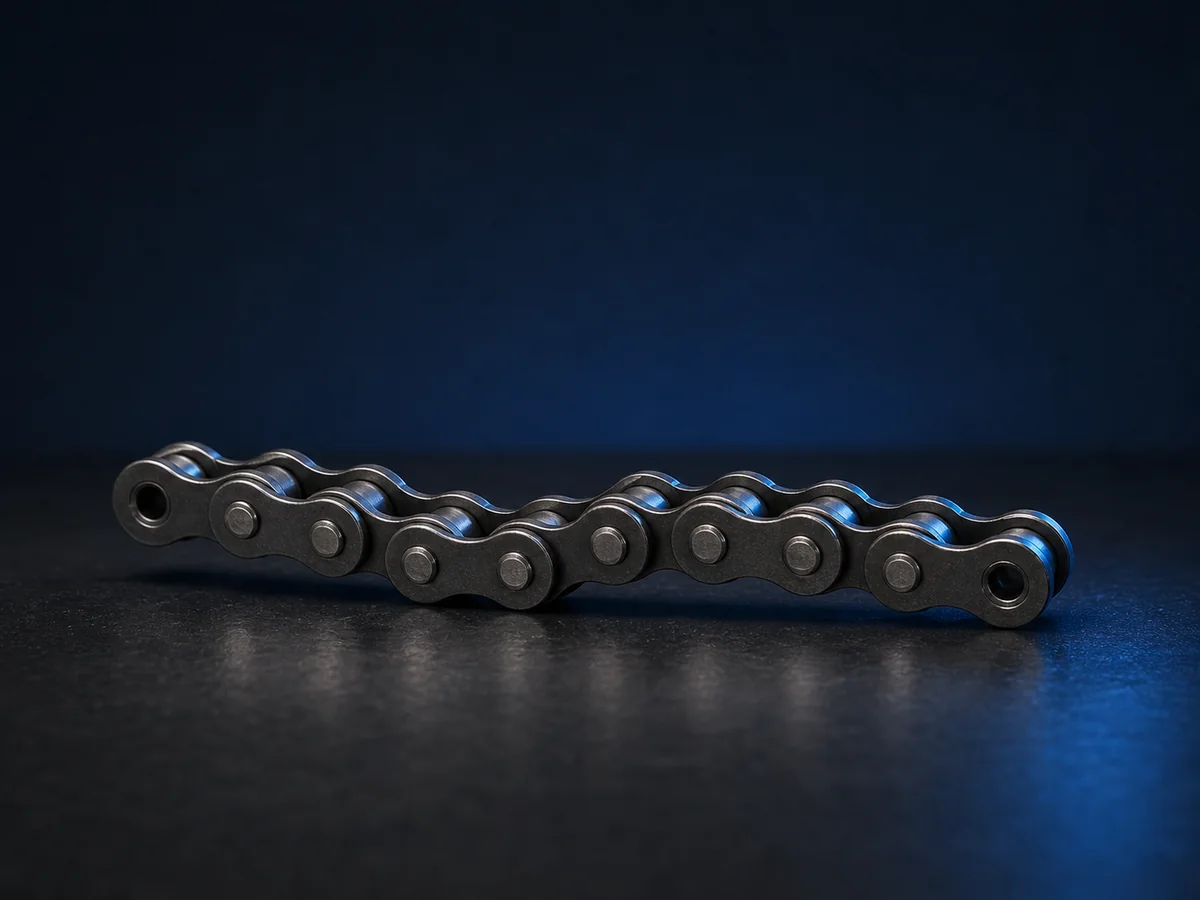

Roller Chains
Chain enquiries are reviewed against the specified mating sprocket, layout, connection and application requirements.
Request custom quoteManufacturing information reviewed with every RFQ
These areas are discussed during engineering review. No material, process, tolerance, grade or document is promised until it appears in the quotation.
Material
Share the specified grade or describe the load, wear, temperature and operating environment. Metal and engineering-plastic options are reviewed against the design.
Process & finishing
The manufacturing route, heat treatment, hardness and surface finish are selected only after geometry and application review.
Inspection
Drawing dimensions and applicable gear characteristics are reviewed. Inspection scope and acceptance criteria must be agreed before production.
Quality documents
Material, treatment, inspection or traceability documents can be requested for review and quotation where applicable.
How to request a custom gear quotation
A complete drawing reduces follow-up questions. Replacement enquiries may also begin with a sample and the application details.
- 01Send the drawingUpload CAD/PDF files or describe the replacement sample.
- 02Share requirementsInclude quantity, material, application and any inspection needs.
- 03Engineering reviewBOLTTE checks feasibility and requests missing information.
- 04Confirm the quotationApproved specifications, price and timing are documented before production.
Custom gear FAQ
What information should be included in a gear RFQ?
Provide the drawing or sample information, gear type, module or diametral pitch, tooth count, pressure angle, bore and hub details, face width, material, quantity, application and any required treatment, accuracy or inspection criteria.
Can BOLTTE review a replacement gear from a sample?
A replacement enquiry can begin with a sample, clear photos and application details. Whether the part can be reproduced, and what additional measurements are required, is confirmed during review.
Which materials, hardness levels and accuracy grades are available?
These are not published as blanket capabilities. State the required standard or performance target in the RFQ so BOLTTE can confirm a suitable material, treatment, hardness and inspection plan.
Are custom gears sold with online prices or inventory?
No. Custom gear pages use a manual RFQ process because price and feasibility depend on the drawing, material, quantity and quality requirements.
How is lead time confirmed?
Timing is quoted only after the drawing, material, quantity, process and inspection scope have been reviewed. No standard lead time is assumed on these pages.
