CUSTOM CNC MACHINING RFQ
Custom CNC Machined Parts
Drawing-based CNC prototypes, custom gears, machinery small components and robot parts for equipment, automation and production applications.
Typical enquiry contexts
- CNC prototypes
- Custom gears
- Machinery small components
- Robot parts machining
- Drawing-based production parts
CNC PART EXAMPLES

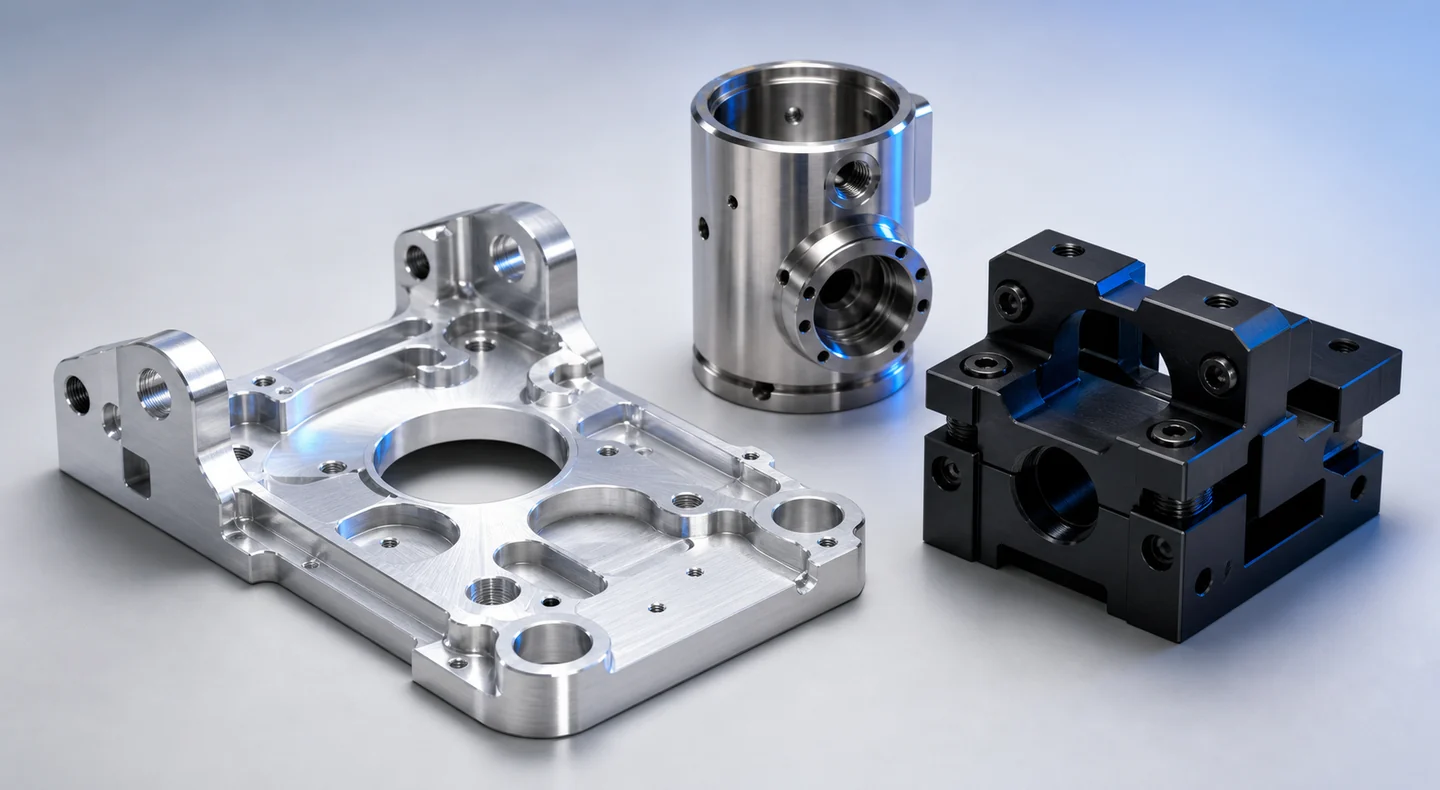

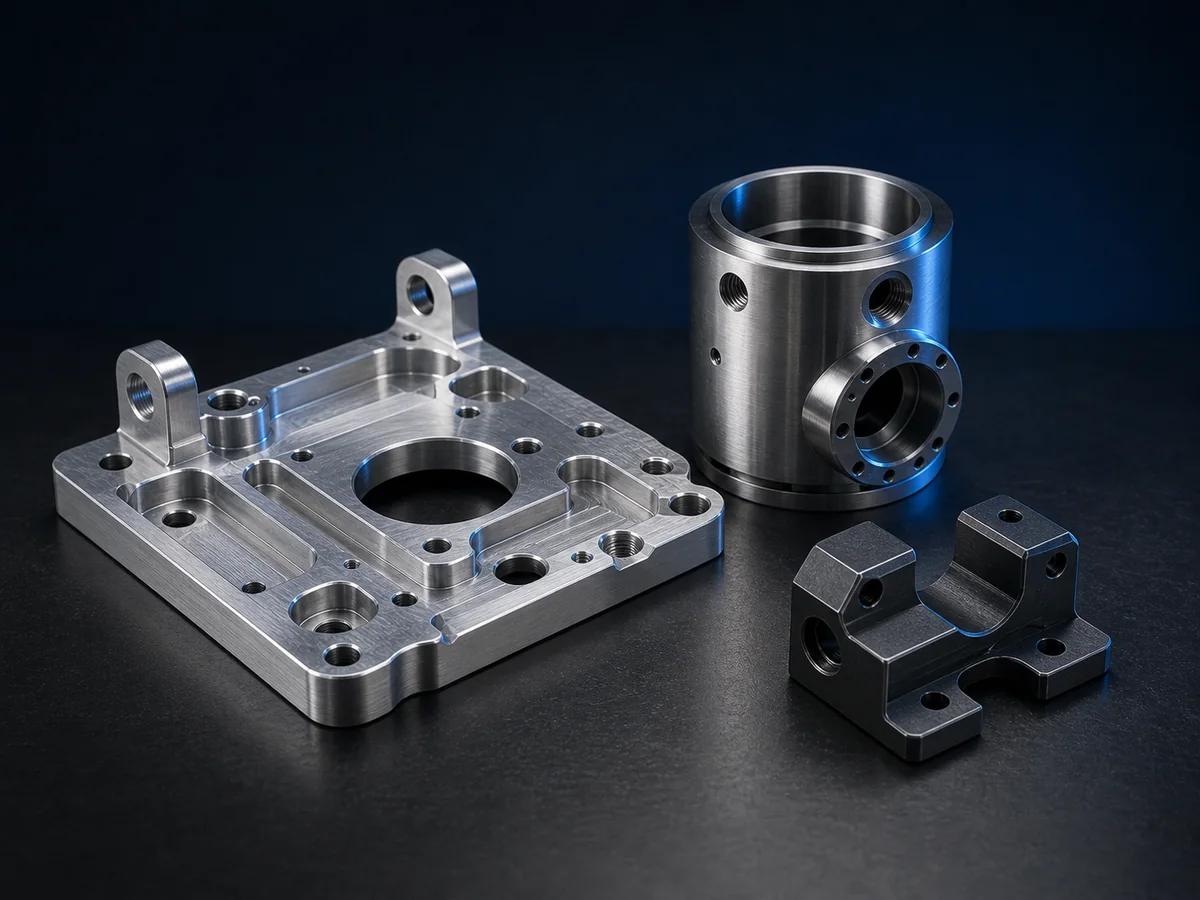

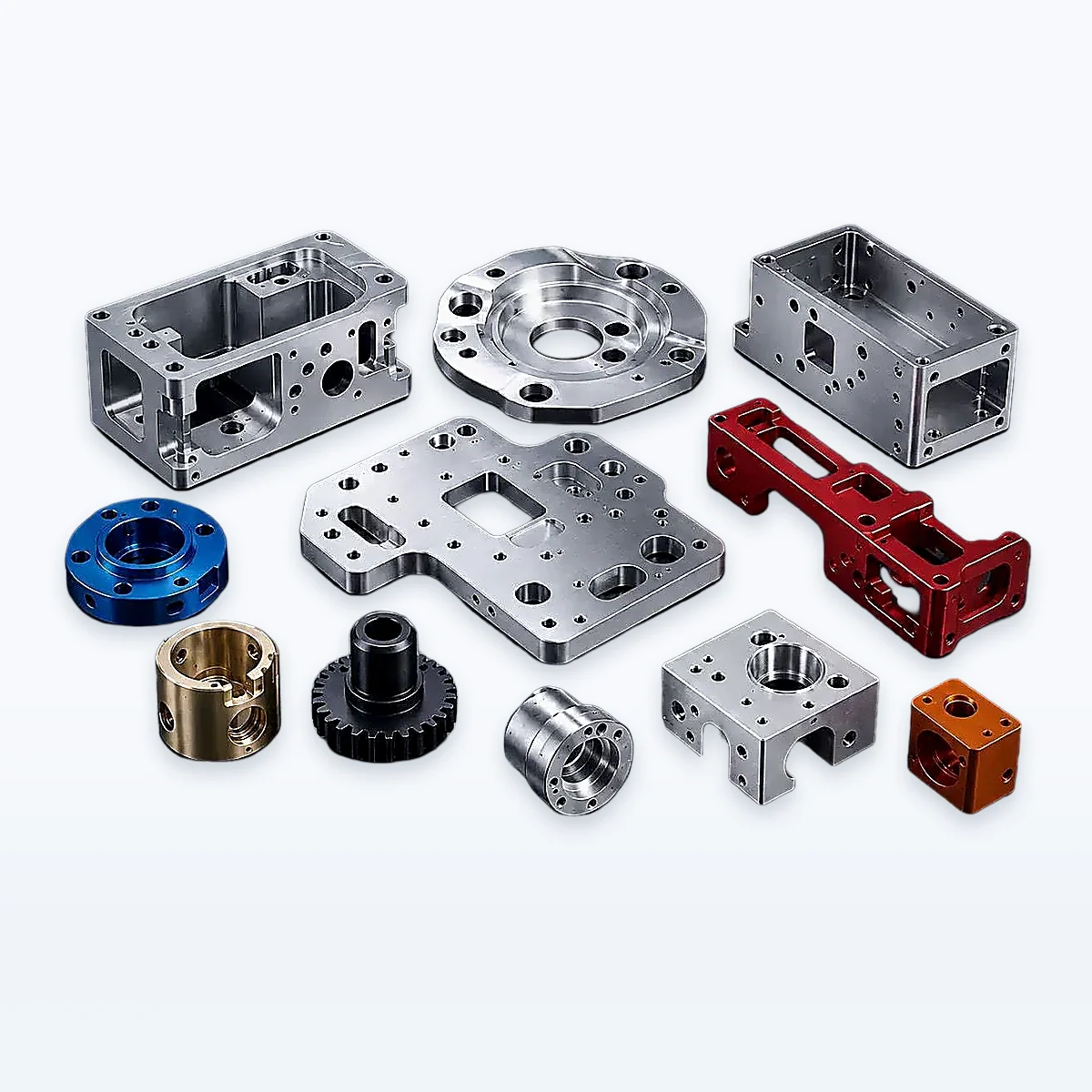

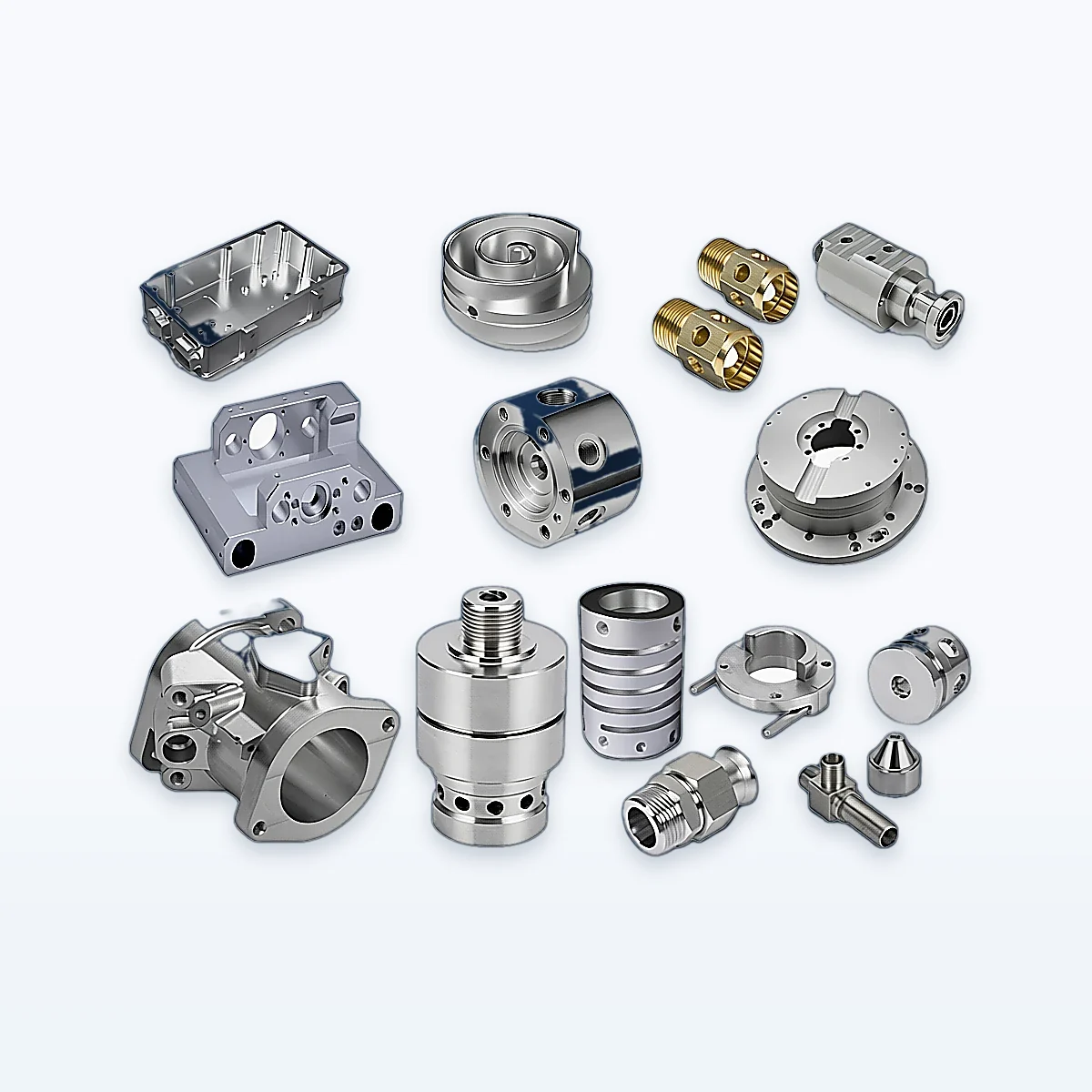

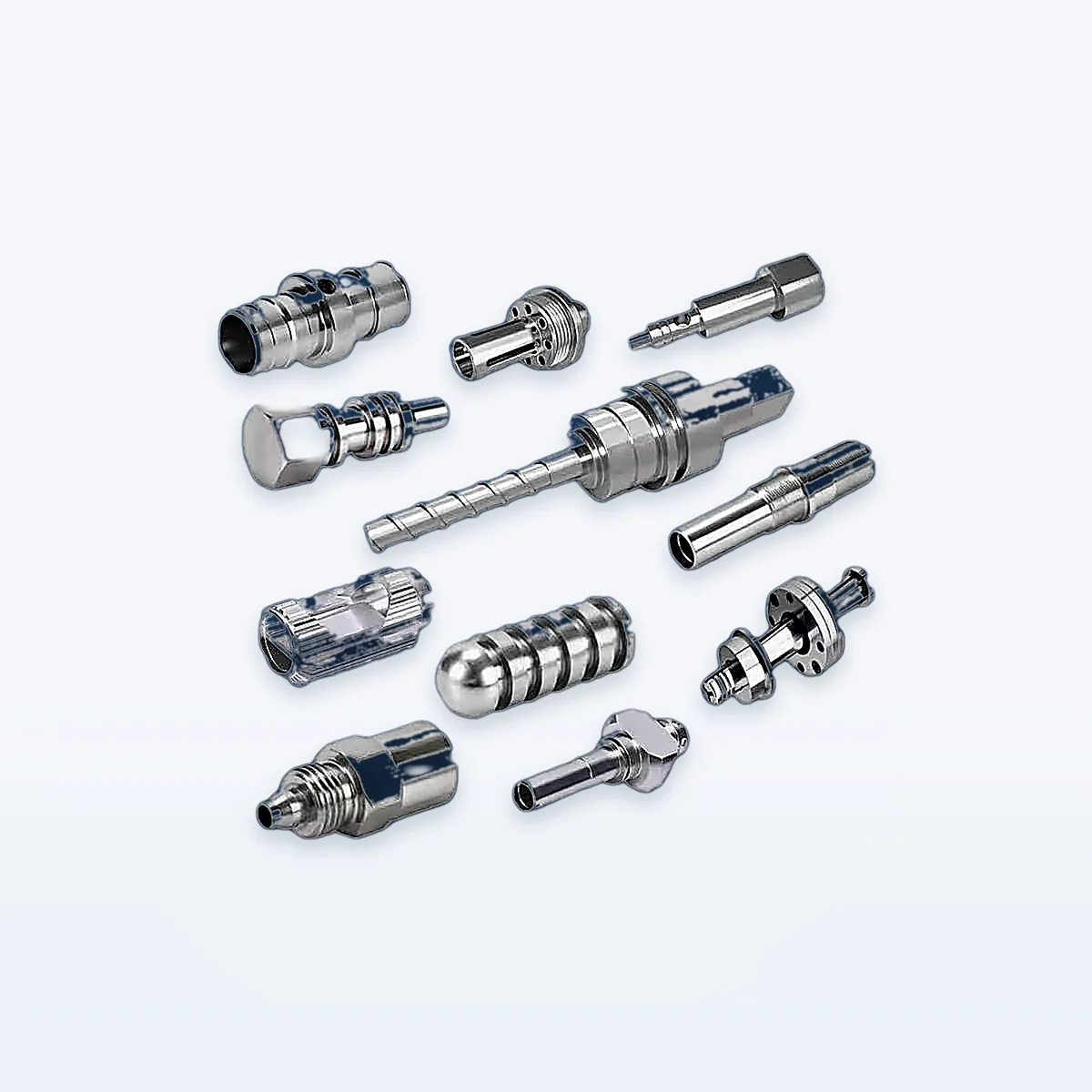

Custom CNC part gallery
Six focused examples of turned, milled and material-specific component forms. Final specifications follow drawing review and written quotation.
CUSTOM CNC MACHINED PARTS
Four CNC service categories
Choose the closest category when sending your drawing. Final feasibility, process, price and timing are confirmed after technical review.
CNC Prototype
Prototype and low-volume machined parts reviewed from current 2D drawings and 3D files.
Request a CNC prototype quoteCustom Gears
Drawing- or sample-based custom gears and matched components within the CNC machined parts line.
View Custom GearsMachinery Small Components
Small machined parts for machinery, fixtures, repair, automation equipment and assemblies.
Request a component quoteRobot Parts Machining
Custom robotic components, joints, brackets, adapters, end-effector parts and related machined parts reviewed from drawings.
Request a robot part quoteCapability overview and customization scope
BOLTTE reviews custom CNC machined part enquiries around geometry, datums, material, critical tolerances, surface requirements, inspection scope and quantity. The machining route and final specifications are confirmed only after technical review and written quotation.
| Drawing / 3D model | Provide revision-controlled 2D drawings and a 3D model when available. |
|---|---|
| Part size and datums | Define overall dimensions, datum references, critical interfaces and assembly constraints. |
| Material | State the grade or provide the functional, environmental and appearance requirements for review. |
| Milling / turning features | Identify pockets, contours, turned diameters, undercuts and access restrictions in the drawing. |
| Holes, threads and inserts | Specify standards, depths, fits and any insert or assembly requirements. |
| Tolerances | Mark critical dimensional and geometric tolerances; no general precision level is assumed by this page. |
| Surface finish / coating | Define roughness, cosmetic areas and any coating or protection requirements. |
| Inspection requirements | List report format, critical characteristics and any requested material or process records. |
| Quantity | Provide prototype, initial and expected repeat quantities for route review. |
Materials, processing and quality requirements
These are project inputs for review, not blanket claims about tolerances, materials, equipment or certification.
Material and application
State the material grade when defined, plus load, temperature, environment and functional conditions that affect selection.
Process and finish
Manufacturing route, secondary operations and surface finish are reviewed against the drawing and acceptance criteria.
Inspection plan
Critical characteristics, datum strategy and inspection scope should be identified before quotation and confirmed in writing.
Quality documents
Request material, dimensional, process, traceability or other records in the RFQ so availability and scope can be confirmed.
Project workflow
- 01Drawing and RFQUpload the available files, quantity and application information.
- 02Technical reviewGeometry, material, process and open questions are checked.
- 03Written quotationAgreed scope, specifications, price and timing are documented.
- 04ManufacturingWork begins after quotation and specification approval.
- 05InspectionAgreed checks and documents are completed before shipment.
Custom CNC Machined Parts FAQ
What files should I send for quotation?
Send the latest 2D drawing and a 3D model when available, together with quantity, material, application and critical inspection requirements. A sample or reference image can add context but does not replace controlled dimensions.
Can I request a quote without every technical value?
Yes. Submit the information you have. Missing inputs are identified during review, but material, tolerances, finish, process and acceptance criteria are not assumed automatically.
How are tolerances, material and finish confirmed?
They are reviewed against the drawing and application, then documented in the written quotation or approved specification before manufacturing.
Can I request inspection or material documents?
Yes. List each required record in the RFQ. Availability, format, scope and any associated cost are confirmed for the project.
