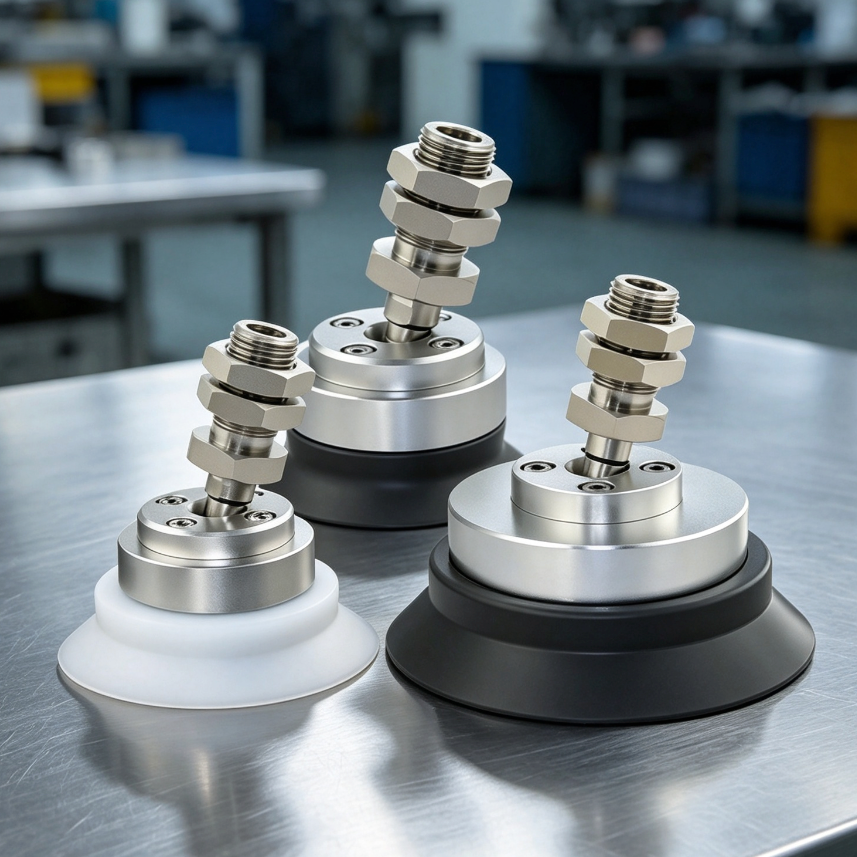

ZP2-TF Swivel Vacuum Suction Cups with Mounting Fittings
Swivel vacuum suction cups and matching mounting fittings for handling inclined or curved workpiece surfaces in compatible industrial automation systems. Select the exact model and verify its dimensional drawing before installation.
- 32 model-specific configurations
- Single-layer and double-bellows cup constructions
- White silicone and black nitrile-rubber cup options
- 32, 40, 50, 63, 80, 100 and 125 mm cup diameters
- Swivel angle: up to 30 degrees
- ZP2A-TF1 Type A, ZP2A-TF1 Type B, ZP2A-TF2 and ZP2A-TF3 fitting options
- Model drawings show across-flat and thread dimensions
- Model-specific product and dimensional images are provided
ZP2-TF swivel selection: cup profile versus fitting
This range includes single-layer and double-bellows cup selections plus ZP2A-TF mounting fittings. Choose the correct supplied part before checking material, nominal size and angular compliance.
| Selection detail | What to check |
|---|---|
| ZP2-TF32HS / ZP2-TF32HN | Keep the full material code with the selected cup model. |
| ZP2A-TF1 Type A / Type B | Separate fitting configurations; compare the exact thread and mounting drawing. |
| Up to 30-degree swivel description | Confirm the selected assembly's clearance and operating conditions rather than treating this as a guaranteed working angle for every setup. |
Can swivel motion replace spring-buffer travel?
Angular adjustment and axial travel address different installation needs. Verify both separately when matching an existing tool or handling sloped workpieces.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Pick-and-place handling of inclined, curved or misaligned surfaces
- Robotic end-of-arm tooling requiring angular compliance
- Packaging, sheet handling, loading, transfer and positioning equipment
Confirm the selected model drawing, cup material, diameter, thread, mating fitting, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|

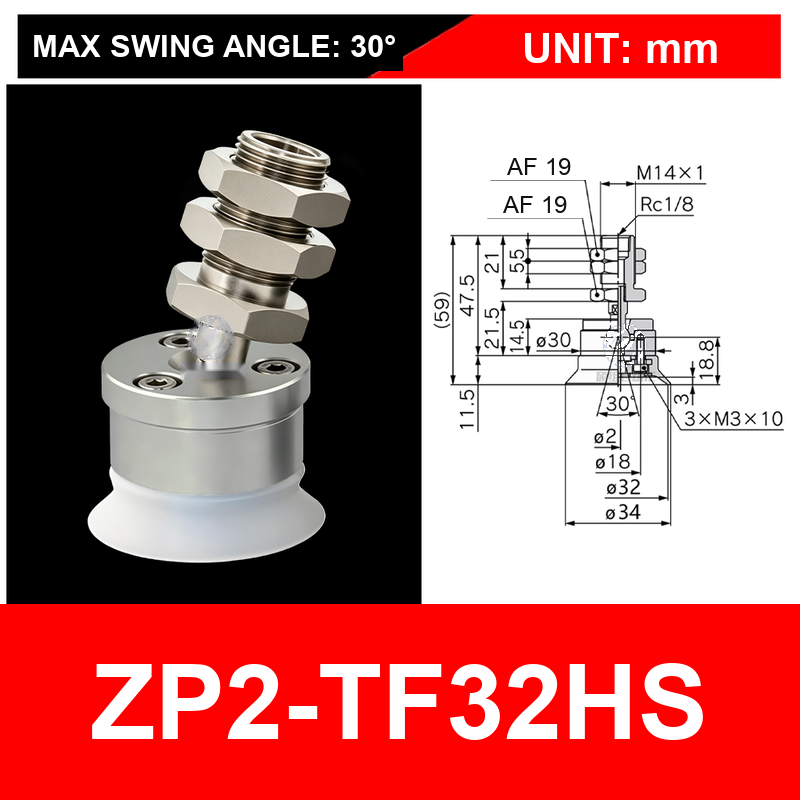

| ZP2-TF32HS | 4864957555990 |

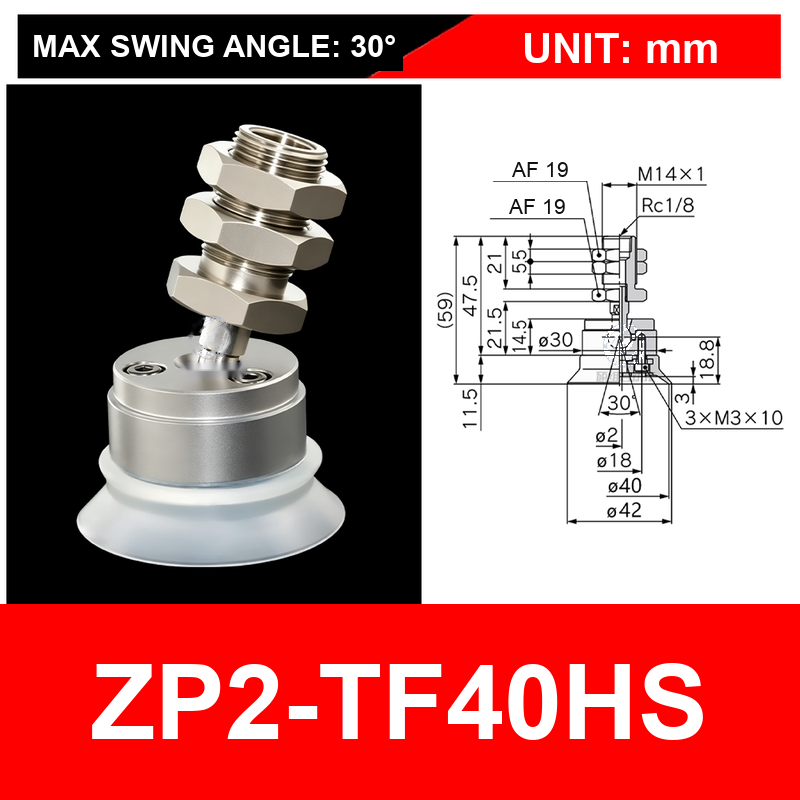

| ZP2-TF40HS | 4864957555991 |

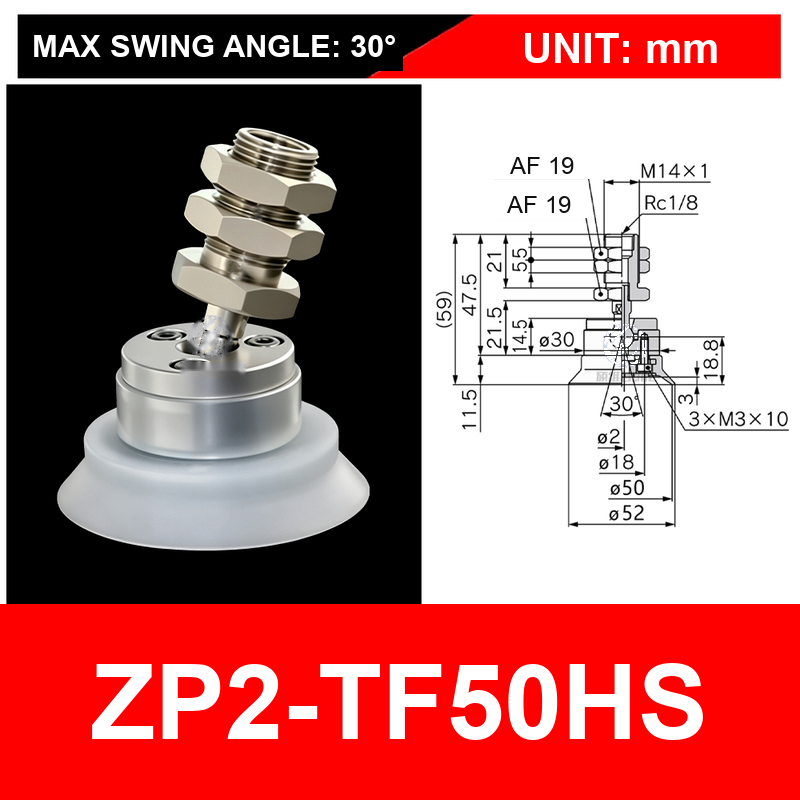

| ZP2-TF50HS | 4864957555994 |

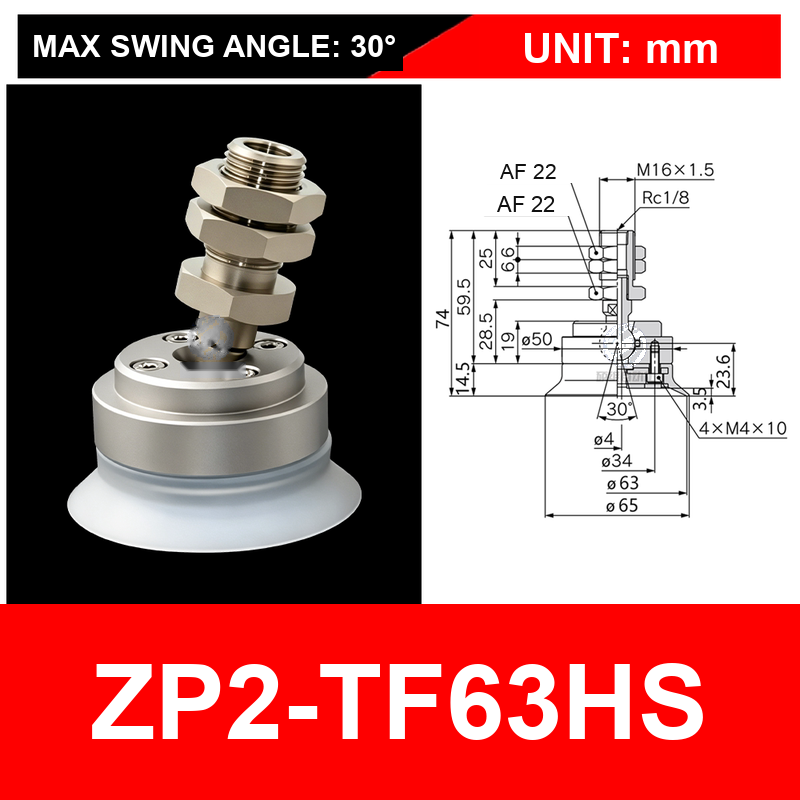

| ZP2-TF63HS | 4864957555989 |

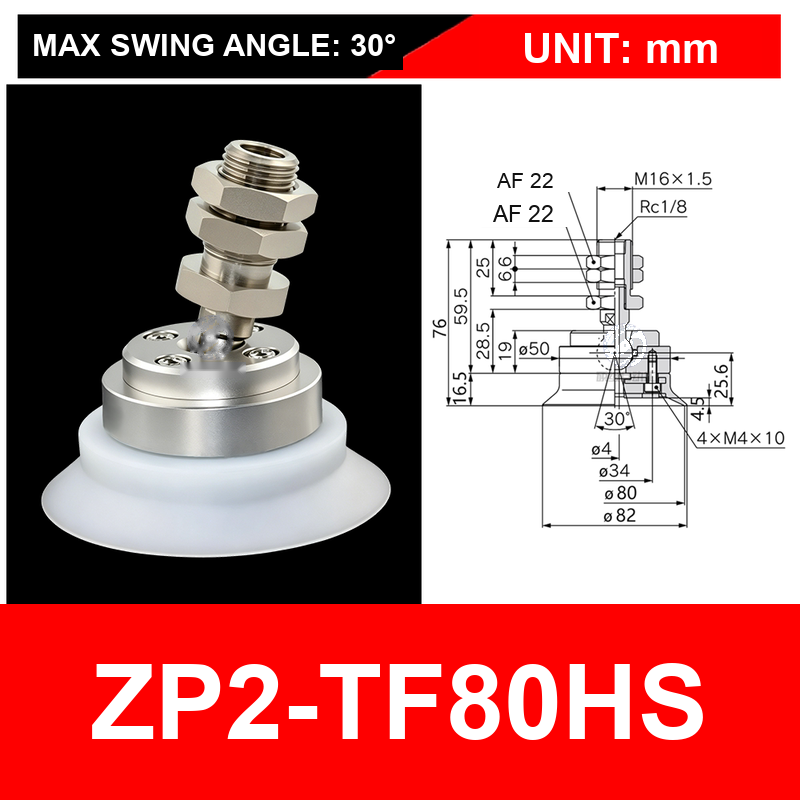

| ZP2-TF80HS | 4864957555995 |

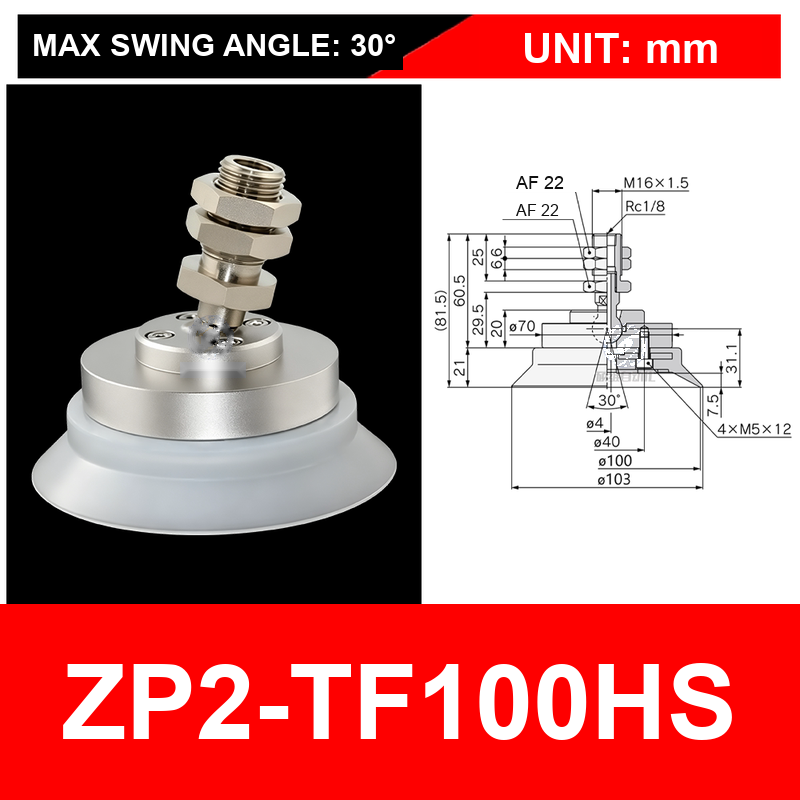

| ZP2-TF100HS | 4864957555992 |

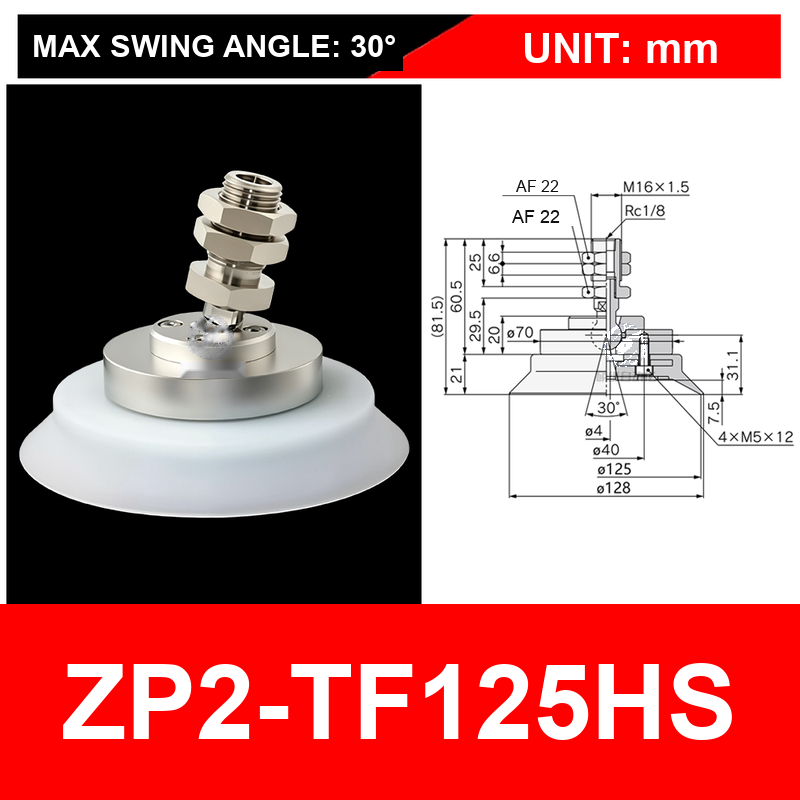

| ZP2-TF125HS | 4864957555993 |

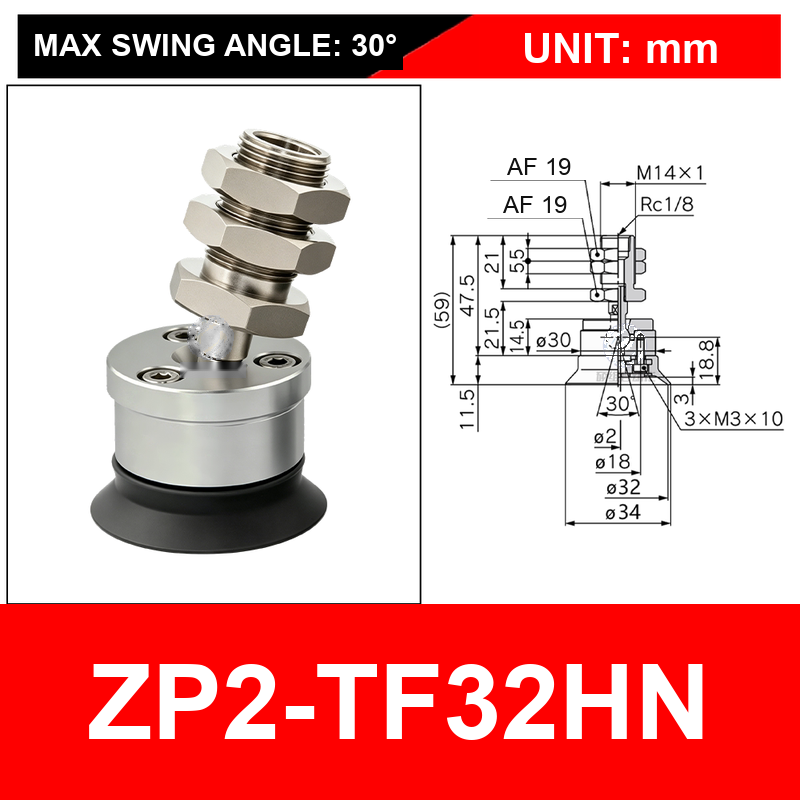

| ZP2-TF32HN | 4864957555985 |

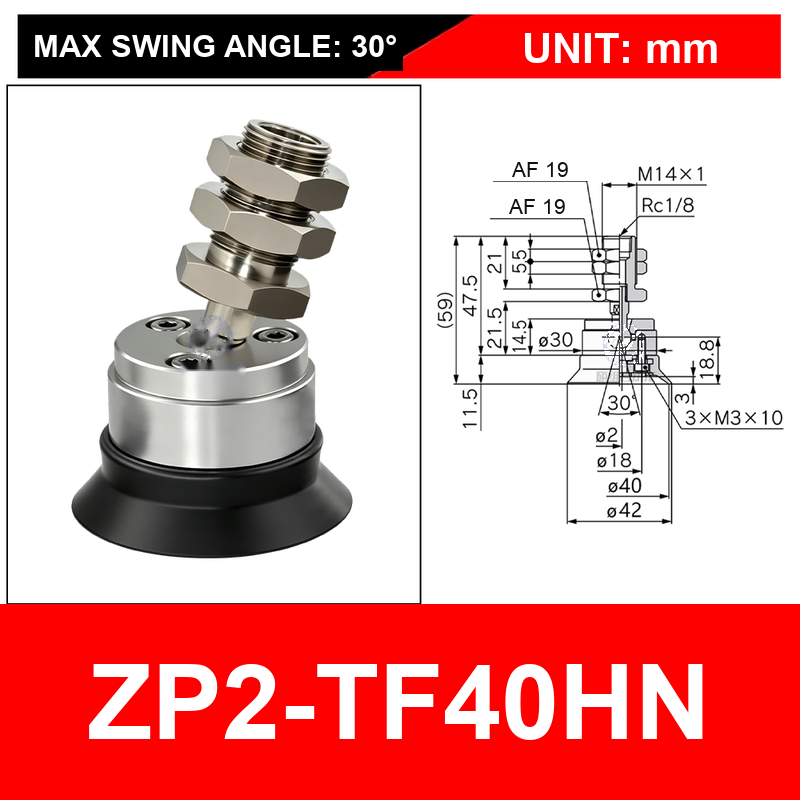

| ZP2-TF40HN | 4864957555986 |
| ZP2-TF50HN | 4864957555987 |

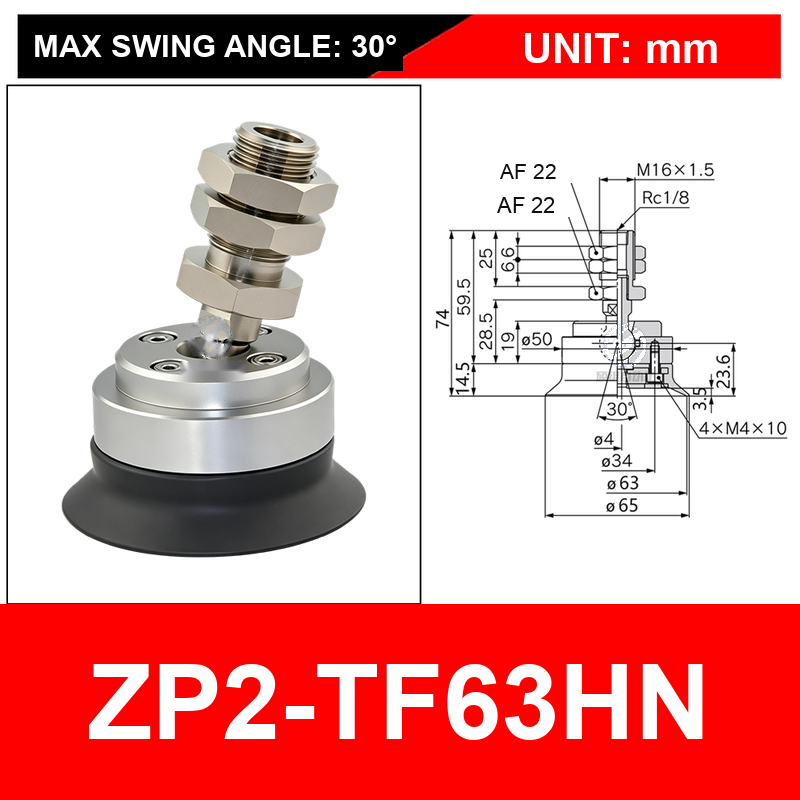

| ZP2-TF63HN | 4864957555988 |

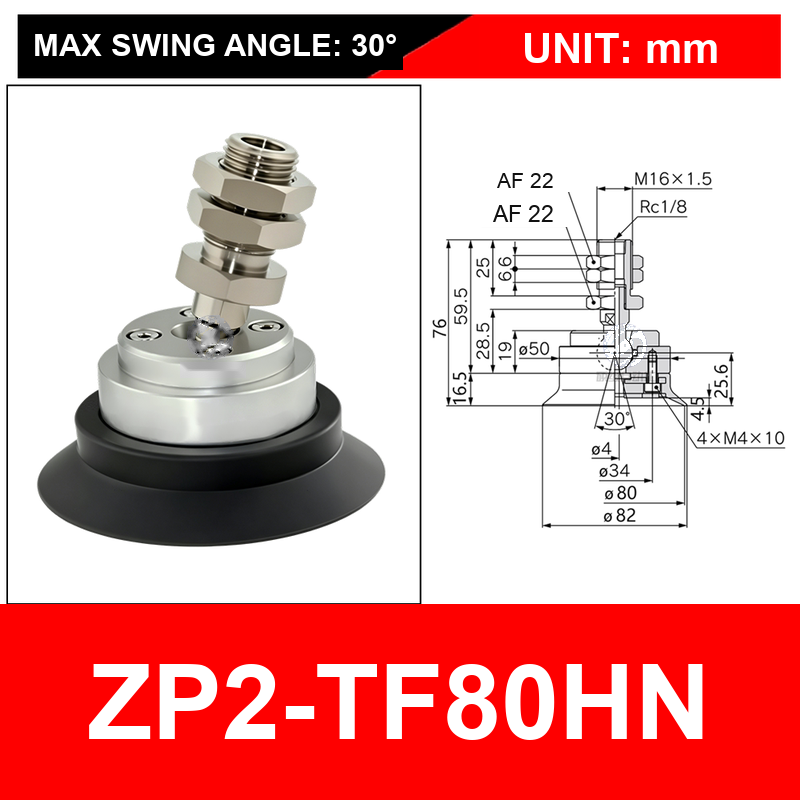

| ZP2-TF80HN | 4864957555984 |

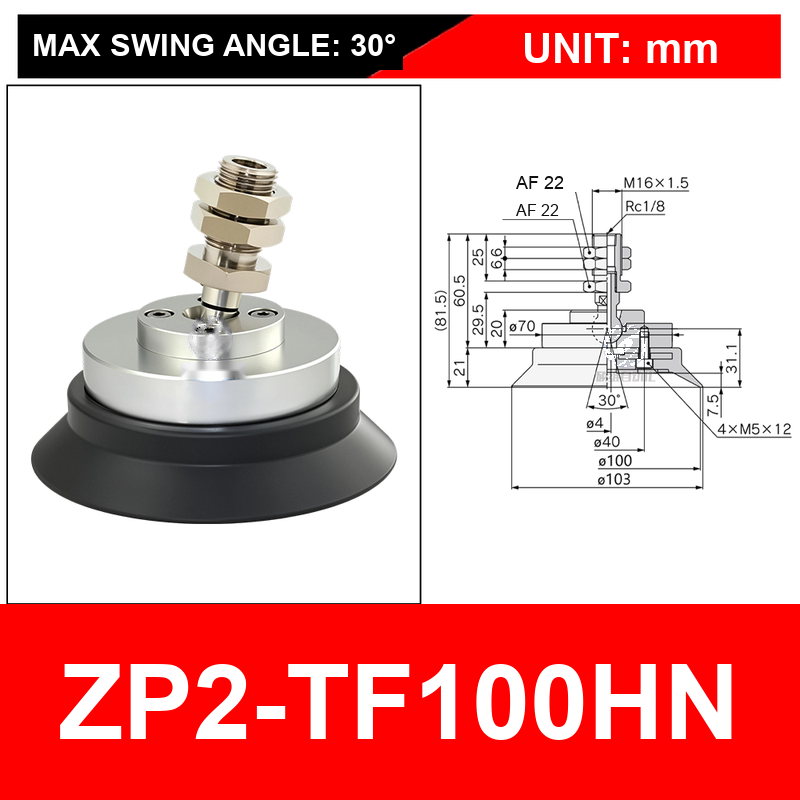

| ZP2-TF100HN | 4864957555983 |
| ZP2-TF125HN | 4864957555996 |

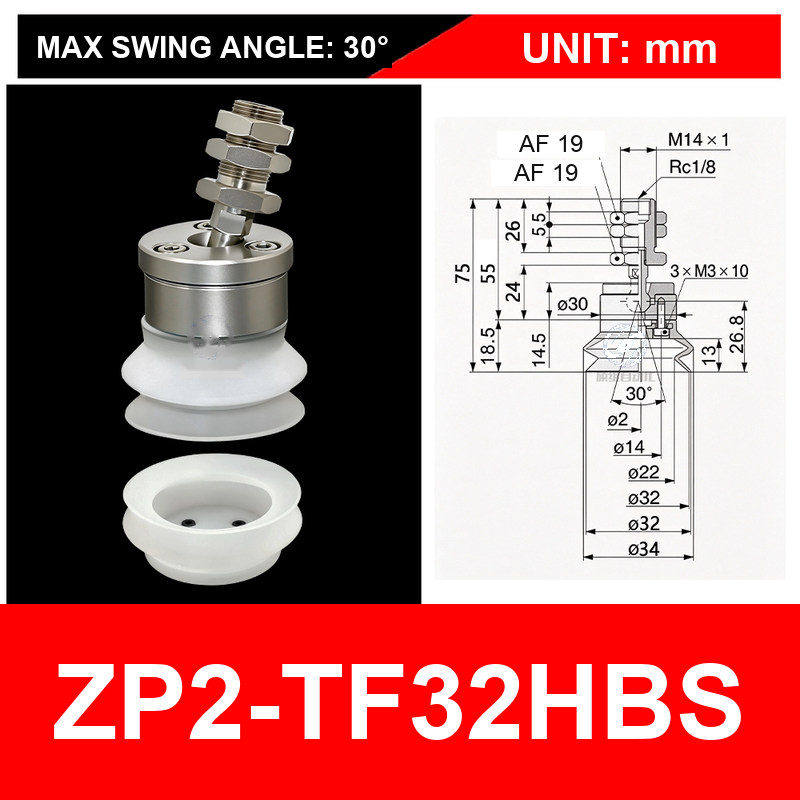

| ZP2-TF32HBS | 6265851370820 |

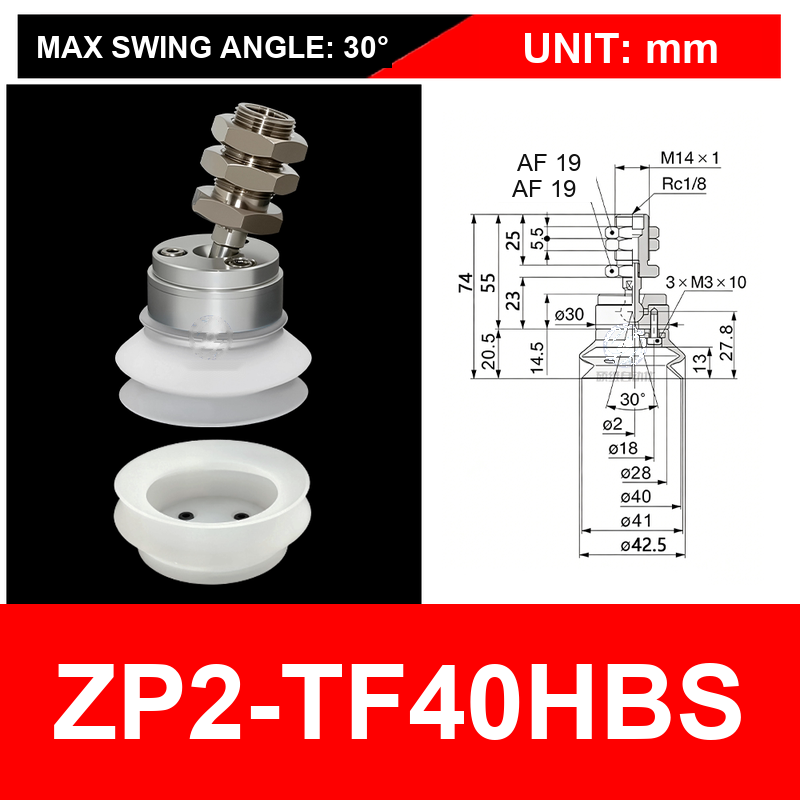

| ZP2-TF40HBS | 6265851370821 |

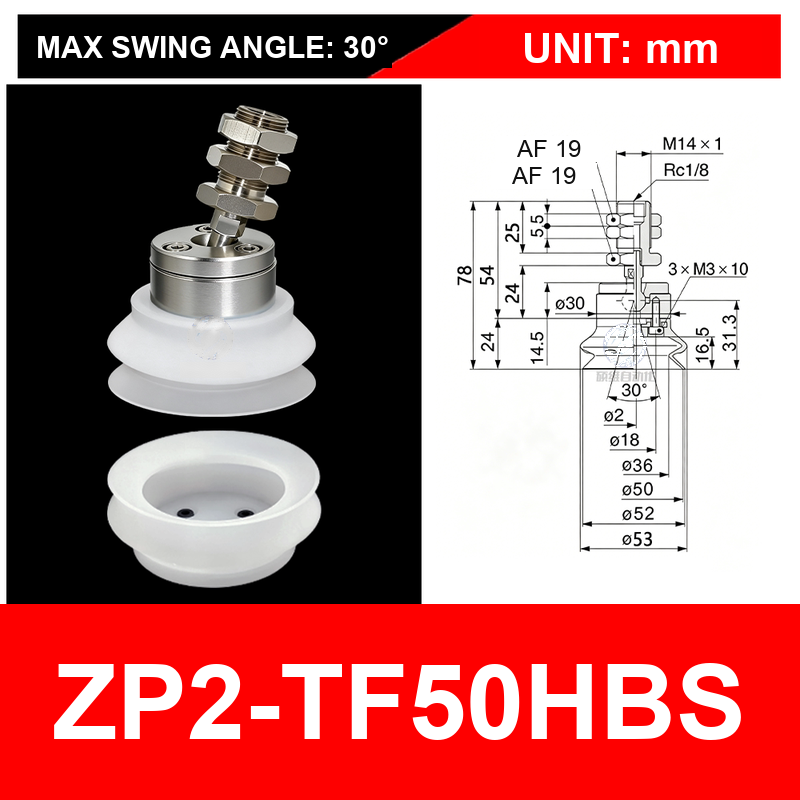

| ZP2-TF50HBS | 6265851370822 |

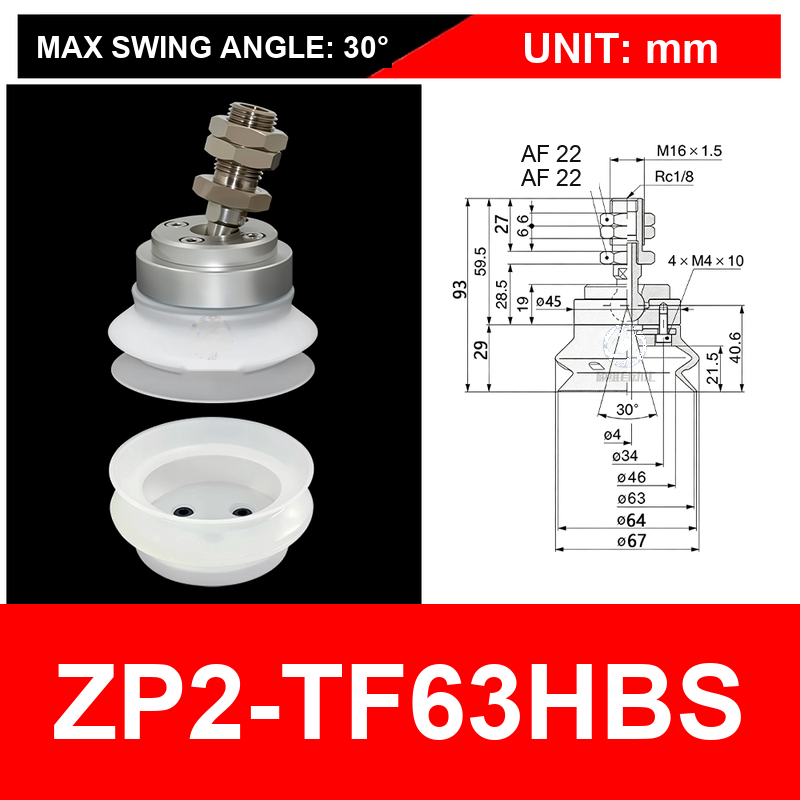

| ZP2-TF63HBS | 6265851370823 |

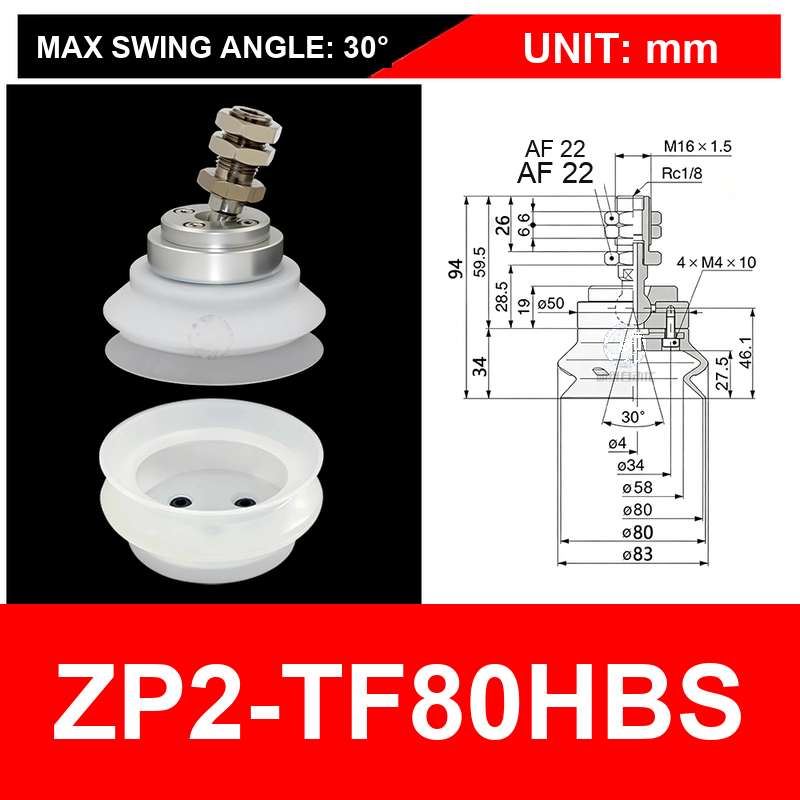

| ZP2-TF80HBS | 6265851370824 |

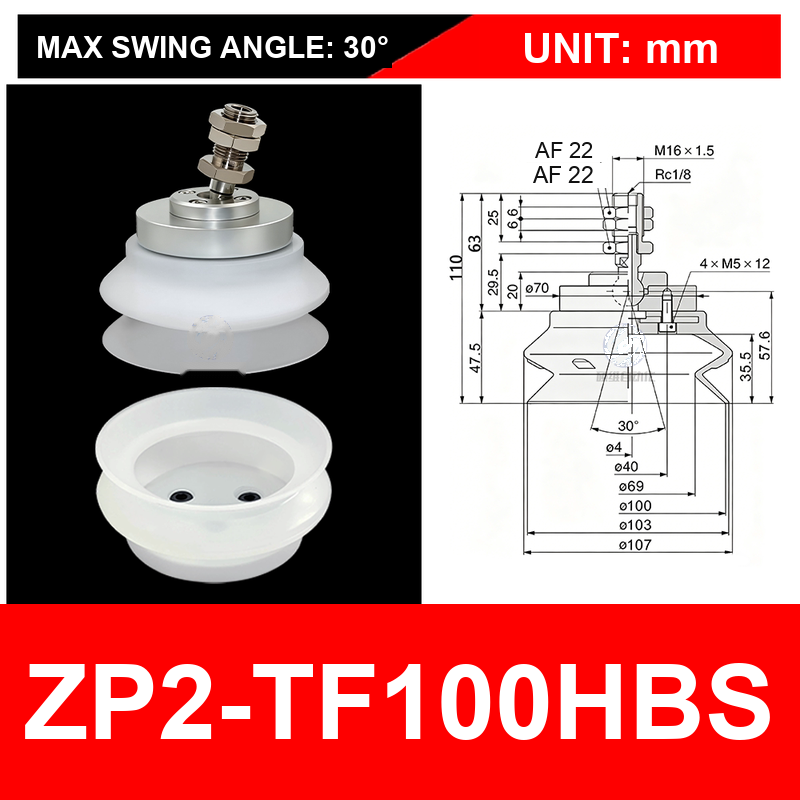

| ZP2-TF100HBS | 6265851370825 |
| ZP2-TF125HBS | 6265851370826 |

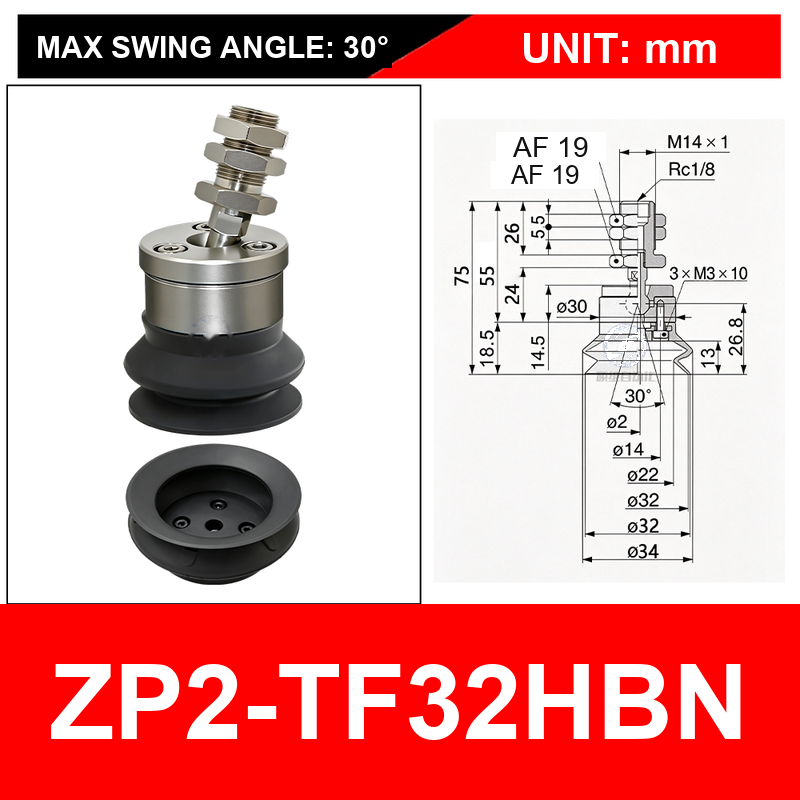

| ZP2-TF32HBN | 6265851370828 |

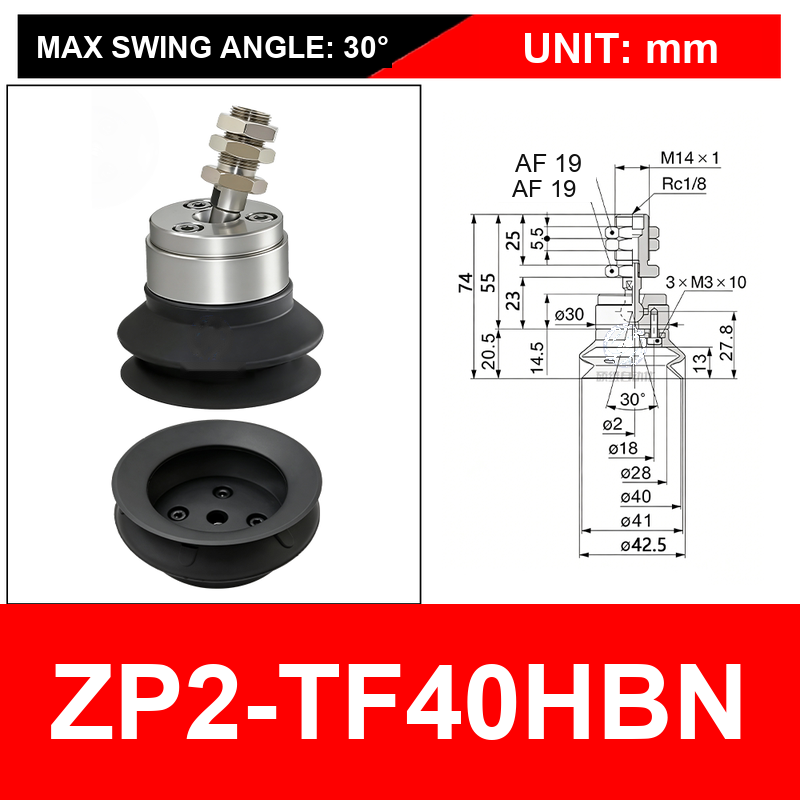

| ZP2-TF40HBN | 6265851370829 |
| ZP2-TF50HBN | 6265851370830 |
| ZP2-TF63HBN | 6265851370831 |

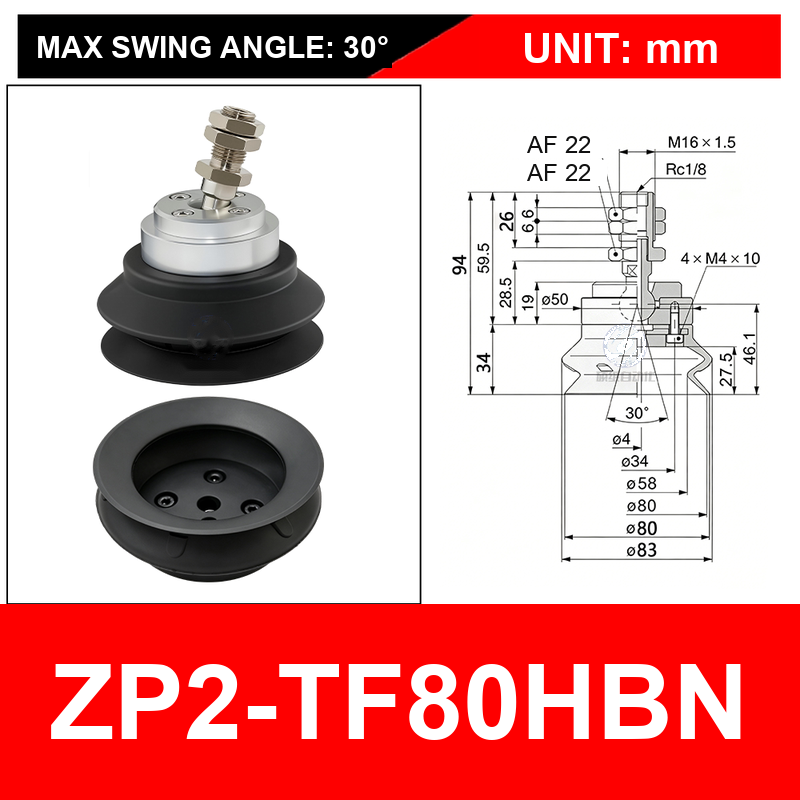

| ZP2-TF80HBN | 6265851370832 |

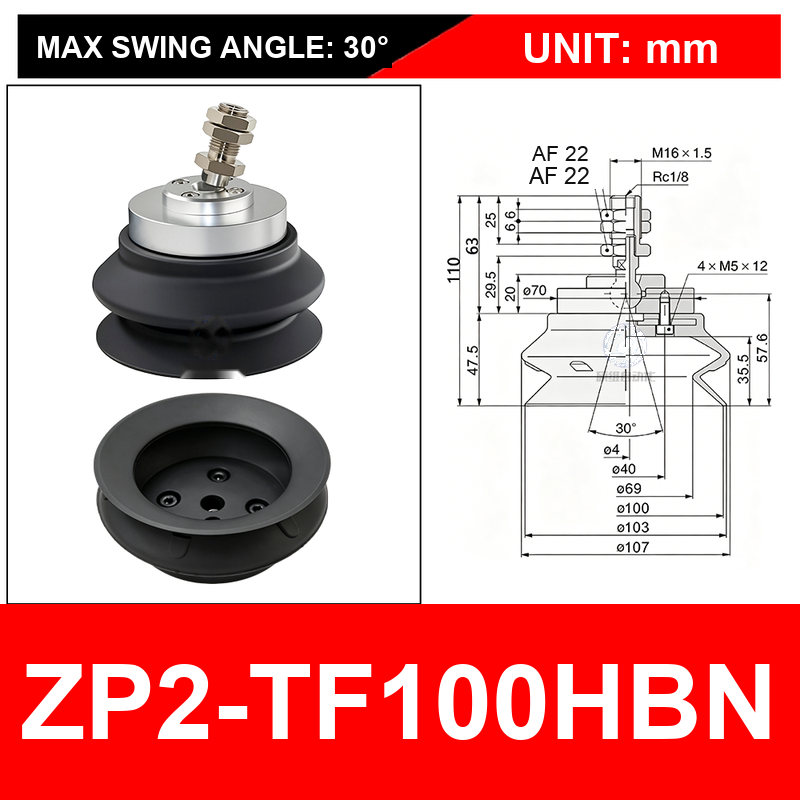

| ZP2-TF100HBN | 6265851370833 |
| ZP2-TF125HBN | 6265851370834 |
| ZP2A-TF1 Type A | 4860405586917 |

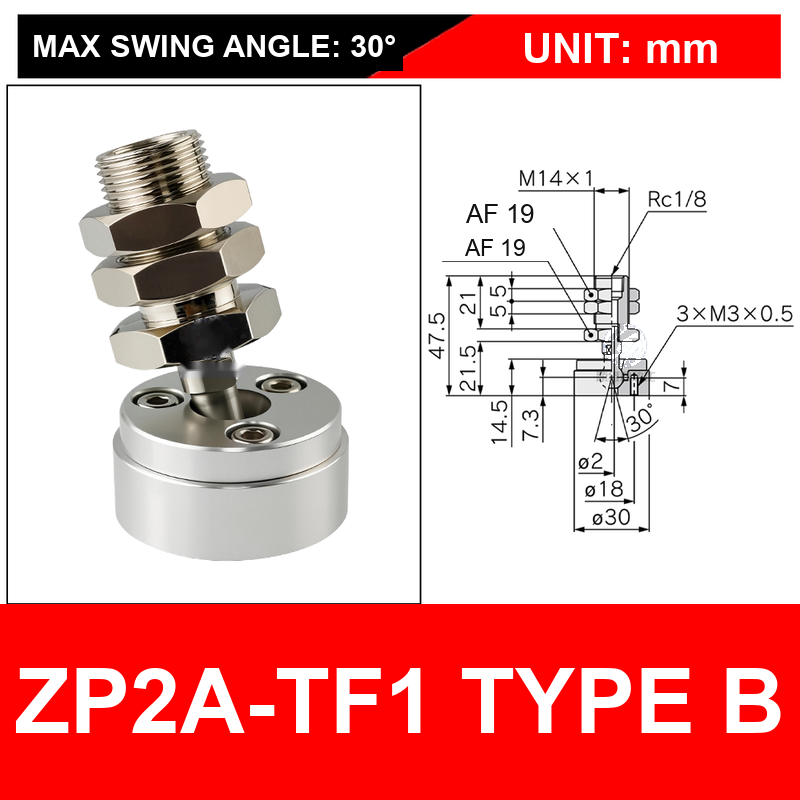

| ZP2A-TF1 Type B | 4860405586918 |

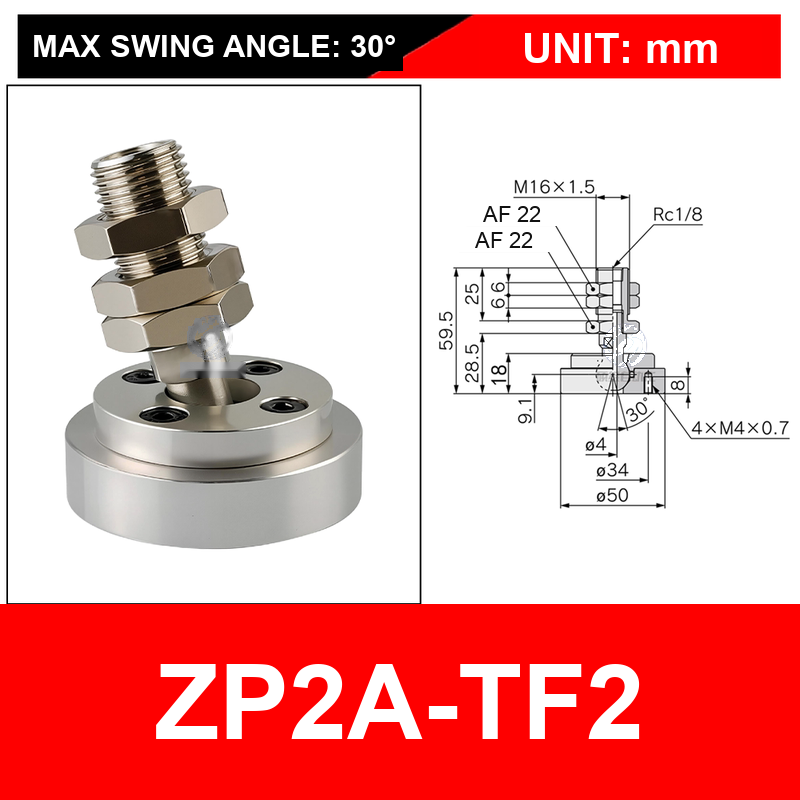

| ZP2A-TF2 | 4860405586919 |

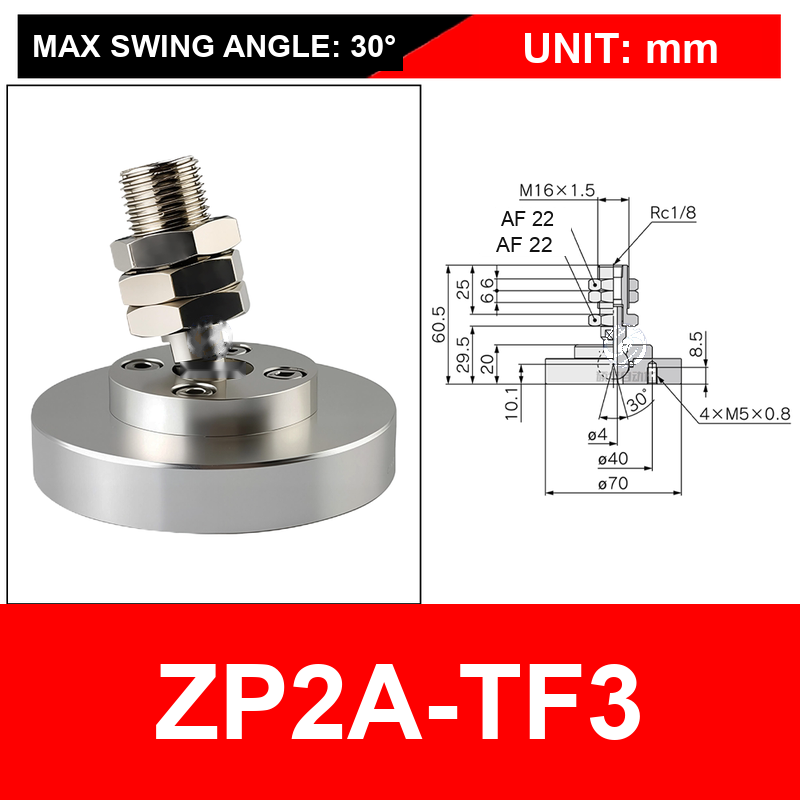

| ZP2A-TF3 | 4860405586920 |
