SPB Series Corrugated Vacuum Suction Cups & Fittings

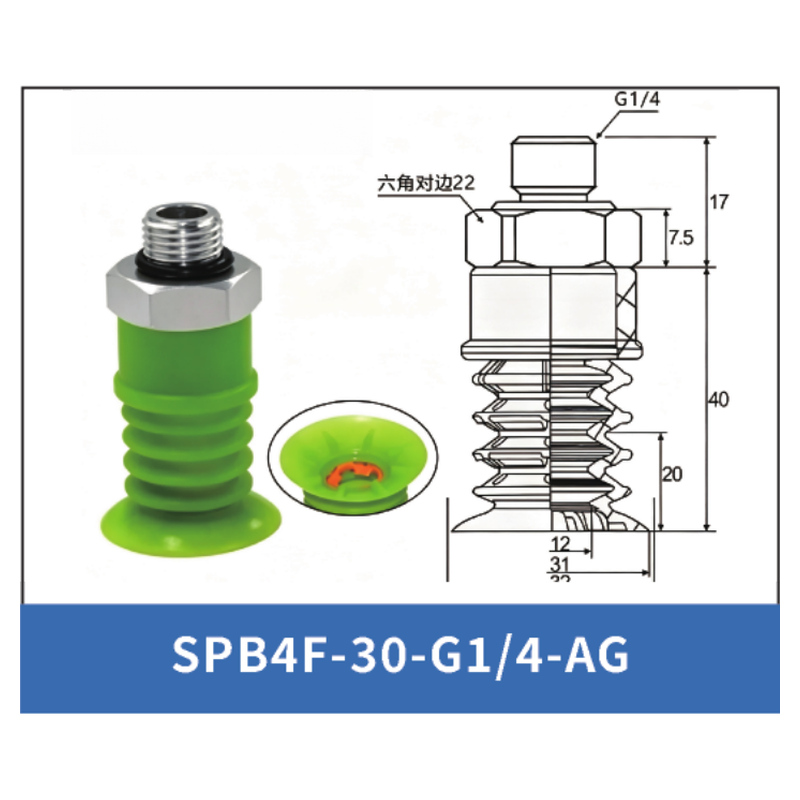

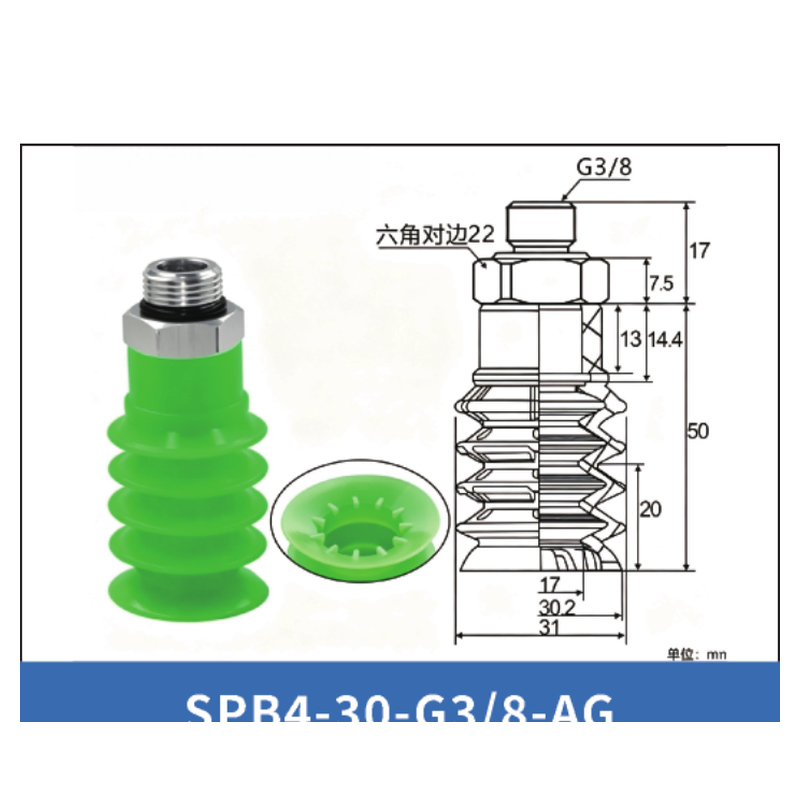

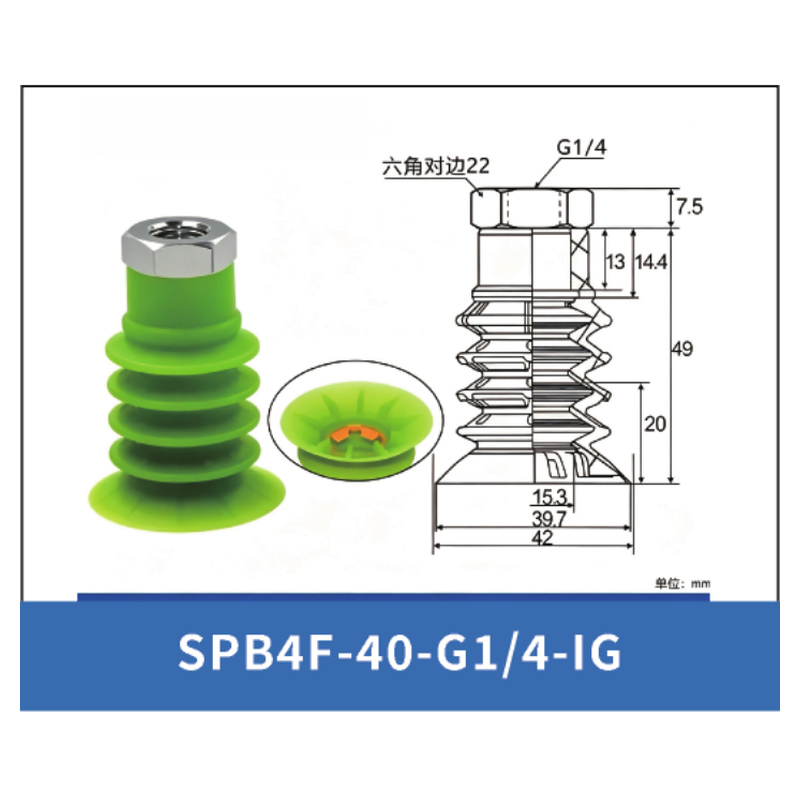

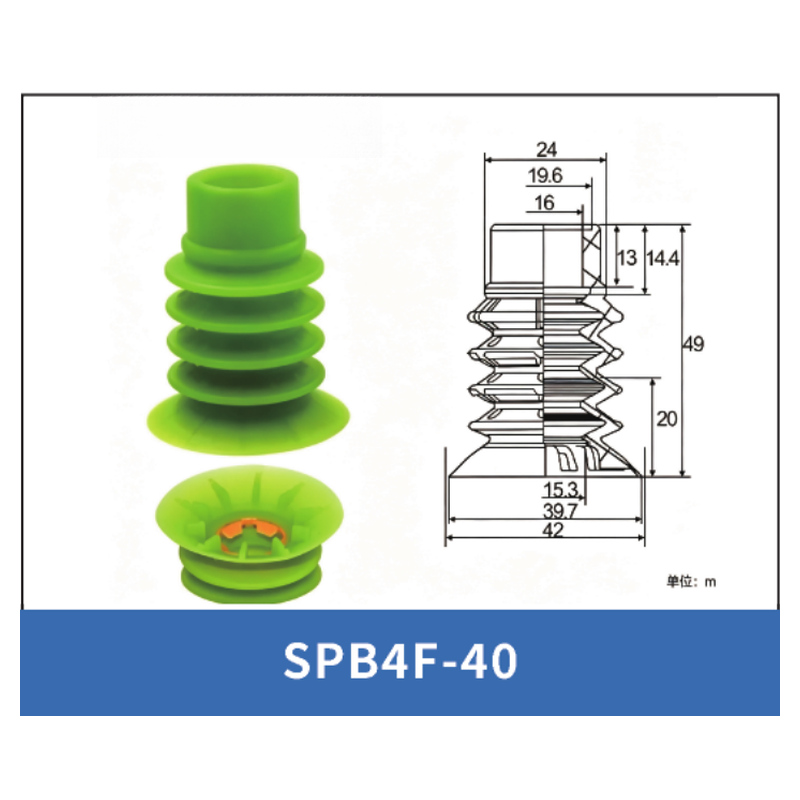

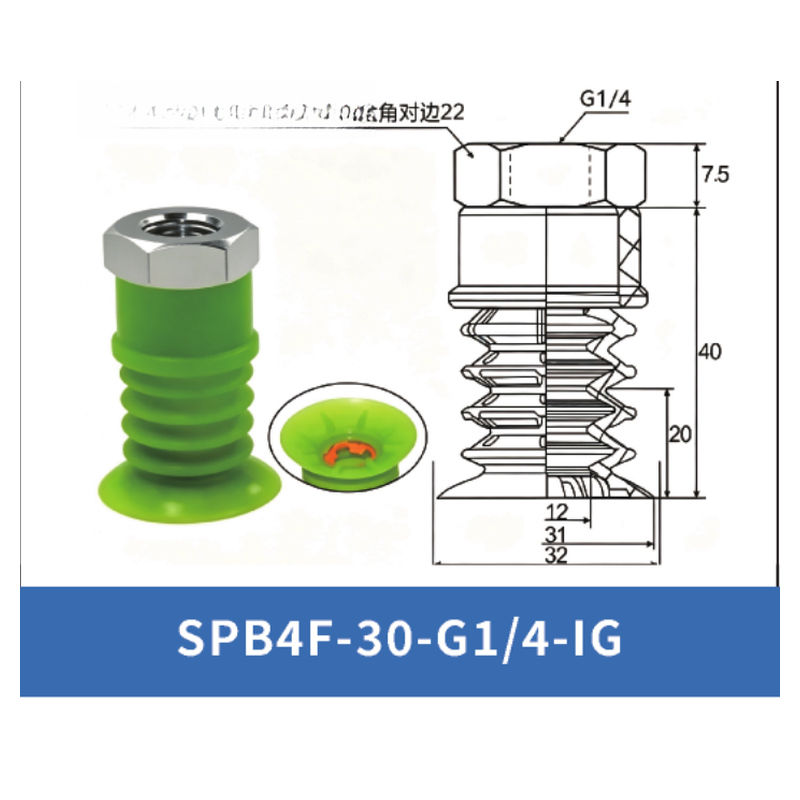

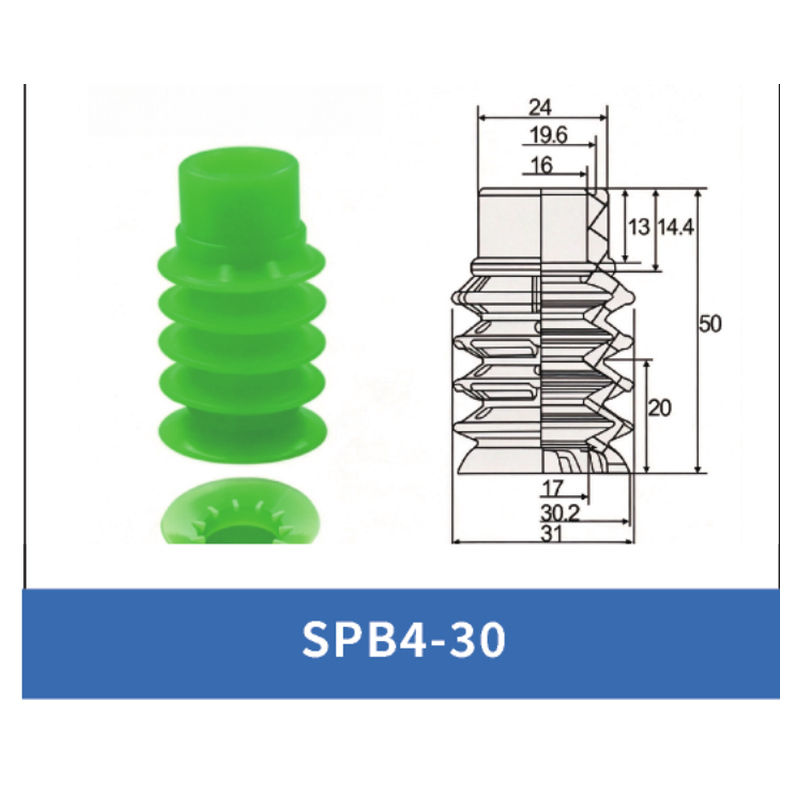

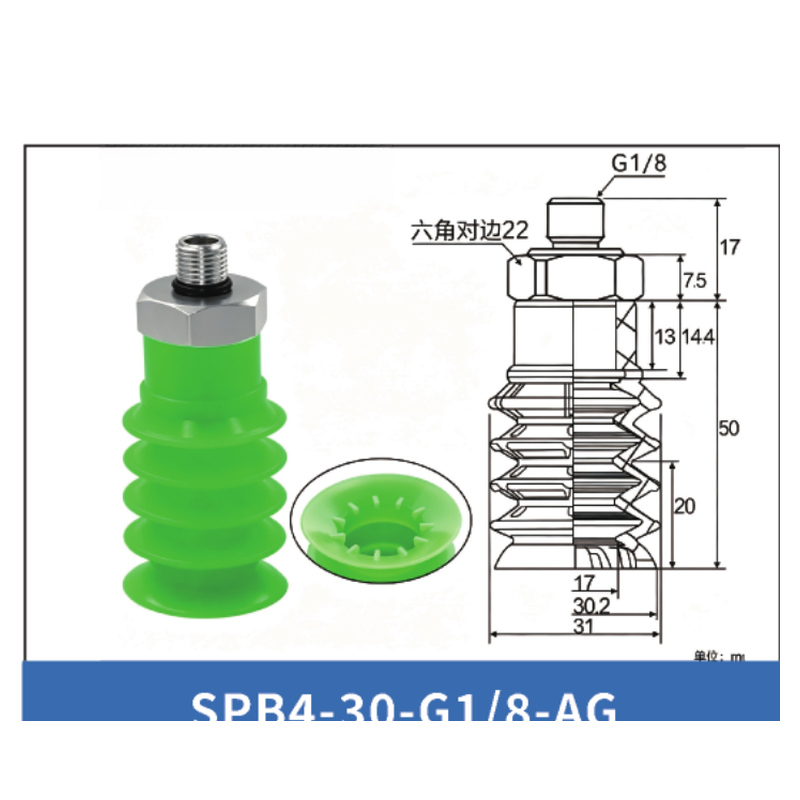

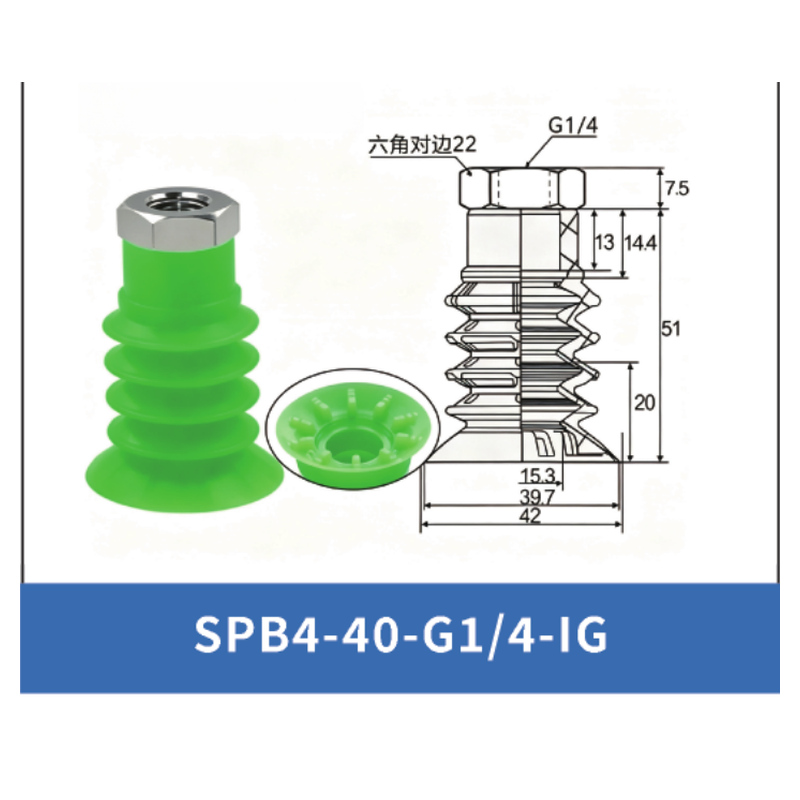

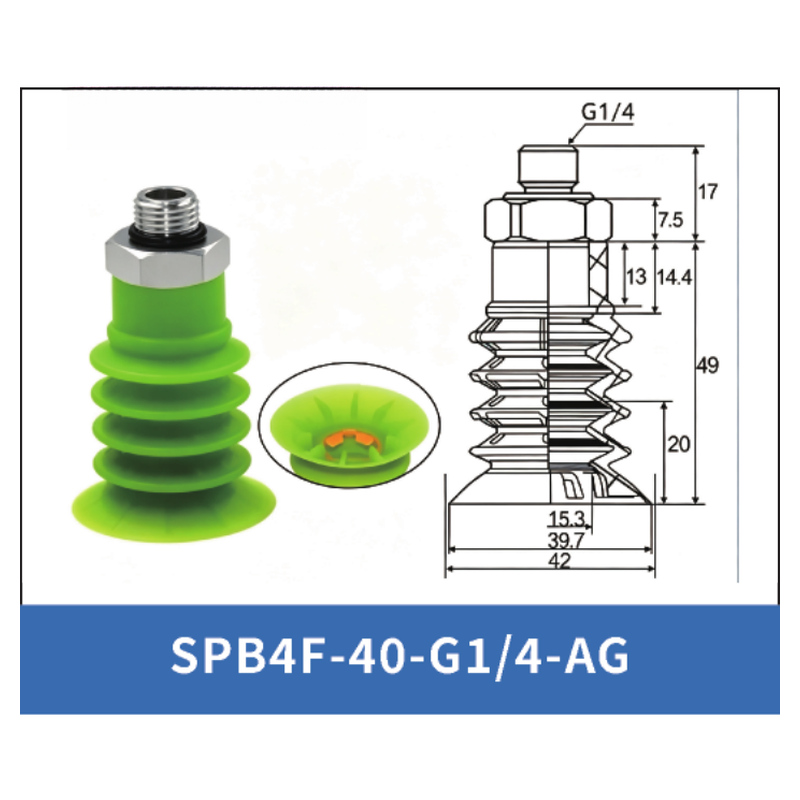

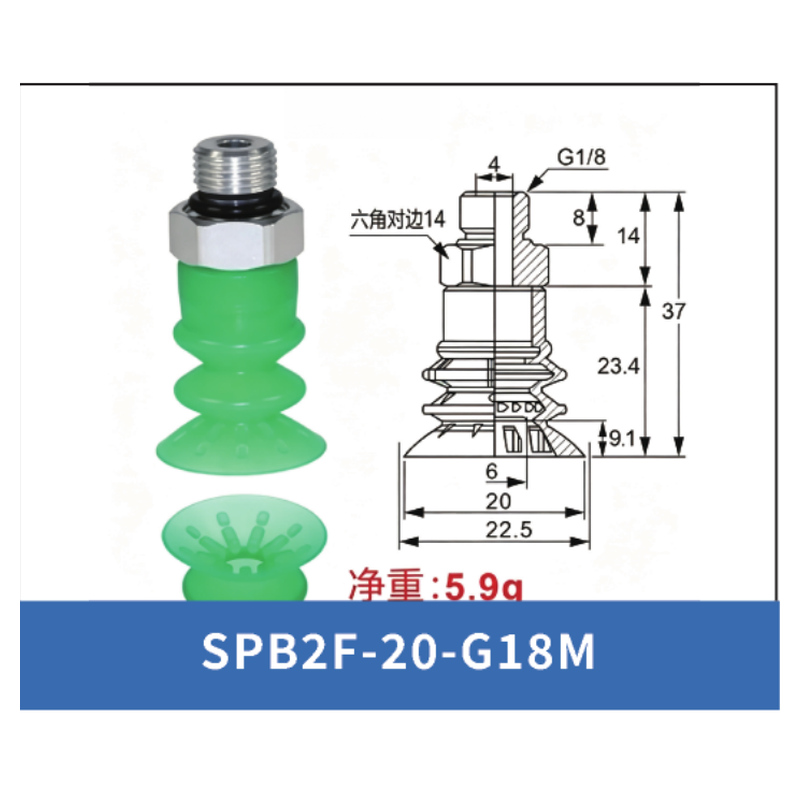

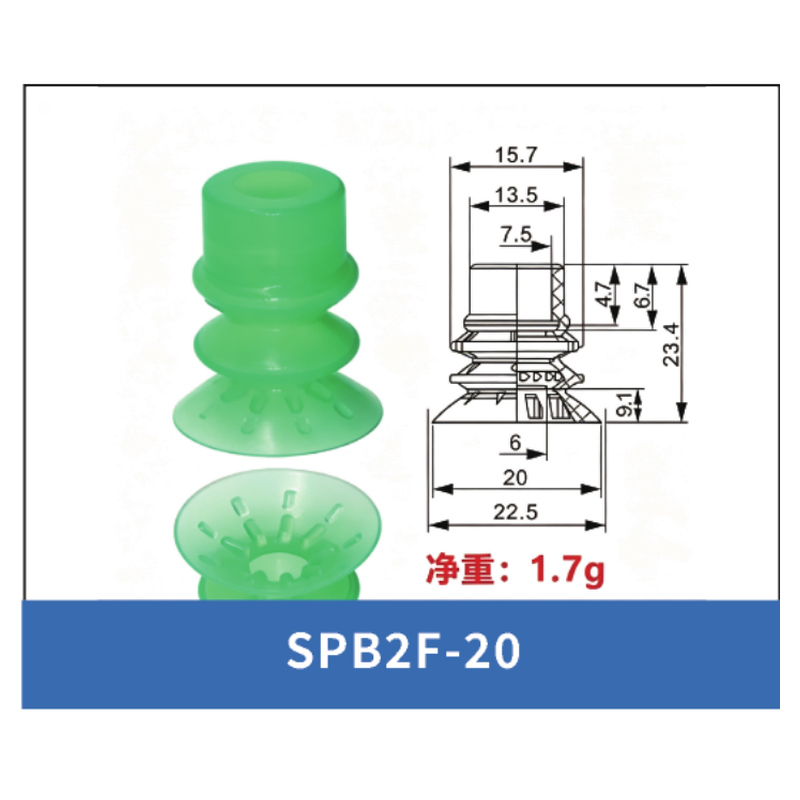

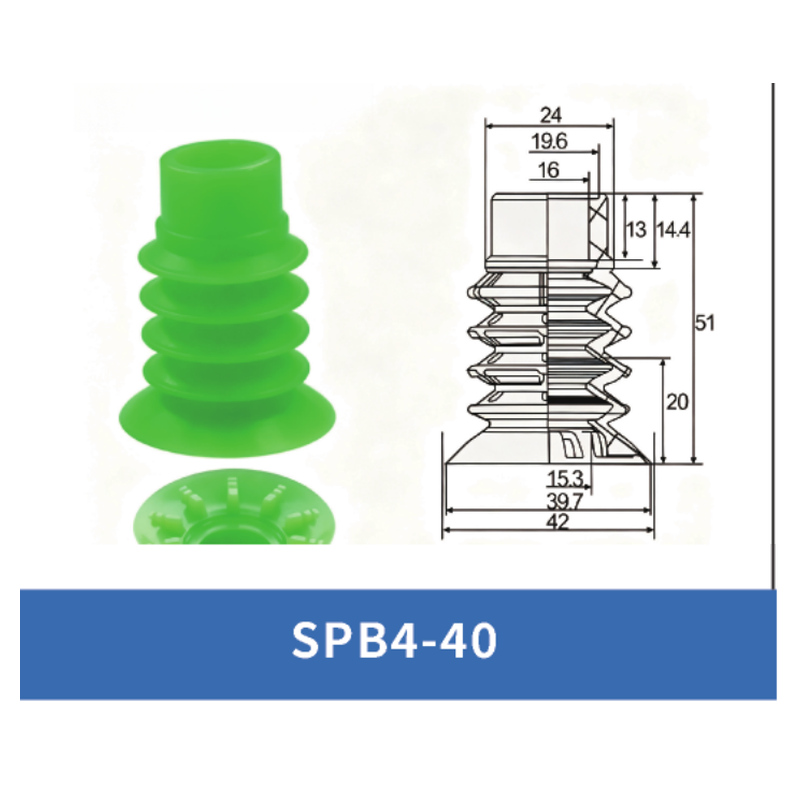

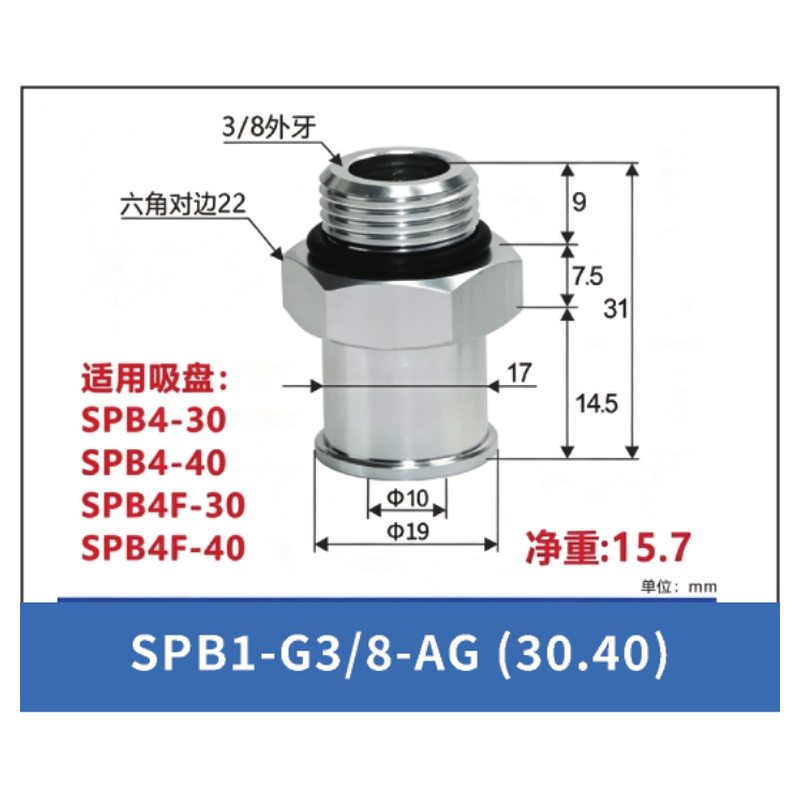

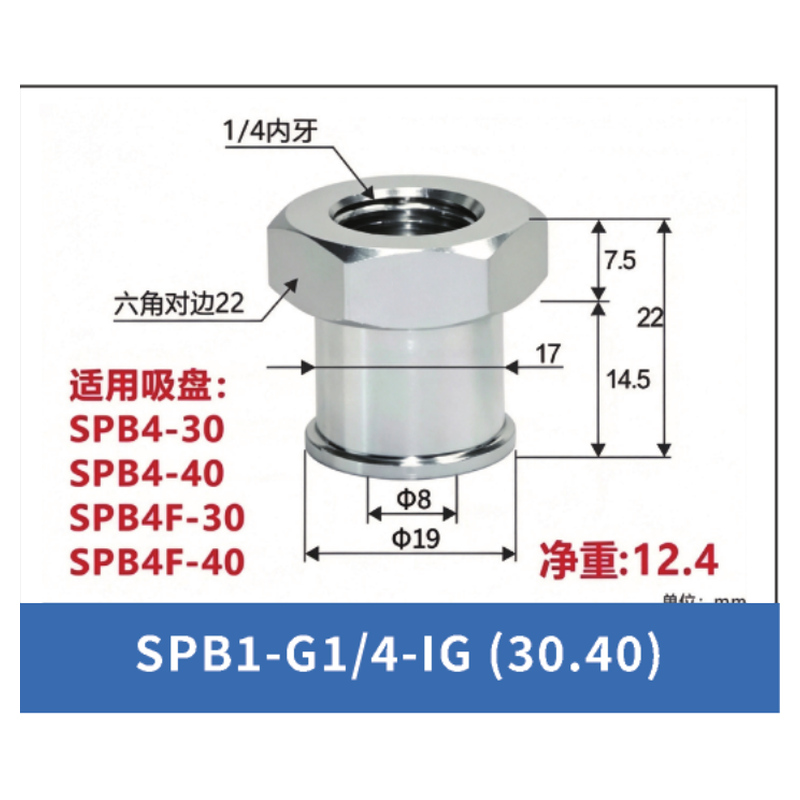

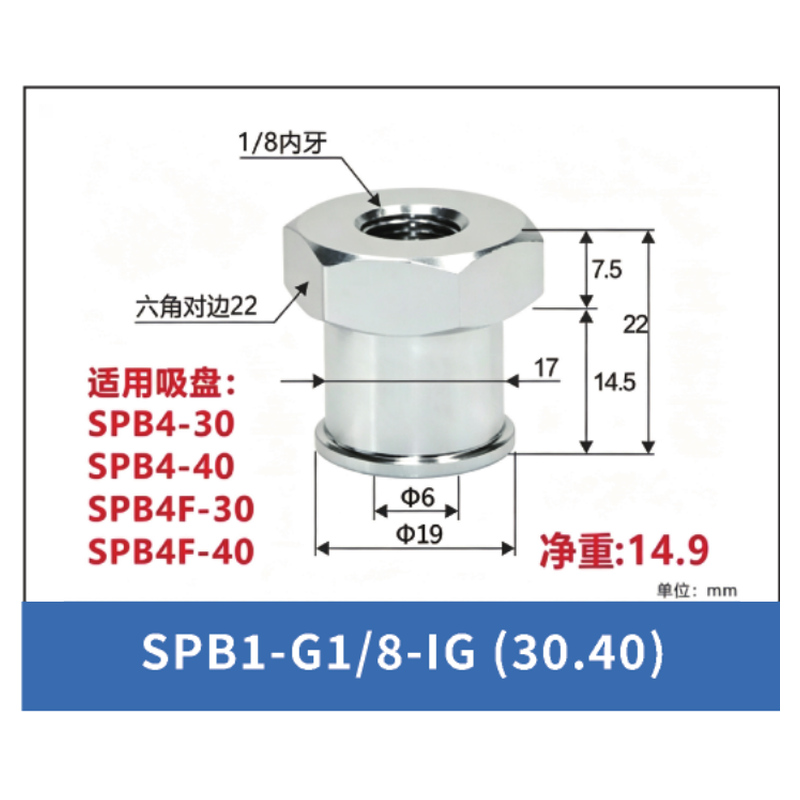

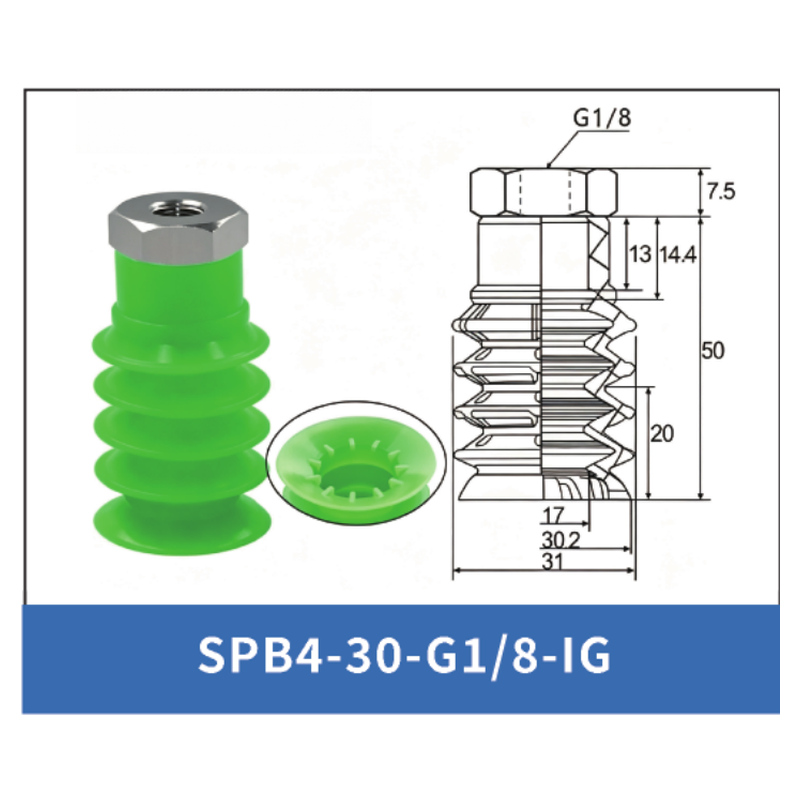

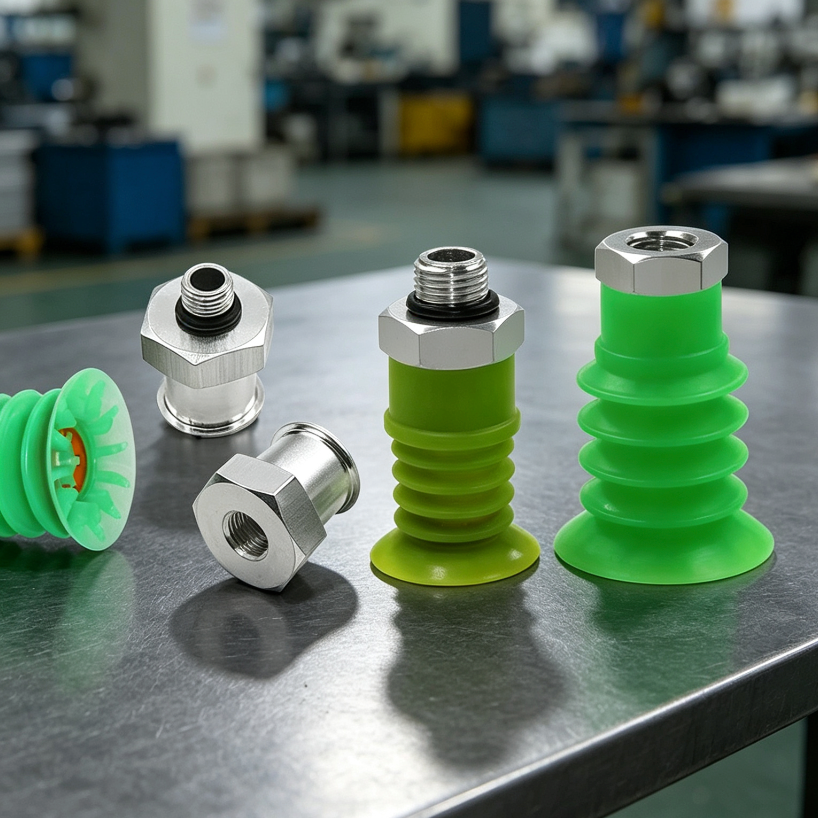

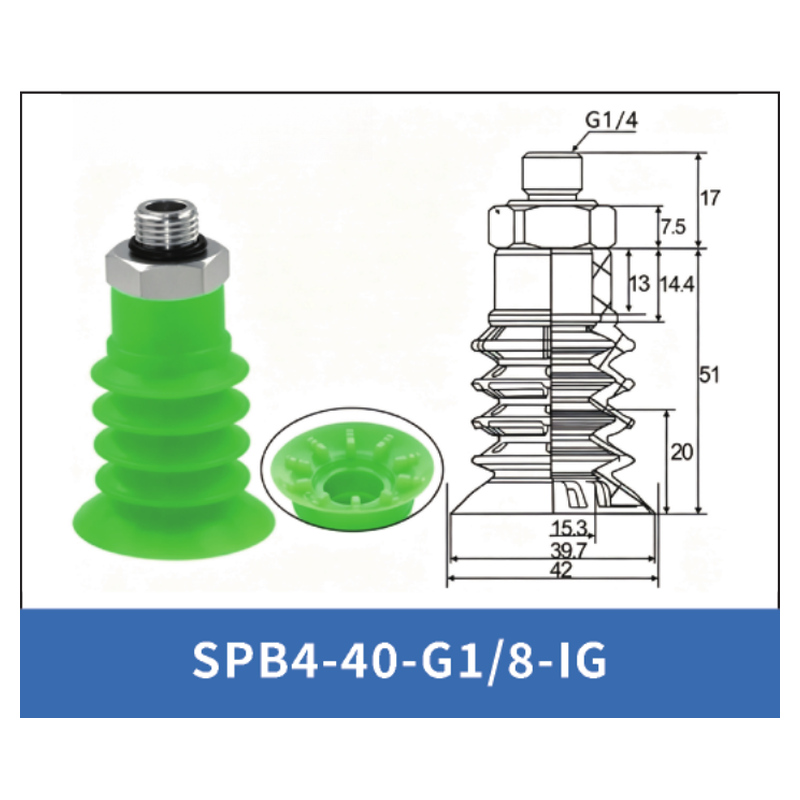

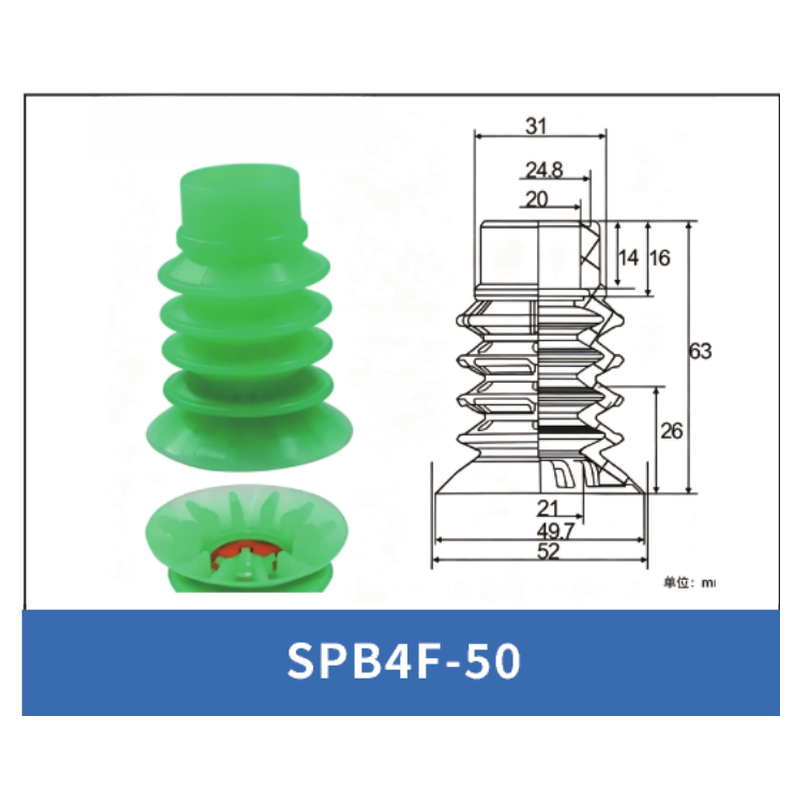

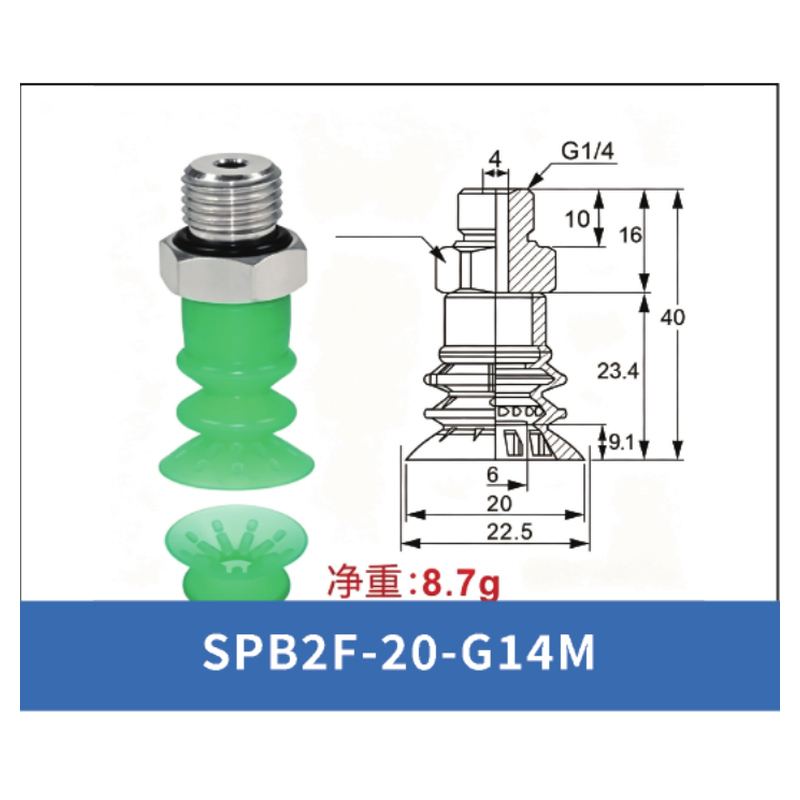

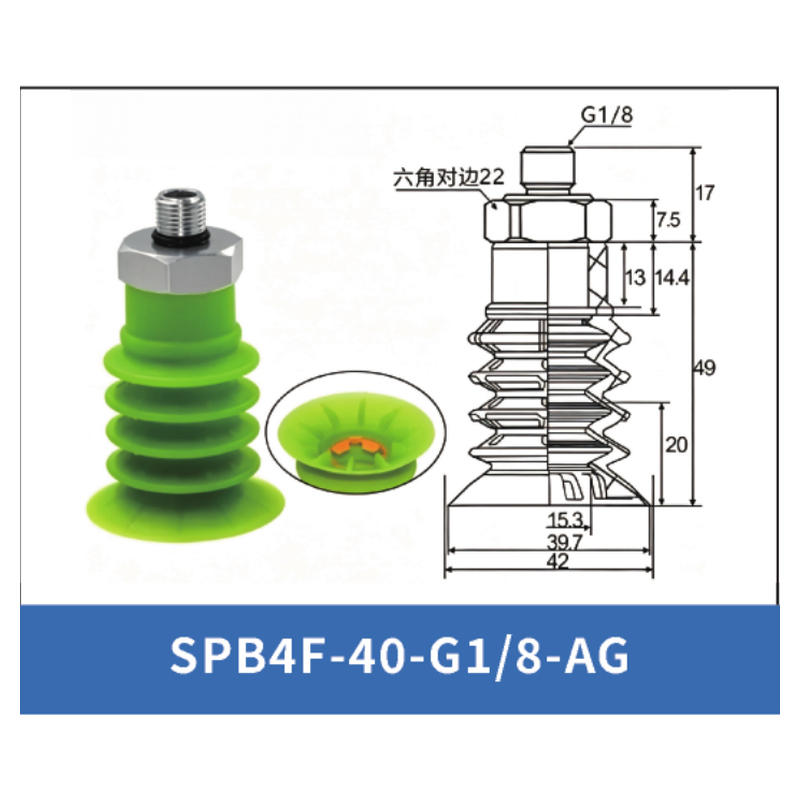

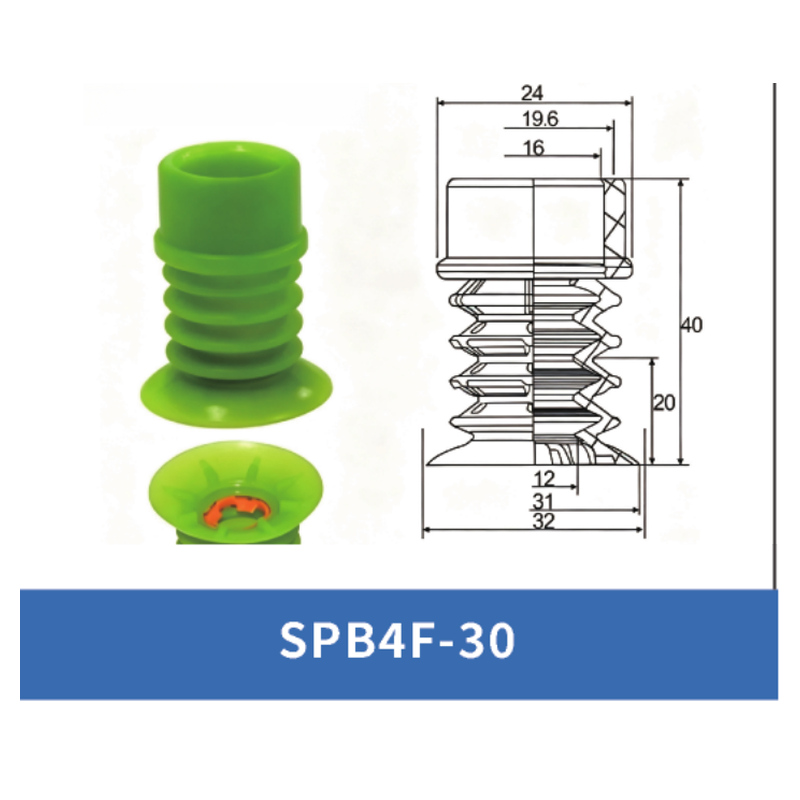

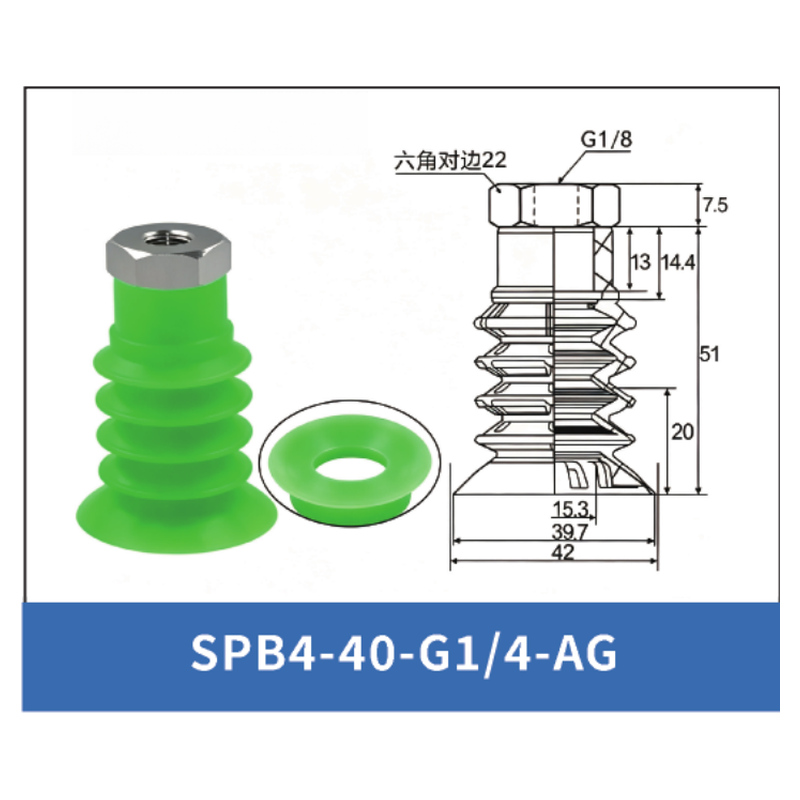

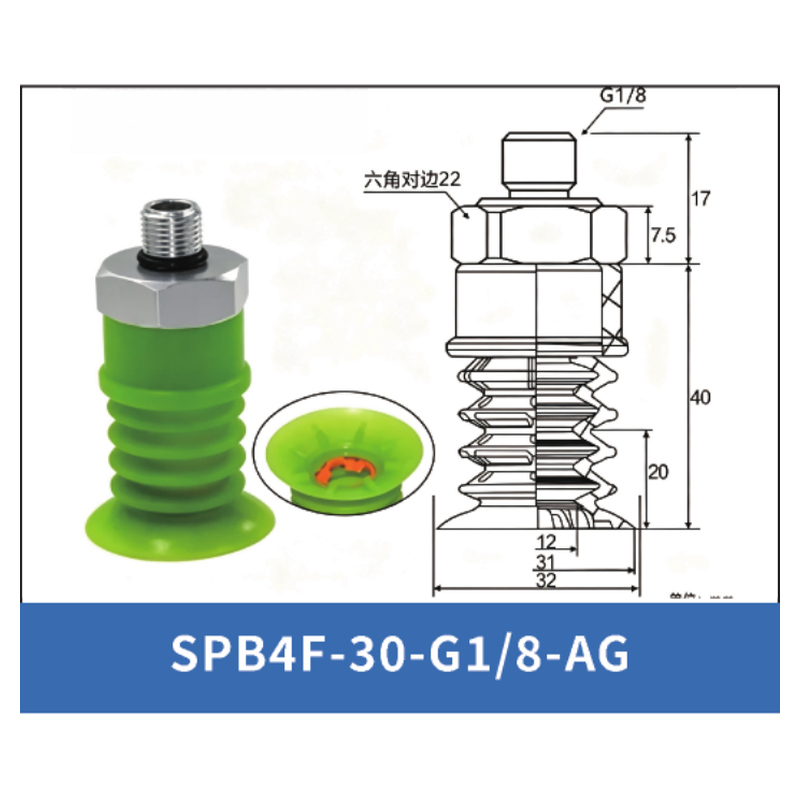

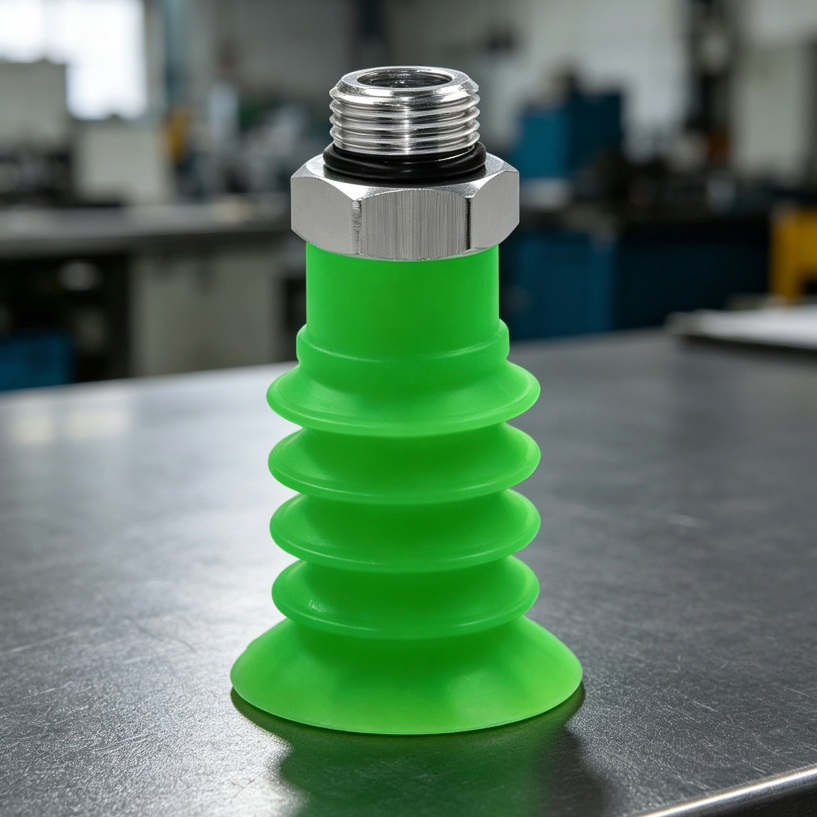

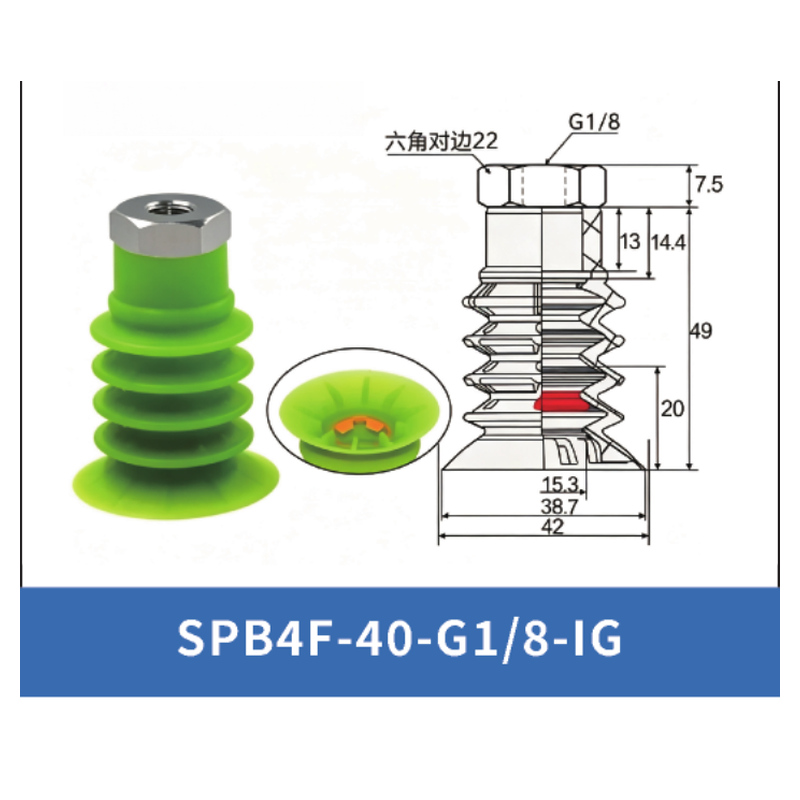

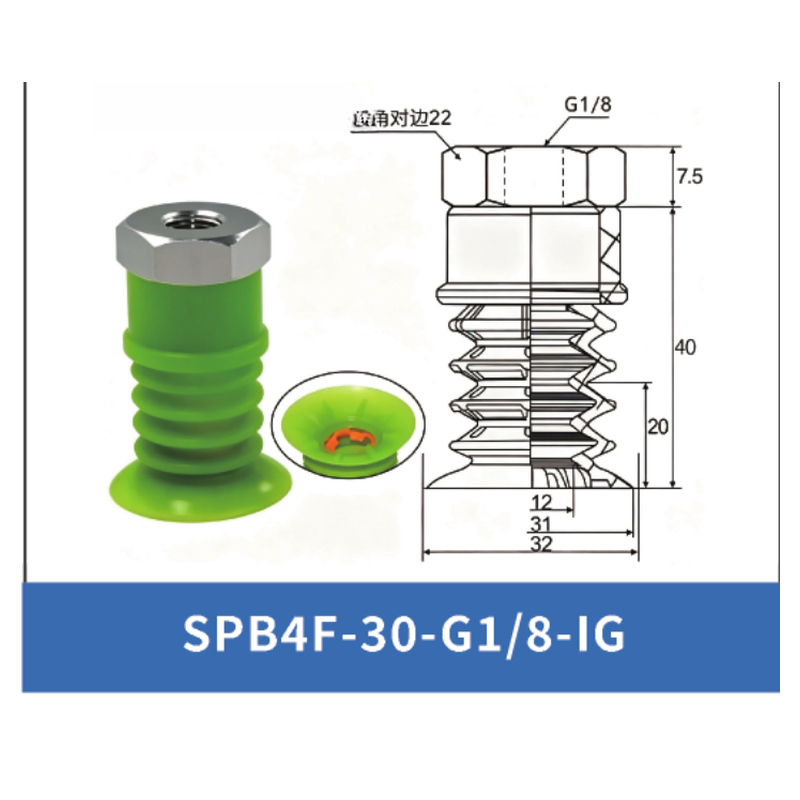

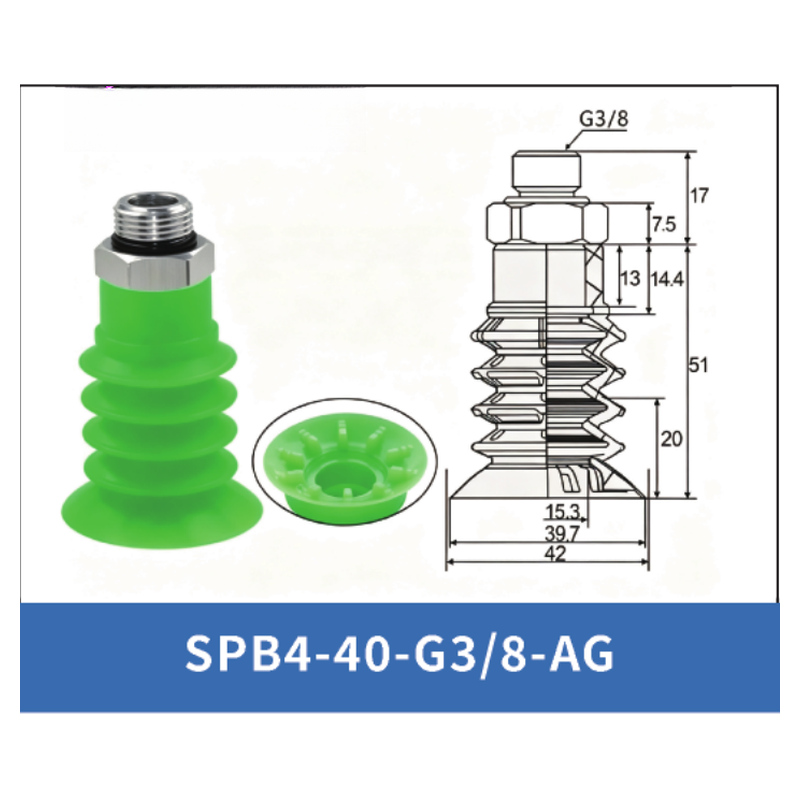

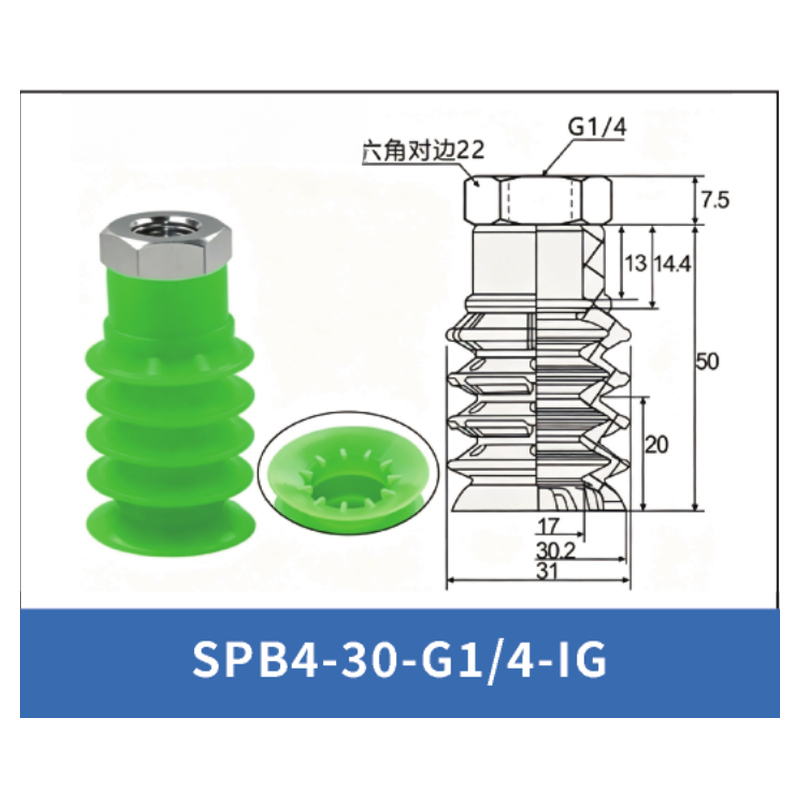

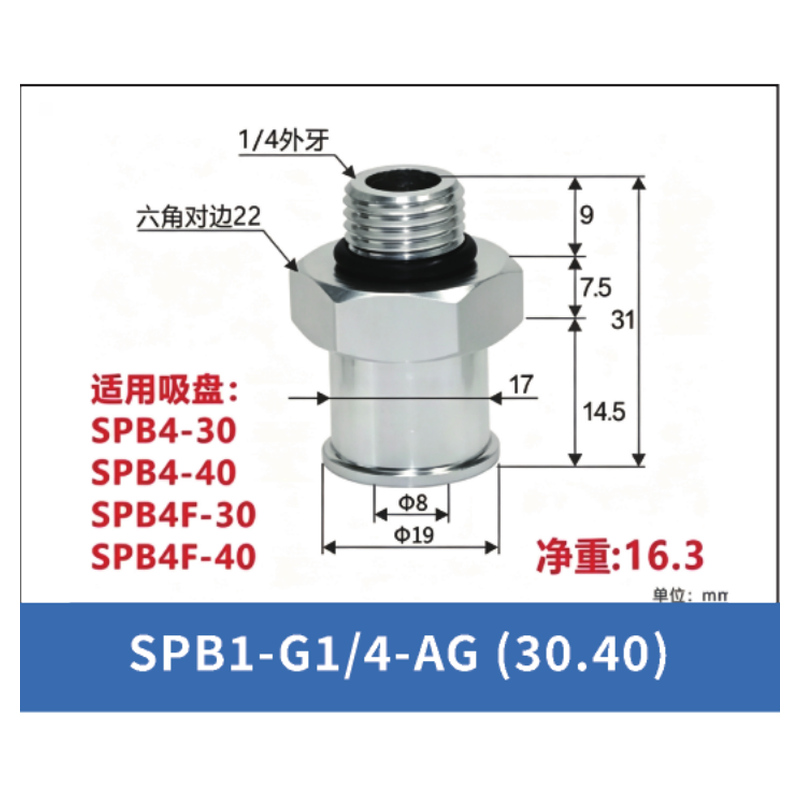

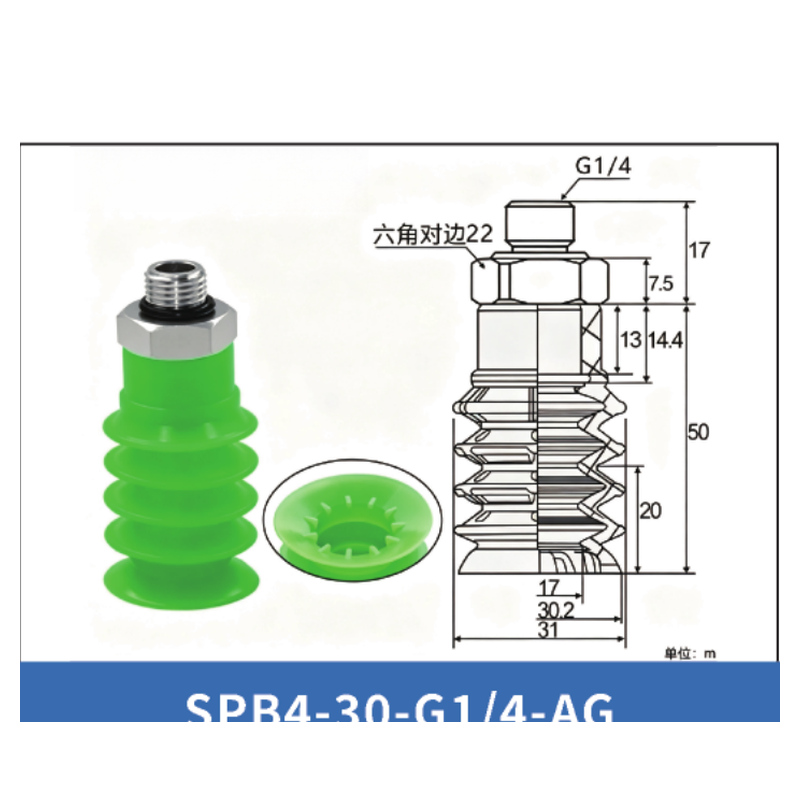

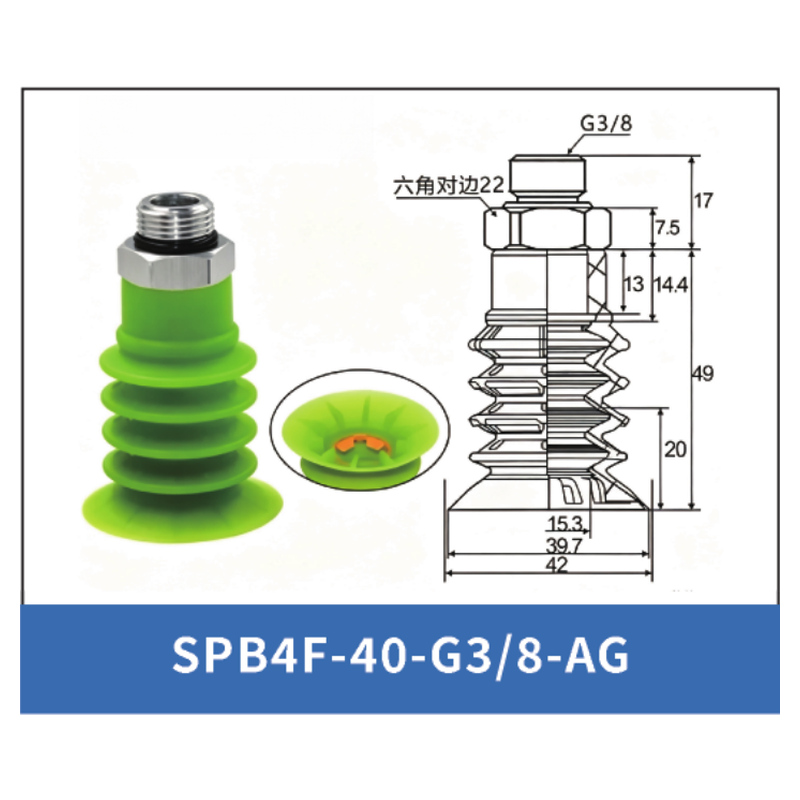

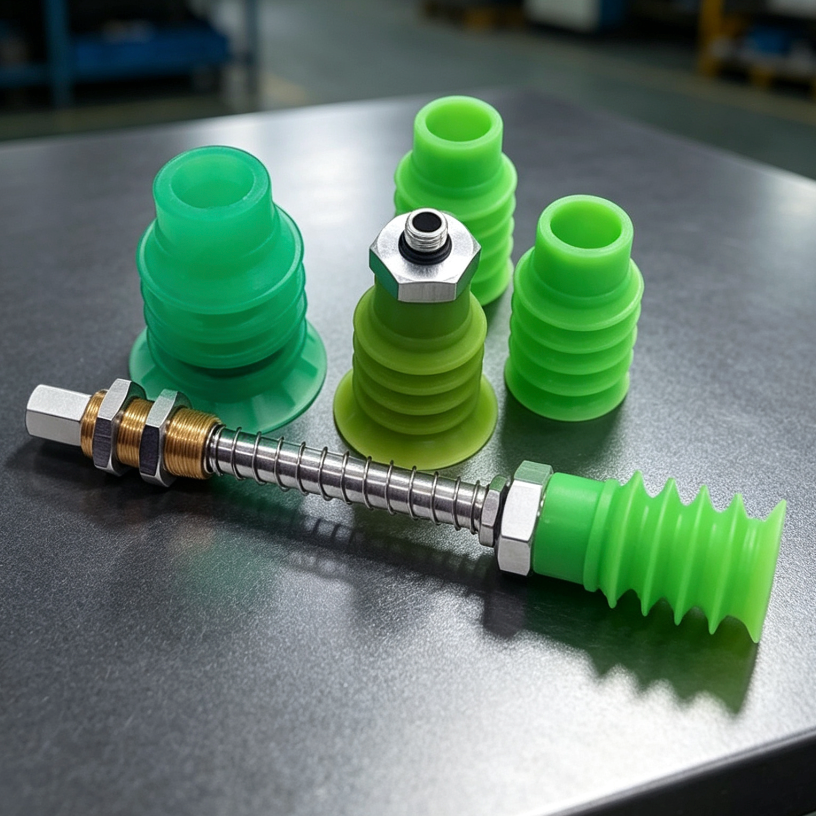

Corrugated silicone vacuum cups, complete assemblies, connector fittings and two-stage cups for flexible bags, liquid or powder packaging and automated handling. Select a model to view its matching product image, thread type and dimensional drawing.
Applications and Suitable Workpieces
SPB Series Corrugated Vacuum Suction Cups & Fittings: These packaging cups are intended for carton, cardboard and rigid-package handling where surface porosity, panel flex and height variation must be accommodated.
Recommended applications
- Corrugated boxes, carton blanks, trays, rigid packaging and cardboard sheets.
- Carton erecting, magazine feeding, case packing, palletizing, depalletizing and top- or side-loading machines.
- Flat, curved or slightly uneven package panels requiring short cycle times and reliable level compensation.
Model and selection notes

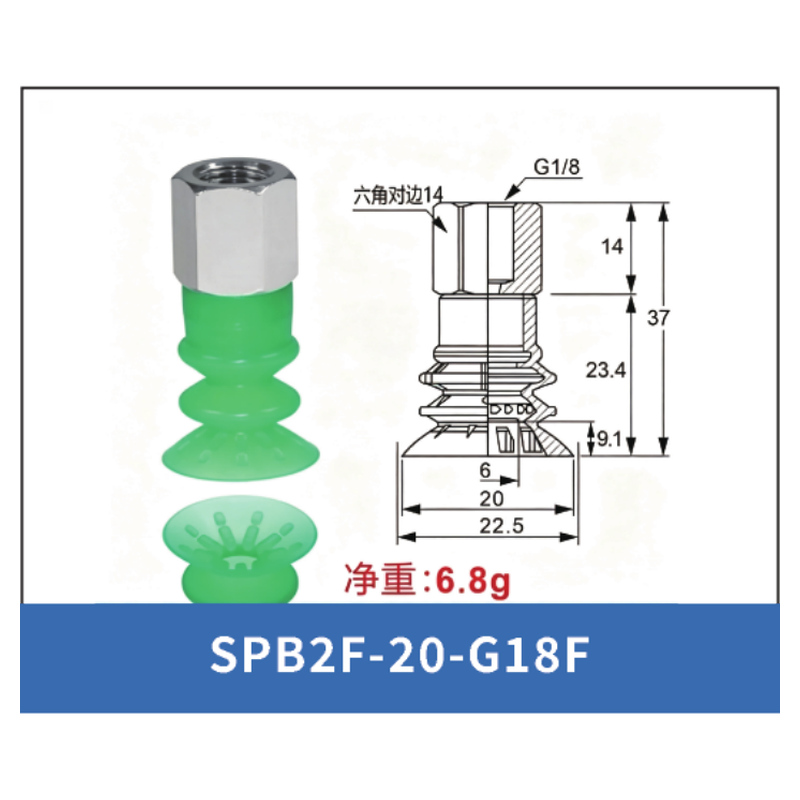

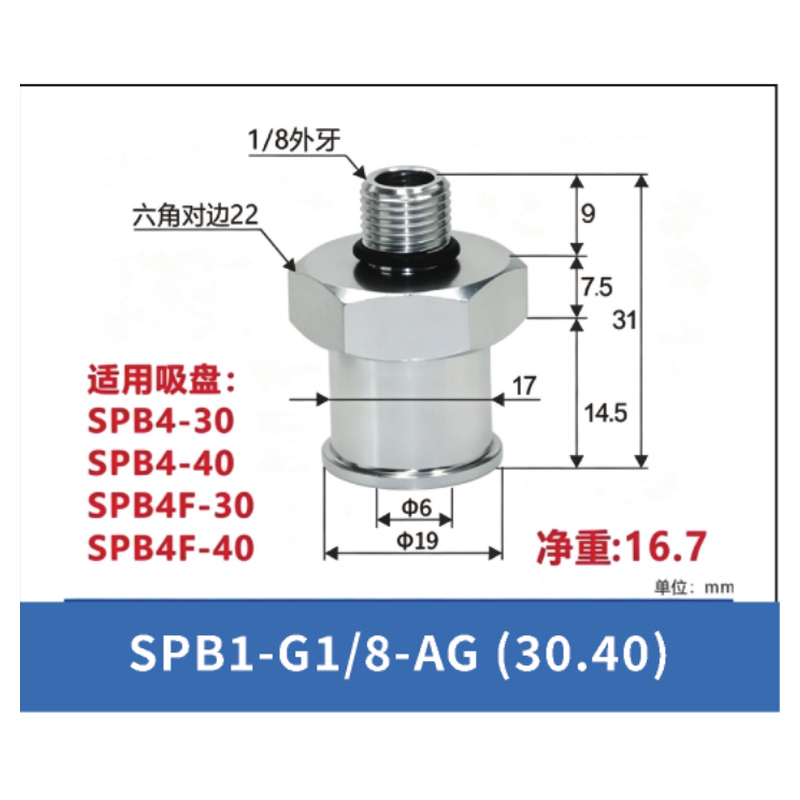

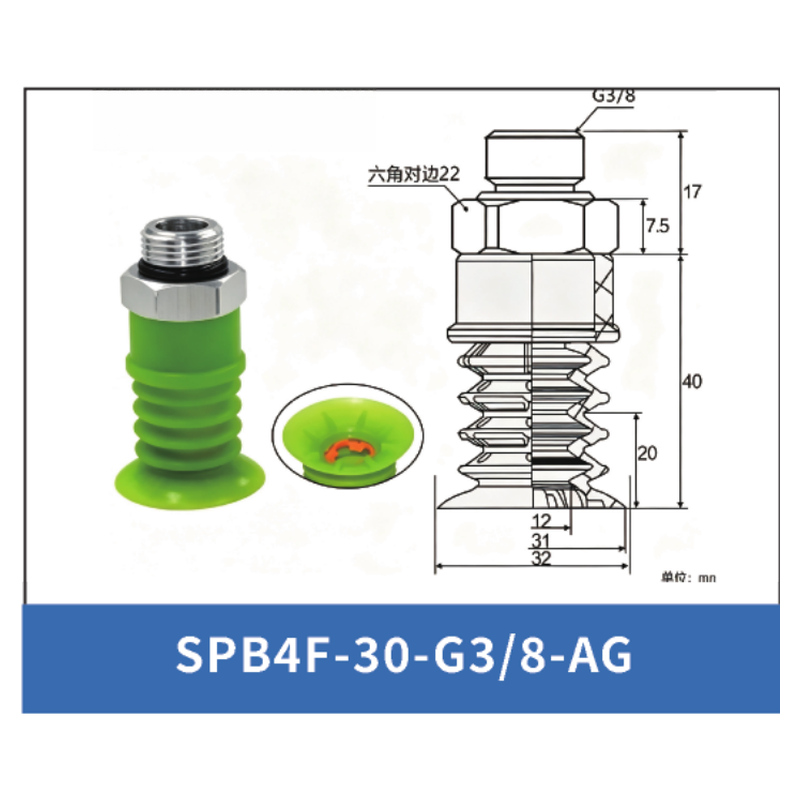

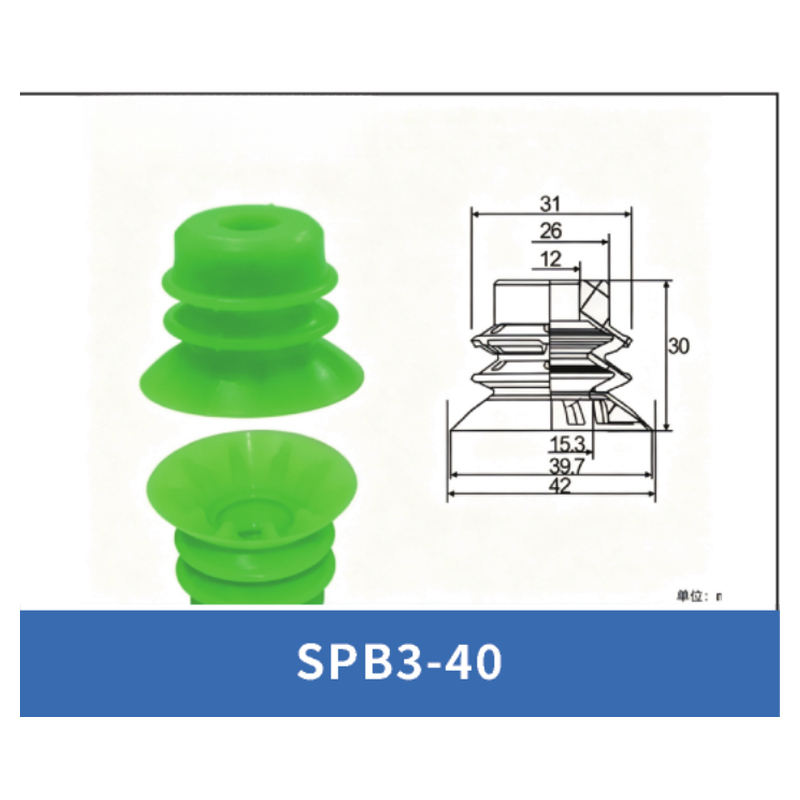

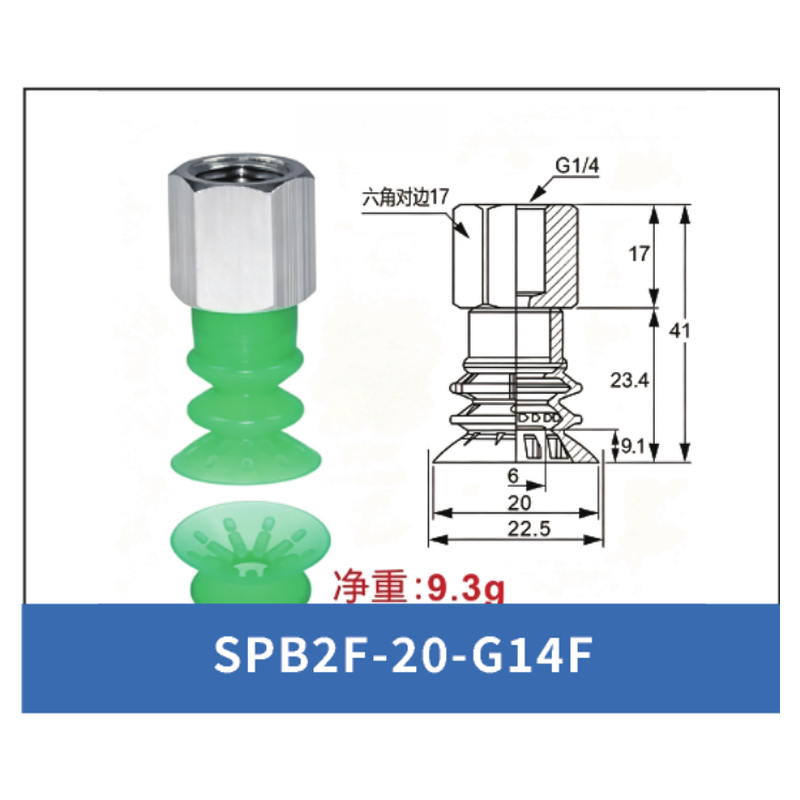

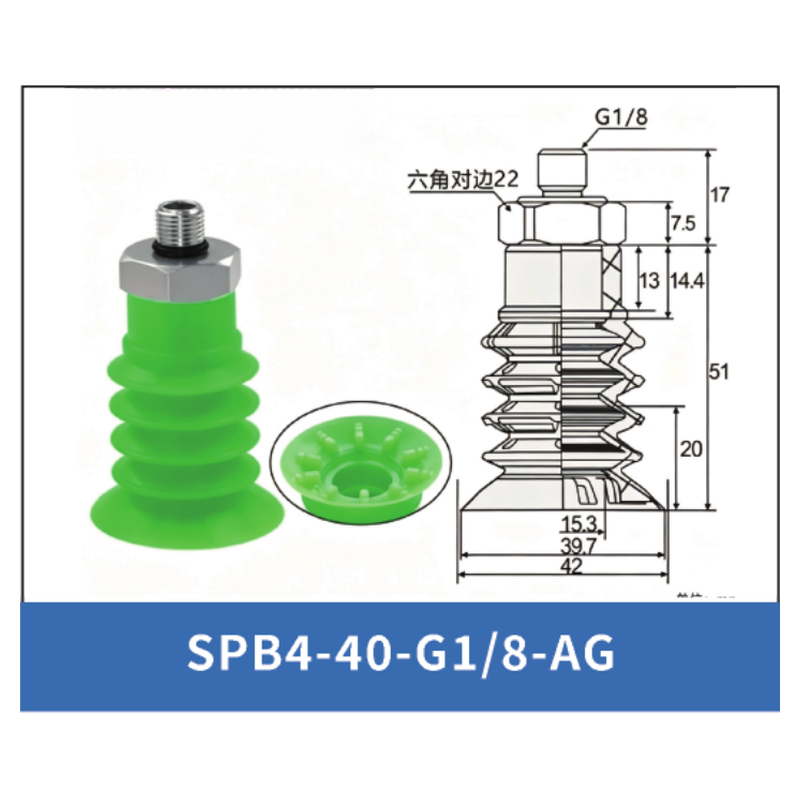

- SPB2, SPB3 and SPB4 profiles provide different stroke and sealing behavior. Cup-only, complete assembly and fitting variants must be selected by full code.

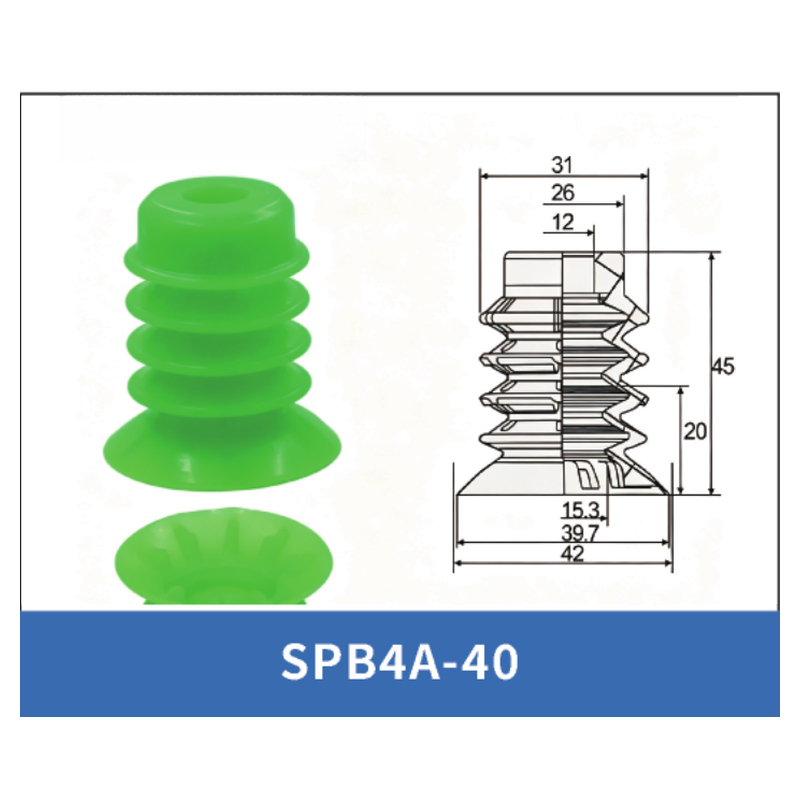

- Bellows models provide additional stroke for curved or height-varying panels; flatter models give more stable positioning on rigid surfaces.
- Polyurethane and wear-resistant compounds are preferred for repeated high-cycle contact with abrasive board.
- Porous cardboard can leak through the surface. Confirm vacuum flow, cup quantity, spacing and safety factor on the actual carton.
