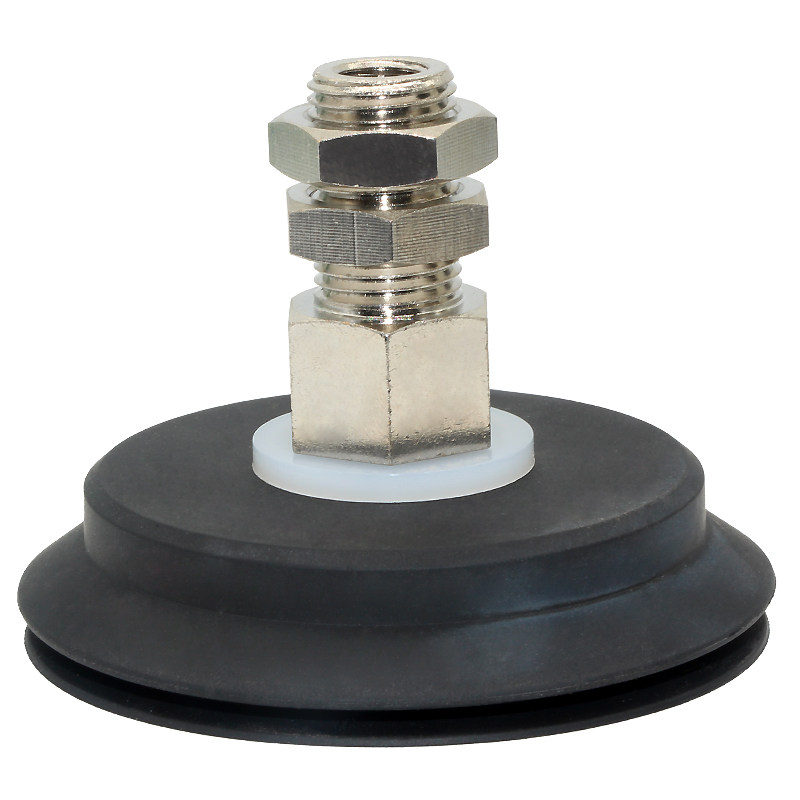

PJTK Vacuum Cup Assemblies, White Silicone or Black Nitrile Rubber (60–80 mm)
PJTK Vacuum Cup Assemblies (60–80 mm)
PJTK vacuum cup assemblies for compatible industrial vacuum systems, automated handling equipment and robotic end-effectors. Select white silicone or black nitrile rubber with the required 60 mm, 70 mm or 80 mm nominal cup diameter.
Quick selection
- Choose the cup diameter: select PJTK-60, PJTK-70 or PJTK-80 according to the required contact area, workpiece geometry and available installation space.
- Choose the material suffix: S identifies the listed white silicone selection; N identifies the listed black nitrile-rubber selection.
- Use the complete model code: each diameter and material suffix is a separate selectable configuration. Do not combine a diameter and suffix from different selections.
- Check the drawing: confirm the selected dimensions, RC1/8 and M16 × 1.5P interface details shown, across-flats, overall height and installation clearance before ordering.
Model-code guide

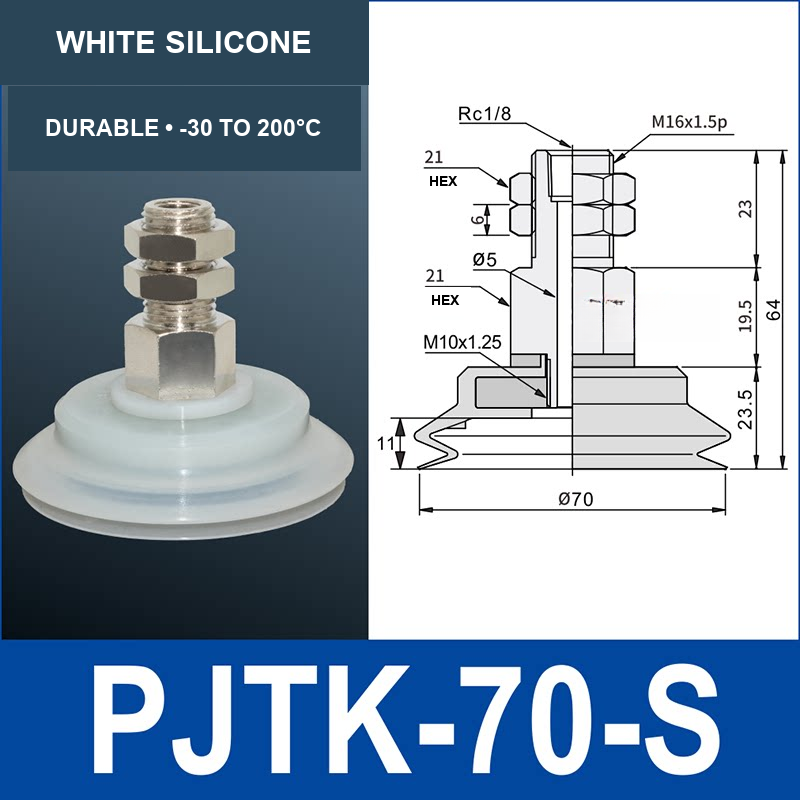

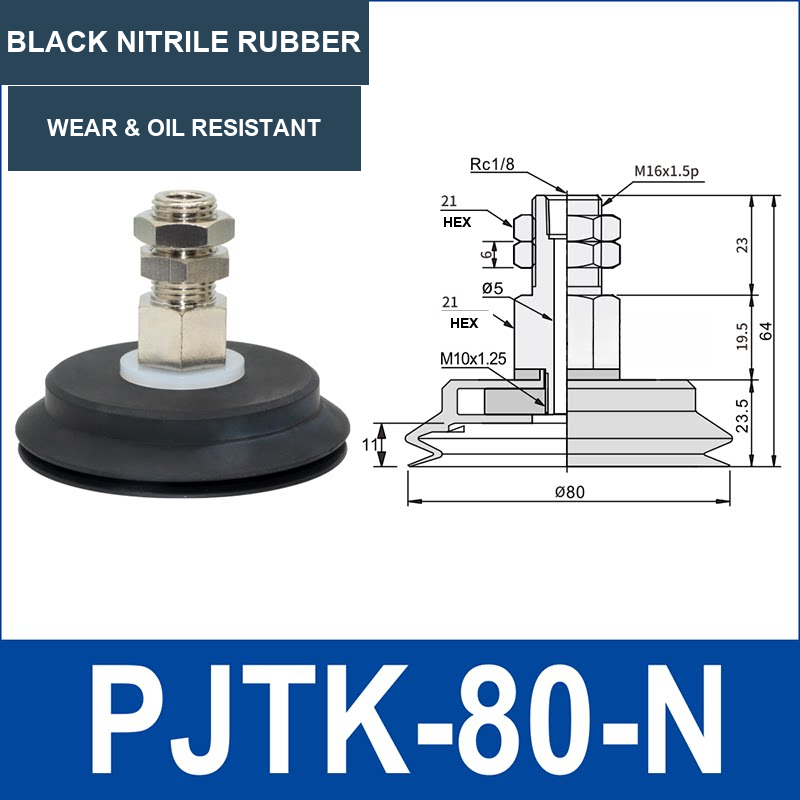

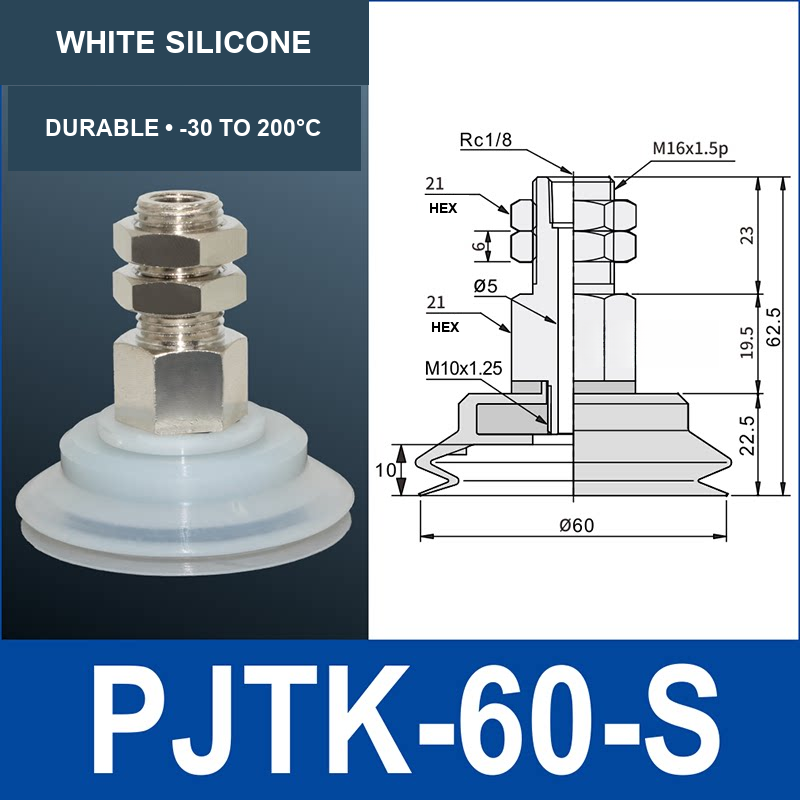

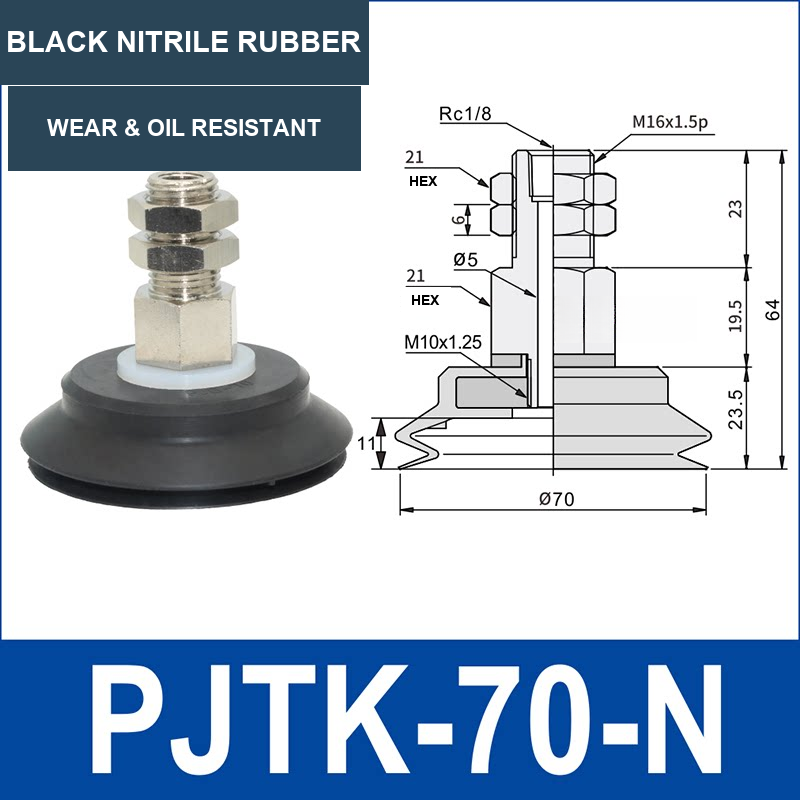

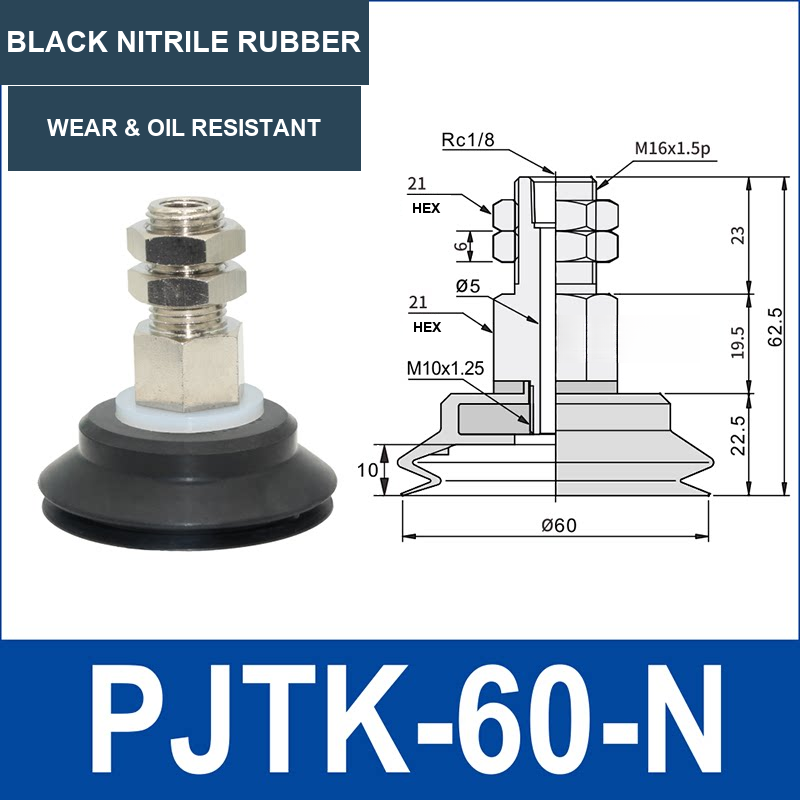

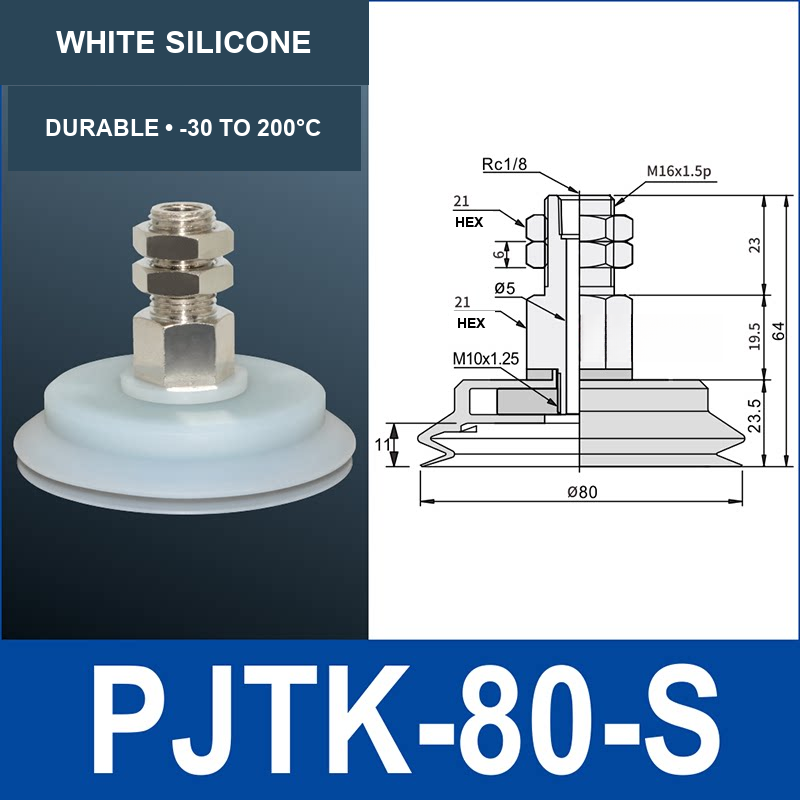

PJTK-[60/70/80]-S identifies the listed white silicone selection. PJTK-[60/70/80]-N identifies the listed black nitrile-rubber selection. Each option displays its matching product view and dimensional drawing.
Suitable for
- Industrial vacuum pick-and-place equipment
- Robotic end-effectors and automation tooling
- Replacement and configuration work for compatible vacuum cup assemblies
Before use
Confirm the complete model code, selected drawing, material compatibility, mounting interfaces, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I choose S or N? Select the supplied white silicone or black nitrile-rubber material designation that matches the application, then check the selected drawing. Can I substitute a different cup diameter? Treat each listed diameter as a separate configuration and compare the dimensions and clearance before substitution.
