PF-60 80 95 M12x1.25 Vacuum Suction Cups
$25.00 USD
$11.25 USD
55% OFF
PF-60 80 95 M12x1.25 Vacuum Suction Cups
Quantity
PF-60 80 95 M12x1.25 Vacuum Suction Cups
PF-series vacuum suction cups with M12×1.25 connections for automated handling equipment.
- Choose a model to view its matching product image.

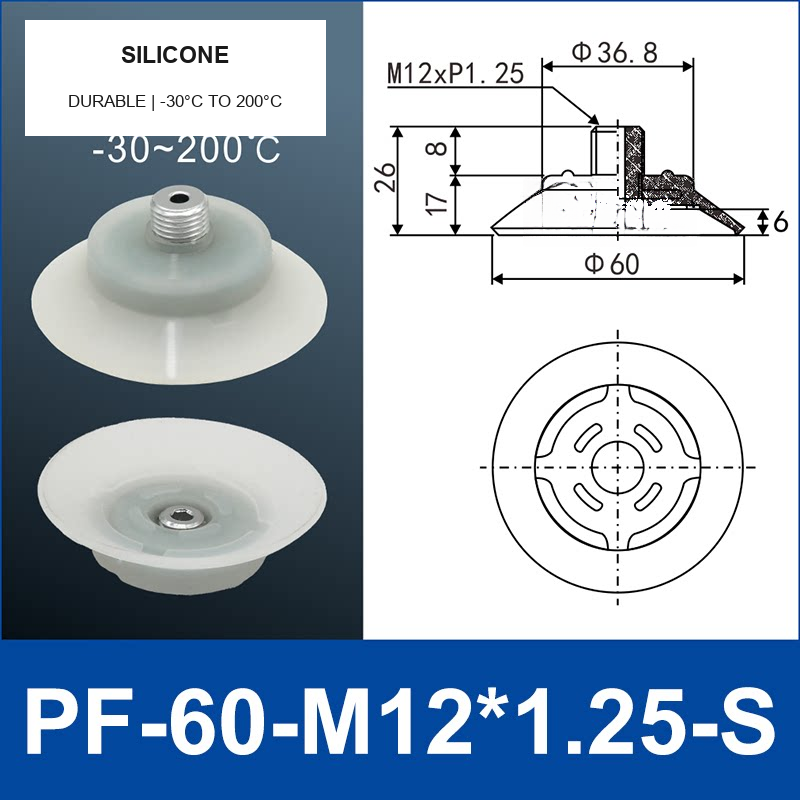

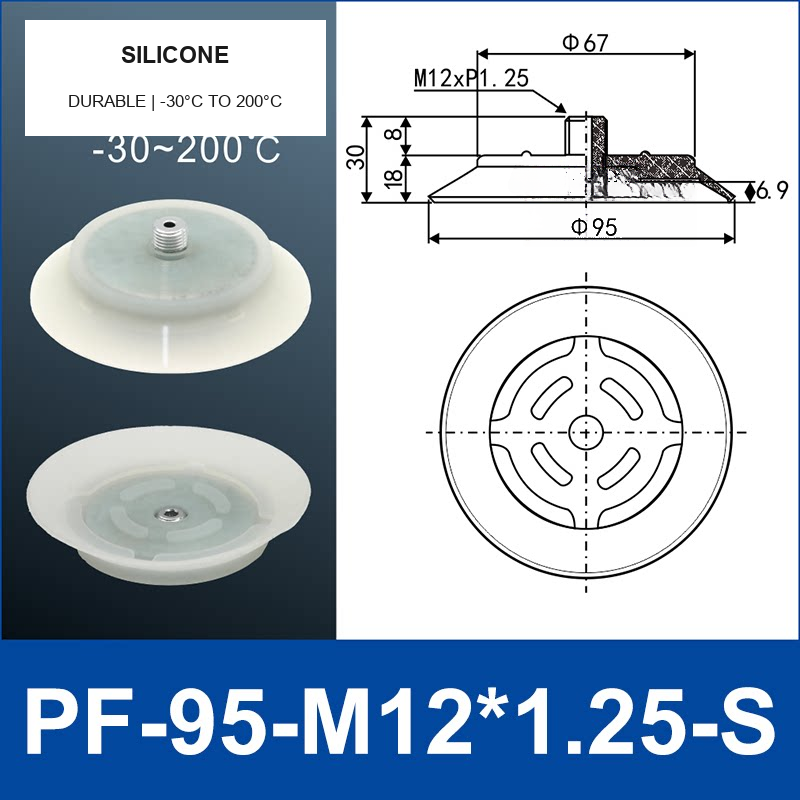

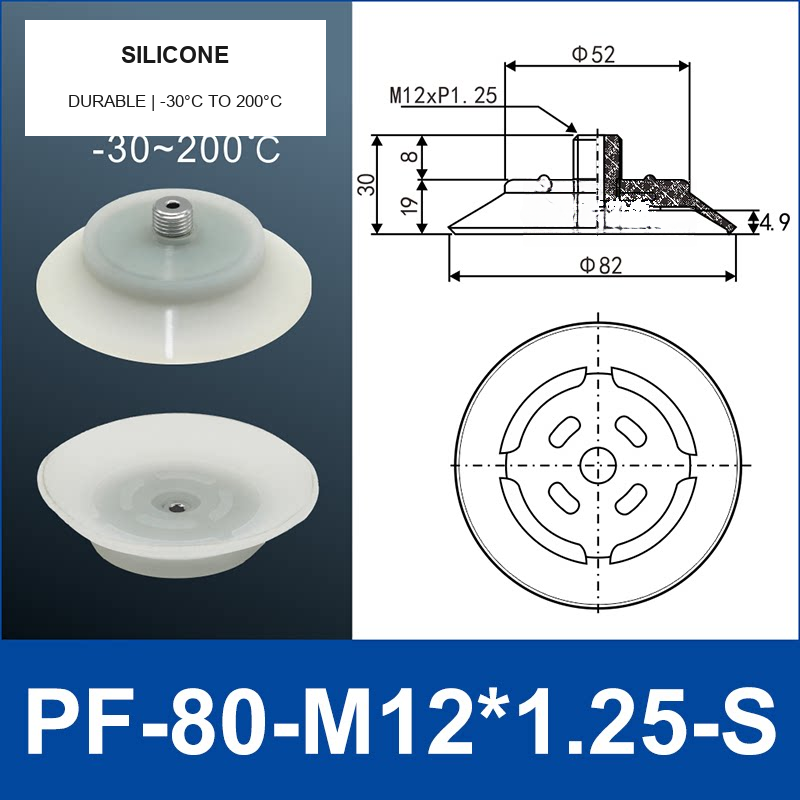

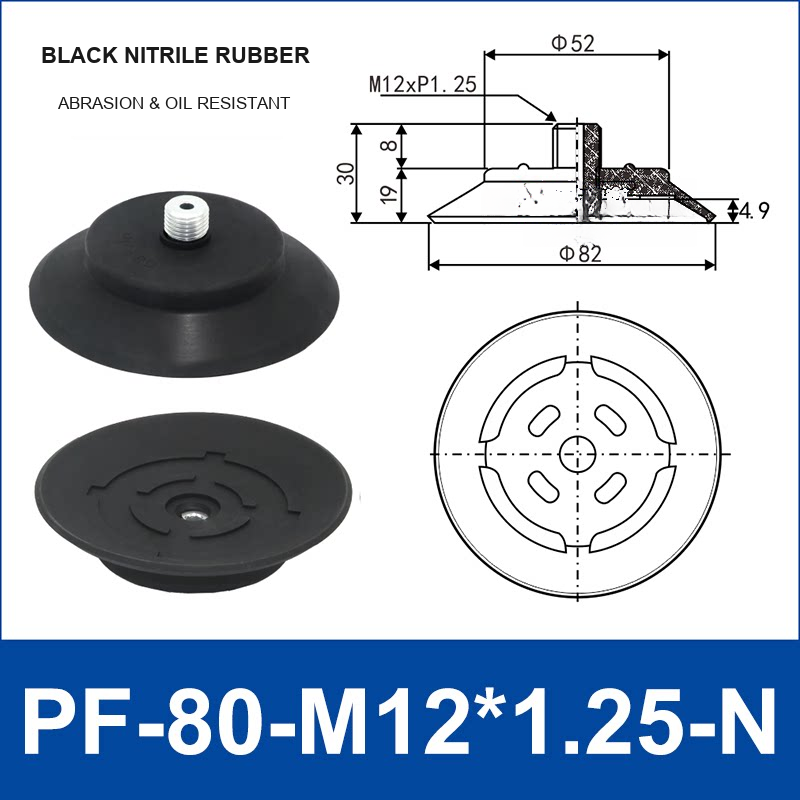

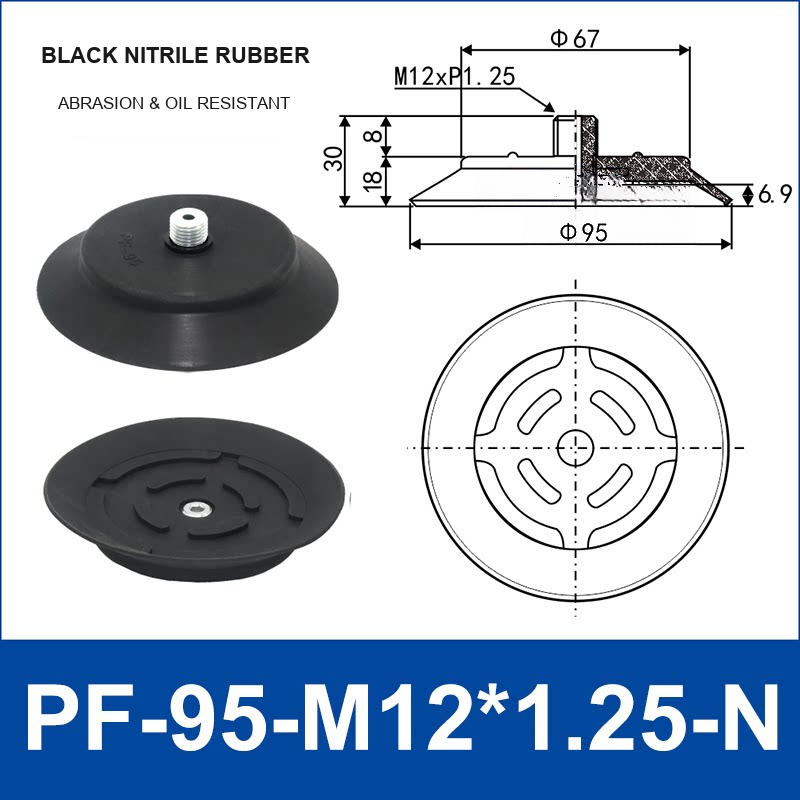

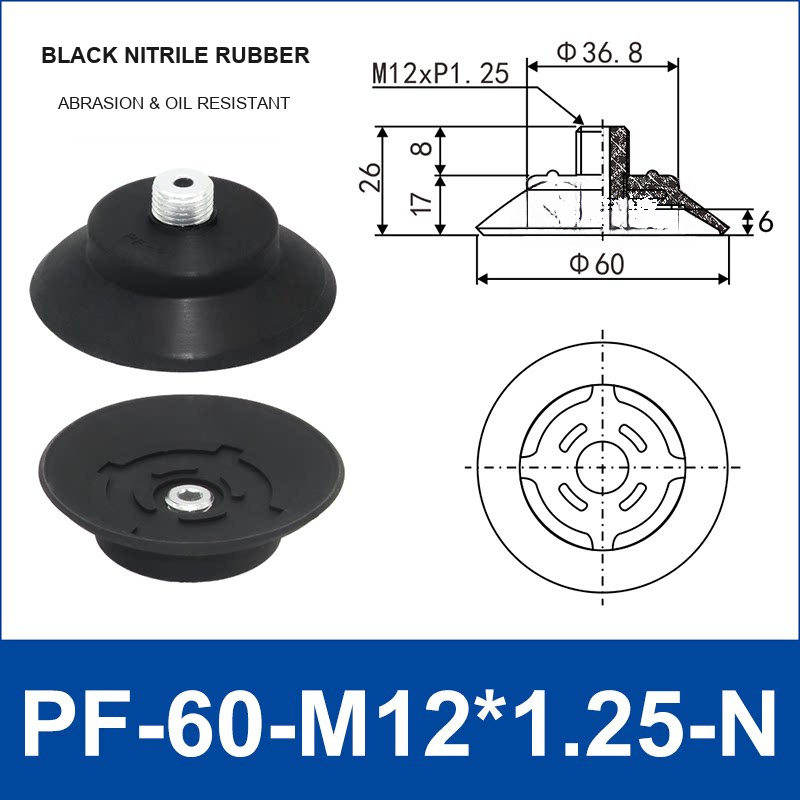

- Product images show technical dimensions for model selection.
Applications and Suitable Workpieces
PF-60 80 95 M12x1.25 Vacuum Suction Cups: Flat suction cups provide stable positioning on smooth, flat or only slightly curved non-porous workpieces.
Recommended applications
- Sheet metal, glass, smooth plastic parts, coated panels, electronics panels and other flat industrial components.
- Machine loading and unloading, sorting, assembly, transfer and general automated pick-and-place.
- Thin sheets where a low internal volume and controlled vacuum can help reduce movement during pickup.
Model and selection notes
- PF60, PF80 and PF95 identify diameter; N and S identify nitrile-rubber and silicone versions. All use the listed M12x1.25 connection.
- Select diameter according to the available sealing area, workpiece mass, acceleration and mounting direction.
- Silicone suits clean parts and wider temperature conditions; NBR suits general industrial use, abrasion and lightly oily surfaces; conductive grades are only for static-sensitive handling where identified.
- Rough, porous, deeply curved or perforated surfaces may not seal. Confirm holding force on the actual part with an appropriate safety factor.
