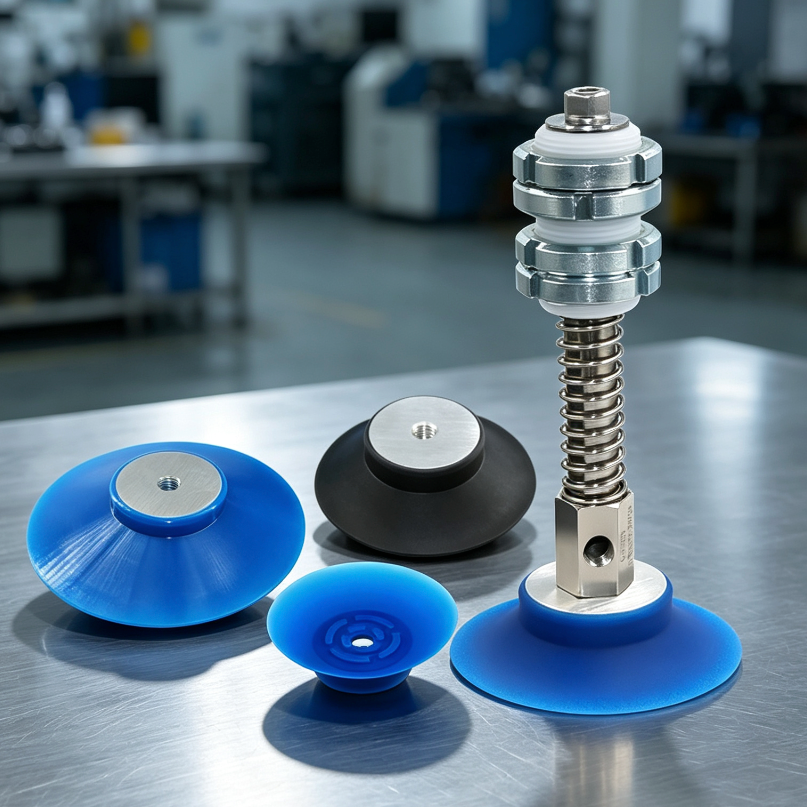

JK-88, JK-100 and JK-120 Silicone Vacuum Cups & M30-L155 Spring Mounts
Industrial silicone vacuum cups and spring-loaded mounting assemblies for compatible pick-and-place and robotic end-of-arm tooling. Select the exact diameter, material and mounting thread shown in the model-specific image.
- 28 selectable model configurations

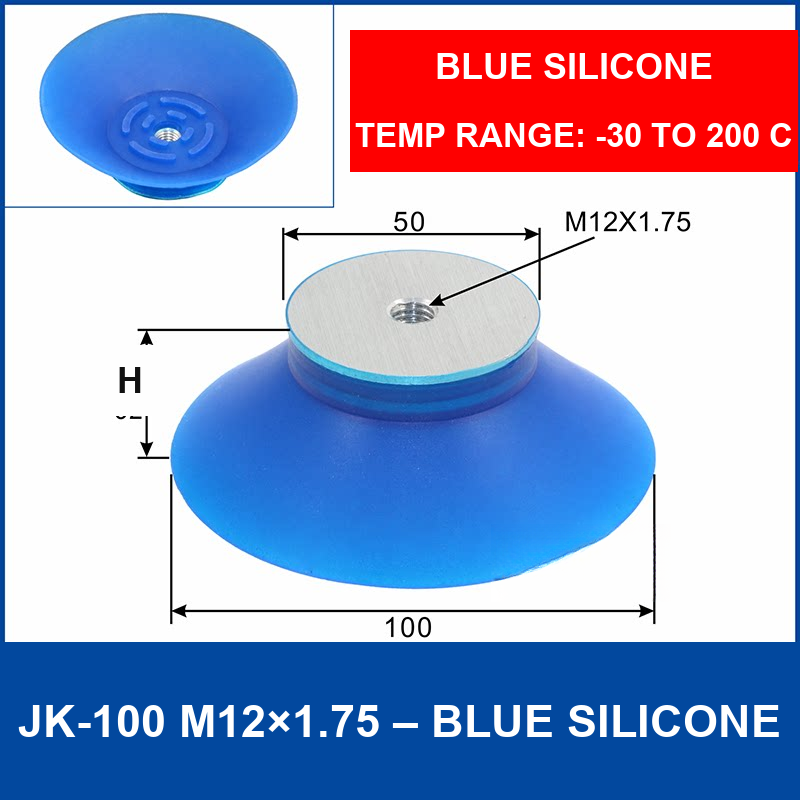

- 88 mm, 100 mm and 120 mm vacuum cup sizes
- Blue silicone, white silicone and antistatic silicone options

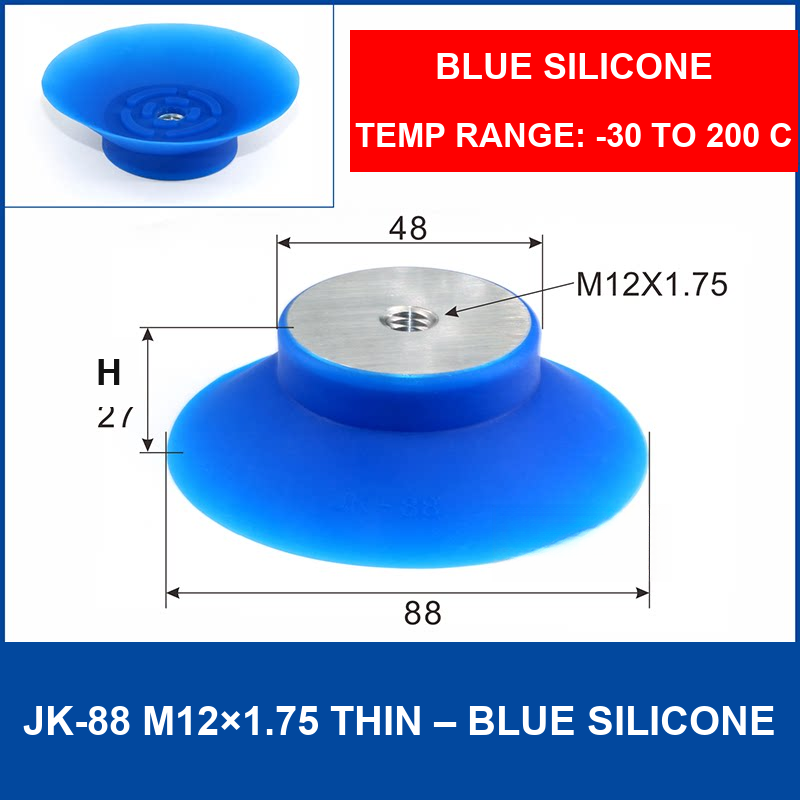

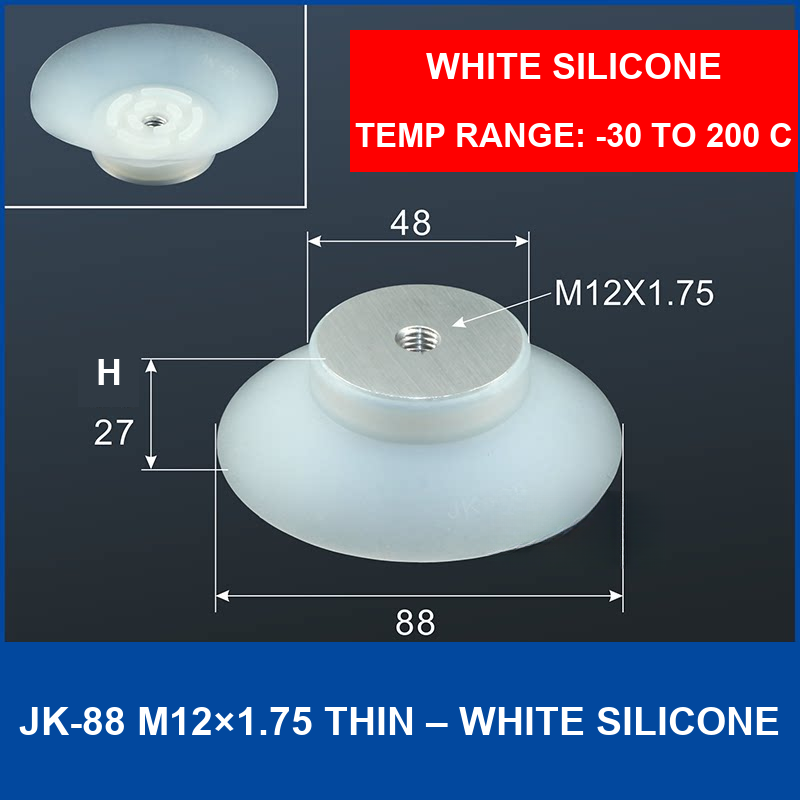

- M10 x 1.5 and M12 x 1.75 threaded cup configurations

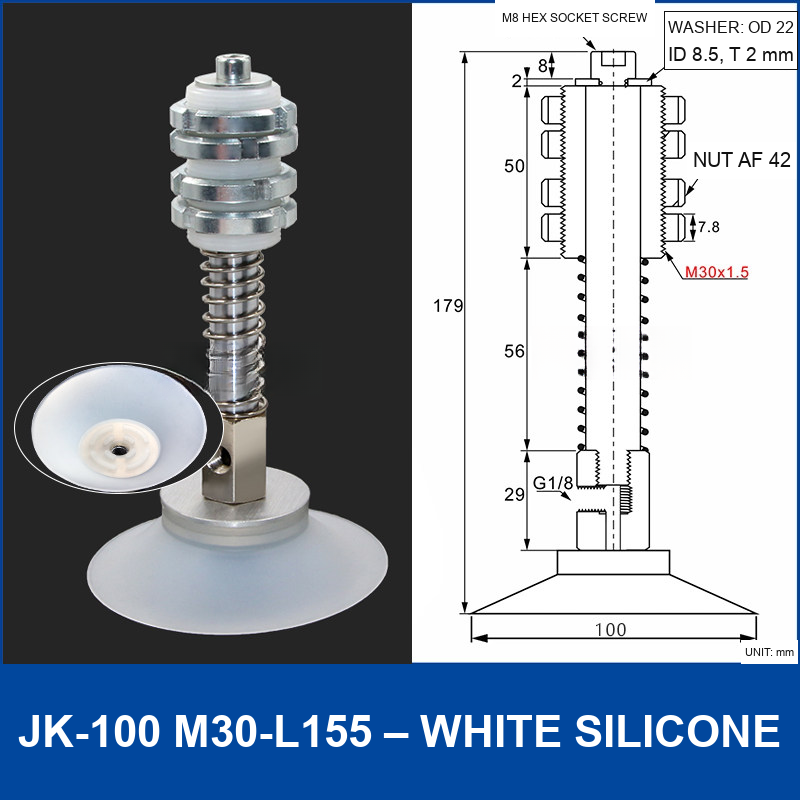

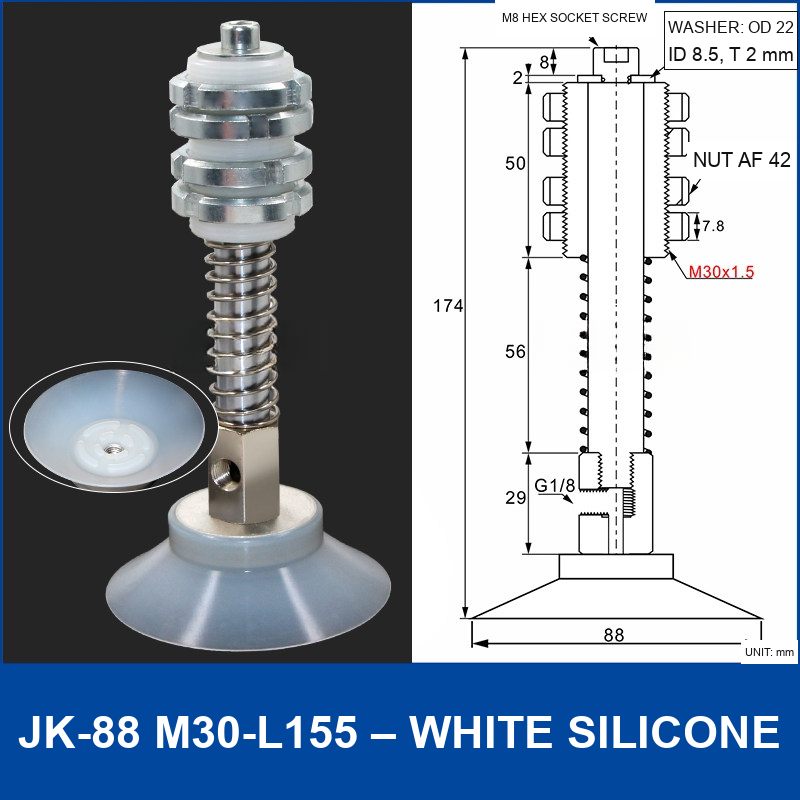

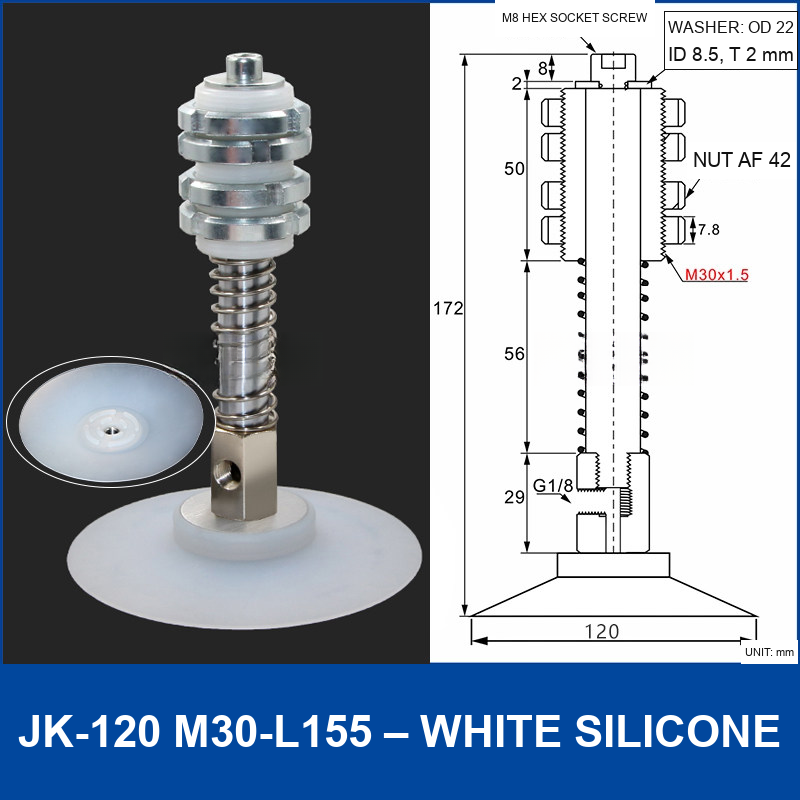

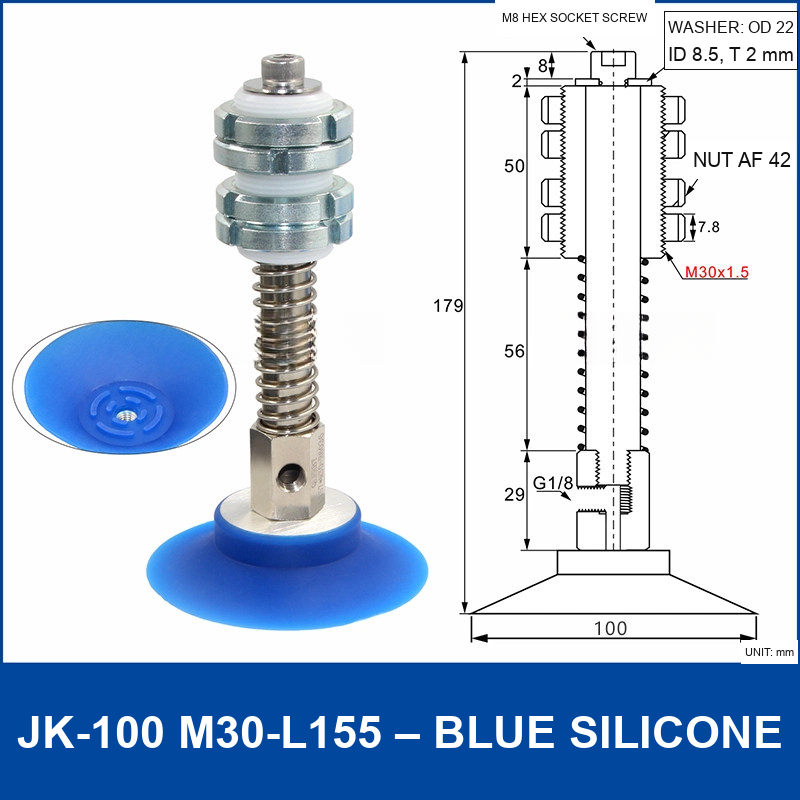

- M30 x 1.5 spring-mount assemblies and a standalone M30-L155 mount
- Source silicone specification lists a -30 to 200 degrees C temperature range
- Product images show dimensions, thread callouts and mechanical structure
- Model-specific product and dimensional images are provided
JK cups and M30-L155: identify the required configuration
The JK range contains cup selections and spring-mount assemblies. Keep diameter, thin/thick designation, material and mounting form together in the order.
| Selection detail | What to check |
|---|---|

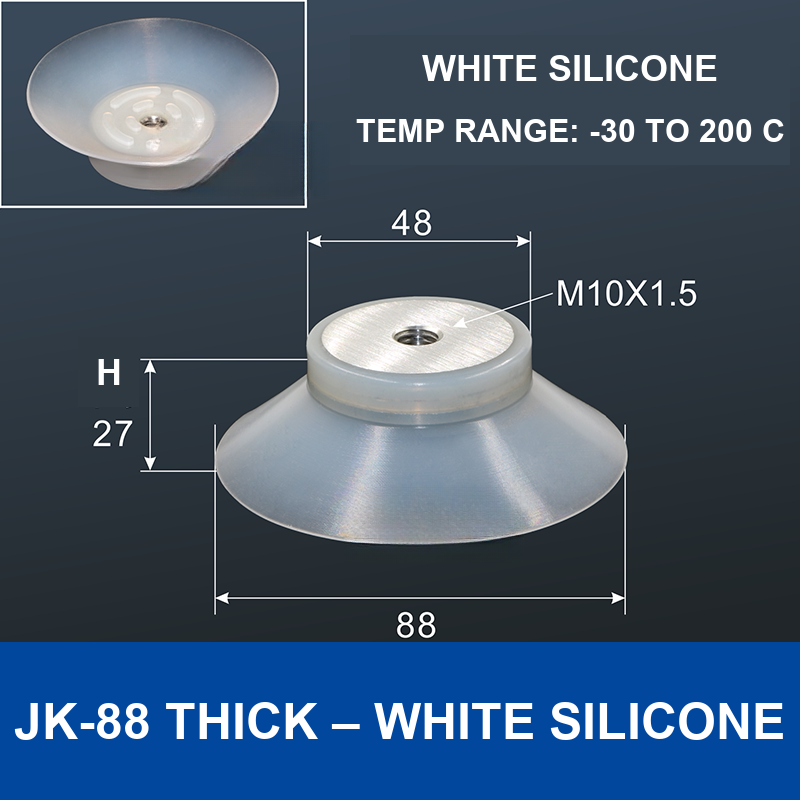

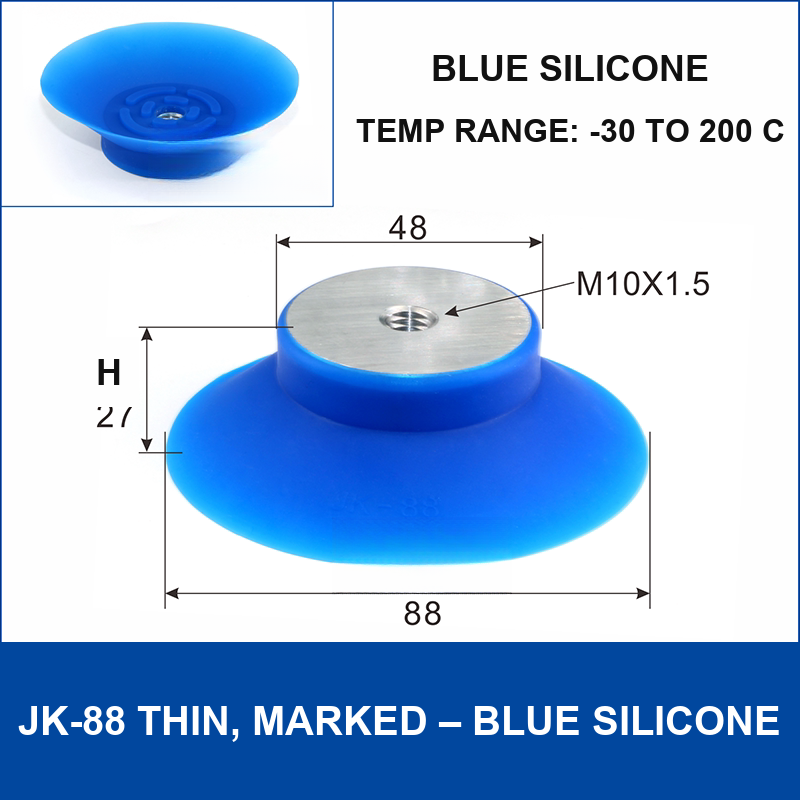

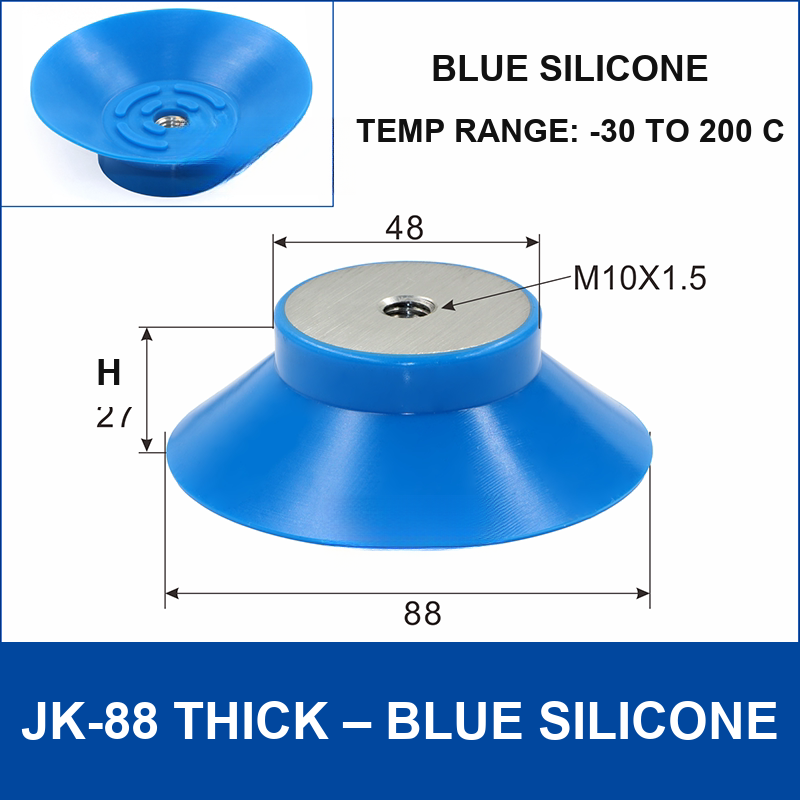

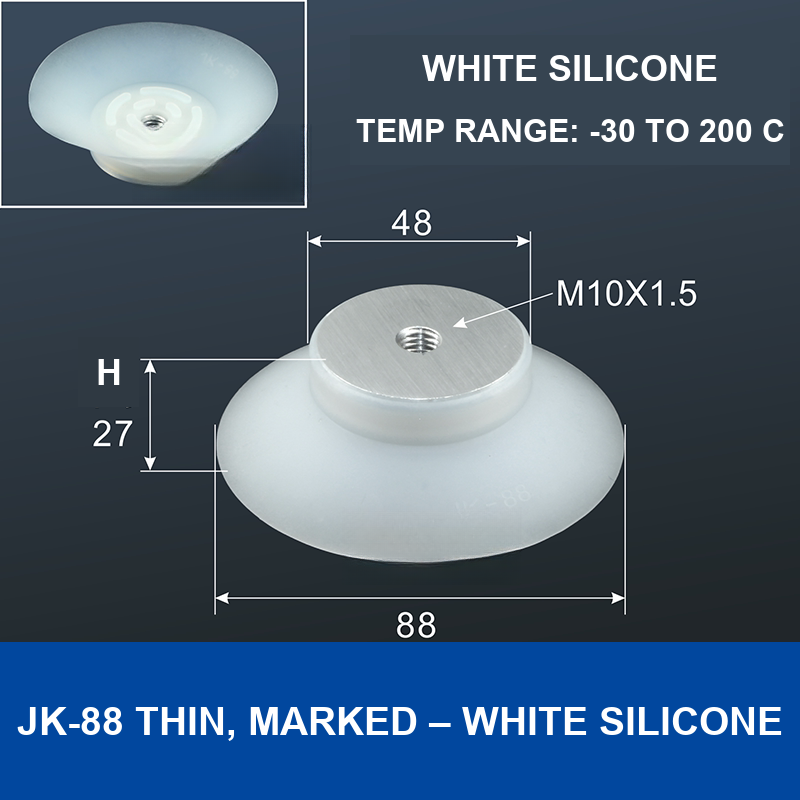

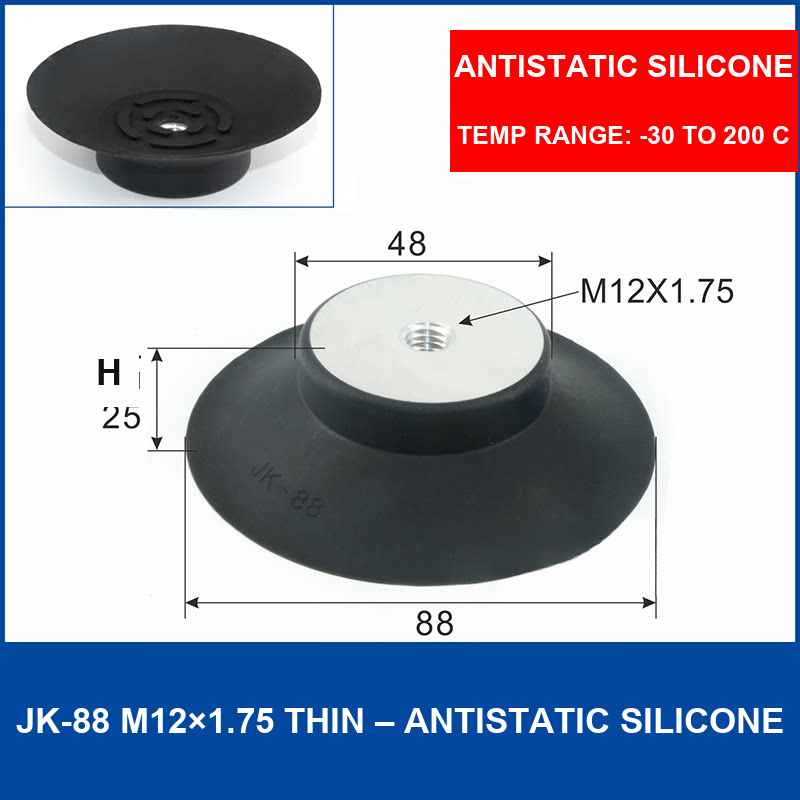

| JK-88 Thin, Marked / JK-88 Thick | Compare the exact profile and drawing; diameter alone is insufficient. |

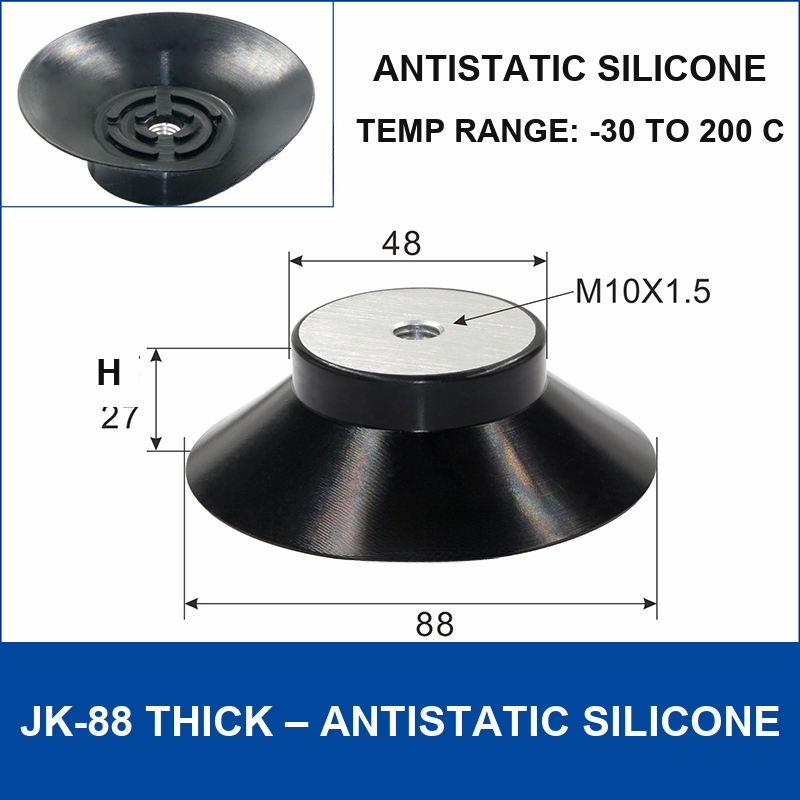

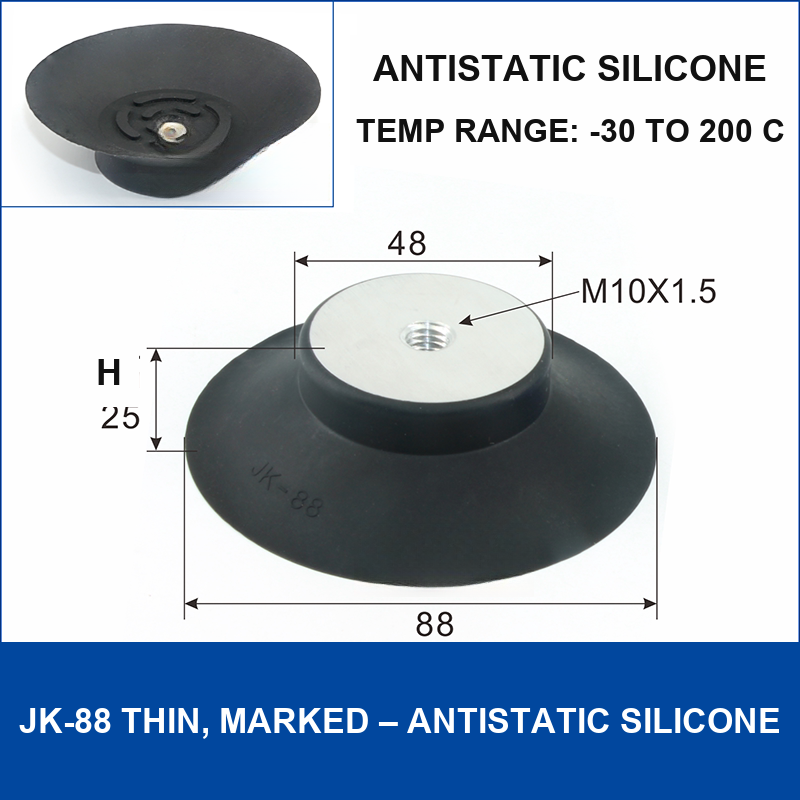

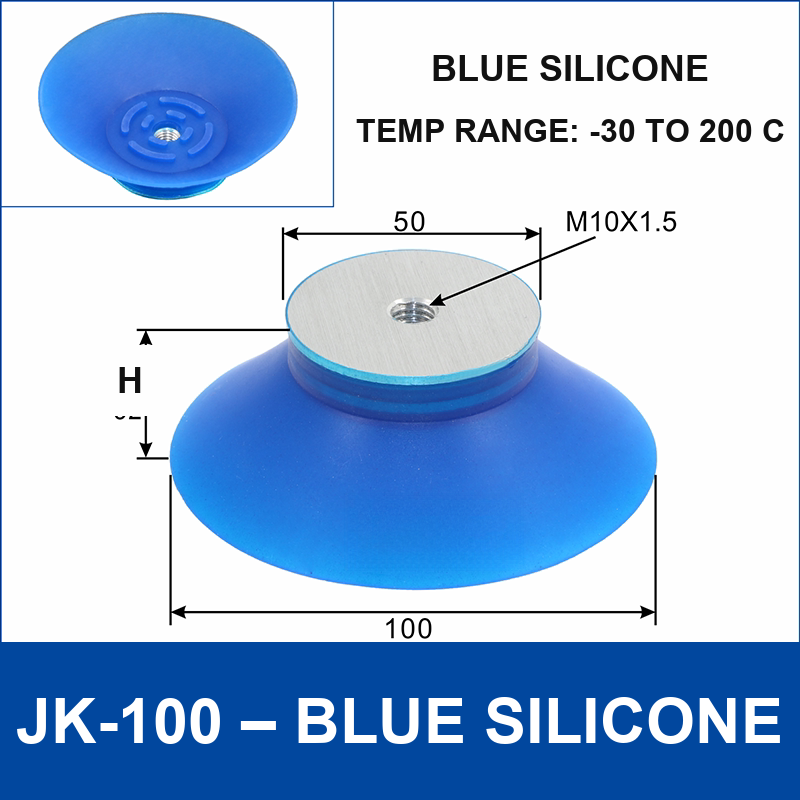

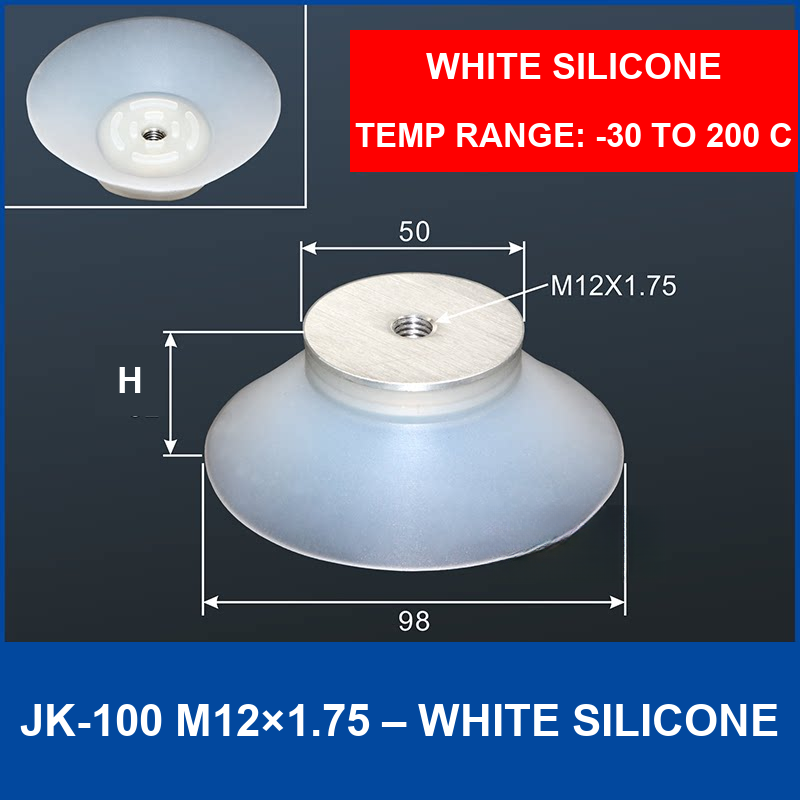

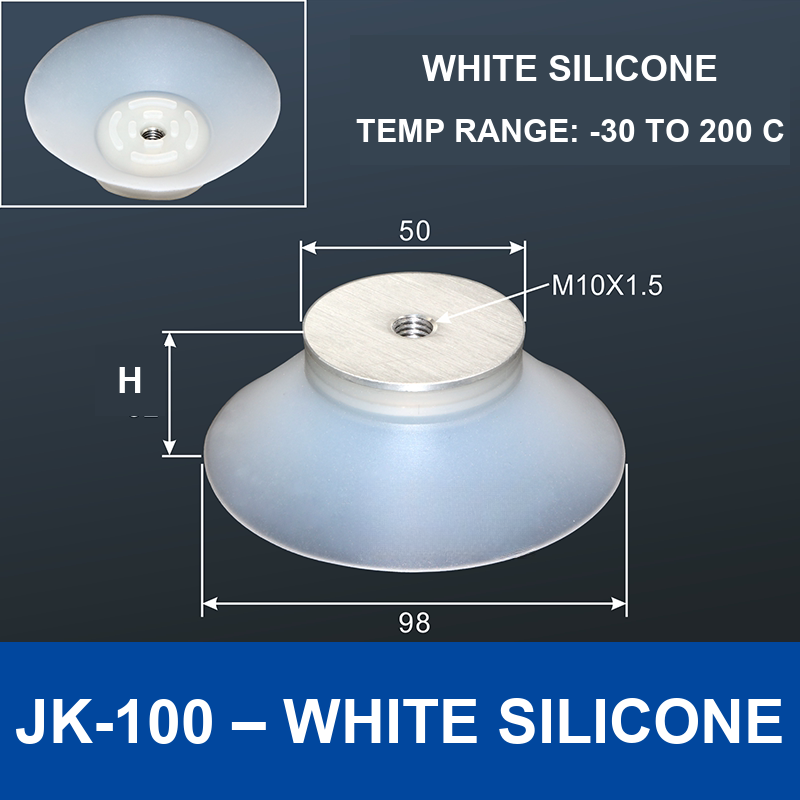

| Blue, white or antistatic silicone | Use the selected material label; request electrical documentation if an ESD-controlled process is involved. |

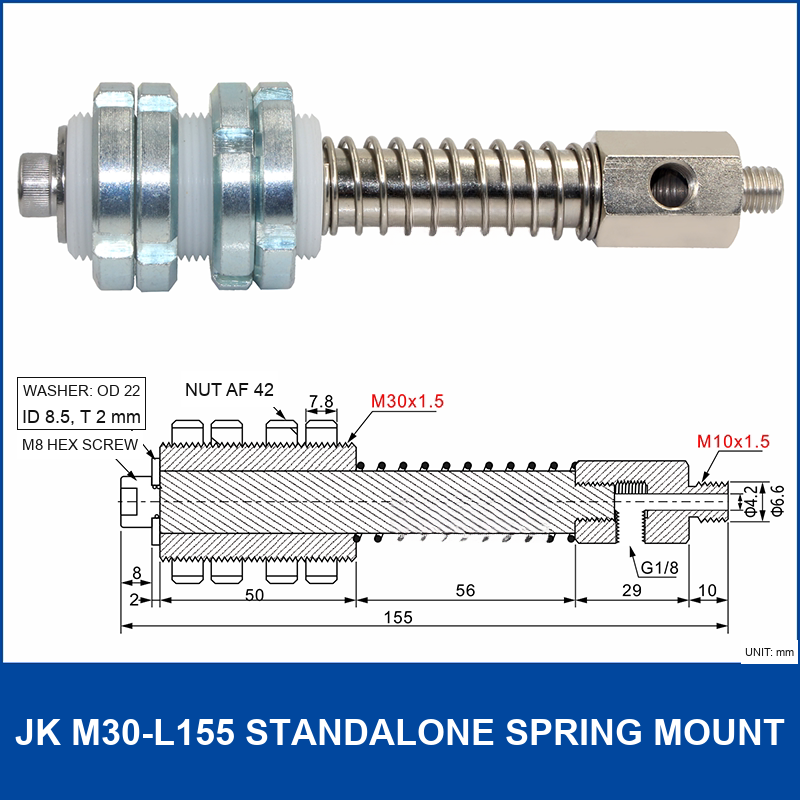

| M30-L155 standalone mount | A mounting-hardware selection is not automatically a cup-and-mount assembly. |
Does antistatic silicone mean the whole tool is ESD certified?
No. Verify material resistance and the complete grounded handling system against your process requirements; a material label does not certify the assembly.
Related selection references
Compare the drawings and intended function; these references are not a statement of direct interchangeability.
Applications / Suitable For
- Sheet, panel and flat-workpiece pick-and-place handling
- Robotic end-of-arm tooling requiring spring compliance
- Packaging, loading, transfer and positioning equipment
Confirm the selected model drawing, cup material, diameter, thread, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
