Industrial Vacuum Suction Cups & Bag Clamping Pads for Packaging Machines

Industrial Vacuum Suction Cups & Bag Clamping Pads for Packaging Machines

For packaging automation, this listing provides multiple vacuum cup and bag-clamping variants designed for different film materials, opening methods, and machine conditions. Select the exact model before ordering; model images help identify the correct geometry and form.

Product Scope

Each variant corresponds to a specific model code shown in the selector and its image. The variant image includes technical structure and model identification, which should be matched to your machine requirement and cup interface.

Model Family Summary (This Product Listing)

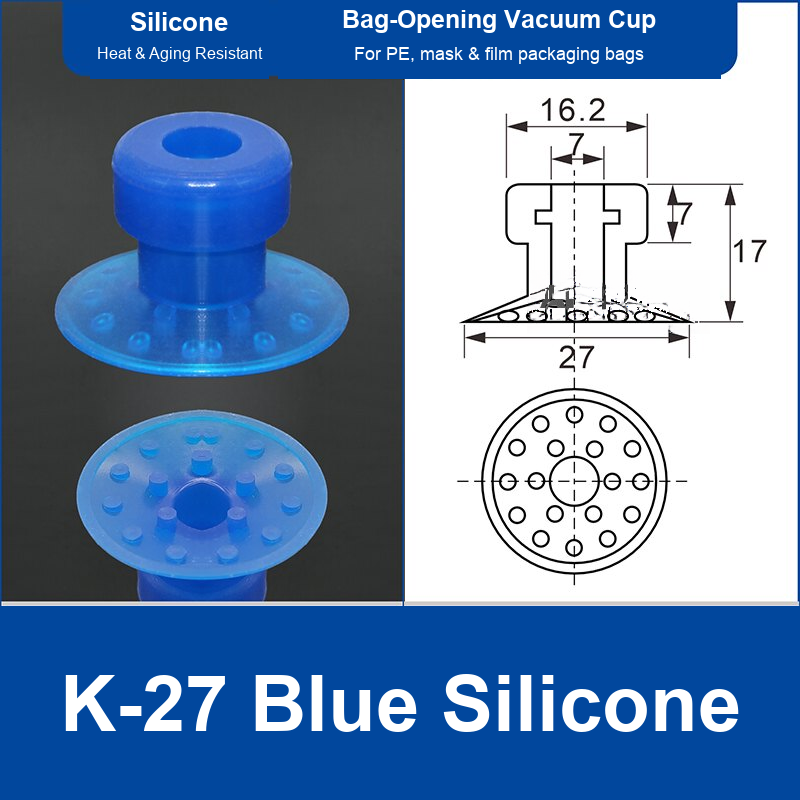

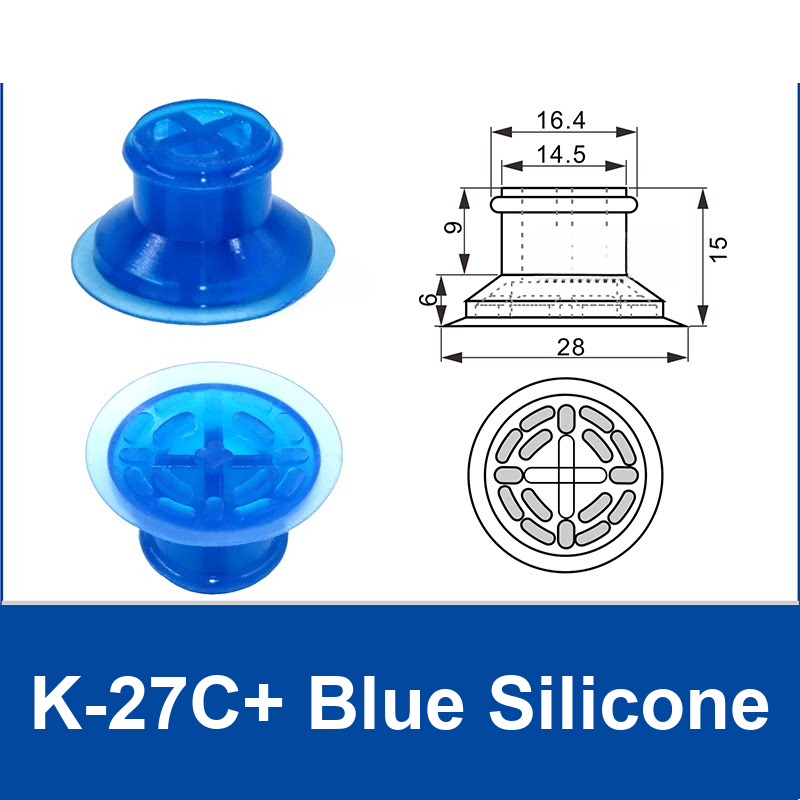

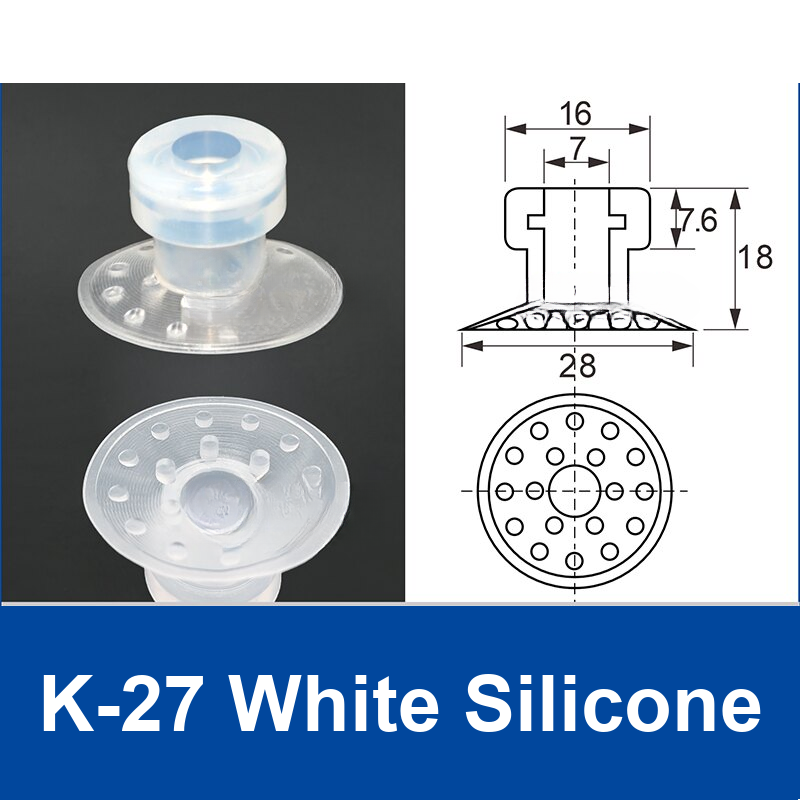

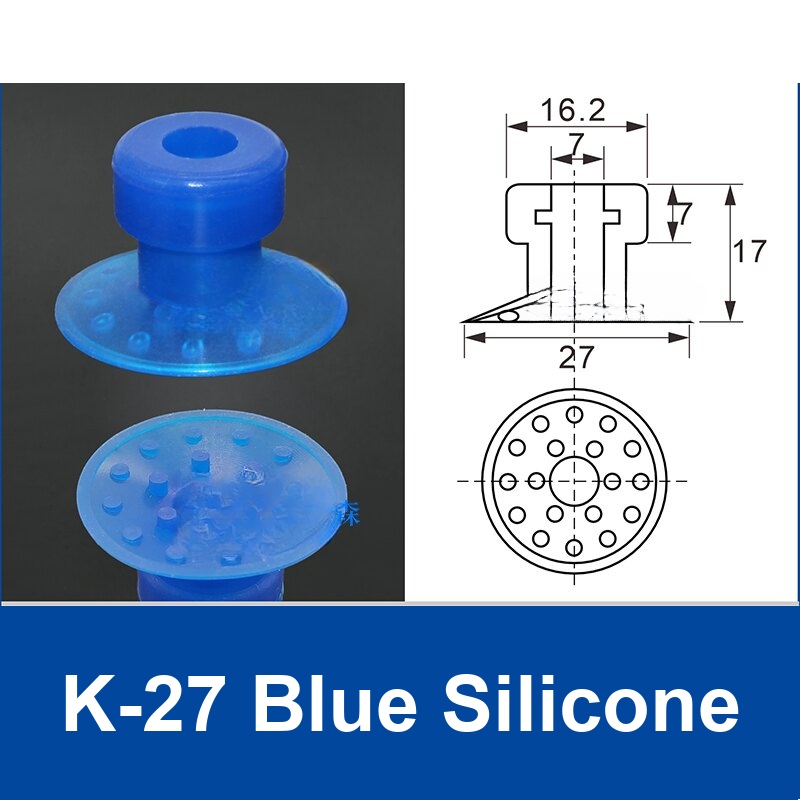

• K: 24 model(s). Typical names include K-27 Blue Silicone etc.
• AFS: 15 model(s). Typical names include AFS-68-S-Type A Silicone etc.

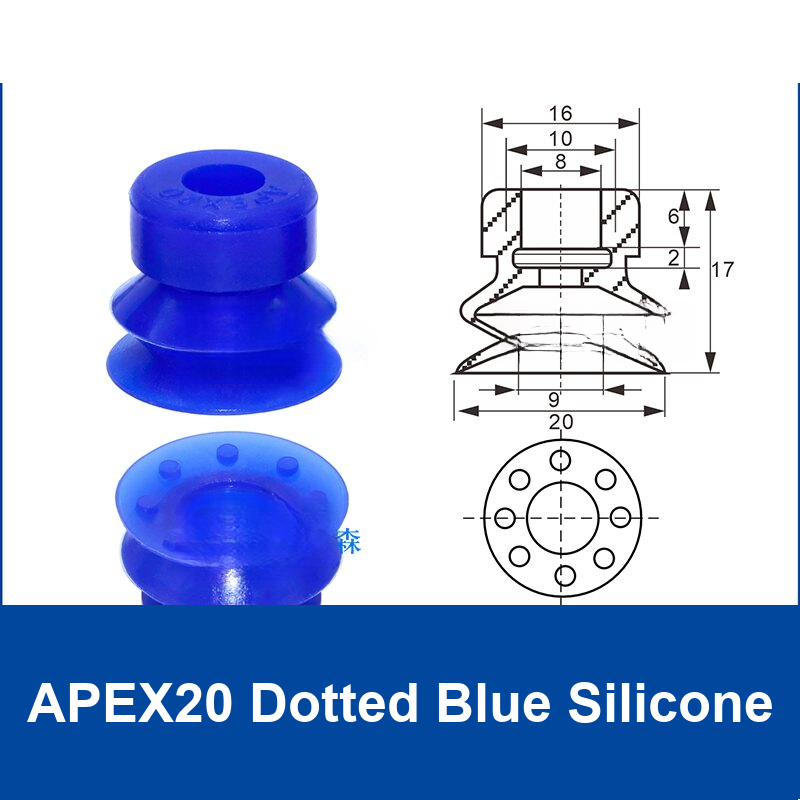

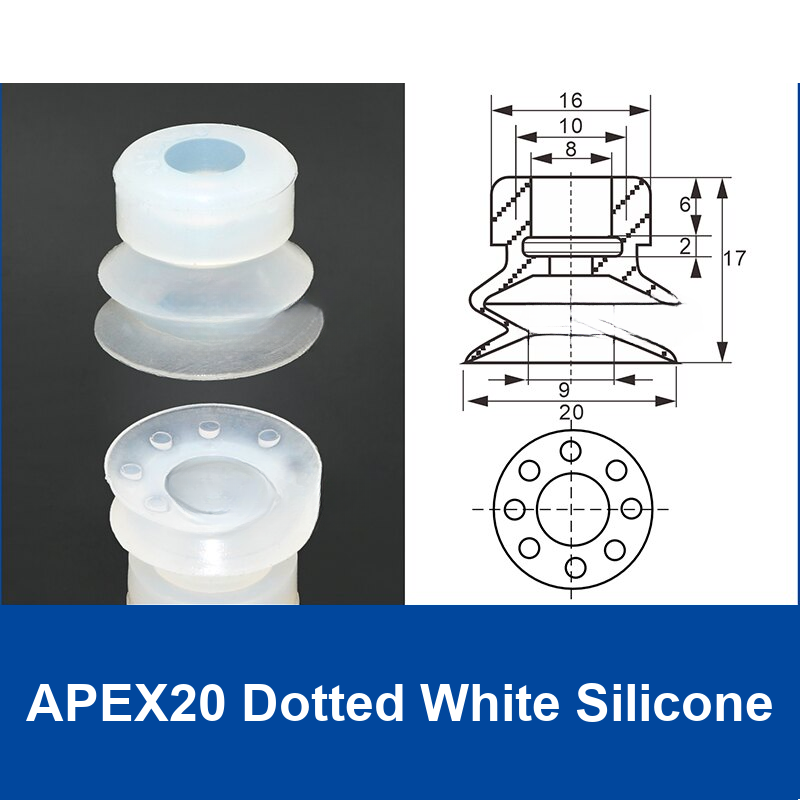

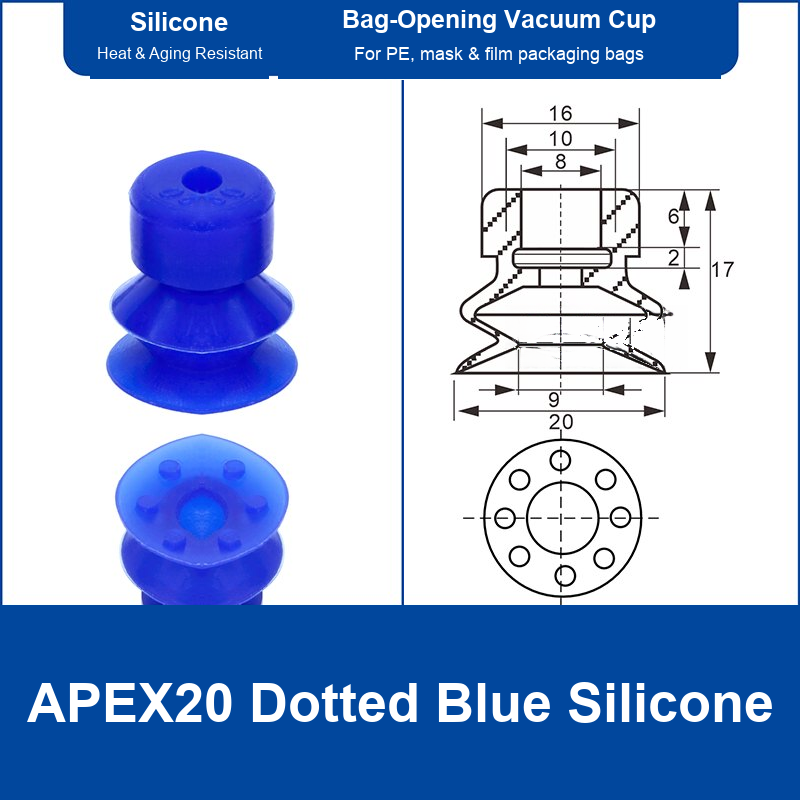

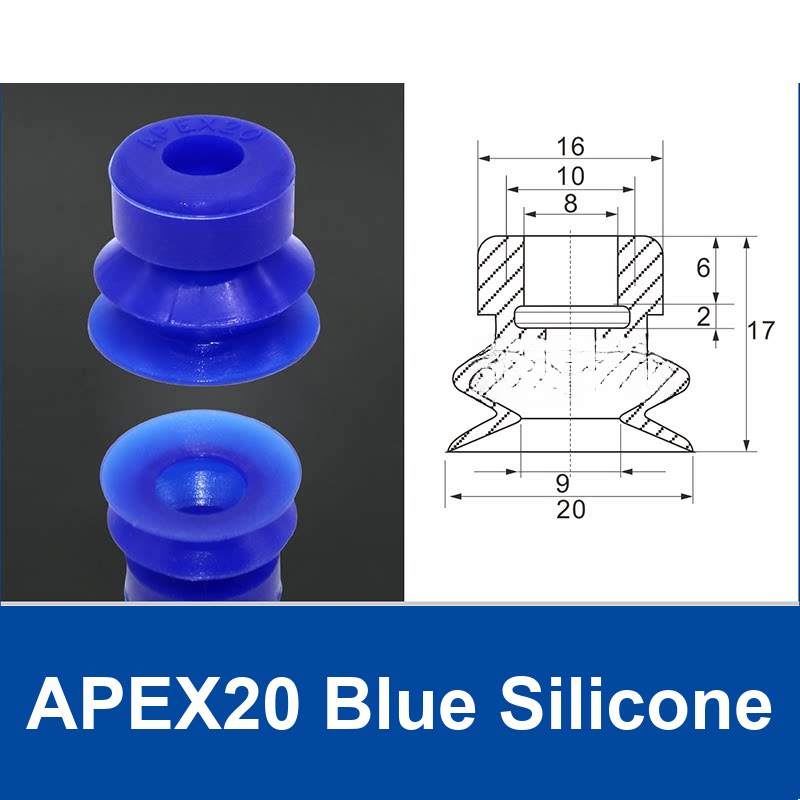

• APEX20: 8 model(s). Typical names include APEX20 White Silicone etc.
• SGP: 6 model(s). Typical names include SGP-15 White Silicone etc.

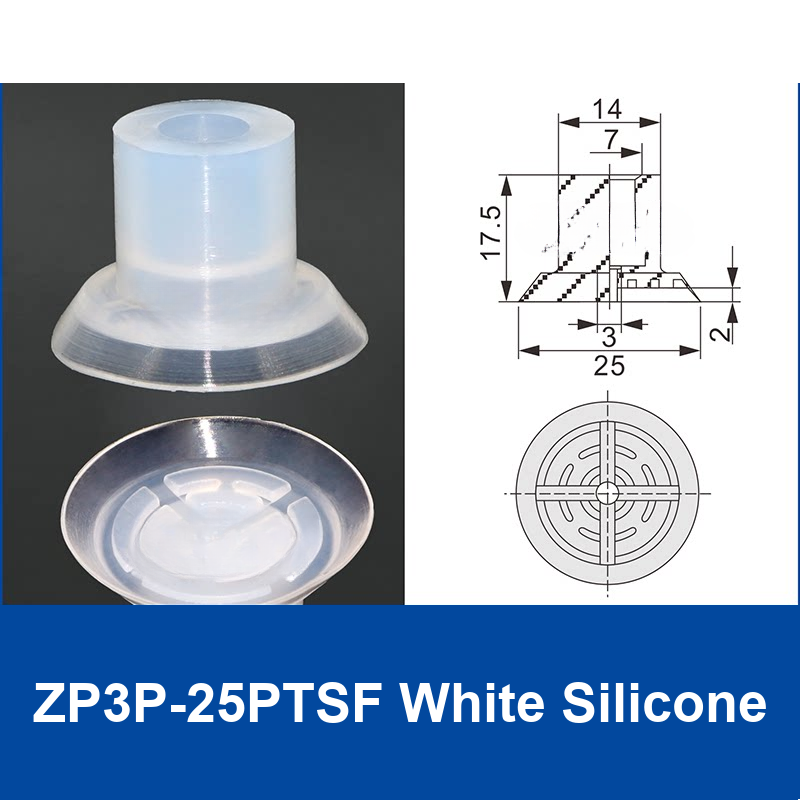

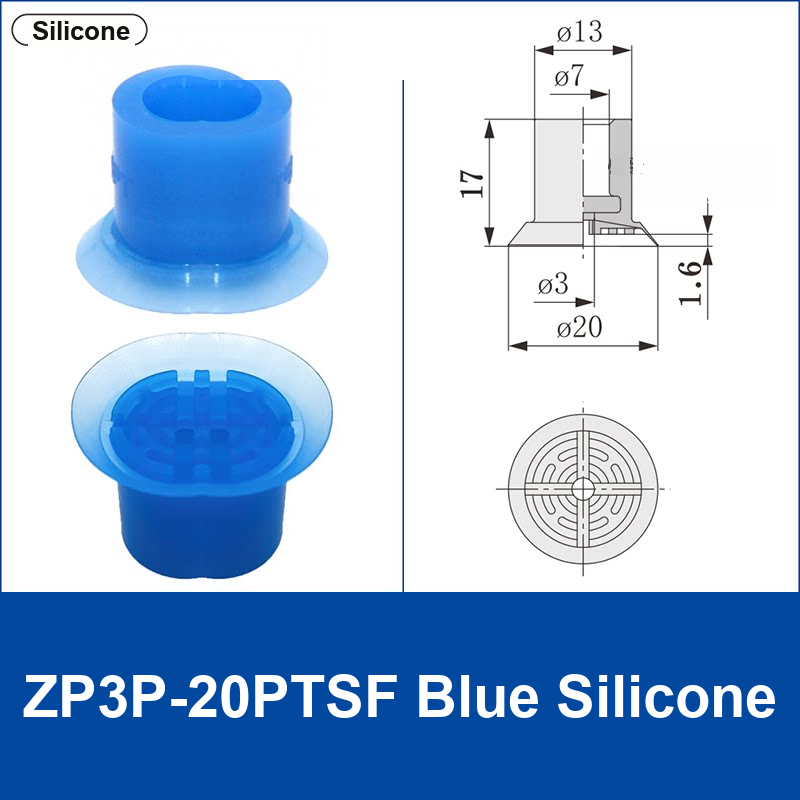

• ZP3P: 5 model(s). Typical names include ZP3P-20PTSF Blue Silicone etc.

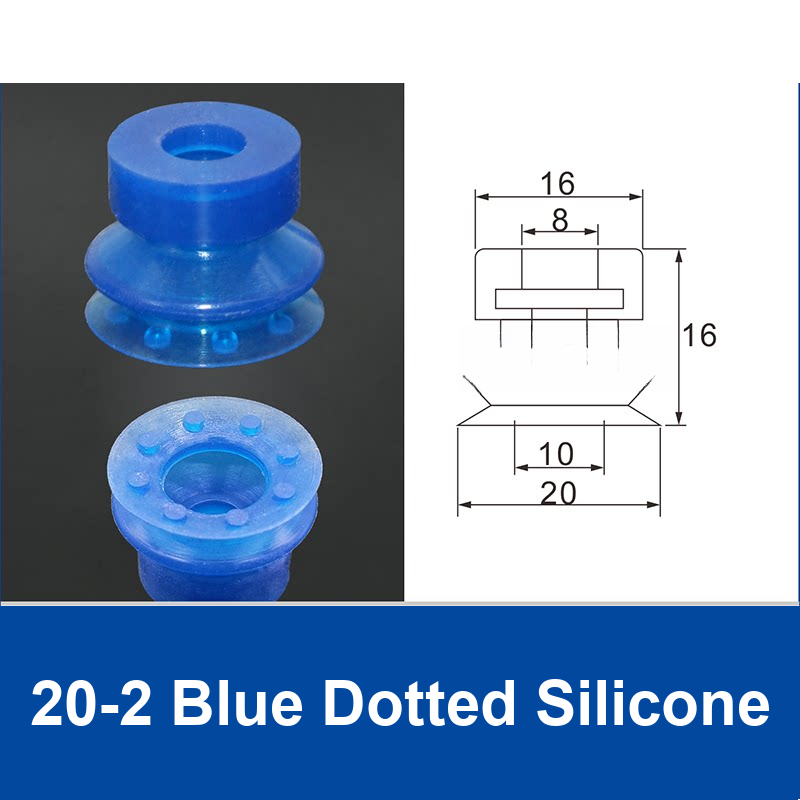

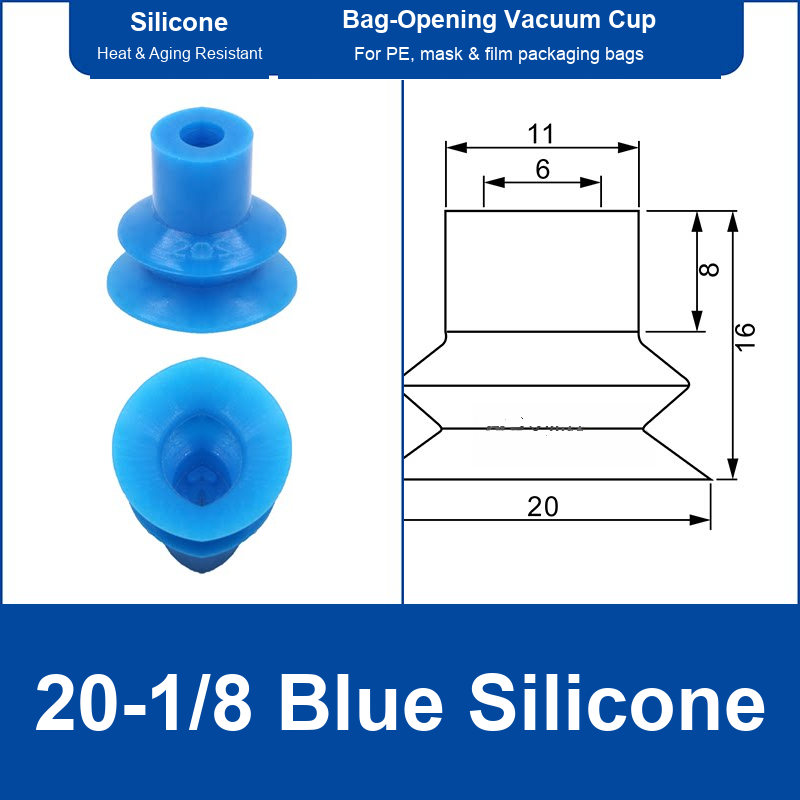

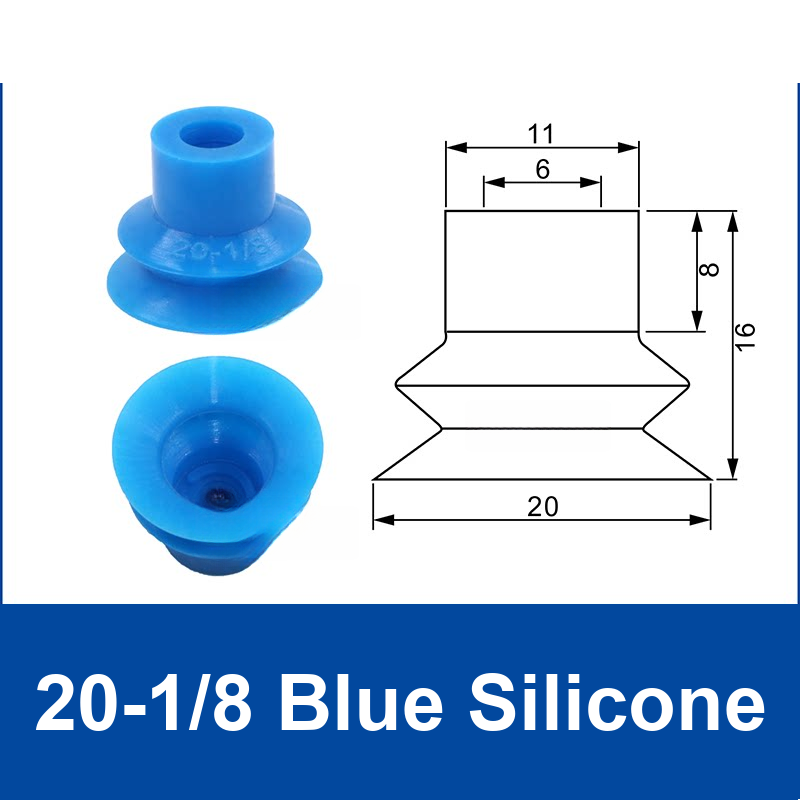

• 20: 3 model(s). Typical names include 20-2 Blue Dotted Silicone etc.
• APEX12: 3 model(s). Typical names include APEX12-1 Blue Standard Silicone etc.

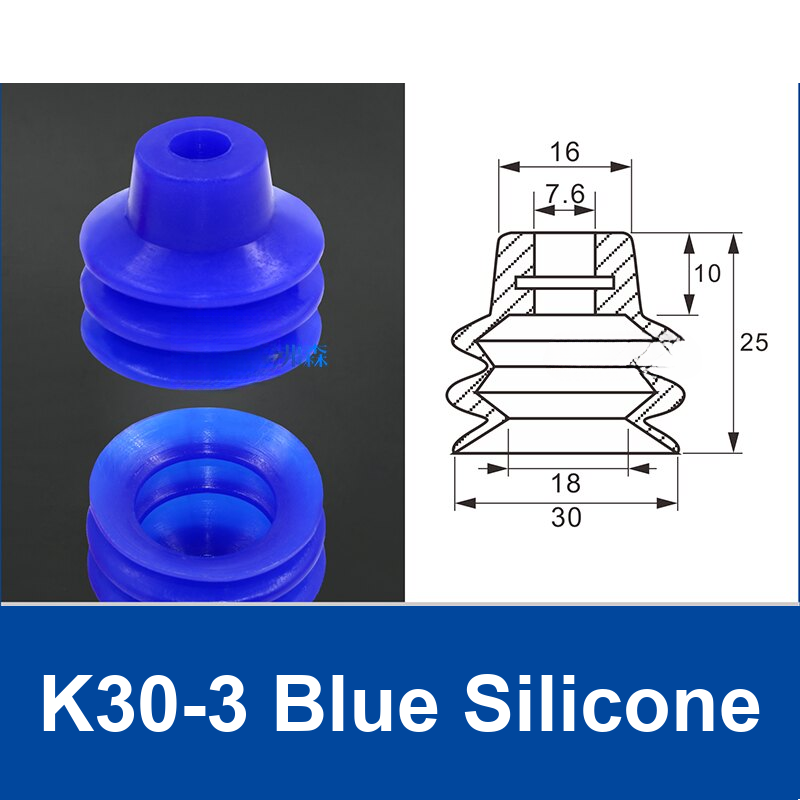

• K30: 3 model(s). Typical names include K30-3 White Silicone etc.

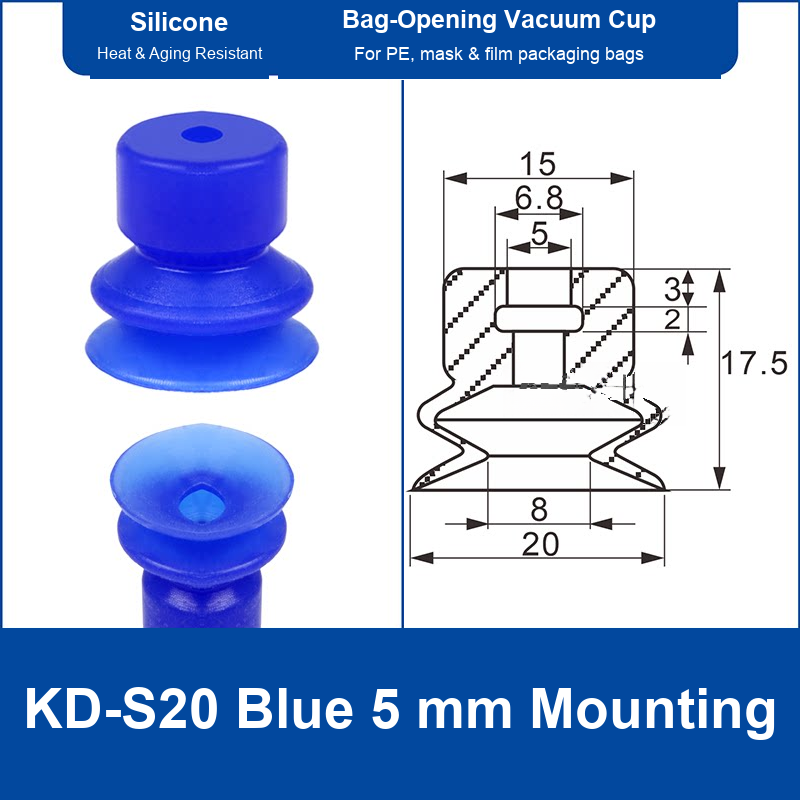

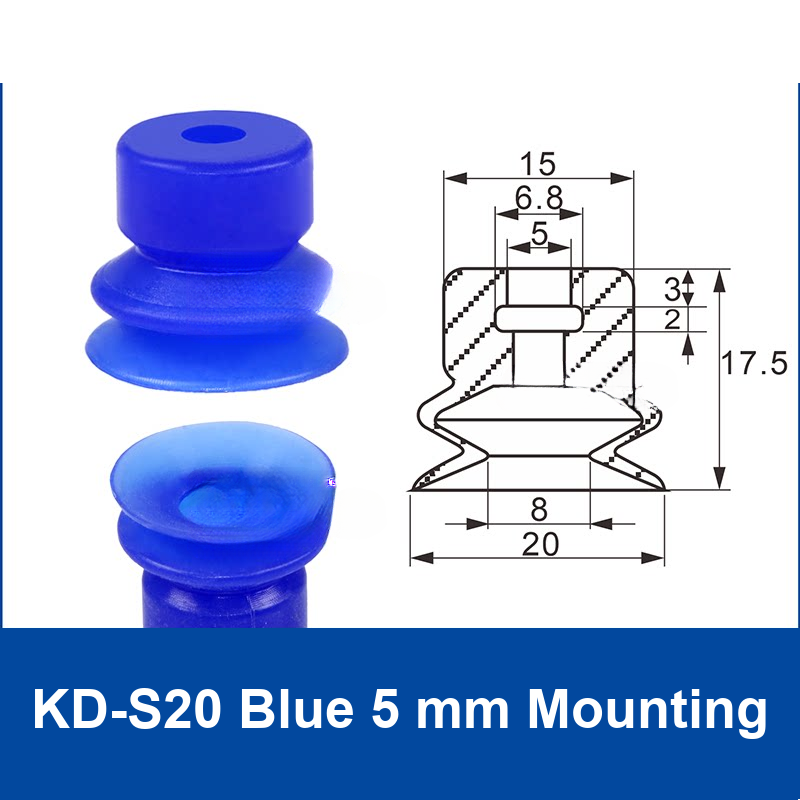

• KD: 3 model(s). Typical names include KD-S20 Blue 5 mm Mounting etc.

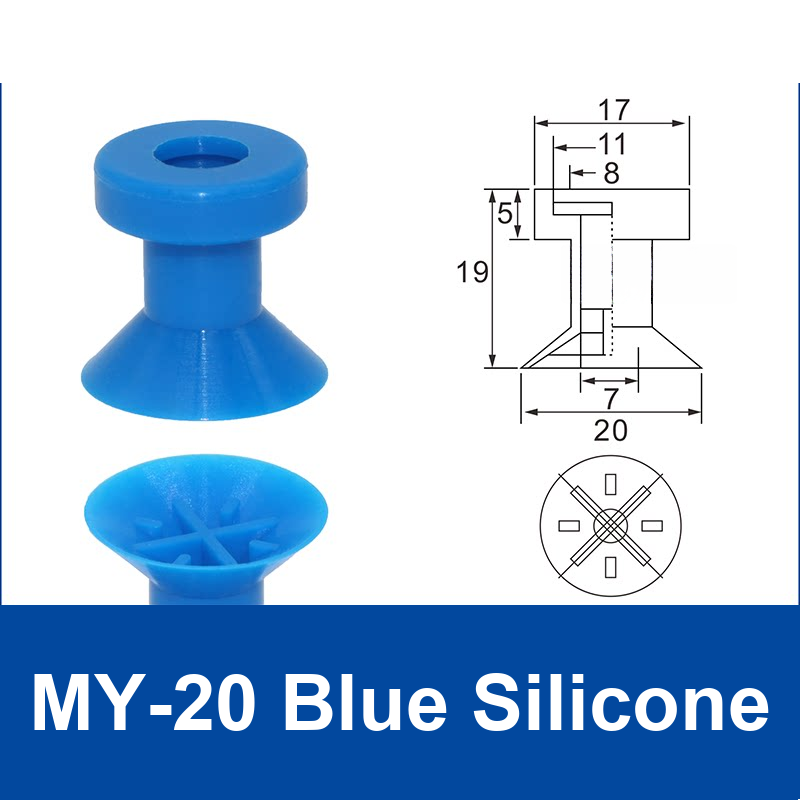

• MY: 3 model(s). Typical names include MY-20 Blue Silicone etc.
• MY20: 3 model(s). Typical names include MY20 Red Silicone etc.

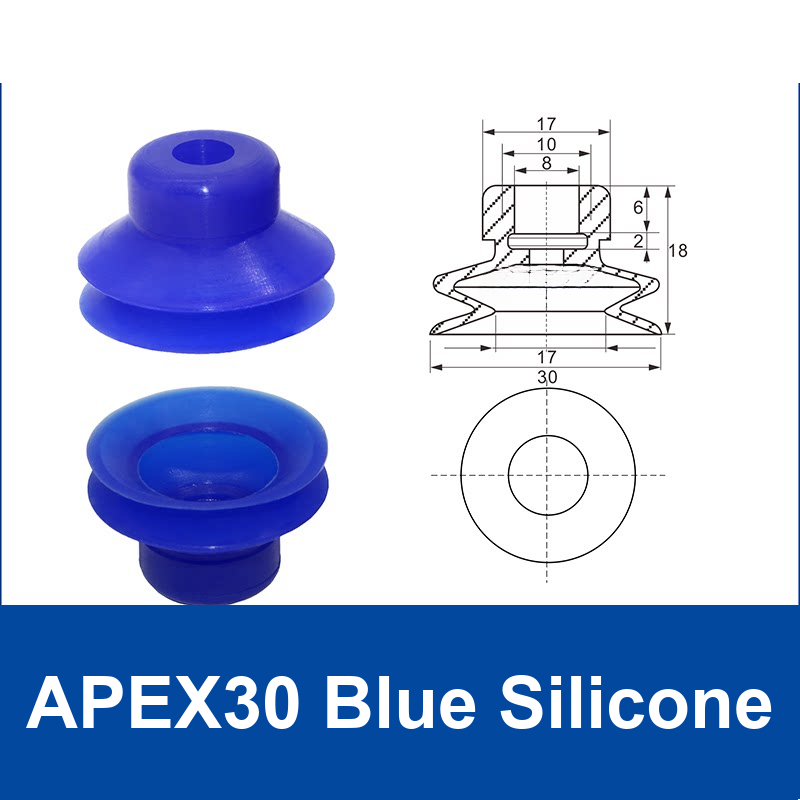

• APEX30: 2 model(s). Typical names include APEX30 White Silicone etc.

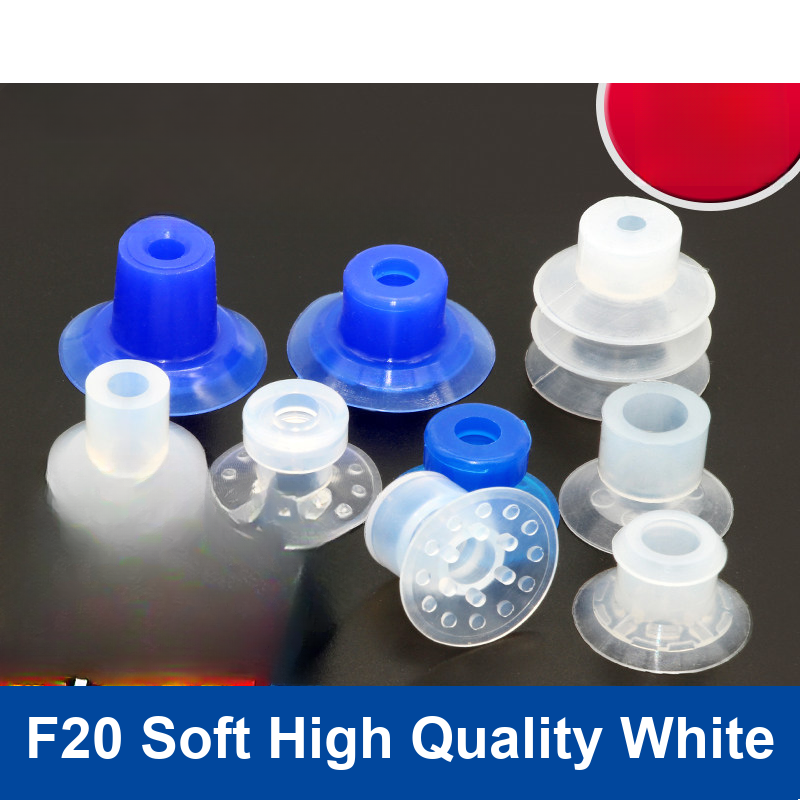

• F20: 2 model(s). Typical names include F20 Silicone etc.
• F25: 2 model(s). Typical names include F25 White Silicone (Bag Opening) etc.
• F26: 2 model(s). Typical names include F26 Blue Silicone etc.

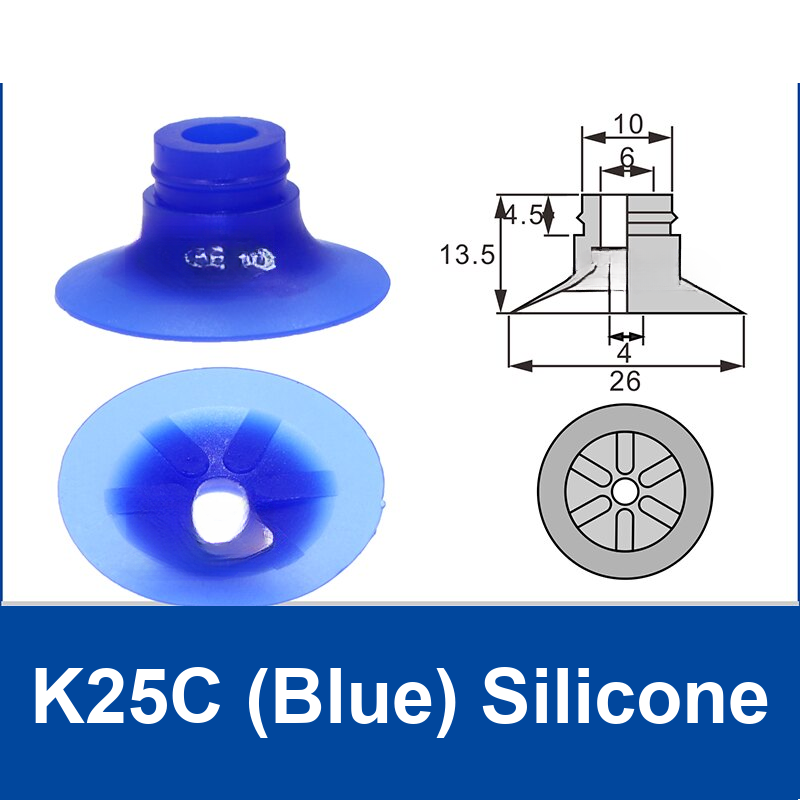

• K25C: 2 model(s). Typical names include K25C Silicone etc.
• PNG: 2 model(s). Typical names include PNG-130B White Silicone etc.
• YB20: 2 model(s). Typical names include YB20-2 White Silicone etc.
• APEX25: 1 model(s). Typical names include APEX25 White Silicone etc.

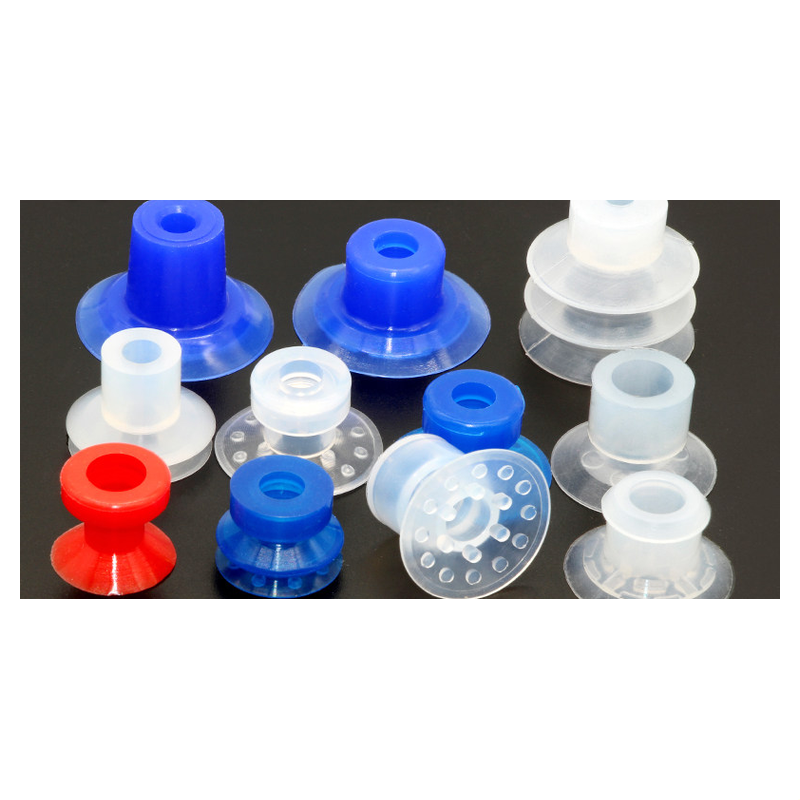

• DP: 1 model(s). Typical names include DP-S20 Firm etc.
• F18: 1 model(s). Typical names include F18 Blue Silicone etc.
• F22: 1 model(s). Typical names include F22 Blue Silicone etc.
• F33: 1 model(s). Typical names include F33 Blue Silicone etc.
• F8: 1 model(s). Typical names include F8 Silicone etc.
• K20: 1 model(s). Typical names include K20-2 Silicone etc.
• K25: 1 model(s). Typical names include K25-2 White Silicone etc.

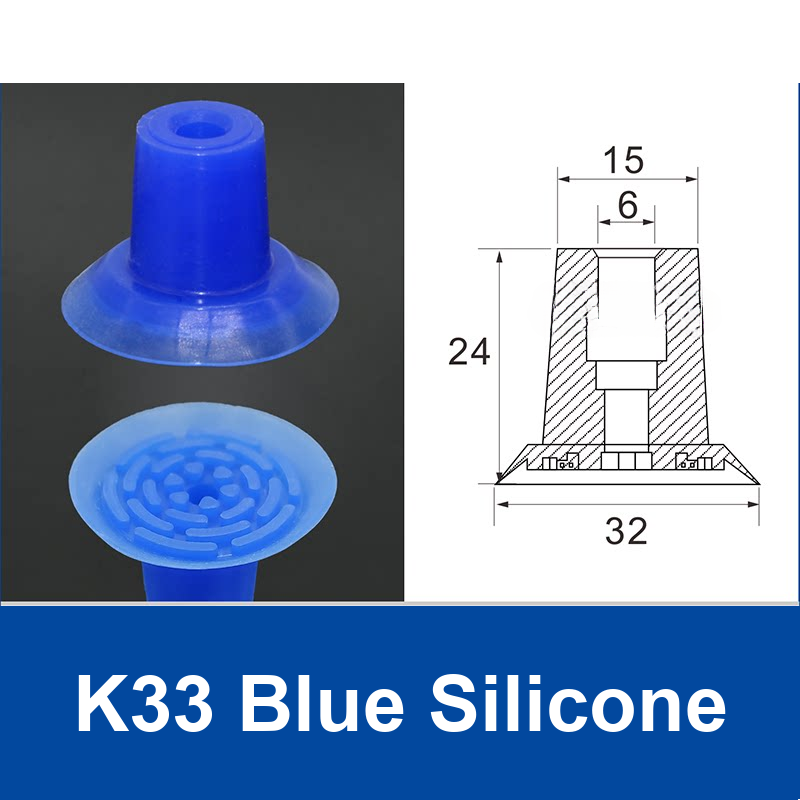

• K33: 1 model(s). Typical names include K33 Blue Silicone etc.
• KD18: 1 model(s). Typical names include KD18-2 White Silicone etc.

How to Select the Right Model

1. Confirm the cup style: package bag opening, multi-layer vacuum cup, or clamping pad.
2. Match your required geometry and edge condition from your machine fixture.
3. Cross-check diameter and mounting style directly from the variant title and image.
4. Choose one exact model for trial in your line before opening batch quantities.

Material / Texture Guide

• Common materials visible in this list include Silicone, NBR (nitrile rubber), and some anti-static variants.
• Different materials have different compatibility with film, temperature exposure, and abrasion; this is best verified on your actual packaging test setup.
• Model images are the source of truth for cup profile and edge style.

Application Notes

• Flexible film and pouch handling where stable vacuum contact is required.
• Pouch opening, bag transfer, and light package transfer applications.
• If the film is thin, folded, perforated, or highly wrinkled, validate the first pilot run before production use.

Quality Selection Checklist

• Use the variant image for quick visual confirmation.
• Keep one-to-one correspondence between selected model number and listed SKU.
• Before large-scale use, complete fit test with your actual film and cycle speed.

Technical Model Gallery

Use the image list below for detailed model checking.

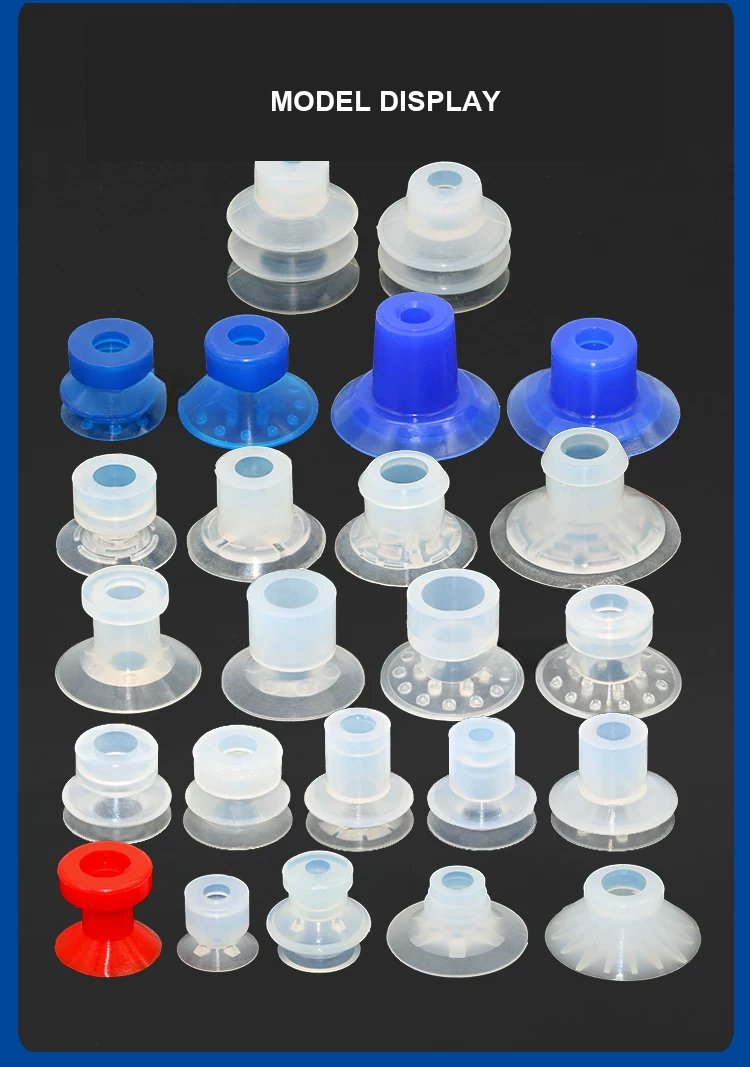

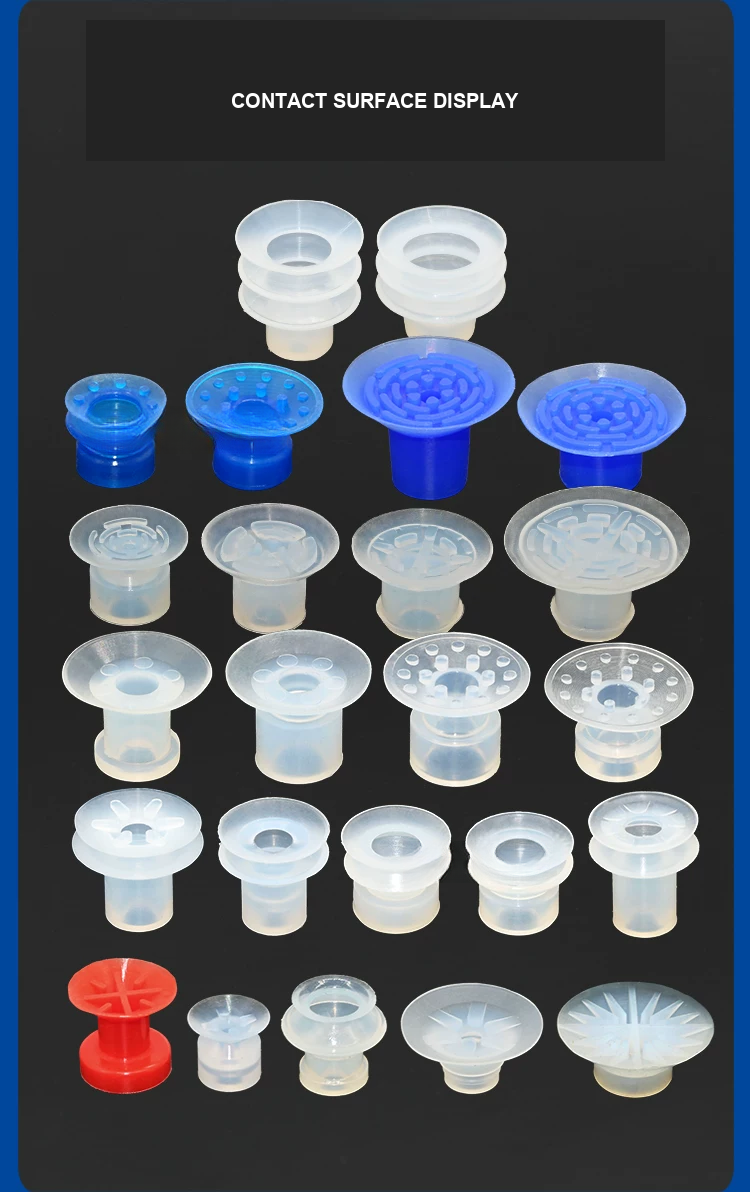

Product Overview, Model Display and Contact Surface
