ZP HBS/HBN Foam Vacuum Suction Cups | Black & Red
$10.67 USD
$8.54 USD
20% OFF
ZP HBS/HBN Foam Vacuum Suction Cups | Black & Red
Quantity
ZP HBS/HBN Foam Vacuum Suction Cups

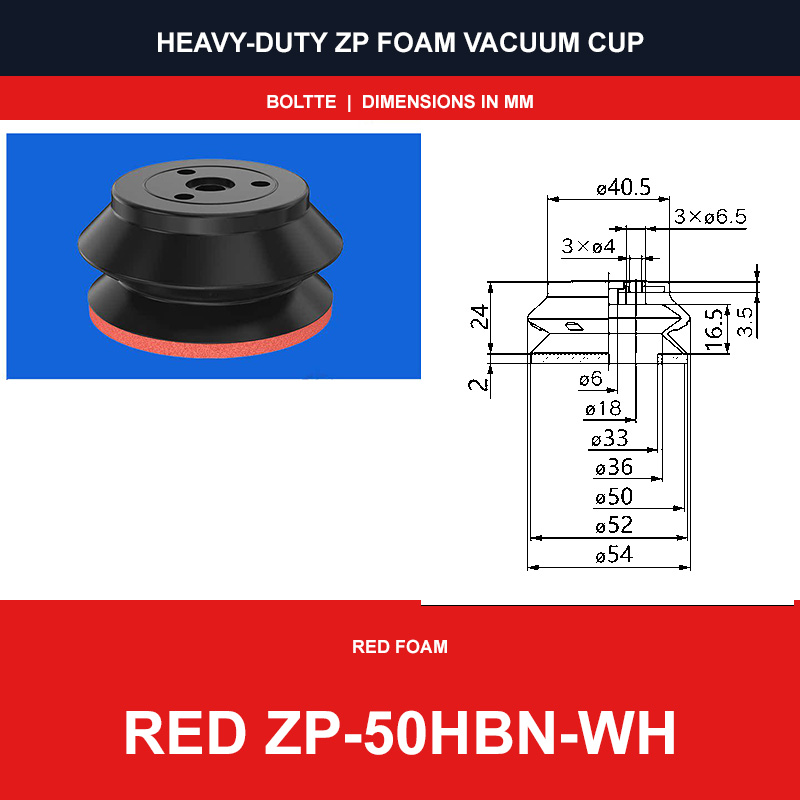

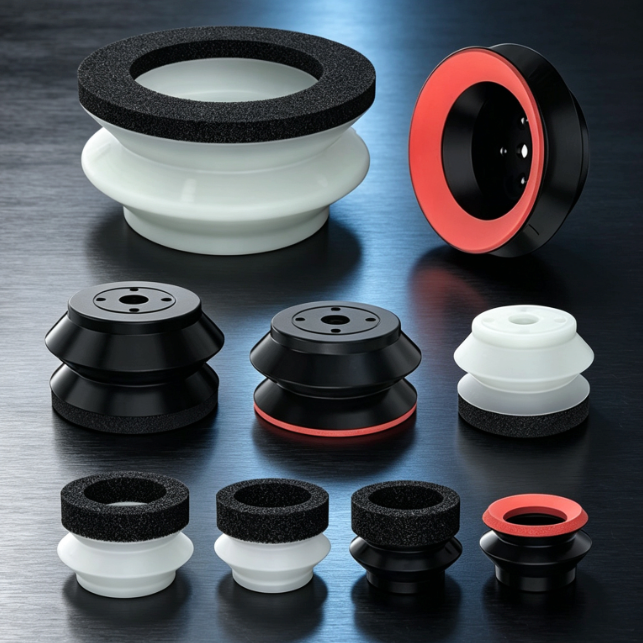

ZP HBS and HBN model ranges with HM black-foam and WH red non-marking versions.
- Sizes represented in the source range from ZP-32 through ZP-150
- Red WH versions are clearly identified by the Red prefix

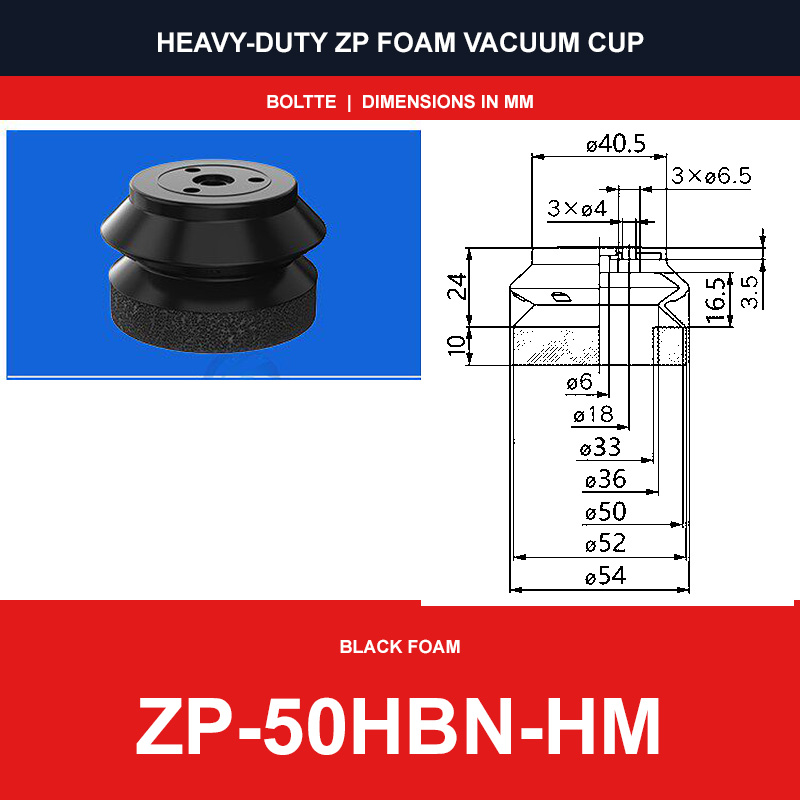

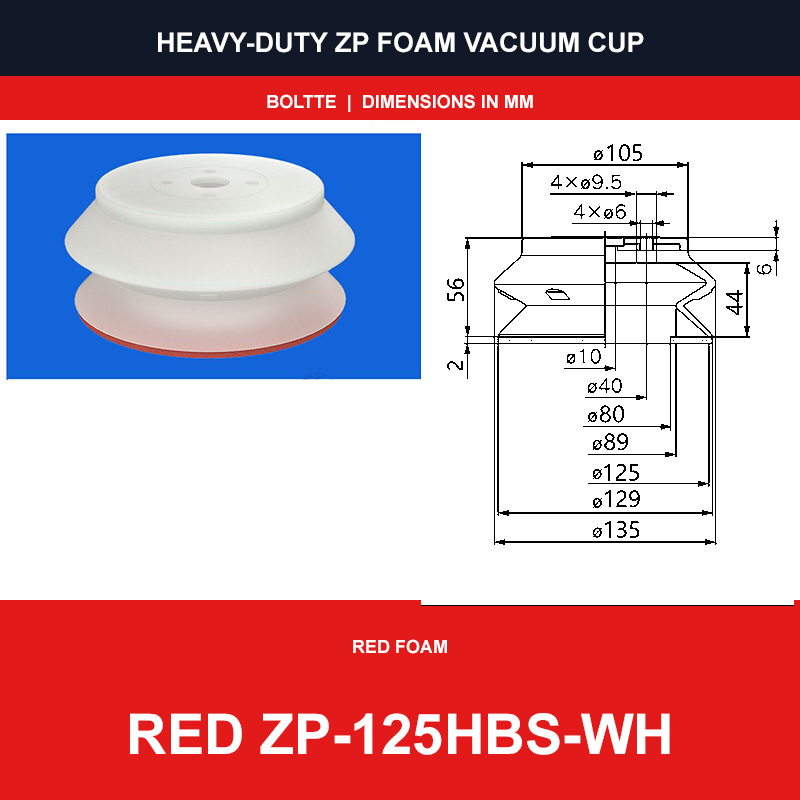

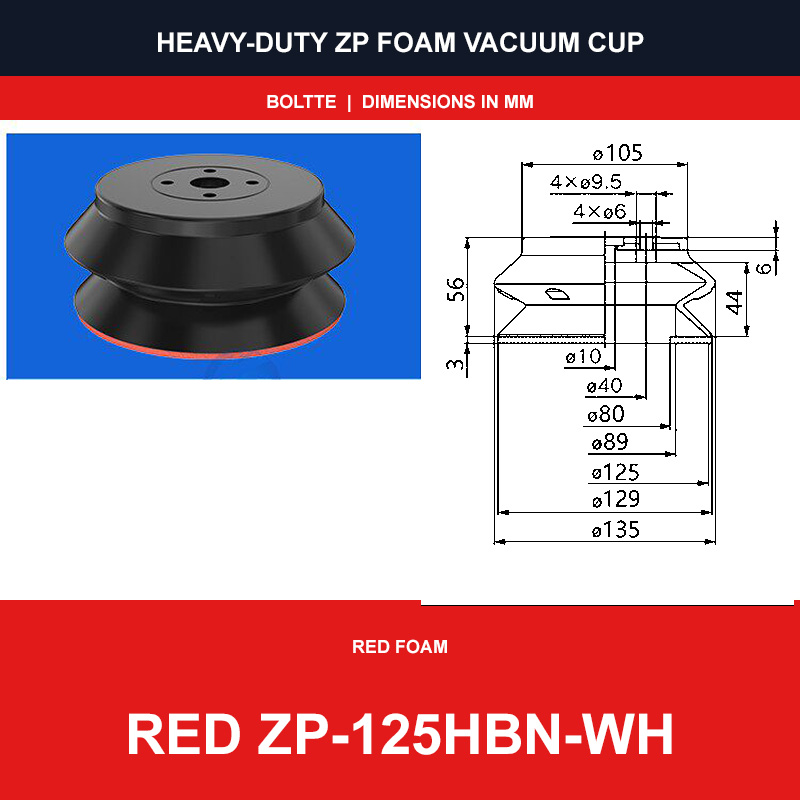

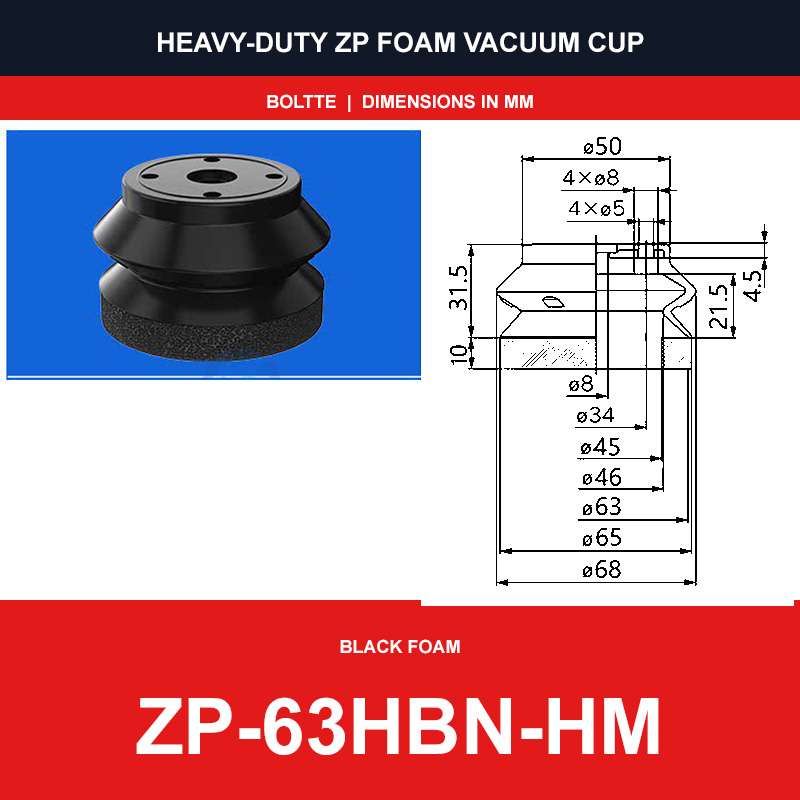

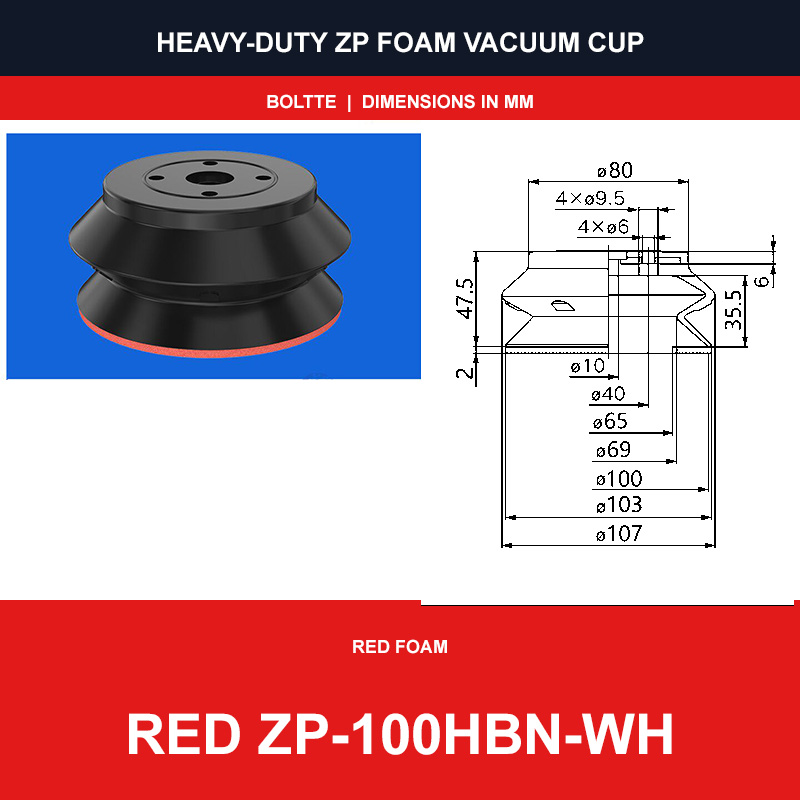

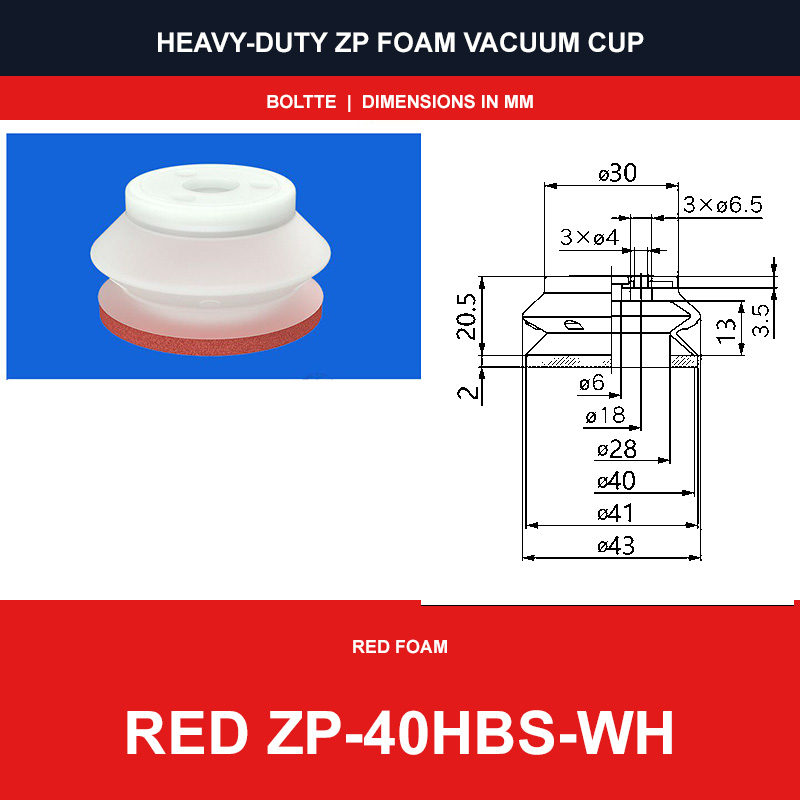

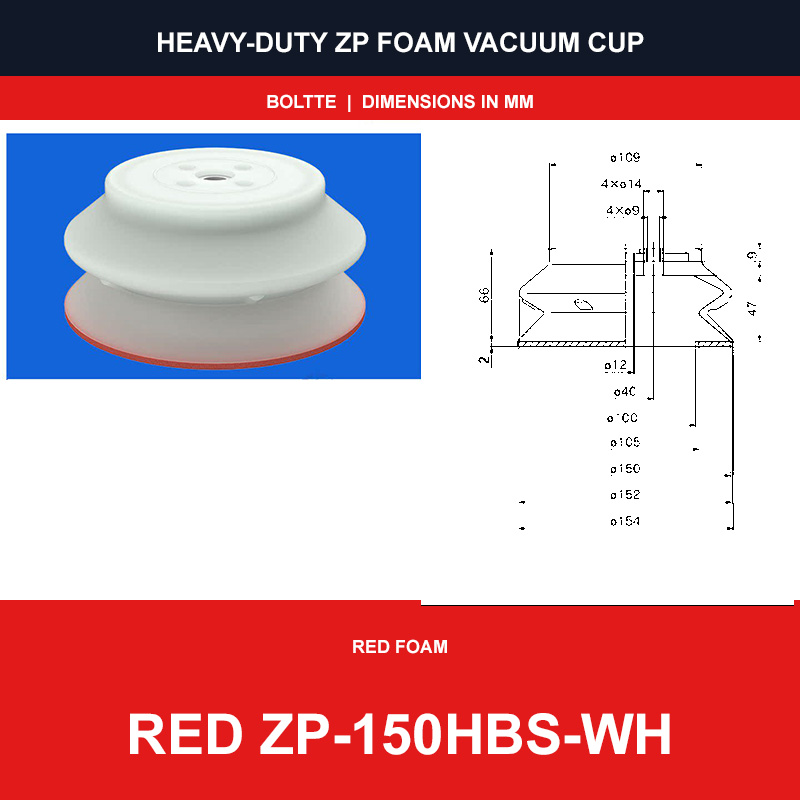

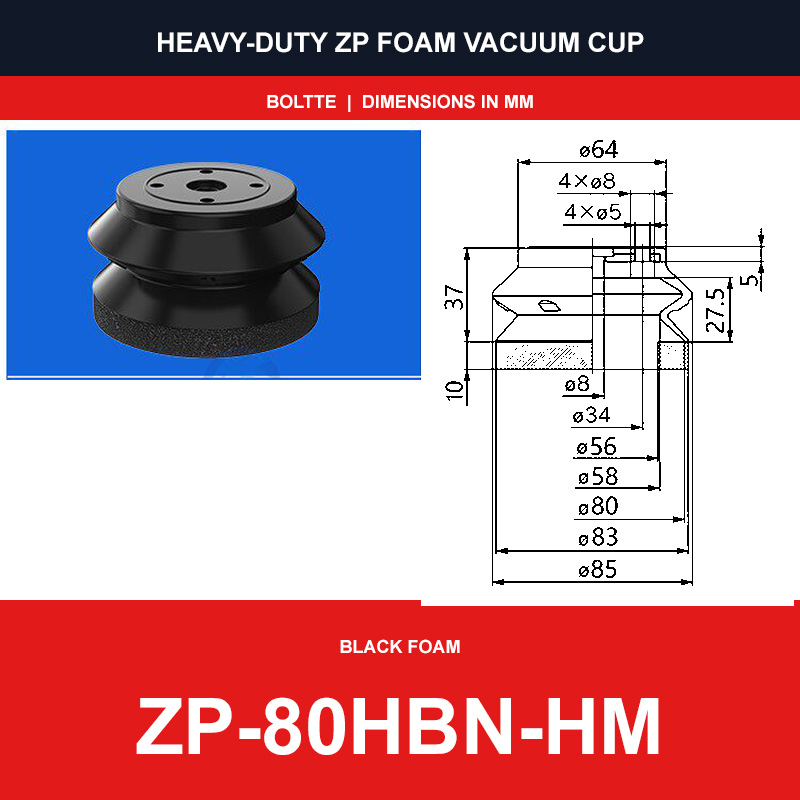

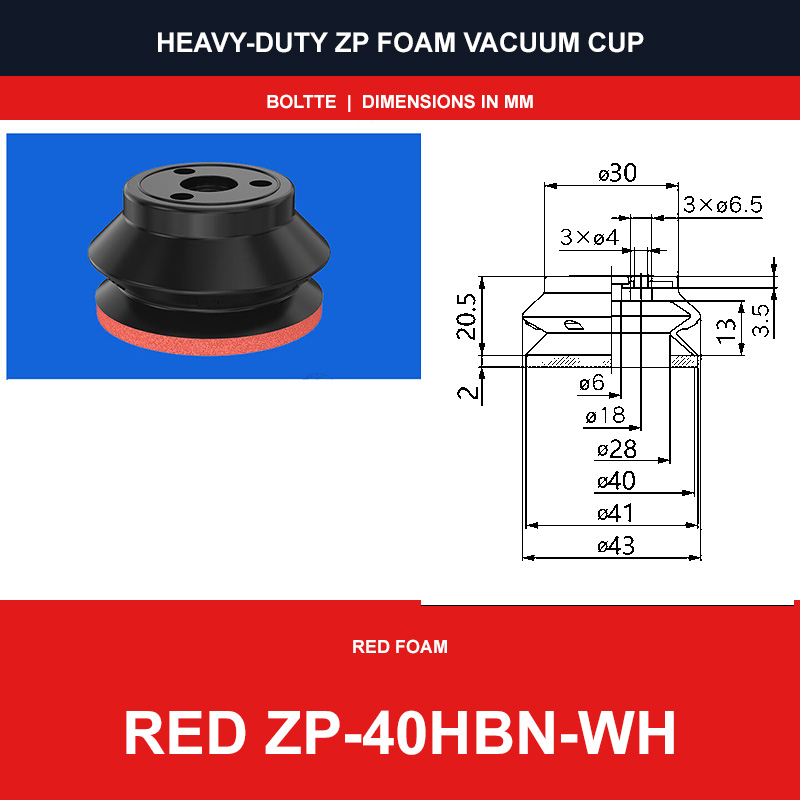

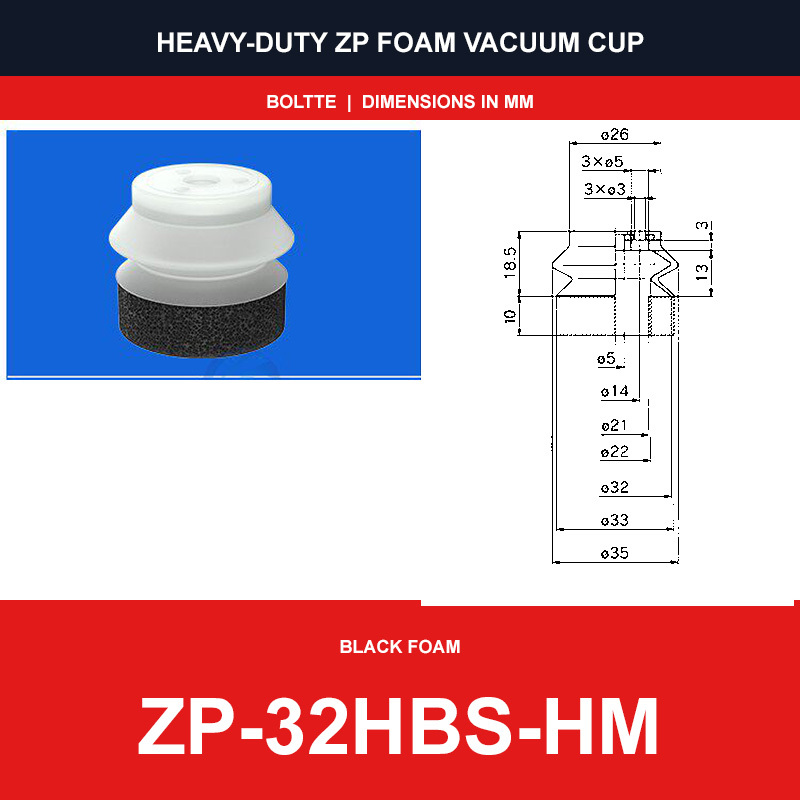

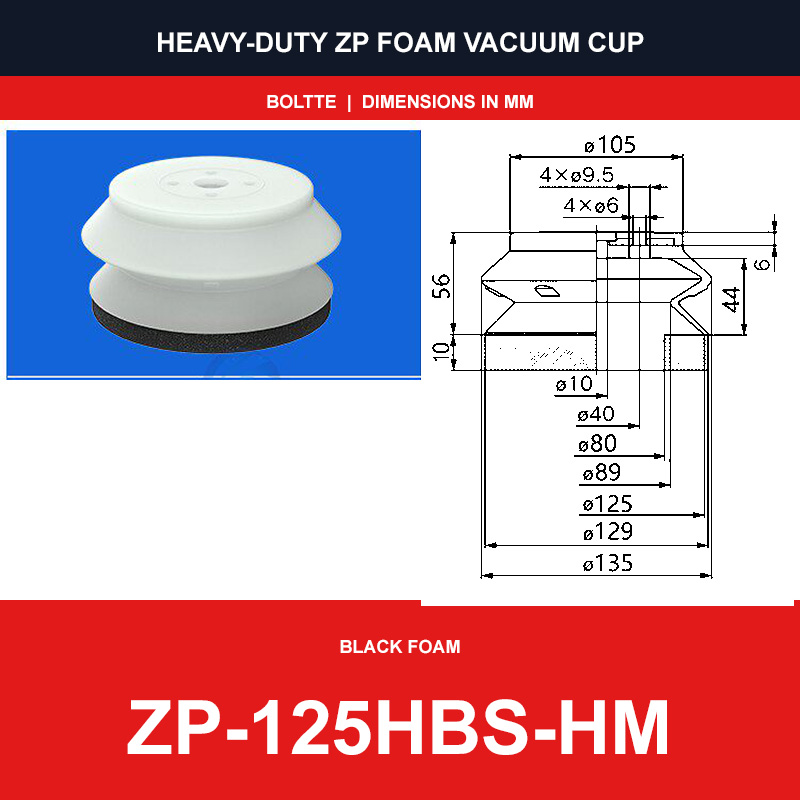

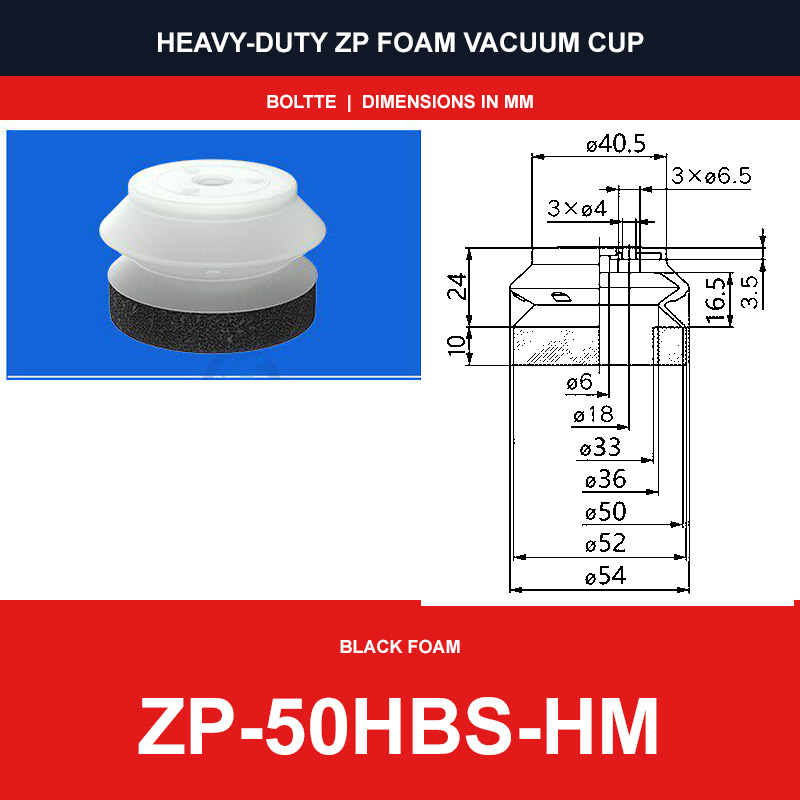

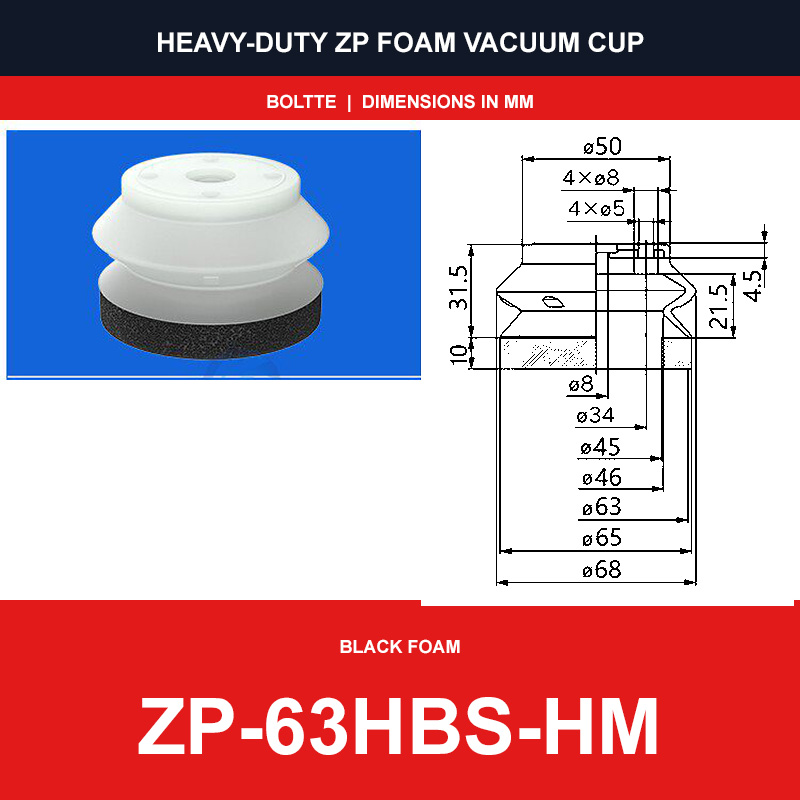

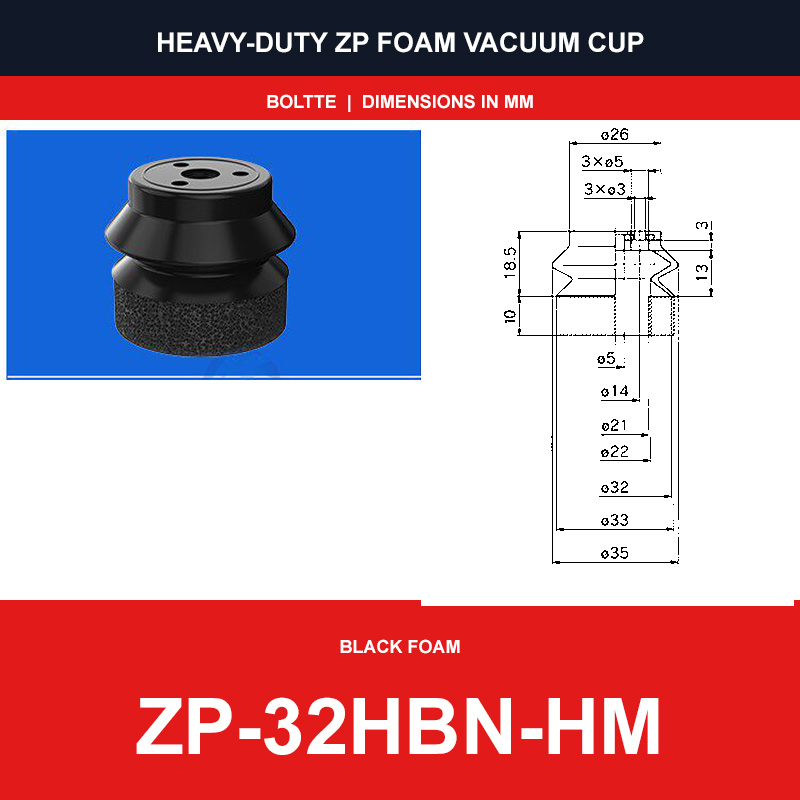

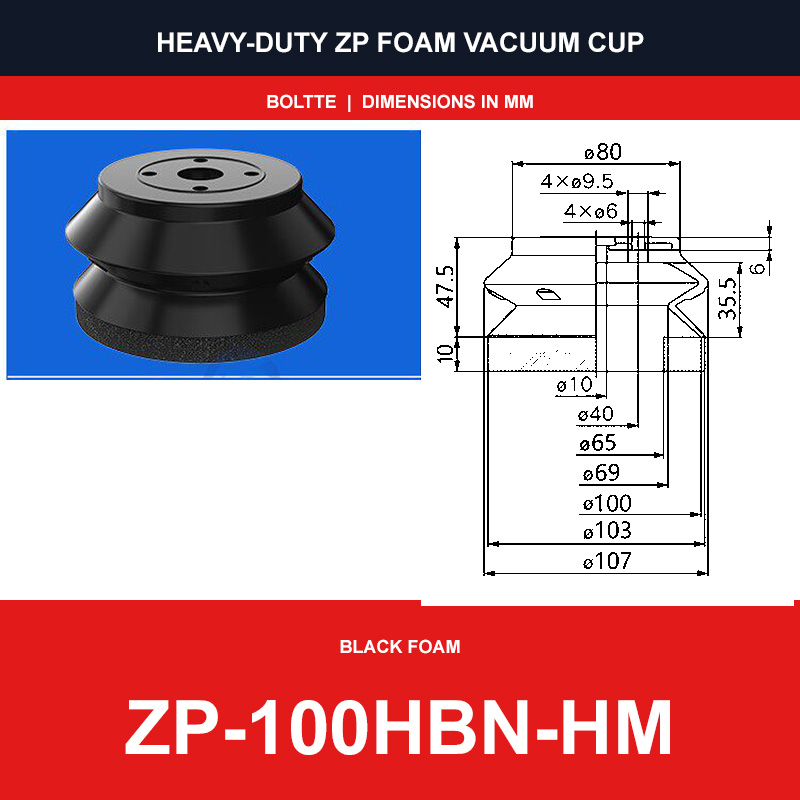

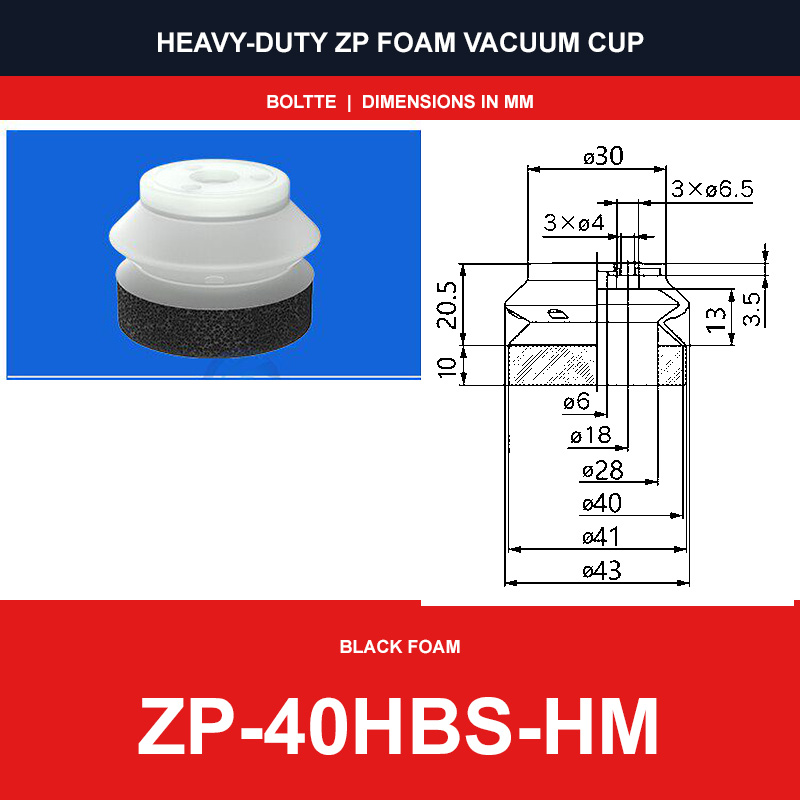

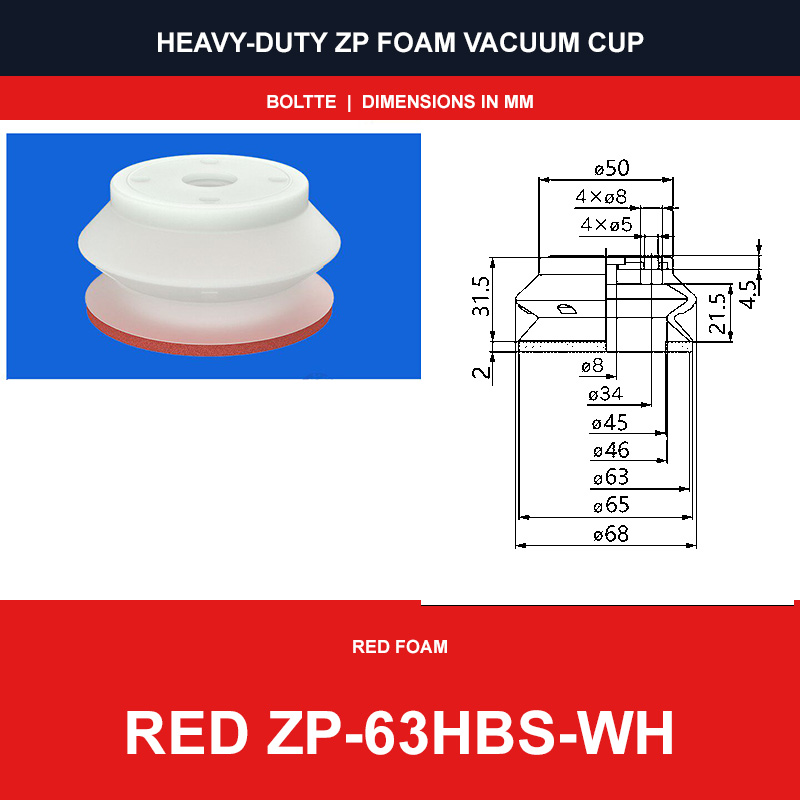

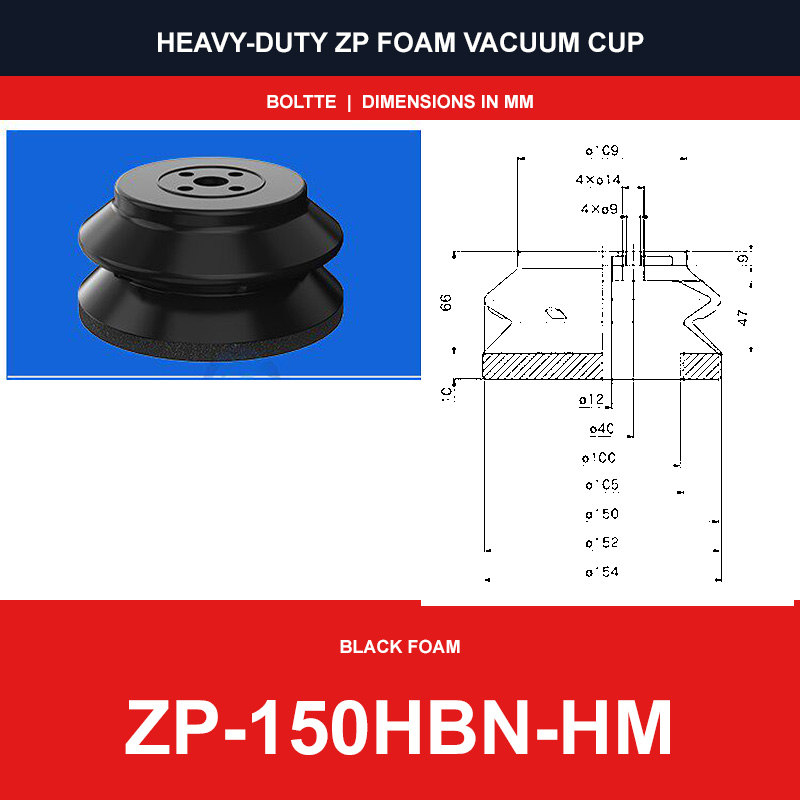

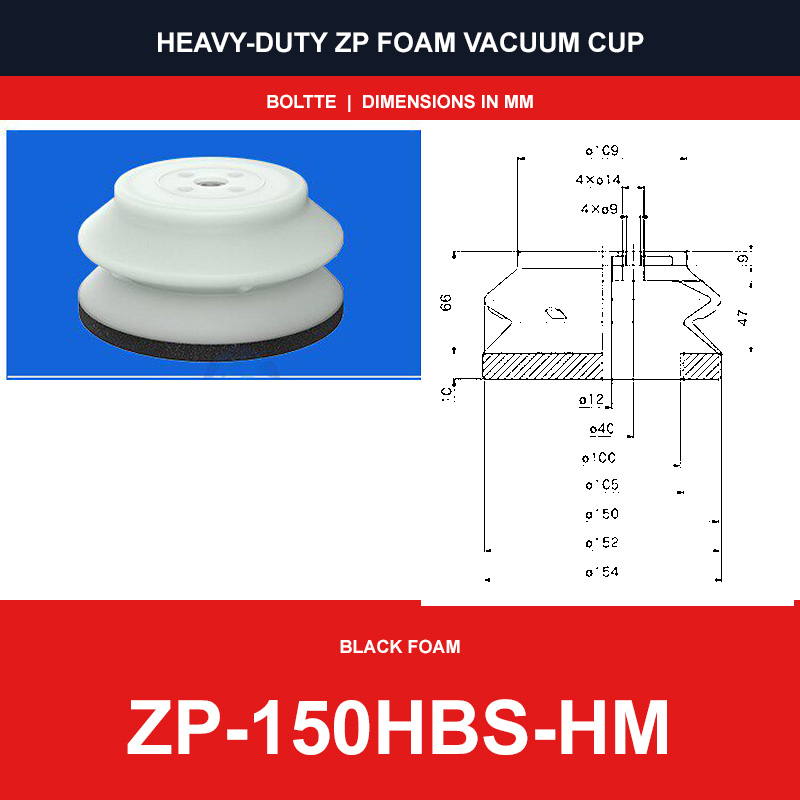

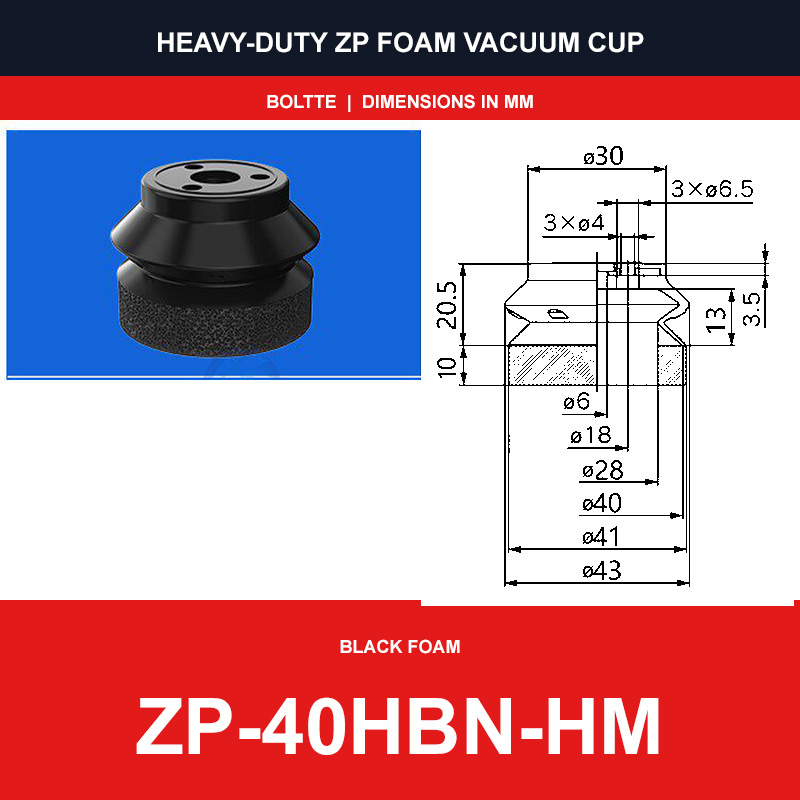

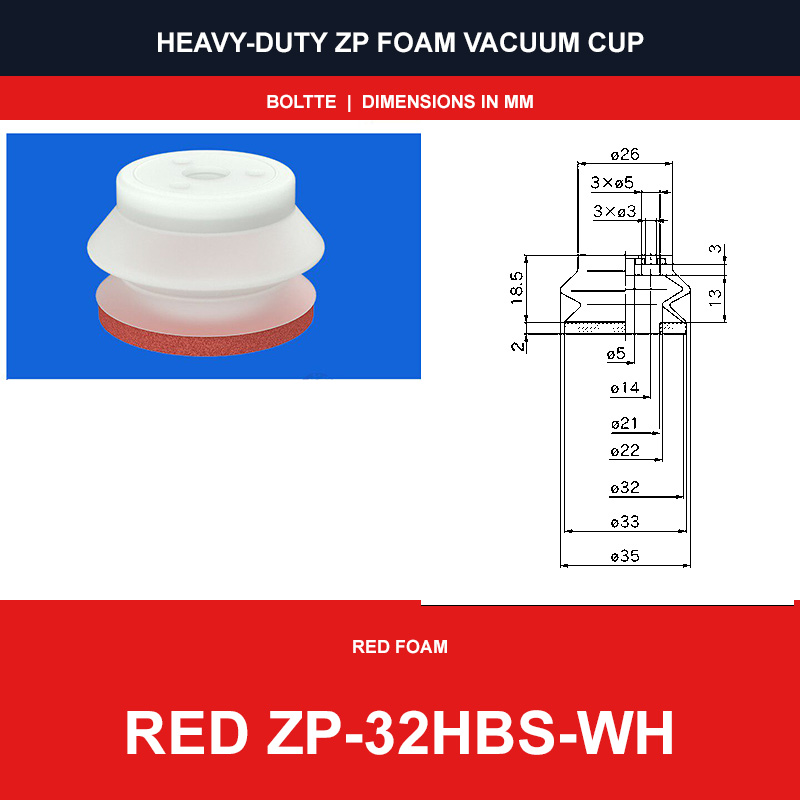

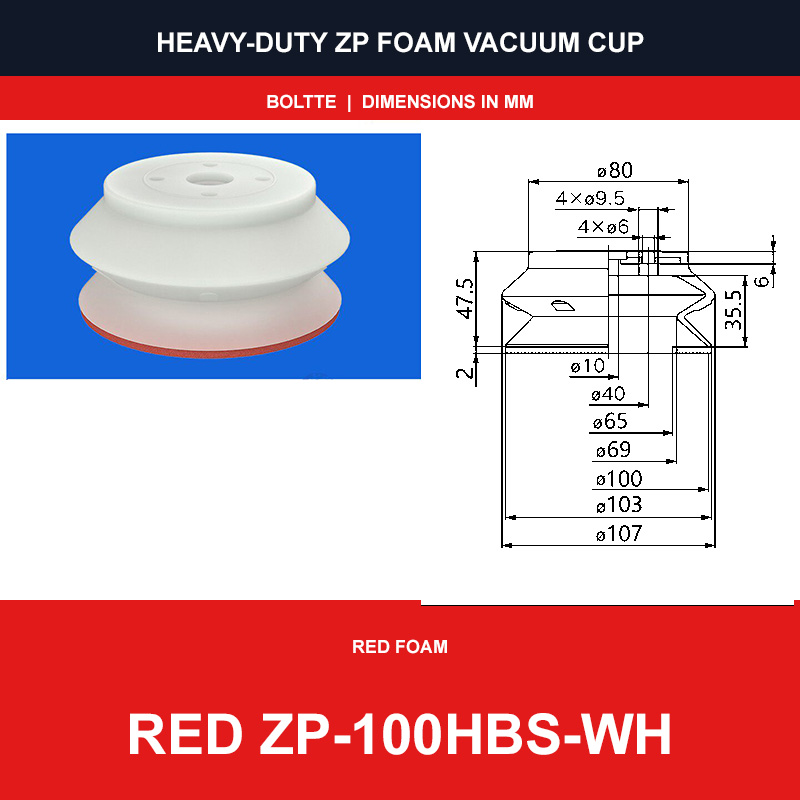

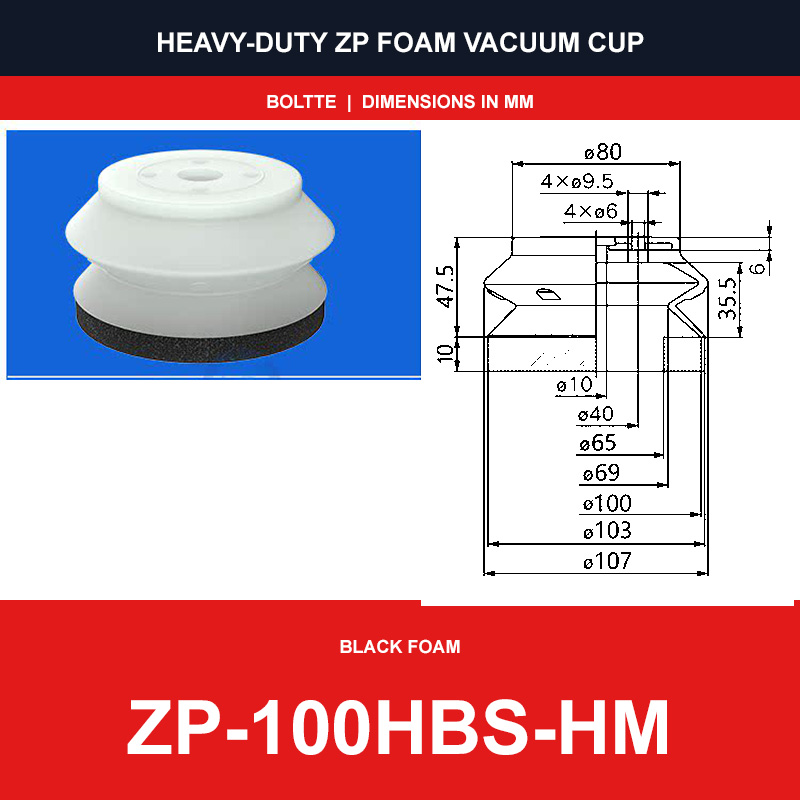

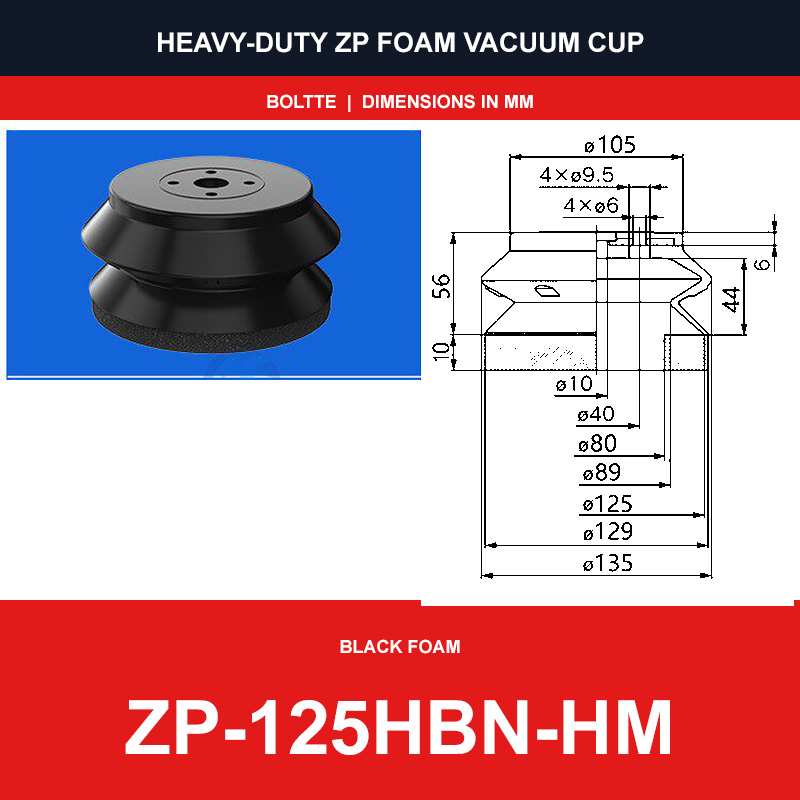

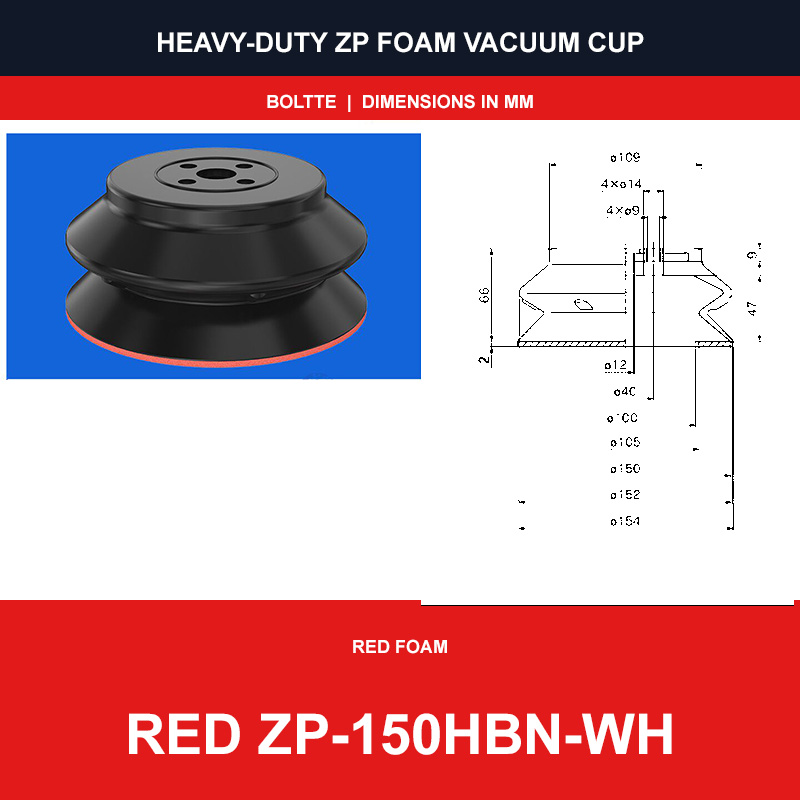

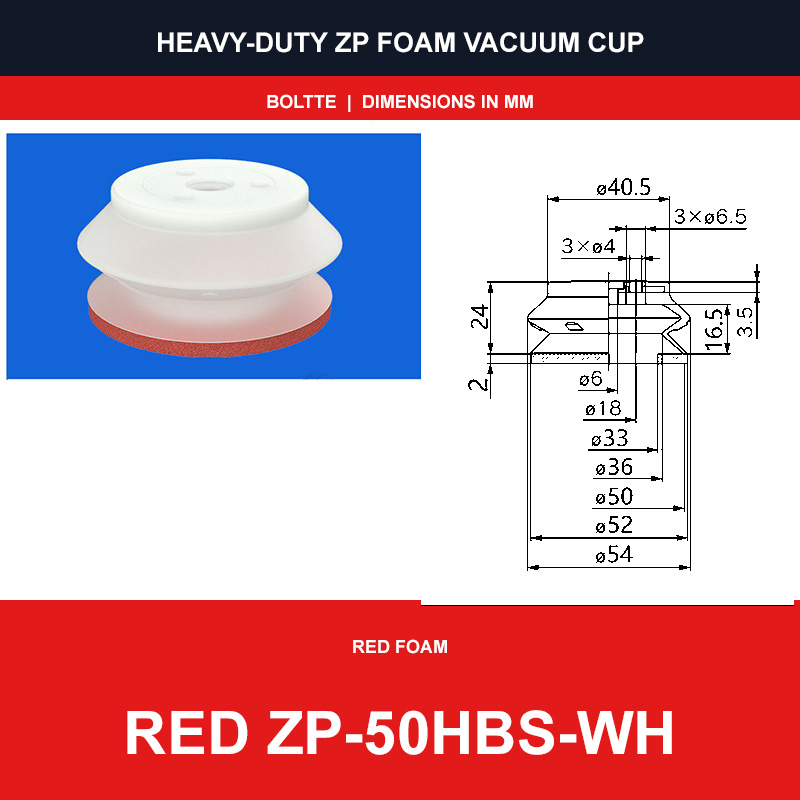

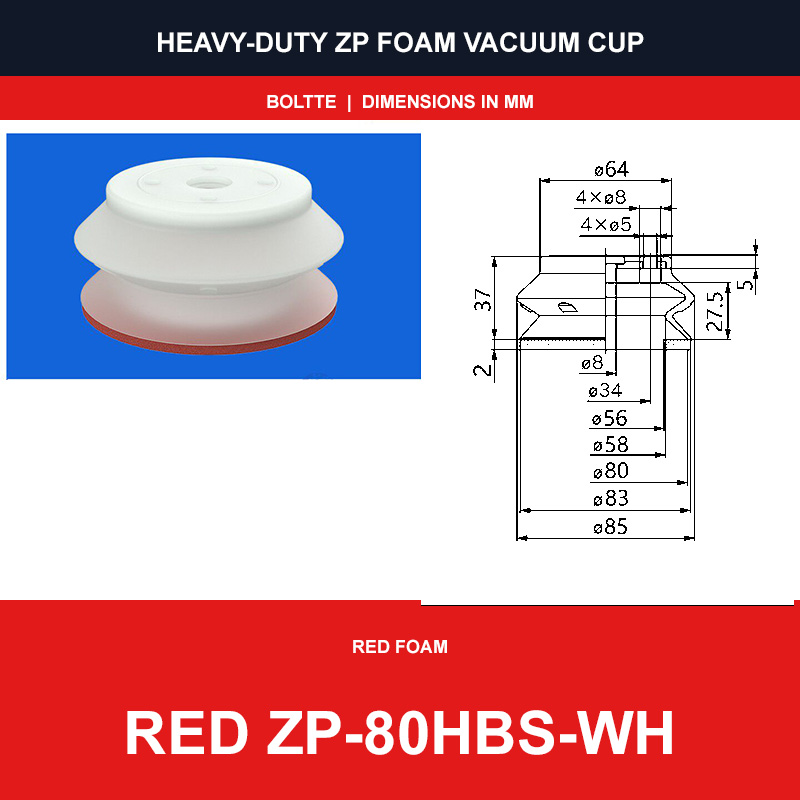

- Each model includes a corresponding dimensional drawing
Select the exact model and confirm the dimensions shown in its image before ordering.
Applications and Suitable Workpieces
ZP HBS/HBN Foam Vacuum Suction Cups | Black & Red: These large or high-rigidity cups are intended for heavy, large or curved workpieces requiring a strong body and stable machine connection.
Recommended applications
- Large sheet-metal panels, automotive bodies, glass panels, rigid plastic parts, wood panels and other heavy non-porous workpieces.
- Robotic transfer, machine loading, panel handling, palletizing and high-load industrial automation.
- Bellows versions for curved or height-varying parts and flatter versions for stable positioning on broad flat surfaces.
Model and selection notes
- HBS and HBN are bellows-type heavy-duty models; HM and WH identify the listed foam/contact version. Confirm the exact diameter and body profile.
- Choose diameter and thread size according to the available sealing area, workpiece mass and dynamic load.
- Use multiple cups and a structural support arrangement for large panels; do not rely on one cup without a verified safety calculation.
- Actual capacity depends on vacuum level, center-of-gravity offset, lateral acceleration, surface finish and safety factor.
