BOLTTE DP-SA White Silicone Vacuum Cups for Industrial Robots - 32-55 mm
White silicone industrial vacuum cups for industrial robots, manipulators and automated equipment.
Available Models
- DP-32SA
- DP-45SA
- DP-53SA
- DP-55SA Type A (Short Neck)
- DP-55SA Type B
Selection and Use
- Material: silicone.
- Shape: round.
- Confirm the required model and dimensions before ordering.
- Refer to the product images for model-specific dimensions.

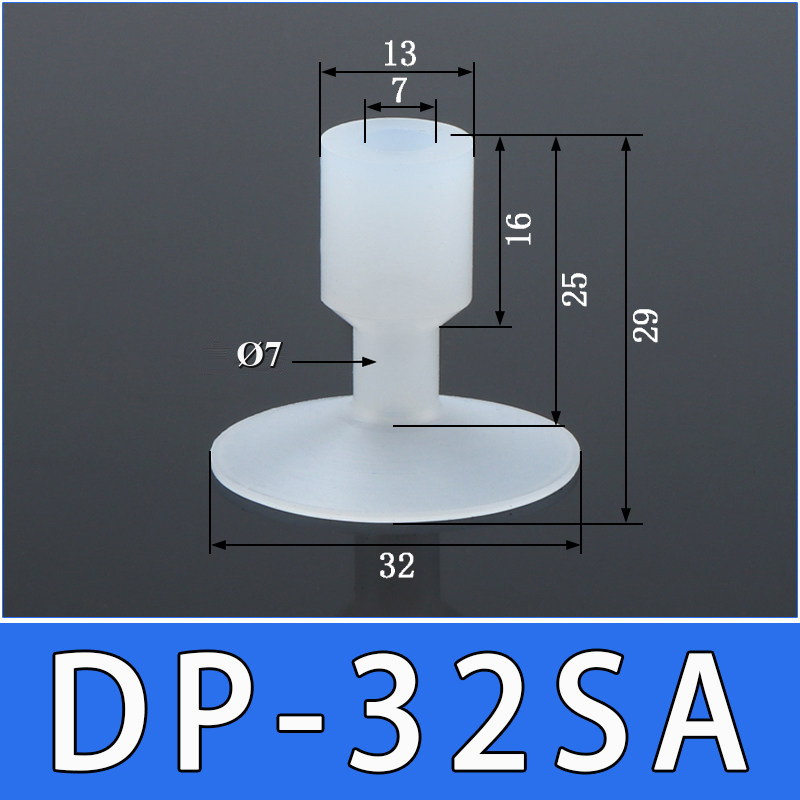

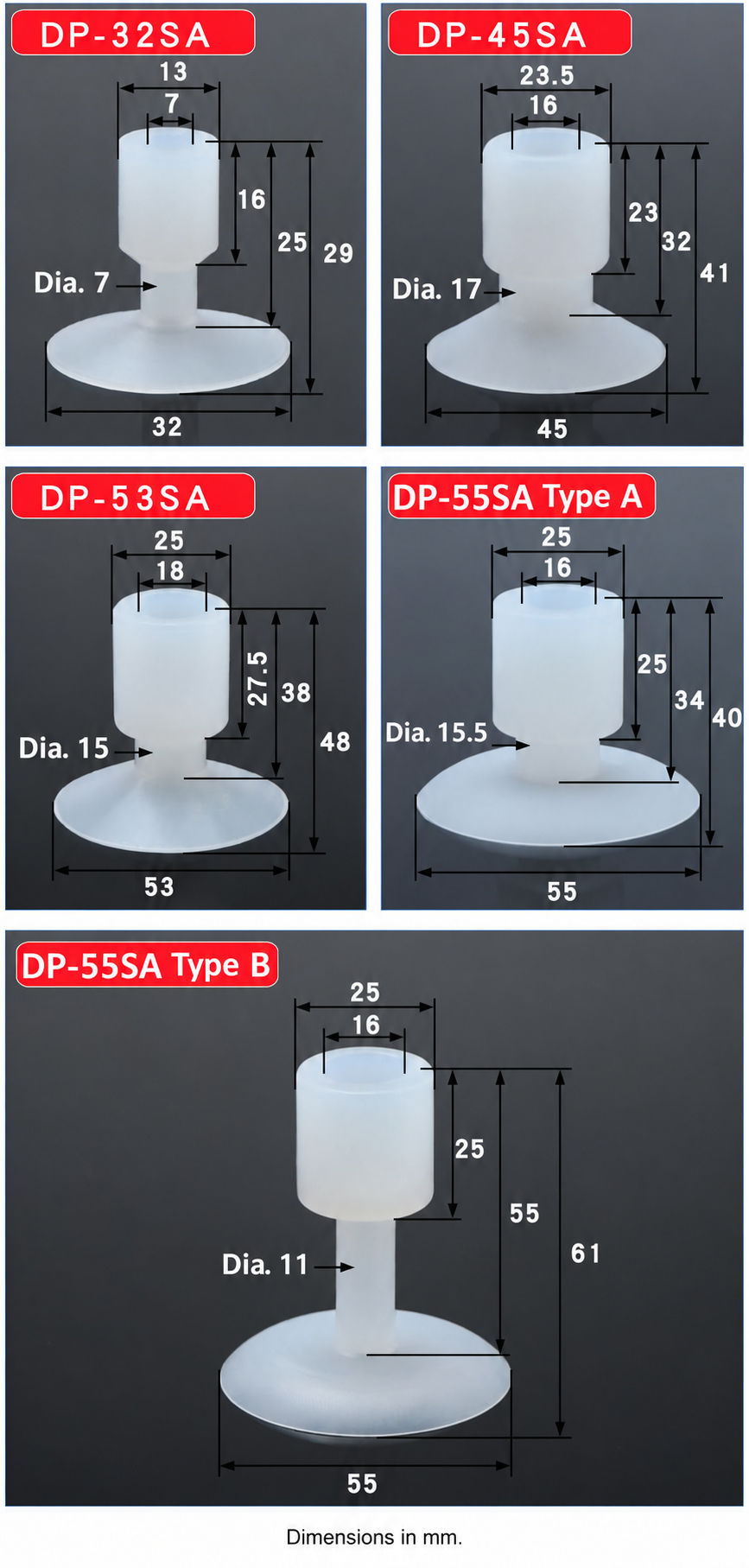

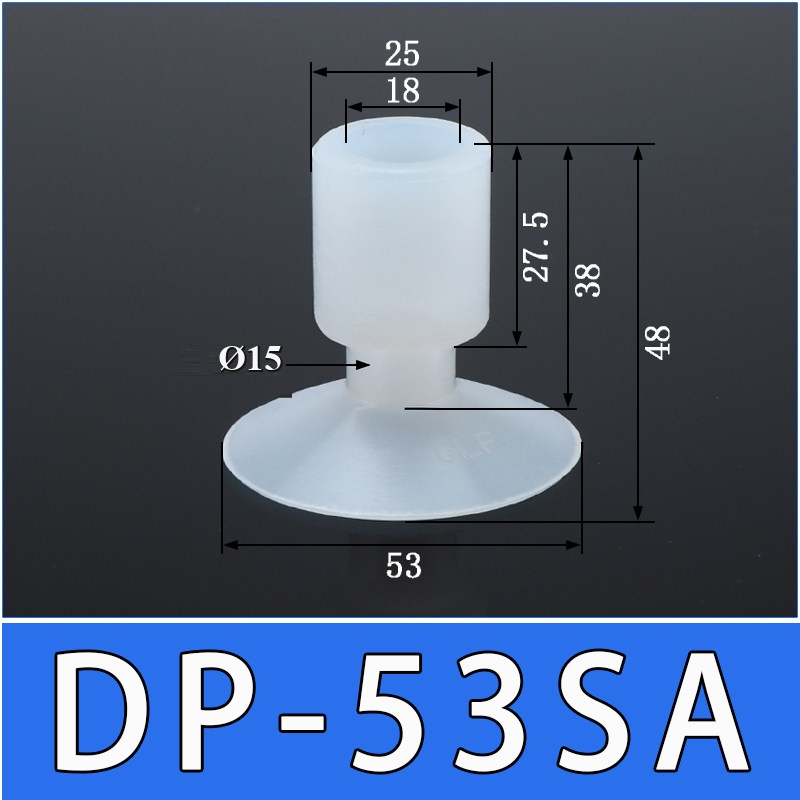

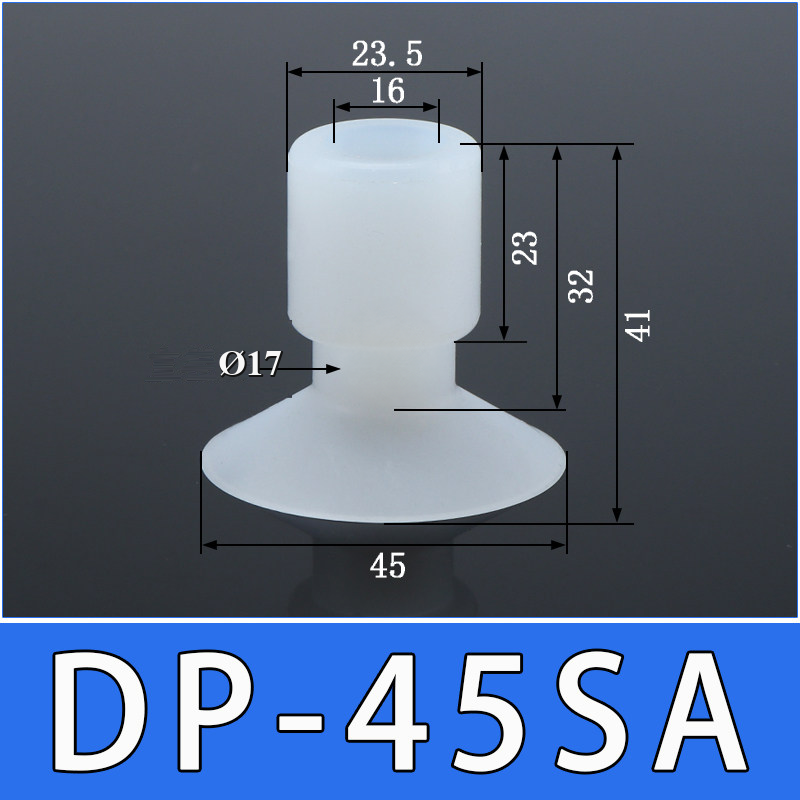

DP-SA model dimensions
The dimensions below are transcribed from the model drawing on this page. All values are in millimeters. Compare the complete drawing with your existing cup before ordering; diameter alone does not establish mounting compatibility.
| Model | Cup diameter (mm) | Overall height (mm) |
|---|---|---|
| DP-32SA | 32 | 29 |
| DP-45SA | 45 | 41 |
| DP-53SA | 53 | 48 |
| DP-55SA Type A (Short Neck) | 55 | 40 |
| DP-55SA Type B | 55 | 61 |
DP-55SA Type A or Type B?
Both have a 55 mm cup diameter, but the drawing shows a 40 mm overall height for Type A and 61 mm for Type B. They are separate model choices; check the mounting profile, neck dimensions and clearance instead of treating them as interchangeable.
These listed cups are white silicone. The drawing does not establish a load rating, temperature rating or food-contact certification. For general material considerations, read the silicone vs NBR vacuum cup guide, then confirm requirements for the selected model.
DP-SA Silicone Vacuum Cup Dimensions
White silicone vacuum cups for industrial robots and automated handling. Select the required model and check all mounting dimensions before ordering.
Model / configuration / SKU
| Model / configuration | SKU |
|---|---|
| DP-32SA | 3293893192282 |
| DP-45SA | 3293893192283 |
| DP-53SA | 4458744075978 |
| DP-55SA Type A (Short Neck) | 4458744075979 |
| DP-55SA Type B | 4458744075980 |
