SMT-JUK Vacuum Pickup Nozzles
Spring-loaded vacuum pickup assemblies with a locating collar and replaceable vacuum cup. Choose the complete model and cup material required for your equipment.
Applications and Suitable For
SMT pick-and-place and automated vacuum pickup. Confirm the mounting interface, available travel and cup contact area against your equipment before ordering.
Models and Cup Sizes
| Model | Cup diameter | Cup option |
|---|---|---|
| SMT-JUK-6.0 | 6 mm / 0.236 in | White Silicone |
| SMT-JUK-8.0 | 8 mm / 0.315 in | White Silicone |
| SMT-JUK-10.0 | 10 mm / 0.394 in | White Silicone |
| SMT-JUK-15.0 | 15 mm / 0.591 in | White Silicone |
| SMT-JUK-6.0 | 6 mm / 0.236 in | Black Rubber |
| SMT-JUK-8.0 | 8 mm / 0.315 in | Black Rubber |
| SMT-JUK-10.0 | 10 mm / 0.394 in | Black Rubber |
| SMT-JUK-15.0 | 15 mm / 0.591 in | Black Rubber |
| SMT-JUK-6.0 | 6 mm / 0.236 in | Antistatic |
| SMT-JUK-8.0 | 8 mm / 0.315 in | Antistatic |
| SMT-JUK-10.0 | 10 mm / 0.394 in | Antistatic |
| SMT-JUK-15.0 | 15 mm / 0.591 in | Antistatic |
Construction and Selection
- Cup options: white silicone, black rubber and antistatic.
- Metal fitting: aluminum alloy; spring-loaded construction with locating collar.

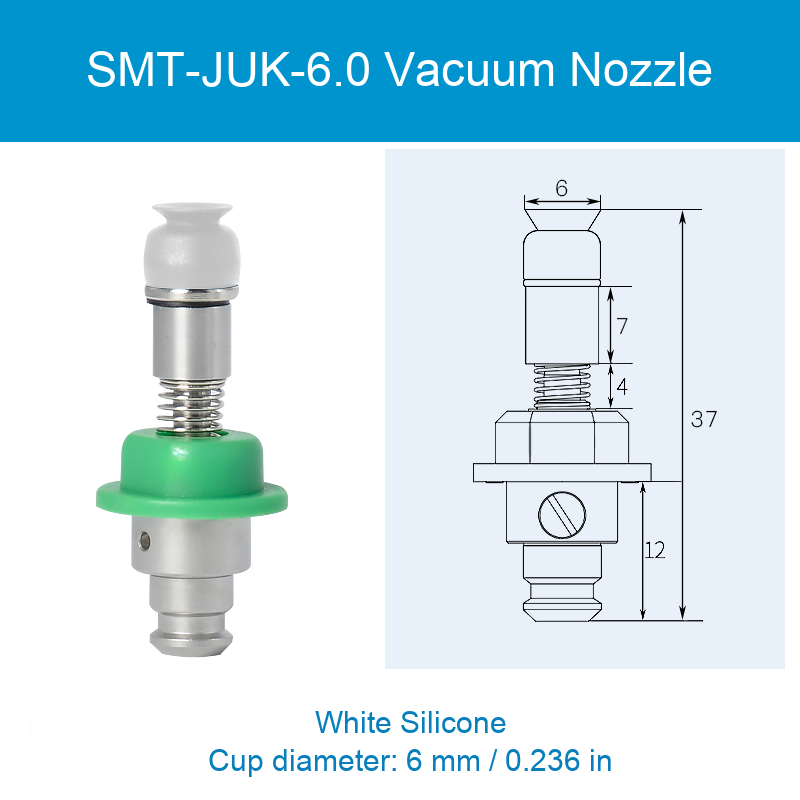

- The supplied drawings show a 37 mm (1.457 in) dimension for the 6, 8 and 10 mm models, and 37.5 mm (1.476 in) for the 15 mm models.
- Drawing dimensions are in millimeters. Inch values are approximate conversions.
- Antistatic is the listed material option. No electrical resistance value or certification is specified.
Product Photos, Structure and Dimensions
Modelo / configuración / SKU
| Modelo / configuración | SKU |
|---|---|
| SMT-JUK-6.0 — White Silicone | 6167443647745 |
| SMT-JUK-8.0 — White Silicone | 6167443647746 |
| SMT-JUK-10.0 — White Silicone | 6167443647747 |
| SMT-JUK-15.0 — White Silicone | 6167443647748 |
| SMT-JUK-6.0 — Black Rubber | 6167443647750 |
| SMT-JUK-8.0 — Black Rubber | 6167443647751 |
| SMT-JUK-10.0 — Black Rubber | 6167443647752 |
| SMT-JUK-15.0 — Black Rubber | 6167443647753 |
| SMT-JUK-6.0 — Antistatic | 6167443647755 |
| SMT-JUK-8.0 — Antistatic | 6167443647756 |
| SMT-JUK-10.0 — Antistatic | 6167443647757 |
| SMT-JUK-15.0 — Antistatic | 6167443647758 |
