VM403-1 / VM403-2 High-Flow Multi-Stage Vacuum Generators

VM403-1 / VM403-2 High-Flow Multi-Stage Vacuum Generators

VM403 series multi-stage pneumatic vacuum generators provide high-vacuum handling in single-tube and double-tube configurations for industrial automation equipment.

Model selection

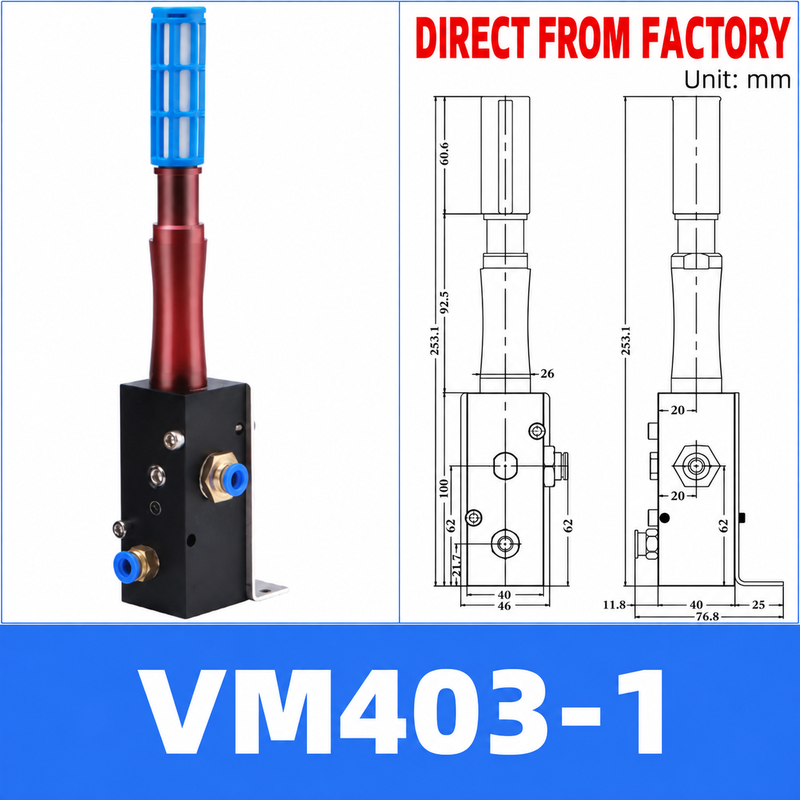

• VM403-1: single-tube configuration.

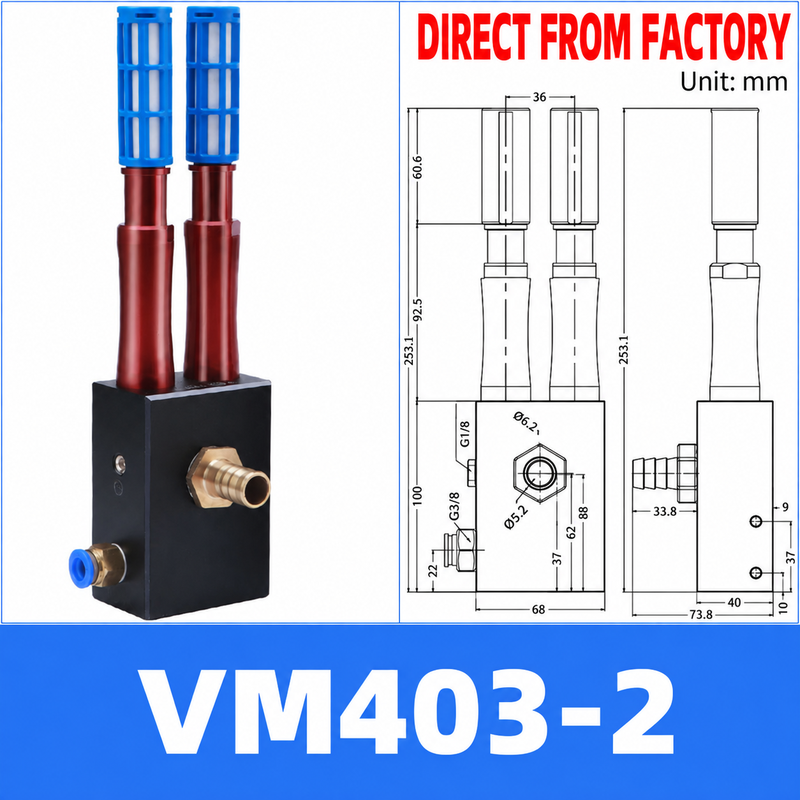

• VM403-2: double-tube configuration.
• Aluminum-alloy construction.
• Maximum vacuum: -88 kPa.
• Operating temperature range: -5 to 60 °C.

Ordering and installation

• Select the exact model shown in the selector and verify all illustrated dimensions and port sizes before ordering.
• Confirm compressed-air supply, tubing, mounting space, load, duty cycle and operating environment for the application.
• Include any application-specific requirements in the order requirements field.
