Samsung-Type SMT Vacuum Pickup Nozzles — Pin Lens, Open and Long Cups
Samsung-Type SMT Vacuum Pickup Nozzles
Spring-loaded vacuum pickup nozzles in three source configurations: pin-type lens cups, cup nozzles without an outer cover, and long-cup nozzles. Each selectable option is tied to its corresponding supplied product photograph. This listing contains only the 22 individually documented configurations.
Choose the Correct Configuration
- Pin-type lens cup: select the stated outer diameter and pickup-cup diameter. This is the pin-style interface, not the screw-style option.
- No-cover cup: the nominal cup diameter identifies an assembled nozzle without the external cup cover.

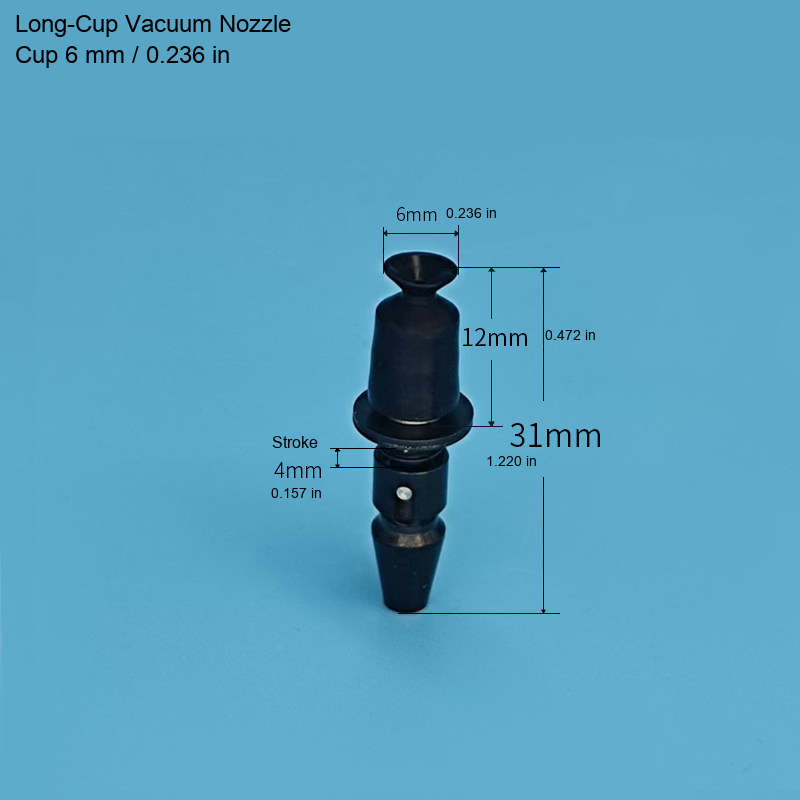

- Long cup: select by pickup-cup diameter; source dimension arrows also show the cup section and overall nozzle dimensions.
Available Models and Dimensions
| Configuration | Source SKU |
|---|---|
| Pin Lens — OD 7 / Cup 4 mm (0.276 / 0.157 in) | 5713565329114 |
| Pin Lens — OD 7 / Cup 5 mm (0.276 / 0.197 in) | 5108412941217 |
| Pin Lens — OD 10 / Cup 6 mm (0.394 / 0.236 in) | 4621174860898 |
| Pin Lens — OD 11 / Cup 8 mm (0.433 / 0.315 in) | 4621174860899 |
| Pin Lens — OD 13 / Cup 10 mm (0.512 / 0.394 in) | 4621174860900 |
| No-Cover Cup — 1.5 mm / 0.059 in | 5347410287510 |
| No-Cover Cup — 2 mm / 0.079 in | 5347410287511 |
| No-Cover Cup — 3 mm / 0.118 in | 5347410287512 |
| No-Cover Cup — 3.5 mm / 0.138 in | 5347410287513 |
| No-Cover Cup — 4 mm / 0.157 in | 5347410287514 |
| No-Cover Cup — 6 mm / 0.236 in | 5347410287516 |
| No-Cover Cup — 8 mm / 0.315 in | 5347410287517 |
| No-Cover Cup — 10 mm / 0.394 in | 5347410287518 |
| No-Cover Cup — 13 mm / 0.512 in | 5347410287519 |
| No-Cover Cup — 16 mm / 0.630 in | 5347410287520 |
| Long Cup — 2 mm / 0.079 in | 5713565329107 |
| Long Cup — 3 mm / 0.118 in | 5713565329108 |
| Long Cup — 4 mm / 0.157 in | 5713565329109 |
| Long Cup — 6 mm / 0.236 in | 5713565329110 |
| Long Cup — 8 mm / 0.315 in | 5713565329111 |
| Long Cup — 10 mm / 0.394 in | 5713565329112 |
| Long Cup — 12 mm / 0.472 in | 5713565329113 |
Dimension Reference
Original photographed products and dimension lines are retained. Millimeter values follow the supplied individual photographs; inch equivalents use 25.4 mm per inch and are rounded to three decimal places. Different configurations have different overall dimensions. Consult the selected model photograph rather than transferring dimensions from another model.
Material and Compatibility
The supplier identifies stainless steel as the main body material, without specifying a verified grade. Samsung-type is a supplier compatibility reference, not a claim of genuine OEM manufacture or universal fit. The source model reference is KR-XP5-wsz-001A. Confirm the machine interface, pin location, cup size, overall length, spring travel, working clearance and vacuum passage against your equipment before ordering.
Installation and Care
Isolate equipment before replacement and follow the machine manufacturer's installation procedure. Check secure mounting and free spring movement. Keep the cup contact face and vacuum passage clean; inspect for wear or blockage. Test pickup and release using the actual workpiece before production. No certified ESD rating, lifting capacity, pickup-success percentage or wear-life rating is provided in the source.
Supply Scope
The selected assembled nozzle configuration is supplied. Family photographs show multiple examples and do not indicate a multi-piece pack. Equipment, workpieces and separately selected accessories are not included. Screw-style lens nozzles, unspecified cores and generic-photo options are not offered in this listing.
Original Product Photographs and Individual Size Drawings
